Peugeot 207 CC 2007 Owner's Guide

i
30

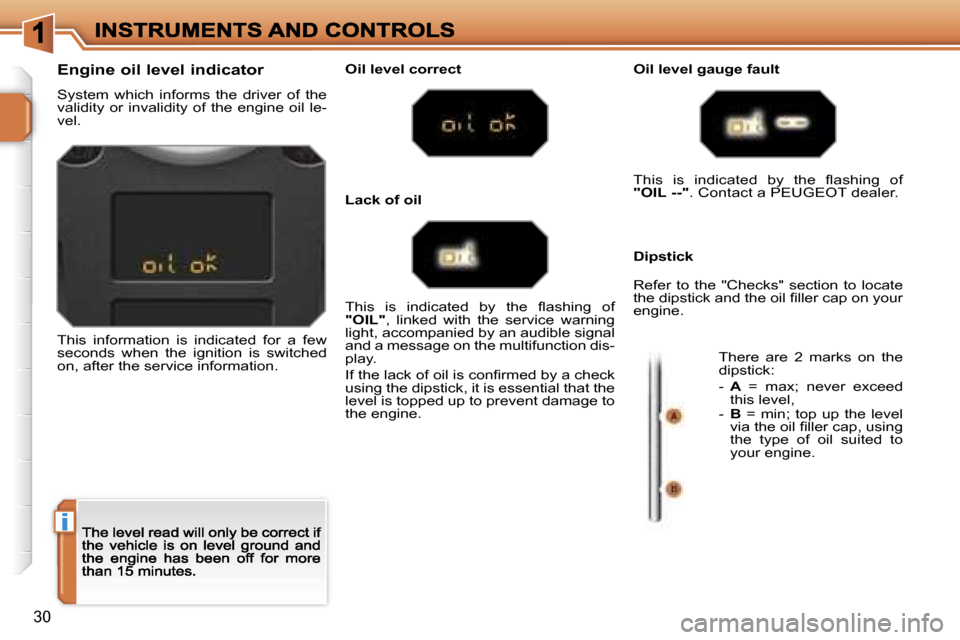

Engine oil level indicator
System which informs the driver of the validity or invalidity of the engine oil le-vel.
This information is indicated for a few seconds when the ignition is switched on, after the service information.
Oil level correct
Lack of oil
Oil level gauge fault
Dipstick
This is indicated by the flashing of "OIL", linked with the service warning light, accompanied by an audible signal and a message on the multifunction dis-play.
If the lack of oil is confirmed by a check using the dipstick, it is essential that the level is topped up to prevent damage to the engine.
This is indicated by the flashing of "OIL --". Contact a PEUGEOT dealer.
Refer to the "Checks" section to locate the dipstick and the oil filler cap on your engine.
There are 2 marks on the dipstick:
- A = max; never exceed this level,- B = min; top up the level via the oil filler cap, using the type of oil suited to your engine.

31

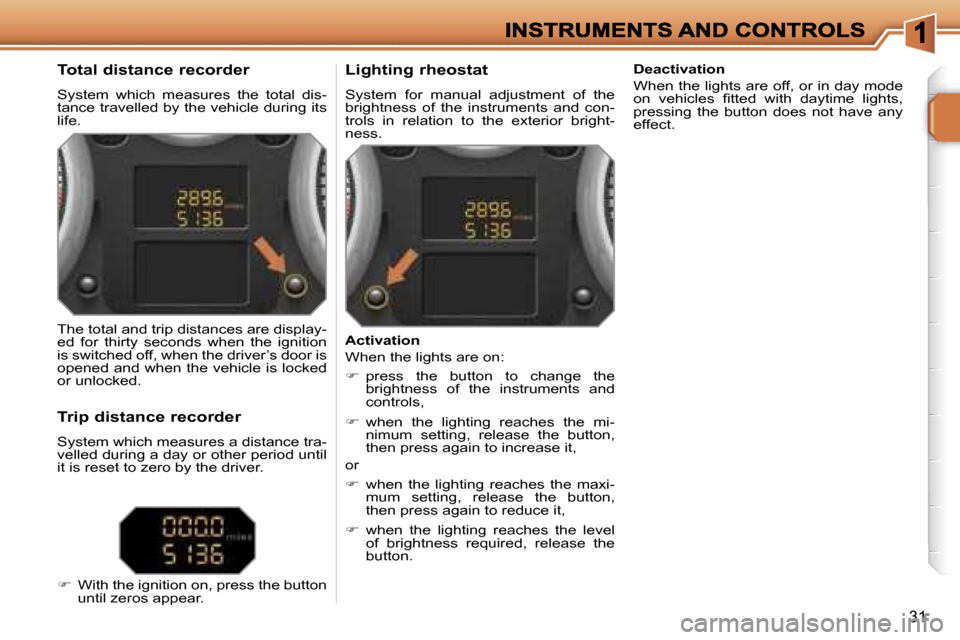

Total distance recorder
System which measures the total dis-tance travelled by the vehicle during its life.
Lighting rheostat
System for manual adjustment of the brightness of the instruments and con-trols in relation to the exterior bright-ness.
The total and trip distances are display-ed for thirty seconds when the ignition is switched off, when the driver’s door is opened and when the vehicle is locked or unlocked.
Trip distance recorder
System which measures a distance tra-velled during a day or other period until it is reset to zero by the driver.
 With the ignition on, press the button until zeros appear.
Activation
When the lights are on:
 press the button to change the brightness of the instruments and controls,
 when the lighting reaches the mi-nimum setting, release the button, then press again to increase it,
or
 when the lighting reaches the maxi-mum setting, release the button, then press again to reduce it,
 when the lighting reaches the level of brightness required, release the button.
Deactivation
When the lights are off, or in day mode on vehicles fitted with daytime lights, pressing the button does not have any effect.

32

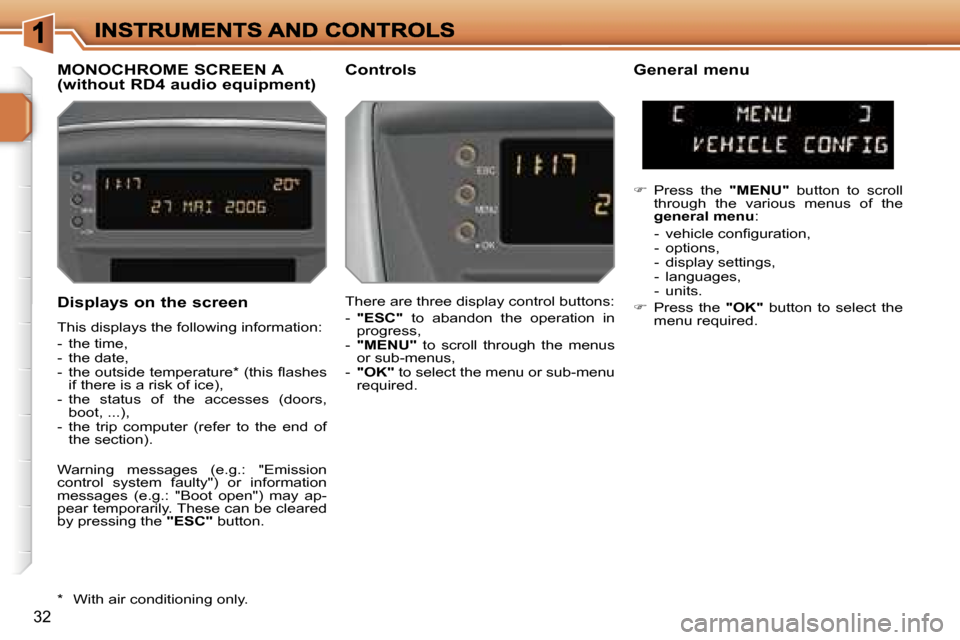

Displays on the screen
This displays the following information:
- the time,- the date,- the outside temperature* (this flashes if there is a risk of ice),- the status of the accesses (doors, boot, ...),- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.: "Boot open") may ap-pear temporarily. These can be cleared by pressing the "ESC" button.
MONOCHROME SCREEN A
(without RD4 audio equipment)Controls General menu
There are three display control buttons:
- "ESC" to abandon the operation in progress,- "MENU" to scroll through the menus or sub-menus,- "OK" to select the menu or sub-menu required.
 Press the "MENU" button to scroll through the various menus of the general menu:
- vehicle configuration,- options,- display settings,- languages,- units.
 Press the "OK" button to select the menu required.
* With air conditioning only.

!

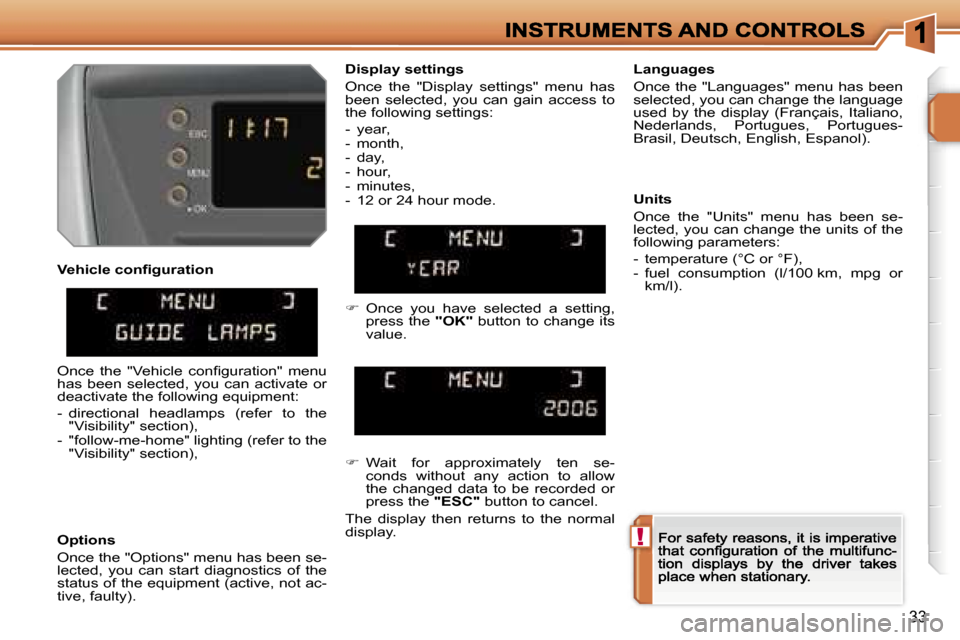

33
Vehicle configuration
Options
Once the "Options" menu has been se-lected, you can start diagnostics of the status of the equipment (active, not ac-tive, faulty).
Languages
Once the "Languages" menu has been selected, you can change the language used by the display (Français, Italiano, Nederlands, Portugues, Portugues-Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has been selected, you can gain access to the following settings:
- year,- month,- day,- hour,- minutes,- 12 or 24 hour mode.Units
Once the "Units" menu has been se-lected, you can change the units of the following parameters:
- temperature (°C or °F),- fuel consumption (l/100 km, mpg or km/l).
 Once you have selected a setting, press the "OK" button to change its value.
 Wait for approximately ten se-conds without any action to allow the changed data to be recorded or press the "ESC" button to cancel.
The display then returns to the normal display.
Once the "Vehicle configuration" menu has been selected, you can activate or deactivate the following equipment:
- directional headlamps (refer to the "Visibility" section),- "follow-me-home" lighting (refer to the "Visibility" section),

34

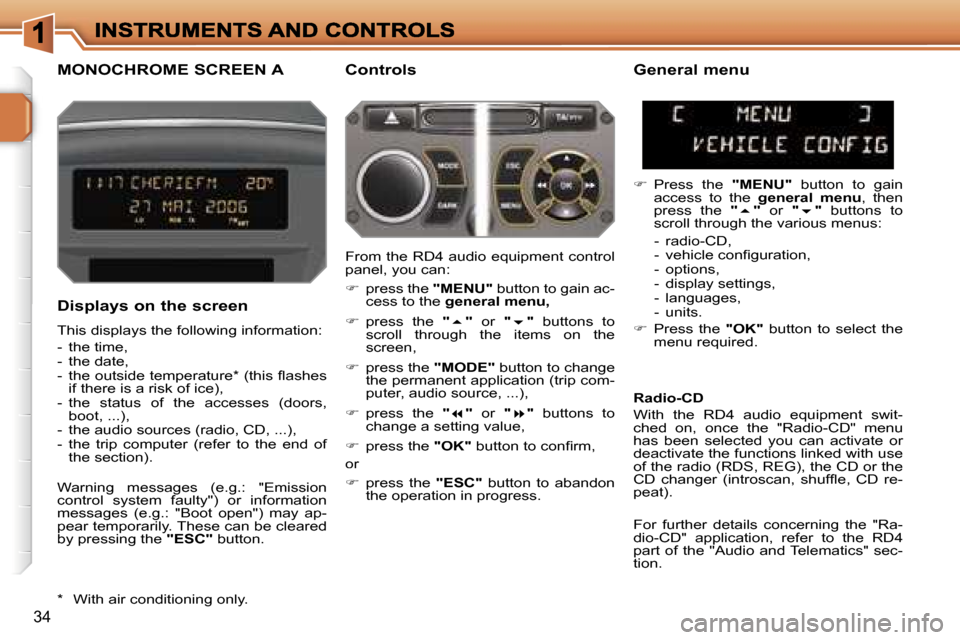

MONOCHROME SCREEN A Controls
Displays on the screen
This displays the following information:
- the time,- the date,- the outside temperature* (this flashes if there is a risk of ice),- the status of the accesses (doors, boot, ...),- the audio sources (radio, CD, ...),- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.: "Boot open") may ap-pear temporarily. These can be cleared by pressing the "ESC" button.
General menu
Press the "MENU" button to gain access to the general menu, then press the "" or "" buttons to scroll through the various menus:
- radio-CD,- vehicle configuration,- options,- display settings,- languages,- units.
 Press the "OK" button to select the menu required.
From the RD4 audio equipment control panel, you can:
 press the "MENU" button to gain ac-cess to the general menu,
 press the "" or "" buttons to scroll through the items on the screen,
 press the "MODE" button to change the permanent application (trip com-puter, audio source, ...),
 press the "" or "" buttons to change a setting value,
 press the "OK" button to confirm,
or
 press the "ESC" button to abandon the operation in progress.
Radio-CD
With the RD4 audio equipment swit-ched on, once the "Radio-CD" menu has been selected you can activate or deactivate the functions linked with use of the radio (RDS, REG), the CD or the CD changer (introscan, shuffle, CD re-peat).
For further details concerning the "Ra-dio-CD" application, refer to the RD4 part of the "Audio and Telematics" sec-tion.
* With air conditioning only.

!
35

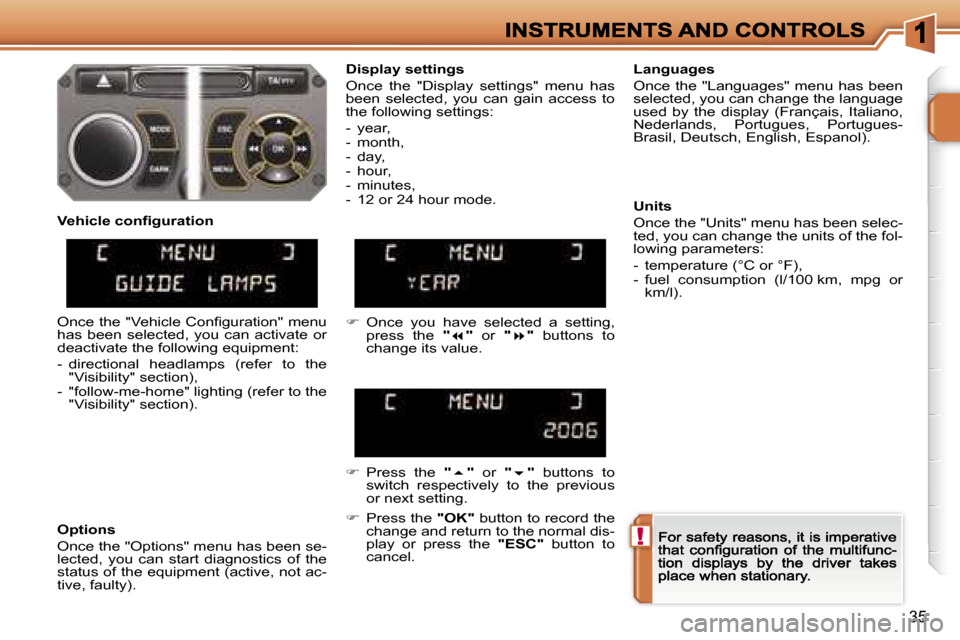

Display settings
Once the "Display settings" menu has been selected, you can gain access to the following settings:
- year,- month,- day,- hour,- minutes,- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been selected, you can change the language used by the display (Français, Italiano, Nederlands, Portugues, Portugues-Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been selec-ted, you can change the units of the fol-lowing parameters:
- temperature (°C or °F),- fuel consumption (l/100 km, mpg or km/l).
 Once you have selected a setting, press the "" or "" buttons to change its value.
 Press the "" or "" buttons to switch respectively to the previous or next setting.
 Press the "OK" button to record the change and return to the normal dis-play or press the "ESC" button to cancel.
Vehicle configuration
Options
Once the "Options" menu has been se-lected, you can start diagnostics of the status of the equipment (active, not ac-tive, faulty).
Once the "Vehicle Configuration" menu has been selected, you can activate or deactivate the following equipment:
- directional headlamps (refer to the "Visibility" section),- "follow-me-home" lighting (refer to the "Visibility" section).

36

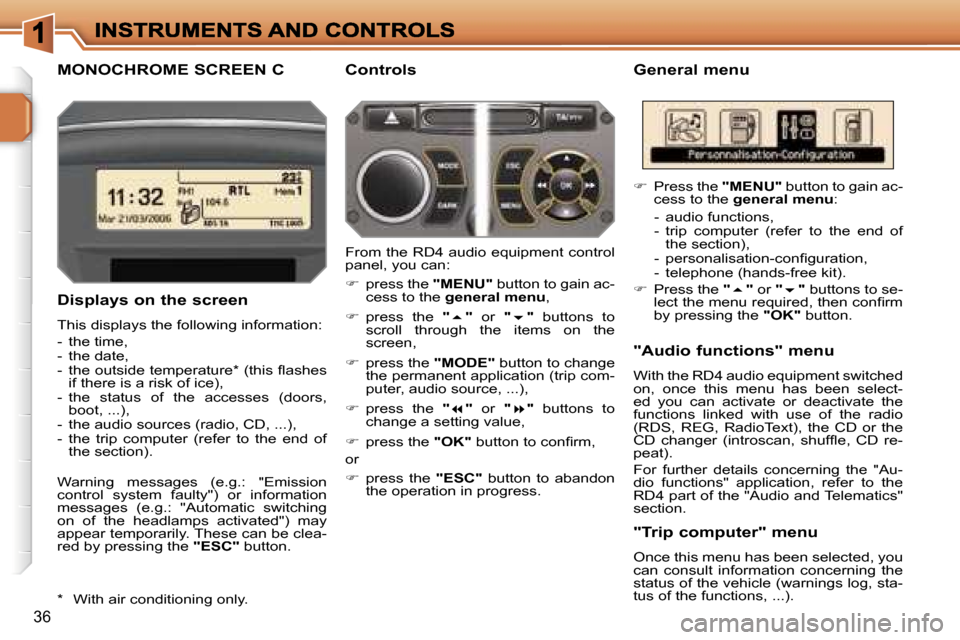

MONOCHROME SCREEN CGeneral menu
Displays on the screen
This displays the following information:
- the time,- the date,- the outside temperature* (this flashes if there is a risk of ice),- the status of the accesses (doors, boot, ...),- the audio sources (radio, CD, ...),- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.: "Automatic switching on of the headlamps activated") may appear temporarily. These can be clea-red by pressing the "ESC" button.
"Audio functions" menu
With the RD4 audio equipment switched on, once this menu has been select-ed you can activate or deactivate the functions linked with use of the radio (RDS, REG, RadioText), the CD or the CD changer (introscan, shuffle, CD re-peat).
For further details concerning the "Au-dio functions" application, refer to the RD4 part of the "Audio and Telematics" section.
Controls
From the RD4 audio equipment control panel, you can:
 press the "MENU" button to gain ac-cess to the general menu,
 press the "" or "" buttons to scroll through the items on the screen,
 press the "MODE" button to change the permanent application (trip com-puter, audio source, ...),
 press the "" or "" buttons to change a setting value,
 press the "OK" button to confirm,
or
 press the "ESC" button to abandon the operation in progress.
Press the "MENU" button to gain ac-cess to the general menu:
- audio functions,- trip computer (refer to the end of the section),- personalisation-configuration,- telephone (hands-free kit).
 Press the "" or "" buttons to se-lect the menu required, then confirm by pressing the "OK" button.
* With air conditioning only.
"Trip computer" menu
Once this menu has been selected, you can consult information concerning the status of the vehicle (warnings log, sta-tus of the functions, ...).

!
37

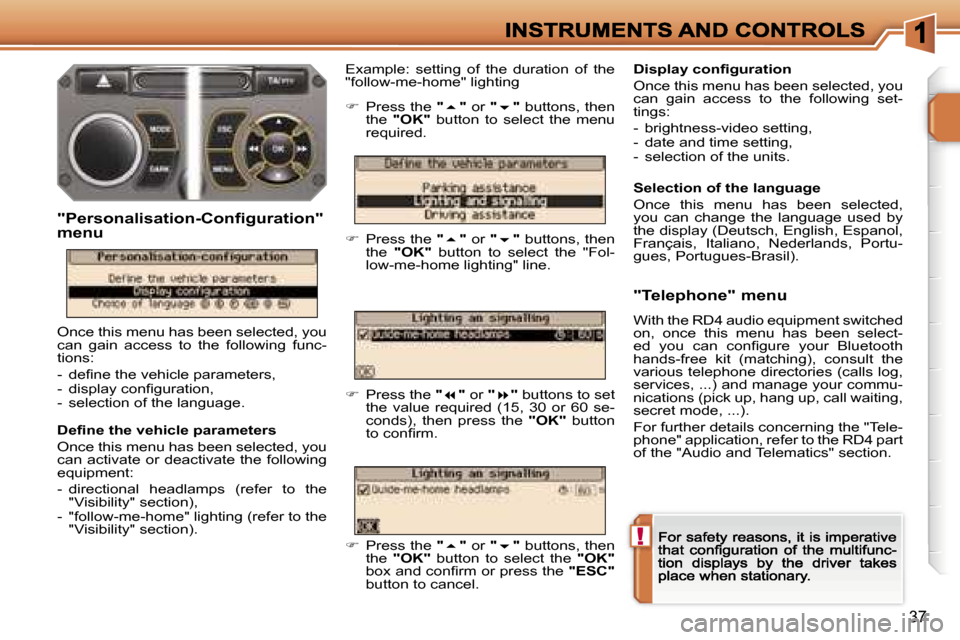

Define the vehicle parameters
Once this menu has been selected, you can activate or deactivate the following equipment:
- directional headlamps (refer to the "Visibility" section),- "follow-me-home" lighting (refer to the "Visibility" section).
"Telephone" menu
With the RD4 audio equipment switched on, once this menu has been select-ed you can configure your Bluetooth hands-free kit (matching), consult the various telephone directories (calls log, services, ...) and manage your commu-nications (pick up, hang up, call waiting, secret mode, ...).
For further details concerning the "Tele-phone" application, refer to the RD4 part of the "Audio and Telematics" section.
Display configuration
Once this menu has been selected, you can gain access to the following set-tings:
- brightness-video setting,- date and time setting,- selection of the units.
Selection of the language
Once this menu has been selected, you can change the language used by the display (Deutsch, English, Espanol, Français, Italiano, Nederlands, Portu-gues, Portugues-Brasil).
Example: setting of the duration of the "follow-me-home" lighting
"Personalisation-Configuration"
menu
Once this menu has been selected, you can gain access to the following func-tions:
- define the vehicle parameters,- display configuration,- selection of the language.
 Press the "" or "" buttons, then the "OK" button to select the menu required.
 Press the "" or "" buttons, then the "OK" button to select the "Fol-low-me-home lighting" line.
 Press the "" or "" buttons to set the value required (15, 30 or 60 se-conds), then press the "OK" button to confirm.
 Press the "" or "" buttons, then the "OK" button to select the "OK" box and confirm or press the "ESC" button to cancel.

38

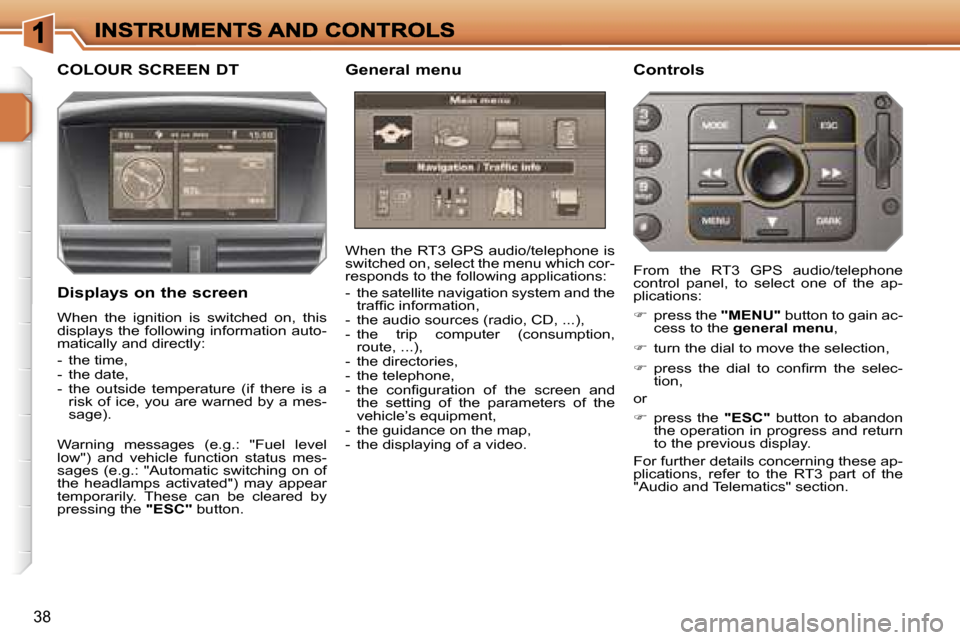

COLOUR SCREEN DT General menu Controls
When the RT3 GPS audio/telephone is switched on, select the menu which cor-responds to the following applications:
- the satellite navigation system and the traffic information,- the audio sources (radio, CD, ...),- the trip computer (consumption, route, ...),- the directories,- the telephone,- the configuration of the screen and the setting of the parameters of the vehicle’s equipment,- the guidance on the map,- the displaying of a video.
From the RT3 GPS audio/telephone control panel, to select one of the ap-plications:
 press the "MENU" button to gain ac-cess to the general menu,
 turn the dial to move the selection,
 press the dial to confirm the selec-tion,
or
 press the "ESC" button to abandon the operation in progress and return to the previous display.
For further details concerning these ap-plications, refer to the RT3 part of the "Audio and Telematics" section.
Displays on the screen
When the ignition is switched on, this displays the following information auto-matically and directly:
- the time,- the date,- the outside temperature (if there is a risk of ice, you are warned by a mes-sage).
Warning messages (e.g.: "Fuel level low") and vehicle function status mes-sages (e.g.: "Automatic switching on of the headlamps activated") may appear temporarily. These can be cleared by pressing the "ESC" button.

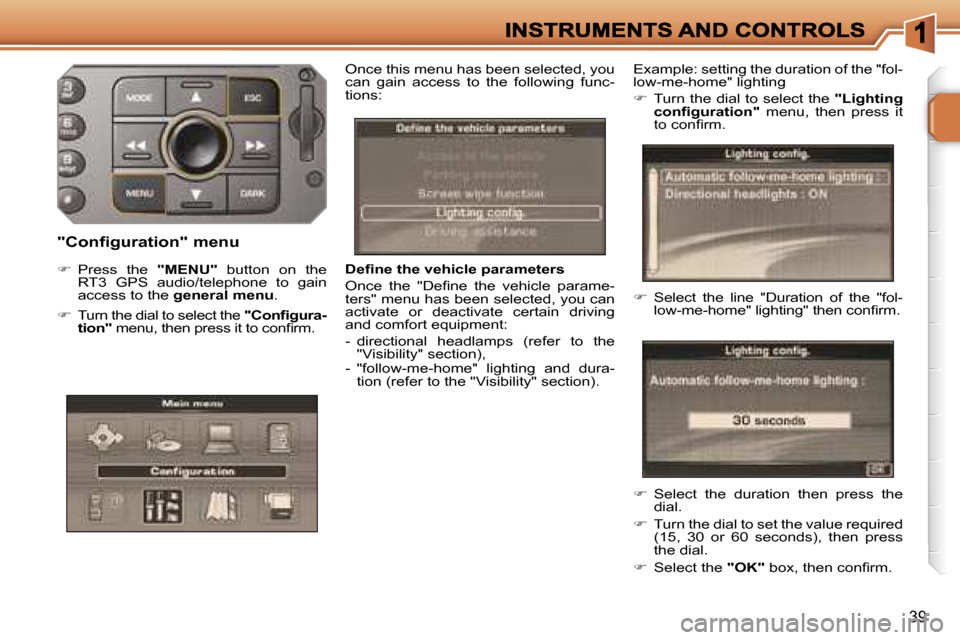

39
Define the vehicle parameters
Once the "Define the vehicle parame-ters" menu has been selected, you can activate or deactivate certain driving and comfort equipment:
- directional headlamps (refer to the "Visibility" section),- "follow-me-home" lighting and dura-tion (refer to the "Visibility" section).
Example: setting the duration of the "fol-low-me-home" lighting
 Turn the dial to select the "Lighting configuration" menu, then press it to confirm.
 Select the line "Duration of the "fol-low-me-home" lighting" then confirm.
"Configuration" menu
Press the "MENU" button on the RT3 GPS audio/telephone to gain access to the general menu.
 Turn the dial to select the "Configura-tion" menu, then press it to confirm.
Once this menu has been selected, you can gain access to the following func-tions:
 Select the duration then press the dial.
 Turn the dial to set the value required (15, 30 or 60 seconds), then press the dial.
 Select the "OK" box, then confirm.
