ECO mode Peugeot 207 CC 2010 Owner's Manual

!
INSTRUMENTS and CONTROLS
19
Indicator and warning lamps
Visual indicators informing the driver that a system is in operation (operation or
deactivation indicator lamps) or of the occurrence of a fault (wa rning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehi cle's ignition is
switched on.
When the engine is started, these same warning lamps should switch off.
If they remain on, before moving off, refer to the informati on on the warning lamp
concerned.
Associated warnings
The switching on of certain warning lamps may be accompanied b y an audible
signal and a message on the multifunction screen. The warning lamps may come on
continuously (fi xed) or fl ash.
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situa-
tion is normal or whether a fault has
occurred.
Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding
system has come into operation.

Warning lamp is on Cause Action/Observations

Left-hand
direction
indicato
r fl ashing with
buzzer. The lighting stalk is pushed
down.

Right-hand
direction
indicator fl ashing with
buzzer. The lighting stalk is pushed
up.

Dipped beam
headlamps fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position. Turn the control to the desired position.

Main beam
headlamps fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.

!
INSTRUMENTS and CONTROLS
32
Vehicle confi guration
Options
Once the "Options" menu has been select-
ed, you can start diagnostics of the status of
the equipment (active, not active, faulty). Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,
press the "OK" button to change its
value.

 Wait for approximately ten seconds
without any action to allow the changed
data to be recorded or press the "ESC"
button to cancel.
The screen then returns to the normal
display.
Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- directional headlamps (refer to the
"Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section),
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.

!
INSTRUMENTS and CONTROLS
34
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Deutsch, English, Espanol).
Units
Once the "Units" menu has been selected,
you can change the units of the following
parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,
press the "  " or "  " buttons to
change its value.

 Press the "  " or "  " buttons to
switch respectively to the previous
or next setting.

 Press the "OK" button to record
the change and return to the normal
display or press the "ESC" button to
cancel.
Vehicle confi guration
Options
Once the "Options" menu has been select-
ed, you can start diagnostics of the status of
the equipment (active, not active, faulty).
Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- directional headlamps (refer to the
"Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).

i
i
COMFORT
48
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will only reach its opti-
mum level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, the side windows and the
footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to alter the value
displayed in order to obtain the re-
quired level of comfort. The system
corrects the temperature differ-
ence automatically and as quickly
as possible.

The air conditioning can only operate
with the engine running.

The driver and his front passen-
ger can each set the temperature
to suit their requirements.

 Turn dial 2 or 3 to the left to reduce
the value or to the right to increase it.
A setting around 21 enables you to ob-
tain an optimum level of comfort. De-
pending on your requirements, a setting
between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left/right setting difference of
more than 3.
4. Automatic visibility programme The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice...).

 In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation

 Press the "AUTO" button.
The "AUTO" symbol is
displayed. 2. Driver's side adjustment DUAL-ZONE DIGITAL AIR CONDITIONING
We recommend that you use this mode:
it provides optimised automatic control of
all of the functions, passenger compart-
ment temperature, air fl ow, air distribu-
tion and air recirculation, in accordance
with the comfort value that you have se-
lected.
This system is designed to operate ef-
fectively in all seasons, with the win-
dows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
1. Automatic comfort programme
3. Passenger's side adjustment

!
i
ACCESS
69
WINDOW CONTROLS
System which opens or closes a window
manually or automatically. It is fi tted with
a system which controls all four windows
on all models.

1. Driver's electric windows switch.

2.
Passenger's electric windows switch.
Each window switch controls, on its
own side, the front window and the rear
quarter light. One-touch electric windows
You have two options:
The windows (except the driver’s
window) do not have an automatic
mode or safety anti-pinch function
for closing.
For your safety, the windows rise
in several stages; however, always
be vigilant.
The window control switches re-
main operational for approximate-
ly 45 seconds after the ignition
is switched off or until a door is
opened.

 Press or pull switch 1 . The
window stops as soon as the
switch is released.
The rear quarter light only opens once the
front window has opened completely.
Electric windows
- manual mode

 Press or pull switch 1 gently. The
window stops as soon as the switch
is released.
The rear quarter light only opens once the
front window has opened completely.
- automatic mode

 Press switch 1 fully. The window
opens or closes completely when
the switch is released.

 Pressing the switch again stops the
movement of the window.

 If you continue to press the switch,
the rear quarter light will open or
close.

i

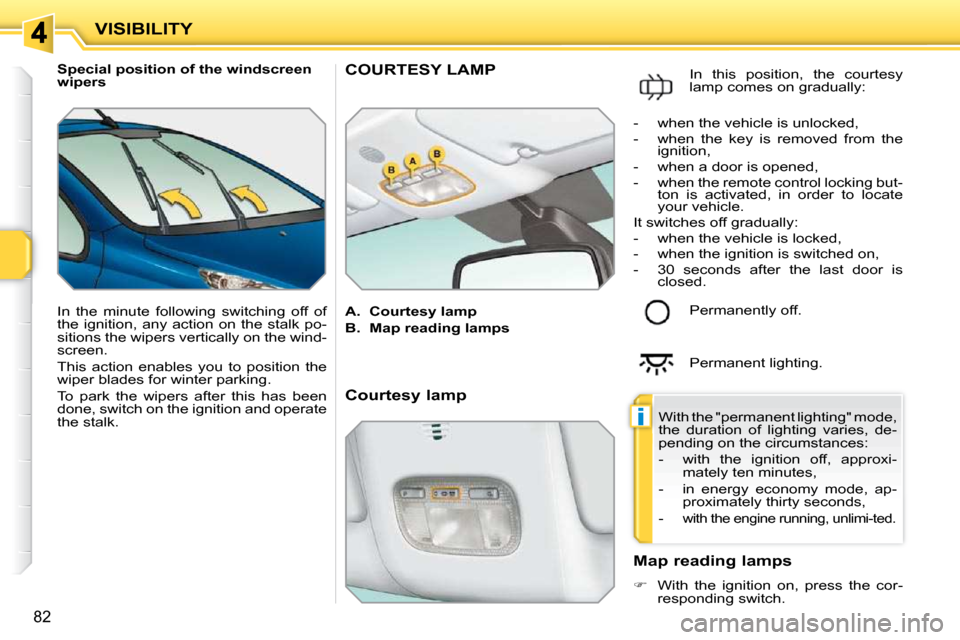

VISIBILITY
82
Special position of the windscreen
wipers
In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers vertically on the wind-
screen.
This action enables you to position the
wiper blades for winter parking.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. COURTESY LAMP

A. Courtesy lamp

B. Map reading lamps In this position, the courtesy
lamp comes on gradually:
Map reading lamps

 With the ignition on, press the cor-
responding switch. With the "permanent lighting" mode,
the duration of lighting varies, de-
pending on the circumstances:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimi-ted.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when a door is opened,
- when the remote control locking but- ton is activated, in order to locate
your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
Courtesy lamp

i
VISIBILITY
82
Special position of the windscreen
wipers
In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers vertically on the wind-
screen.
This action enables you to position the
wiper blades for winter parking.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. COURTESY LAMP

A. Courtesy lamp

B. Map reading lamps In this position, the courtesy
lamp comes on gradually:
Map reading lamps

 With the ignition on, press the cor-
responding switch. With the "permanent lighting" mode,
the duration of lighting varies, de-
pending on the circumstances:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimi-ted.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when a door is opened,
- when the remote control locking but- ton is activated, in order to locate
your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
Courtesy lamp

!
DRIVING
103
* According to engine.
GEAR SHIFT INDICATOR *
System which reduces fuel consumption
by advising the driver to change up on
vehicles fi tted with a manual gearbox.
Operation
The system intervenes only when driv-
ing economically.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear engagement recommenda-
tions must not be considered compulso-
ry. In fact, the confi guration of the road,
the amount of traffi c and safety remain
determining factors when choosing the
best gear. Therefore, the driver remains
responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated. Example:
- You are in third gear.
- You press the accelerator pedal
moderately.
- The system may suggest that you engage a higher gear, if appropriate.
The information appears in the form
of an arrow on the instrument panel
screen.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear. In the case of driving which makes
particular demands on the perfor-
mance of the engine (fi rm pres-
sure on the accelerator pedal, for
example, when overtaking...), the
system will not recommend a gear
change.
The system never suggests:
- engaging fi rst gear,
- engaging reverse gear,
- engaging a lower gear.

i
DRIVING
109
CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h), as well as
the engaging:
-
of fourth gear on the manual gearbox,
- of second gear on the automatic gearbox, in sequential mode,
-
of position D on the automatic gearbox.
The cruise control is switched off man-
ually or by pressing the brake or clutch
pedal or on triggering of the ESP sys-
tem for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value. The controls of this system are grouped
together on stalk
A .

1. Cruise control mode selection dial

2. Value decrease button

3. Value increase button

4. Cruise control off/resume button The programmed information is grouped
together on the instrument panel screen.

5. Cruise control off/resume indication

6. Cruise control mode selection
indication

7. Programmed speed value
Steering mounted controls Displays on the instrumen
t panel
The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
You are advised to keep your feet
near the pedals at all times.

!
i
PRACTICAL INFORMATION
138
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
If a roof operation is in progress,
it will be completed, but no further
operation is possible.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamp, etc.
for a maximum combined duration of
thirty minutes.
Exiting economy mode
These functions are reactivated auto-
matically next time the vehicle is driven.

 In order to resume the use of these
functions immediately, start the
engine and let it run for a few minutes.
The time available to you will then be
double the duration for which the engine
is left running. However, this period will al-
ways be between fi ve and thirty minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removing a front wiper blade

 Raise the corresponding wiper arm.

 Unclip the wiper blade and remove it.
Fitting a front wiper blade

 Check the size of the wiper blade
as the shorter blade is fi tted on the
right-hand side of the vehicle.

 Put the corresponding new wiper
blade in place and clip it.

 Fold down the wiper arm carefully.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
