INSTRUMENTS and CONTROLS
18
PETROL - DIESEL, MANUAL OR AUTOMATIC GEARBOX,
INSTRUMENT PANELS
Panel which groups together the vehicle
operation dials and indicator lamps.
5. Screen.

6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or service in-
dicator).

7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.

8. Automatic gearbox.
Indicates the programme selected and the gear engaged.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Fuel gauge.
Indicates the quantity of fuel remain- ing in the tank.

3. Coolant temperature.
Indicates the temperature of the en- gine coolant (°Celsius).

4. Speedometer.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Speed limiter
or
Cruise control.
(mph or km/h)

B. Trip distance recorder.
(miles or km/h)

C. Service indicator.
(miles or km/h) then,
Engine oil level indicator.
then
Distance recorder.
(km or miles)
These three functions are displayed in succession when the ignition is
switched on.
For more information, refer to the section
which corresponds to the function and to
the display associated with it.
Screen

!
119

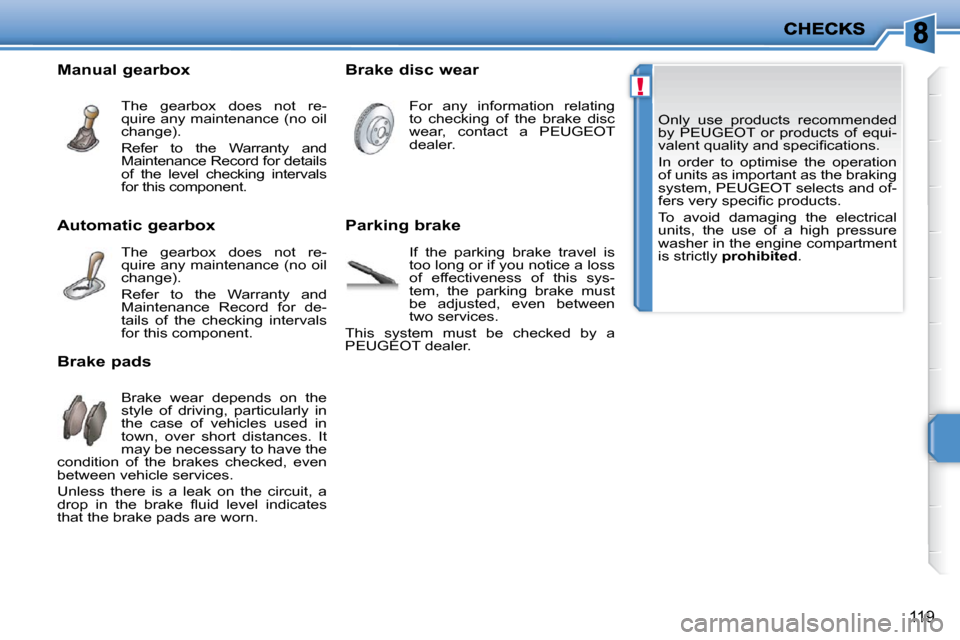

Only use products recommended
by PEUGEOT or products of equi-
valent quality and specifi cations.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and of-
fers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Automatic gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for de-
tails of the checking intervals
for this component. Brake disc wear
For any information relating
to checking of the brake disc
wear, contact a PEUGEOT
dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for details
of the level checking intervals
for this component.
Brake pads Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn. Parking brake
If the parking brake travel is
too long or if you notice a loss
of effectiveness of this sys-
tem, the parking brake must
be adjusted, even between
two services.
This system must be checked by a
PEUGEOT dealer.

10TECHNICAL DATA
143

MODELS:
ENGINES AND GEARBOXES

PETROL ENGINES 1.6 litre VTi 16V 120 hp 1.6 litre THP 16V 150 hp
Cubic capacity (cc) 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 88 115
Max power engine speed (rpm) 5 750 5 800
Max torque: EU standard (Nm) 160 240
Max torque engine speed (rpm) 4 250 1 400
Fuel Unleaded Unleaded
Catalytic converter Yes Yes

GEARBOXES Manual
(5-speed) Automatic
(4-speed) Manual
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 4.25 4.25 4.25
Gearbox - Final drive 1.9 - 1.9

10TECHNICAL DATA
145

MODELS:
ENGINES AND GEARBOXES

DIESEL ENGINE
1.6 litre Turbo HDI 110 hp
Cubic capacity (cc) 1 560
Bore x stroke (mm) 75 x 88.3
Max power: EU standard (kW) 80
Max power engine speed (rpm) 4 000
Max torque: EU standard (Nm) 240
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
Particle emission fi lter Yes

GEARBOX Manual (6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 3.75
Gearbox - Final drive 1.9
