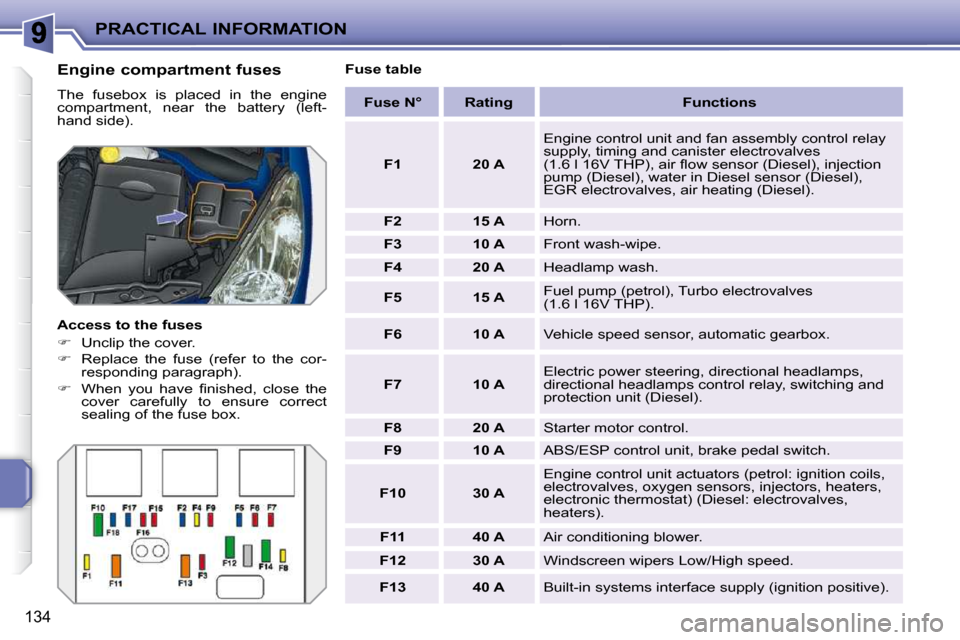

PRACTICAL INFORMATION
134
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment, near the battery (left-
h a n d s i d e ) .
Access to the fuses
Unclip the cover.
Replace the fuse (refer to the cor-
r e s p o n d i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure correct
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister electrovalves
( 1 . 6 l 1 6 V T H P ) , a i r fl o w s e n s o r ( D i e s e l ) , i n j e c t i o n
p u m p ( D i e s e l ) , w a t e r i n D i e s e l s e n s o r ( D i e s e l ) ,
E G R e l e c t r o v a l v e s , a i r h e a t i n g ( D i e s e l ) .
F2 15 A Horn.
F3 10 A Front wash-wipe.
F4 20 A Headlamp wash.
F5 15 A F u e l p u m p ( p e t r o l ) , T u r b o e l e c t r o v a l v e s
( 1 . 6 l 1 6 V T H P ) .
F6 10 A V e h i c l e s p e e d s e n s o r , a u t o m a t i c g e a r b o x .
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
p r o t e c t i o n u n i t ( D i e s e l ) .
F8 20 A Starter motor control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
e l e c t r o n i c t h e r m o s t a t ) ( D i e s e l : e l e c t r o v a l v e s ,
h e a t e r s ) .
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
