Page 2 of 207
ii
FAMILIARISATION
Remote control key
A. U n f o l d i n g / F o l d i n g t h e k e y .
B. U n l o c k i n g t h e v e h i c l e .
C. U n l o c k i n g a n d p a r t i a l l y o p e n i n g t h e
boot.
63
Also...
D. Normal locking
or
D e a d l o c k i n g t h e v e h i c l e . Fuel tank
1. O p e n i n g t h e f u e l fi l l e r fl a p .
2. O p e n i n g a n d h o o k i n g t h e f u e l fi l l e r
cap.
C a p a c i t y o f t h e t a n k : a p p r o x i m a t e l y
50 litres (petrol) or 48 litres (Diesel).
75
Boot
From outside
From inside
1. U n l o c k i n g t h e v e h i c l e o r u n l o c k i n g
the boot.
2. Opening the tailgate.
1. K e y i n t h e i g n i t i o n s w i t c h .
2. U n l o c k i n g u s i n g t h e m a n u a l c e n -
t r a l i s e d c o n t r o l o r t h e d o o r o p e n i n g
control.
74 O n D i e s e l v e h i c l e s , t h e f u e l t a n k
opening incorporates a misfuel
p r e v e n t i o n d e v i c e w h i c h p r e v e n t s
fi l l i n g w i t h p e t r o l .
76
Page 19 of 207
!
INSTRUMENTS and CONTROLS
22
Warning lamps
When the engine is running or the vehicle is
being driven, the switching on of one of the fol-
lowing warning lamps indicates a fault which
requires action on the part of the driver. Any fault resulting in the switching on of a warning lamp must be investigated
further by reading the associated message on the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer.
Warning lamp is on Cause Action/Observations
STOP
fi x e d , a s s o c i a t e d
with another
warning lamp and accompanied by
an audible signal. It is associated with the
braking system or the
engine coolant temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer.
Service temporarily.
A minor fault has occurred
for which there is no
s p e c i fi c w a r n i n g l a m p . Identify the fault by reading the message shown
on the screen, such as, for example:
- the engine oil level,
- the screenwash level,
- the remote control battery,
- s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r
(Diesel).
For any other faults, contact a PEUGEOT dealer.
fi x e d . A major fault has occurred
f o r w h i c h t h e r e i s n o s p e c i fi c
warning lamp. Identify the fault by reading the message shown
on the screen and contact a PEUGEOT dealer.
Braking fi x e d .
The braking system
fl u i d l e v e l h a s d r o p p e d
s i g n i fi c a n t l y . T o p u p w i t h b r a k e fl u i d r e c o m m e n d e d b y
PEUGEOT.
If the problem persists, have the system checked
by a PEUGEOT dealer.
+
fi x e d , a s s o c i a t e d with the ABS
warning lamp. The electronic brake force
distribution (EBFD) system
has a fault. Have it checked by a PEUGEOT dealer.
Page 55 of 207
i
!
COMFORT
53
MIRRORS
Door mirrors
Adjustable mirror permitting the lateral
rearward vision necessary when over-
taking or parking. A d j u s t m e n t
Slide switch A to the right or to the
left to select the corresponding mirror.
Move knob B in all four directions to
adjust.
Return switch A to the centre position.
The folding and unfolding of the
door mirrors can be deactivated by
a PEUGEOT dealer.
Folding
From outside: lock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
switch A rearwards.
Unfolding
From outside: unlock the vehicle using
the remote control or the key.
From inside: with the ignition on, pull
switch A rearwards. The objects observed are, in real-
ity, closer than they appear.
Take this into account to correctly
judge the distance of vehicles ap-
proaching from behind.
Page 66 of 207
!
i
ACCESS
63
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual cen-
tralised control button.
Therefore, do not leave anyone
inside the vehicle when it is dead-
locked.
If one of the doors or the boot is still
open, the central locking does not
take place.
REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the lock
or remotely. It also locates and starts
the vehicle, as well as providing protec-
tion against theft.
Unfolding the key
First press button A to unfold the
key.
Unlocking the vehicle U n l o c k i n g i s c o n fi r m e d b y r a p i d fl a s h i n g
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Locking the vehicle
Deadlocking using the remote
control
Press the closed padlock to lock the
vehicle.
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k t h e
vehicle.
Press the open padlock to
unlock the vehicle.
Unlocking using the key
Turn the key to the left in the driver's
door lock to unlock the vehicle.
Press the closed padlock
to lock the vehicle.
Normal locking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g o f
the direction indicators for approximate-
ly two seconds.
According to version, the door mirrors
fold at the same time.
Unlocking using the remote control Deadlocking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle.
Turn the key to the right again within
fi v e s e c o n d s t o d e a d l o c k t h e v e h i c l e .
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.
Normal locking using the remote
control
Page 67 of 207
i
ACCESS
64
The vehicle will relock automati-
cally after thirty seconds unless
a door is opened. This system
prevents unintentional unlocking.
The folding and unfolding of the
door mirrors can be deactivated by
a PEUGEOT dealer.
Folding the key
First press button A to fold the key. Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Press the boot unlocking but-
ton on the remote control for
more than 2 seconds. The
boot opens slightly.
Unlocking and partially opening
the boot
Page 68 of 207
i
ACCESS
65
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the dash-
board to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a t i o n .
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control.
This replacement battery is available
from PEUGEOT dealers.
I f t h e b a t t e r y i s fl a t , y o u a r e i n -
formed by lighting of this warning
lamp, an audible signal and a mes-
sage on the multifunction screen.
Key in ignition
If the key has been left in the igni-
tion, an audible signal is heard on
opening the driver's door.
Page 69 of 207
!
ACCESS
66
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The PEUGEOT dealer will be able to retrieve the ke y code and the transponder
code required to order a replacement key. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Page 70 of 207
i
ACCESS
64
The vehicle will relock automati-
cally after thirty seconds unless
a door is opened. This system
prevents unintentional unlocking.
The folding and unfolding of the
door mirrors can be deactivated by
a PEUGEOT dealer.
Folding the key
First press button A to fold the key. Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Press the boot unlocking but-
ton on the remote control for
more than 2 seconds. The
boot opens slightly.
Unlocking and partially opening
the boot
Page 71 of 207
i
ACCESS
65
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the dash-
board to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a t i o n .
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control.
This replacement battery is available
from PEUGEOT dealers.
I f t h e b a t t e r y i s fl a t , y o u a r e i n -
formed by lighting of this warning
lamp, an audible signal and a mes-
sage on the multifunction screen.
Key in ignition
If the key has been left in the igni-
tion, an audible signal is heard on
opening the driver's door.
Page 72 of 207
!
i
ACCESS
67

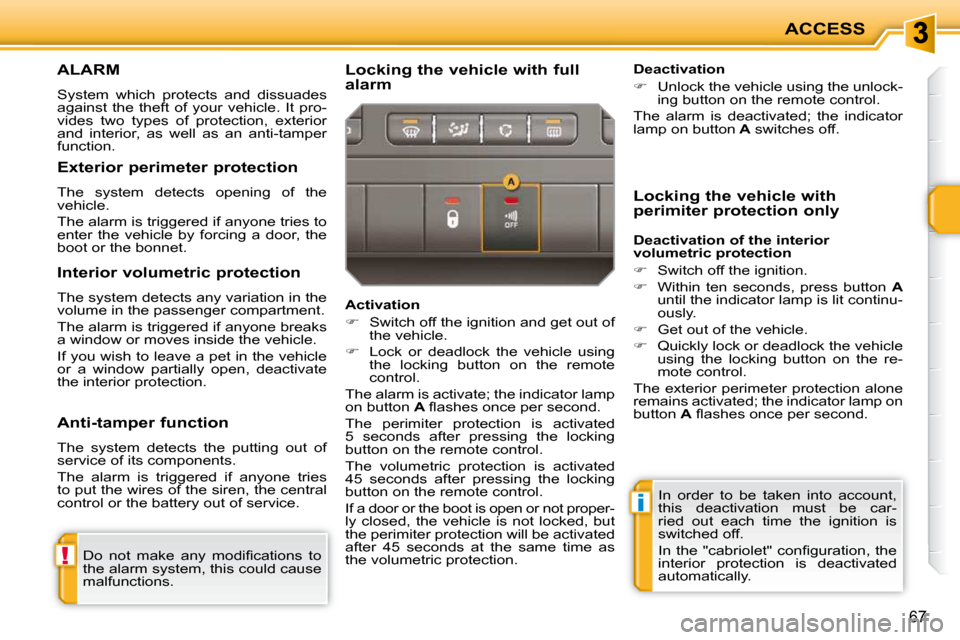

ALARM
System which protects and dissuades
against the theft of your vehicle. It pro-
vides two types of protection, exterior
and interior, as well as an anti-tamper
function. Locking the vehicle with full
alarm
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. In order to be taken into account,
this deactivation must be car-
ried out each time the ignition is
switched off.
I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , t h e
interior protection is deactivated
automatically.
Locking the vehicle with
perimiter protection only
Activation
Switch off the ignition and get out of
the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activate; the indicator lamp
on button A fl a s h e s o n c e p e r s e c o n d .
The perimiter protection is activated
5 seconds after pressing the locking
button on the remote control.
The volumetric protection is activated
45 seconds after pressing the locking
button on the remote control.
If a door or the boot is open or not proper-
ly closed, the vehicle is not locked, but
the perimiter protection will be activated
after 45 seconds at the same time as
the volumetric protection.
Exterior perimeter protection
The system detects opening of the
vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service. Deactivation
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
lamp on button A switches off.
Deactivation of the interior
volumetric protection
Switch off the ignition.
Within ten seconds, press button A
until the indicator lamp is lit continu-
ously.
Get out of the vehicle.
Quickly lock or deadlock the vehicle
using the locking button on the re-
mote control.
The exterior perimeter protection alone
remains activated; the indicator lamp on
button A fl a s h e s o n c e p e r s e c o n d .
