Peugeot 207 CC Dag 2007 Repair Manual

i

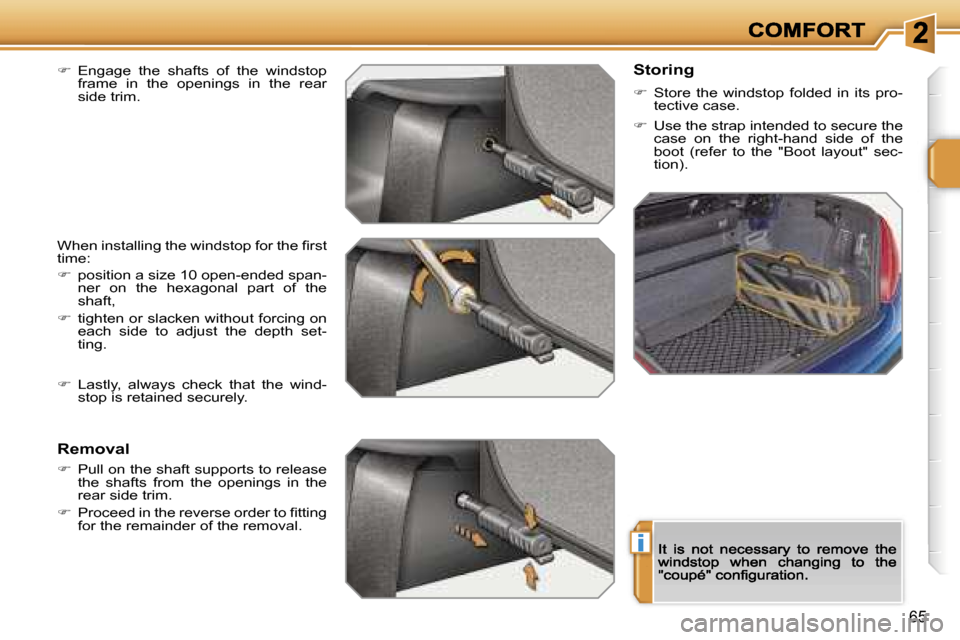

65
 Engage the shafts of the windstop frame in the openings in the rear side trim.
When installing the windstop for the first time:
 position a size 10 open-ended span-ner on the hexagonal part of the shaft,
 tighten or slacken without forcing on each side to adjust the depth set-ting.
 Lastly, always check that the wind-stop is retained securely.
Removal
 Pull on the shaft supports to release the shafts from the openings in the rear side trim.
 Proceed in the reverse order to fitting for the remainder of the removal.
Storing
 Store the windstop folded in its pro-tective case.
 Use the strap intended to secure the case on the right-hand side of the boot (refer to the "Boot layout" sec-tion).

!
i

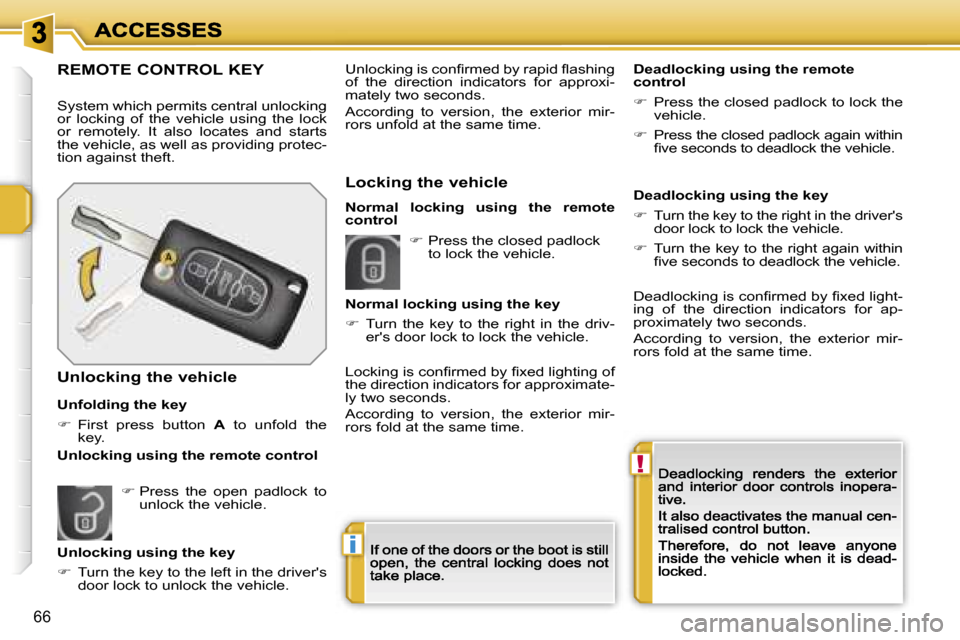

66
REMOTE CONTROL KEY
System which permits central unlocking or locking of the vehicle using the lock or remotely. It also locates and starts the vehicle, as well as providing protec-tion against theft.
Unfolding the key
 First press button A to unfold the key.
Unlocking the vehicle
Unlocking is confirmed by rapid flashing of the direction indicators for approxi-mately two seconds.
According to version, the exterior mir-rors unfold at the same time.
Locking the vehicle
Normal locking using the remote control
Deadlocking using the remote control
 Press the closed padlock to lock the vehicle.
 Press the closed padlock again within five seconds to deadlock the vehicle.
 Press the open padlock to unlock the vehicle.
Unlocking using the key
 Turn the key to the left in the driver's door lock to unlock the vehicle.
 Press the closed padlock to lock the vehicle.
Normal locking using the key
 Turn the key to the right in the driv-er's door lock to lock the vehicle.
Locking is confirmed by fixed lighting of the direction indicators for approximate-ly two seconds.
According to version, the exterior mir-rors fold at the same time.
Unlocking using the remote control
Deadlocking using the key
 Turn the key to the right in the driver's door lock to lock the vehicle.
 Turn the key to the right again within five seconds to deadlock the vehicle.
Deadlocking is confirmed by fixed light-ing of the direction indicators for ap-proximately two seconds.
According to version, the exterior mir-rors fold at the same time.

!
i

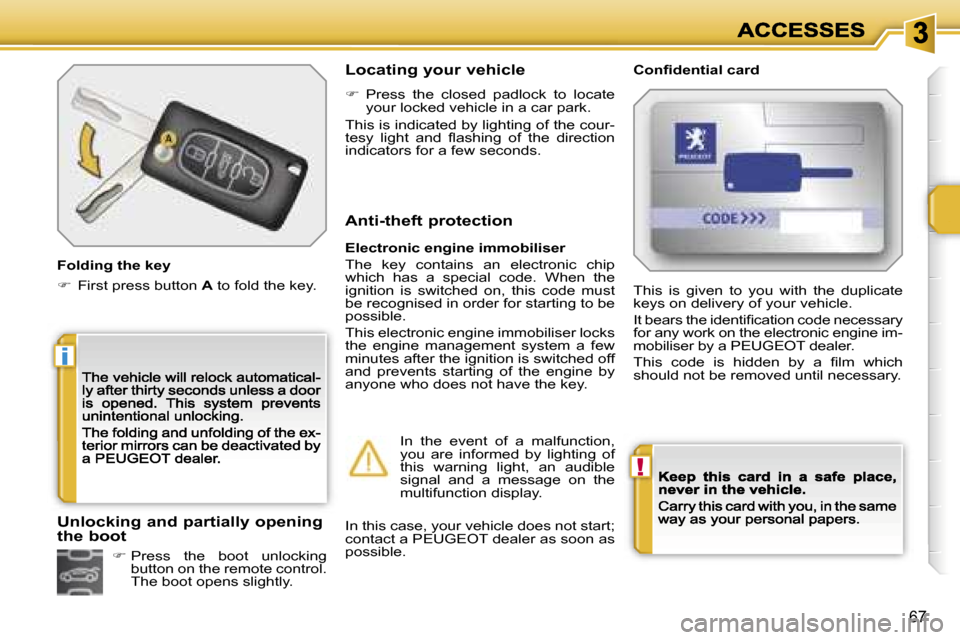

67
Folding the key
 First press button A to fold the key.
Locating your vehicleConfidential card
 Press the closed padlock to locate your locked vehicle in a car park.
This is indicated by lighting of the cour-tesy light and flashing of the direction indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible.
This electronic engine immobiliser locks the engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.
Anti-theft protection
This is given to you with the duplicate keys on delivery of your vehicle.
It bears the identification code necessary for any work on the electronic engine im-mobiliser by a PEUGEOT dealer.
This code is hidden by a film which should not be removed until necessary.
In the event of a malfunction, you are informed by lighting of this warning light, an audible signal and a message on the multifunction display.
In this case, your vehicle does not start; contact a PEUGEOT dealer as soon as possible. Press the boot unlocking button on the remote control. The boot opens slightly.
Unlocking and partially opening
the boot

i

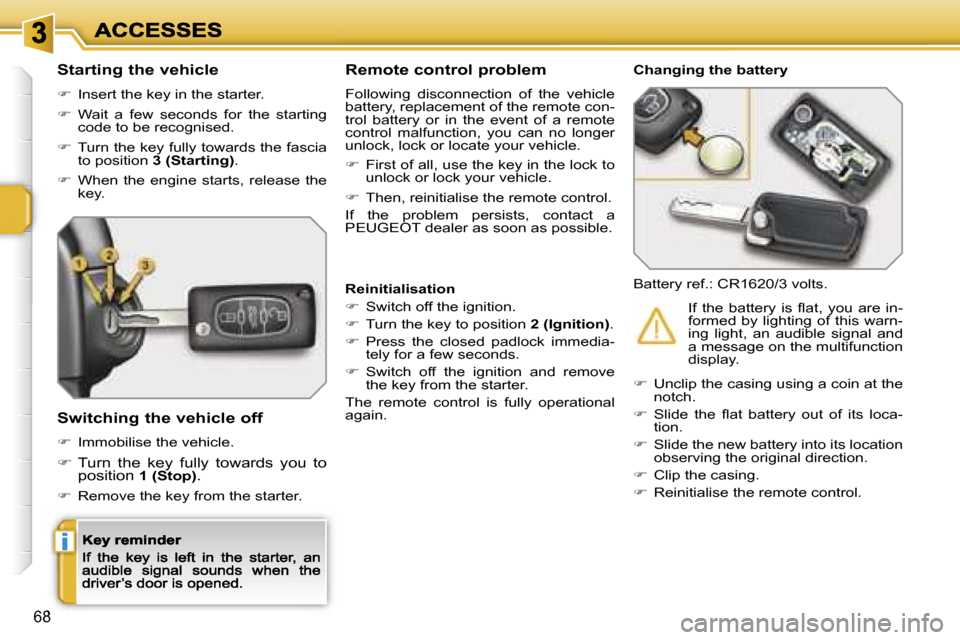

68
Starting the vehicle
 Insert the key in the starter.
 Wait a few seconds for the starting code to be recognised.
 Turn the key fully towards the fascia to position 3 (Starting).
 When the engine starts, release the key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to position 1 (Stop).
 Remove the key from the starter.
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote con-trol battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.
 First of all, use the key in the lock to unlock or lock your vehicle.
 Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immedia-tely for a few seconds.
 Switch off the ignition and remove the key from the starter.
The remote control is fully operational again.
 Unclip the casing using a coin at the notch.
 Slide the flat battery out of its loca-tion.
 Slide the new battery into its location observing the original direction.
 Clip the casing.
 Reinitialise the remote control.
If the battery is flat, you are in-formed by lighting of this warn-ing light, an audible signal and a message on the multifunction display.

!

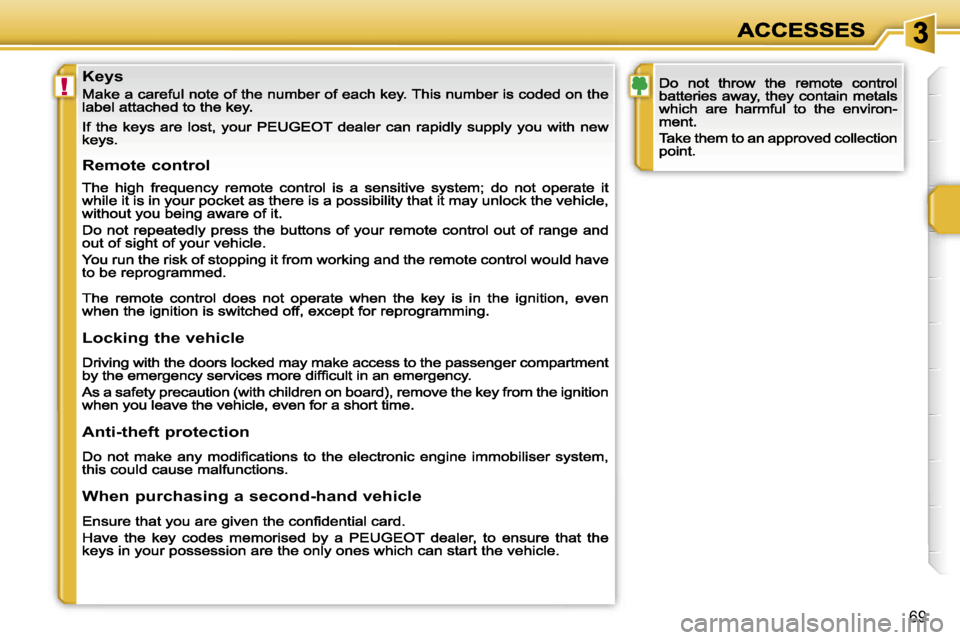

69
Keys
Remote control
Locking the vehicle
Anti-theft protection
When purchasing a second-hand vehicle

!
i
67
Folding the key
 First press button A to fold the key.
Locating your vehicleConfidential card
 Press the closed padlock to locate your locked vehicle in a car park.
This is indicated by lighting of the cour-tesy light and flashing of the direction indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible.
This electronic engine immobiliser locks the engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.
Anti-theft protection
This is given to you with the duplicate keys on delivery of your vehicle.
It bears the identification code necessary for any work on the electronic engine im-mobiliser by a PEUGEOT dealer.
This code is hidden by a film which should not be removed until necessary.
In the event of a malfunction, you are informed by lighting of this warning light, an audible signal and a message on the multifunction display.
In this case, your vehicle does not start; contact a PEUGEOT dealer as soon as possible. Press the boot unlocking button on the remote control. The boot opens slightly.
Unlocking and partially opening
the boot

i
68
Starting the vehicle
 Insert the key in the starter.
 Wait a few seconds for the starting code to be recognised.
 Turn the key fully towards the fascia to position 3 (Starting).
 When the engine starts, release the key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to position 1 (Stop).
 Remove the key from the starter.
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote con-trol battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.
 First of all, use the key in the lock to unlock or lock your vehicle.
 Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immedia-tely for a few seconds.
 Switch off the ignition and remove the key from the starter.
The remote control is fully operational again.
 Unclip the casing using a coin at the notch.
 Slide the flat battery out of its loca-tion.
 Slide the new battery into its location observing the original direction.
 Clip the casing.
 Reinitialise the remote control.
If the battery is flat, you are in-formed by lighting of this warn-ing light, an audible signal and a message on the multifunction display.

!
69
Keys
Remote control
Locking the vehicle
Anti-theft protection
When purchasing a second-hand vehicle

i
68
Starting the vehicle
 Insert the key in the starter.
 Wait a few seconds for the starting code to be recognised.
 Turn the key fully towards the fascia to position 3 (Starting).
 When the engine starts, release the key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to position 1 (Stop).
 Remove the key from the starter.
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote con-trol battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.
 First of all, use the key in the lock to unlock or lock your vehicle.
 Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immedia-tely for a few seconds.
 Switch off the ignition and remove the key from the starter.
The remote control is fully operational again.
 Unclip the casing using a coin at the notch.
 Slide the flat battery out of its loca-tion.
 Slide the new battery into its location observing the original direction.
 Clip the casing.
 Reinitialise the remote control.
If the battery is flat, you are in-formed by lighting of this warn-ing light, an audible signal and a message on the multifunction display.

!
i

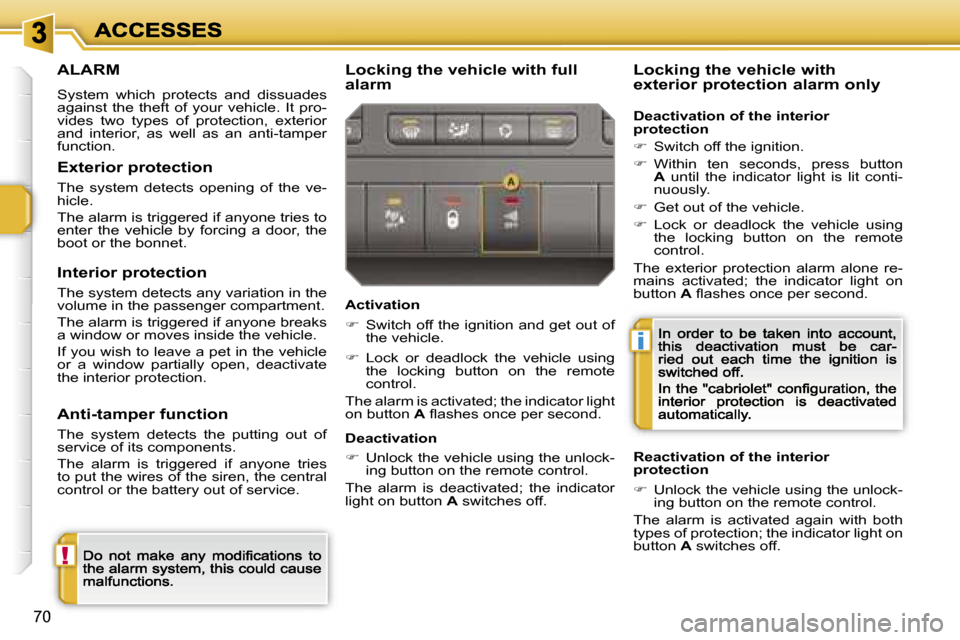

70
ALARM
System which protects and dissuades against the theft of your vehicle. It pro-vides two types of protection, exterior and interior, as well as an anti-tamper function.
Locking the vehicle with full alarm
Reactivation of the interior protection
 Unlock the vehicle using the unlock-ing button on the remote control.
The alarm is activated again with both types of protection; the indicator light on button A switches off.
Locking the vehicle with
exterior protection alarm only
Deactivation of the interior protection
 Switch off the ignition.
 Within ten seconds, press button A until the indicator light is lit conti-nuously.
 Get out of the vehicle.
 Lock or deadlock the vehicle using the locking button on the remote control.
The exterior protection alarm alone re-mains activated; the indicator light on button A flashes once per second.Activation
 Switch off the ignition and get out of the vehicle.
 Lock or deadlock the vehicle using the locking button on the remote control.
The alarm is activated; the indicator light on button A flashes once per second.
Exterior protection
The system detects opening of the ve-hicle.
The alarm is triggered if anyone tries to enter the vehicle by forcing a door, the boot or the bonnet.
Interior protection
The system detects any variation in the volume in the passenger compartment.
The alarm is triggered if anyone breaks a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle or a window partially open, deactivate the interior protection.
Anti-tamper function
The system detects the putting out of service of its components.
The alarm is triggered if anyone tries to put the wires of the siren, the central control or the battery out of service.
Deactivation
 Unlock the vehicle using the unlock-ing button on the remote control.
The alarm is deactivated; the indicator light on button A switches off.
