After changing a wheel
To store the punctured wheel in
the boot correctly, first remove the
central cover.
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.

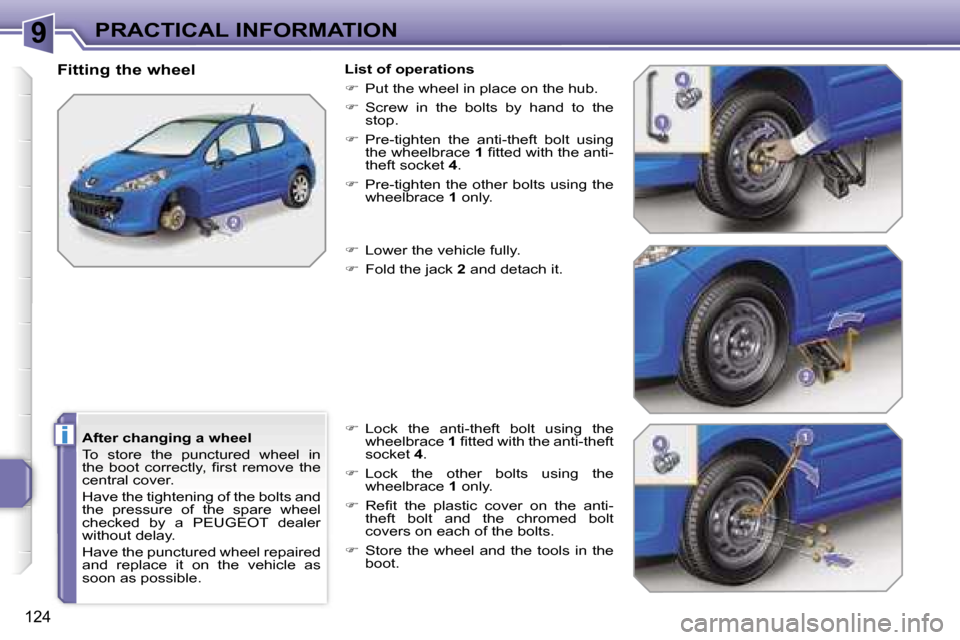

Fitting the wheelList of operations
 Put the wheel in place on the hub.
 Screw in the bolts by hand to the
stop.
 Pre-tighten the anti-theft bolt using
the wheelbrace 1 fitted with the anti-
theft socket 4.
 Pre-tighten the other bolts using the
wheelbrace 1 only.
 Lower the vehicle fully.
 Fold the jack 2 and detach it.
 Lock the anti-theft bolt using the
wheelbrace 1 fitted with the anti-theft
socket 4.
 Lock the other bolts using the
wheelbrace 1 only.
 Refit the plastic cover on the anti-
theft bolt and the chromed bolt
covers on each of the bolts.
 Store the wheel and the tools in the
boot.

9
!
i
i
PRACTICAL INFORMATION
125

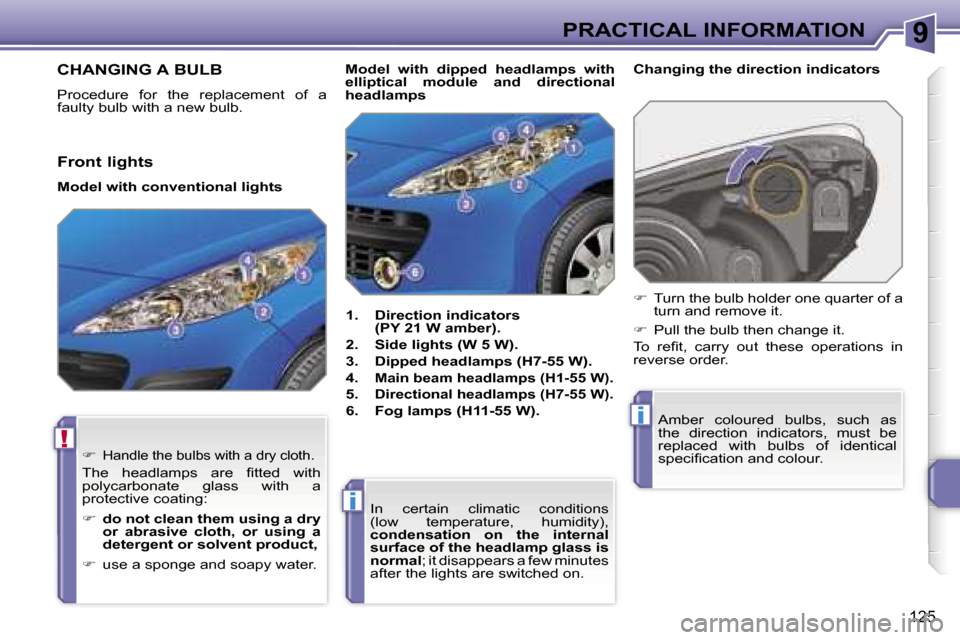

CHANGING A BULB
Procedure for the replacement of a
faulty bulb with a new bulb.1. Direction indicators(PY 21 W amber).
2. Side lights (W 5 W).
3. Dipped headlamps (H7-55 W).
4.
Main beam headlamps (H1-55 W).
5. Directional headlamps (H7-55 W).
6. Fog lamps (H11-55 W). Changing the direction indicators

Handle the bulbs with a dry cloth.
The headlamps are fitted with
polycarbonate glass with a
protective coating:
 do not clean them using a dry
or abrasive cloth, or using a
detergent or solvent product,
 use a sponge and soapy water. In certain climatic conditions
(low temperature, humidity),
condensation on the internal
surface of the headlamp glass is
normal
; it disappears a few minutes
after the lights are switched on.
Model with dipped headlamps with
elliptical module and directional
headlamps
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specification and colour.

Turn the bulb holder one quarter of a
turn and remove it.
 Pull the bulb then change it.
To refit, carry out these operations in
reverse order.
Front lights
Model with conventional lights

9PRACTICAL INFORMATION
126

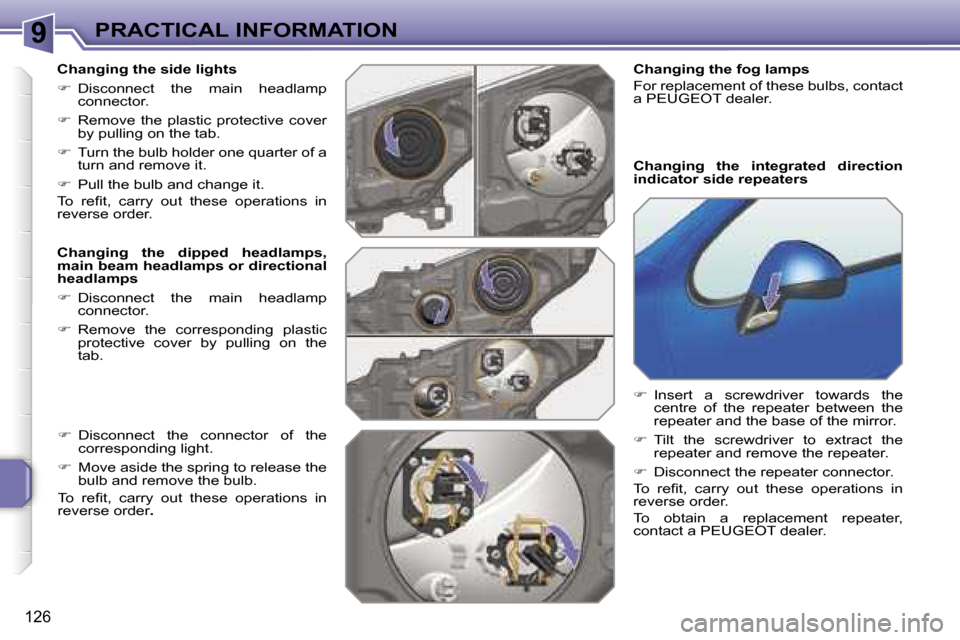

Changing the side lights
 Disconnect the main headlamp
connector.
 Remove the plastic protective cover
by pulling on the tab.
 Turn the bulb holder one quarter of a
turn and remove it.
 Pull the bulb and change it.
To refit, carry out these operations in
reverse order.
Changing the dipped headlamps,
main beam headlamps or directional
headlamps
 Disconnect the main headlamp
connector.
 Remove the corresponding plastic
protective cover by pulling on the
tab. Changing the integrated direction
indicator side repeaters

Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
 Tilt the screwdriver to extract the
repeater and remove the repeater.
 Disconnect the repeater connector.
To refit, carry out these operations in
reverse order.
To obtain a replacement repeater,
contact a PEUGEOT dealer.

Disconnect the connector of the
corresponding light.
 Move aside the spring to release the
bulb and remove the bulb.
To refit, carry out these operations in
reverse order . Changing the fog lamps
For replacement of these bulbs, contact
a PEUGEOT dealer.

9
ii
PRACTICAL INFORMATION
127

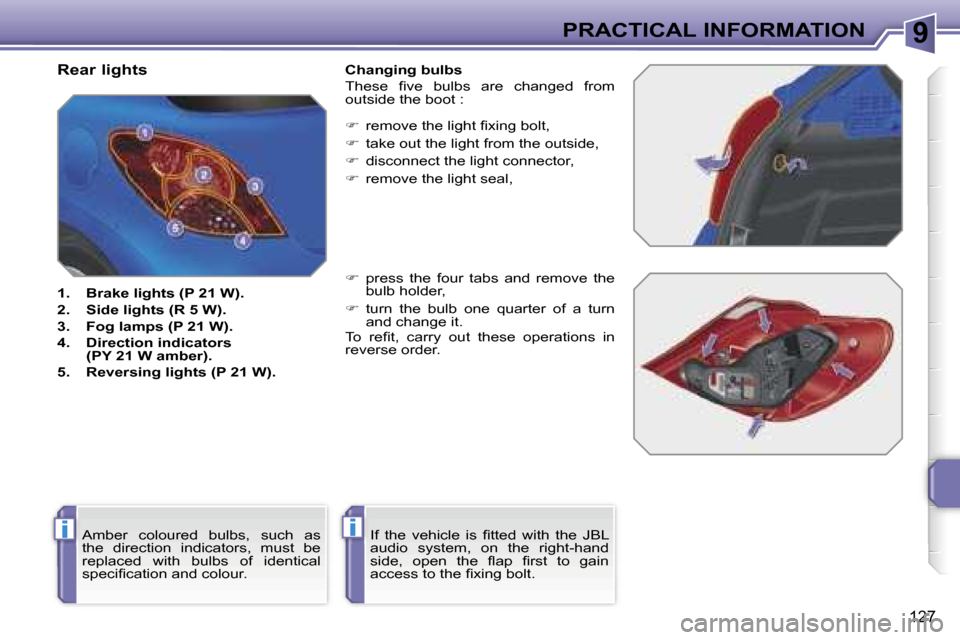

Rear lights
1. Brake lights (P 21 W).
2. Side lights (R 5 W).
3. Fog lamps (P 21 W).
4. Direction indicators(PY 21 W amber).
5. Reversing lights (P 21 W). Changing bulbs
These five bulbs are changed from
outside the boot :

remove the light fixing bolt,
 take out the light from the outside,
 disconnect the light connector,
 remove the light seal,
 press the four tabs and remove the
bulb holder,
 turn the bulb one quarter of a turn
and change it.
To refit, carry out these operations in
reverse order.
If the vehicle is fitted with the JBL
audio system, on the right-hand
side, open the flap first to gain
access to the fixing bolt.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specification and colour.

9PRACTICAL INFORMATION
128

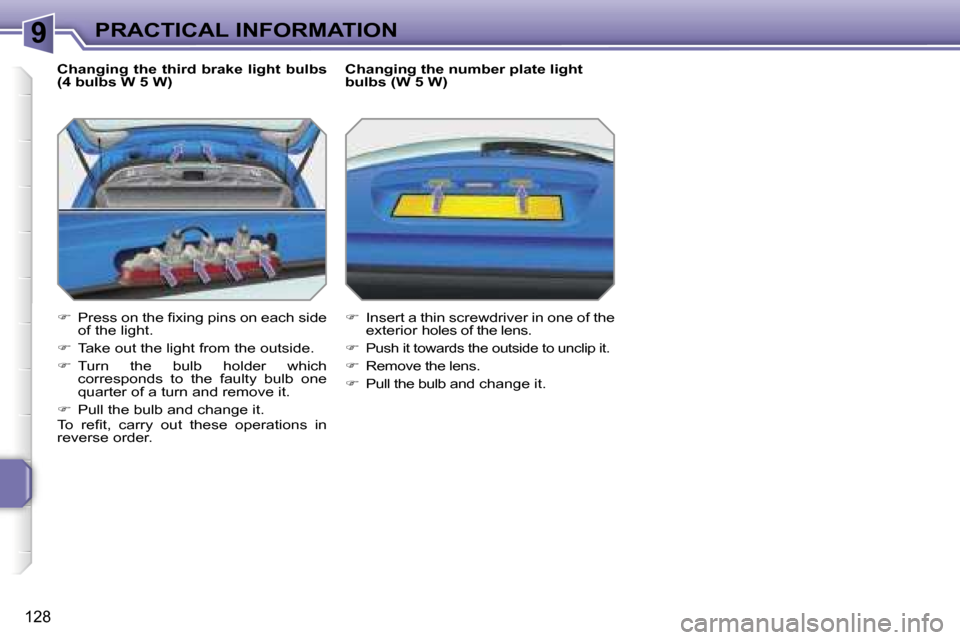

Changing the third brake light bulbs
(4 bulbs W 5 W)
 Press on the fixing pins on each side
of the light.
 Take out the light from the outside.
 Turn the bulb holder which
corresponds to the faulty bulb one
quarter of a turn and remove it.
 Pull the bulb and change it.
To refit, carry out these operations in
reverse order. Changing the number plate light
bulbs (W 5 W)

Insert a thin screwdriver in one of the
exterior holes of the lens.

Push it towards the outside to unclip it.
 Remove the lens.
 Pull the bulb and change it.

9
!
i
PRACTICAL INFORMATION
129
PEUGEOT does not accept
any responsibility for the costs
incurred in repairing your vehicle
or for the malfunctions resulting
from the installation of additional
accessories which are not supplied
or recommended by PEUGEOT
and which are not installed in
accordance with its instructions,
particularly in the case of equipment
the consumption of which exceeds
10 milliamperes.
Your vehicle's electrical circuit
is designed to operate with the
standard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT dealer.

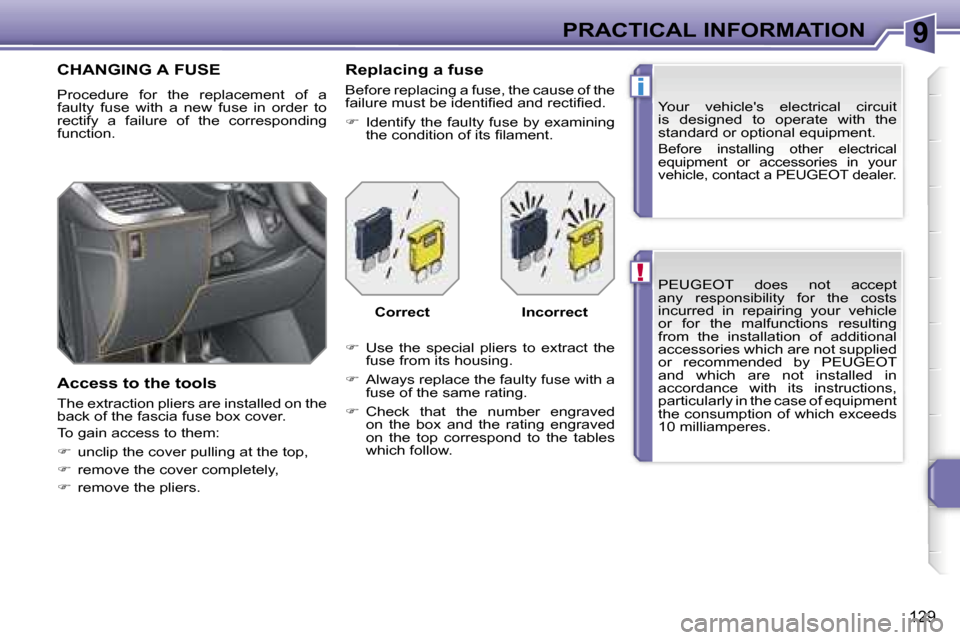

CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
The extraction pliers are installed on the
back of the fascia fuse box cover.
To gain access to them:

unclip the cover pulling at the top,
 remove the cover completely,
 remove the pliers.
Replacing a fuse
Before replacing a fuse, the cause of the
failure must be identified and rectified.
 Identify the faulty fuse by examining
the condition of its filament.
 Use the special pliers to extract the
fuse from its housing.
 Always replace the faulty fuse with a
fuse of the same rating.
 Check that the number engraved
on the box and the rating engraved
on the top correspond to the tables
which follow. Correct
Incorrect

9PRACTICAL INFORMATION
130

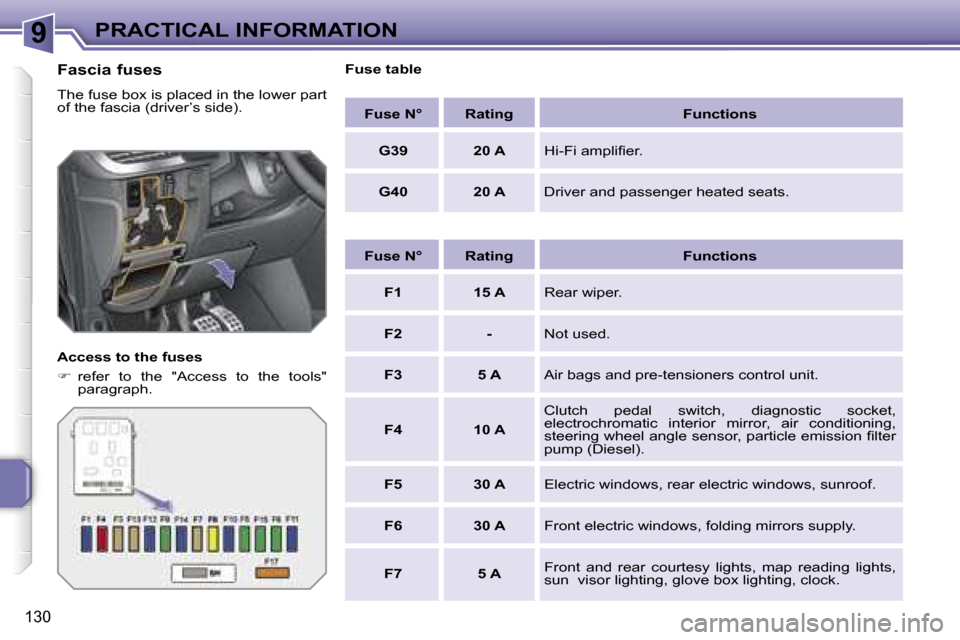

Fascia fuses
The fuse box is placed in the lower part
of the fascia (driver’s side).
Access to the fuses
 refer to the "Access to the tools"
paragraph. Fuse table
Fuse N° Rating FunctionsG39 20 A Hi-Fi amplifier.
G40 20 A Driver and passenger heated seats.
Fuse N° Rating Functions F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Air bags and pre-tensioners control unit.
F4 10 A Clutch pedal switch, diagnostic socket,
electrochromatic interior mirror, air conditioning,
steering wheel angle sensor, particle emission filter
pump (Diesel).
F5 30 A Electric windows, rear electric windows, sunroof.
F6 30 A Front electric windows, folding mirrors supply.
F7 5 A Front and rear courtesy lights, map reading lights,
sun visor lighting, glove box lighting, clock.

9PRACTICAL INFORMATION
131

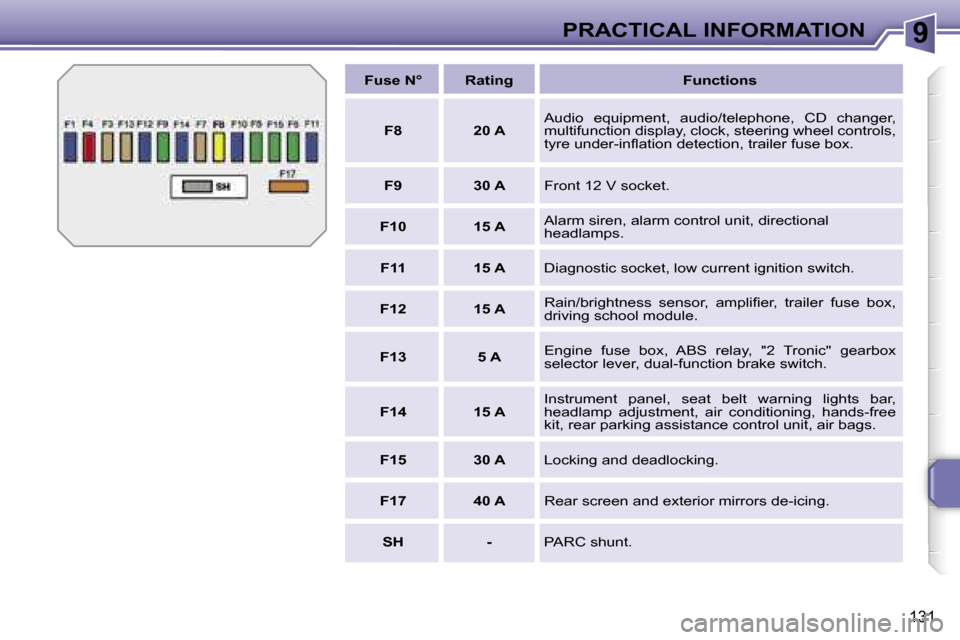

Fuse N° Rating FunctionsF8 20 A Audio equipment, audio/telephone, CD changer,
multifunction display, clock, steering wheel controls,
tyre under-inflation detection, trailer fuse box.
F9 30 A Front 12 V socket.
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F11 15 A Diagnostic socket, low current ignition switch.
F12 15 A Rain/brightness sensor, amplifier, trailer fuse box,
driving school module.
F13 5 A Engine fuse box, ABS relay, "2 Tronic" gearbox
selector lever, dual-function brake switch.
F14 15 A Instrument panel, seat belt warning lights bar,
headlamp adjustment, air conditioning, hands-free
kit, rear parking assistance control unit, air bags.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and exterior mirrors de-icing.
SH - PARC shunt.

9PRACTICAL INFORMATION
132

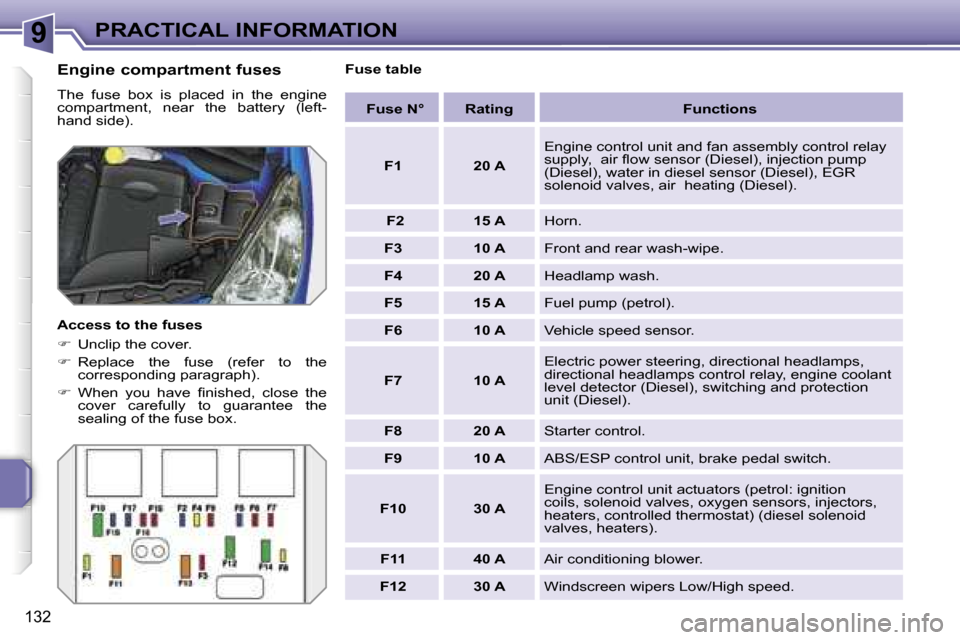

Engine compartment fuses
The fuse box is placed in the engine
compartment, near the battery (left-
hand side).
Access to the fuses
 Unclip the cover.
 Replace the fuse (refer to the
corresponding paragraph).
 When you have finished, close the
cover carefully to guarantee the
sealing of the fuse box. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, air flow sensor (Diesel), injection pump
(Diesel), water in diesel sensor (Diesel), EGR
solenoid valves, air heating (Diesel).
F2 15 A Horn.
F3 10 A Front and rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Fuel pump (petrol).
F6 10 A Vehicle speed sensor.
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, engine coolant
level detector (Diesel), switching and protection
unit (Diesel).
F8 20 A Starter control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A Engine control unit actuators (petrol: ignition
coils, solenoid valves, oxygen sensors, injectors,
heaters, controlled thermostat) (diesel solenoid
valves, heaters).
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.

9PRACTICAL INFORMATION
133
Fuse N° Rating FunctionsF13 40 A Built-in systems interface supply (ignition positive).
F14 30 A Diesel heater (Diesel).
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.

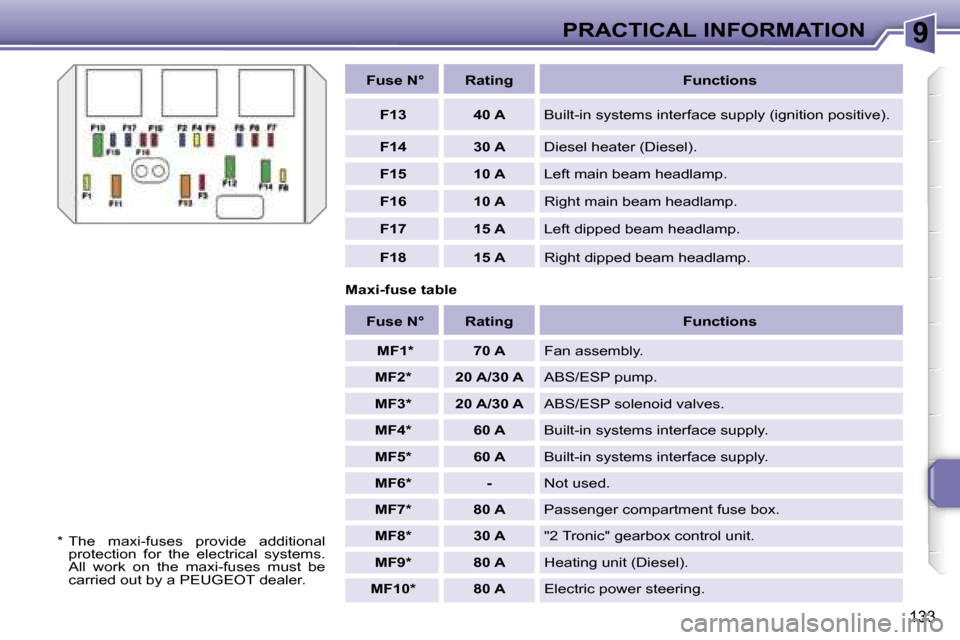

Maxi-fuse table
* The maxi-fuses provide additional protection for the electrical systems.
All work on the maxi-fuses must be
carried out by a PEUGEOT dealer. Fuse N° Rating Functions
MF1* 70 A Fan assembly.
MF2* 20 A/30 A ABS/ESP pump.
MF3* 20 A/30 A ABS/ESP solenoid valves.
MF4* 60 A Built-in systems interface supply.
MF5* 60 A Built-in systems interface supply.
MF6* - Not used.
MF7* 80 A Passenger compartment fuse box.
MF8* 30 A "2 Tronic" gearbox control unit.
MF9* 80 A Heating unit (Diesel).
MF10* 80 A Electric power steering.
