Peugeot 207 Dag 2006.5 Owner's Manual

9
i
PRACTICAL INFORMATION
124

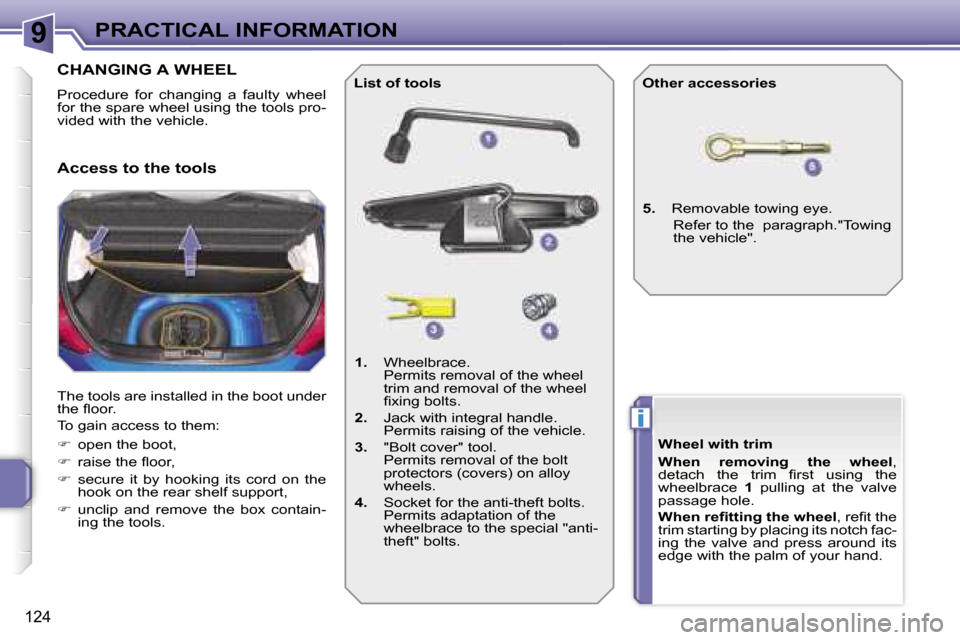

CHANGING A WHEEL
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
The tools are installed in the boot under
the floor.
To gain access to them:
 open the boot,
 raise the floor,
 secure it by hooking its cord on the
hook on the rear shelf support,
 unclip and remove the box contain-
ing the tools. 1.
Wheelbrace.
Permits removal of the wheel
trim and removal of the wheel
fixing bolts.
2. Jack with integral handle.
Permits raising of the vehicle.
3. "Bolt cover" tool.
Permits removal of the bolt
protectors (covers) on alloy
wheels.
4. Socket for the anti-theft bolts.
Permits adaptation of the
wheelbrace to the special "anti-
theft" bolts.
List of tools Other accessories
5. Removable towing eye.
Refer to the paragraph."Towing
the vehicle".
Access to the tools
Wheel with trim
When removing the wheel ,
detach the trim first using the
wheelbrace 1 pulling at the valve
passage hole.
When refitting the wheel , refit the
trim starting by placing its notch fac-
ing the valve and press around its
edge with the palm of your hand.

9
i
PRACTICAL INFORMATION
125

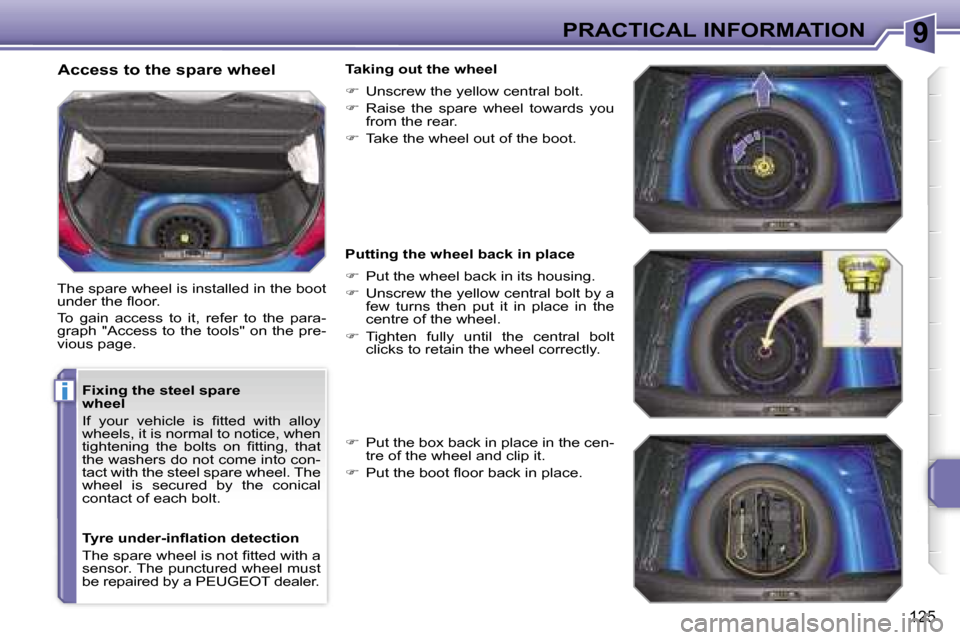

Fixing the steel spare
wheel
If your vehicle is fitted with alloy
wheels, it is normal to notice, when
tightening the bolts on fitting, that
the washers do not come into con-
tact with the steel spare wheel. The
wheel is secured by the conical
contact of each bolt.
Tyre under-inflation detection
The spare wheel is not fitted with a
sensor. The punctured wheel must
be repaired by a PEUGEOT dealer.
Access to the spare wheel
The spare wheel is installed in the boot
under the floor.
To gain access to it, refer to the para-
graph "Access to the tools" on the pre-
vious page.Taking out the wheel

Unscrew the yellow central bolt.
 Raise the spare wheel towards you
from the rear.
 Take the wheel out of the boot.
Putting the wheel back in place
 Put the wheel back in its housing.
 Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
 Tighten fully until the central bolt
clicks to retain the wheel correctly.
 Put the box back in place in the cen-
tre of the wheel and clip it.
 Put the boot floor back in place.

9
i
PRACTICAL INFORMATION
126

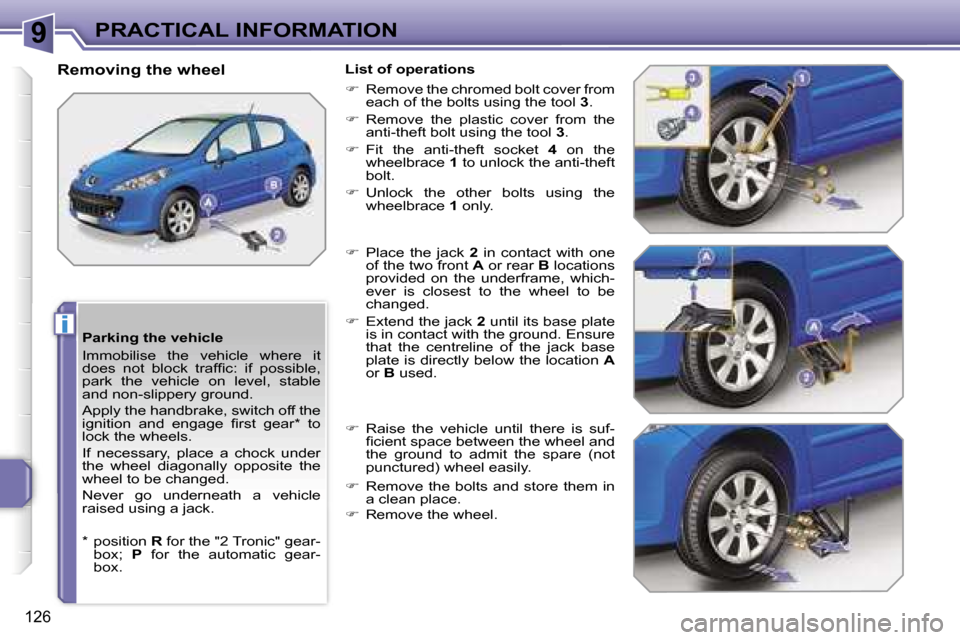

Parking the vehicle
Immobilise the vehicle where it
does not block traffic: if possible,
park the vehicle on level, stable
and non-slippery ground.
Apply the handbrake, switch off the
ignition and engage first gear* to
lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
Never go underneath a vehicle
raised using a jack.
* position R for the "2 Tronic" gear-
box; P for the automatic gear-
box.
Removing the wheelList of operations
 Remove the chromed bolt cover from
each of the bolts using the tool 3.
 Remove the plastic cover from the
anti-theft bolt using the tool 3.
 Fit the anti-theft socket 4 on the
wheelbrace 1 to unlock the anti-theft
bolt.
 Unlock the other bolts using the
wheelbrace 1 only.
 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.
 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.
 Raise the vehicle until there is suf-
ficient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.
 Remove the bolts and store them in
a clean place.
 Remove the wheel.

9
i
PRACTICAL INFORMATION
127

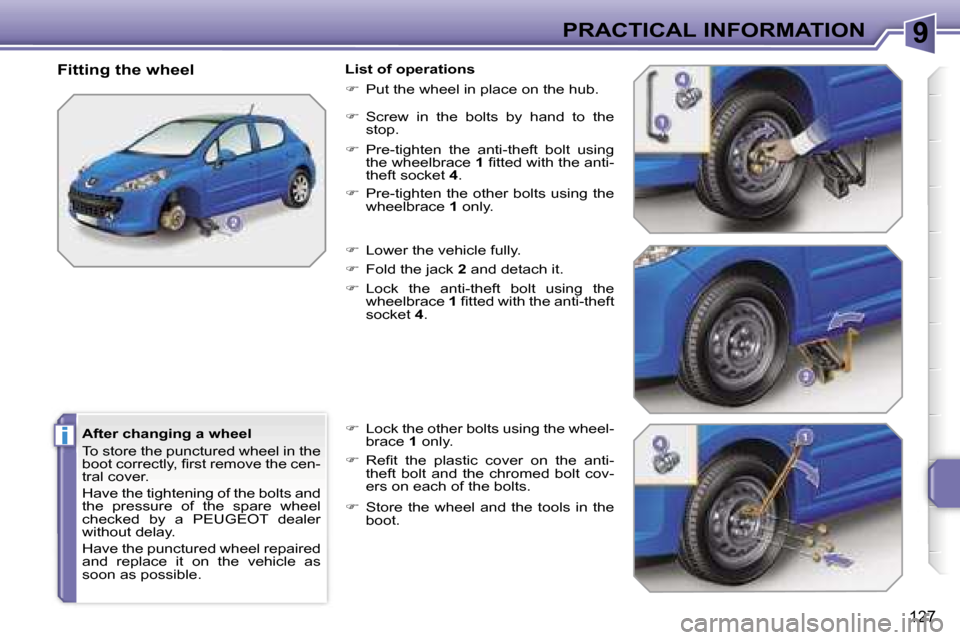

After changing a wheel
To store the punctured wheel in the
boot correctly, first remove the cen-
tral cover.
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.
Fitting the wheelList of operations
 Put the wheel in place on the hub.
 Screw in the bolts by hand to the
stop.
 Pre-tighten the anti-theft bolt using
the wheelbrace 1 fitted with the anti-
theft socket 4.
 Pre-tighten the other bolts using the
wheelbrace 1 only.
 Lower the vehicle fully.
 Fold the jack 2 and detach it.
 Lock the anti-theft bolt using the
wheelbrace 1 fitted with the anti-theft
socket 4.
 Lock the other bolts using the wheel-
brace 1 only.
 Refit the plastic cover on the anti-
theft bolt and the chromed bolt cov-
ers on each of the bolts.
 Store the wheel and the tools in the
boot.

9
!
i
i
PRACTICAL INFORMATION
128

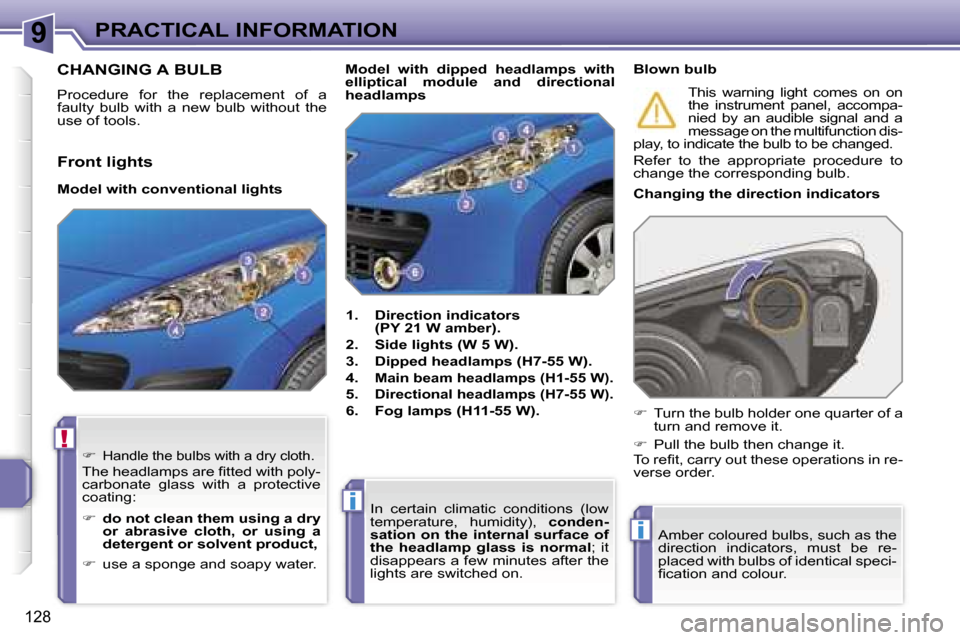

CHANGING A BULB
Procedure for the replacement of a
faulty bulb with a new bulb without the
use of tools.1. Direction indicators(PY 21 W amber).
2. Side lights (W 5 W).
3. Dipped headlamps (H7-55 W).
4.
Main beam headlamps (H1-55 W).
5. Directional headlamps (H7-55 W).
6. Fog lamps (H11-55 W). Changing the direction indicators

Handle the bulbs with a dry cloth.
The headlamps are fitted with poly-
carbonate glass with a protective
coating:
 do not clean them using a dry
or abrasive cloth, or using a
detergent or solvent product,
 use a sponge and soapy water. In certain climatic conditions (low
temperature, humidity),
conden-
sation on the internal surface of
the headlamp glass is normal ; it
disappears a few minutes after the
lights are switched on.
Model with dipped headlamps with
elliptical module and directional
headlamps
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fication and colour.

Turn the bulb holder one quarter of a
turn and remove it.
 Pull the bulb then change it.
To refit, carry out these operations in re-
verse order.
Front lights
Model with conventional lights Blown bulb
This warning light comes on on
the instrument panel, accompa-
nied by an audible signal and a
message on the multifunction dis-
play, to indicate the bulb to be changed.
Refer to the appropriate procedure to
change the corresponding bulb.

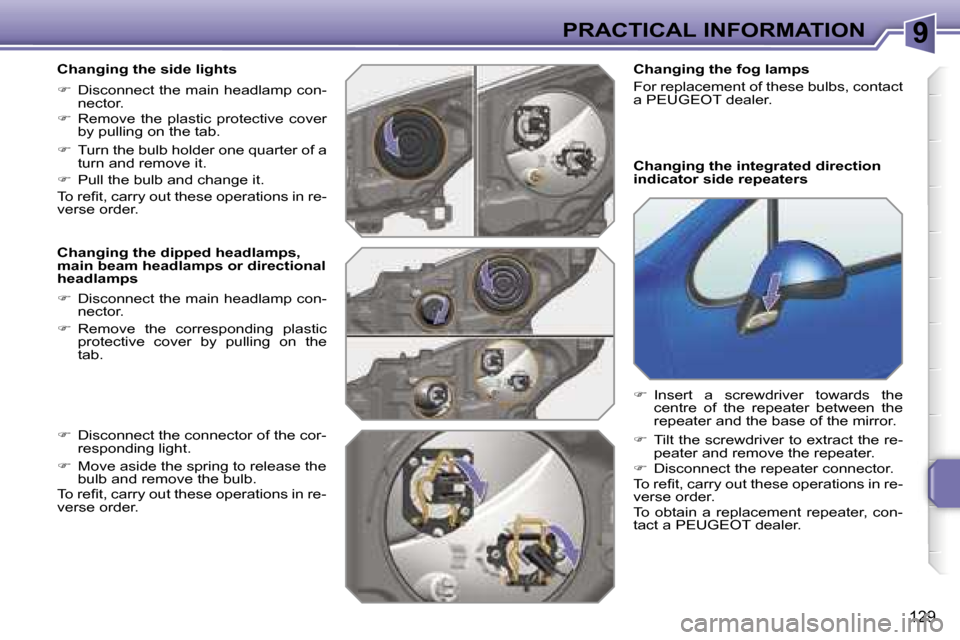

9PRACTICAL INFORMATION
129
Changing the side lights
 Disconnect the main headlamp con-
nector.
 Remove the plastic protective cover
by pulling on the tab.
 Turn the bulb holder one quarter of a
turn and remove it.
 Pull the bulb and change it.
To refit, carry out these operations in re-
verse order.
Changing the dipped headlamps,
main beam headlamps or directional
headlamps
 Disconnect the main headlamp con-
nector.
 Remove the corresponding plastic
protective cover by pulling on the
tab. Changing the integrated direction
indicator side repeaters

Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
 Tilt the screwdriver to extract the re-
peater and remove the repeater.
 Disconnect the repeater connector.
To refit, carry out these operations in re-
verse order.
To obtain a replacement repeater, con-
tact a PEUGEOT dealer.

Disconnect the connector of the cor-
responding light.
 Move aside the spring to release the
bulb and remove the bulb.
To refit, carry out these operations in re-
verse order. Changing the fog lamps
For replacement of these bulbs, contact
a PEUGEOT dealer.

9
ii

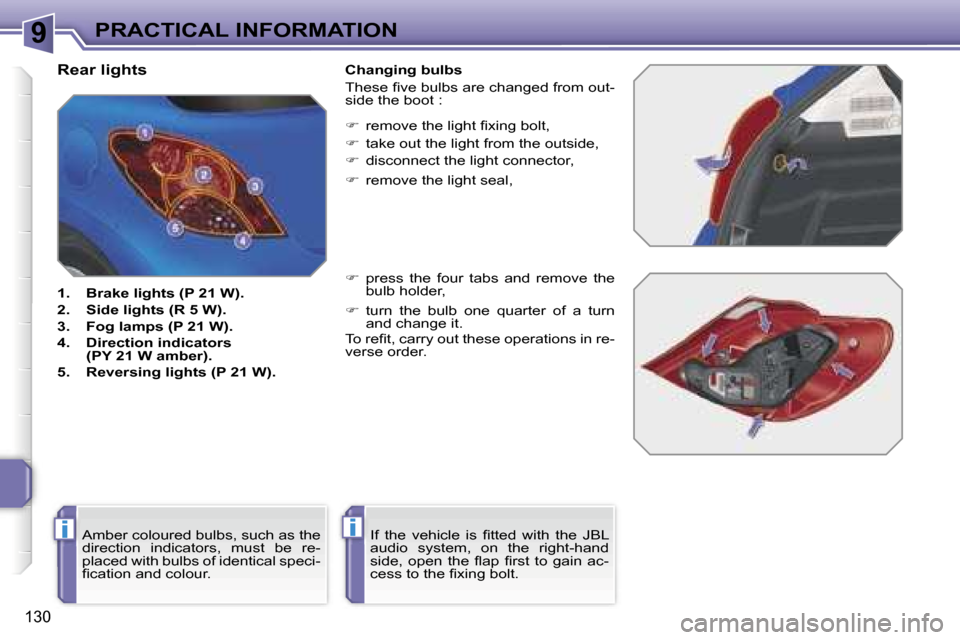

PRACTICAL INFORMATION
130
Rear lights
1. Brake lights (P 21 W).
2. Side lights (R 5 W).
3. Fog lamps (P 21 W).
4. Direction indicators(PY 21 W amber).
5. Reversing lights (P 21 W). Changing bulbs
These five bulbs are changed from out-
side the boot :

remove the light fixing bolt,
 take out the light from the outside,
 disconnect the light connector,
 remove the light seal,
 press the four tabs and remove the
bulb holder,
 turn the bulb one quarter of a turn
and change it.
To refit, carry out these operations in re-
verse order.
If the vehicle is fitted with the JBL
audio system, on the right-hand
side, open the flap first to gain ac-
cess to the fixing bolt.
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fication and colour.

9PRACTICAL INFORMATION
131

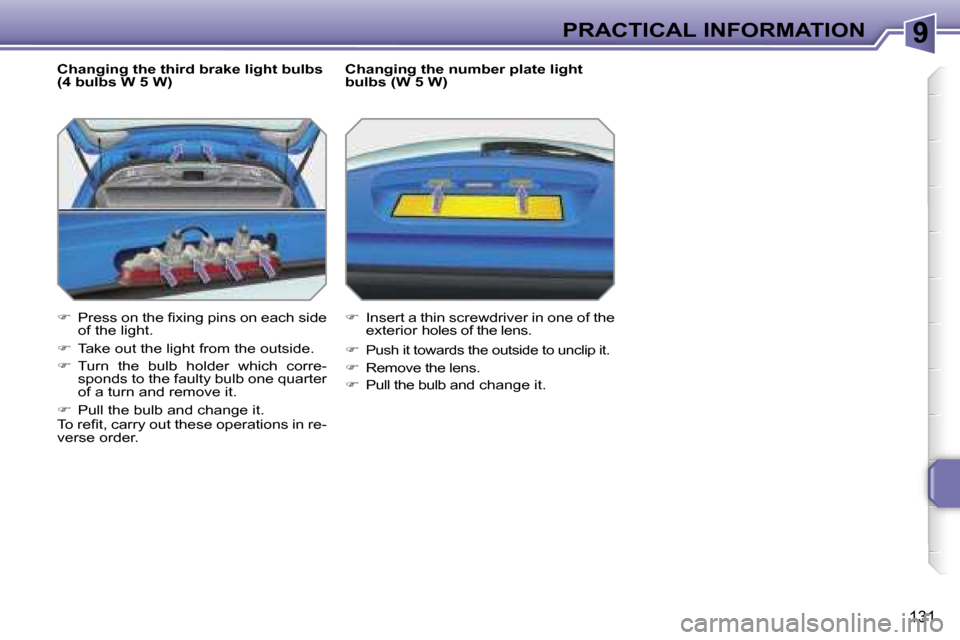

Changing the third brake light bulbs
(4 bulbs W 5 W)
 Press on the fixing pins on each side
of the light.
 Take out the light from the outside.
 Turn the bulb holder which corre-
sponds to the faulty bulb one quarter
of a turn and remove it.
 Pull the bulb and change it.
To refit, carry out these operations in re-
verse order. Changing the number plate light
bulbs (W 5 W)

Insert a thin screwdriver in one of the
exterior holes of the lens.

Push it towards the outside to unclip it.
 Remove the lens.
 Pull the bulb and change it.

9
!
i
PRACTICAL INFORMATION
132
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly in the
case of equipment the consumption
of which exceeds 10 milliamperes.
Your vehicle’s electrical circuit is
designed to operate with the stand-
ard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT dealer.

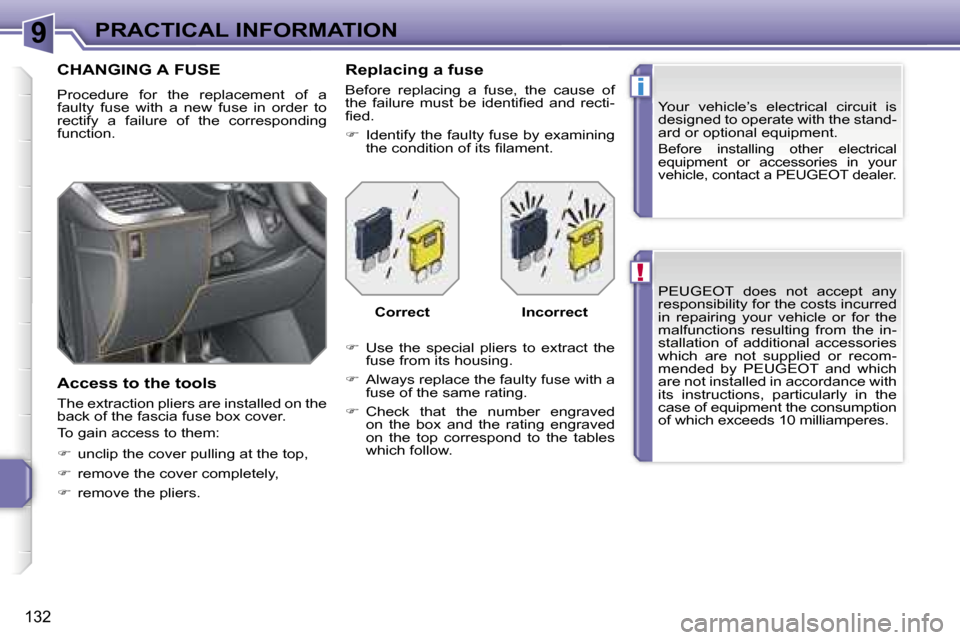

CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
The extraction pliers are installed on the
back of the fascia fuse box cover.
To gain access to them:

unclip the cover pulling at the top,
 remove the cover completely,
 remove the pliers.
Replacing a fuse
Before replacing a fuse, the cause of
the failure must be identified and recti-
fied.
 Identify the faulty fuse by examining
the condition of its filament.
 Use the special pliers to extract the
fuse from its housing.
 Always replace the faulty fuse with a
fuse of the same rating.
 Check that the number engraved
on the box and the rating engraved
on the top correspond to the tables
which follow. Correct
Incorrect

9PRACTICAL INFORMATION
133

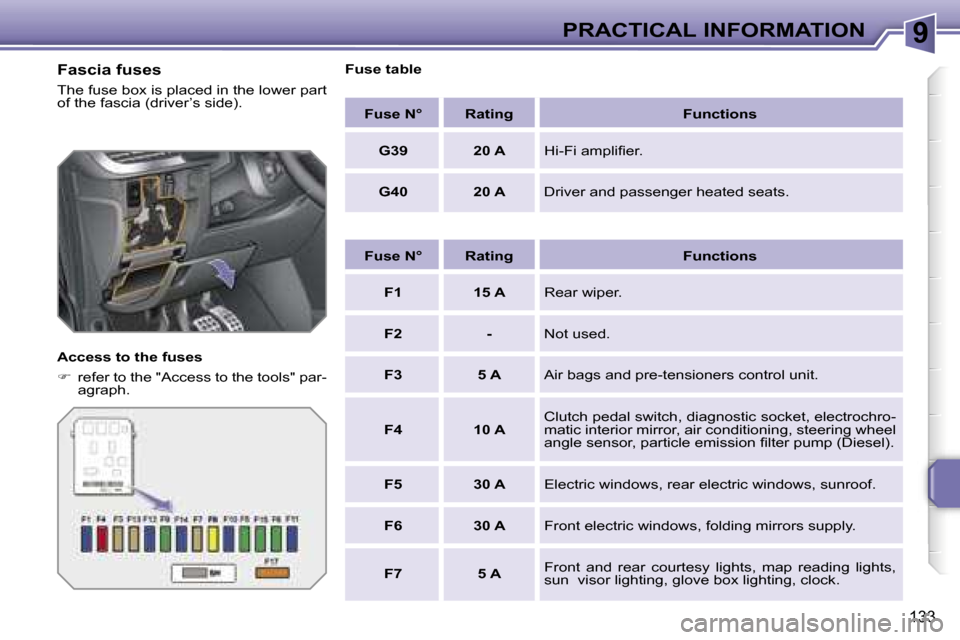

Fascia fuses
The fuse box is placed in the lower part
of the fascia (driver’s side).
Access to the fuses
 refer to the "Access to the tools" par-
agraph. Fuse table
Fuse N° Rating FunctionsG39 20 A Hi-Fi amplifier.
G40 20 A Driver and passenger heated seats.
Fuse N° Rating Functions F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Air bags and pre-tensioners control unit.
F4 10 A Clutch pedal switch, diagnostic socket, electrochro-
matic interior mirror, air conditioning, steering wheel
angle sensor, particle emission filter pump (Diesel).
F5 30 A Electric windows, rear electric windows, sunroof.
F6 30 A Front electric windows, folding mirrors supply.
F7 5 A Front and rear courtesy lights, map reading lights,
sun visor lighting, glove box lighting, clock.
