FAMILIARISATION
1. Steering lock and ignition.
2. A u d i o e q u i p m e n t s t e e r i n g w h e e l
control.
3. W i p e r s / w a s h - w i p e / t r i p c o m p u t e r
controls.
4. H a z a r d w a r n i n g l i g h t s s w i t c h .
5. Fragrance diffuser.
6. M u l t i f u n c t i o n d i s p l a y .
S e a t b e l t f a s t e n i n g s t a t u s w a r n i n g lights.
7. Sunshine sensor.
8. Passenger air bag.
9. Glove box / Passenger air bag
disarming / Audio/video sockets.
10. Heated seat control.
11. Front ashtray / Lighter.
12. Dynamic stability control
(ESP/ASR) button.
R e a r p a r k i n g a s s i s t a n c e b u t t o n .
Central locking button.
Alarm button.
Electric child lock button.
13. Heating / air conditioning controls.
14. CD changer.
15. Audio RD4 or RT4 GPS
a u d i o / t e l e p h o n e .
16. C e n t r a l a d j u s t a b l e a n d c l o s i n g
vents.
Page 12 of 223

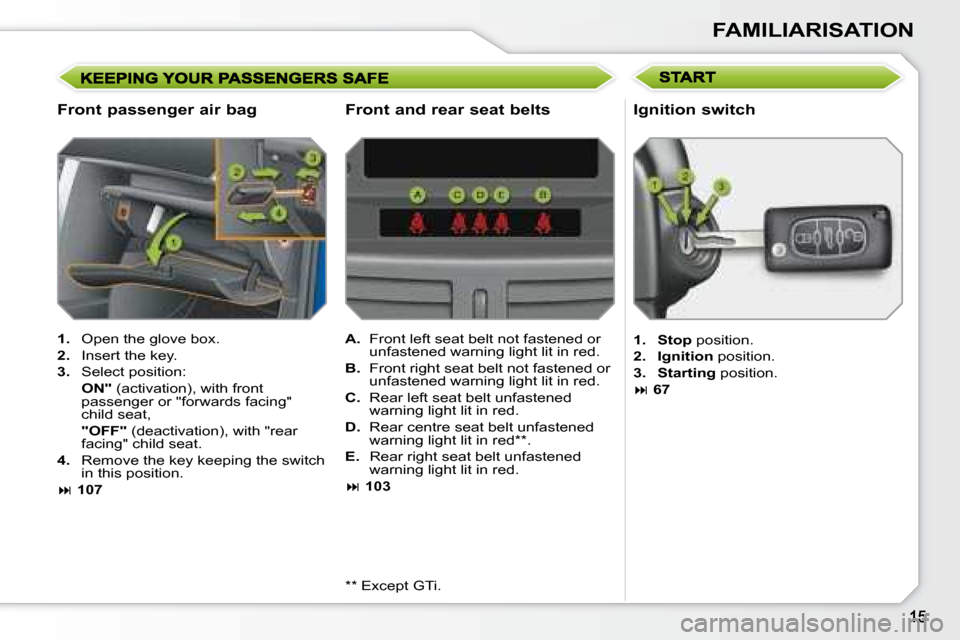

FAMILIARISATION
Front passenger air bag
1. O p e n t h e g l o v e b o x .
2. Insert the key.
3. S e l e c t p o s i t i o n :
ON" ( a c t i v a t i o n ) , w i t h f r o n t
p a s s e n g e r o r " f o r w a r d s f a c i n g "
child seat,
"OFF" ( d e a c t i v a t i o n ) , w i t h " r e a r
facing" child seat.
4. R e m o v e t h e k e y k e e p i n g t h e s w i t c h
i n t h i s p o s i t i o n .
107 Ignition switch
A. Front left seat belt not fastened or
u n f a s t e n e d w a r n i n g l i g h t l i t i n r e d .
B. Front right seat belt not fastened or
u n f a s t e n e d w a r n i n g l i g h t l i t i n r e d .
C. Rear left seat belt unfastened
w a r n i n g l i g h t l i t i n r e d .
D. Rear centre seat belt unfastened
w a r n i n g l i g h t l i t i n r e d * * .
E. Rear right seat belt unfastened
w a r n i n g l i g h t l i t i n r e d .
103
Front and rear seat belts
* * E x c e p t G T i .
1. Stop p o s i t i o n .
2. Ignition p o s i t i o n .
3. Starting p o s i t i o n .
67
Page 80 of 223
!

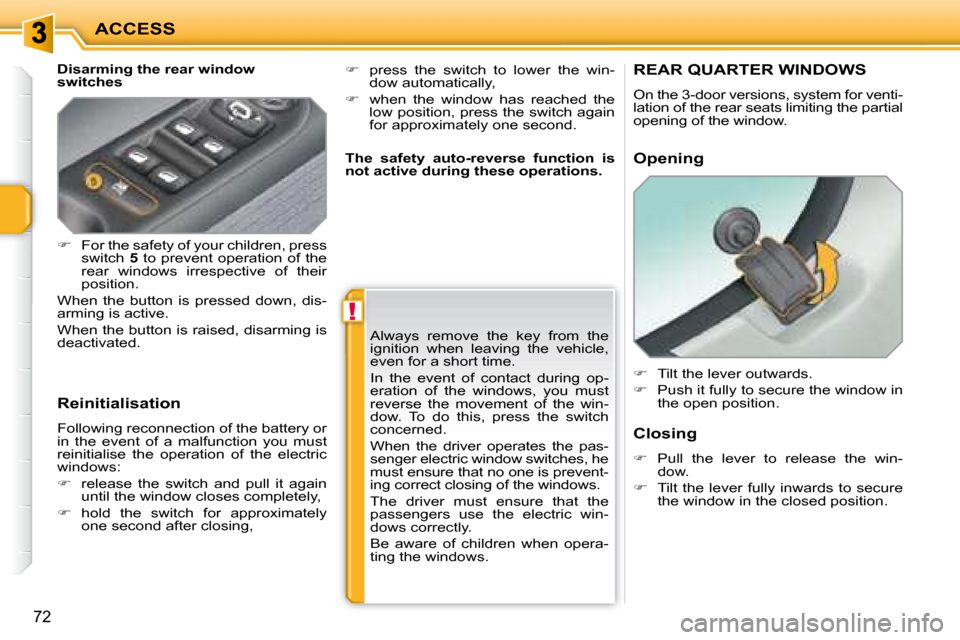

ACCESS
72
Disarming the rear window
switches
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:
release the switch and pull it again
until the window closes completely,
hold the switch for approximately
one second after closing, Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when opera-
ting the windows. REAR QUARTER WINDOWS
On the 3-door versions, system for venti-
lation of the rear seats limiting the partial
opening of the window.
Opening
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down, dis-
arming is active.
When the button is raised, disarming is
deactivated.
Closing
Pull the lever to release the win-
dow.
Tilt the lever fully inwards to secure
the window in the closed position.
Tilt the lever outwards.
Push it fully to secure the window in
the open position.
press the switch to lower the win-
dow automatically,
when the window has reached the
low position, press the switch again
for approximately one second.
The safety auto-reverse function is
not active during these operations.
Page 81 of 223
!
ACCESS
72
Disarming the rear window
switches
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:
release the switch and pull it again
until the window closes completely,
hold the switch for approximately
one second after closing, Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when opera-
ting the windows. REAR QUARTER WINDOWS
On the 3-door versions, system for venti-
lation of the rear seats limiting the partial
opening of the window.
Opening
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down, dis-
arming is active.
When the button is raised, disarming is
deactivated.
Closing
Pull the lever to release the win-
dow.
Tilt the lever fully inwards to secure
the window in the closed position.
Tilt the lever outwards.
Push it fully to secure the window in
the open position.
press the switch to lower the win-
dow automatically,
when the window has reached the
low position, press the switch again
for approximately one second.
The safety auto-reverse function is
not active during these operations.
Page 99 of 223
i

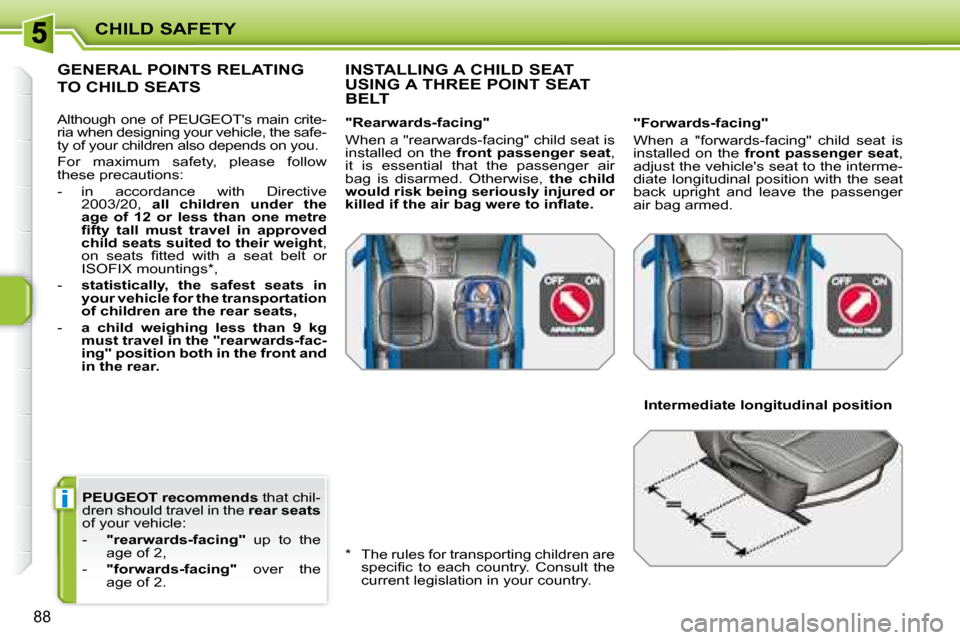

CHILD SAFETY
88
PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.
GENERAL POINTS RELATING
TO CHILD SEATS
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
air bag armed.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger air
bag is disarmed. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n l a t e .
Intermediate longitudinal position
* The rules for transporting children are s p e c i i c t o e a c h c o u n t r y . C o n s u l t t h e current legislation in your country.
Although one of PEUGEOT's main crite-
ria when designing your vehicle, the safe-
ty of your children also depends on you.
For maximum safety, please follow
these precautions:
- in accordance with Directive 2003/20, all children under the
age of 12 or less than one metre
i f t y t a l l m u s t t r a v e l i n a p p r o v e d
child seats suited to their weight ,
o n s e a t s i t t e d w i t h a s e a t b e l t o r
ISOFIX mountings * ,
- statistically, the safest seats in
y o u r v e h i c l e f o r t h e t r a n s p o r t a t i o n
of children are the rear seats,
- a child weighing less than 9 kg
m u s t t r a v e l i n t h e " r e a r w a r d s - f a c -
ing" position both in the front and
i n t h e r e a r .
Page 100 of 223
CHILD SAFETY
89

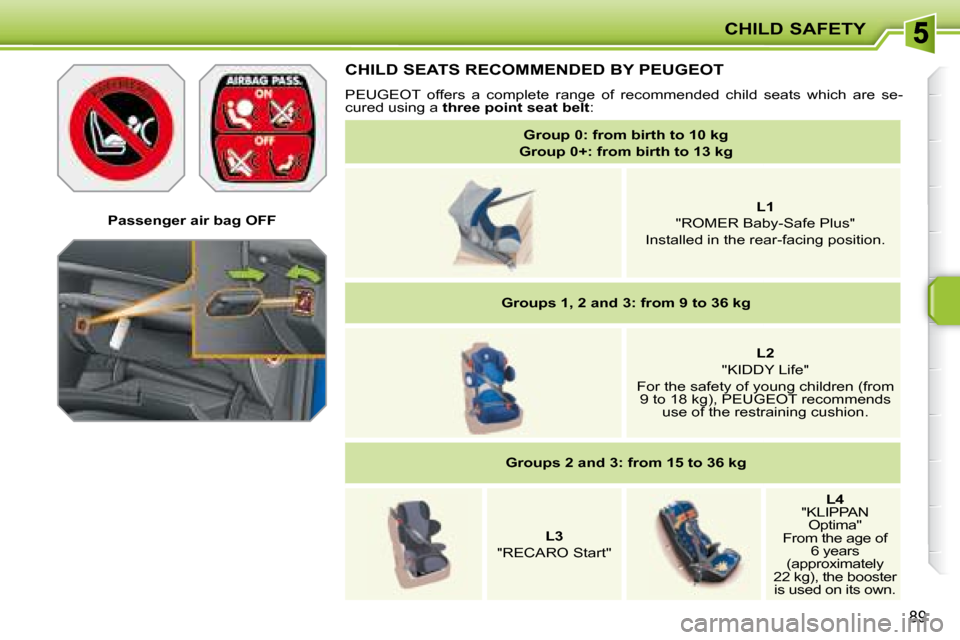

Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately
22 kg), the booster is used on its own.
Page 101 of 223
CHILD SAFETY
89
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately
22 kg), the booster is used on its own.
Page 102 of 223
CHILD SAFETY

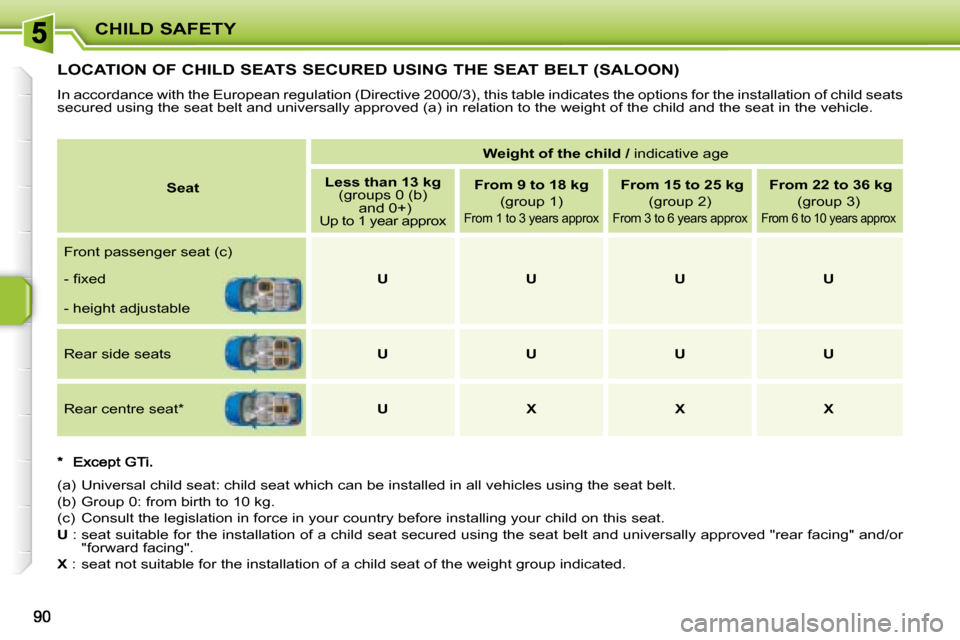

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT (SALOON)
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) in relat ion to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
( c ) C o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
U : seat suitable for the installation of a child seat secu red using the seat belt and universally approved "rear facing" an d/or
"forward facing".
X : seat not suitable for the installation of a child sea t of the weight group indicated.
Seat
Weight of the child / indicative age
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
- i x e d
U U U U
- height adjustable
Rear side seats U U U U
Rear centre seat * U X X X
Page 103 of 223
CHILD SAFETY
91

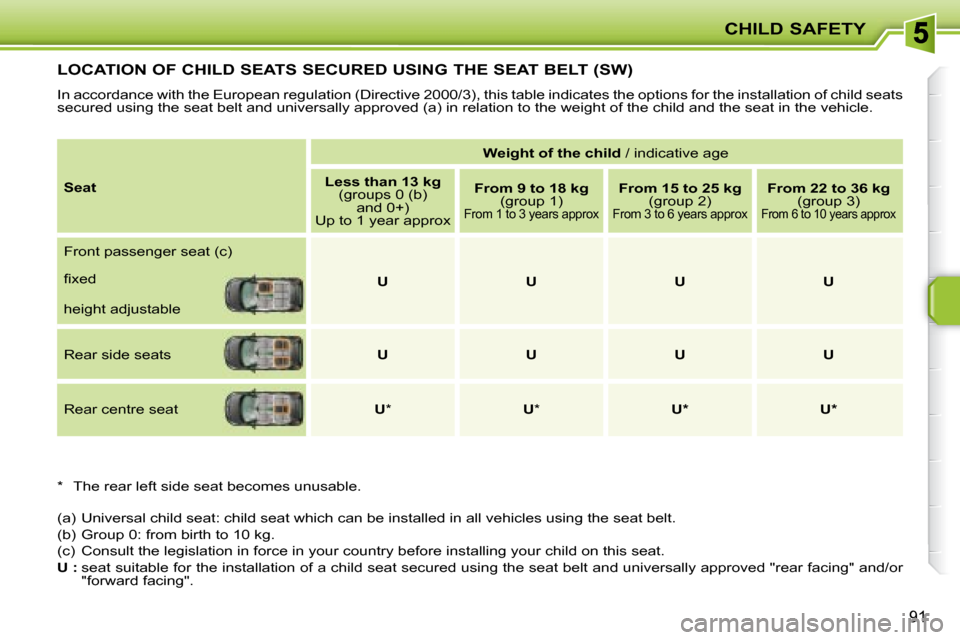

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT (SW)
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) in relat ion to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
( c ) C o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
U : seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/ or
"forward facing".
Seat Weight of the child
/ indicative age
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
U U U U
i x e d
height adjustable
Rear side seats
U U U
U
Rear centre seat U * U * U*
U*
* The rear left side seat becomes unusable.
Page 104 of 223
!

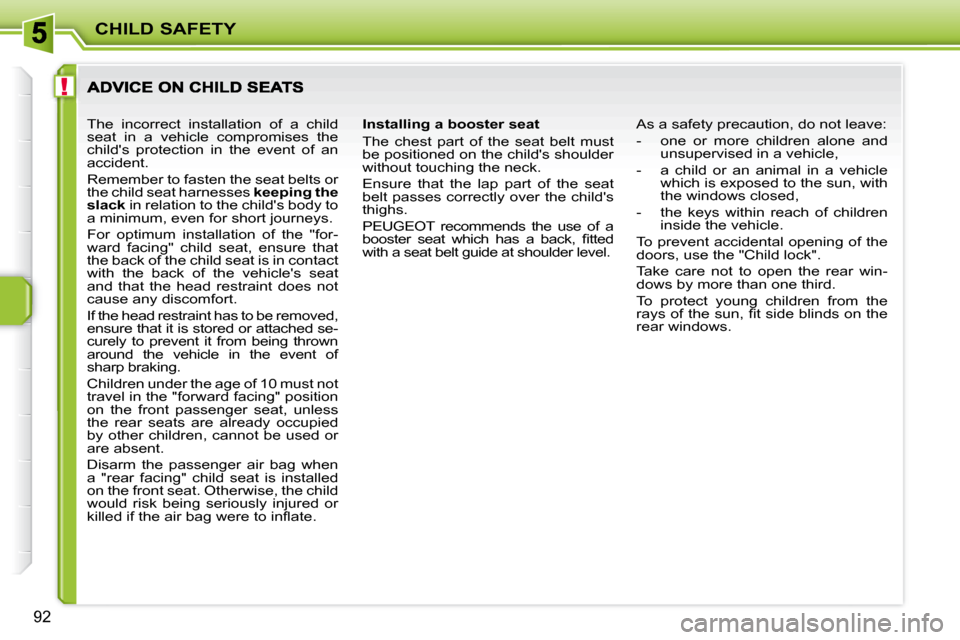

CHILD SAFETY
92
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , i t t e d
with a seat belt guide at shoulder level.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses
keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of
sharp braking.
C h i l d r e n u n d e r t h e a g e o f 1 0 m u s t n o t
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n l a t e . As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
d o o r s , u s e t h e " C h i l d l o c k " .
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , i t s i d e b l i n d s o n t h e
rear windows.
