Page 18 of 223
21
Air bags.
The lighting of this warning
light indicates the occurrence
of a fault in one of the air bags
(front, side or curtain) or pre-tensioning
seat belt systems.
Dynamic stability control
(ESP).
The ESP system is activated
automatically when the vehicle
is started.
Unless the system has been deactiva-
ted, continuous lighting of this warning
l i g h t a n d l a s h i n g o f t h e i n d i c a t o r l i g h t
on the button indicate the occurrence of
a fault in this system.
Engine autodiagnostics
system.
The lighting of this warning light
indicates the occurrence of a
fault in the engine management system.
Flashing of this warning light indicates
the occurrence of a fault in the emission
control system.
Engine oil pressure.
The lighting of this warning light
indicates the occurrence of a
fault in the engine lubrication
circuit. It is imperative that the vehicle is
stopped as soon as it is safe to do so. Battery charge.
The lighting of this warning light
indicates the occurrence of a
fault in the battery charging cir-
cuit (dirty or loose terminals, slack or
cut alternator belt, ...).
Braking.
The lighting of this warning light
indicates the occurrence of a fault
in one of the braking systems:
- significant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (if lit at the same time
as the ABS warning light).
It is imperative that the vehicle is
stopped as soon as it is safe to do so.
If the vehicle is moving, check that the
handbrake has been released fully.
Low fuel level.
The lighting of this warning light
indicates that there is enough
fuel left to drive approximately
30 miles (50 km).
The capacity of the fuel tank is approxi-
mately 50 litres.
Maximum coolant
temperature.
The lighting of this warning light
indicates an excessively high
temperature in the cooling system. It is
imperative that the vehicle is stopped
as soon as it is safe to do so. Door open.
A door, the boot, the rear screen
or the bonnet is still open:
- if the speed is below 6 mph (10 km/h), this warning light comes on continu-
ously,
-
if the speed is above 6 mph (10 km/h),
this warning light comes on continuous-
ly, accompanied by an audible sig
nal.
Seat belt not fastened /
unfastened.
The lighting of this warning light
indicates that the driver * and/or
the front passenger has not fastened
his seat belt or has unfastened it.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Power steering.
The lighting of this warning light
indicates the occurrence of a fault
in the electric power steering.
Presence of water in diesel * .
The lighting of this warning light
indicates the presence of water
i n t h e d i e s e l i l t e r .
There is a risk of damage to the injec-
tion system on Diesel engines.
Directional headlamps.
Flashing of this warning light
indicates the occurrence of a
fault in the directional head-
lamps system.
* According to country.
Page 71 of 223
!

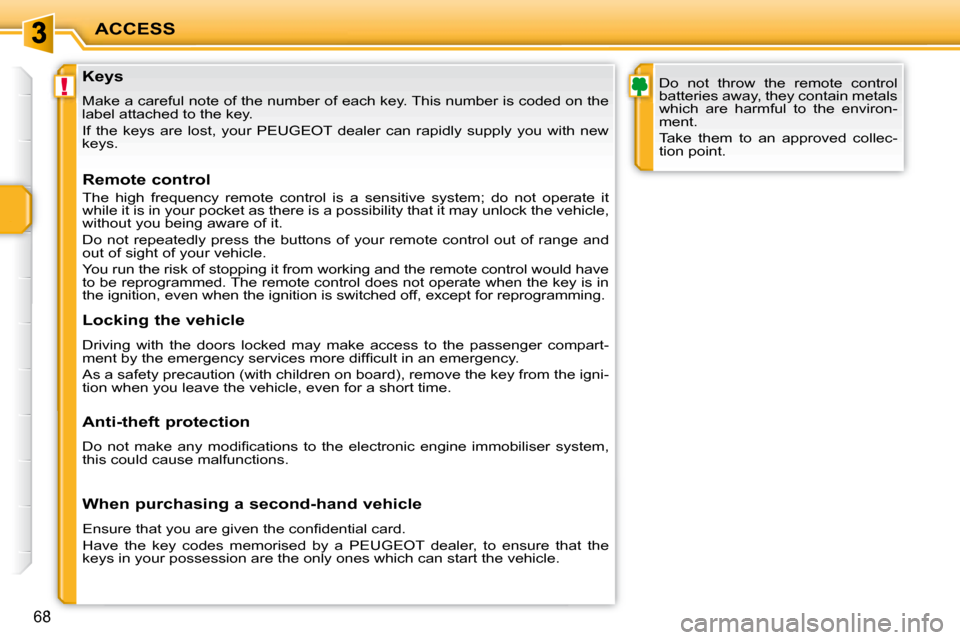

ACCESS
68
Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you w ith new
keys. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have
to be reprogrammed. The remote control does not ope rate when the key is in
the ignition, even when the ignition is switched of f, except for reprogramming.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f i c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i i c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
E n s u r e t h a t y o u a r e g i v e n t h e c o n i d e n t i a l c a r d .
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Page 74 of 223
!
ACCESS
68
Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you w ith new
keys. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have
to be reprogrammed. The remote control does not ope rate when the key is in
the ignition, even when the ignition is switched of f, except for reprogramming.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f i c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i i c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
E n s u r e t h a t y o u a r e g i v e n t h e c o n i d e n t i a l c a r d .
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Page 76 of 223
!
ACCESS
68
Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you w ith new
keys. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have
to be reprogrammed. The remote control does not ope rate when the key is in
the ignition, even when the ignition is switched of f, except for reprogramming.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f i c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i i c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
E n s u r e t h a t y o u a r e g i v e n t h e c o n i d e n t i a l c a r d .
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
Page 204 of 223
191
MENUESCLIST
MENU
2
1
Press the end of the lights stalk to start the voic
e
recognition.
Say the words one by one and wait for the audible
c o n i r m a t i o n s i g n a l b e t w e e n e a c h w o r d .
The list which follows is exhaustive.
To display the list of available voice commands, pr
ess
the end of the lights stalk to start the voice reco gnition,
then say HELP or WHAT CAN I SAY.
For the same operation, press and
hold the MENU button and select the
function VOICE COMMANDS LIST.
VOICE COMMANDS LIST LEVEL 1
display
call
changer
guide to
t r a f i c i n f o
CD player/jukebox
navigation
radio
SMS/message
telephone
LEVEL 2
audio
guidance
navigation
trip computer
telephone
description
disc number
previous/next disc
random play
list
track number
previous/next track
repeat
scan
description
display
read
random play
list
track number
previous/next track
d i r e c t o r y ( M P 3 C D )
scan
stop/resume
directory
show
zoom out/in
autostore
list
memory
previous/next
display
read
voice mailbox
last number
voice message service
directoryLEVEL 3
1 … 20
1 ... 20
previous/next
repeat
destination
description
vehicle
1 … 6
descriptionVOICE COMMANDS
DISPLAYING THE LIST AND USING THEM
Page 211 of 223
209
QUESTIONSOLUTION
RESPONSE
The stored stations do
not function (no sound,
8 7 . 5 M h z i s d i s p l a y e d . . . ) . An incorrect waveband is selected.
Press the BAND AST button to return to the
w a v e b a n d ( A M , F M 1 , F M 2 , F M A S T ) o n w h i c h t h e
stations are stored.
T h e t r a f i c a n n o u n c e m e n t
( T A ) i s d i s p l a y e d . I d o
n o t r e c e i v e a n y t r a f i c
information. T u n e t o a r a d i o s t a t i o n w h i c h b r o a d c a s t s t r a f i c
information.
T h e r a d i o s t a t i o n i s n o t p a r t o f t h e r e g i o n a l t r a f i
c i n f o r m a t i o n n e t w o r k .
The quality of reception
of the radio station
listened to gradually
deteriorates or the
stored stations do
not function (no
sound, 87.5 Mhz is
d i s p l a y e d . . . ) . The vehicle is too far from the transmitter used by
the station listened to or
there is no transmitter in the geographical area th rough which the vehicle
is travelling.
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k
reception, including in RDS mode.
The aerial is absent or has been damaged (for examp le when going
t h r o u g h a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
This phenomenon is normal and does not
indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1
to 2 seconds in radio
mode. During this brief sound cut-out, the RDS searches f
or any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipmen
t operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switc hes to economy mode
and switches off to prevent discharging of the vehi cle’s battery.Start the vehicle’s engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. Switch the audio system off for a few minutes to
allow the system to cool.
In order to protect the installation if the surroun
ding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stoppi ng of the playing of the
CD.
Page 212 of 223
210
QUESTIONSOLUTION
RESPONSE
The TRAFFIC INFO
box is ticked. However,
c e r t a i n t r a f i c j a m s
along the route are not
indicated in real time. On starting, it is several minutes before the syste
m begins to receive the
t r a f i c i n f o r m a t i o n . W a i t u n t i l t h e t r a f i c i n f o r m a t i o n i s b e i n g r e c e i v e d
c o r r e c t l y ( d i s p l a y i n g o f t h e t r a f i c i n f o r m a t i o n
s y m b o l s o n t h e m a p ) .
I n c e r t a i n c o u n t r i e s , o n l y m a j o r r o u t e s ( m o t o r w a y s , . . . ) a r e l i s t e d f o r t h e
t r a f i c i n f o r m a t i o n .
The time taken to
calculate a route
sometimes seems
longer than usual. This phenomenon is normal. The system is
d e p e n d e n t o n t h e t r a f i c i n f o r m a t i o n a v a i l a b l e .
The performance of the system may slow down tempora rily if a CD is
being copied onto the Jukebox at the same time as a route is being
calculated. Wait until the CD has been copied or stop the
copying before starting the guidance function.
Does the emergency call
function work without a
SIM card? No, European regulations impose the presence of a S
IM card in order to
make an emergency call. Insert a valid SIM card in the slot on the RT4 GPS
audio/telephone.
My SIM card is not
recognised. The RT4 accepts 3.3V SIM cards, the old 5V and 1.8V
SIM cards are not
recognised. Contact your telephone operator.
After changing a wheel,
the system loses its
location. The RT4 GPS audio/telephone uses the wheel rotation
information to
i m p r o v e t h e G P S l o c a t i n g f u n c t i o n . I f a w h e e l i s c h a n g e d o r d e l a t e s
suddenly, the system recalculates the location. For approximately ten
minutes, this recalculation may affect the quality of the locating function.Wait until the system has completed its
recalculation.
The table below groups together the answers to the
most frequently asked questions concerning the RT4 audio/telephone.
The location on the
map is incorrect or
inaccurate.
The altitude is not
displayed. On starting, the initialisation of the GPS may take
up to 3 minutes to
receive more than 3 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
3 satellites (long press on the MENU button, then
select AUDIO/TELEPHONE DIAGNOSTICS, then
G P S C O V E R A G E ) .
D e p e n d i n g o n t h e g e o g r a p h i c a l e n v i r o n m e n t ( t u n n e l , . . . ) o r t h e w e a t h e r ,
the conditions of reception of the GPS signal may v ary.This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS signal.
