Peugeot 207 Dag 2007 Owner's Manual

201
11
22
33
11
22

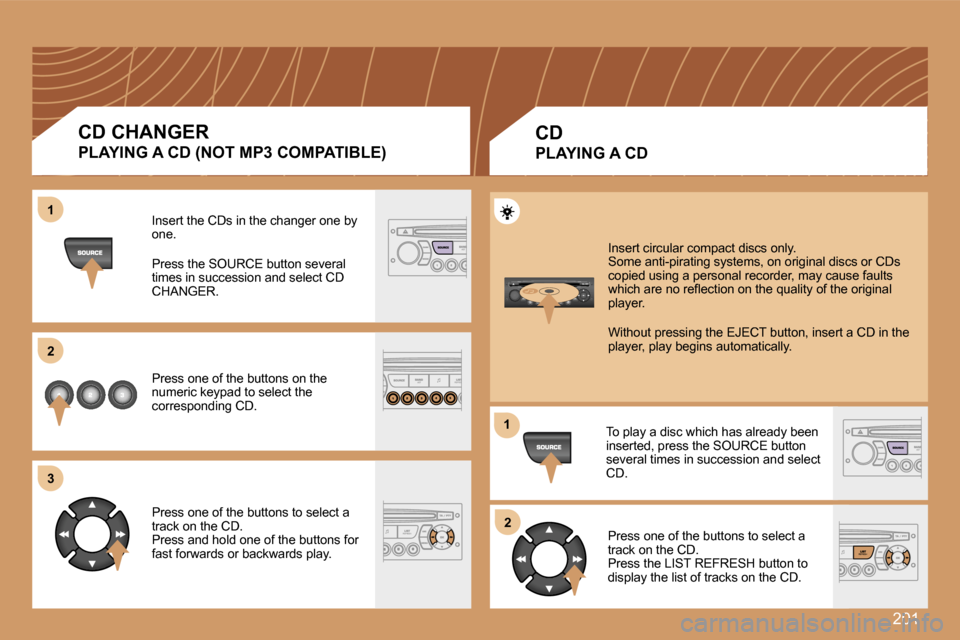

CD CHANGER
PLAYING A CD (NOT MP3 COMPATIBLE)
Insert the CDs in the changer one by one.
Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the numeric keypad to select the corresponding CD.
Press one of the buttons to select a track on the CD.Press and hold one of the buttons for fast forwards or backwards play.
Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may cause faults which are no reflection on the quality of the original player.
Without pressing the EJECT button, insert a CD in t he player, play begins automatically.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD.Press the LIST REFRESH button to display the list of tracks on the CD.
CD
PLAYING A CD

202
11
22

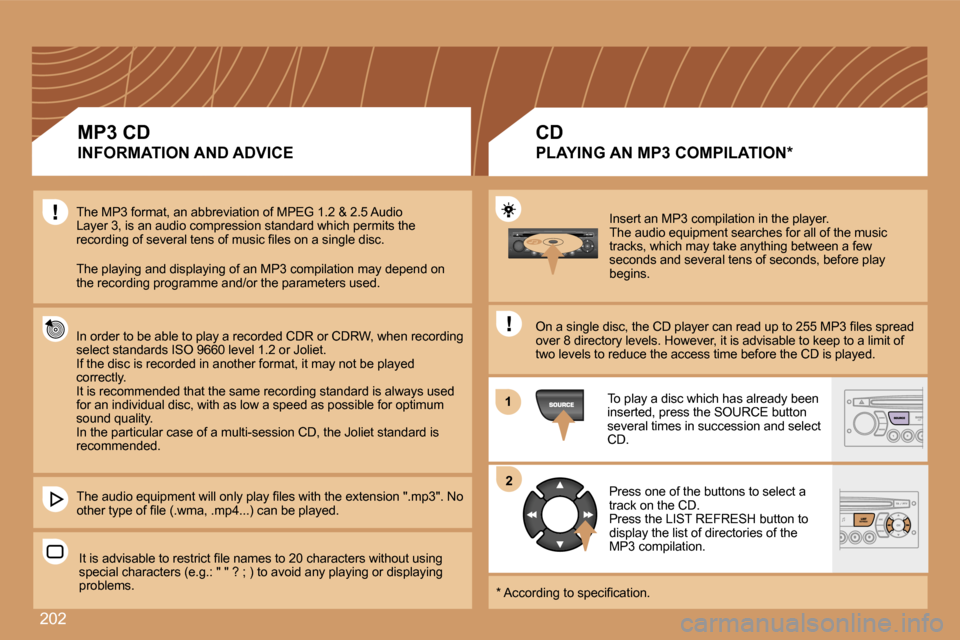

Insert an MP3 compilation in the player.The audio equipment searches for all of the music tracks, which may take anything between a few seconds and several tens of seconds, before play begins.
On a single disc, the CD player can read up to 255 MP3 files spread over 8 directory levels. However, it is advisable to keep to a limit of two levels to reduce the access time before the CD is played.
CD
PLAYING AN MP3 COMPILATION*
MP3 CD
INFORMATION AND ADVICE
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 A udio Layer 3, is an audio compression standard which permits the recording of several tens of music files on a single disc.
The playing and displaying of an MP3 compilation ma y depend on the recording programme and/or the parameters used.
In order to be able to play a recorded CDR or CDRW, when recording select standards ISO 9660 level 1.2 or Joliet.If the disc is recorded in another format, it may not be played correctly.It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible for optimum sound quality.In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio equipment will only play files with the ex tension ".mp3". No other type of file (.wma, .mp4...) can be played.
It is advisable to restrict file names to 20 characters without using special characters (e.g.: " " ? ; ) to avoid any playing or displaying problems.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD.Press the LIST REFRESH button to display the list of directories of the MP3 compilation.
* According to specification.

203
11
22
33
11
22
4411

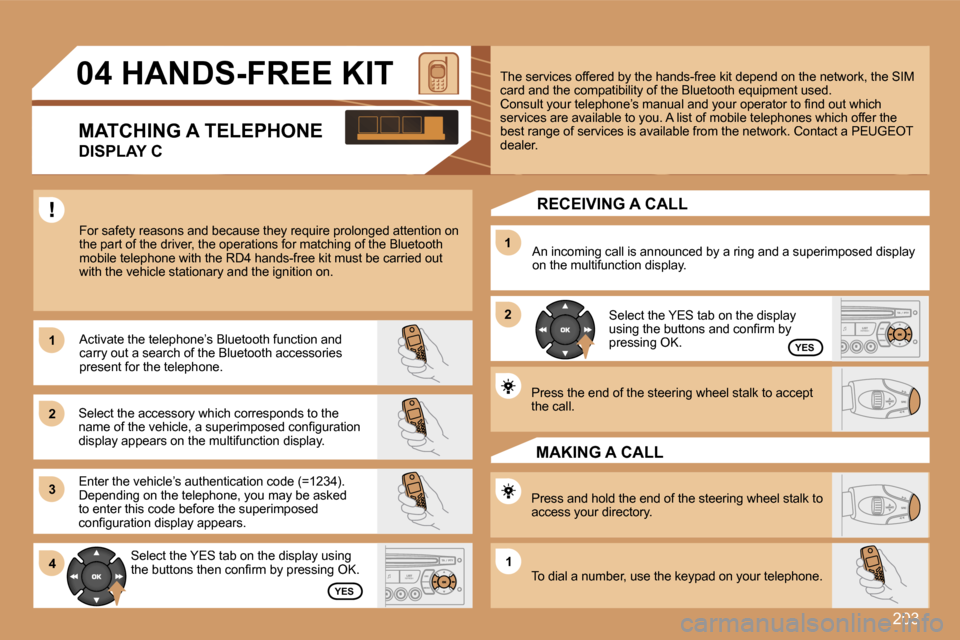

04 HANDS-FREE KIT
MATCHING A TELEPHONE
DISPLAY C
For safety reasons and because they require prolonged attention on the part of the driver, the operations for matching of the Bluetooth mobile telephone with the RD4 hands-free kit must b e carried out with the vehicle stationary and the ignition on.
Select the accessory which corresponds to the name of the vehicle, a superimposed configuration display appears on the multifunction display.
Activate the telephone’s Bluetooth function and carry out a search of the Bluetooth accessories present for the telephone.
Select the YES tab on the display using the buttons then confirm by pressing OK.
Enter the vehicle’s authentication code (=1234).Depending on the telephone, you may be asked to enter this code before the superimposed configuration display appears.
YES
YES
The services offered by the hands-free kit depend on the network, the SIM card and the compatibility of the Bluetooth equipment used.Consult your telephone’s manual and your operator t o find out which services are available to you. A list of mobile telephones which offer the best range of services is available from the networ k. Contact a PEUGEOT dealer.
RECEIVING A CALL
An incoming call is announced by a ring and a super imposed display on the multifunction display.
Select the YES tab on the display using the buttons and confirm by pressing OK.
Press the end of the steering wheel stalk to accept the call.
Press and hold the end of the steering wheel stalk to access your directory.
To dial a number, use the keypad on your telephone.
MAKING A CALL

204

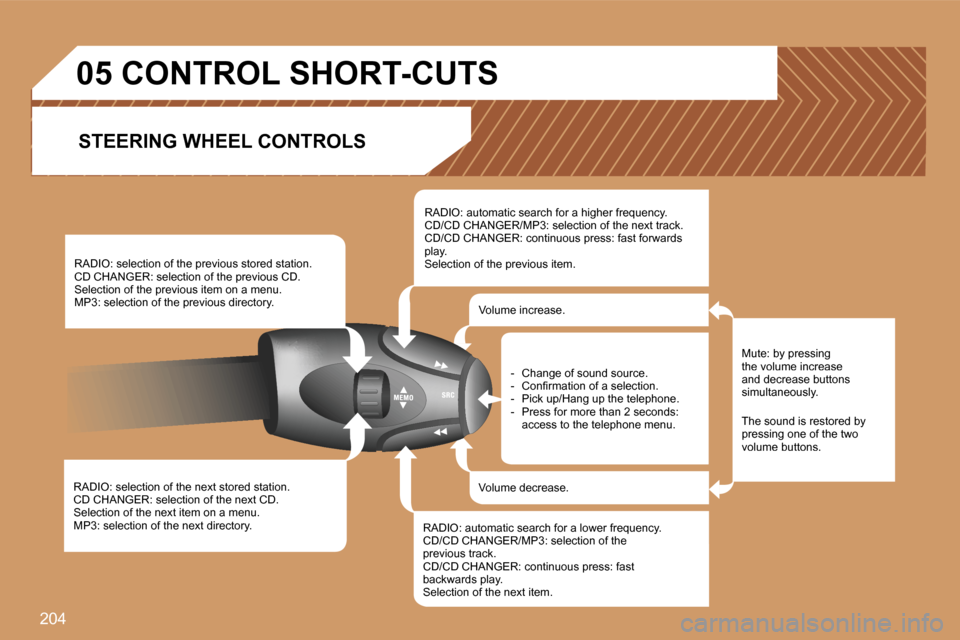

RADIO: selection of the next stored station.CD CHANGER: selection of the next CD.Selection of the next item on a menu.MP3: selection of the next directory.
RADIO: selection of the previous stored station.CD CHANGER: selection of the previous CD.Selection of the previous item on a menu.MP3: selection of the previous directory.
RADIO: automatic search for a higher frequency.CD/CD CHANGER/MP3: selection of the next track.CD/CD CHANGER: continuous press: fast forwards play.Selection of the previous item.
RADIO: automatic search for a lower frequency.CD/CD CHANGER/MP3: selection of the previous track.CD/CD CHANGER: continuous press: fast backwards play.Selection of the next item.
Volume increase.
Volume decrease.
05 CONTROL SHORT-CUTS
Mute: by pressing the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
- Change of sound source.- Confirmation of a selection.- Pick up/Hang up the telephone.- Press for more than 2 seconds: access to the telephone menu.
STEERING WHEEL CONTROLS

205
55
66
77
88
11
22
33
44

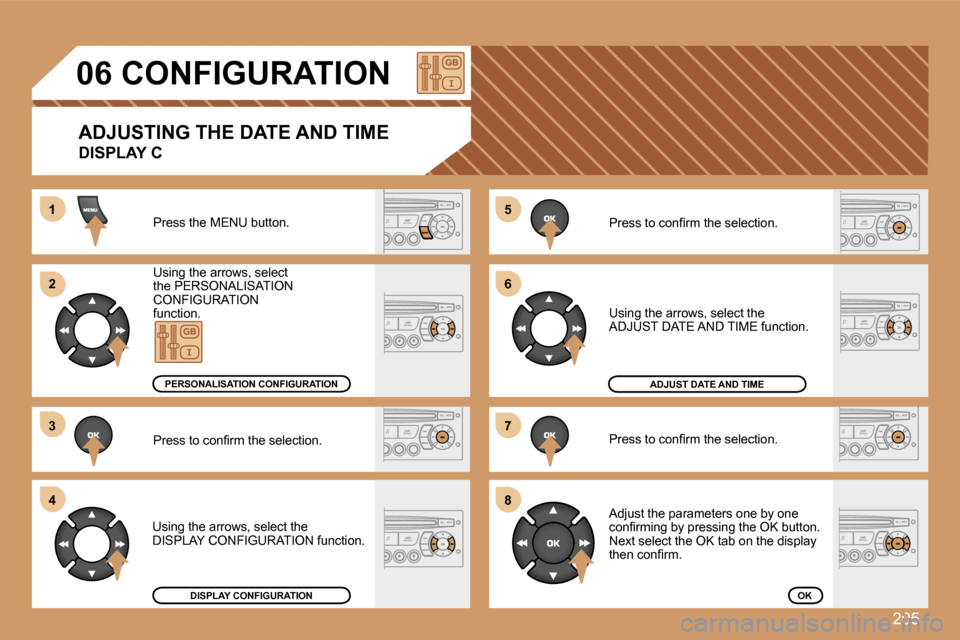

06 CONFIGURATION
ADJUSTING THE DATE AND TIME
DISPLAY C
Press the MENU button.
Using the arrows, select the PERSONALISATION CONFIGURATIONfunction.
Press to confirm the selection.
Using the arrows, select the DISPLAY CONFIGURATION function.
Press to confirm the selection.
Press to confirm the selection.
Using the arrows, select the ADJUST DATE AND TIME function.
Adjust the parameters one by one confirming by pressing the OK button. Next select the OK tab on the display then confirm.
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION

206
123
231
1
2
3
4
3
4
3
4
2
3
4
3
4
2
3
4
2
4
4
3
4
4
4
3
4
4
1
3
3
3
2
2
2

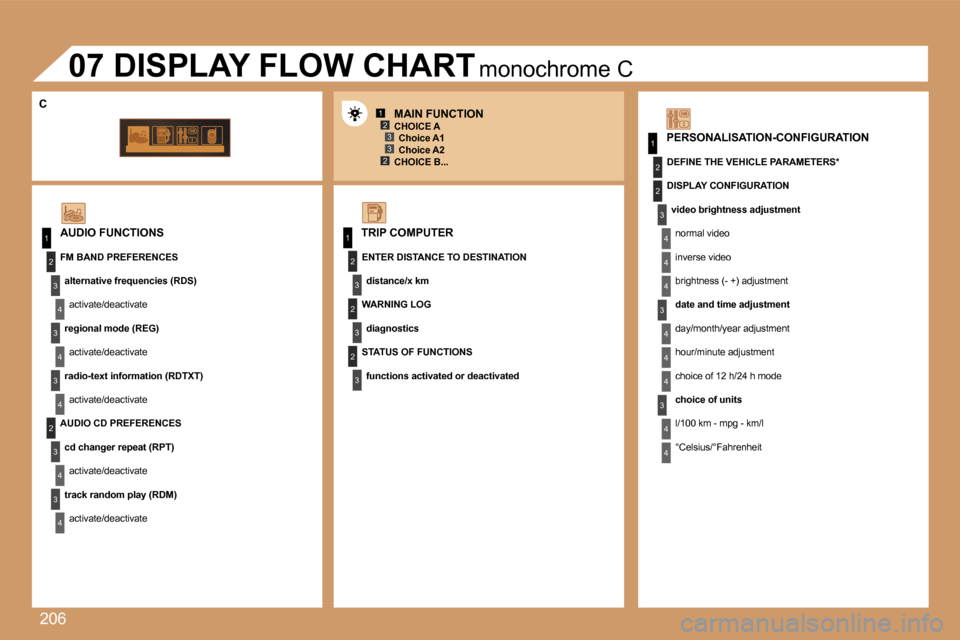

TRIP COMPUTER
ENTER DISTANCE TO DESTINATION
distance/x km
WARNING LOG
diagnostics
STATUS OF FUNCTIONS
functions activated or deactivated
AUDIO FUNCTIONS
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
AUDIO CD PREFERENCES
cd changer repeat (RPT)
activate/deactivate
track random play (RDM)
activate/deactivate
07 DISPLAY FLOW CHARTmonochrome C
MAIN FUNCTIONCHOICE AChoice A1Choice A2CHOICE B...
C
PERSONALISATION-CONFIGURATION
DEFINE THE VEHICLE PARAMETERS*
DISPLAY CONFIGURATION
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit

207
1
2
3
4
3
4
3
4
4
4
2
3
4
3
4
3
4
2
3
3
3
4
3
3
3
2
3
3
3
3
3

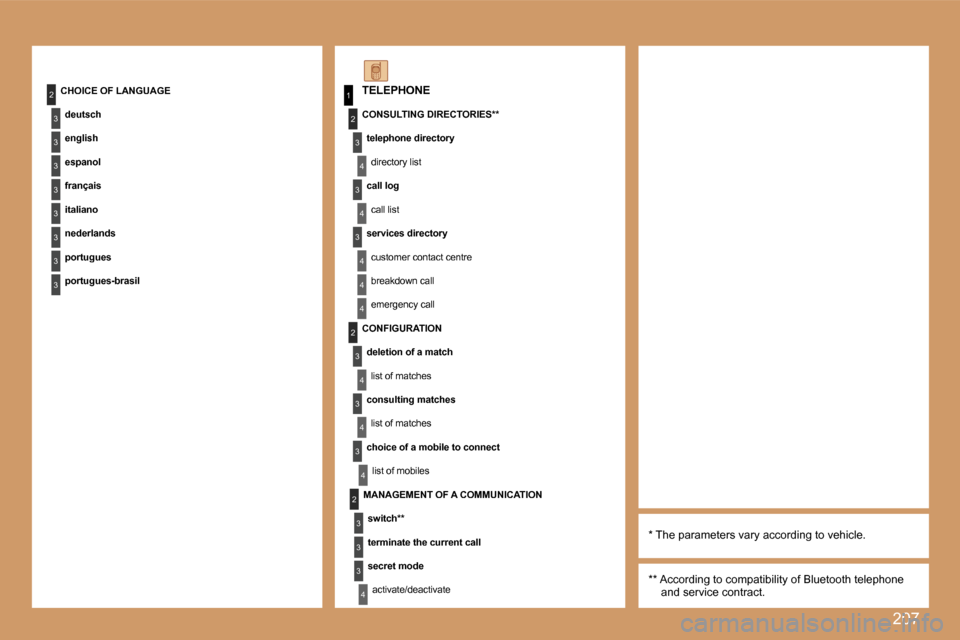

TELEPHONE
CONSULTING DIRECTORIES**
telephone directory
directory list
call log
call list
services directory
customer contact centre
breakdown call
emergency call
CONFIGURATION
deletion of a match
list of matches
consulting matches
list of matches
choice of a mobile to connect
list of mobiles
MANAGEMENT OF A COMMUNICATION
switch**
terminate the current call
secret mode
activate/deactivate
* The parameters vary according to vehicle.
CHOICE OF LANGUAGE
deutsch
english
espanol
français
italiano
nederlands
portugues
portugues-brasil
** According to compatibility of Bluetooth telephone and service contract.

208
1
2
3
3
2
3
3
2
3
3
2
3
3
2
3
3
1
2
3
3
2
3
3
1
2
3
3
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
1
2
2
123
23

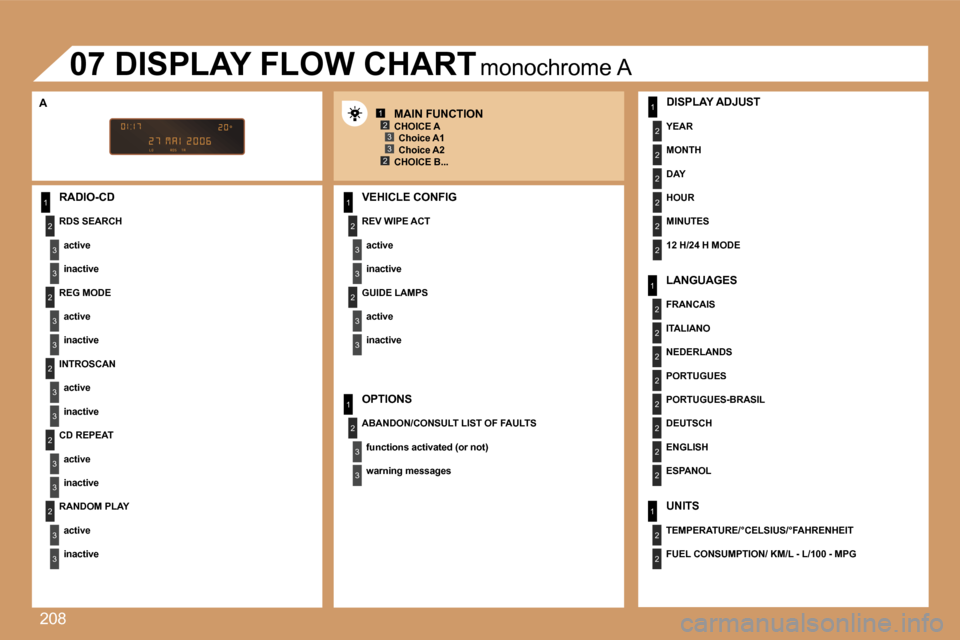

RADIO-CD
RDS SEARCH
active
inactive
REG MODE
active
inactive
INTROSCAN
active
inactive
CD REPEAT
active
inactive
RANDOM PLAY
active
inactive
VEHICLE CONFIG
REV WIPE ACT
active
inactive
GUIDE LAMPS
active
inactive
LANGUAGES
FRANCAIS
ITALIANO
NEDERLANDS
PORTUGUES
PORTUGUES-BRASIL
DEUTSCH
ENGLISH
ESPANOL
OPTIONS
ABANDON/CONSULT LIST OF FAULTS
functions activated (or not)
warning messages
DISPLAY ADJUST
YEAR
MONTH
DAY
HOUR
MINUTES
12 H/24 H MODE
UNITS
TEMPERATURE/°CELSIUS/°FAHRENHEIT
FUEL CONSUMPTION/ KM/L - L/100 - MPG
07 DISPLAY FLOW CHARTmonochrome A
MAIN FUNCTIONCHOICE AChoice A1Choice A2CHOICE B...
A
