Peugeot 207 Dag 2008 User Guide
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 207 Dag, Model: Peugeot 207 Dag 2008Pages: 255, PDF Size: 13.03 MB

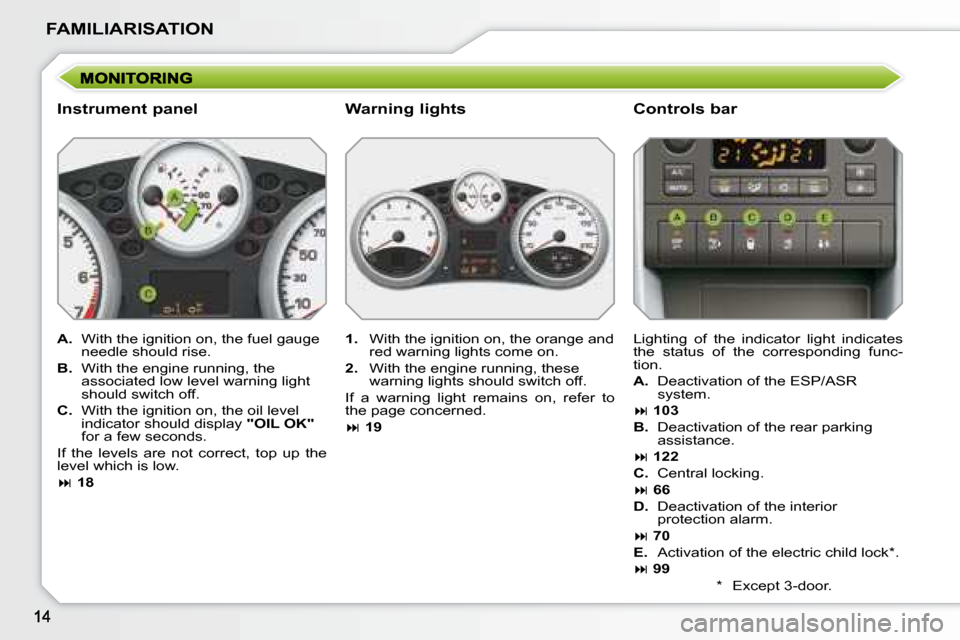

Page 11 of 255
FAMILIARISATION
Instrument panel Controls bar
A. With the ignition on, the fuel gauge
needle should rise.
B. With the engine running, the
associated low level warning light
should switch off.
C. With the ignition on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
level which is low.
18 Lighting of the indicator light indicates
the status of the corresponding func-
tion.
A. Deactivation of the ESP/ASR
system.
103
B. Deactivation of the rear parking
assistance.
122
C. Central locking.
66
D. Deactivation of the interior
protection alarm.
70
E. Activation of the electric child lock * .
99
1. With the ignition on, the orange and
red warning lights come on.
2. With the engine running, these
warning lights should switch off.
If a warning light remains on, refer to
the page concerned.
19
Warning lights
* Except 3-door.

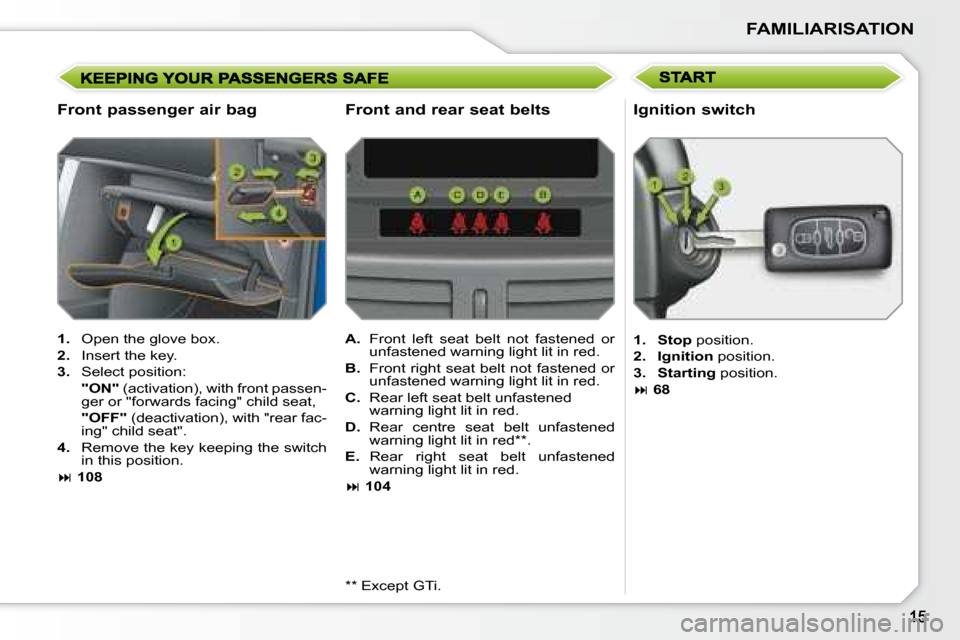

Page 12 of 255
FAMILIARISATION
Front passenger air bag
1. Open the glove box.
2. Insert the key.
3. Select position:
"ON" (activation), with front passen-
ger or "forwards facing" child seat,
"OFF" (deactivation), with "rear fac-
ing" child seat".
4. Remove the key keeping the switch
in this position.
108 Ignition switch
A. Front left seat belt not fastened or
unfastened warning light lit in red.
B. Front right seat belt not fastened or
unfastened warning light lit in red.
C. Rear left seat belt unfastened
warning light lit in red.
D. Rear centre seat belt unfastened
warning light lit in red ** .
E. Rear right seat belt unfastened
warning light lit in red.
104
Front and rear seat belts
** Except GTi.
1. Stop position.
2. Ignition position.
3. Starting position.
68

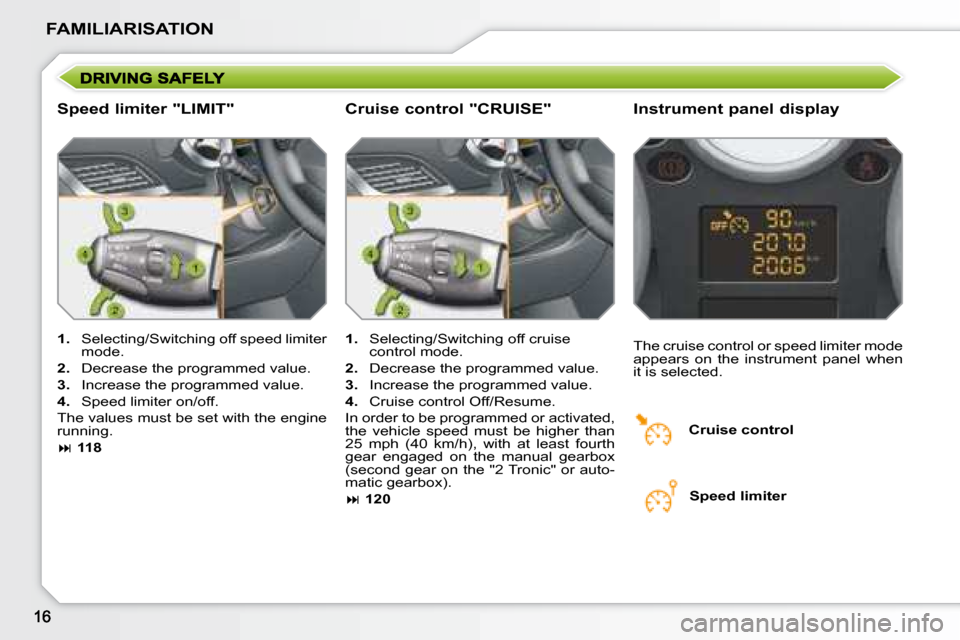

Page 13 of 255
FAMILIARISATION
Speed limiter "LIMIT" Instrument panel display
1. Selecting/Switching off speed limiter
mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter on/off.
The values must be set with the engine
running.
118 The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
1. Selecting/Switching off cruise
control mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Cruise control Off/Resume.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear on the "2 Tronic" or auto-
matic gearbox).
120
Cruise control "CRUISE"
Cruise control Speed limiter

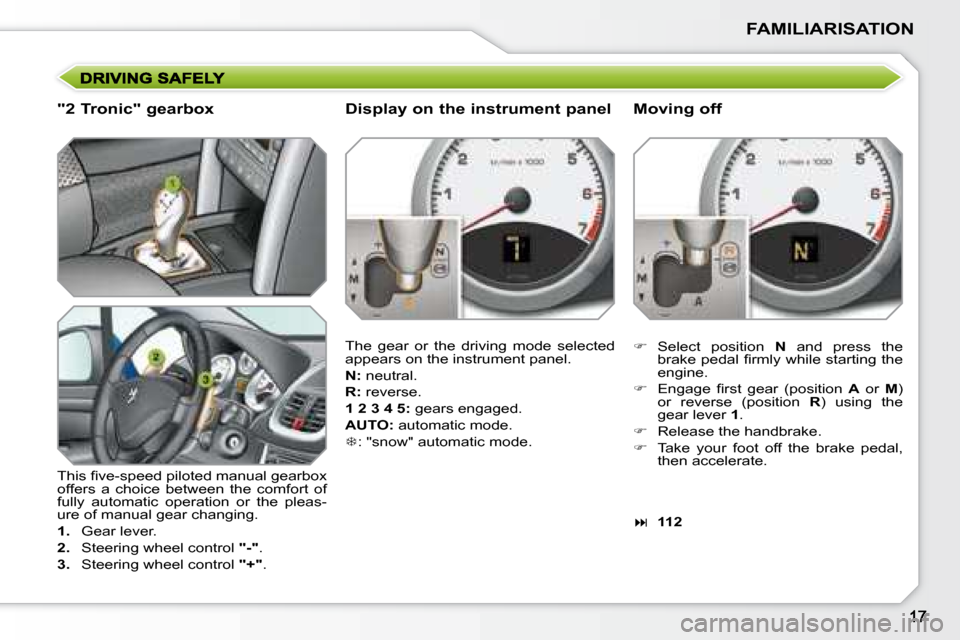

Page 14 of 255
FAMILIARISATION
"2 Tronic" gearbox
T h i s fi v e - s p e e d p i l o t e d m a n u a l g e a r b o x
offers a choice between the comfort of
fully automatic operation or the pleas-
ure of manual gear changing.
1. Gear lever.
2. Steering wheel control "-" .
3. Steering wheel control "+" . Display on the instrument panel
The gear or the driving mode selected
appears on the instrument panel.
N: neutral.
R: reverse.
1 2 3 4 5: gears engaged.
AUTO: automatic mode.
: "snow" automatic mode. Moving off
Select position N and press the
b r a k e p e d a l fi r m l y w h i l e s t a r t i n g t h e
engine.
E n g a g e fi r s t g e a r ( p o s i t i o n A or M )
or reverse (position R ) using the
gear lever 1 .
Release the handbrake.
Take your foot off the brake pedal,
then accelerate.
112

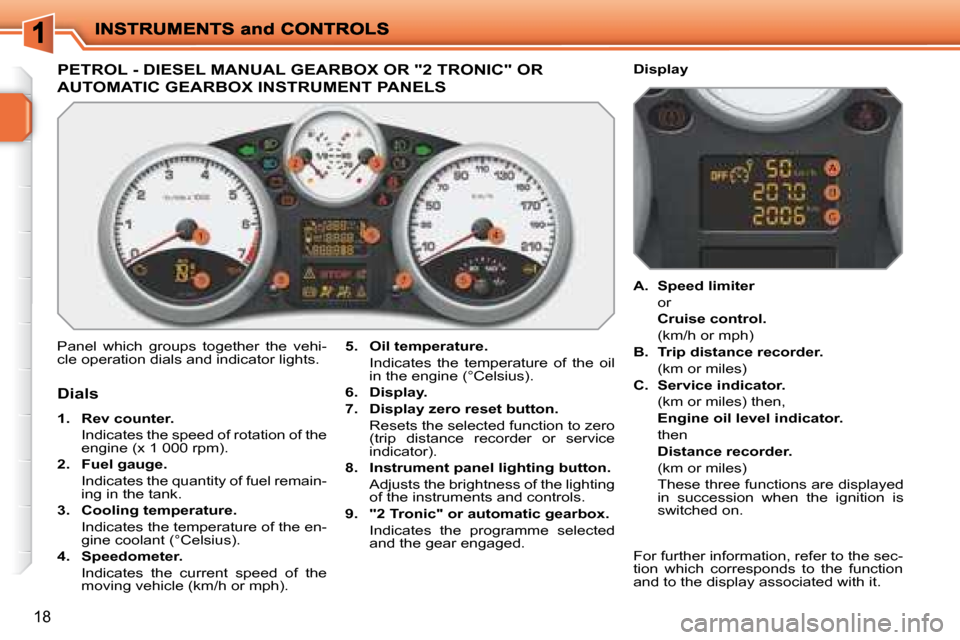

Page 15 of 255
18
PETROL - DIESEL MANUAL GEARBOX OR "2 TRONIC" OR
AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel which groups together the vehi-
cle operation dials and indicator lights.
5. Oil temperature.
Indicates the temperature of the oil in the engine (°Celsius).
6. Display.
7. Display zero reset button.
Resets the selected function to zero (trip distance recorder or service
indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
9. "2 Tronic" or automatic gearbox.
Indicates the programme selected and the gear engaged.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Fuel gauge.
Indicates the quantity of fuel remain- ing in the tank.
3. Cooling temperature.
Indicates the temperature of the en- gine coolant (°Celsius).
4. Speedometer.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Speed limiter
or
Cruise control.
(km/h or mph)
B. Trip distance recorder.
(km or miles)
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
Distance recorder.
(km or miles)
These three functions are displayed in succession when the ignition is
switched on.
Display
For further information, refer to the sec-
tion which corresponds to the function
and to the display associated with it.
Page 16 of 255
!
19
The indicator/warning light comes
o n c o n t i n u o u s l y o r fl a s h e s .
Some indicator/warning lights may
light in two different ways. Only by
relating the type of lighting to the
vehicle operating status can it be
ascertained whether the situation
is normal or whether a fault has oc-
curred.

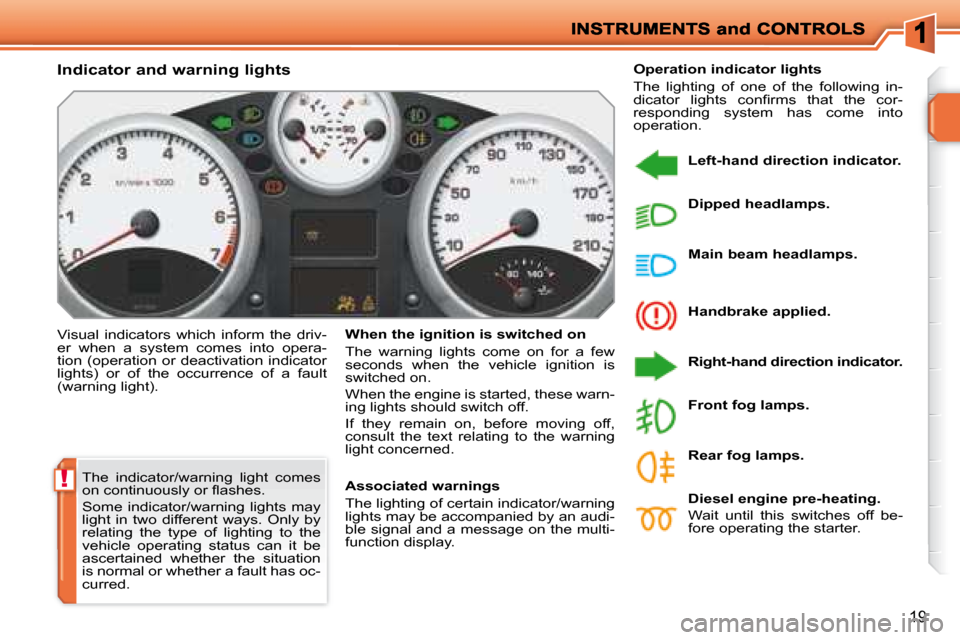

Indicator and warning lights
Visual indicators which inform the driv-
er when a system comes into opera-
tion (operation or deactivation indicator
lights) or of the occurrence of a fault
(warning light).
Associated warnings
The lighting of certain indicator/warning
lights may be accompanied by an audi-
ble signal and a message on the multi-
function display. Operation indicator lights
The lighting of one of the following in-
d i c a t o r l i g h t s c o n fi r m s t h a t t h e c o r -
responding system has come into
operation.
Left-hand direction indicator.
Handbrake applied.
Right-hand direction indicator.
Main beam headlamps.
Dipped headlamps.
Diesel engine pre-heating.
Wait until this switches off be-
fore operating the starter.
Front fog lamps.
Rear fog lamps.
When the ignition is switched on
The warning lights come on for a few
seconds when the vehicle ignition is
switched on.
When the engine is started, these warn-
ing lights should switch off.
If they remain on, before moving off,
consult the text relating to the warning
light concerned.
Page 17 of 255
20
Deactivation indicator lights
The lighting of one of the following in-
d i c a t o r l i g h t s c o n fi r m s t h a t t h e c o r r e -
sponding system has been switched off
intentionally. Passenger air bag system
disarmed.
The passenger air bag system
is activated automatically when
the vehicle is started.
A special switch, located in the
glove box, permits the disarming of this
s y s t e m . T h i s i s c o n fi r m e d b y c o n t i n u -
ous lighting of this indicator light. Deactivation of the dynamic
stability control (ESP).
The ESP system is activated automati-
cally when the vehicle is started. A special button, located in the
centre of the fascia, permits the
deactivation of this system as
well as of the steering/ESP cou-
p l i n g s y s t e m ( S S P ) . T h i s i s c o n fi r m e d b y
continuous lighting of this indicator light
and of the indicator light on the button.

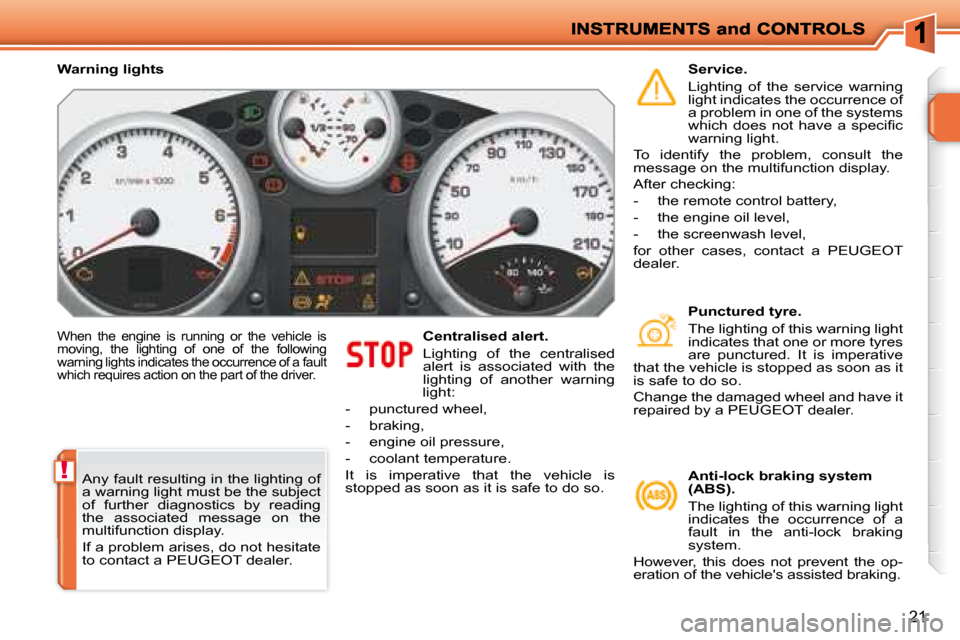

Page 18 of 255
!
21
When the engine is running or the vehicle is
moving, the lighting of one of the following
warning lights indicates the occurrence of a fault
which requires action on the part of the driver. Centralised alert.
Lighting of the centralised
alert is associated with the
lighting of another warning
light:
- punctured wheel,
- braking,
- engine oil pressure,
- coolant temperature.
It is imperative that the vehicle is
stopped as soon as it is safe to do so. Service.
Lighting of the service warning
light indicates the occurrence of
a problem in one of the systems
w h i c h d o e s n o t h a v e a s p e c i fi c
warning light.
To identify the problem, consult the
message on the multifunction display.
After checking:
- the remote control battery,
- the engine oil level,
- the screenwash level,
for other cases, contact a PEUGEOT
dealer.
Punctured tyre.
The lighting of this warning light
indicates that one or more tyres
are punctured. It is imperative
that the vehicle is stopped as soon as it
is safe to do so.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
Anti-lock braking system
(ABS).
The lighting of this warning light
indicates the occurrence of a
fault in the anti-lock braking
system.
However, this does not prevent the op-
eration of the vehicle's assisted braking.
Any fault resulting in the lighting of
a warning light must be the subject
of further diagnostics by reading
the associated message on the
multifunction display.
If a problem arises, do not hesitate
to contact a PEUGEOT dealer.
Warning lights

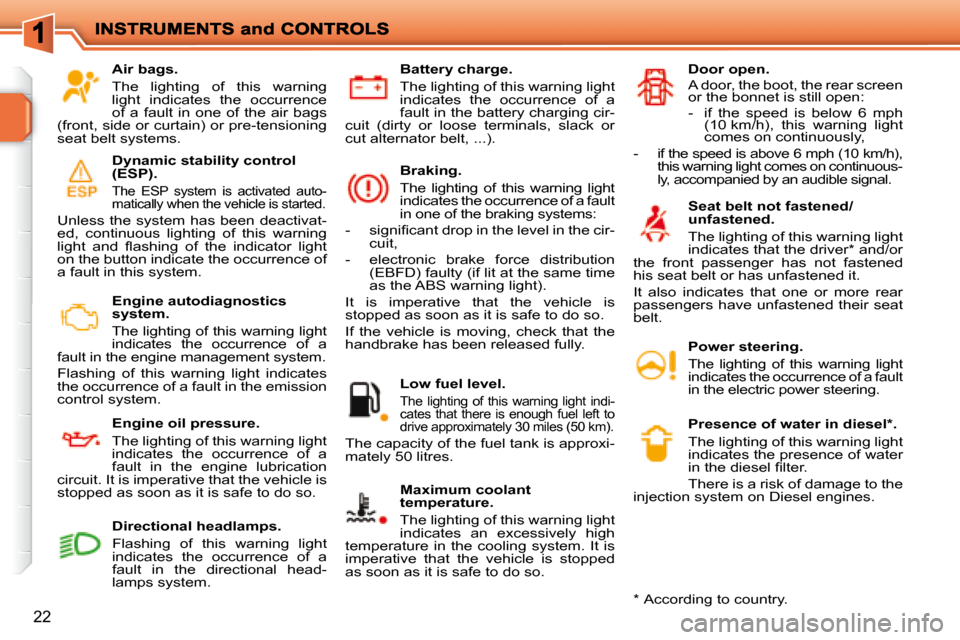

Page 19 of 255
22
Air bags.
The lighting of this warning
light indicates the occurrence
of a fault in one of the air bags
(front, side or curtain) or pre-tensioning
seat belt systems.
Dynamic stability control
(ESP).
The ESP system is activated auto-
matically when the vehicle is started.
Unless the system has been deactivat-
ed, continuous lighting of this warning
l i g h t a n d fl a s h i n g o f t h e i n d i c a t o r l i g h t
on the button indicate the occurrence of
a fault in this system.
Engine autodiagnostics
system.
The lighting of this warning light
indicates the occurrence of a
fault in the engine management system.
Flashing of this warning light indicates
the occurrence of a fault in the emission
control system.
Engine oil pressure.
The lighting of this warning light
indicates the occurrence of a
fault in the engine lubrication
circuit. It is imperative that the vehicle is
stopped as soon as it is safe to do so. Battery charge.
The lighting of this warning light
indicates the occurrence of a
fault in the battery charging cir-
cuit (dirty or loose terminals, slack or
cut alternator belt, ...).
Braking.
The lighting of this warning light
indicates the occurrence of a fault
in one of the braking systems:
- s i g n i fi c a n t d r o p i n t h e l e v e l i n t h e c i r - cuit,
- electronic brake force distribution (EBFD) faulty (if lit at the same time
as the ABS warning light).
It is imperative that the vehicle is
stopped as soon as it is safe to do so.
If the vehicle is moving, check that the
handbrake has been released fully.
Low fuel level.
The lighting of this warning light indi-
cates that there is enough fuel left to
drive approximately 30 miles (50 km).
The capacity of the fuel tank is approxi-
mately 50 litres. Maximum coolant
temperature.
The lighting of this warning light
indicates an excessively high
temperature in the cooling system. It is
imperative that the vehicle is stopped
as soon as it is safe to do so. Door open.
A door, the boot, the rear screen
or the bonnet is still open:
- if the speed is below 6 mph
(10 km/h), this warning light
comes on continuously,
-
if the speed is above 6 mph (10 km/h),
this warning light comes on continuous-
ly, accompanied by an audible signal.
Seat belt not fastened/
unfastened.
The lighting of this warning light
indicates that the driver * and/or
the front passenger has not fastened
his seat belt or has unfastened it.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Power steering.
The lighting of this warning light
indicates the occurrence of a fault
in the electric power steering.
Presence of water in diesel * .
The lighting of this warning light
indicates the presence of water
i n t h e d i e s e l fi l t e r .
There is a risk of damage to the
injection system on Diesel engines.
Directional headlamps.
Flashing of this warning light
indicates the occurrence of a
fault in the directional head-
lamps system. * According to country.
Page 20 of 255
i
23

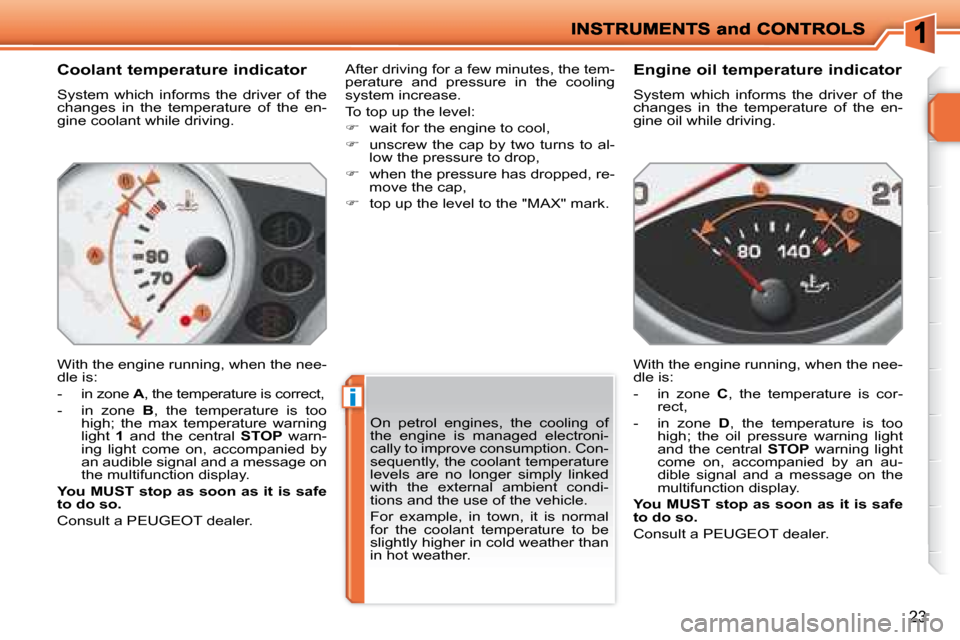

Coolant temperature indicator
System which informs the driver of the
changes in the temperature of the en-
gine coolant while driving.
With the engine running, when the nee-
dle is:
- in zone A , the temperature is correct,
- in zone B , the temperature is too
high; the max temperature warning
light 1 and the central STOP warn-
ing light come on, accompanied by
an audible signal and a message on
the multifunction display.
You MUST stop as soon as it is safe
to do so.
Consult a PEUGEOT dealer. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:
wait for the engine to cool,
unscrew the cap by two turns to al-
low the pressure to drop,
when the pressure has dropped, re-
move the cap,
top up the level to the "MAX" mark. Engine oil temperature indicator
System which informs the driver of the
changes in the temperature of the en-
gine oil while driving.
With the engine running, when the nee-
dle is:
- in zone
C , the temperature is cor-
rect,
- in zone D , the temperature is too
high; the oil pressure warning light
and the central STOP warning light
come on, accompanied by an au-
dible signal and a message on the
multifunction display.
You MUST stop as soon as it is safe
to do so.
Consult a PEUGEOT dealer.
On petrol engines, the cooling of
the engine is managed electroni-
cally to improve consumption. Con-
sequently, the coolant temperature
levels are no longer simply linked
with the external ambient condi-
tions and the use of the vehicle.
For example, in town, it is normal
for the coolant temperature to be
slightly higher in cold weather than
in hot weather.
