Page 1 of 267
18
PETROL - DIESEL MANUAL GEARBOX OR "2 TRONIC" OR
AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel which groups together the vehicle
operation dials and indicator lights.
5. Display.
6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or service in-
dicator).
7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
8. " 2 Tronic " or automatic gearbox.
Indicates the programme selected and the gear engaged.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Fuel gauge.
Indicates the quantity of fuel remain- ing in the tank.
3. Cooling temperature.
Indicates the temperature of the en- gine coolant (° Celsius).
4. Speedometer.
Indicates the current speed of the moving vehicle (km/h or mph).
A. Speed limiter.
or
Cruise control.
(km/h or mph)
B. Trip distance recorder.
(km or miles)
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
Distance recorder.
(km or miles)
These three functions are displayed in succession when the ignition is
switched on.
Display
For further information, refer to the sec-
tion which corresponds to the function
and to the display associated with it.
Page 4 of 267
21

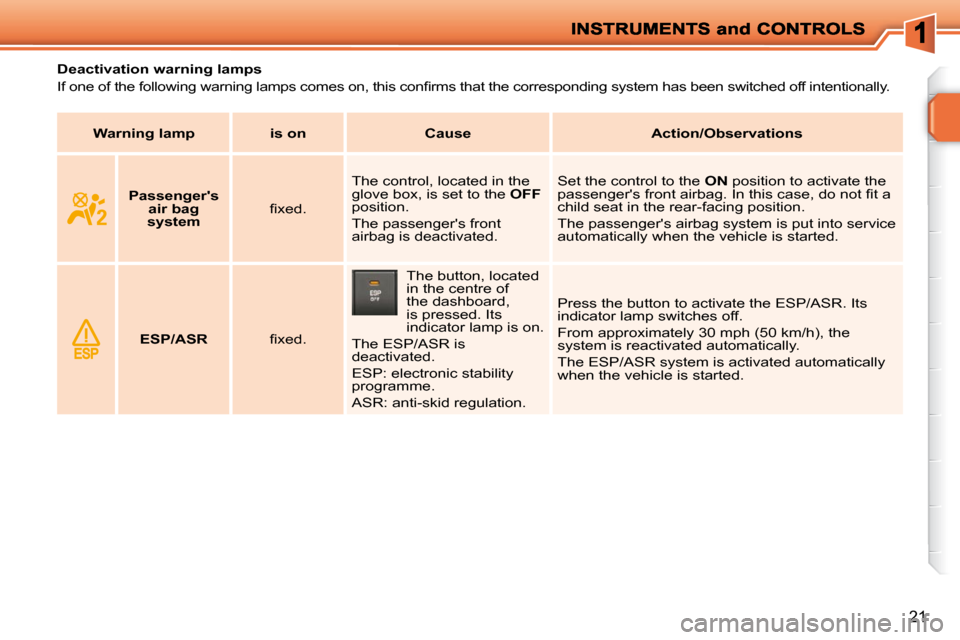

Deactivation warning lamps
I f o n e o f t h e f o l l o w i n g w a r n i n g l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g s y s t e m h a s b e e n s w i t c h e d o f f i n t e n t i o n a l l y .
Warning lampis onCauseAction/Observations
Passenger's
air bag
system fi x e d . The control, located in the
glove box, is set to the
OFF
position.
The passenger's front
airbag is deactivated. Set the control to the
ON position to activate the
p a s s e n g e r ' s f r o n t a i r b a g . I n t h i s c a s e , d o n o t fi t a
child seat in the rear-facing position.
The passenger's airbag system is put into service
automatically when the vehicle is started.
ESP/ASR fi x e d . The button, located
in the centre of
the dashboard,
is pressed. Its
indicator lamp is on.
The ESP/ASR is
deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR. Its
indicator lamp switches off.
From approximately 30 mph (50 km/h), the
system is reactivated automatically.
The ESP/ASR system is activated automatically
when the vehicle is started.
Page 5 of 267
!
22
Warning lamps
When the engine is running or the vehicle is
being driven, the switching on of one of the fol-
lowing warning lamps indicates a fault which
requires action on the part of the driver. Any fault resulting in the switching on of a warning lamp must be investigated
further by reading the associated message on the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer.
Warning lampis onCauseAction/Observations
STOP
fi x e d , a s s o c i a t e d
with another warning
lamp and
accompanied by
an audible signal.
It is associated with the
braking system or the
engine coolant temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer.
Service temporarily.
A minor fault has occurred
for which there is no
s p e c i fi c w a r n i n g l a m p . Identify the fault by reading the message shown
on the screen, such as, for example:
- the engine oil level,
- the screenwash level,
- the remote control battery,
- s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r
(Diesel).
For any other faults, contact a PEUGEOT dealer.
fi x e d . A major fault has occurred
for which there is no
s p e c i fi c w a r n i n g l a m p . Identify the fault by reading the message shown
on the screen and contact a PEUGEOT dealer.
Braking fi x e d .
The braking system
fl u i d l e v e l h a s d r o p p e d
s i g n i fi c a n t l y . T o p u p w i t h b r a k e fl u i d r e c o m m e n d e d b y
PEUGEOT.
If the problem persists, have the system checked
by a PEUGEOT dealer.
+
fi x e d , a s s o c i a t e d with the ABS
warning lamp. The electronic brake force
distribution (EBFD) system
has a fault. Have it checked by a PEUGEOT dealer.
Page 10 of 267
27

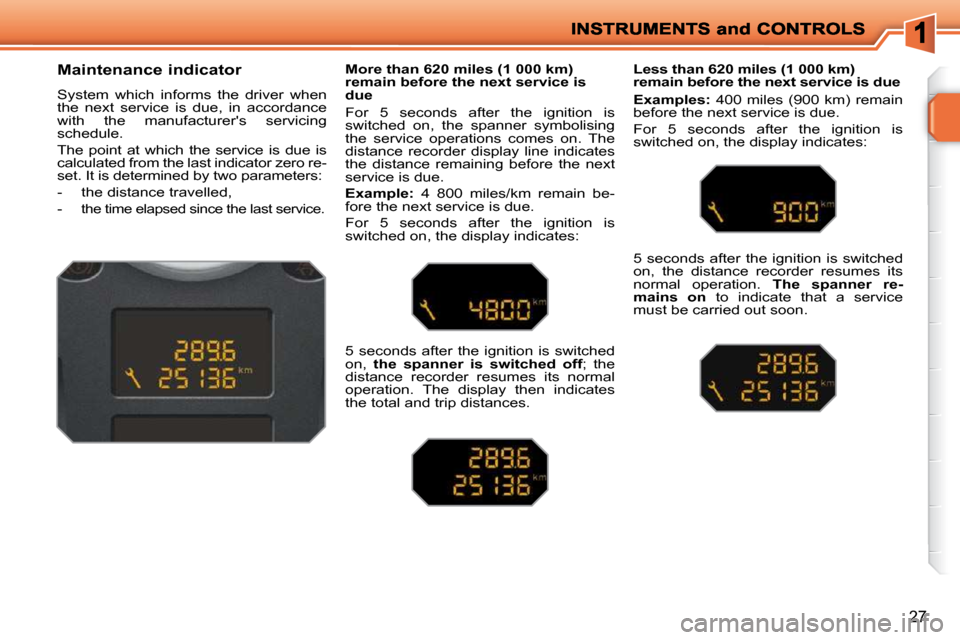

Maintenance indicator
System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero re-
set. It is determined by two parameters:
- the distance travelled,
-
the time elapsed since the last service.
More than 620 miles (1 000 km)
remain before the next service is
due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.
Example: 4 800 miles/km remain be-
fore the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. Less than 620 miles (1 000 km)
remain before the next service is due
Examples: 400 miles (900 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on to indicate that a service
must be carried out soon.
Page 11 of 267
i
i
28
The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

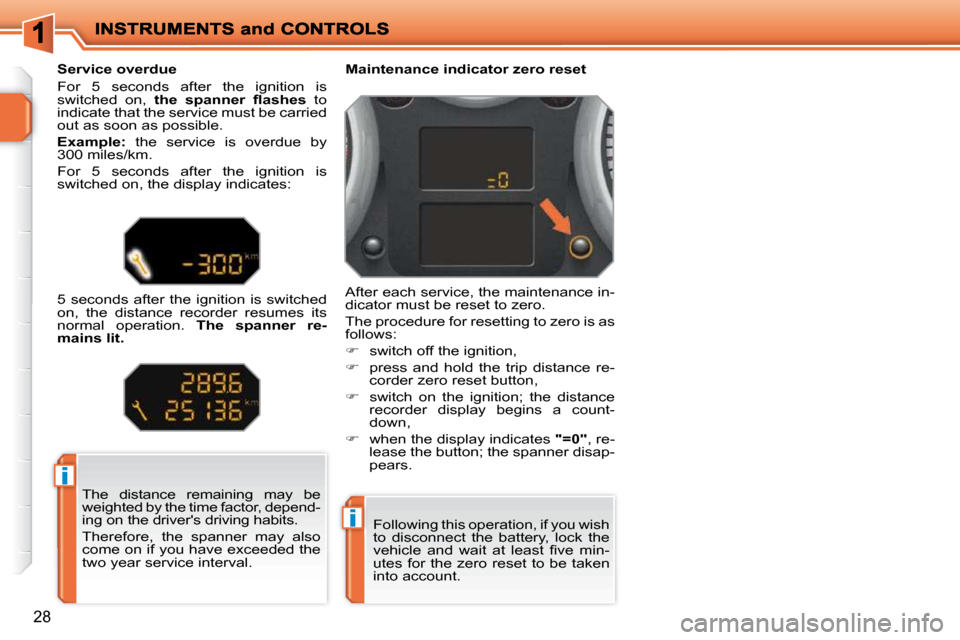

Service overdue
For 5 seconds after the ignition is
switched on,
t h e s p a n n e r fl a s h e s to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 miles/km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit. Maintenance indicator zero reset
After each service, the maintenance in-
dicator must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the trip distance re-
corder zero reset button,
switch on the ignition; the distance
recorder display begins a count-
down,
when the display indicates "=0" , re-
lease the button; the spanner disap-
pears.
Following this operation, if you wish
to disconnect the battery, lock the
v e h i c l e a n d w a i t a t l e a s t fi v e m i n -
utes for the zero reset to be taken
into account.
Page 12 of 267
i
29
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.
Engine oil level indicator
System which informs the driver wheth-
er the engine oil level is correct or not.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct Oil level indicator fault
Dipstick
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , linked with the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL--"
. Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
t h e d i p s t i c k a n d t h e o i l fi l l e r c a p o n y o u r
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of dam-
age to the engine),
- B = min; top up the lev-
e l v i a t h e o i l fi l l e r c a p ,
using the grade of oil
suited to your engine.
Lack of oil
Page 64 of 267
!
i
ACCESS
74

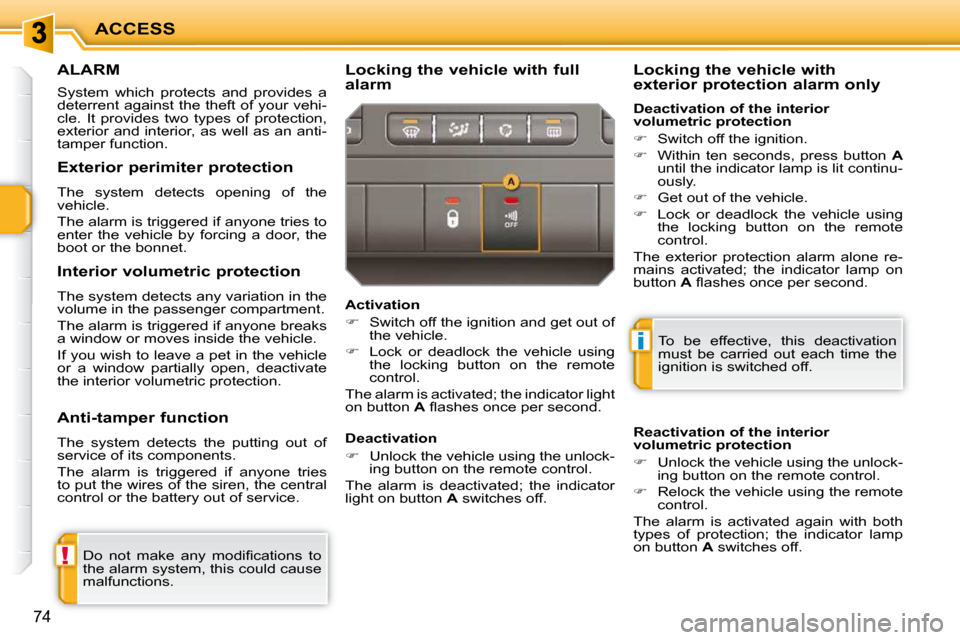

ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as an anti-
tamper function. Locking the vehicle with full
alarm
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Reactivation of the interior
volumetric protection
Unlock the vehicle using the unlock-
ing button on the remote control.
Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator lamp
on button A switches off.
Locking the vehicle with
exterior protection alarm only
Activation
Switch off the ignition and get out of
the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator light
on button A fl a s h e s o n c e p e r s e c o n d .
Exterior perimiter protection
The system detects opening of the
vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
light on button A switches off. Deactivation of the interior
volumetric protection
Switch off the ignition.
Within ten seconds, press button A
until the indicator lamp is lit continu-
ously.
Get out of the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone re-
mains activated; the indicator lamp on
button A fl a s h e s o n c e p e r s e c o n d .
Page 79 of 267
!
87
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the "Follow-me-
home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters on the multifunction display
c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected (sensor behind the interior mir-
r o r ) o r w h e n t h e w i n d s c r e e n w i p e r s a r e
switched on.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
"Follow-me-home" lighting
porarily, after switching off the vehicle's ignition, to make the driver's exit easier in poor light.
Activation
With the ignition off, activate a " h e a d l a m p fl a s h " u s i n g l e v e r B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s the function off again.
Switching off
The "follow-me-home" lighting is switched off automatically following the door locking command, after a given time.
Activation
Turn ring A to the " AUTO
" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on accompanied by the
service warning light, an audi-
ble signal and a message on the multi-
function display.
Have it checked by a PEUGEOT dealer.
Daytime lights *
O n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s , the dipped headlamps come on when the vehicle is started.
This indicator light comes on on the instrument panel.
The instruments and controls (instru-ment panel, multifunction display, air c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t lit, unless the automatic switching on of the lights mode is activated or the lights are switched on manually.
Deactivation
Turn ring A to a position other than
"
AUTO " . Deactivation is accompa-
nied by a message on the multifunc-
tion display.
* According to country.
Page 80 of 267
!
87
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the "Follow-me-
home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters on the multifunction display
c o n fi g u r a t i o n m e n u ,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected (sensor behind the interior mir-
r o r ) o r w h e n t h e w i n d s c r e e n w i p e r s a r e
switched on.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lights are
switched off automatically.
"Follow-me-home" lighting
porarily, after switching off the vehicle's ignition, to make the driver's exit easier in poor light.
Activation
With the ignition off, activate a " h e a d l a m p fl a s h " u s i n g l e v e r B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s the function off again.
Switching off
The "follow-me-home" lighting is switched off automatically following the door locking command, after a given time.
Activation
Turn ring A to the " AUTO
" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on accompanied by the
service warning light, an audi-
ble signal and a message on the multi-
function display.
Have it checked by a PEUGEOT dealer.
Daytime lights *
O n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s , the dipped headlamps come on when the vehicle is started.
This indicator light comes on on the instrument panel.
The instruments and controls (instru-ment panel, multifunction display, air c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t lit, unless the automatic switching on of the lights mode is activated or the lights are switched on manually.
Deactivation
Turn ring A to a position other than
"
AUTO " . Deactivation is accompa-
nied by a message on the multifunc-
tion display.
* According to country.
Page 98 of 267
i
SAFETY
104
DIRECTION INDICATORS
Selection of the left or right direction indi-cators to signal a change of direction of the vehicle.
Lower the lights stalk when moving to the left.
Raise the lights stalk when moving to the right.
"Motorway" function
System for indicating a change of lane
on a motorway.
M o v e t h e l i g h t i n g s t a l k b r i e fl y u p -
wards or downwards, without going
beyond the resistance point; the di-
r e c t i o n i n d i c a t o r s w i l l fl a s h 3 t i m e s .
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads. EMERGENCY OR ASSISTANCE
CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT platform.
For further details of the use of this equip-
ment, refer to the "Audio and telematics"
section PC Nav and PC Sound.
