99
VISIBILITY
Different lighting times are
available: This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.

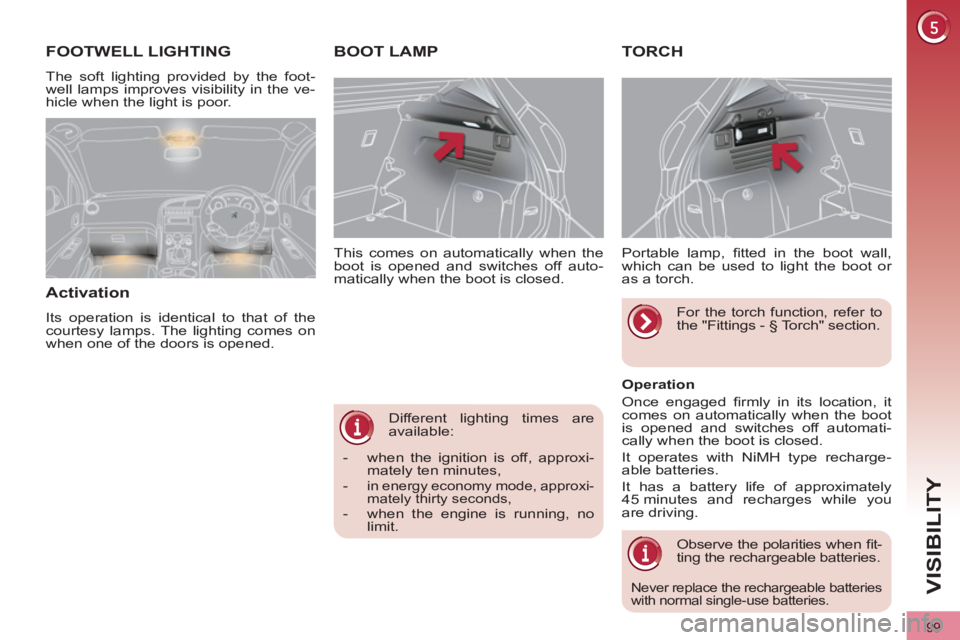

BOOT LAMP
TORCH
Portable lamp, fi tted in the boot wall,
which can be used to light the boot or
as a torch.
Operation
Once engaged fi rmly in its location, it
comes on automatically when the boot
is opened and switches off automati-
cally when the boot is closed.
It operates with NiMH type recharge-
able batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.
Observe the polarities when fi t-
ting the rechargeable batteries.
Never replace the rechargeable batteries
with normal single-use batteries.
For the torch function, refer to
the "Fittings - § Torch" section.
FOOTWELL LIGHTING
The soft lighting provided by the foot-
well lamps improves visibility in the ve-
hicle when the light is poor.
Activation
Its operation is identical to that of the
courtesy lamps. The lighting comes on
when one of the doors is opened.
- when the ignition is off, approxi-
mately ten minutes,
-
in energy economy mode, approxi-
mately thirty seconds,
- when the engine is running, no
limit.
Page 102 of 328
100
FITTINGS

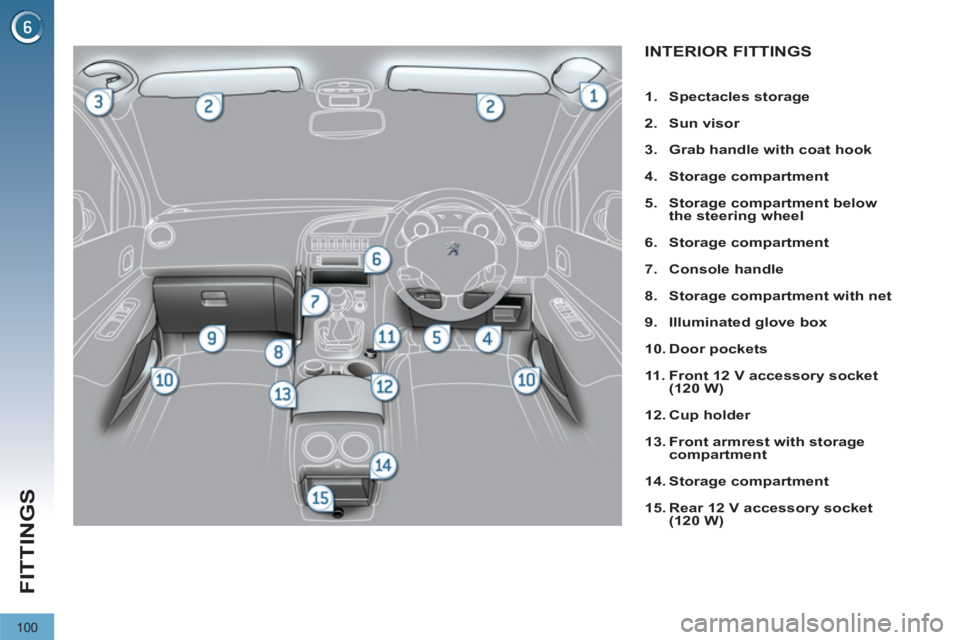

INTERIOR FITTINGS
1.
Spectacles storage
2.
Sun visor
3.
Grab handle with coat hook
4.
Storage compartment
5.
Storage compartment below
the steering wheel
6.
Storage compartment
7.
Console handle
8.
Storage compartment with net
9.
Illuminated glove box
10.
Door pockets
11 .
Front 12 V accessory socket
(120 W)
12.
Cup holder
13.
Front armrest with storage
compartment
14.
Storage compartment
15.
Rear 12 V accessory socket
(120 W)
Page 103 of 328
101
FITTINGS
DRIVER'S STORAGE
COMPARTMENTS
Storage box
This has storage areas for the hand-
book pack, ...
)
To open, pull the handle then tilt the
box.
ILLUMINATED GLOVE BOX
This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Connect
Media), ...
)
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.

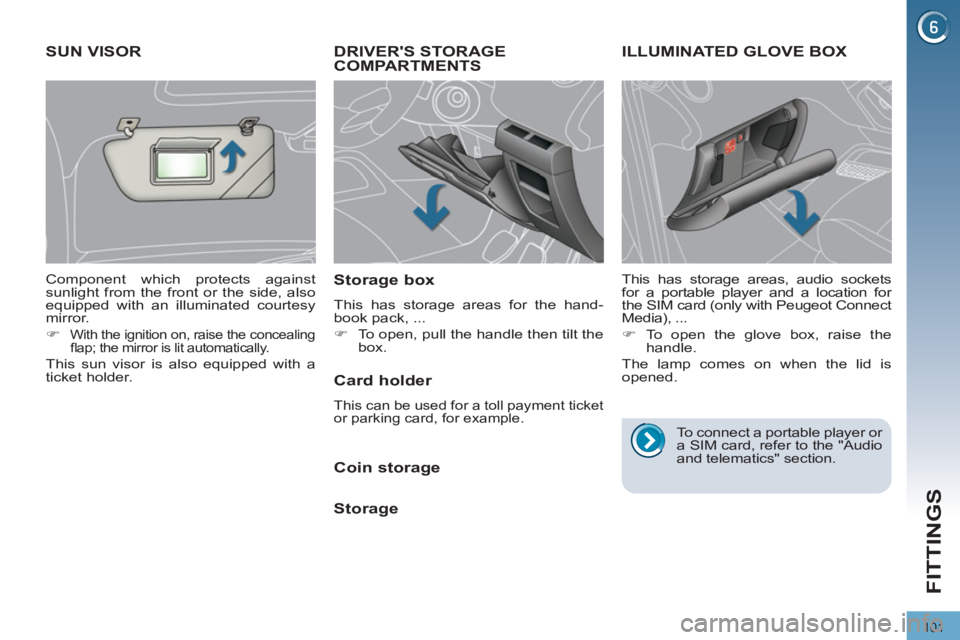

SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
)
With the ignition on, raise the concealing
fl ap; the mirror is lit automatically.
This sun visor is also equipped with a
ticket holder.
Card holder
This can be used for a toll payment ticket
or parking card, for example.
Coin storage
Storage
To connect a portable player or
a SIM card, refer to the "Audio
and telematics" section.
Page 104 of 328
102
FITTINGS
12 V ACCESSORY SOCKETS
)
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.

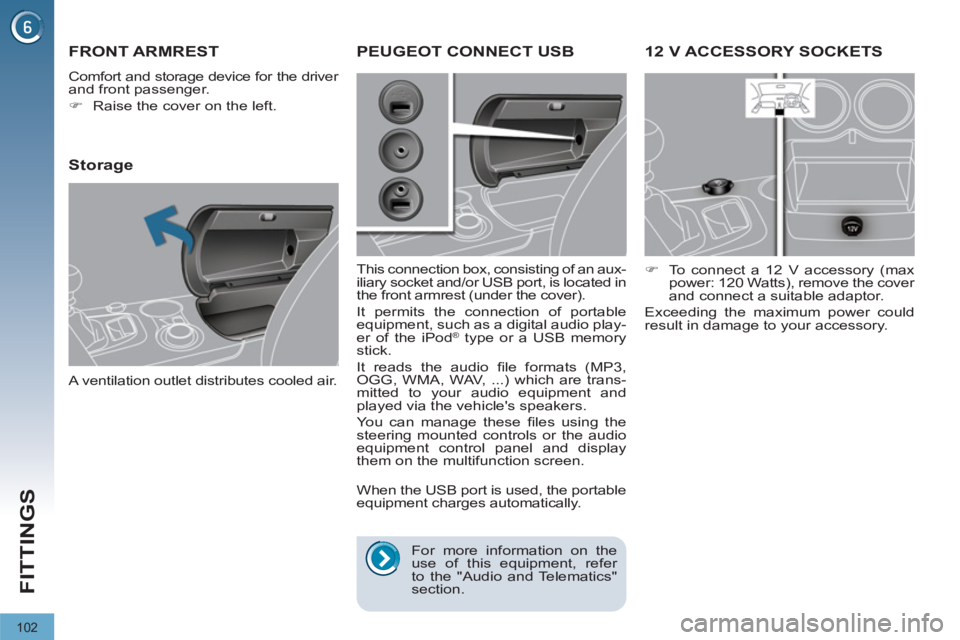

FRONT ARMREST
Comfort and storage device for the driver
and front passenger.
)
Raise the cover on the left.
Storage
A ventilation outlet distributes cooled air.
PEUGEOT CONNECT USB
This connection box, consisting of an aux-
iliary socket and/or USB port, is located in
the front armrest (under the cover).
It permits the connection of portable
equipment, such as a digital audio play-
er of the iPod
® type or a USB memory
stick.
It reads the audio fi le formats (MP3,
OGG, WMA, WAV, ...) which are trans-
mitted to your audio equipment and
played via the vehicle's speakers.
You can manage these fi les using the
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.
When the USB port is used, the portable
equipment charges automatically.
For more information on the
use of this equipment, refer
to the "Audio and Telematics"
section.
Page 105 of 328
103
FITTINGS
To avoid any risk of jamming
of the pedals:

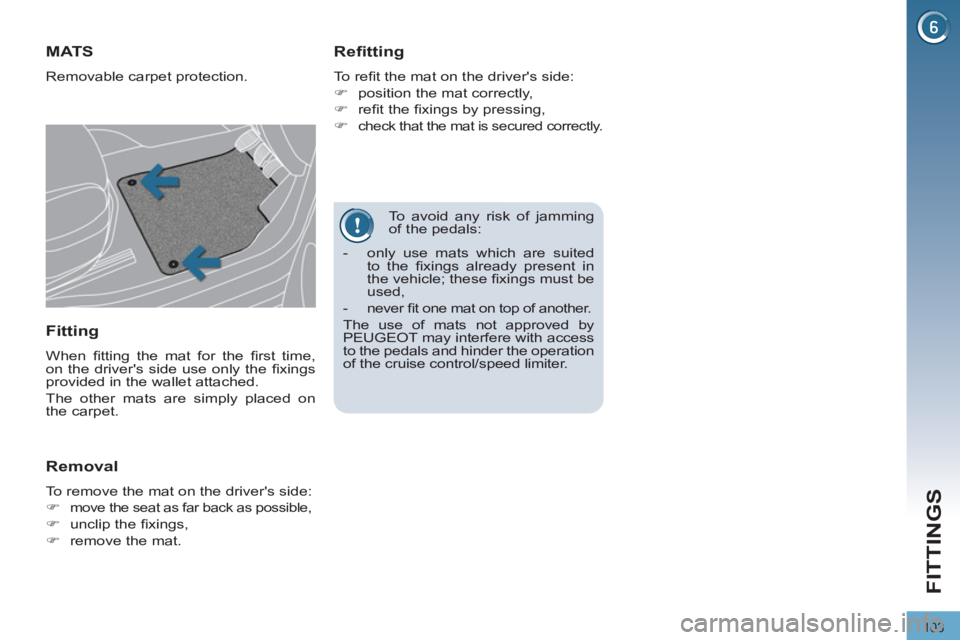

MATS
Removable carpet protection.
Refitting
To refi t the mat on the driver's side:
)
position the mat correctly,
)
refi t the fi xings by pressing,
)
check that the mat is secured correctly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
)
move the seat as far back as possible,
)
unclip the fi xings,
)
remove the mat.
- only use mats which are suited
to the fi xings already present in
the vehicle; these fi xings must be
used,
- never fi t one mat on top of another.
The use of mats not approved by
PEUGEOT may interfere with access
to the pedals and hinder the operation
of the cruise control/speed limiter.
Page 106 of 328
104
FITTINGS

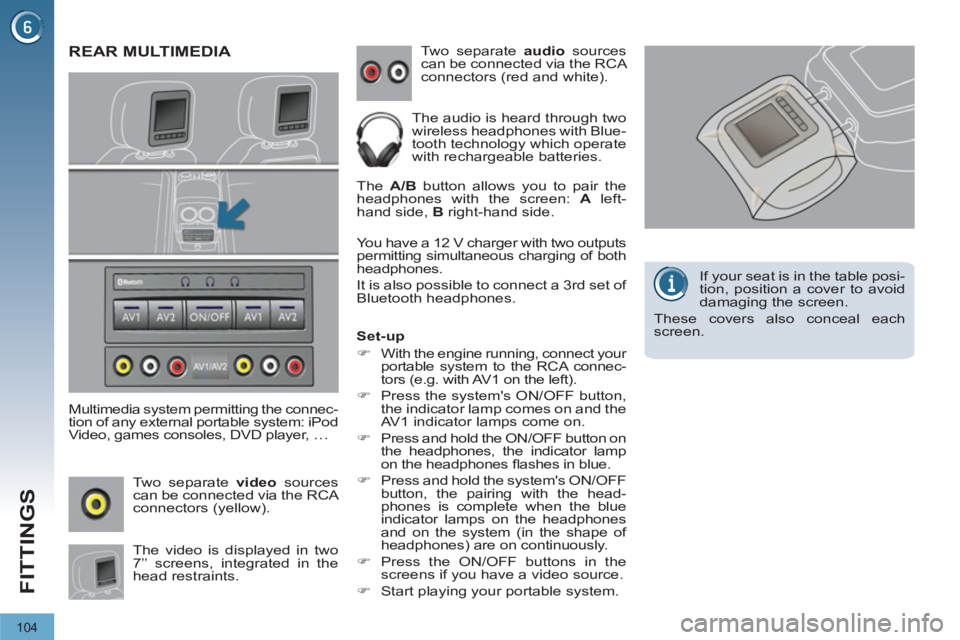

REAR MULTIMEDIA
Multimedia system permitting the connec-
tion of any external portable system: iPod
Video, games consoles, DVD player, …
Two separate video
sources
can be connected via the RCA
connectors (yellow).
The video is displayed in two
7’’ screens, integrated in the
head restraints. Two separate audio
sources
can be connected via the RCA
connectors (red and white).
The audio is heard through two
wireless headphones with Blue-
tooth technology which operate
with rechargeable batteries.
The A/B
button allows you to pair the
headphones with the screen: A
left-
hand side, B
right-hand side.
You have a 12 V charger with two outputs
permitting simultaneous charging of both
headphones.
It is also possible to connect a 3rd set of
Bluetooth headphones.
Set-up
)
With the engine running, connect your
portable system to the RCA connec-
tors (e.g. with AV1 on the left).
)
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.
)
Press and hold the ON/OFF button on
the headphones, the indicator lamp
on the headphones fl ashes in blue.
)
Press and hold the system's ON/OFF
button, the pairing with the head-
phones is complete when the blue
indicator lamps on the headphones
and on the system (in the shape of
headphones) are on continuously.
)
Press the ON/OFF buttons in the
screens if you have a video source.
)
Start playing your portable system.
If your seat is in the table posi-
tion, position a cover to avoid
damaging the screen.
These covers also conceal each
screen.
Page 107 of 328
105
FITTINGS

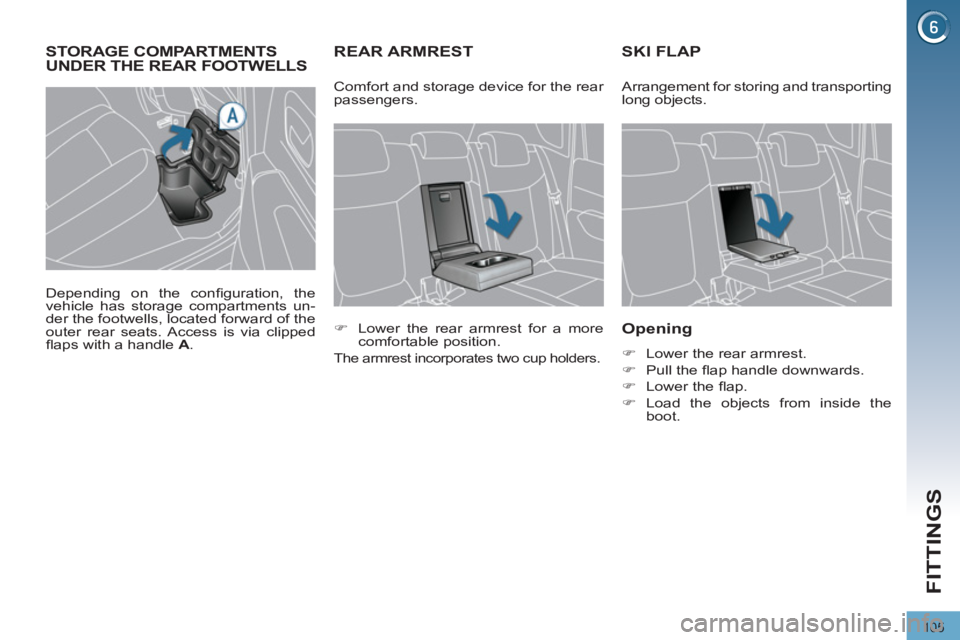

REAR ARMREST
SKI FLAP
Opening
)
Lower the rear armrest.
)
Pull the fl ap handle downwards.
)
Lower the fl ap.
)
Load the objects from inside the
boot.
)
Lower the rear armrest for a more
comfortable position.
The armrest incorporates two cup holders.
Comfort and storage device for the rear
passengers. Arrangement for storing and transporting
long objects.
STORAGE COMPARTMENTS
UNDER THE REAR FOOTWELLS
Depending on the confi guration, the
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl aps with a handle A
.
Page 108 of 328
106
FITTINGS

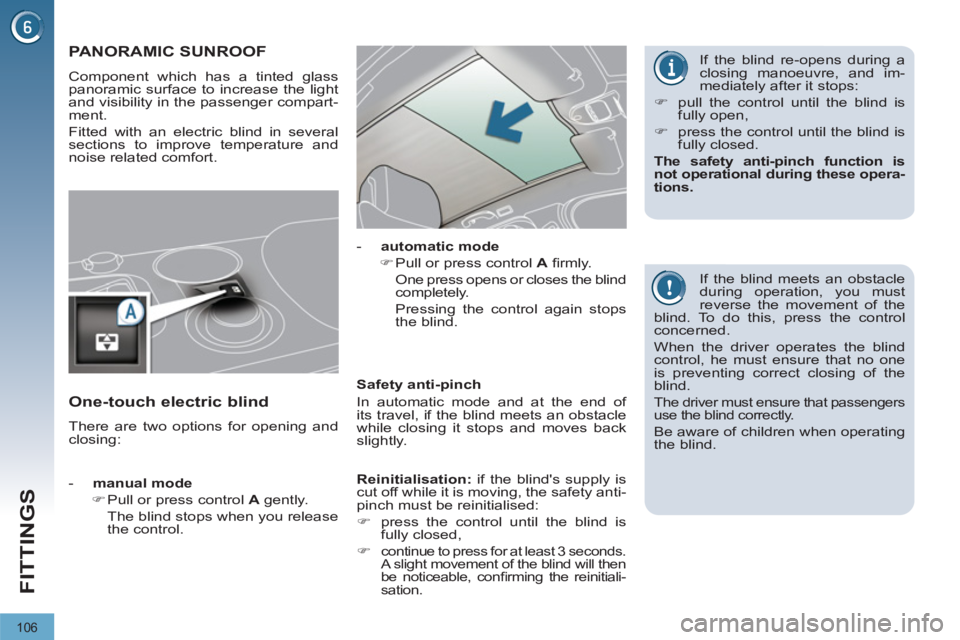

PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passengers
use the blind correctly.
Be aware of children when operating
the blind.
- manual mode
)
Pull or press control A
gently.
The blind stops when you release
the control.
- automatic mode
)
Pull or press control A
fi rmly.
One press opens or closes the blind
completely.
Pressing the control again stops
the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing:
If the blind re-opens during a
closing manoeuvre, and im-
mediately after it stops:
)
pull the control until the blind is
fully open,
)
press the control until the blind is
fully closed.
The safety anti-pinch function is
not operational during these opera-
tions.
Reinitialisation:
if the blind's supply is
cut off while it is moving, the safety anti-
pinch must be reinitialised:
)
press the control until the blind is
fully closed,
)
continue to press for at least 3 seconds.
A slight movement of the blind will then
be noticeable, confi rming the reinitiali-
sation.
Page 109 of 328
107
FITTINGS

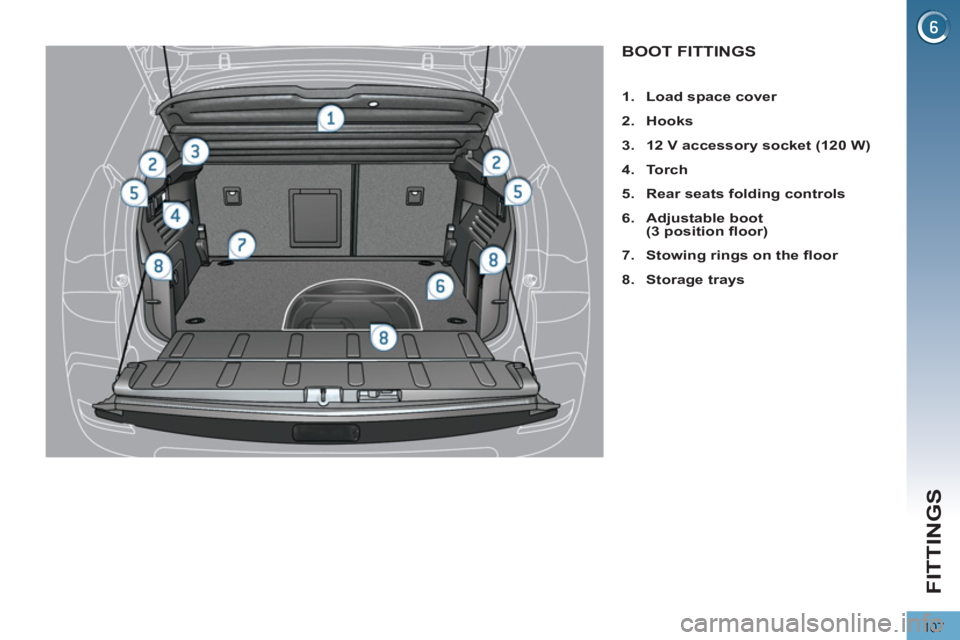

BOOT FITTINGS
1.
Load space cover
2.
Hooks
3.
12 V accessory socket (120 W)
4.
To r c h
5.
Rear seats folding controls
6.
Adjustable boot
(3 position fl oor )
7.
Stowing rings on the fl oor
8.
Storage trays
Page 110 of 328
108
FITTINGS

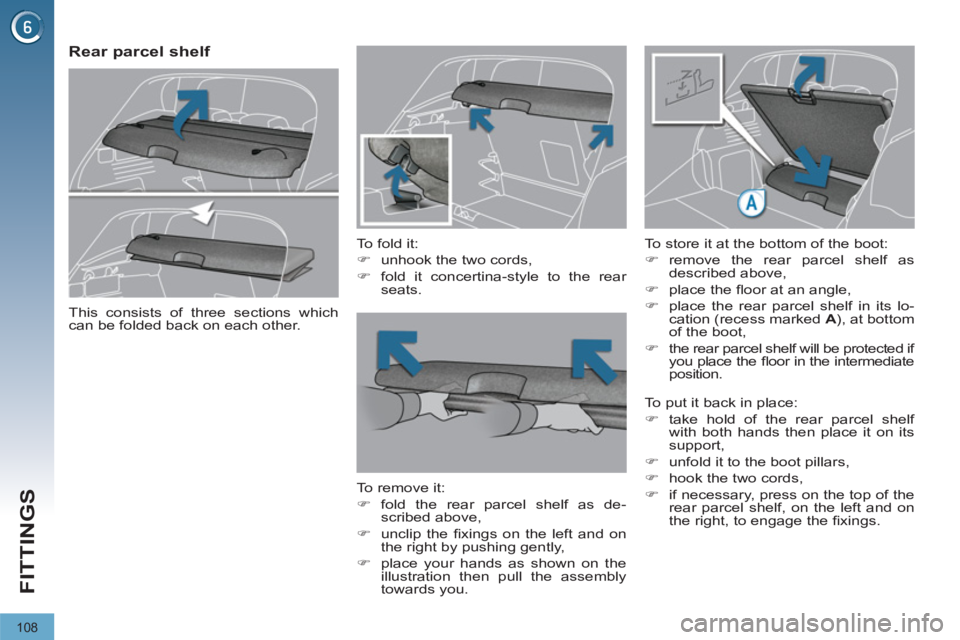

Rear parcel shelf
To fold it:
)
unhook the two cords,
)
fold it concertina-style to the rear
seats.
To remove it:
)
fold the rear parcel shelf as de-
scribed above,
)
unclip the fi xings on the left and on
the right by pushing gently,
)
place your hands as shown on the
illustration then pull the assembly
towards you.
To store it at the bottom of the boot:
)
remove the rear parcel shelf as
described above,
)
place the fl oor at an angle,
)
place the rear parcel shelf in its lo-
cation (recess marked A
), at bottom
of the boot,
)
the rear parcel shelf will be protected if
you place the fl oor in the intermediate
position.
This consists of three sections which
can be folded back on each other.
To put it back in place:
)
take hold of the rear parcel shelf
with both hands then place it on its
support,
)
unfold it to the boot pillars,
)
hook the two cords,
)
if necessary, press on the top of the
rear parcel shelf, on the left and on
the right, to engage the fi xings.
