PEUGEOT 3008 2011.5 Owners Manual

279
07
3 2 1
6
4
5

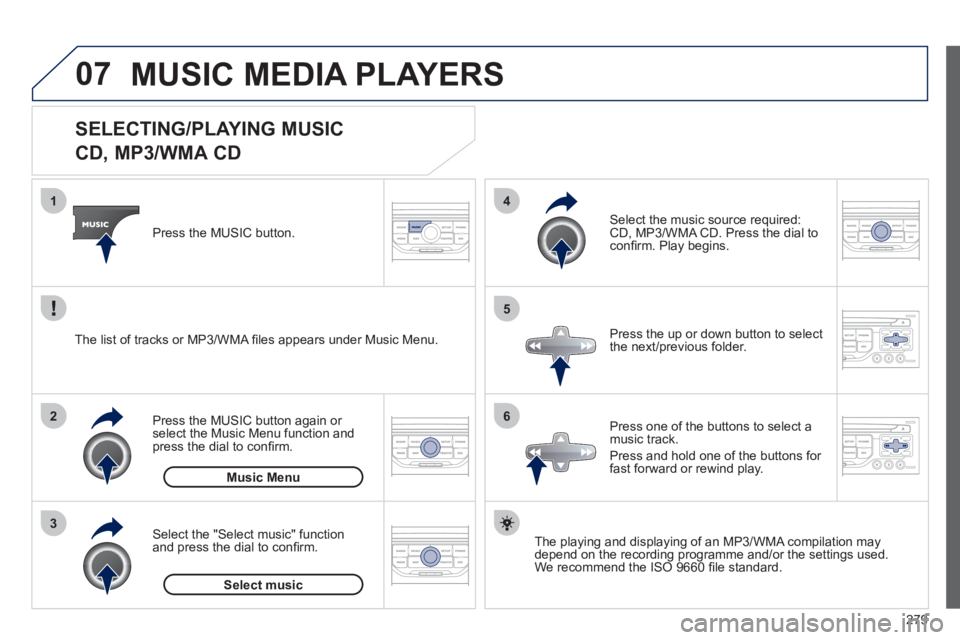

SELECTING/PLAYING MUSIC
CD, MP3/WMA CD

The playing and displaying of an MP3/WMA compilation may
depend on the recording programme and/or the settings used.
We recommend the ISO 9660 fi le standard.

Press the MUSIC button.

Select the "Select music" function
and press the dial to confi rm.
Press the up or down button to select
the next/previous folder.
Select the music source required:
CD, MP3/WMA CD. Press the dial to
confi rm. Play begins.

Select music


Press the MUSIC button again or
select the Music Menu function and
press the dial to confi rm.
Press one of the buttons to select a
music track.
Press and hold one of the buttons for
fast forward or rewind play.

Music Menu


The list of tracks or MP3/WMA fi les appears under Music Menu.

MUSIC MEDIA PLAYERS

280
07
43 1
2

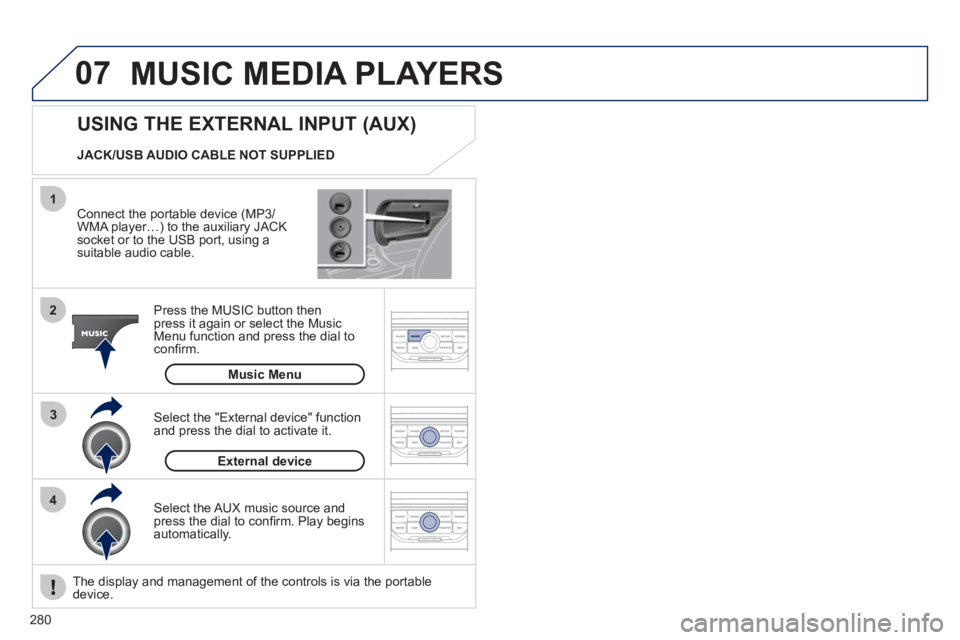

MUSIC MEDIA PLAYERS


Connect the portable device (MP3/
WMA player…) to the auxiliary JACK
socket or to the USB port, using a
suitable audio cable.

Press the MUSIC button then
press it again or select the Music
Menu function and press the dial to
confi rm.

Select the AUX music source and
press the dial to confi rm. Play begins
automatically.
Select the "External device" function
and press the dial to activate it.

External device















USING THE EXTERNAL INPUT (AUX)


Music Menu


JACK/USB AUDIO CABLE NOT SUPPLIED

The display and management of the controls is via the portable
device.

281
08
1
2
3
4

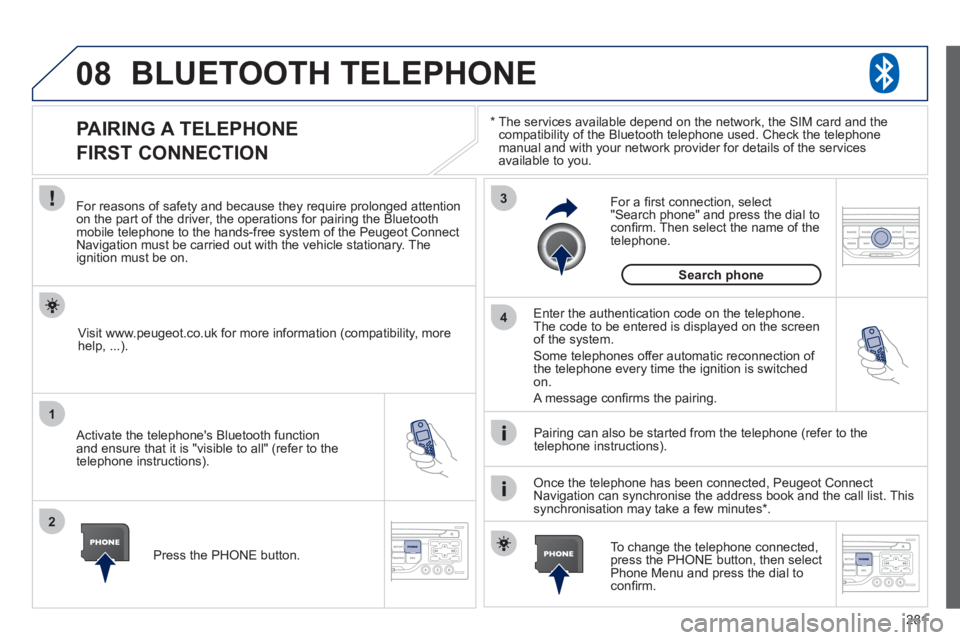

BLUETOOTH TELEPHONE


*
The services available depend on the network, the SIM card and the
compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you.















PAIRING A TELEPHONE
FIRST CONNECTION



For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the Peugeot Connect
Navigation must be carried out with the vehicle stationary. The
ignition must be on.

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (refer to the
telephone instructions).
Enter the authentication code on the telephone.
The code to be entered is displayed on the screen
of the system.
Some telephones offer automatic reconnection of
the telephone every time the ignition is switched
on.
A message confi rms the pairing.

To change the telephone connected,
press the PHONE button, then select
Phone Menu and press the dial to
confi rm.

Once the telephone has been connected, Peugeot Connect
Navigation can synchronise the address book and the call list. This
synchronisation may take a few minutes * .
Pairing can also be started from the telephone (refer to the
telephone instructions).
Visit www.peugeot.co.uk for more information (compatibility, more
help, ...).

Press the PHONE button.
For a fi rst connection, select
"Search phone" and press the dial to
confi rm. Then select the name of the
telephone.

Search phone

282
08
1
2
2
1

*

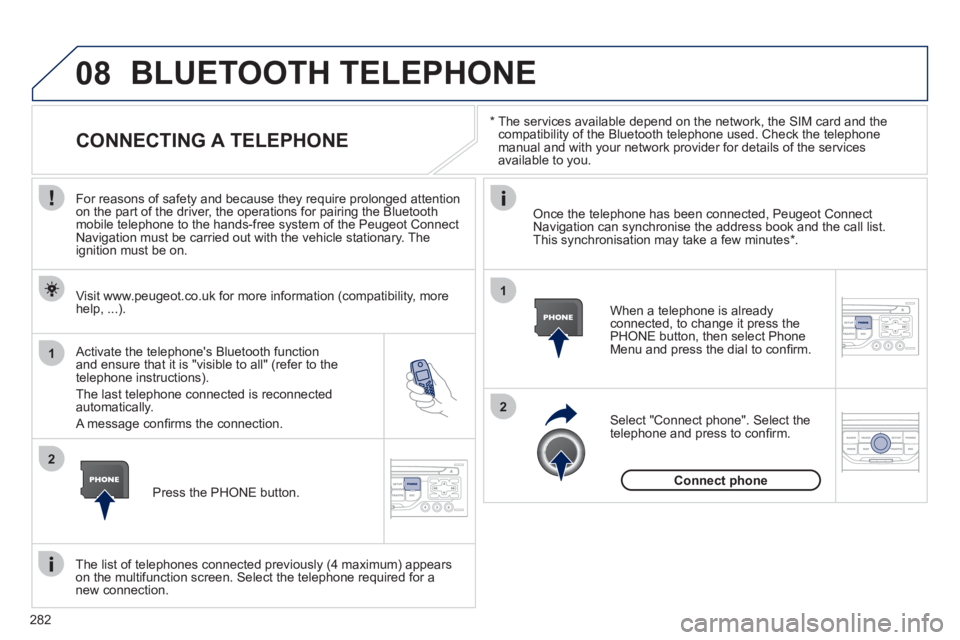

The services available depend on the network, the SIM card and the
compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you.

BLUETOOTH TELEPHONE
















CONNECTING A TELEPHONE



For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the Peugeot Connect
Navigation must be carried out with the vehicle stationary. The
ignition must be on.

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (refer to the
telephone instructions).
The last telephone connected is reconnected
automatically.
A message confi rms the connection.
When a telephone is already
connected, to change it press the
PHONE button, then select Phone
Menu and press the dial to confi rm.
Once the telephone has been connected, Peugeot Connect
Navigation can synchronise the address book and the call list.
This synchronisation may take a few minutes * .

The list of telephones connected previously (4 maximum) appears
on the multifunction screen. Select the telephone required for a
new connection.
Visit www.peugeot.co.uk for more information (compatibility, more
help, ...).

Press the PHONE button.
Select "Connect phone". Select the
telephone and press to confi rm.

Connect phone

283
08
1
3 2
2 1

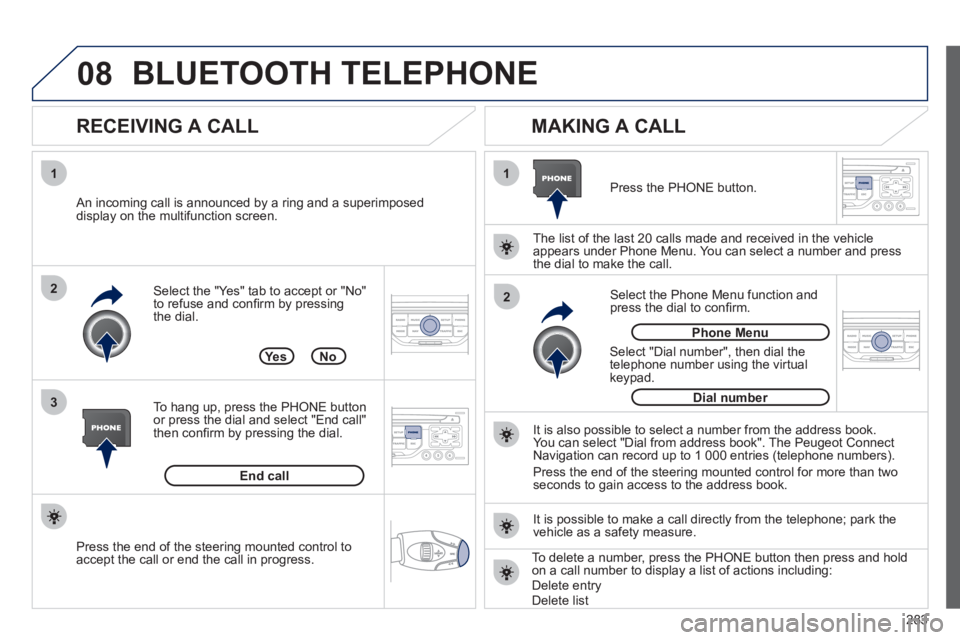

Select the "Yes" tab to accept or "No"
to refuse and confi rm by pressing
the dial.

RECEIVING A CALL
MAKING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.


Ye s


To hang up, press the PHONE button
or press the dial and select "End call"
then confi rm by pressing the dial.

End call



Press the PHONE button.
Select "Dial number", then dial the
telephone number using the virtual
keypad.
No


Select the Phone Menu function and
press the dial to confi rm.
The list of the last 20 calls made and received in the vehicle
appears under Phone Menu. You can select a number and press
the dial to make the call.


It is also possible to select a number from the address book.
You can select "Dial from address book". The Peugeot Connect
Navigation can record up to 1 000 entries (telephone numbers).
Press the end of the steering mounted control for more than two
seconds to gain access to the address book.


Phone Menu


Dial number



It is possible to make a call directly from the telephone; park the
vehicle as a safety measure.

BLUETOOTH TELEPHONE



Press the end of the steering mounted control to
accept the call or end the call in progress.

To delete a number, press the PHONE button then press and hold
on a call number to display a list of actions including:
Delete entry
Delete list

284
09
4 3 2 1
65

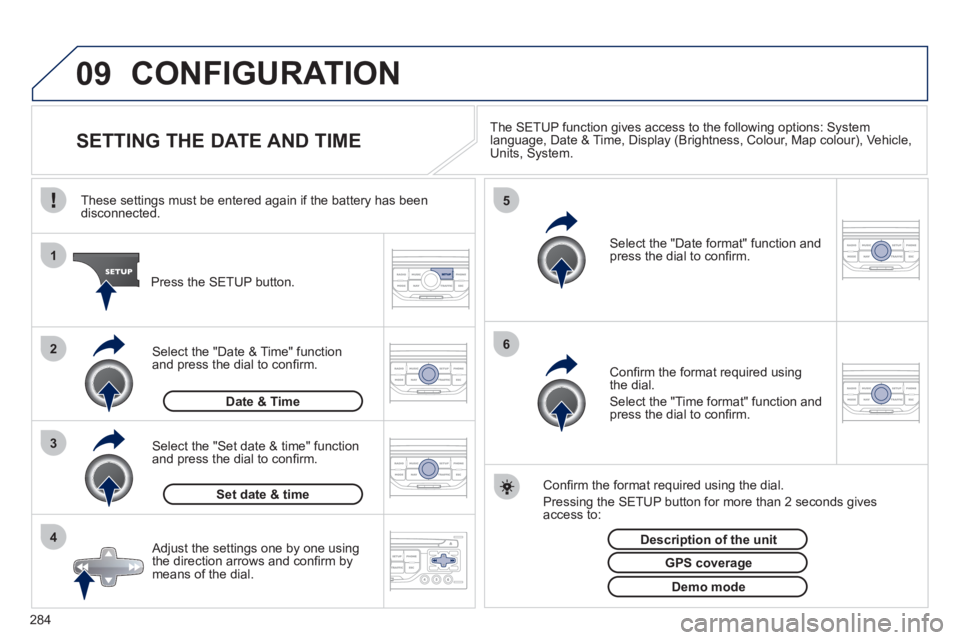

CONFIGURATION
















SETTING THE DATE AND TIME

The SETUP function gives access to the following options: System
language, Date & Time, Display (Brightness, Colour, Map colour), Vehicle,
Units, System.

Adjust the settings one by one using
the direction arrows and confi rm by
means of the dial.
Select the "Date format" function and
press the dial to confi rm.

Select the "Set date & time" function
and press the dial to confi rm.

Confi rm the format required using the dial.
Pressing the SETUP button for more than 2 seconds gives
access to:
These settings must be entered again if the battery has been
disconnected.

Press the SETUP button.

Confi rm the format required using
the dial.
Select the "Time format" function and
press the dial to confi rm.

Set date & time


Select the "Date & Time" function
and press the dial to confi rm.

Demo mode



GPS coverage

Description of the unit

Date & Time

285
10

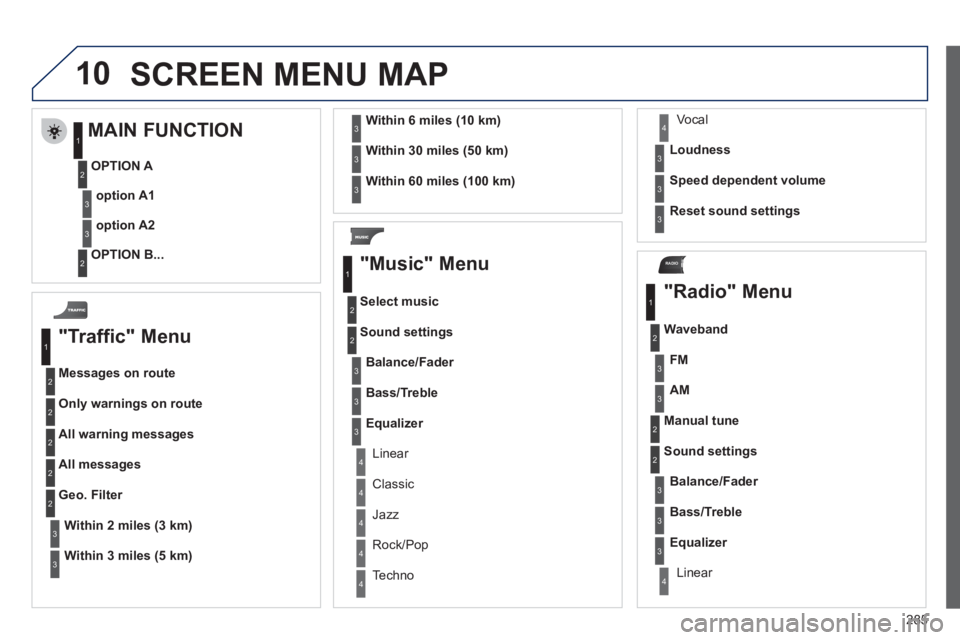

RADIO
SCREEN MENU MAP


"Traffic" Menu


Messages on route
Only warnings on route
All warning messages
All messages

Within
2 miles (3 km)
Geo. Filter

Within
3 miles (5 km)

Within
6 miles (10 km)


Within
30 miles (50 km)


Within 60 miles (100 km)





"Music" Menu


Select music
Sound settings

Balance/Fader


Bass/Treble

Linear
Equalizer

Classic
Jazz
Rock/Pop
Techno Vocal

Loudness


Speed dependent volume


Reset sound settings




"Radio" Menu


Waveband

AM


Linear
FM


Manual tune
Sound settings

Balance/Fader


Bass/Treble


Equalizer














MAIN FUNCTION


OPTION A

option A1


option A2




OPTION B...

1
2
3
1
2
4
1
2
3
4
3
3
3
3
2
2
2
2
4
4
4
4
4
3
3
3
3
3
2
3
2
2
3
3
3
3
1
2
3
2
3

286

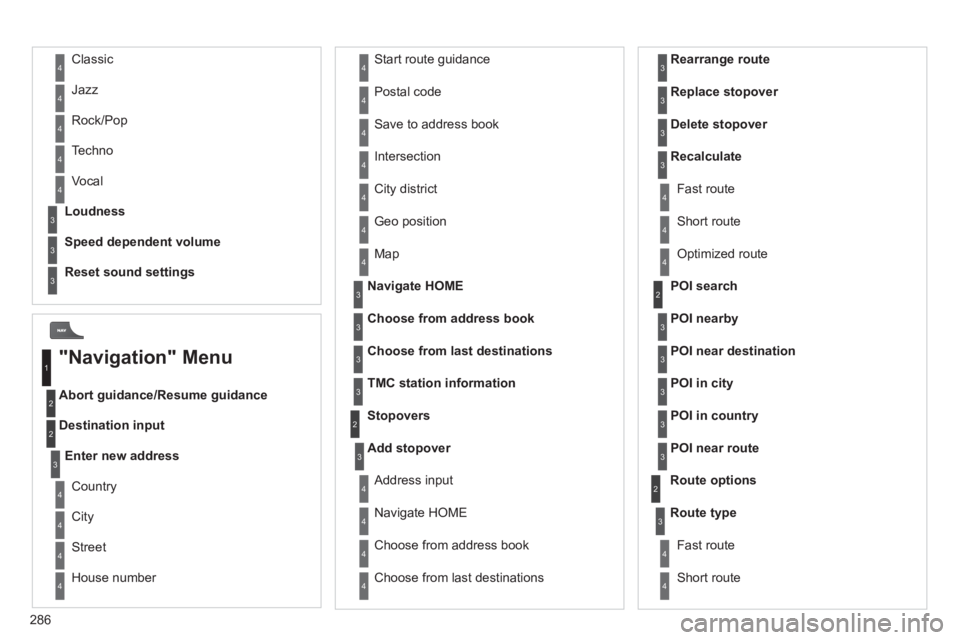

Abort guidance/Resume guidance

Destination input Geo position
Map

Stopovers

Add stopover

Navigate HOME
Choose from address book
Rearrange route

Choose from last destinations
Replace stopover


Delete stopover


Recalculate

Fast route
Short route
Optimized route

POI search

POI nearby


Route options

Route type

Short route Fast route


"Navigation" Menu

City
Street
Enter new address

Country
Navigate HOME
City district
House number Start route guidance
Postal code
Save to address book
Intersection
Address input
POI near destination


POI in city


POI in country


POI near route


Choose from address book

3
3


Choose from last destinations


TMC station information


Loudness


Speed dependent volume


Reset sound settings



3
3
3
1
2
4
4
4
4
4
4
4
4
4
4
4
3
2
3
3
2
3
4
4
4
4
3
3
3
3
4
4
4
2
4
2
3
3
3
3
3
3
4

Classic
Jazz
Rock/Pop
Techno
Vocal 4
4
4
4
4

287

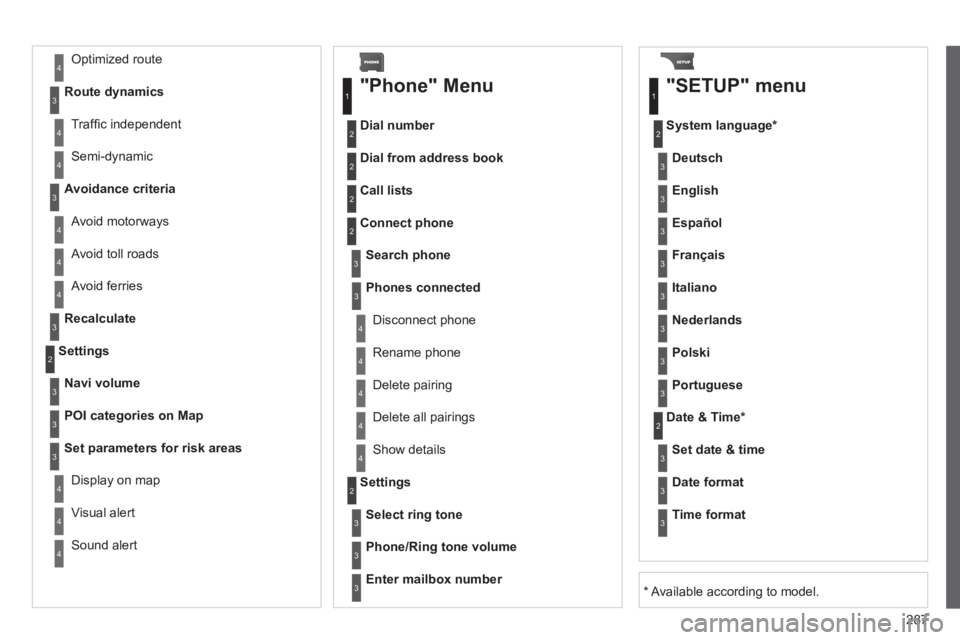

Avoid ferries

Recalculate



Settings

Navi volume


POI categories on Map


Set parameters for risk areas

Display on map
Visual alert
Sound alert

3
2
4
3
3
3
4
4
4


Dial number

Dial from address book


"Phone" Menu


Search phone

Call lists

Connect phone

Select ring tone


Phone/Ring tone volume

Phones connected


Enter mailbox number



Settings Disconnect phone
Rename phone
Delete pairing
Delete all pairings
Show details


"SETUP" menu


System language *

English


Español

Deutsch


Italiano

Français


Nederlands


Polski


Portuguese



Date & Time *

Set date & time


Date format



Time format


1
2
2
2
2
3
3
4
4
4
4
4
2
3
3
3
1
2
3
3
3
3
3
3
3
3
3
3
3
2

Avoid motorways
Route dynamics

Traffi c independent
Semi-dynamic

Avoidance criteria

Avoid toll roads Optimized route
3
3
4
4
4
4
4


*
Available according to model.

288

**

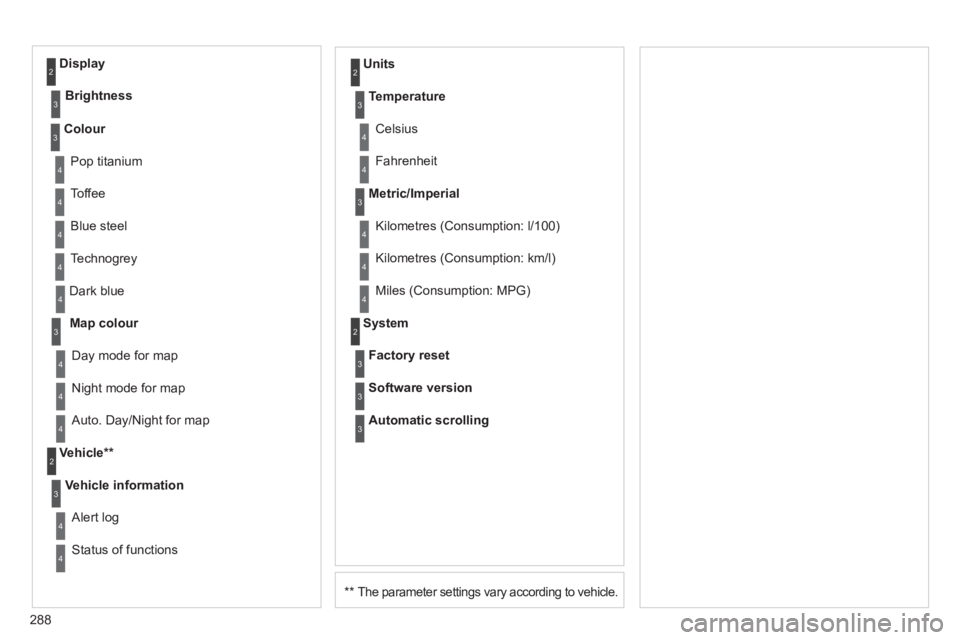

The parameter settings vary according to vehicle.

Dark blue

Map colour

Night mode for map
Units
Day mode for map

Vehicle **

Vehicle information

Alert log
Status of functions
Temperature

Celsius
Fahrenheit

Metric/Imperial

Kilometres (Consumption: l/100)
Kilometres (Consumption: km/l)
Miles (Consumption: MPG)

System
Auto. Day/Night for map
Factory reset


Software version


Automatic scrolling



3
4
4
2
4
3
4
4
2
3
4
4
3
4
4
4
2
4
3
3
3


Colour

Pop titanium
Toffee
Blue steel
Technogrey 3
4
4
4
4


Display

Brightness
2
3
