wiper blades PEUGEOT 3008 2016 Owners Manual

89
3008_en_Chap04_visibilite_ed01-2015

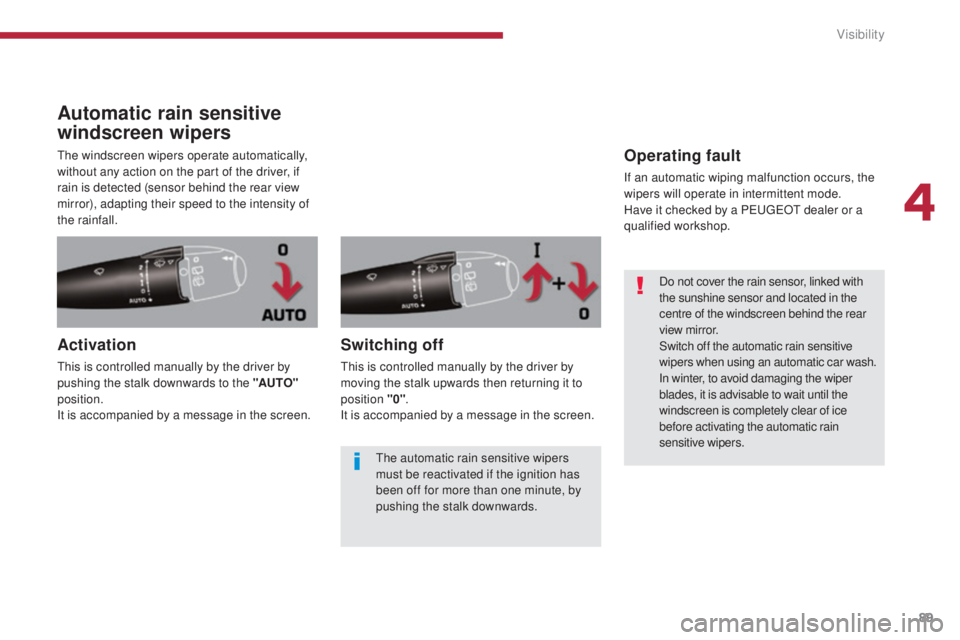

Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Activation
This is controlled manually by the driver by
pushing the stalk downwards to the "AUTO"
position.
It is accompanied by a message in the screen.
Switching off
This is controlled manually by the driver by
moving the stalk upwards then returning it to
position "0" .
It is accompanied by a message in the screen.
Operating fault
If an automatic wiping malfunction occurs, the
wipers will operate in intermittent mode.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, to avoid damaging the wiper
blades, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.
The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute, by
pushing the stalk downwards.
4
Visibility

90
3008_en_Chap04_visibilite_ed01-2015

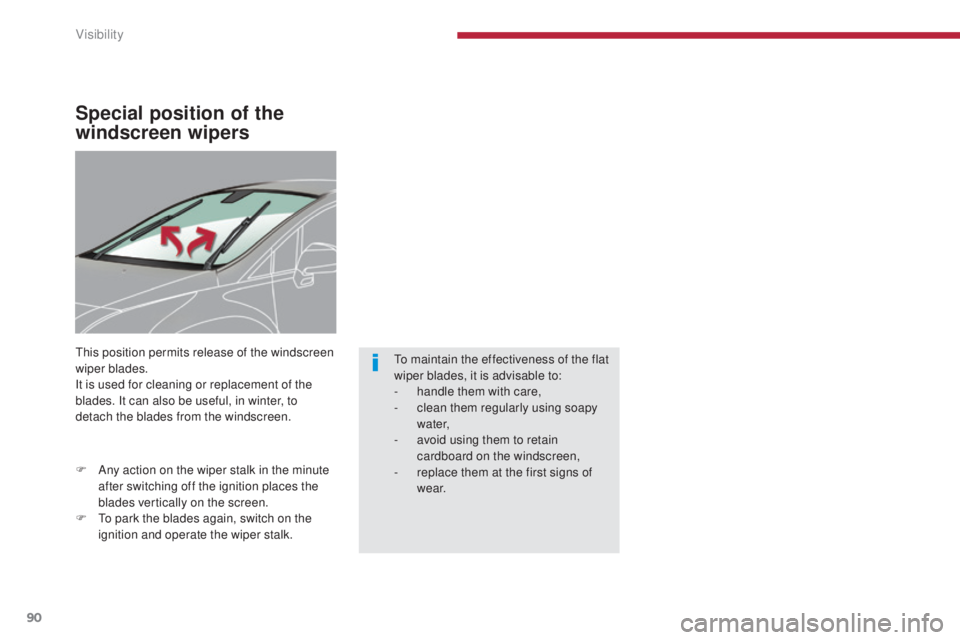

Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.
F
A
ny action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F

T
o park the blades again, switch on the
ignition and operate the wiper stalk. To maintain the effectiveness of the flat
wiper blades, it is advisable to:
-

h
andle them with care,
-

c
lean them regularly using soapy
water,
-

a
void using them to retain
cardboard on the windscreen,
-

r
eplace them at the first signs of
w e a r.
Visibility

232
3008_en_Chap10_infos-pratiques_ed01-2015

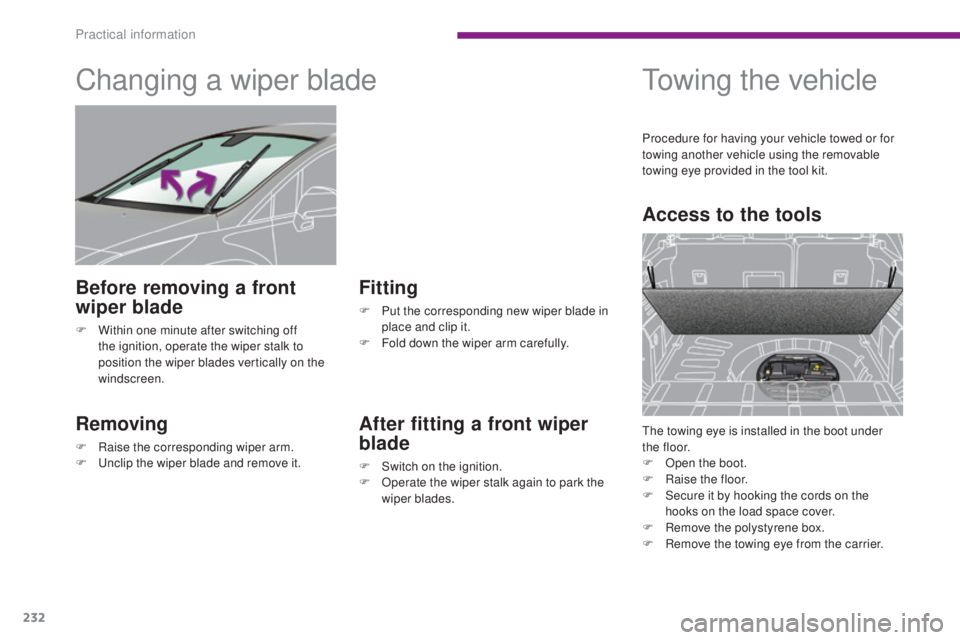

Changing a wiper blade
Removing
F Raise the corresponding wiper arm.
F U nclip the wiper blade and remove it.
Fitting
F Put the corresponding new wiper blade in place and clip it.
F

F
old down the wiper arm carefully.
Before removing a front
wiper blade
F Within one minute after switching off the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.
After fitting a front wiper
blade
F Switch on the ignition.
F O perate the wiper stalk again to park the
wiper blades.
Towing the vehicle
Access to the tools
The towing eye is installed in the boot under
t h e f l o o r.
F

O
pen the boot.
F

Ra
ise the floor.
F

S
ecure it by hooking the cords on the
hooks on the load space cover.
F

R
emove the polystyrene box.
F

R
emove the towing eye from the carrier.
Procedure for having your vehicle towed or for
towing another vehicle using the removable
towing eye provided in the tool kit.
Practical information

336
3008_en_Chap13_index-alpha_ed01-2015
Synchronising the remote control ...................48
Synthesiser, voice ......................................... 2
72
Table of weights

....................24

3, 244 , 247, 249
Tables of engines


.................................. 242, 245
Tables of fuses
.............................................. 221
Tank, AdBlue
®
additive
............................................... 193, 198
Ta n k , f u e l


............................................... 180, 183
Technical data


........................................ 242- 2 51
Telephone


............................................. 278, 321
Temperature, coolant


...................................... 26
Third brake lamp


........................................... 219
Three flashes (direction indicators)


................................... 123
Time (setting)
..............................

.32 , 34 , 35, 39
TMC (Traffic info)

.......................................... 2

75
To o l s


...................................................... 201, 209
Total distance recorder


................................... 30
To w b a r


........................................................... 236
Towed loads


.......................... 243, 244 , 247, 249
Towing another vehicle
......................... 2

32, 233
Traction control (ASR)


............................ 22, 124
Traffic information (TA)


................. 276, 289 , 316
Traffic information (TMC)
...................... 2

75, 276
Tr a i l e r


............................................................ 236
Trip computer


............................................. 41- 4 3
Trip distance recorder


..................................... 30
Ty r e s


........................................................ 12 , 2 51
Tyre under-inflation detection


............................................. 172, 210
U
T
Under floor storage ....................................... 10 6
Under-inflation (detection) .............. 2
6, 172, 210
Unlocking
..............................

..........................45
Unlocking from the inside

...............................55
U

nlocking the boot .......................................... 45
Unlocking the doors


........................................ 45
Updating risk areas
....................................... 26

6
UREA


.................................................... 193, 19 4
USB


................................. 96, 293, 297, 317, 318
USB ( P
E

UGEOT
C
onnect)
.....................96,

318Wiper, rear
....................................................... 87
Wipers .......................................................86, 89
Wipers, automatic rain sensitive


..................................................86, 89
Ventilation
..............................

.......59, 60, 61, 65
V
Warning and indicator
lamps .............................. ........................16 -26
Warning lamps


.......................................... 19-26
Warning lamp, SCR emissions control system

.............................................. 24
W

arning lamp, Service .................................... 20
Washing (advice) ........................................... 176
Weights


................................. 243, 244 , 247, 249
Wheel, spare


................................. 201, 209 , 210
Window controls


............................................. 52
Wiper blades (changing)
......................... 90,

232
W
