17
Warning / indicator lampStateCause Action / Observations
Distance Aler t
/
Active Safety
Brake Fixed, accompanied by a
message.
The system has been
deactivated, via the vehicle
configuration menu. For more information on the Distance Aler t / Active
Safety Brake
system, refer to the corresponding
section.
Lane Depar ture
Warning System Flashing, accompanied
by an audible signal. A lane marking has been crossed
on the left or right. Turn the steering wheel in the opposite direction to
return to the correct trajectory.
For more information on the Lane Depar ture
Warning System
, refer to the corresponding section.
Fixed, accompanied by
the display of a message. The system has a fault.
Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Active Lane
Departure
Warning System Fixed.
The system has been automatically
deactivated or placed on standby.For more information on the Active Lane Depar ture
Warning System
, refer to the corresponding section.
Flashing. You are about to cross a broken
lane marking without operating
the direction indicators. The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+ Fixed, accompanied by
the display of a message,
an audible signal and the
Service warning lamp.The system has a fault.
Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
For more information on the Active Lane Depar ture
Warning System, refer to the corresponding section.
Under-inflation Fixed. The pressure in one or more
tyres is too low.
Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the tyres
are cold.
You must reinitialise the system after adjusting one or more
tyre pressures and after changing one or more wheels.
For more information on Under-inflation detection , refer
to the corresponding section.
1
Instruments

18
Warning / indicator lampStateCause Action / Observations
+ Flashing then fixed,
accompanied by the
Service warning lamp.
The tyre pressure monitoring
system has a fault or no sensor
is detected on one of the wheels. Under-inflation detection is no longer assured.
Have the system checked by a PEUGEOT dealer or
a qualified workshop.
Airbags Temporarily on. This warning lamp comes on for
a few seconds when you turn on
the ignition, then goes off.
This warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
Fixed.One of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a PEUGEOT dealer or a
qualified workshop.
Front passenger
airbag Fixed, in the seat belt
and front passenger
airbag warning lamps
display. The control switch, located in
the glove box, is set to the "
OFF"
position.
The front passenger airbag is
deactivated.
You can install a rearward facing
child seat, unless there is a fault
with the airbags (airbag warning
lamp on). Set the control to the "
ON" position to activate the
front passenger airbag. In this case, do not install a
rear ward facing child seat on this seat.
Instruments

170
The Stop & Start system requires a
12 V battery of specific technology and
specification.
All work on this type of battery must be
carried out only by a PEUGEOT dealer or
a qualified workshop.
For more information on the 12
V batter y,
refer to the corresponding section.
Under-inflation detection
System which automatically checks the
pressures of the tyres while driving.
The system monitors the pressures in the four
tyres, once the vehicle is moving.
It compares the information given by the wheel
speed sensors with reference values, which
must be reinitialised ever y time the tyre
pressures are adjusted or a wheel changed .
The system triggers an alert as soon as it
detects a drop in the inflation pressure of one
or more tyres. The under-inflation detection system does
not replace the need for vigilance on the
part of the driver.
This system does not avoid the need to
check the tyre pressures (including the
spare wheel) every month as well as
before a long journey.
Driving with under-inflated tyres worsens
road-holding, lengthens braking distances,
causes premature wear of the tyres,
particularly in adverse conditions (heavy
loads, high speeds, long journeys).
Driving with under-inflated tyres
increases fuel consumption.
The inflation pressures defined for your
vehicle can be found on the tyre pressure
label.
For more information on the
Identification markings , refer to the
corresponding section. Checking tyre pressures
This check should be done when the tyres
are "cold" (vehicle stopped for 1
hour or
after a journey of less than 6 miles (10 km)
at moderate speeds).
Other wise, add 0.3 bar to the pressures
shown on the label.
Snow chains
The system does not have to be
reinitialised after fitting or removing snow
chains.
Under-inflation alert
This warning is indicated by
continuous illumination of this lamp,
an audible signal and, depending on
the equipment installed, a message
displayed on the screen.
F

R

educe speed immediately, avoid excessive
steering movements and sudden braking.
F

S

top the vehicle as soon as it is safe to do
so.
The loss of pressure detected does not
always cause visible bulging of the tyre.
Do not satisfy yourself with just a visual
check.
Driving

171
F If you have a compressor, such as the one in the temporary puncture repair kit, check
the pressures of the four tyres when cold.
F

I
f it is not possible to make this check
immediately, drive carefully at reduced
speed.
or
F

I
n case of a puncture, use the temporary
puncture repair kit or the spare wheel
(depending on equipment).
The alert is kept active until the system is
reinitialised.
Reinitialisation
The system must be reinitialised after any
adjustment to the pressures of one or more
tyres, and after changing one or more wheels. Before reinitialising the system, ensure
that the pressures of the four tyres
are correct for the conditions of use
of the vehicle and conform to the
recommendations on the tyre pressure
label.
The under-inflation alert can only be relied
on if the reinitialisation of the system has
been done with the pressures in the four
tyres correctly adjusted.
The under-inflation detection system
does not give a warning if a pressure is
incorrect at the time of reinitialisation.
Monochrome screen C
Reinitialisation of the function is
done in the "
Personalisation-
configuration " menu of the screen.
Touch screen
Reinitialisation of the function is
done in the Vehicle / Driving menu
of the touch screen.
F

Sel

ect the "
Define the vehicle
parameters " menu.
F

Sel

ect the "
Driving assistance " menu.
F

Sel

ect the "
Tyre inflation " menu.
F

Sel

ect the "
Reinitialisation " function.
F

Sel

ect "
Ye s" to confirm.
Reinitialisation is confirmed by an audible
signal. F
I
n this menu, select the "
Vehicle settings"
tab.
F
I
n the page, select the "

Under-inflation
initialisation " function.
F
Sel
ect "
Ye s" to confirm.
The reinitialisation is confirmed by the display
of a message and an audible signal.
Operating fault
In this case, under-inflation monitoring of the
tyres is no longer assured.
Have the system checked by a PEUGEOT
dealer or a qualified workshop.
Before doing anything to the system,
the pressures of the four tyres must be
checked and the system reinitialised.
The flashing and then fixed illumination of the
under-inflation warning lamp accompanied
by illumination of the Ser vice warning lamp
indicates a fault with the system.
A message appears, accompanied by an
audible signal.
6
Driving

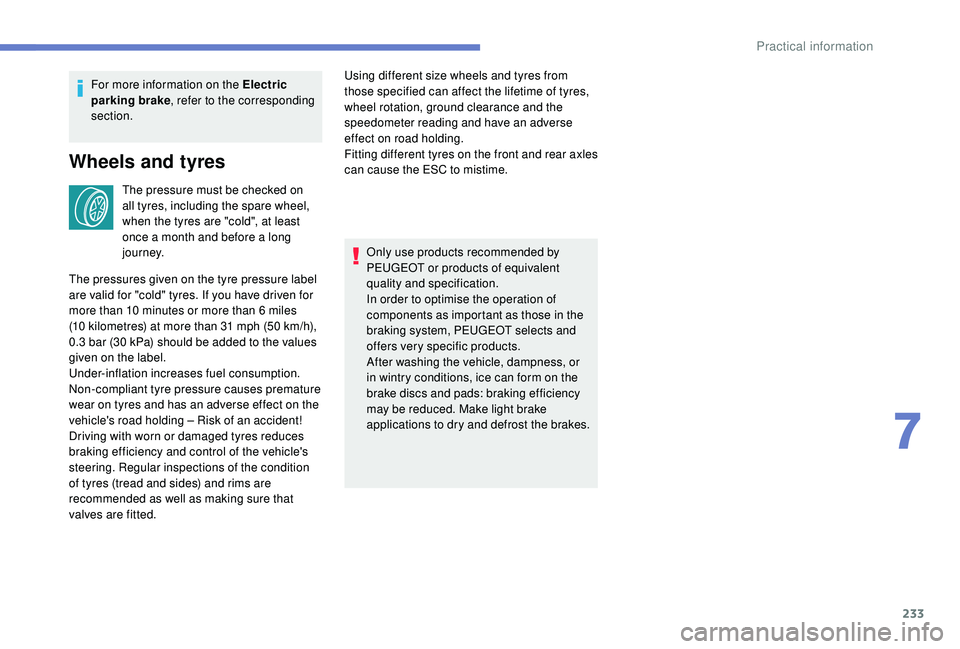

233
For more information on the Electric
parking brake, refer to the corresponding
section.
Wheels and tyres
The pressure must be checked on
all tyres, including the spare wheel,
when the tyres are "cold", at least
once a month and before a long
j o u r n ey. Using different size wheels and tyres from
those specified can affect the lifetime of tyres,
wheel rotation, ground clearance and the
speedometer reading and have an adverse
effect on road holding.
Fitting different tyres on the front and rear axles
can cause the ESC to mistime.
Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation of
components as important as those in the
braking system, PEUGEOT selects and
offers very specific products.
After washing the vehicle, dampness, or
in wintry conditions, ice can form on the
brake discs and pads: braking efficiency
may be reduced. Make light brake
applications to dry and defrost the brakes.
The pressures given on the tyre pressure label
are valid for "cold" tyres. If you have driven for
more than 10
minutes or more than 6 miles
(10

kilometres) at more than 31 mph (50 km/h),
0.3

bar (30 kPa) should be added to the values
given on the label.
Under-inflation increases fuel consumption.
Non-compliant tyre pressure causes premature
wear on tyres and has an adverse effect on the
vehicle's road holding
– Risk of an accident!
Driving with worn or damaged tyres reduces
braking efficiency and control of the vehicle's
steering. Regular inspections of the condition
of tyres (tread and sides) and rims are
recommended as well as making sure that
valves are fitted.
7
Practical information

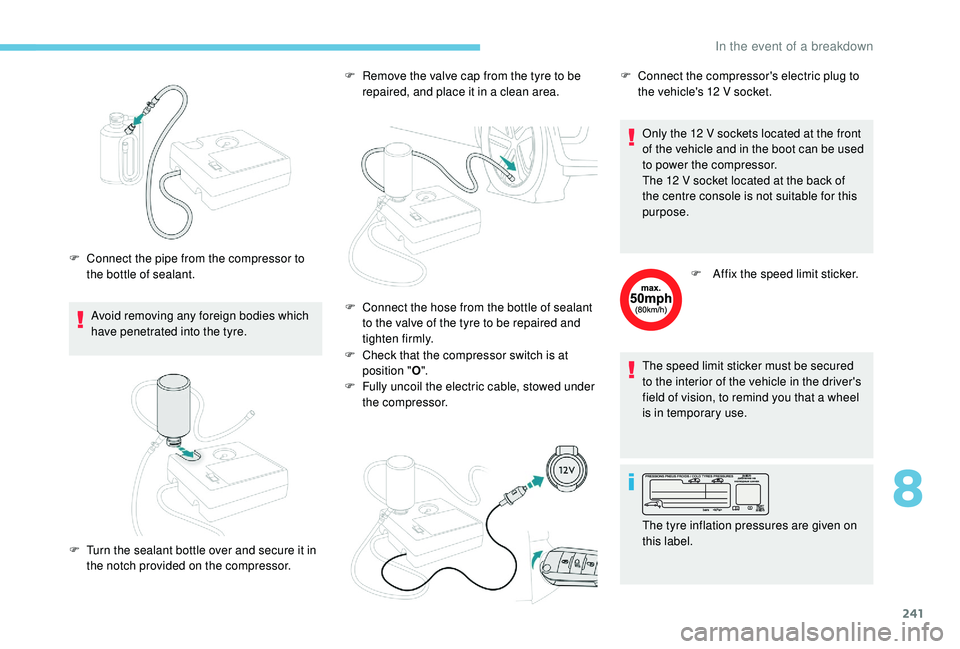

241
Avoid removing any foreign bodies which
have penetrated into the tyre.
F

C
onnect the pipe from the compressor to
the bottle of sealant. F
R
emove the valve cap from the tyre to be
repaired, and place it in a clean area.
F
C
heck that the compressor switch is at
position " O".
F

F
ully uncoil the electric cable, stowed under
the compressor. Only the 12
V sockets located at the front
of the vehicle and in the boot can be used
to power the compressor.
The 12 V socket located at the back of
the centre console is not suitable for this
purpose.
F
A
ffix the speed limit sticker.
The speed limit sticker must be secured
to the interior of the vehicle in the driver's
field of vision, to remind you that a wheel
is in temporary use.
F

T
urn the sealant bottle over and secure it in
the notch provided on the compressor. F
C onnect the hose from the bottle of sealant
to the valve of the tyre to be repaired and
tighten firmly. F

C
onnect the compressor's electric plug to
the vehicle's 12 V socket.
The tyre inflation pressures are given on
this label.
8
In the event of a breakdown

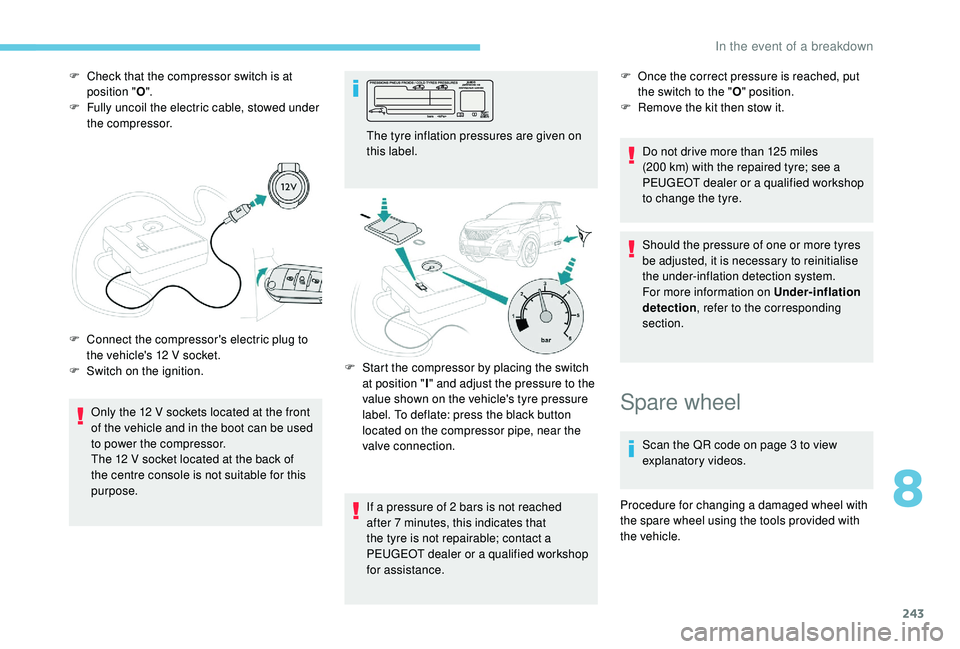

243
F Check that the compressor switch is at position " O".
F

F
ully uncoil the electric cable, stowed under
the compressor.
Only the 12
V sockets located at the front
of the vehicle and in the boot can be used
to power the compressor.
The 12
V socket located at the back of
the centre console is not suitable for this
purpose.
F

C
onnect the compressor's electric plug to
the vehicle's 12
V socket.
F

S
witch on the ignition. The tyre inflation pressures are given on
this label.
If a pressure of 2
bars is not reached
after 7
minutes, this indicates that
the tyre is not repairable; contact a
PEUGEOT dealer or a qualified workshop
for assistance. F
O nce the correct pressure is reached, put
the switch to the " O" position.
F

R
emove the kit then stow it.
Do not drive more than 125
miles
(200
km) with the repaired tyre; see a
PEUGEOT dealer or a qualified workshop
to change the tyre.
Should the pressure of one or more tyres
be adjusted, it is necessary to reinitialise
the under-inflation detection system.
For more information on Under-inflation
detection , refer to the corresponding
section.
F

S
tart the compressor by placing the switch
at position " I" and adjust the pressure to the
value shown on the vehicle's tyre pressure
label. To deflate: press the black button
located on the compressor pipe, near the
valve connection.
Spare wheel
Scan the QR code on page 3 to view
explanatory videos.
Procedure for changing a damaged wheel with
the spare wheel using the tools provided with
the vehicle.
8
In the event of a breakdown

269
Identification markings
Different visible markings for the identification
and localisation of your vehicle.
A. Vehicle identification number (V.I.N.),
under the bonnet.
The number is engraved on the body structure.
B. Vehicle identification number (V.I.N.), on
the dashboard.
The number is on a label, visible through the
windscreen.C. Manufacturer's label.
This tamperproof label is affixed to the right-
hand door.
It bears the following information:
-

t
he name of the manufacturer,
-

t
he European Whole Vehicle Type Approval
number,
-

t
he vehicle identification number (V.I.N.),
-

t
he maximum authorised vehicle weight (the
Gross Vehicle Weight or GV W),
-

t
he maximum authorised vehicle + trailer
weight (the Gross Train Weight or GTW),
-

t
he maximum weight on the front axle,
-

t
he maximum weight on the rear axle.D. Tyres / paint code label.
This label is affixed to the driver's door
aperture.
It bears the following information about the
tyres:
-

t
he tyre pressures, unladen and laden,
-

t
he tyre specification, made up of the
dimensions and type as well as the load and
speed indices,
-

t
he spare tyre pressure.
It also indicates the paint colour code.
The vehicle may be originally equipped
with tyres with higher load and speed
indices than those indicated on the label,
without affecting inflation pressure.
9
Technical data

270
P
Pads, brake ........................................... 232-233
Paint .............................................................. 269
Paint colour code
.......................................... 269
Parcel shelf, rear


........................................... 10 6
Park Assist

...............................
.............209 -210
Parking brake


........................................ 232-233
Parking brake, electric
............... 14,

27, 157-16 0
Parking sensors, audible and visual


.............202
Parking sensors, front


...................................203
Parking sensors, rear .................................... 202
PEUGEOT Connect Nav
...................................1
PEUGEOT Connect Radio

...............................1
P

lates, identification ...................................... 269
Player, Apple
® ..................................... 24, 10, 10
Player, MP3 CD ............................... ............23, 9
Player, USB

...................................... 98, 23 , 9, 7
Port, USB

......................................... 98, 23 , 9, 7
Pre-heater, Diesel


........................................... 23
Pressures, tyres


.................................... 233, 243
Pre-tensioning seat belts


.............................. 132
Priming the fuel system
......................... 237-238
Profiles


...................................................... 30, 16
Protecting children


...13 3 -13 4 , 137-13 8 , 141-14 6
Puncture


................................................ 240, 242
R
Radio ......................................... 21, 24 , 6, 9, 4-5
Radio, digital (Digital Audio Broadcasting
– DAB) ............................22, 8, 6
Range, AdBlue


.......................................... 32-34
RDS
................

....................................... 21-22, 7
Rear screen, demisting


...................................91
Recharging the battery


.........................259-260
Reduction of electrical load


..........................223
Regeneration of the particle filter
.................232
Reinitialisation of the under-
inflation detection system ...........................171
Reinitialising the remote control
..................... 5

6
Reminder, key in ignition

...............................15

4
Remote control


......................... 48-49, 51- 5 2 , 54
Removing a wheel
................................ 244-247
Removing the mat


.................................. 101-102
Replacing bulbs
..................... 24

7-248, 250-252
Replacing fuses


.................................... 253-254
Replacing the air filter
............................ 23

1-232
Replacing the oil filter
................................... 2

32
Replacing the passenger compartment filter


...............................231-232
Reservoir, screenwash


.................................231
Resetting the service indicator


.......................31
Resetting the trip recorder


..............................36
Reset trip
......................................................... 37
Rev counter


....................................................... 8
Reversing camera
...............................

..........206
Reversing lamps
..............................

.....250-251
Roof bars


............................................... 225-226
Running out of fuel (Diesel)
...................237-238
S
Safety, children ........13 3 -13 4 , 137-13 8 , 141-14 6
Saturation of the particle filter (Diesel) .........232
Scented air freshener


............................10 0 -101
Screen menu map


........................................... 12
Screen, monochrome


...............................38-40
Screen, multifunction (with audio system)


........4
Screens, very cold conditions

.....................2

24
Screenwash, front


......................................... 11 8
Screenwash, rear


.......................................... 11 8
SCR (Selective Catalytic Reduction)


............234
Seat belts


....................................... 12 9 -132, 141 Seat belts, rear


..............................................
13 0
Seats, electric

............................................
74 -75
Seats, front
...............................
............
71, 74 -75
Seats, heated

..................................................
75
Seats, rear

.................................................
78- 80
Selector, gear

.........................................
161-165
Serial number, vehicle

..................................
269
Service indicator

.......................................
29, 35
Servicing
......................................................... 29
S
ettings, equipment

............................
38-43, 46
Settings, system

........................................
30, 16
Sidelamps
..................................... 111,
248
, 250
Side repeater

................................................
250
Ski flap
..............................
............................
105
Snow chains

..........................................
170, 225
Snow screen

.................................................
224
Socket, 12 V accessory ..................
97, 104 , 10 6
Socket, 230 V
...............................
.................
104
Socket, auxiliary
...................................... 23,
9
, 8
Socket, Jack

............................................
23, 9, 8
Speakers

.........................................................
98
Speed limiter
.................................. 17
2
, 174 -17 7
Speed limit recognition
.......................... 17
2-173
Speedometer

....................................................
8
Stability control (ESC).................... 124, 126 -128
Starting a Diesel engine
............................... 2
18
Starting the engine
....................................... 15
2
Starting the vehicle ........... 2 7
, 151-15 5 , 161-165
Starting using another battery .......15 6 -157 , 258
Station, radio ...............................
......21-22 , 6, 4
Stay, bonnet


..........................................226-227
Steering mounted controls, audio
........ 3,

3, 2-3
Steering wheel, adjustment
............................ 76
S

topping the vehicle

.........27, 151-15 5 , 161-165
Stop & Start


..............................
23 -24 , 38, 83, 90 , 167-169 , 216, 226 , 231, 261
Storage


......................................96 -97, 10 0, 105
Storage box


...................................................108
Storage compartments


...................................96
Alphabetical index
