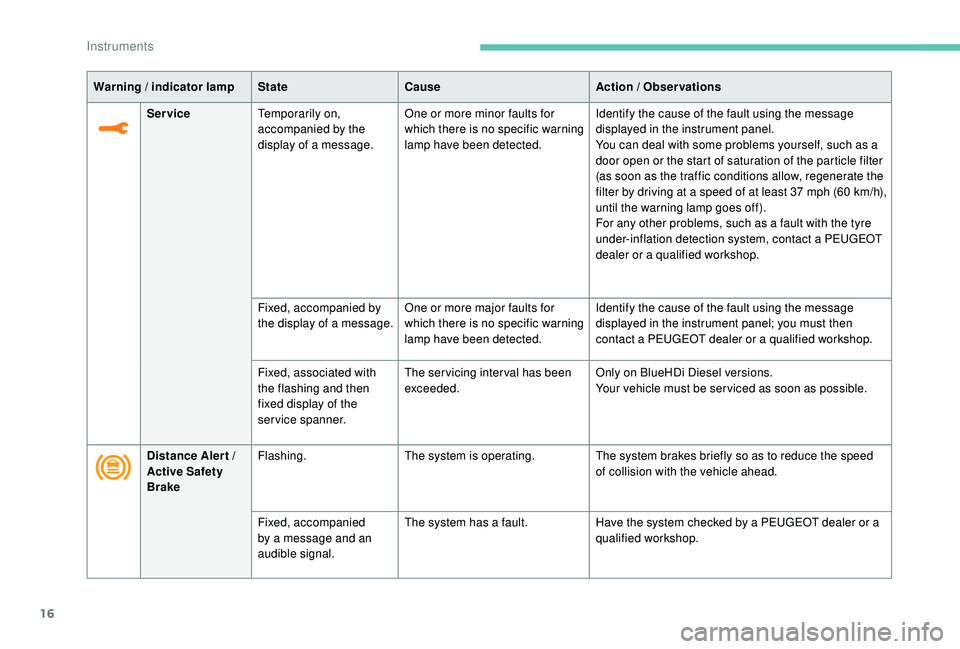

16
Warning / indicator lampStateCause Action / Observations
Service Temporarily on,
accompanied by the
display of a message. One or more minor faults for
which there is no specific warning
lamp have been detected. Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with some problems yourself, such as a
door open or the start of saturation of the particle filter
(as soon as the traffic conditions allow, regenerate the
filter by driving at a speed of at least 37

m
ph (60
k
m/h),
until the warning lamp goes off).
For any other problems, such as a fault with the tyre
under-inflation detection system, contact a PEUGEOT
dealer or a qualified workshop.
Fixed, accompanied by
the display of a message. One or more major faults for
which there is no specific warning
lamp have been detected. Identify the cause of the fault using the message
displayed in the instrument panel; you must then
contact a PEUGEOT dealer or a qualified workshop.
Fixed, associated with
the flashing and then
fixed display of the
service spanner. The servicing interval has been
exceeded.
Only on BlueHDi Diesel versions.
Your vehicle must be ser viced as soon as possible.
Distance Aler t
/
Active Safety
Brake Flashing.
The system is operating. The system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.
Fixed, accompanied
by a message and an
audible signal. The system has a fault.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Instruments

17
Warning / indicator lampStateCause Action / Observations
Distance Aler t
/
Active Safety
Brake Fixed, accompanied by a
message.
The system has been
deactivated, via the vehicle
configuration menu. For more information on the Distance Aler t / Active
Safety Brake
system, refer to the corresponding
section.
Lane Depar ture
Warning System Flashing, accompanied
by an audible signal. A lane marking has been crossed
on the left or right. Turn the steering wheel in the opposite direction to
return to the correct trajectory.
For more information on the Lane Depar ture
Warning System
, refer to the corresponding section.
Fixed, accompanied by
the display of a message. The system has a fault.
Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Active Lane
Departure
Warning System Fixed.
The system has been automatically
deactivated or placed on standby.For more information on the Active Lane Depar ture
Warning System
, refer to the corresponding section.
Flashing. You are about to cross a broken
lane marking without operating
the direction indicators. The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+ Fixed, accompanied by
the display of a message,
an audible signal and the
Service warning lamp.The system has a fault.
Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
For more information on the Active Lane Depar ture
Warning System, refer to the corresponding section.
Under-inflation Fixed. The pressure in one or more
tyres is too low.
Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the tyres
are cold.
You must reinitialise the system after adjusting one or more
tyre pressures and after changing one or more wheels.
For more information on Under-inflation detection , refer
to the corresponding section.
1

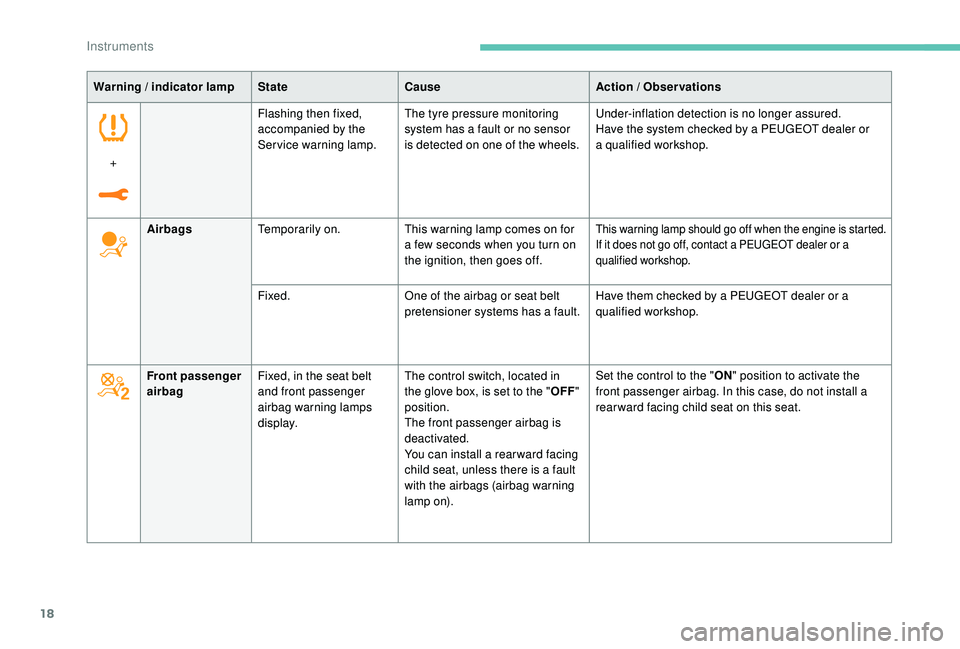

Instruments

18
Warning / indicator lampStateCause Action / Observations
+ Flashing then fixed,
accompanied by the
Service warning lamp.
The tyre pressure monitoring
system has a fault or no sensor
is detected on one of the wheels. Under-inflation detection is no longer assured.
Have the system checked by a PEUGEOT dealer or
a qualified workshop.
Airbags Temporarily on. This warning lamp comes on for
a few seconds when you turn on
the ignition, then goes off.
This warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
Fixed.One of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a PEUGEOT dealer or a
qualified workshop.
Front passenger
airbag Fixed, in the seat belt
and front passenger
airbag warning lamps
display. The control switch, located in
the glove box, is set to the "
OFF"
position.
The front passenger airbag is
deactivated.
You can install a rearward facing
child seat, unless there is a fault
with the airbags (airbag warning
lamp on). Set the control to the "
ON" position to activate the
front passenger airbag. In this case, do not install a
rear ward facing child seat on this seat.
Instruments

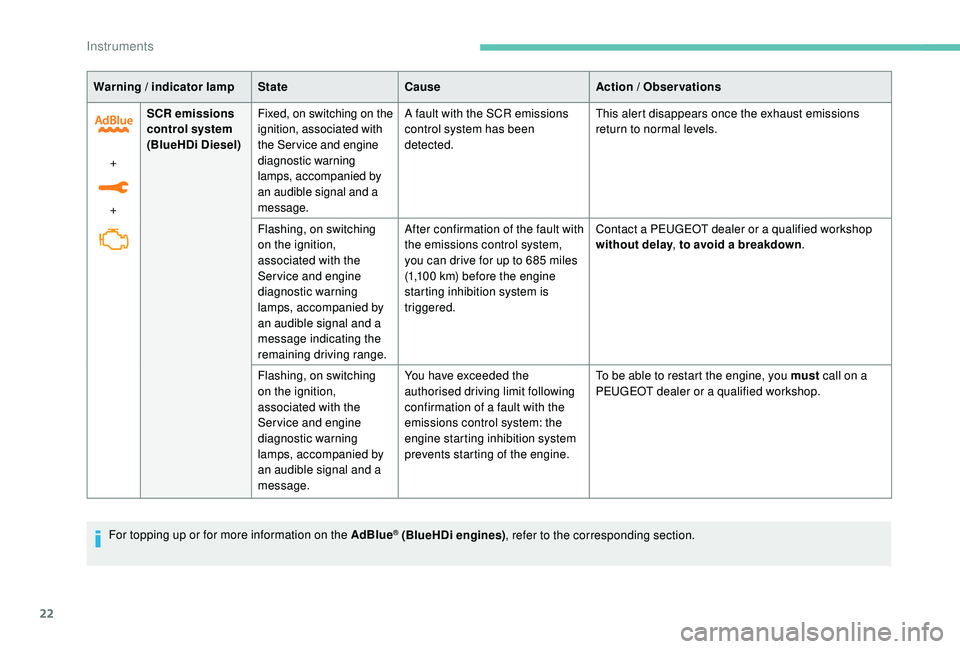

22
Warning / indicator lampStateCause Action / Observations
+
+ SCR emissions
control system
(BlueHDi Diesel)
Fixed, on switching on the
ignition, associated with
the Service and engine
diagnostic warning
lamps, accompanied by
an audible signal and a
message.A fault with the SCR emissions
control system has been
detected.
This alert disappears once the exhaust emissions
return to normal levels.
Flashing, on switching
on the ignition,
associated with the
Service and engine
diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range. After confirmation of the fault with
the emissions control system,
you can drive for up to 685
miles
(1,100
km) before the engine
starting inhibition system is
triggered. Contact a PEUGEOT dealer or a qualified workshop
without delay
, to avoid a breakdown .
Flashing, on switching
on the ignition,
associated with the
Service and engine
diagnostic warning
lamps, accompanied by
an audible signal and a
message. You have exceeded the
authorised driving limit following
confirmation of a fault with the
emissions control system: the
engine starting inhibition system
prevents starting of the engine.
To be able to restart the engine, you must
call on a
PEUGEOT dealer or a qualified workshop.
For topping up or for more information on the AdBlue
® (BlueHDi engines) , refer to the corresponding section.
Instruments

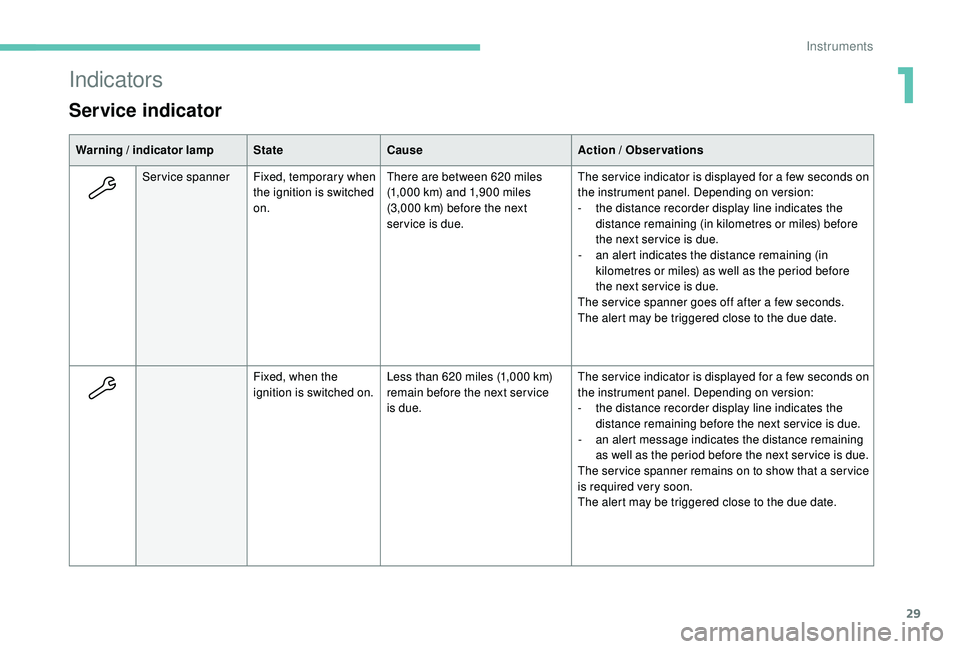

29
Indicators
Service indicator
Warning / indicator lampStateCause Action / Observations
Service spanner Fixed, temporary when
the ignition is switched
on. There are between 620
miles
(1,000
km) and 1,900 miles
(3,000
km) before the next
service is due. The ser vice indicator is displayed for a few seconds on
the instrument panel. Depending on version:
-

t
he distance recorder display line indicates the
distance remaining (in kilometres or miles) before
the next ser vice is due.
-

a
n alert indicates the distance remaining (in
kilometres or miles) as well as the period before
the next ser vice is due.
The ser vice spanner goes off after a few seconds.
The alert may be triggered close to the due date.
Fixed, when the
ignition is switched on. Less than 620
miles (1,000 km)
remain before the next ser vice
is due. The ser vice indicator is displayed for a few seconds on
the instrument panel. Depending on version:
-

t
he distance recorder display line indicates the
distance remaining before the next ser vice is due.
-

a
n alert message indicates the distance remaining
as well as the period before the next ser vice is due.
The ser vice spanner remains on to show that a ser vice
is required very soon.
The alert may be triggered close to the due date.
1
Instruments

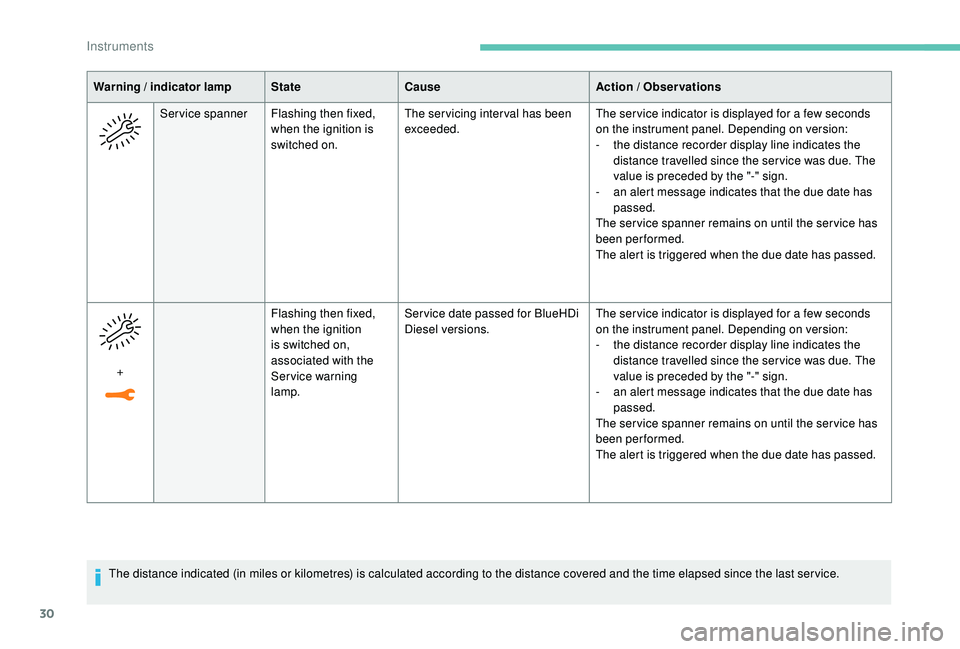

30
The distance indicated (in miles or kilometres) is calculated according to the distance covered and the time elapsed since the last ser vice.
Warning / indicator lamp
StateCause Action / Observations
Service spanner Flashing then fixed,
when the ignition is
switched on. The servicing interval has been
exceeded.
The ser vice indicator is displayed for a few seconds
on the instrument panel. Depending on version:
-
t
he distance recorder display line indicates the
distance travelled since the ser vice was due. The
value is preceded by the "-" sign.
-
a
n alert message indicates that the due date has
passed.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has passed.
+ Flashing then fixed,
when the ignition
is switched on,
associated with the
Ser vice warning
lamp.Ser vice date passed for BlueHDi
Diesel versions.
The ser vice indicator is displayed for a few seconds
on the instrument panel. Depending on version:
-
t
he distance recorder display line indicates the
distance travelled since the ser vice was due. The
value is preceded by the "-" sign.
-
a
n alert message indicates that the due date has
passed.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has passed.
Instruments

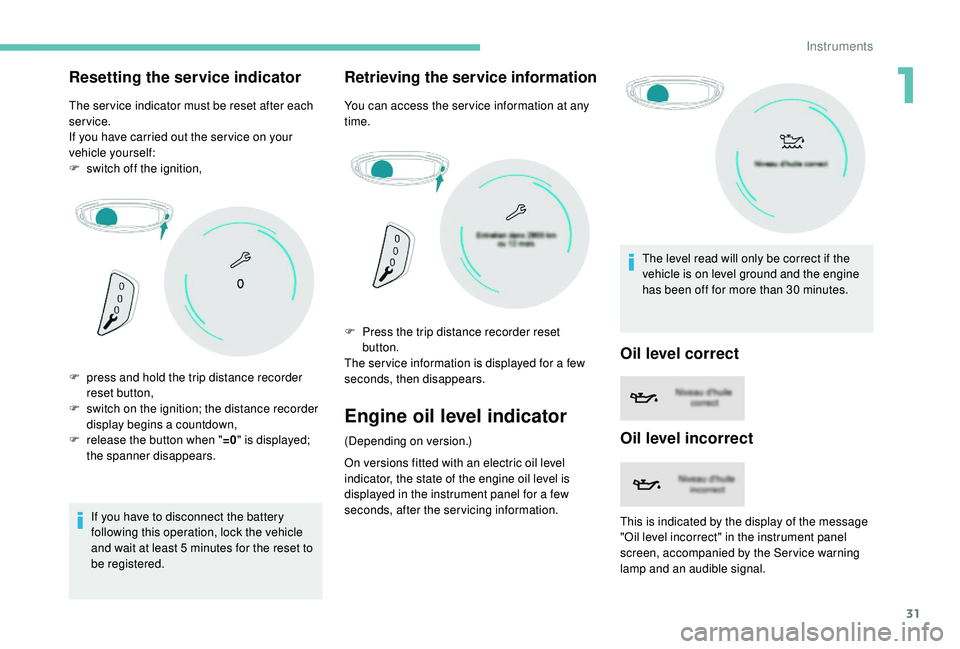

31
Resetting the service indicator
The ser vice indicator must be reset after each
service.
If you have carried out the ser vice on your
vehicle yourself:
F
s
witch off the ignition,
If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least 5
minutes for the reset to
be registered.
Retrieving the service information
You can access the ser vice information at any
time.
F

p

ress and hold the trip distance recorder
reset button,
F

s

witch on the ignition; the distance recorder
display begins a countdown,
F

r

elease the button when " =0" is displayed;
the spanner disappears. F

P
ress the trip distance recorder reset
button.
The ser vice information is displayed for a few
seconds, then disappears.
Engine oil level indicator
(Depending on version.)
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information. The level read will only be correct if the
vehicle is on level ground and the engine
has been off for more than 30
minutes.
Oil level correct
Oil level incorrect
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the Ser vice warning
lamp and an audible signal.
1
Instruments

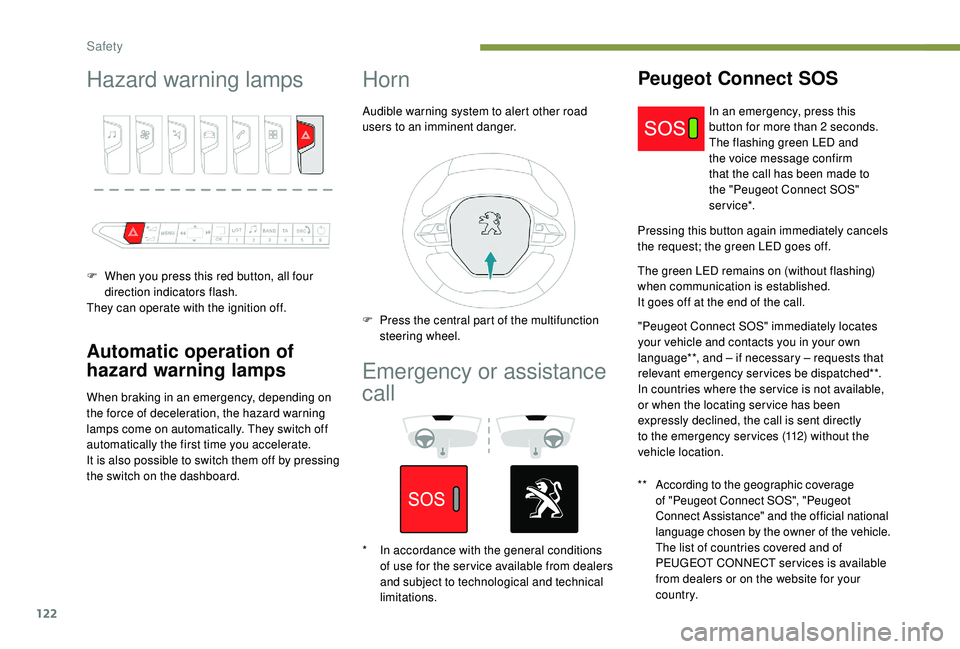

122
Hazard warning lamps
F When you press this red button, all four direction indicators flash.
They can operate with the ignition off.
Automatic operation of
hazard warning lamps
When braking in an emergency, depending on
the force of deceleration, the hazard warning
lamps come on automatically. They switch off
automatically the first time you accelerate.
It is also possible to switch them off by pressing
the switch on the dashboard.
Horn
Audible warning system to alert other road
users to an imminent danger.
Emergency or assistance
call
Peugeot Connect SOS
** According to the geographic coverage of "Peugeot Connect SOS", "Peugeot
Connect Assistance" and the official national
language chosen by the owner of the vehicle.
The list of countries covered and of
PEUGEOT CONNECT services is available
from dealers or on the website for your
c o u nt r y. In an emergency, press this
button for more than 2
seconds.
The flashing green LED and
the voice message confirm
that the call has been made to
the "Peugeot Connect SOS"
service*.
Pressing this button again immediately cancels
the request; the green LED goes off.
The green LED remains on (without flashing)
when communication is established.
It goes off at the end of the call. "Peugeot Connect SOS" immediately locates
your vehicle and contacts you in your own
language**, and – if necessary – requests that
relevant emergency services be dispatched**.
In countries where the ser vice is not available,
or when the locating ser vice has been
expressly declined, the call is sent directly
to the emergency services (112) without the
vehicle location.
F

P

ress the central part of the multifunction
steering wheel.
*

I

n accordance with the general conditions
of use for the ser vice available from dealers
and subject to technological and technical
limitations.
Safety

123

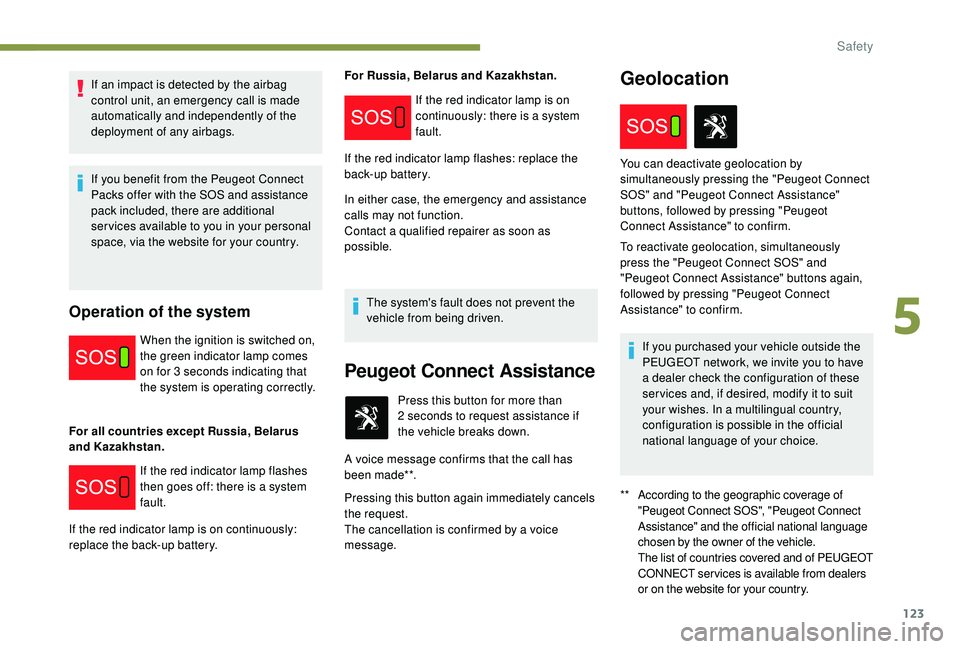

If an impact is detected by the airbag
control unit, an emergency call is made
automatically and independently of the
deployment of any airbags.
If you benefit from the Peugeot Connect
Packs offer with the SOS and assistance
pack included, there are additional
ser vices available to you in your personal
space, via the website for your country.
Operation of the system
When the ignition is switched on,
the green indicator lamp comes
on for 3 seconds indicating that
the system is operating correctly.
For all countries except Russia, Belarus
and Kazakhstan. For Russia, Belarus and Kazakhstan.
In either case, the emergency and assistance
calls may not function.
Contact a qualified repairer as soon as
possible.
The system's fault does not prevent the
vehicle from being driven.
If the red indicator lamp flashes
then goes off: there is a system
fault.
If the red indicator lamp is on continuously:
replace the back-up battery. If the red indicator lamp is on
continuously: there is a system
fault.
If the red indicator lamp flashes: replace the
back-up battery.
Peugeot Connect Assistance
** According to the geographic coverage of "Peugeot Connect SOS", "Peugeot Connect
Assistance" and the official national language
chosen by the owner of the vehicle.
The list of countries covered and of PEUGEOT
CONNECT services is available from dealers
or on the website for your country.
Press this button for more than
2 seconds to request assistance if
the vehicle breaks down.
A voice message confirms that the call has
been made**.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
Geolocation
You can deactivate geolocation by
simultaneously pressing the "Peugeot Connect
SOS" and "Peugeot Connect Assistance"
buttons, followed by pressing "Peugeot
Connect Assistance" to confirm.
To reactivate geolocation, simultaneously
press the "Peugeot Connect SOS" and
"Peugeot Connect Assistance" buttons again,
followed by pressing "Peugeot Connect
Assistance" to confirm.
If you purchased your vehicle outside the
PEUGEOT network, we invite you to have
a dealer check the configuration of these
ser vices and, if desired, modify it to suit
your wishes. In a multilingual country,
configuration is possible in the official
national language of your choice.
5
Safety

229

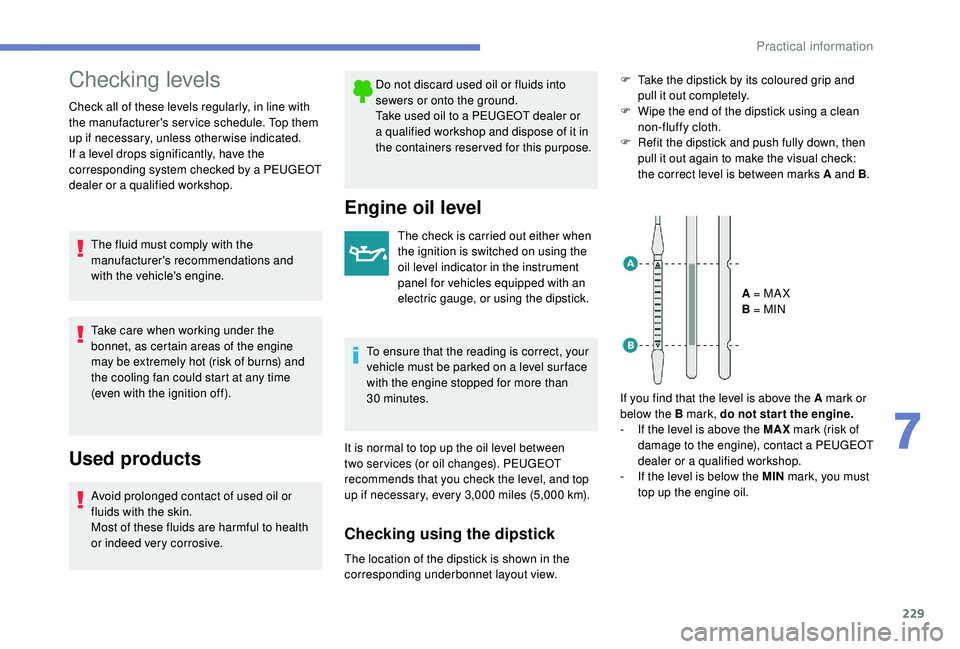

Checking levels
Check all of these levels regularly, in line with
the manufacturer's service schedule. Top them
up if necessary, unless other wise indicated.
If a level drops significantly, have the
corresponding system checked by a PEUGEOT
dealer or a qualified workshop.The fluid must comply with the
manufacturer's recommendations and
with the vehicle's engine.
Take care when working under the
bonnet, as certain areas of the engine
may be extremely hot (risk of burns) and
the cooling fan could start at any time
(even with the ignition off).
Used products
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to health
or indeed very corrosive. Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a PEUGEOT dealer or
a qualified workshop and dispose of it in
the containers reser ved for this purpose.
Engine oil level
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles equipped with an
electric gauge, or using the dipstick.
To ensure that the reading is correct, your
vehicle must be parked on a level sur face
with the engine stopped for more than
30


minutes.
It is normal to top up the oil level between
two ser vices (or oil changes). PEUGEOT
recommends that you check the level, and top
up if necessary, every 3,000
miles (5,000 km).
Checking using the dipstick
F Take the dipstick by its coloured grip and pull it out completely.
F

W
ipe the end of the dipstick using a clean
non-fluffy cloth.
F

R
efit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between marks A and B .
A = MA X
B = MIN
If you find that the level is above the A mark or
below the B mark, do not star t the engine.
-

I
f the level is above the MAX mark (risk of
damage to the engine), contact a PEUGEOT
dealer or a qualified workshop.
-

I
f the level is below the MIN mark, you must
top up the engine oil.
The location of the dipstick is shown in the
corresponding underbonnet layout view.
7
Practical information
