9
Instruments
1Head-up digital display
This digital instrument panel can be customised.
Depending on the display mode selected, certain
information is hidden or presented differently.
Example with the "DIALS"
display mode:


1.Fuel gauge
2. Analogue speedometer (mph or km/h)
3. Gear shift indicator
Selector position and gear engaged on
automatic gearbox
4. Digital speedometer (mph or km/h)
5. Cruise control or speed limiter settings
Display of speed limit signs
6. Rev counter (x 1,000 rpm)
7. Engine coolant temperature indicator (°C)
8. Trip distance recorder (miles or km)
9. Total distance recorder (miles or km)
A. Instrument panel ambient lighting on/off
B. Short press: start a manual test
Long press: reset the service indicator or trip
distance recorder (depending on the context)
Head-up digital display
(Rechargeable hybrid)
This digital instrument panel can be customised.
Depending on the display mode selected, certain
information is hidden or presented differently.
Example with the " ÉNERGIE"
display mode:


1.Fuel gauge and remaining range (miles or
km)
2. Digital speedometer (mph or km/h)
READY indicator lamp
3. Status of the gearbox
4. Energy flows
5. Driving mode selected
6. Power indicator
7. Battery charge level and remaining range
(miles or km)
8. Trip distance recorder (miles or km)
9. Total distance recorder (miles or km)
A. Instrument panel ambient lighting on/off
B. Short press: start a manual test
Long press: reset the service indicator or trip
distance recorder (depending on the context)
In all-electric driving mode, the speed is
displayed in blue.
Displays
Most warning and indicator lamps do not have a
fixed position.
The warning and indicator lamps in the second
line are displayed from right to left in order of
priority.
For certain functions that have indicator lamps
for both operation and deactivation, there is only
one dedicated location.
Permanent information
In the standard display, the instrument panel
shows:
–

in fixed locations:
•


Information related to the gearbox and gear
shift indicator

.
•

Fuel gauge.
•


Coolant temperature indicator (Petrol or
Diesel).
•


Charge level and range indicator
(Rechargeable hybrid).
•


Distance recorders.
–


in variable locations:
•


Digital speedometer
.
•

Status or alert messages displayed
temporarily

.
Optional information
Depending on the selected display mode and
active features, additional information may be
displayed:
–
Rev counter (Petrol or Diesel).
–


T
rip computer.

10
Instruments
• "Navigation".
• "Trip computer".
• "Rev counter".
• "Energy flow" (depending on version).
• "Power indicator" (depending on version).
• "Energy consumption" (depending on
version).
► Confirm to save and exit.
"PERSONAL" mode is displayed immediately.
Warning and indicator
lamps
Displayed as symbols, the warning and indicator
lamps inform the driver of the occurrence of a
malfunction (warning lamps) or of the operating
status of a system (operation or deactivation
indicator lamps). Certain lamps light up in two
ways (fixed or flashing) and/or in several colours.
Associated warnings
The illumination of a lamp may be accompanied
by an audible signal and/or a message displayed
in a screen.
Relating the type of alert to the operating status
of the vehicle allows you to determine whether
the situation is normal or whether a fault has
occurred: refer to the description of each lamp
for further information.
When the ignition is switched on
Certain red or orange warning lamps come on
for a few seconds when the ignition is switched
– Driving aid functions.
– Speed limiter or cruise control.
–

Media currently playing.
–


Navigation instructions.
–


Engine information from the Dynamic Pack.
–


Power flow (Rechargeable hybrid).
Customising the instrument
panel
Depending on version, the appearance of the
instrument panel may be customisable (colour
and/or display mode).
Display language and units
These depend on the multifunction
screen settings (configuration menu).
When travelling abroad, the speed must be
shown in the official units of the country you
are driving in (mph, miles or km/h, km).
As a safety measure, these adjustments must be carried out with the vehicle
stationary.
Choosing the display colour
Depending on version, the instrument panel
display colour depends on the colour scheme
chosen in this system.
This function is set via the Settings touch screen menu.
Choosing the display mode
In each mode, specific types of information are
displayed on the instrument panel.


► Turn the thumbwheel on the left of the
steering wheel to display and scroll through the
various modes on the right-hand side of the
instrument panel.
►

Press the thumbwheel to confirm the mode.
The new display mode is applied immediately

.
Display modes
– "DIALS": standard display of analogue and
digital speedometers, distance recorders and: •

fuel gauge, coolant temperature indicator
and rev counter (Petrol or Diesel).
•


fuel gauge, battery charge indicator and
power indicator (Rechargeable hybrid).
–

"NAVIGATION": specific display, showing
current navigation information (map and
instructions).
–
"DRIVING": specific display, showing
information relating to active driving aid systems. –
"MINIMAL": minimal display with digital
speedometer and distance recorders, and in
the event of a warning only, the fuel gauge and
coolant temperature indicator.
– "ÉNERGIE": specific display, showing a visual
representation of the vehicle’s energy flows
(Rechargeable hybrid).
– "PERSONAL": minimal display, with the ability
to select and display optional information in the
customisable areas on the left and right.
Configuring a "PERSONAL" display mode
With PEUGEOT Connect Radio► Press Settings in the banner of the
touch screen.
► Select " Configuration ".
► Select "Instrument panel
personalisation".
With PEUGEOT Connect Nav
► Press Settings in the banner of the
touch screen.
►

Select "
OPTIONS".
► Select " Instrument panel
personalisation".
►

For each customised display area (left and
right), select a type of information using the
corresponding scroll arrows on the touch screen: •


"Driving aids".
•

"Engine info " (depending on version).
•

"G-metres " (depending on version).
•

"Temperatures " (engine oil).
•

"Media".

11
Instruments
1• "Navigation".
• "Trip computer".
•
"Rev counter".
•
"Energy flow" (depending on version).
•
"Power indicator" (depending on version).
•
"Energy consumption " (depending on
version).
►

Confirm to save and exit.
"

PERSONAL" mode is displayed immediately.
Warning and indicator
lamps
Displayed as symbols, the warning and indicator
lamps inform the driver of the occurrence of a
malfunction (warning lamps) or of the operating
status of a system (operation or deactivation
indicator lamps). Certain lamps light up in two
ways (fixed or flashing) and/or in several colours.
Associated warnings
The illumination of a lamp may be accompanied
by an audible signal and/or a message displayed
in a screen.
Relating the type of alert to the operating status
of the vehicle allows you to determine whether
the situation is normal or whether a fault has
occurred: refer to the description of each lamp
for further information.
When the ignition is switched on
Certain red or orange warning lamps come on
for a few seconds when the ignition is switched on. These warning lamps should go off as soon
as the engine is started.
For more information on a system or a function,
refer to the corresponding section.
Persistent warning lamp
If a red or orange warning lamp comes on, there
may be fault which needs further investigation.
If a lamp remains lit
The references (1), (2) and (3) in the warning
and indicator lamp description indicate whether
you should contact a qualified professional in
addition to the immediate recommended actions.
(1): You must stop the vehicle
.
Stop as soon as it is safe to do so and switch off
the ignition.
(2): Contact a PEUGEOT dealer or a qualified
workshop.
(3): Go to a PEUGEOT dealer or a qualified
workshop.
List of warning and
indicator lamps
Red warning/indicator lamps
STOP
Fixed, associated with another warning
lamp, accompanied by the display of a
message and an audible signal.
A serious fault with the engine, braking system,
power steering or automatic gearbox or a major
electrical fault has been detected. Carry out (1) and then (2).
Maximum engine coolant temperatureFixed.
The temperature of the cooling system is
too high.
Carry out (1), then wait until the engine has
cooled down before topping up the level, if
necessary. If the problem persists, carry out (2).
Engine oil pressureFixed.
There is a fault with the engine lubrication
system.
Carry out (1) and then (2).
System malfunction (Rechargeable hybrid)Fixed.
The rechargeable hybrid system is faulty.
Carry out (1) and then (2).
Cable connected (Rechargeable hybrid)Fixed when the ignition is switched on.
The charging cable is connected to the
vehicle's connector.
Fixed when the ignition is switched on,
accompanied by a message.
It is not possible to start the vehicle while the
charging cable is connected to the vehicle’s
connector.
Disconnect the charging cable and close the
flap.

18
Instruments

► Press this button to temporarily display the
driving range.
Actions required related to a lack of AdBlue®
The following warning lamps light up when the
quantity of AdBlue® is below the reserve level:
driving range of 1,500 miles (2,400 km).
Together with the warning lamps, messages
regularly remind you of the need to top up to
avoid engine starting being prevented. Refer to
the Warning and indicator lamps section for
details of the messages displayed.
For more information on AdBlue®
(BlueHDi) and in particular on topping
up, refer to the corresponding section.
Warning/indicator
lamps on Action Remaining
range


Top up. Between 1,500 miles
and 500
miles (2,400
km and 800
km)
On versions fitted with an electric gauge, the
engine oil level status is displayed on the
instrument panel for a few seconds when
the ignition is switched on, after the servicing
information, in the form of messages.
The level read will only be correct if the vehicle is on level ground and the engine
has been off for more than 30 minutes.
Low oil level
This is indicated by the message " Oil
level incorrect" on the instrument panel,
accompanied by the lighting of the Service
warning lamp and an audible signal.
If a low oil level is confirmed by a check using
the dipstick, the level must be topped up to avoid
damage to the engine.
For more information on Checking levels, refer
to the corresponding section.
Oil gauge malfunction
This is indicated by the message " Oil level
measurement invalid" on the instrument panel.
Consult a PEUGEOT dealer or a qualified
workshop.
In the event of a malfunction of the
electric gauge, the oil level is no longer
monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located in the engine compartment.
For more information on Checking levels,
refer to the corresponding section.
Coolant temperature
indicator


With the engine running:
– In zone A, the temperature is correct.
–

In zone
B, the temperature is too high.
The associated warning lamp and the
STOP
warning lamp light up in red on the
instrument panel, accompanied by the display of
a message and an audible signal.
You must stop the vehicle as soon as it is
safe to do so.
Wait a few minutes before switching off the
engine.
After switching off the ignition, carefully open the bonnet and check the coolant
level.
For more information on Checking
levels, refer to the corresponding
section.
AdBlue® range indicators
(BlueHDi)
The Diesel BlueHDi engines are equipped with
a system that associates the SCR (Selective
Catalytic Reduction) emissions control system
and the Diesel particle filter (DPF) for the
treatment of exhaust gases. They cannot
function without AdBlue
® fluid.
When the level of AdBlue® falls below the
reserve level (between 1,500 and 0 miles (2,400
and 0

km)), a warning lamp lights up when
the ignition is switched on and an estimate
of the distance that can be travelled before
engine starting is prevented is displayed in the
instrument panel.
The engine starting prevention system required by regulations is activated
automatically once the AdBlue
® tank is empty.
It is then no longer possible to start the
engine until the minimum level of AdBlue
® has
been topped up.
Manual display of driving range
While the driving range is greater than
1,500 miles (2,400 km), it is not displayed
automatically.

111
Driving
6New vehicle: do not tow a trailer until the
vehicle has driven at least 620 miles
(1,000 kilometres).
If the outside temperature is high, let the
engine idle for 1 to 2 minutes after the
vehicle comes to a stop, to help it to cool.
Before setting off
Nose weight
► Distribute the load in the trailer so that the
heaviest items are as close as possible to the
axle and the nose weight (at the point where it
joins your vehicle) approaches the maximum
permitted without exceeding it.
Tyres
► Check the tyre pressures of the towing
vehicle and of the trailer , observing the
recommended pressures.
Lighting
► Check the electrical signalling on the trailer
and the headlamp beam height of your vehicle.
If a genuine PEUGEOT towing device is
used, the rear parking sensors will be
deactivated automatically to avoid the audible
signal.
When driving
Cooling
Towing a trailer uphill causes the coolant
temperature to increase. The maximum towable
load depends on the gradient and the exterior
temperature. The fan’s cooling capacity does not
increase with engine speed.
►

Reduce speed and lower the engine speed to
limit the amount of heating produced.
►


Pay constant attention to the coolant
temperature.
If this warning lamp and the STOP
warning lamp come on, stop the
vehicle and switch off the engine as soon as
possible.
Brakes
Using the engine brake is recommended to limit
the overheating of the brakes. Braking distances
are increased when towing a trailer.
Side wind
Bear in mind that the vehicle will be more
susceptible to wind when towing.
Anti-theft protection
Electronic immobiliser
The keys contain a code, which must be
recognised by the vehicle before starting is
possible.
If the system malfunctions, indicated by the
display of a message, the engine will not start.
Contact a PEUGEOT dealer.
Starting/Switching off the
engine
The electronic key must be present in the passenger compartment.
If the electronic key is not detected, a
message is displayed.
Move the electronic key so that the engine
can be started or switched off.
If there is still a problem, refer to the "Key
not detected - Back-up starting or Back-up
switch-off" section.
Starting

► With a manual gearbox, place the gear lever
in neutral and fully depress the clutch pedal.

180

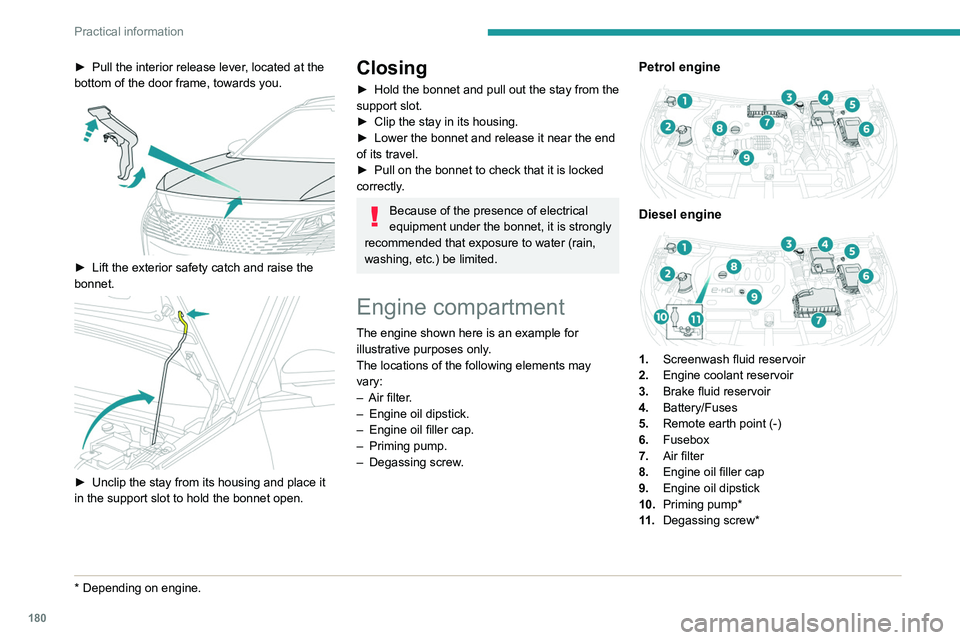

Practical information
► Pull the interior release lever, located at the
bottom of the door frame, towards you.


► Lift the exterior safety catch and raise the
bonnet.


► Unclip the stay from its housing and place it
in the support slot to hold the bonnet open.
* Depending on engine.
Closing
► Hold the bonnet and pull out the stay from the
support slot.
►

Clip the stay in its housing.
►


Lower the bonnet and release it near the end
of its travel.
►


Pull on the bonnet to check that it is locked
correctly

.
Because of the presence of electrical
equipment under the bonnet, it is strongly
recommended that exposure to water (rain,
washing, etc.) be limited.
Engine compartment
The engine shown here is an example for
illustrative purposes only.
The locations of the following elements may
vary:
–

Air filter
.
–

Engine oil dipstick.
–


Engine oil filler cap.
–


Priming pump.
–


Degassing screw
.
Petrol engine

Diesel engine

1.Screenwash fluid reservoir
2. Engine coolant reservoir
3. Brake fluid reservoir
4. Battery/Fuses
5. Remote earth point (-)
6. Fusebox
7. Air filter
8. Engine oil filler cap
9. Engine oil dipstick
10. Priming pump*
11 . Degassing screw*
Diesel fuel system
This system is under very high pressure.
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop.
Checking levels
Check all of the following levels regularly in
accordance with the manufacturer's service
schedule. Top them up if required, unless
otherwise indicated.
If a level drops significantly, have the
corresponding system checked by a PEUGEOT
dealer or a qualified workshop.
The fluids must comply with the manufacturer's requirements and with
the vehicle's engine.
Take care when working under the bonnet, as certain areas of the engine
may be extremely hot (risk of burns) and the
cooling fan could start at any time (even with
the ignition off).
Used products
Avoid prolonged contact of used oil or fluids with the skin.
Most of these fluids are harmful to health and
very corrosive.

182
Practical information
► Wait a few minutes before checking the level
again using the dipstick.
►
T
op up the level if necessary.
►

After checking the level, carefully screw the
oil filler cap back on

and replace the dipstick in
its tube.
The oil level indication displayed on the instrument panel when the ignition is
switched on is not valid for 30 minutes
following an addition of oil.
Brake fluid
The level of this fluid should be close to the "MAX" mark. If not, check the brake
pads for wear.
To know how often the brake fluid should be
replaced, refer to the manufacturer's servicing
schedule.
Clean the cap before removing it to refill.
Use only DOT4 brake fluid from a sealed
container.
Engine coolant
It is normal to top up this fluid between
two services.
The check and top-up must only be done with
the engine cold.
A level of coolant that is too low risks causing
major damage to the engine; the coolant level must be close to the "MAX" mark without ever
going above it.
If the level is close to or below the "
MIN" mark, it
is essential to top it up.
When the engine is hot, the temperature of the
coolant is regulated by the fan.
As the cooling system is pressurised, wait at
least one hour after switching off the engine
before carrying out any work.
In order to avoid the risk of scalding if you need
to top up in an emergency, wrap a cloth around
the cap and unscrew the cap by two turns to
allow the pressure to drop.
Once the pressure has dropped, remove the cap
and top up to the required level.
Screenwash fluid
Top up to the required level when necessary.
Capacity of the tank:
–

5.3 litres for "very cold climate" versions.
–


2.2 litres for other versions.
Fluid specification
The fluid must be topped up with a pre-mixed
product.
In winter (temperatures below zero), a fluid
containing an anti-freeze agent which is
appropriate for the temperature conditions
must be used in order to protect the system's
components (pump, tank, ducts, jets).
Filling with pure water is prohibited in all
circumstances (risk of freezing,
limescale, etc.).
Diesel fuel additive (Diesel
with particle filter)
On reaching the minimum level in the
particle filter additive tank, this warning
lamp comes on fixed, accompanied by an
audible signal and a warning message.
Topping up
The topping up of this additive must be carried
out quickly.
Go to a PEUGEOT dealer or a qualified
workshop.
AdBlue® (BlueHDi)
An alert is triggered when the reserve level is
reached.
For more information on the Indicators and in
particular the AdBlue range indicators, refer to
the corresponding section.
To avoid the vehicle being immobilised in
accordance with regulations, you must top up the
AdBlue tank.
For more information on AdBlue
® (BlueHDi),
and in particular the supply of AdBlue, refer to
the corresponding section.
Checks
Unless otherwise indicated, check these
components in accordance with the
manufacturer's service schedule and according
to your engine.
Otherwise, have them checked by a PEUGEOT
dealer or a qualified workshop.
Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation of
components as important as those in the
braking system, PEUGEOT selects and offers
very specific products.
12 V battery
The battery does not require any maintenance.
Check regularly that the terminals are correctly
tightened (versions without quick-release
terminals) and that the connections are clean.
For more information on the precautions
to take before any work on the 12 V
battery, refer to the corresponding section.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out only by
a PEUGEOT dealer or a qualified workshop.

263
Alphabetical index
Eco-driving (advice) 7
ECO mode
122
Economy mode

178
Electric automatic gearbox (Rechargeable
hybrid)

119
Electric windows

38
Electronic brake force distribution (EBFD)

87
Emergency braking assistance (EBA)

87
Emergency call

85–86
Emergency switching off

11 3
Emergency warning lamps

84, 189
Emissions control system, SCR

19, 184
Energy economy mode

178
Energy flows

24
Energy recovery

20, 120
Engine

184
Engine compartment

179–180
Engine, Diesel

163, 181, 189, 218
Engine, petrol

122, 180, 216
Engines

215–216, 218
Environment

7, 31
e-Save function (energy reserve)

25
ESC (electronic stability control)

87
Expanded traffic sign recognition

131
Exterior lighting

77
F
Fatigue detection 150
Filling the AdBlue® tank
182, 186
Filling the fuel tank

163–164
Filter, air 183
Filter, oil
183
Filter, particle

182–183
Filter, passenger compartment

56, 183
Fitting a wheel

198–199
Fitting roof bars

176–177
Fittings, boot

69
Fittings, front

62
Fittings, interior

62
Fittings, rear

66
Flap, charging

173
Flap, fuel filler

163–164
Flashing indicators

75
Flat bed (recovery)

212
Floor, boot, adjustable

72
Floor, concertina

53
Fluid, brake

182
Fluid, engine coolant

182
Foglamps, rear

74, 201
Folding the rear seats

49–52
Four-wheel drive (4WD)

123, 178
Frequency (radio)

250
Fuel

7, 163
Fuel consumption

7, 20
Fuel tank

163–164
Fusebox, dashboard

202
Fusebox, engine compartment

202, 204–205
Fuses

201–202, 204–205G
Gauge, fuel 163
Gearbox, automatic
116–119, 121, 183, 207
Gearbox, manual

116, 121, 183
Gear lever, manual gearbox

11 6
Gear shift indicator ~ Gear efficiency
indicator

123
Glove box

62
G.P.S.

244
Grab handles

62
H
Hands-free access 34–35
Hands-free tailgate
34–36
Hazard warning lamps

84, 189
headlamp adjustment

76
Headlamp adjustment

76
Headlamps, automatic dipping

77–78
Headlamps, automatic illumination

76
Headlamps, dipped beam

200–201
Headlamps, halogen

76
Headlamps, main beam

77, 200–201
Head restraints, front

44–45
Head restraints, rear

48–50
Heating

56
Heating, programmable

25, 61
Hi-Fi system

63
Hill Assist Descent Control (HADC)

90
Hill start assist

121

264

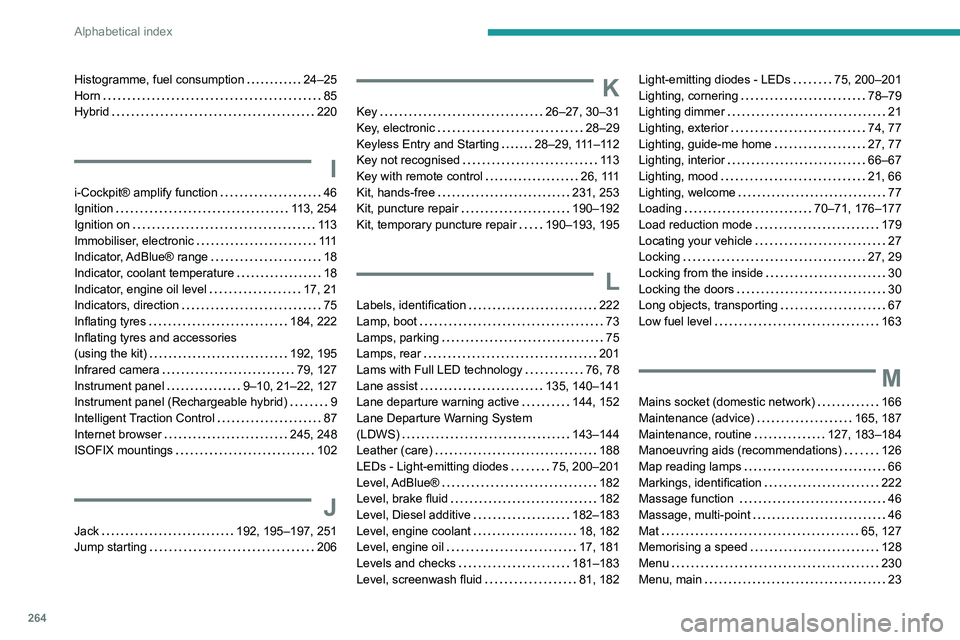

Alphabetical index
Histogramme, fuel consumption 24–25
Horn
85
Hybrid

220
I
i-Cockpit® amplify function 46
Ignition
113, 254
Ignition on

11 3
Immobiliser, electronic

111
Indicator, AdBlue® range

18
Indicator, coolant temperature

18
Indicator, engine oil level

17, 21
Indicators, direction

75
Inflating tyres

184, 222
Inflating tyres and accessories
(using the kit)

192, 195
Infrared camera

79, 127
Instrument panel

9–10, 21–22, 127
Instrument panel (Rechargeable hybrid)

9
Intelligent Traction Control

87
Internet browser

245, 248
ISOFIX mountings

102
J
Jack 192, 195–197, 251
Jump starting
206
K
Key 26–27, 30–31
Key, electronic
28–29
Keyless Entry and Starting

28–29, 111–112
Key not recognised

11 3
Key with remote control

26, 111
Kit, hands-free

231, 253
Kit, puncture repair

190–192
Kit, temporary puncture repair

190–193, 195
L
Labels, identification 222
Lamp, boot
73
Lamps, parking

75
Lamps, rear

201
Lams with Full LED technology

76, 78
Lane assist

135, 140–141
Lane departure warning active

144, 152
Lane Departure Warning System
(LDWS)

143–144
Leather (care)

188
LEDs - Light-emitting diodes

75, 200–201
Level, AdBlue®

182
Level, brake fluid

182
Level, Diesel additive

182–183
Level, engine coolant

18, 182
Level, engine oil

17, 181
Levels and checks

181–183
Level, screenwash fluid

81, 182
Light-emitting diodes - LEDs 75, 200–201
Lighting, cornering
78–79
Lighting dimmer

21
Lighting, exterior

74, 77
Lighting, guide-me home

27, 77
Lighting, interior

66–67
Lighting, mood

21, 66
Lighting, welcome

77
Loading

70–71, 176–177
Load reduction mode

179
Locating your vehicle

27
Locking

27, 29
Locking from the inside

30
Locking the doors

30
Long objects, transporting

67
Low fuel level

163
M
Mains socket (domestic network) 166
Maintenance (advice)
165, 187
Maintenance, routine

127, 183–184
Manoeuvring aids (recommendations)

126
Map reading lamps

66
Markings, identification

222
Massage function

46
Massage, multi-point

46
Mat

65, 127
Memorising a speed

128
Menu

230
Menu, main

23

267

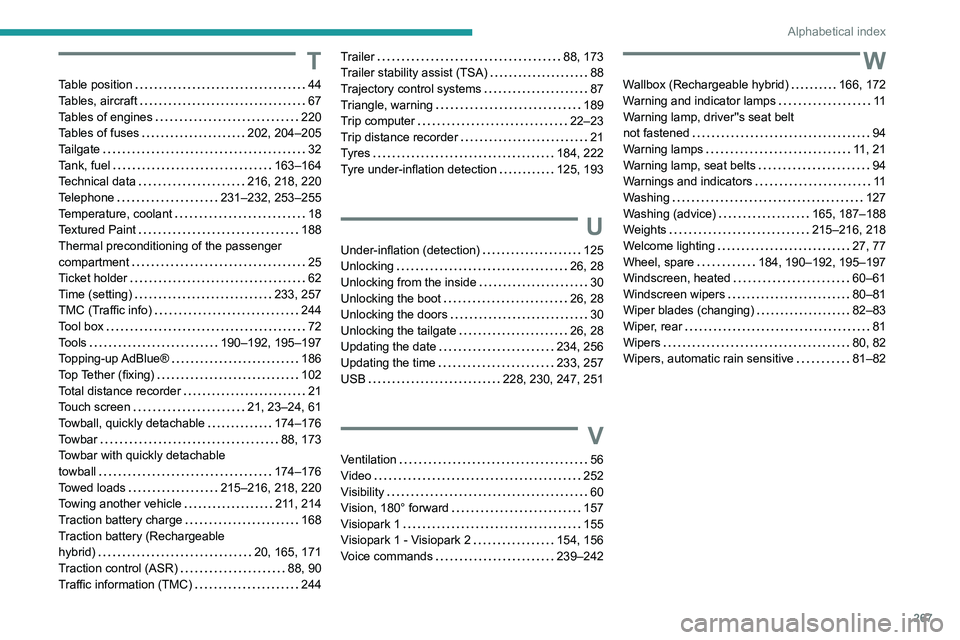

Alphabetical index
T
Table position 44
Tables, aircraft
67
Tables of engines

220
Tables of fuses

202, 204–205
Tailgate

32
Tank, fuel

163–164
Technical data

216, 218, 220
Telephone

231–232, 253–255
Temperature, coolant

18
Textured Paint

188
Thermal preconditioning of the passenger
compartment

25
Ticket holder

62
Time (setting)

233, 257
TMC (Traffic info)

244
Tool box

72
Tools

190–192, 195–197
Topping-up AdBlue®

186
Top Tether (fixing)

102
Total distance recorder

21
Touch screen

21, 23–24, 61
Towball, quickly detachable

174–176
Towbar

88, 173
Towbar with quickly detachable
towball

174–176
Towed loads

215–216, 218, 220
Towing another vehicle

211, 214
Traction battery charge

168
Traction battery (Rechargeable
hybrid)

20, 165, 171
Traction control (ASR)

88, 90
Traffic information (TMC)

244
Trailer 88, 173
Trailer stability assist (TSA)
88
Trajectory control systems

87
Triangle, warning

189
Trip computer

22–23
Trip distance recorder

21
Tyres

184, 222
Tyre under-inflation detection

125, 193
U
Under-inflation (detection) 125
Unlocking
26, 28
Unlocking from the inside

30
Unlocking the boot

26, 28
Unlocking the doors

30
Unlocking the tailgate

26, 28
Updating the date

234, 256
Updating the time

233, 257
USB

228, 230, 247, 251
V
Ventilation 56
Video
252
Visibility

60
Vision, 180° forward

157
Visiopark 1

155
Visiopark 1 - Visiopark 2

154, 156
Voice commands

239–242
W
Wallbox (Rechargeable hybrid) 166, 172
Warning and indicator lamps
11
Warning lamp, driver''s seat belt
not fastened

94
Warning lamps

11, 21
Warning lamp, seat belts

94
Warnings and indicators

11
Washing

127
Washing (advice)

165, 187–188
Weights

215–216, 218
Welcome lighting

27, 77
Wheel, spare

184, 190–192, 195–197
Windscreen, heated

60–61
Windscreen wipers

80–81
Wiper blades (changing)

82–83
Wiper, rear

81
Wipers

80, 82
Wipers, automatic rain sensitive

81–82
