Peugeot 3008 Dag 2009.5 Owner's Manual

218
RADIO
11
2
3
05

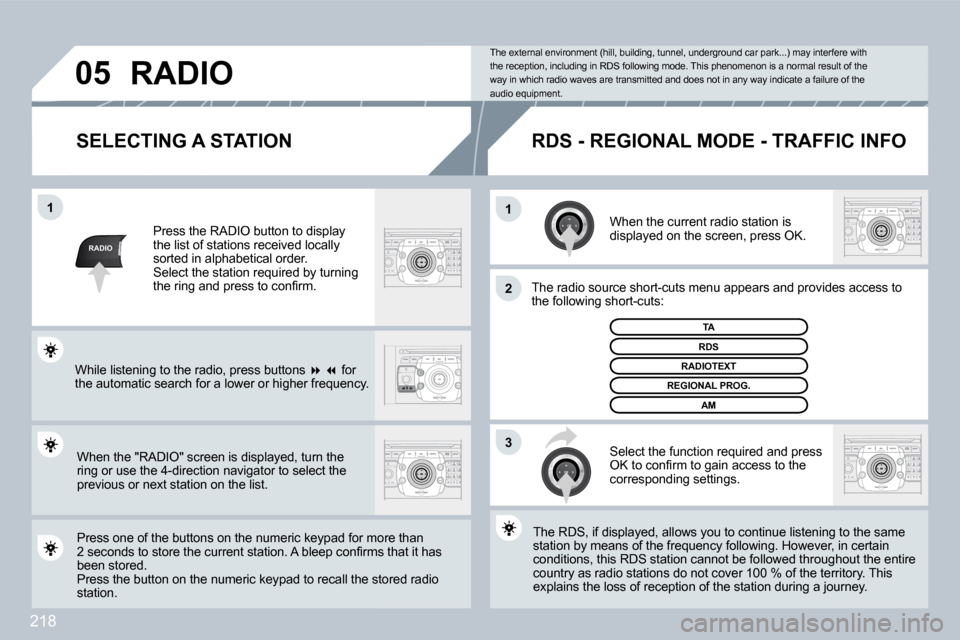

SELECTING A STATION
When the current radio station is displayed on the screen, press OK.
The radio source short-cuts menu appears and providesovides access to the following short-cuts:
Select the function required and press OK to confi rm to gain access to the corresponding settings.
TA
The RDS, if displayed, allows you to continue listening to the same The RDS, if displayed, allows you to continue listening to the same station by means of the frequency following. Howeve r, in certain station by means of the frequency following. However, in certain conditions, this RDS station cannot be followed throughout the entire conditions, this RDS station cannot be followed throughout the entire country as radio stations do not cover 100 % of the terrie territory. This explains the loss of reception of the station during a journey. explains the loss of reception of the station during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. Thi s phenomenon is a normal result of the way in which radio waves are transmitted and does n ot in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the ring and press to confi rm.
Press one of the buttons on the numeric keypad for moor more than 2 seconds to store the current station. A bleep confi rms that it has 2 seconds to store the current station. A bleep confi rms that it has been stored. Press the button on the numeric keypad to recall the stothe stored radio station.
RDS
RADIOTEXT
REGIONAL PROG.
AM
RADIO
When the "RADIO" screen is displayed, turn the ring or use the 4-direction navigator to select the previous or next station on the list.
While listening to the radio, press buttons   for the automatic search for a lower or higher frequenc y.

219
06
CD, MP3/WMA CD, MP3/WMA SD
CARD/USB READER

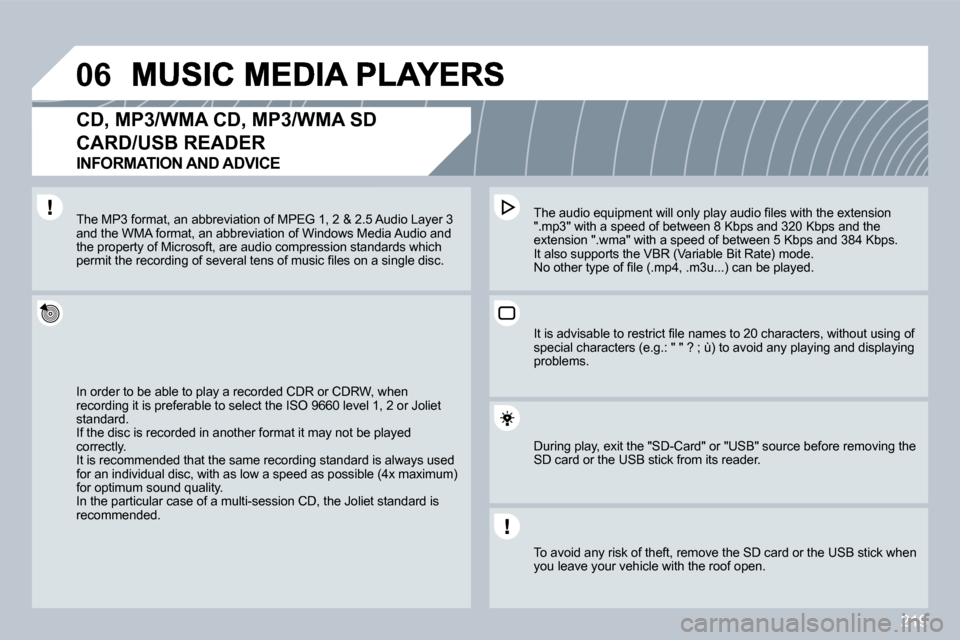

INFORMATION AND ADVICE
In order to be able to play a recorded CDR or CDRW, wRW, when recording it is preferable to select the ISO 9660 level 1, 2 or Joliet recording it is preferable to select the ISO 9660 level 1, 2 or Joliet standard. If the disc is recorded in another format it may not be plat be played correctly. It is recommended that the same recording standard is always used It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum) for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality. In the particular case of a multi-session CD, the Joliet standard is In the particular case of a multi-session CD, the Joliet standard is recommended.
The audio equipment will only play audio fi les wit h the extension The audio equipment will only play audio fi les with the extension ".mp3" with a speed of between 8 Kbps and 320 Kbps abps and the extension ".wma" with a speed of between 5 Kbps and 384 Kbps. extension ".wma" with a speed of between 5 Kbps and 384 Kbps. It also supports the VBR (Variable Bit Rate) mode. No other type of fi le (.mp4, .m3u...) can be played.
The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 A 2.5 Audio Layer 3 and the WMA format, an abbreviation of Windows Medi Media Audio and the property of Microsoft, are audio compression standastandards which permit the recording of several tens of music fi les on a single disc. permit the recording of several tens of music fi les on a single disc.
It is advisable to restrict fi le names to 20 characters, without using of It is advisable to restrict fi le names to 20 characters, without using of special characters (e.g.: " " ? ; ù) to avoid any p laying and displaying special characters (e.g.: " " ? ; ù) to avoid any playing and displaying problems.
During play, exit the "SD-Card" or "USB" source be fore removing the During play, exit the "SD-Card" or "USB" source before removing the SD card or the USB stick from its reader.
To avoid any risk of theft, remove the SD card or the USthe USB stick when you leave your vehicle with the roof open.

220
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
4
5
6
2
7
3
1
MEDIA

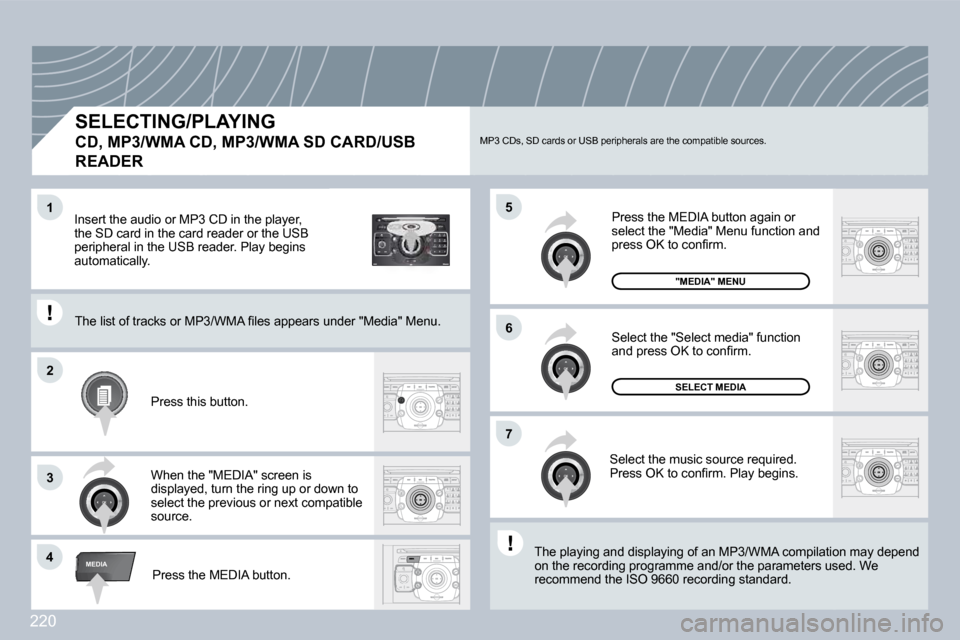

SELECTING/PLAYING
CD, MP3/WMA CD, MP3/WMA SD CARD/USB
READER
The playing and displaying of an MP3/WMA compilati
on may depend The playing and displaying of an MP3/WMA compilation may depend on the recording programme and/or the parameters us ed. We on the recording programme and/or the parameters used. We recommend the ISO 9660 recording standard. Press the MEDIA button.
Select the "Select media" function and press OK to confi rm.
Press this button.
Select the music source required. Press OK to confi rm. Play begins.
SELECT MEDIA
Press the MEDIA button again or select the "Media" Menu function and press OK to confi rm.
When the "MEDIA" screen is displayed, turn the ring up or down to select the previous or next compatible source.
"MEDIA" MENU
The list of tracks or MP3/WMA fi les appears under "Media" Menu. The list of tracks or MP3/WMA fi les appears under "Media" Menu.
Insert the audio or MP3 CD in the player, the SD card in the card reader or the USB peripheral in the USB reader. Play begins automatically.
MP3 CDs, SD cards or USB peripherals are the compatible sources.

221
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK1
3
4
06
22
3
MEDIA
1
MEDIA
Connect the portable equipment (MP3 player, camcor
der, camera…) to the RCA socket (white and red for audio; red and yellow for video) to the RCA socket (white and red for audio; red and yellow for video) in the glove box using a JACK/RCA audio cable.
Press the MEDIA button then press it again or select the "Media" Menu function and press OK to confi rm.
Select the AUX music source and press OK to confi rm. Play begins automatically.
Select "Select media" then "External device (AV)" and press OK to activate it.
EXTERNAL DEVICE
The displaying and management of the controls are operated via the The displaying and management of the controls are operated via the portable equipment.

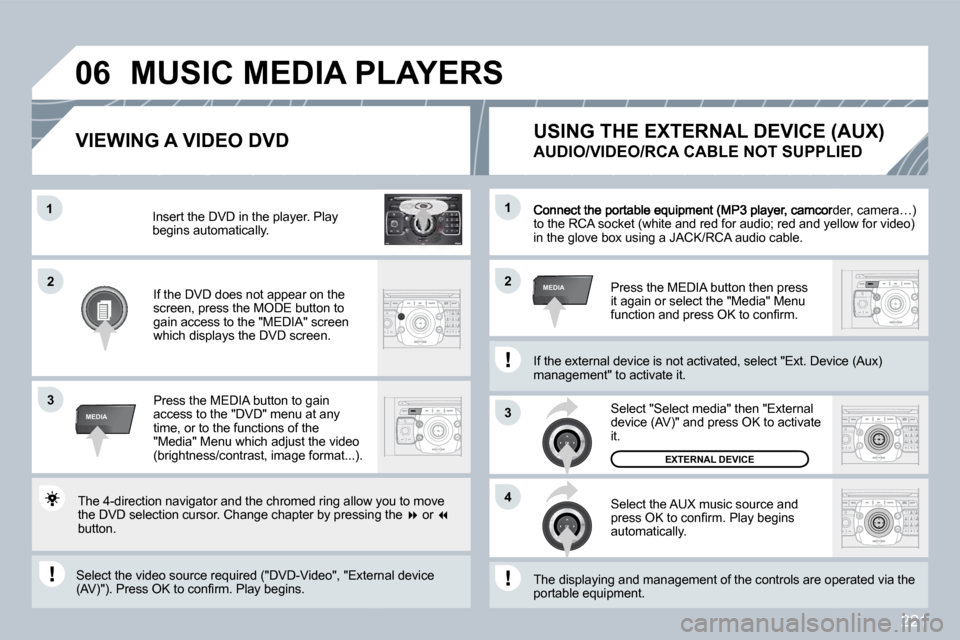

USING THE EXTERNAL DEVICE (AUX)
AUDIO/VIDEO/RCA CABLE NOT SUPPLIED
MUSIC MEDIA PLAYERS
If the external device is not activated, select "Ext. Device (Aux) If the external device is not activated, select "Ext. Device (Aux) management" to activate it.
VIEWING A VIDEO DVD
Select the video source required ("DVD-Video", "Ex ternal device Select the video source required ("DVD-Video", "External device (AV)"). Press OK to confi rm. Play begins.
Press the MEDIA button to gain access to the "DVD" menu at any time, or to the functions of the "Media" Menu which adjust the video (brightness/contrast, image format...).
If the DVD does not appear on the screen, press the MODE button to gain access to the "MEDIA" screen which displays the DVD screen.
Insert the DVD in the player. Play begins automatically.
The 4-direction navigator and the chromed ring allow you to move the DVD selection cursor. Change chapter by pressin g the  or  button.

222
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
2
3
4
5
6
7
8
9
MEDIA
Select "Jukebox management" then "Add fi les"and press OK at each step to confi rm.
Press the MEDIA button. Press the MEDIA button again or select "Media" Menu and press OK to confi rm.
Insert an audio/MP3 CD, a USB stick or an SD card.

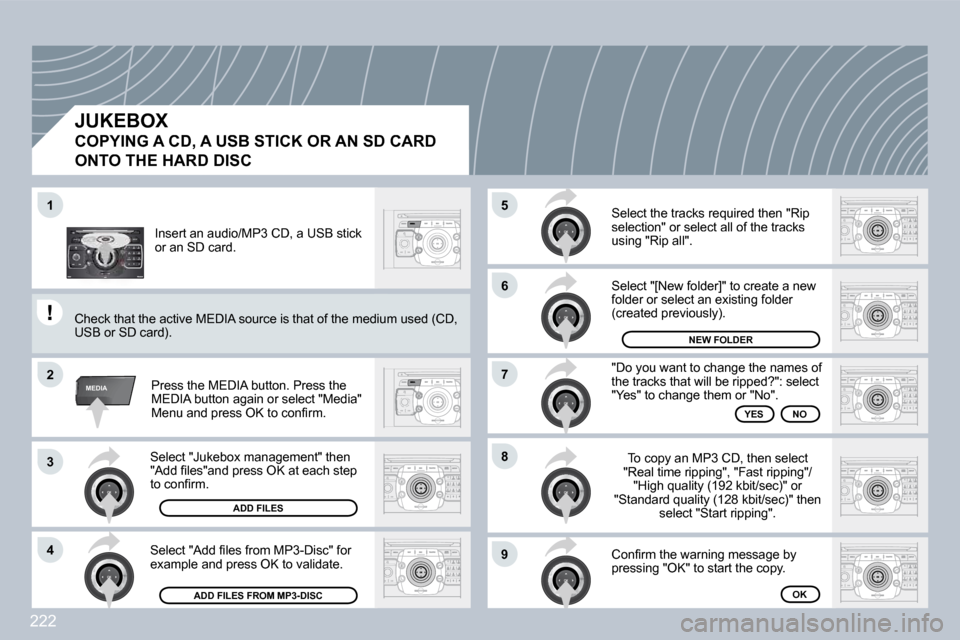

JUKEBOX
COPYING A CD, A USB STICK OR AN SD CARD
ONTO THE HARD DISC
ADD FILES
Check that the active MEDIA source is that of the
medium used (CD, Check that the active MEDIA source is that of the medium used (CD, USB or SD card).
Select "Add fi les from MP3-Disc" for example and press OK to validate.
Select the tracks required then "Rip selection" or select all of the tracks using "Rip all".
Select "[New folder]" to create a new folder or select an existing folder (created previously).
ADD FILES FROM MP3-DISC
NEW FOLDER
"Do you want to change the names of the tracks that will be ripped?": select "Yes" to change them or "No".
NO YES
To copy an MP3 CD, then select "Real time ripping", "Fast ripping"/"High quality (192 kbit/sec)" or "Standard quality (128 kbit/sec)" then select "Start ripping".
Confi rm the warning message by pressing "OK" to start the copy.
OK

223
33
22
MEDIA
22
33
44
11
MEDIA11 Press the MEDIA button. Press the MEDIA button again or select "Media" Menu and press OK to confi rm.
Select "Jukebox management" and press OK to confi rm.
Select "Play options" and press OK to confi rm. Select "Folders & Files" or "Playlists" then press OK to confi rm.
Press the ESC button to return to the fi rst fi le level. Playlists can be created in the Jukebox. "Media" Menu> Jukebox management> Create new playl ist. Add the tracks required one by one then save the change. The "Playlists" play mode must then be selected.

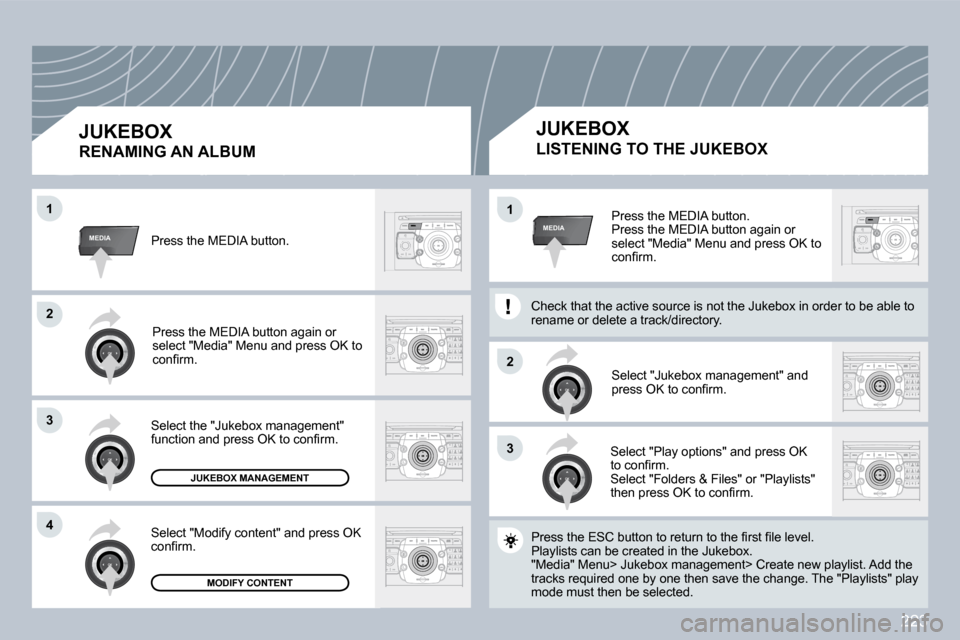

JUKEBOX
LISTENING TO THE JUKEBOX
JUKEBOX MANAGEMENT
MODIFY CONTENT
Press the MEDIA button.
Press the MEDIA button again or select "Media" Menu and press OK to confi rm.
Select the "Jukebox management" function and press OK to confi rm.
Select "Modify content" and press OK confi rm.
JUKEBOX
RENAMING AN ALBUM
Check that the active source is not the Jukebox in order to be able to Check that the active source is not the Jukebox in order to be able to rename or delete a track/directory.

224
07
1
2

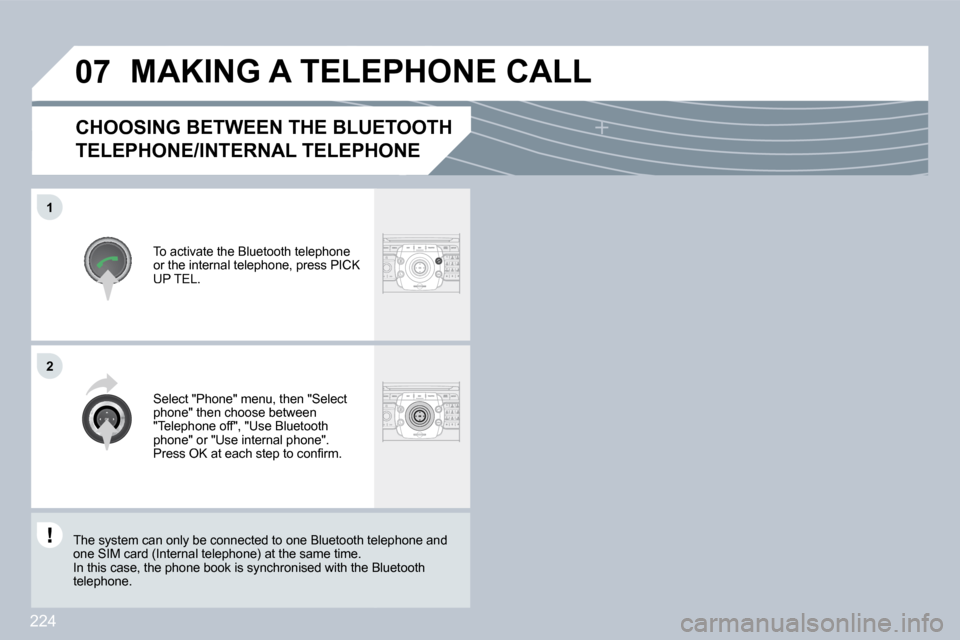

CHOOSING BETWEEN THE BLUETOOTH
TELEPHONE/INTERNAL TELEPHONE
To activate the Bluetooth telephone or the internal telephone, press PICK UP TEL.
MAKING A TELEPHONE CALL
Select "Phone" menu, then "Select phone" then choose between "Telephone off", "Use Bluetooth phone" or "Use internal phone". Press OK at each step to confi rm.
The system can only be connected to one Bluetooth teleth telephone and one SIM card (Internal telephone) at the same time. In this case, the phone book is synchronised with the Blthe Bluetooth telephone.

225
07
1
3
5
4
2
1
The services available via the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telephone's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.
MAKING A TELEPHONE CALL

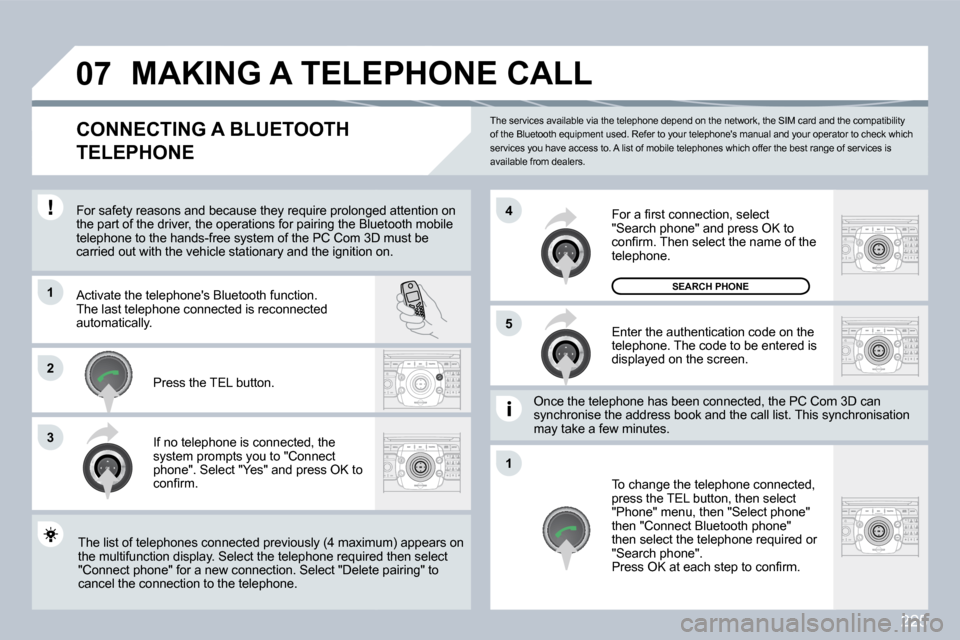

CONNECTING A BLUETOOTH
TELEPHONE
For safety reasons and because they require prolon ged attention on For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth mobile the part of the driver, the operations for pairing the Bluetooth mobile telephone to the hands-free system of the PC Com 3D m 3D must be carried out with the vehicle stationary and the ignition on. carried out with the vehicle stationary and the ignition on.
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
If no telephone is connected, the system prompts you to "Connect phone". Select "Yes" and press OK to confi rm.
Enter the authentication code on the telephone. The code to be entered is displayed on the screen.
To change the telephone connected, press the TEL button, then select "Phone" menu, then "Select phone" then "Connect Bluetooth phone" then select the telephone required or "Search phone". Press OK at each step to confi rm.
Once the telephone has been connected, the PC Com 3Com 3D can synchronise the address book and the call list. This syncis synchronisation may take a few minutes.
The list of telephones connected previously (4 max imum) appears on The list of telephones connected previously (4 maximum) appears on the multifunction display. Select the telephone required uired then select "Connect phone" for a new connection. Select "Delet e pairing" to "Connect phone" for a new connection. Select "Delete pairing" to cancel the connection to the telephone.
Press the TEL button.
For a fi rst connection, select "Search phone" and press OK to confi rm. Then select the name of the telephone.
SEARCH PHONE

226
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
07
1
22
33
11
22
Extract the holder by pressing the eject button.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
For safety reasons and because they require prolon
ged attention on the part of the driver, the SIM card installation operations must be carried out when stationary.
Enter the PIN code on the keypad then select OK and confi rm.
The system asks "Do you want to switch to the internal phone?", select "Yes" if you wish to use your SIM card for your personal calls. Otherwise, only the emergency call and the services will use the SIM card.
REMEMBER PIN
When entering your PIN code, tick the "Remember PI N" tab to gain access to the telephone without having to enter this code when it is used subsequently.

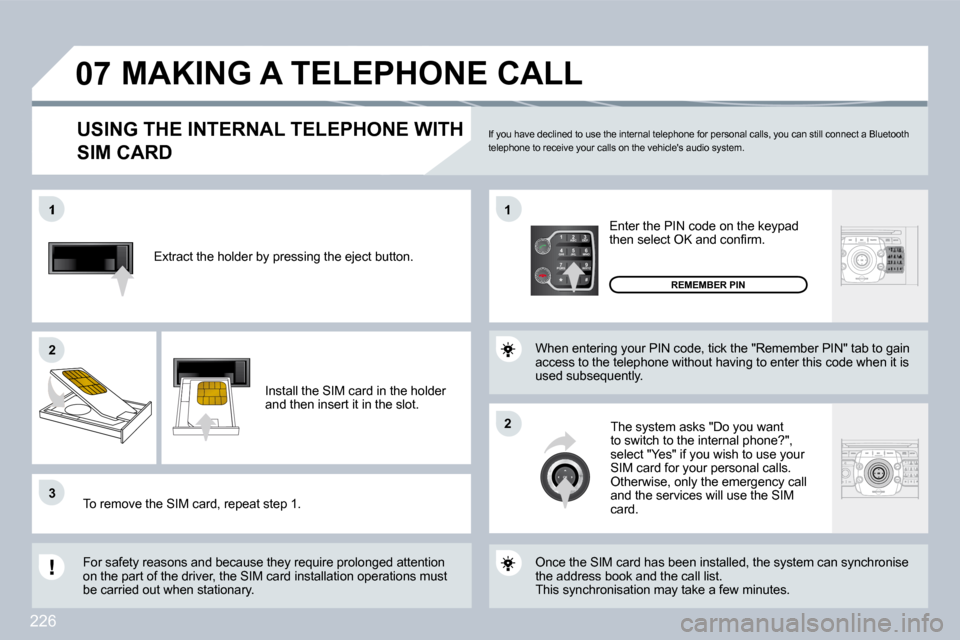

USING THE INTERNAL TELEPHONE WITH
SIM CARD
MAKING A TELEPHONE CALL
Once the SIM card has been installed, the system c an synchronise the address book and the call list. This synchronisation may take a few minutes.
If you have declined to use the internal telephone for personal calls, you can still connect a Bluet ooth telephone to receive your calls on the vehicle's au dio system.

227
3
11
2
3
2
Press the end of the steering wheel control to accept the call or end the call in progress.
Select the "Yes" tab to accept or "No" to refuse and confi rm by pressing OK.

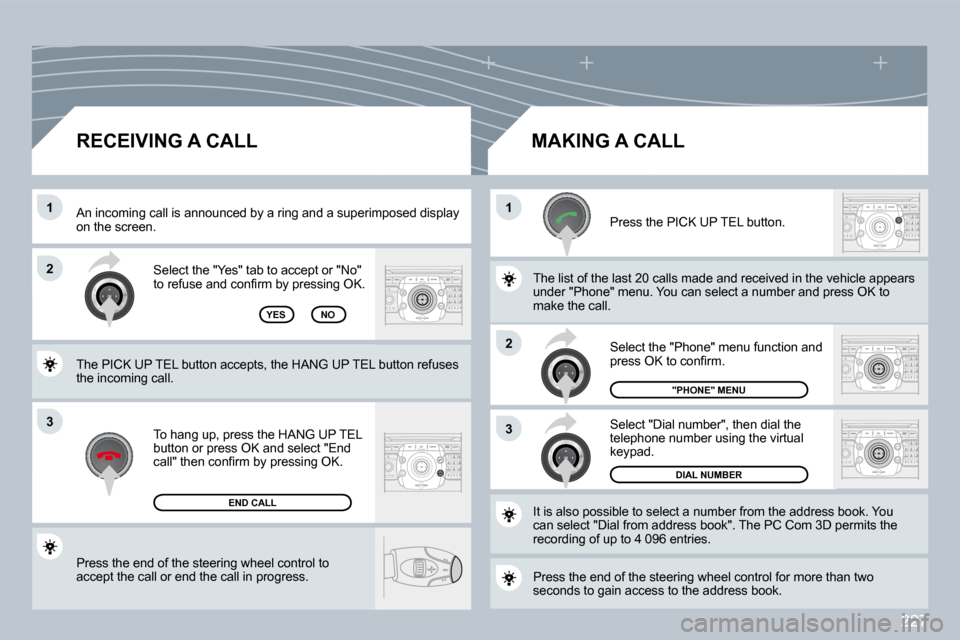

RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a superimposed display An incoming call is announced by a ring and a superimposed display on the screen.
YES
To hang up, press the HANG UP TEL button or press OK and select "End call" then confi rm by pressing OK.
END CALL
Press the PICK UP TEL button.
Press the end of the steering wheel control for more than two Press the end of the steering wheel control for more than two seconds to gain access to the address book.
It is also possible to select a number from the address bress book. You can select "Dial from address book". The PC Com 3D p 3D permits the recording of up to 4 096 entries.
Select "Dial number", then dial the telephone number using the virtual keypad.
Select the "Phone" menu function and press OK to confi rm.
DIAL NUMBER
"PHONE" MENU
The list of the last 20 calls made and received in the vehhe vehicle appears under "Phone" menu. You can select a number and pre sd press OK to make the call. NO
The PICK UP TEL button accepts, the HANG UP TEL bu tton refuses the incoming call.
