Peugeot 3008 Dag 2009.5 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2009.5, Model line: 3008 Dag, Model: Peugeot 3008 Dag 2009.5Pages: 290, PDF Size: 20.63 MB
Page 31 of 290
52
Monochrome screen C
Instrument panel display - PC Com 3D
1 6 / 9 c o l o u r s c r e e n - P C N a v

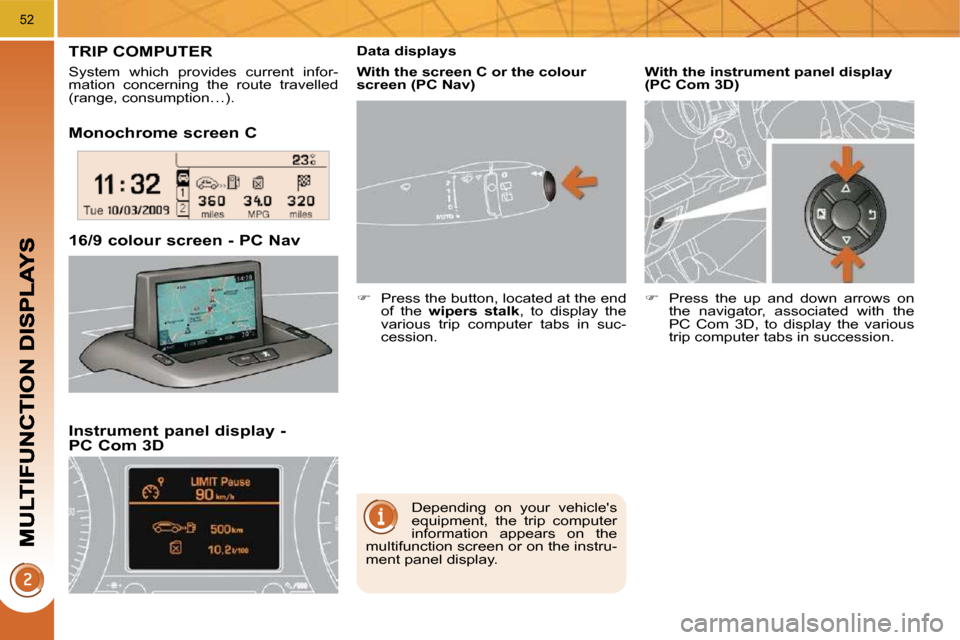

TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, consumption…).
Depending on your vehicle's
equipment, the trip computer
information appears on the
multifunction screen or on the instru-
ment panel display.
Data displays
Press the button, located at the end
of the wipers stalk , to display the
various trip computer tabs in suc-
cession.
With the instrument panel display
(
PC Com 3D
)
Press the up and down arrows on
the navigator, associated with the
PC Com 3D, to display the various
trip computer tabs in succession.
With the screen C or the colour
screen (
P C N a v
)
Page 32 of 290
53

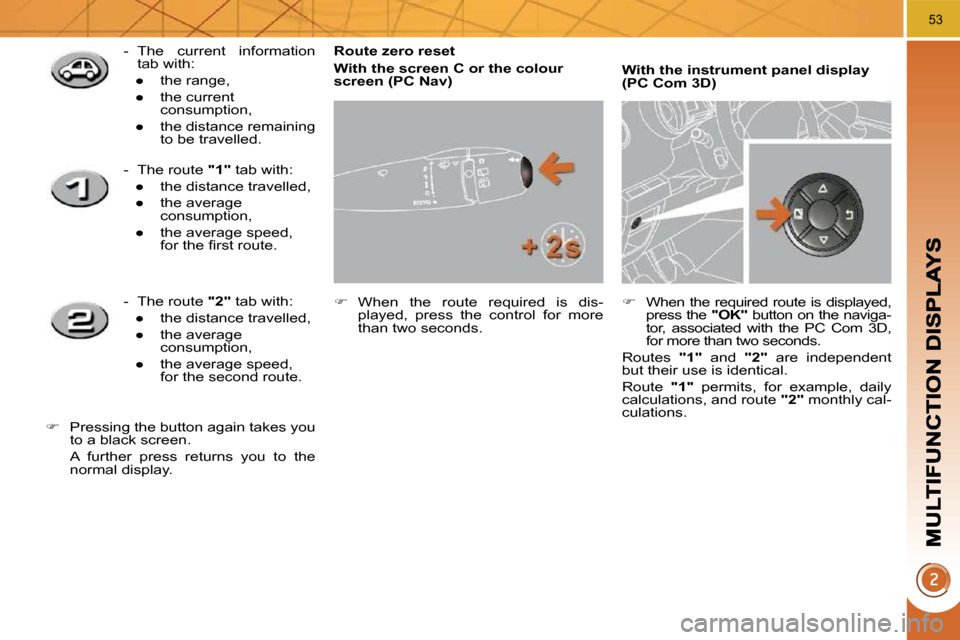

Route zero reset
With the screen C or the colour
screen (
P C N a v
)
When the route required is dis-
played, press the control for more
than two seconds.
With the instrument panel display (
PC Com 3D
)
When the required route is displayed,
press the "OK" button on the naviga-
tor, associated with the PC Com 3D,
for more than two seconds.
Routes "1" and "2" are independent
but their use is identical.
Route "1" permits, for example, daily
calculations, and route "2" monthly cal-
culations.
- The current information
tab with:
Page 33 of 290
54

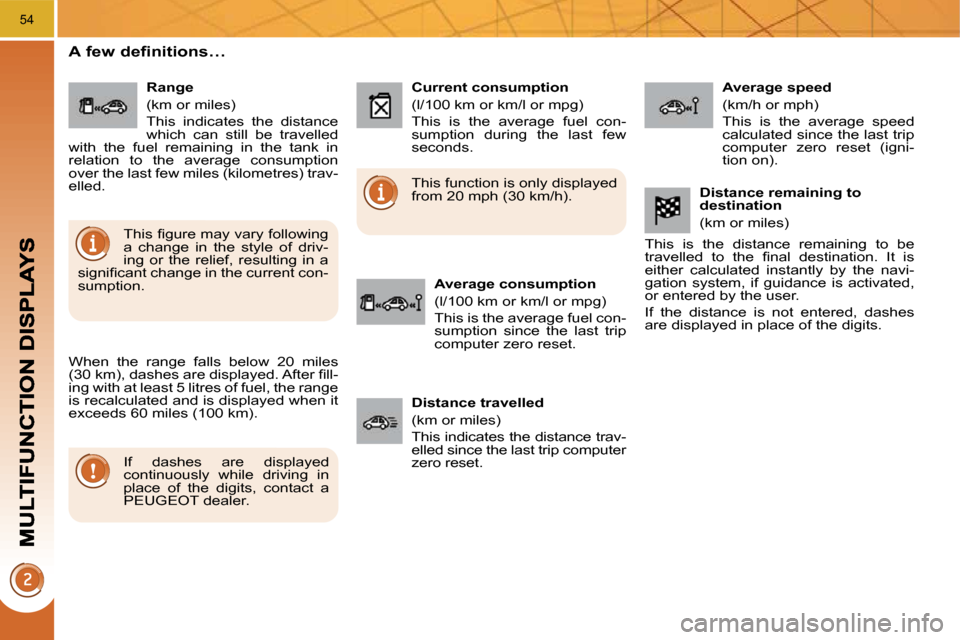

A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed
continuously while driving in
place of the digits, contact a
PEUGEOT dealer. This function is only displayed
from 20 mph (30 km/h).
T h i s fi g u r e m a y v a r y f o l l o w i n g
a change in the style of driv-
ing or the relief, resulting in a
s i g n i fi c a n t c h a n g e i n t h e c u r r e n t c o n -
sumption. Range
(km or miles)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average consumption
over the last few miles (kilometres) trav-
elled. Current consumption
(l/100 km or km/l or mpg)
This is the average fuel con-
sumption during the last few
seconds.
A v e r a g e c o n s u m p t i o n
(l/100 km or km/l or mpg)
This is the average fuel con-
sumption since the last trip
computer zero reset. A v e r a g e s p e e d
(km/h or mph)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on).
D i s t a n c e t r a v e l l e d
(km or miles)
This indicates the distance trav-
elled since the last trip computer
zero reset. Distance remaining to
destination
(km or miles)
This is the distance remaining to be
t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t i s
either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Page 34 of 290
55
VENTILATION
System which creates and maintains
comfortable conditions in the vehicle's
passenger compartment.
Controls
The incoming air follows various routes
depending on the controls selected by
the driver.
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air combining several air
vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o
increase or reduce the speed of the
ventilation blower. These controls are grouped together on
control panel
A on the centre console.
Depending on the model, the functions
offered are:
- the level of comfort required,
- t h e a i r fl o w ,
- the air distribution,
- the de-icing and demisting,
- the manual or automatic air condi- tioning controls.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.

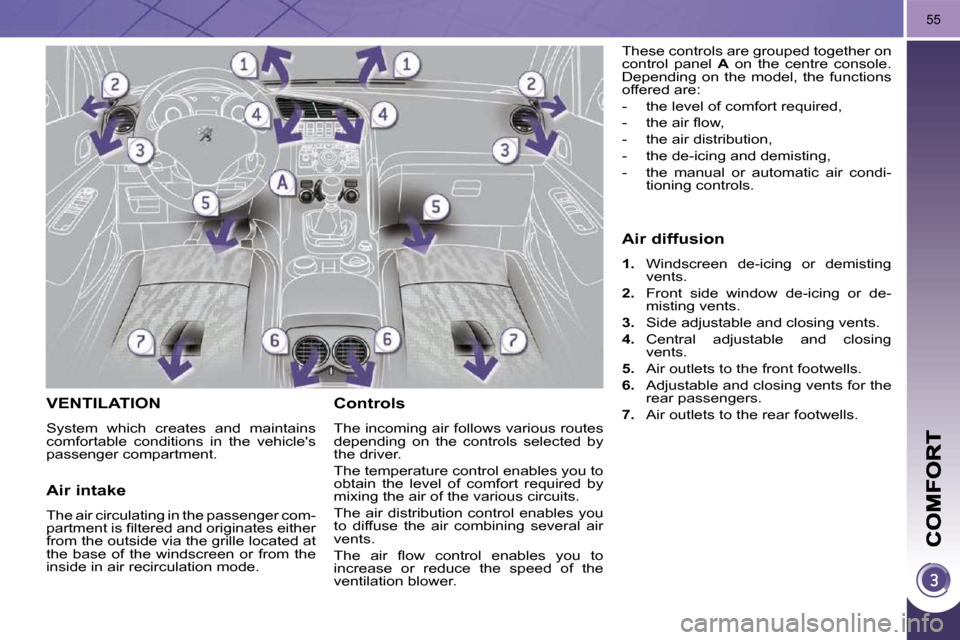

Air diffusion
1. Windscreen de-icing or demisting
vents.
2. Front side window de-icing or de-
misting vents.
3. Side adjustable and closing vents.
4. Central adjustable and closing
vents.
5. Air outlets to the front footwells.
6. Adjustable and closing vents for the
rear passengers.
7. Air outlets to the rear footwells.
Page 35 of 290
56
The air conditioning system
does not contain chlorine and
does not present any danger
to the ozone layer. RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the operation and mainte-
nance rules below:
If the interior temperature remains very high after the vehicle has been
parked in the sun for a considerable time, do not hesitate t o ventilate the
passenger compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e r e n e w a l
of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Favour the intake of exterior air as prolonged use of the a ir recirculation may
cause misting of the windows and side windows.
Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the automatic air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d h a v e
t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r . T h a n k s
t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f t h e a i r
breathed by the occupants and the cleanness of the passenger co mpart-
m e n t ( r e d u c t i o n o f a l l e r g i c s y m p t o m s , b a d o d o u r s a n d g r e a s y d e p o s i t s ) .
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a PEUGEOT dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of water
under the vehicle which is perfectly normal.
Page 36 of 290
57

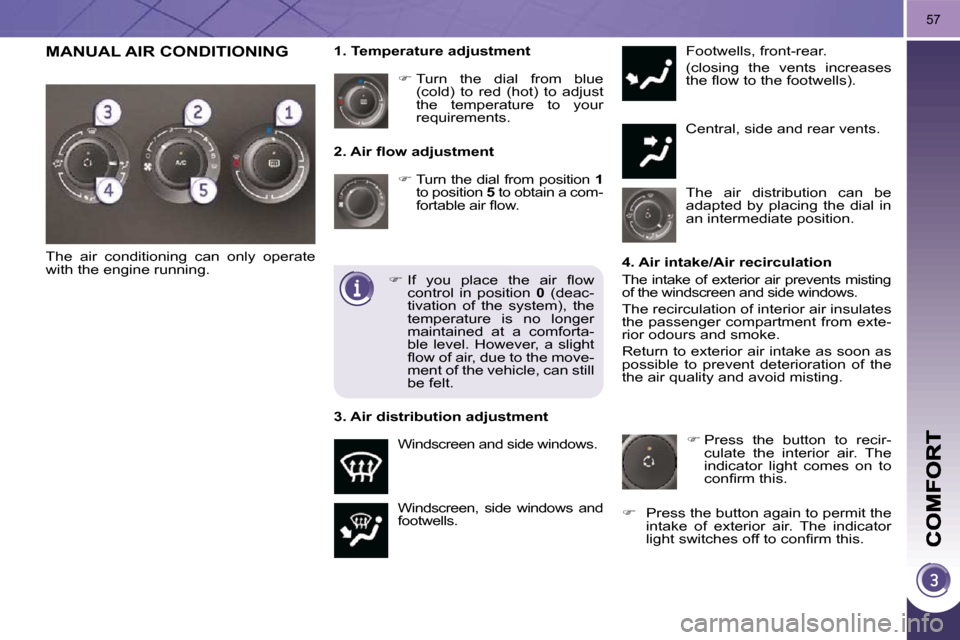

2 . A i r fl o w a d j u s t m e n t
Turn the dial from position 1
to position 5 to obtain a com-
f o r t a b l e a i r fl o w .
Windscreen, side windows and
footwells. Footwells, front-rear.
( c l o s i n g t h e v e n t s i n c r e a s e s
t h e fl o w t o t h e f o o t w e l l s ) .
Central, side and rear vents.
Turn the dial from blue
( c o l d ) t o r e d ( h o t ) t o a d j u s t
the temperature to your
requirements.
Windscreen and side windows.
1 . T e m p e r a t u r e a d j u s t m e n t
The air distribution can be
adapted by placing the dial in
an intermediate position.
The air conditioning can only operate
with the engine running. 4. Air intake/Air recirculation
The intake of exterior air prevents misting
of the windscreen and side windows.
The recirculation of interior air insulates
the passenger compartment from exte-
rior odours and smoke.
Return to exterior air intake as soon as
possible to prevent deterioration of the
the air quality and avoid misting.
I f y o u p l a c e t h e a i r fl o w
control in position 0 ( d e a c -
t i v a t i o n o f t h e s y s t e m ) , t h e
temperature is no longer
maintained at a comforta-
ble level. However, a slight
fl o w o f a i r , d u e t o t h e m o v e -
ment of the vehicle, can still
be felt.
3 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press the button to recir-
culate the interior air. The
indicator light comes on to
c o n fi r m t h i s .
Press the button again to permit the
intake of exterior air. The indicator
l i g h t s w i t c h e s o f f t o c o n fi r m t h i s .
MANUAL AIR CONDITIONING
Page 37 of 290
58

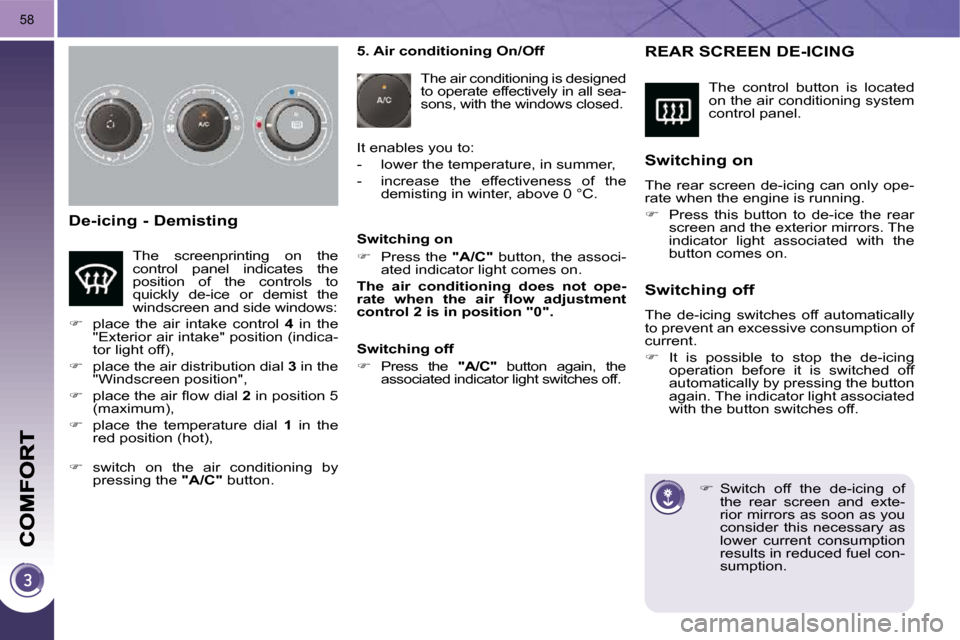

D e - i c i n g - D e m i s t i n g
The control button is located
on the air conditioning system
control panel.
REAR SCREEN DE-ICING
Switch off the de-icing of
the rear screen and exte-
rior mirrors as soon as you
consider this necessary as
lower current consumption
results in reduced fuel con-
sumption.
S w i t c h i n g o n
The rear screen de-icing can only ope-
rate when the engine is running.
Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
S w i t c h i n g o f f
The de-icing switches off automatically
to prevent an excessive consumption of
current.
It is possible to stop the de-icing
operation before it is switched off
automatically by pressing the button
again. The indicator light associated
with the button switches off.
5. Air conditioning On/Off
The air conditioning is designed
to operate effectively in all sea-
sons, with the windows closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in winter, above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator light comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p e -
r a t e w h e n t h e a i r fl o w a d j u s t m e n t
c o n t r o l 2 i s i n p o s i t i o n " 0 " .
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator light switches off.
switch on the air conditioning by
pressing the "A/C" button.
The screenprinting on the
control panel indicates the
position of the controls to
quickly de-ice or demist the
windscreen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ( i n d i c a -
t o r l i g h t o f f ) ,
place the air distribution dial 3 in the
" W i n d s c r e e n p o s i t i o n " ,
p l a c e t h e a i r fl o w d i a l 2 in position 5
( m a x i m u m ) ,
place the temperature dial 1 in the
r e d p o s i t i o n ( h o t ) ,
Page 38 of 290
58
D e - i c i n g - D e m i s t i n g
The control button is located
on the air conditioning system
control panel.
REAR SCREEN DE-ICING
Switch off the de-icing of
the rear screen and exte-
rior mirrors as soon as you
consider this necessary as
lower current consumption
results in reduced fuel con-
sumption.
S w i t c h i n g o n
The rear screen de-icing can only ope-
rate when the engine is running.
Press this button to de-ice the rear
screen and the exterior mirrors. The
indicator light associated with the
button comes on.
S w i t c h i n g o f f
The de-icing switches off automatically
to prevent an excessive consumption of
current.
It is possible to stop the de-icing
operation before it is switched off
automatically by pressing the button
again. The indicator light associated
with the button switches off.
5. Air conditioning On/Off
The air conditioning is designed
to operate effectively in all sea-
sons, with the windows closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting in winter, above 0 °C.
S w i t c h i n g o n
Press the "A/C" button, the associ-
ated indicator light comes on.
T h e a i r c o n d i t i o n i n g d o e s n o t o p e -
r a t e w h e n t h e a i r fl o w a d j u s t m e n t
c o n t r o l 2 i s i n p o s i t i o n " 0 " .
S w i t c h i n g o f f
Press the "A/C" button again, the
associated indicator light switches off.
switch on the air conditioning by
pressing the "A/C" button.
The screenprinting on the
control panel indicates the
position of the controls to
quickly de-ice or demist the
windscreen and side windows:
place the air intake control 4 in the
" E x t e r i o r a i r i n t a k e " p o s i t i o n ( i n d i c a -
t o r l i g h t o f f ) ,
place the air distribution dial 3 in the
" W i n d s c r e e n p o s i t i o n " ,
p l a c e t h e a i r fl o w d i a l 2 in position 5
( m a x i m u m ) ,
place the temperature dial 1 in the
r e d p o s i t i o n ( h o t ) ,
Page 39 of 290
59
By means of the pollution sen-
sor, the system also optimises
the air quality. On entering the vehicle, if
the interior temperature is
much colder or warmer than
the comfort value, there is no need
to change the value displayed in or-
der to obtain the comfort required.
The system corrects the difference
in temperature automatically and as
quickly as possible.
The air conditioning only operates when
the engine is running. The driver and his front pas-
senger can each adjust the
temperature to their require-
ments.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depending
on your requirements, a setting between
18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3. 4 . A u t o m a t i c v i s i b i l i t y p r o g r a m m e
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or de-ice the
windscreen and side windows
( h u m i d i t y , s e v e r a l p a s s e n -
g e r s , i c e , e t c . ) .
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
A u t o m a t i c o p e r a t i o n
Press the "AUTO" button.
The indicator light on the
button comes on. 2 . D r i v e r ' s s i d e a d j u s t m e n t

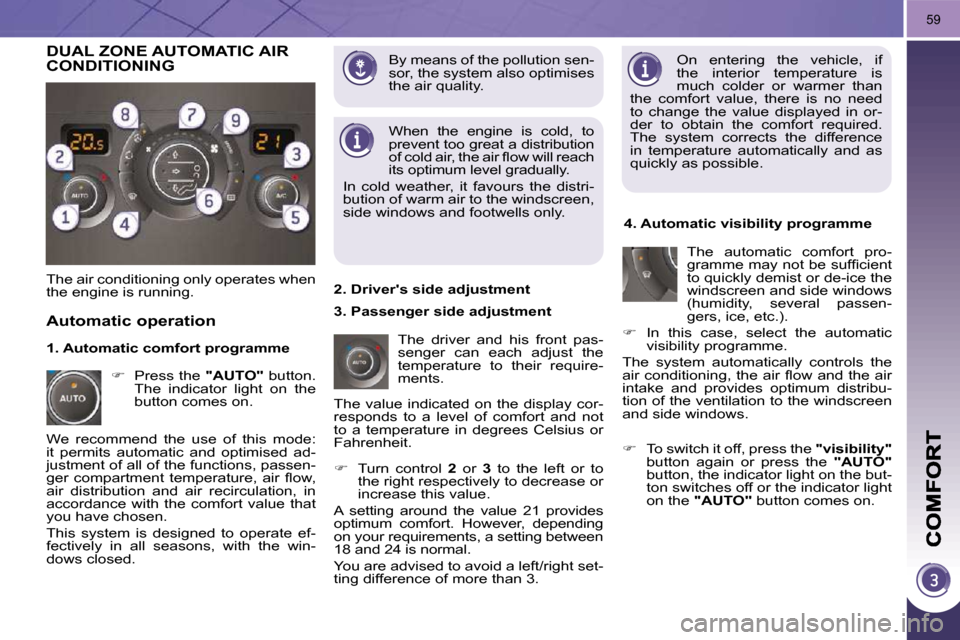

DUAL ZONE AUTOMATIC AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
g e r c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w ,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the win-
dows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
To switch it off, press the " v i s i b i l i t y "
button again or press the "AUTO"
button, the indicator light on the but-
ton switches off or the indicator light
on the "AUTO" button comes on.
1 . A u t o m a t i c c o m f o r t p r o g r a m m e
3 . P a s s e n g e r s i d e a d j u s t m e n t When the engine is cold, to
prevent too great a distribution
o f c o l d a i r , t h e a i r fl o w w i l l r e a c h
its optimum level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only.
Page 40 of 290
60
M a n u a l o p e r a t i o n
If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.
Pressing the "AUTO" button returns
the system to completely automatic
operation.
Press this button to switch
off the air conditioning. 6 . A i r d i s t r i b u t i o n a d j u s t m e n t
Press one or more but-
t o n s t o d i r e c t t h e a i r fl o w
towards:
7 . A i r fl o w a d j u s t m e n t
Turn this control to the left
t o d e c r e a s e t h e a i r fl o w o r
to the right to increase the
a i r fl o w .
5. Air conditioning On/Off
- the windscreen and side windows ( d e - i c i n g o r d e m i s t i n g ) ,
- the windscreen, the side windows and the vents,
- the windscreen, the side windows, the vents and the footwells,
- the vents and the footwells,
- the vents,
- the footwells,
- the windscreen, the side windows and the footwells.
T h e a i r fl o w i n d i c a t o r l i g h t s , b e t w e e n
the two fans, come on progressively in
relation to the value requested.

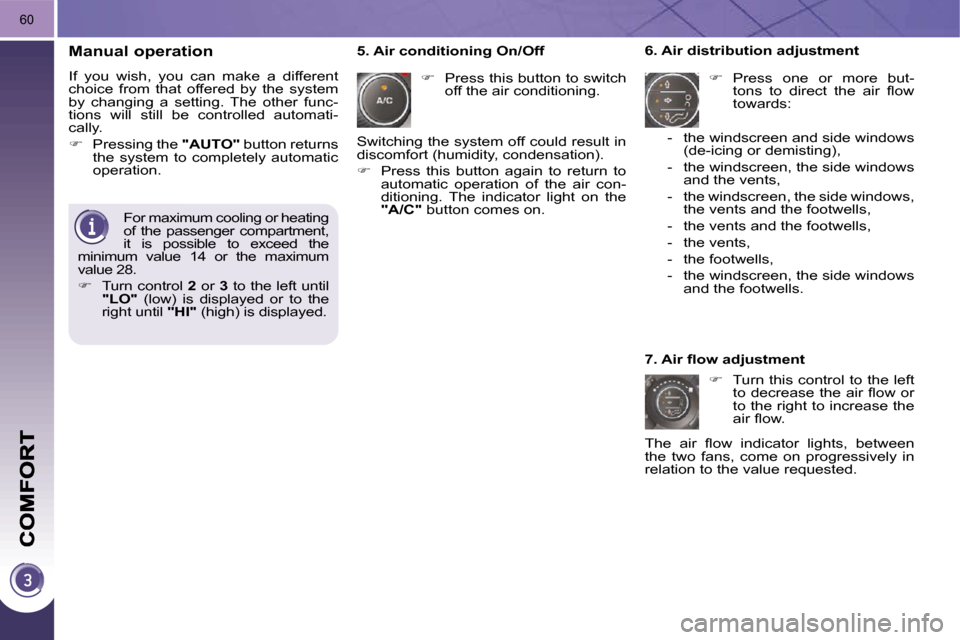

For maximum cooling or heating
of the passenger compartment,
it is possible to exceed the
minimum value 14 or the maximum
value 28.
Turn control 2 or 3 to the left until
"LO" ( l o w ) i s d i s p l a y e d o r t o t h e
right until "HI" ( h i g h ) i s d i s p l a y e d . Switching the system off could result in
d i s c o m f o r t ( h u m i d i t y , c o n d e n s a t i o n ) .
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator light on the
"A/C" button comes on.
