MONOCHROME SCREEN C General menu
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e * ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may
appear temporarily. Some can be
cleared by pressing the "ESC" button.
Controls
From the audio equipment control panel,
you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress.
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- vehicle diagnostics,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to select t h e m e n u r e q u i r e d , t h e n c o n fi r m b y
pressing the "OK" button.
* With air conditioning only. With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText), the CD or the CD changer
( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
For further details concerning
the "Audio functions" applica-
tion, refer to the "Audio and
Telematics" section.
Page 22 of 290
44
"Vehicle diagnostics" menu
Press the "MENU" button to gain
access to the general menu.
Press the arrows, then the "OK"
button to select the " Vehicle diag-
nostics
" menu.
On the " Vehicle diagnostics
" menu, select the following application:
Warnings log
This summarises the active warning
messages, displaying them in succes-
sion on the multifunction display.
Once this menu has been selected, you
can consult information concerning the
status of the vehicle, such as the warnings
log.
D e fi n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the "Accesses" section),
- "follow-me-home" and welcome lighting (refer to the "Visibility" sec-
tion),
- ambient lighting (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section),
- ...
"Personalisation-Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:
- d e fi n e t h e v e h i c l e p a r a m e t e r s ,
- d i s p l a y c o n fi g u r a t i o n ,
- selection of the language.
Page 23 of 290
45
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
can gain access to the following set-
tings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Selection of the language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Türkçe).
Example: setting of the duration of the
"follow-me-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Follow-me-home lighting" line.
Press the " " or " " buttons to set the
value required (15, 30 or 60 seconds),
then press the "OK" b u t t o n t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel.
Page 24 of 290
46
Displays on the screen
When the screen is unfolded, it displays
the following information automatically
and directly:
- the time,
- the date,
- the altitude,
- the exterior temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- the accesses check,
- the warning and vehicle function status messages, displayed tempo-
rarily,
- the audio functions,
- the trip computer information,
- the satellite navigation system infor- mation. From the PC Nav control panel, to se-
lect one of the applications:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button to
gain access to the corresponding
menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display.
16/9 RETRACTABLE COLOUR DISPLAY (WITH PC NAV) Controls For operation of the retract-
able display (opening, closing,
adjustment of the position,
etc.), refer to the paragraph "Access
to the retractable display".
For further details concerning
these applications, refer to the
"Audio and Telematics" sec-
tion.
Page 25 of 290
47
"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu. This
allows you to select from the follow-
ing functions:
- "Languages",
- "Date and time",
- "Display",
- "Vehicle parameters",
- "Units",
- "System parameters".
Languages
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
a n d T e l e m a t i c s " s e c t i o n o r t o t h e s p e c i fi c
user guide given to you with the other
owner's documents). * According to country.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the "Accesses" section),
- follow-me-home and welcome light- ing (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibility" section),
- daytime lights (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section),
- ...
Units
This menu allows you to select the
units: temperature (°C or °F) and con-
sumption (km/l, l/100 or mpg). For safety reasons, it is im-
p e r a t i v e t h a t c o n fi g u r a t i o n o f
the multifunction displays by
the driver is carried out when
stationary.
System parameters
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate the scrolling text.
Page 26 of 290
48
16/9 HIGH DEFINITION RETRACTABLE COLOUR DISPLAY (WITH PC COM 3D)
Displays on the screen
When the screen is unfolded, it displays
the following information automatically
and directly:
- the time,
- the date,
- the altitude,
- the exterior temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- the audio functions,
- the telephone and address book information,
- the satellite navigation system infor- mation.
Controls
From the PC Com 3D control panel, to
select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" ,
"ADDR BOOK" or "SETUP" button
to gain access to the corresponding
menu,
turn the navigator to move the
selection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display. For further details concerning
these applications, refer to the
"Audio and Telematics" sec-
t i o n o r t o t h e s p e c i fi c u s e r g u i d e g i v e n
to you with the other owner's docu-
ments.
For operation of the retracta-
ble display (opening, closing,
adjustment of the position,
etc.), refer to the paragraph "Access
to the retractable display".
Page 27 of 290
49
* According to country.
"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu. This
allows you to select from the following
functions:
- "Languages and voice functions",
- "Date and time",
- "Display",
- "Units",
- "System parameters".
L a n g u a g e s a n d v o i c e f u n c t i o n s
This menu allows you to:
- select the language used by the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Türkçe * ),
- select the voice recognition parame- ters (activation/deactivation, advice
on use, personal voice program-
ming, etc.),
- set the volume of the voice synthe- siser. Date and time
This menu allows you to set the date and
time, the format of the date and the for-
mat of the time (refer to the "Audio and
T e l e m a t i c s " s e c t i o n o r t o t h e s p e c i fi c
user guide given to you with the other
owner's documents).
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (km or miles).
System parameters
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate the scrolling text.
For safety reasons, it is impera-
t i v e t h a t c o n fi g u r a t i o n o f t h e
multifunction displays by the
driver is carried out when sta-
tionary.
Page 28 of 290
50

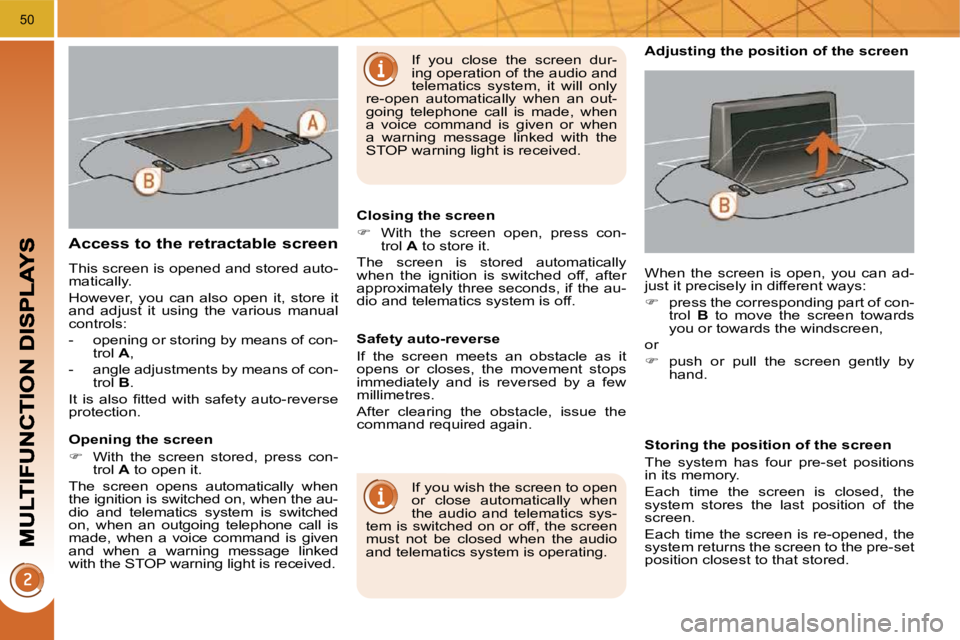

Access to the retractable screen
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of con-trol A ,
- angle adjustments by means of con- trol B .
I t i s a l s o fi t t e d w i t h s a f e t y a u t o - r e v e r s e
protection.
Opening the screen
With the screen stored, press con-
trol A to open it.
The screen opens automatically when
the ignition is switched on, when the au-
dio and telematics system is switched
on, when an outgoing telephone call is
made, when a voice command is given
and when a warning message linked
with the STOP warning light is received. Closing the screen
With the screen open, press con-
trol A to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio and telematics system is off.
If you wish the screen to open
or close automatically when
the audio and telematics sys-
tem is switched on or off, the screen
must not be closed when the audio
and telematics system is operating. When the screen is open, you can ad-
just it precisely in different ways:
press the corresponding part of con-
trol B to move the screen towards
you or towards the windscreen,
or
push or pull the screen gently by
hand.
Adjusting the position of the screen
S a f e t y a u t o - r e v e r s e
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again. Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen dur-
ing operation of the audio and
telematics system, it will only
re-open automatically when an out-
going telephone call is made, when
a voice command is given or when
a warning message linked with the
STOP warning light is received.
Page 29 of 290
51

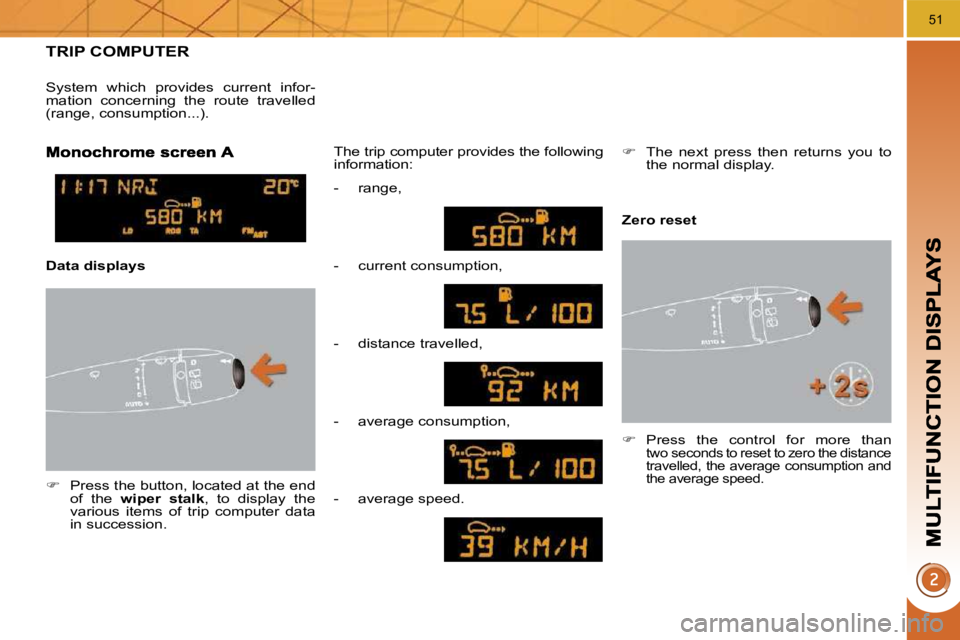

TRIP COMPUTER
Press the button, located at the end
of the wiper stalk , to display the
various items of trip computer data
in succession. The trip computer provides the following
information:
System which provides current infor-
mation concerning the route travelled
(range, consumption...).
Press the control for more than
two seconds to reset to zero the distance
travelled, the average consumption and
the average speed.
Zero reset
Data displays - range,
- current consumption,
- distance travelled,
- average consumption,
- average speed.
The next press then returns you to
the normal display.
Page 30 of 290
54

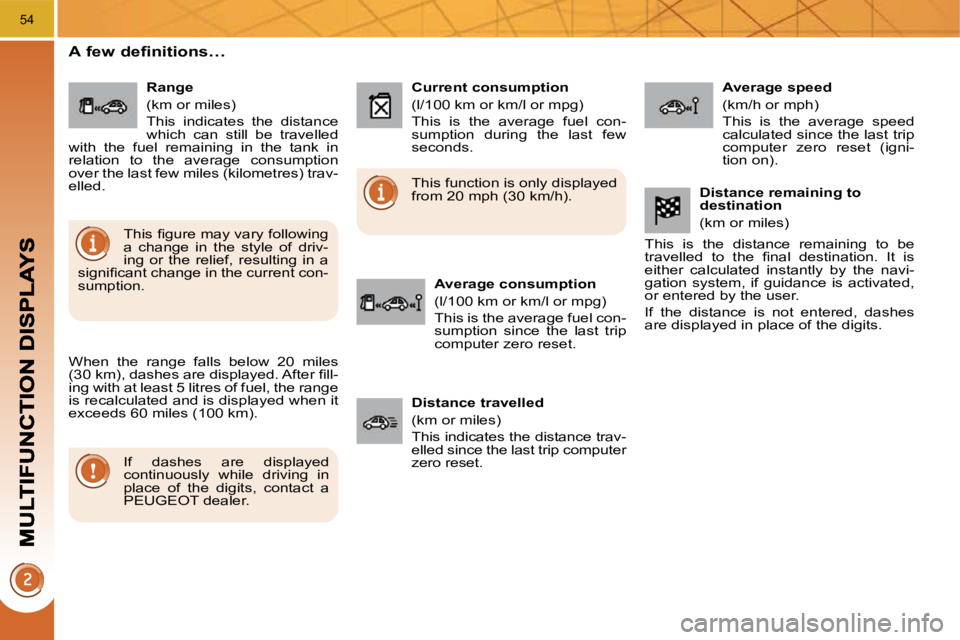

A few definitions…
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l -
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed
continuously while driving in
place of the digits, contact a
PEUGEOT dealer. This function is only displayed
from 20 mph (30 km/h).
T h i s fi g u r e m a y v a r y f o l l o w i n g
a change in the style of driv-
ing or the relief, resulting in a
s i g n i fi c a n t c h a n g e i n t h e c u r r e n t c o n -
sumption. Range
(km or miles)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average consumption
over the last few miles (kilometres) trav-
elled. Current consumption
(l/100 km or km/l or mpg)
This is the average fuel con-
sumption during the last few
seconds.
A v e r a g e c o n s u m p t i o n
(l/100 km or km/l or mpg)
This is the average fuel con-
sumption since the last trip
computer zero reset. A v e r a g e s p e e d
(km/h or mph)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on).
D i s t a n c e t r a v e l l e d
(km or miles)
This indicates the distance trav-
elled since the last trip computer
zero reset. Distance remaining to
destination
(km or miles)
This is the distance remaining to be
t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t i s
either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
