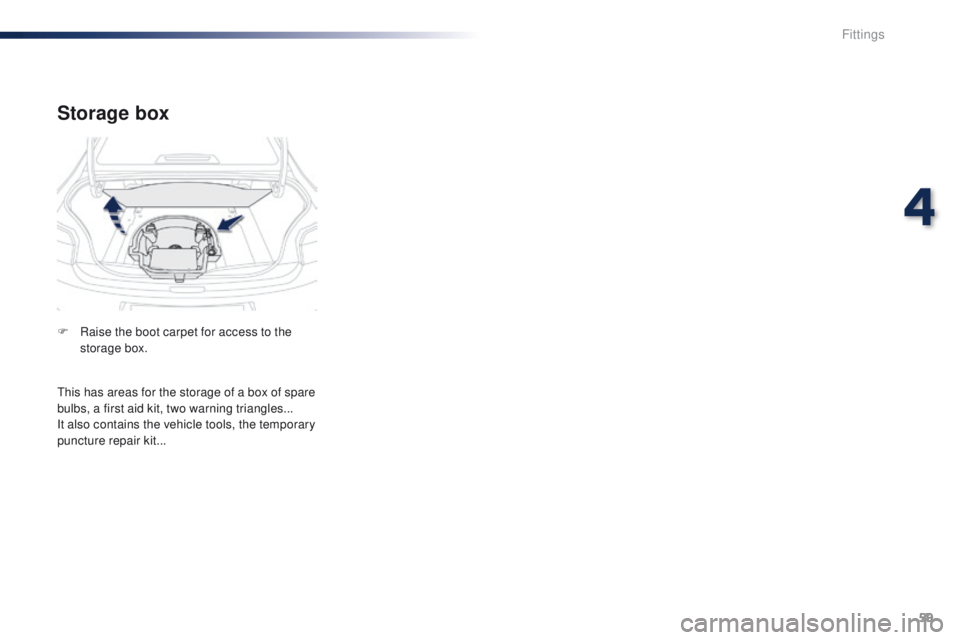

Storage box
F Raise the boot carpet for access to the storage box.
This has areas for the storage of a box of spare
bulbs, a first aid kit, two warning triangles...
It also contains the vehicle tools, the temporary
puncture repair kit...
4
Fittings

60
301_en_Chap05_conduite_ed01-2014
Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass,
dead leaves...) might come into contact
with the hot exhaust system - Risk of
fire!
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position

N or P, depending on the type
of gearbox.

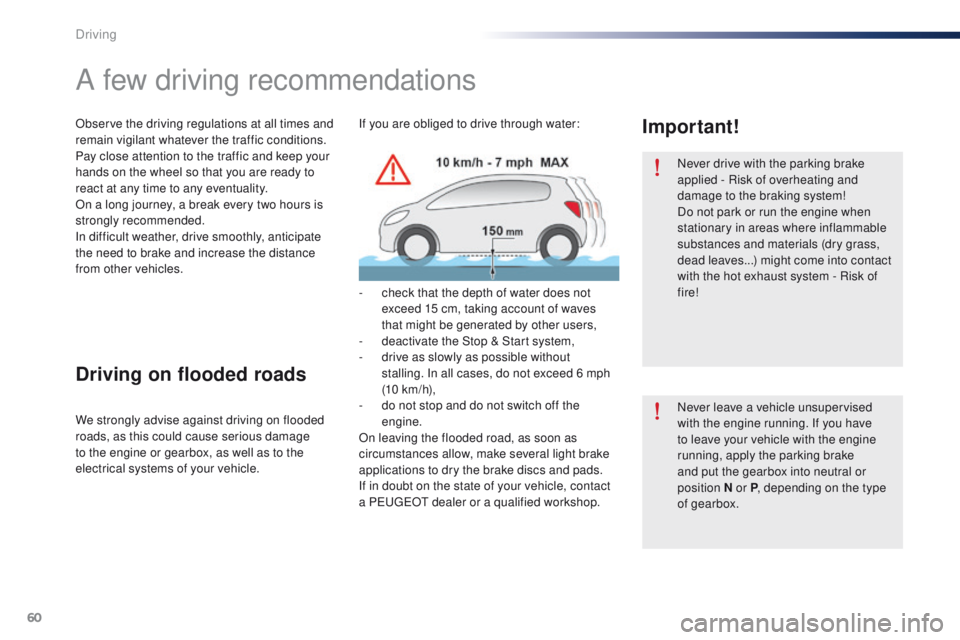

A few driving recommendations
Observe the driving regulations at all times and
remain vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles. If you are obliged to drive through water:
-

c
heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-

d
eactivate the Stop & Start system,
-

d
rive as slowly as possible without
stalling. In all cases, do not exceed 6 mph
(10


km/h),
-

d
o not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a PEUGEOT dealer or a qualified workshop.Important!
Driving on flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
Driving

61
301_en_Chap05_conduite_ed01-2014

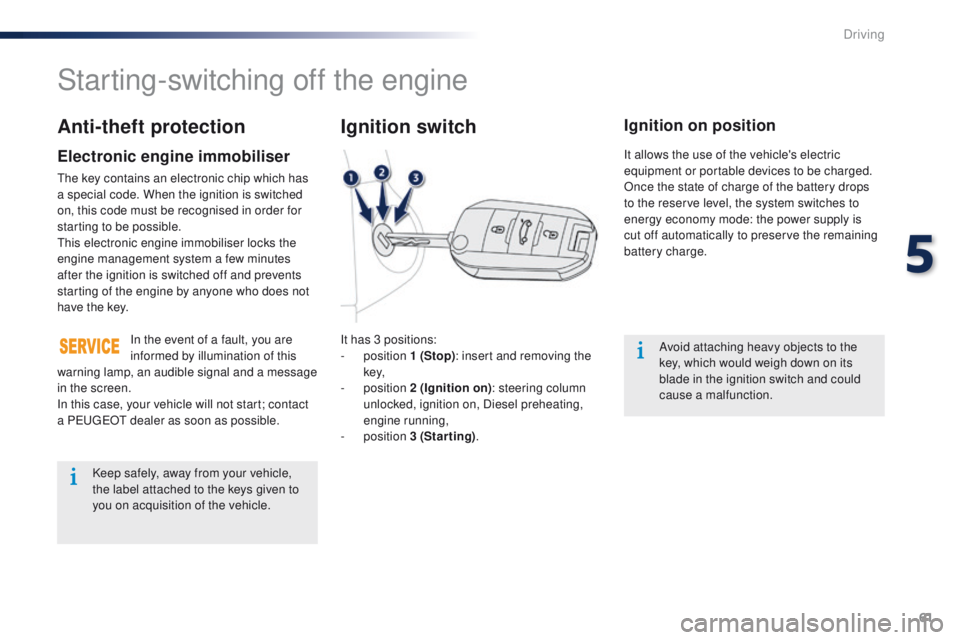

Starting-switching off the engine
It has 3 positions:
- position 1 (Stop): insert and removing the
key,
-
position 2 (Ignition on) : steering column
unlocked, ignition on, Diesel preheating,
engine running,
-
position 3 (Starting) .
Ignition switch
It allows the use of the vehicle's electric
equipment or portable devices to be charged.
Once the state of charge of the battery drops
to the reserve level, the system switches to
energy economy mode: the power supply is
cut off automatically to preserve the remaining
battery charge.
Ignition on positionAnti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and a message
in the screen.
In this case, your vehicle will not start; contact
a PEUGEOT dealer as soon as possible.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle. Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
5
Driving

62
301_en_Chap05_conduite_ed01-2014
In certain cases, you may have to apply
more force to the steering (wheels on
full lock, for example).

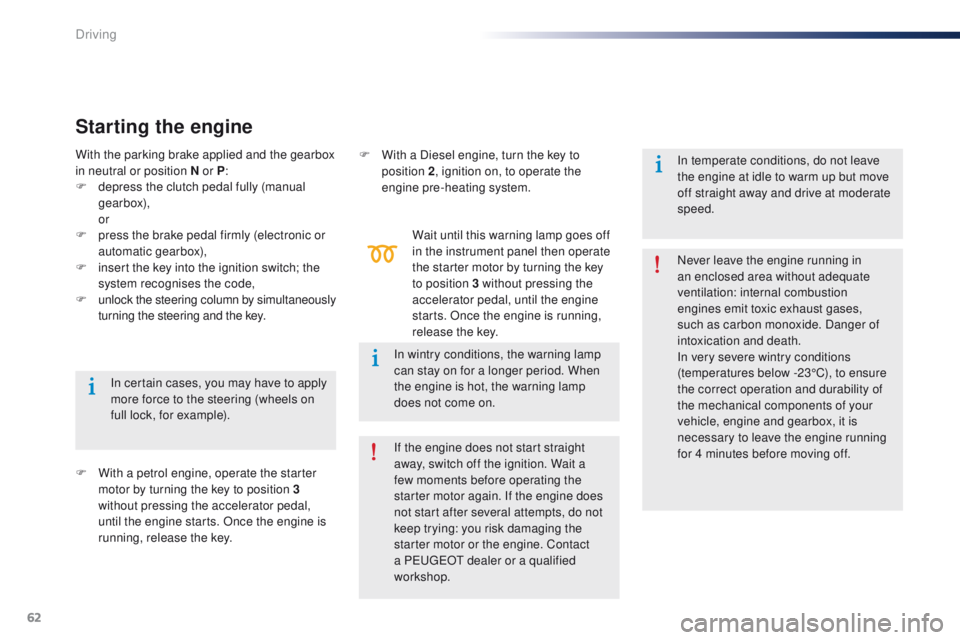

Starting the engine
F With a petrol engine, operate the starter motor by turning the key to position 3
without pressing the accelerator pedal,
until the engine starts. Once the engine is
running, release the key. F

W
ith a Diesel engine, turn the key to
position 2 , ignition on, to operate the
engine pre-heating system.
With the parking brake applied and the gearbox
in neutral or position N or P
:
F
d
epress the clutch pedal fully (manual
gearbox),

or
F
p
ress the brake pedal firmly (electronic or
automatic gearbox),
F
i
nsert the key into the ignition switch; the
system recognises the code,
F
u
nlock the steering column by simultaneously
turning the steering and the key. Wait until this warning lamp goes off
in the instrument panel then operate
the starter motor by turning the key
to position 3 without pressing the
accelerator pedal, until the engine
starts. Once the engine is running,
release the key.
If the engine does not start straight
away, switch off the ignition. Wait a
few moments before operating the
starter motor again. If the engine does
not start after several attempts, do not
keep trying: you risk damaging the
starter motor or the engine. Contact
a PEUGEOT dealer or a qualified
workshop. In wintry conditions, the warning lamp
can stay on for a longer period. When
the engine is hot, the warning lamp
does not come on. Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death.
In very severe wintry conditions
(temperatures below -23°C), to ensure
the correct operation and durability of
the mechanical components of your
vehicle, engine and gearbox, it is
necessary to leave the engine running
for 4 minutes before moving off. In temperate conditions, do not leave
the engine at idle to warm up but move
off straight away and drive at moderate
speed.
Driving

63
301_en_Chap05_conduite_ed01-2014
Never switch off the ignition before the
vehicle is at a complete stop. With the
engine off, the braking and steering
assistance systems are also cut off: risk
of loss of control of the vehicle.
For more information, refer to the
"Practical information" section, under
"Energy economy mode". When you leave the vehicle, keep the
key with you and lock the vehicle.
To facilitate unlocking of the steering
column, it is recommended that the
wheels be returned to the straight ahead
position before switching off the engine.

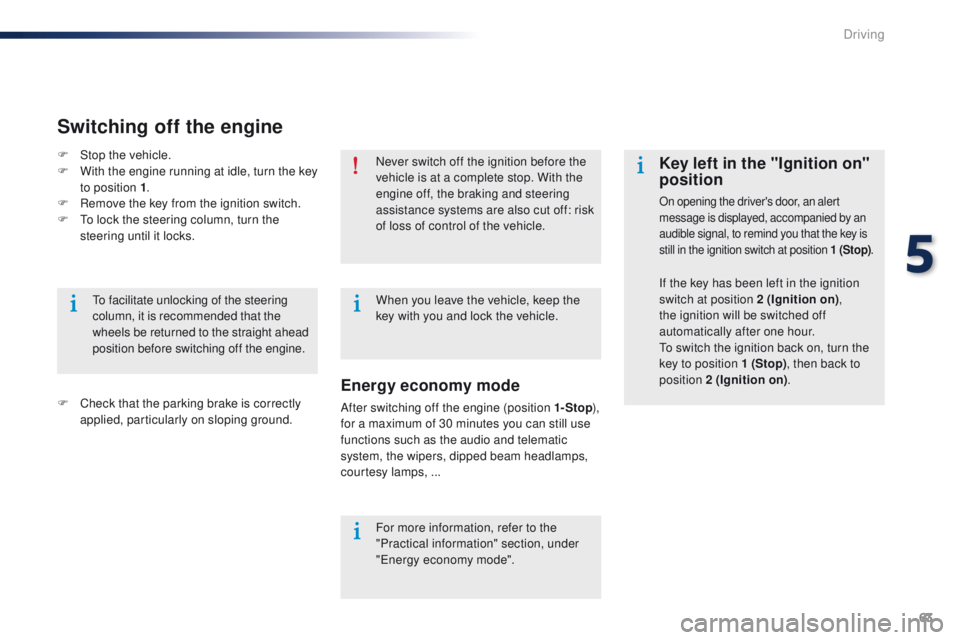

Switching off the engine
F Check that the parking brake is correctly
applied, particularly on sloping ground.
F

S
top the vehicle.
F
W
ith the engine running at idle, turn the key
to position 1 .
F
R
emove the key from the ignition switch.
F
T
o lock the steering column, turn the
steering until it locks.
Energy economy mode
After switching off the engine (position 1- Stop ),
for a maximum of 30 minutes you can still use
functions such as the audio and telematic
system, the wipers, dipped beam headlamps,
courtesy lamps, ...
Key left in the "Ignition on"
position
On opening the driver's door, an alert
message is displayed, accompanied by an
audible signal, to remind you that the key is
still in the ignition switch at position 1 (Stop) .
If the key has been left in the ignition
switch at position 2 (Ignition on),
the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop) , then back to
position 2 (Ignition on) .
5
Driving

64
301_en_Chap05_conduite_ed01-2014

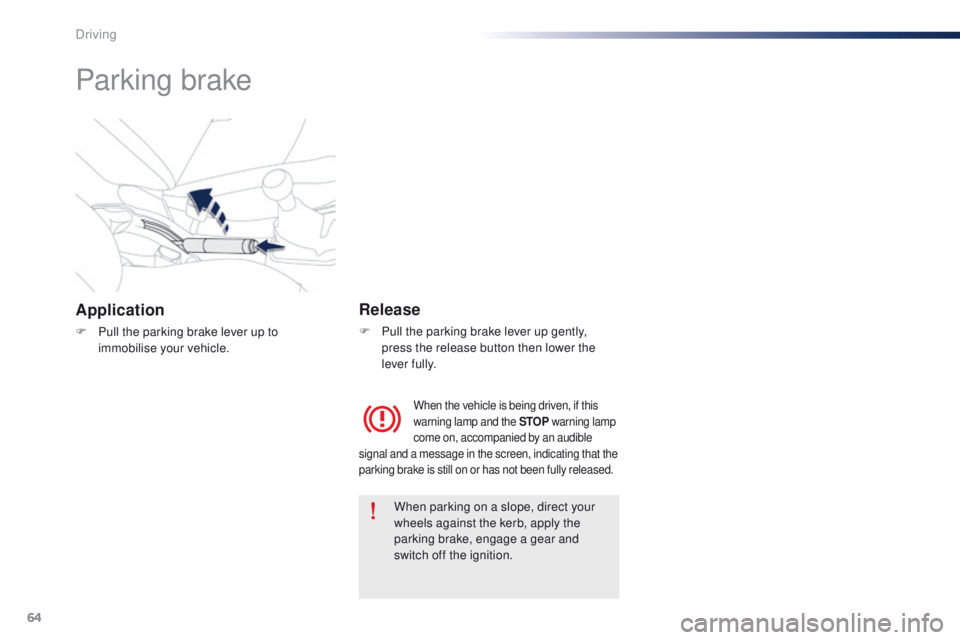

Parking brake
Application
F Pull the parking brake lever up to immobilise your vehicle.
Release
F Pull the parking brake lever up gently, press the release button then lower the
lever fully.
When parking on a slope, direct your
wheels against the kerb, apply the
parking brake, engage a gear and
switch off the ignition.
When the vehicle is being driven, if this
warning lamp and the STOP warning lamp
come on, accompanied by an audible
signal and a message in the screen, indicating that the
parking brake is still on or has not been fully released.
Driving

65
301_en_Chap05_conduite_ed01-2014
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
starting of the engine:
-
a
lways select neutral,
-

p
ress the clutch pedal.

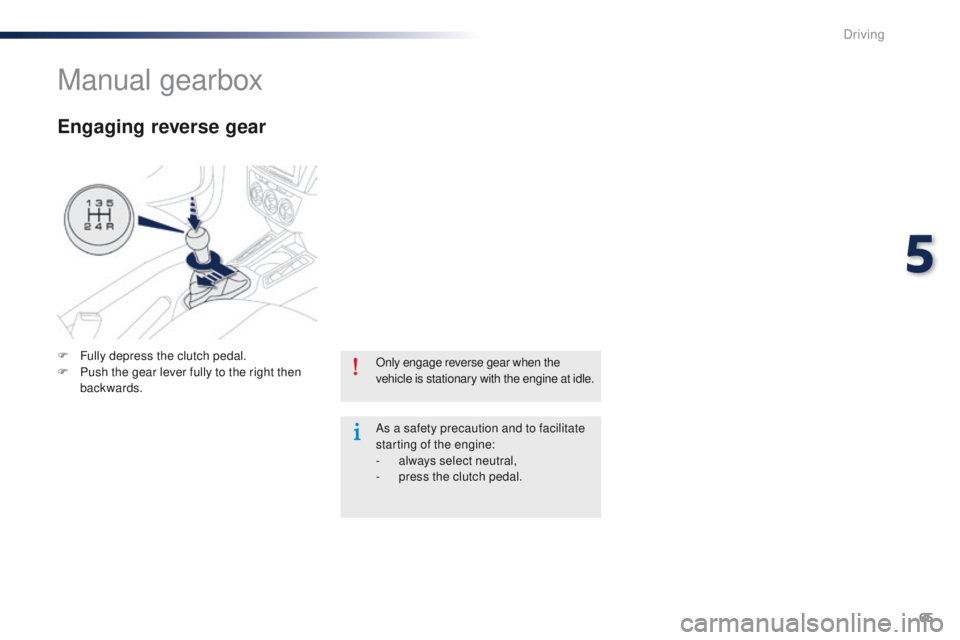

Manual gearbox
F Fully depress the clutch pedal.
F P ush the gear lever fully to the right then
backwards.
Engaging reverse gear
5
Driving

66
301_en_Chap05_conduite_ed01-2014

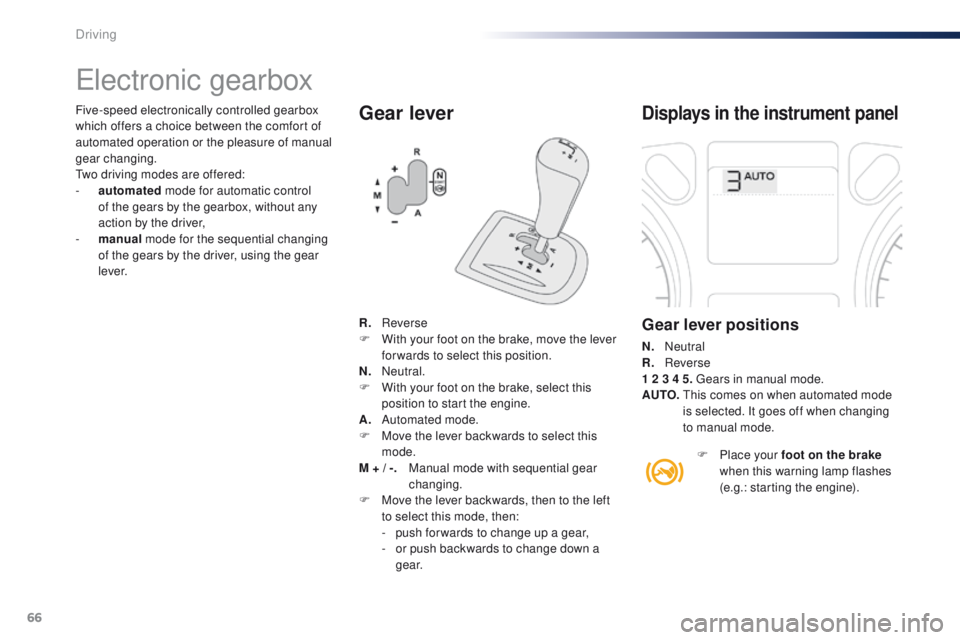

Gear lever
Electronic gearbox
Displays in the instrument panel
Gear lever positions
N. Neutral
R. Reverse
1 2 3 4 5. Gears in manual mode.
AUTO.

T
his comes on when automated mode
is selected. It goes off when changing
to manual mode.
R.

Reverse
F
W
ith your foot on the brake, move the lever
for wards to select this position.
N.

Neutral.
F

W

ith your foot on the brake, select this
position to start the engine.
A.

A

utomated mode.
F

M

ove the lever backwards to select this
mode.
M + / -.

M

anual mode with sequential gear
changing.
F

M

ove the lever backwards, then to the left
to select this mode, then:
-

p

ush for wards to change up a gear,
-

o

r push backwards to change down a
g e a r.
Five-speed electronically controlled gearbox
which offers a choice between the comfort of
automated operation or the pleasure of manual
gear changing.
Two driving modes are offered:
-

a

utomated
mode for automatic control
of the gears by the gearbox, without any
action by the driver,
-

m

anual
mode for the sequential changing
of the gears by the driver, using the gear
l eve r.
F
P
lace your foot on the brake
when this warning lamp flashes
(e.g.: starting the engine).
Driving

67
301_en_Chap05_conduite_ed01-2014
N appears in the instrument panel.
You must keep your foot on the brake
pedal while starting the engine.
The vehicle then moves off on its own
(refer to the section on the "Creep
function").
F
Sel
ect automated mode (position A
),
manual mode (position M ) or reverse
(position R )
AUTO and 1, 1 or R appear in the
instrument panel.
F
R
elease the parking brake.
F
P
rogressively take your foot off the brake
pedal.

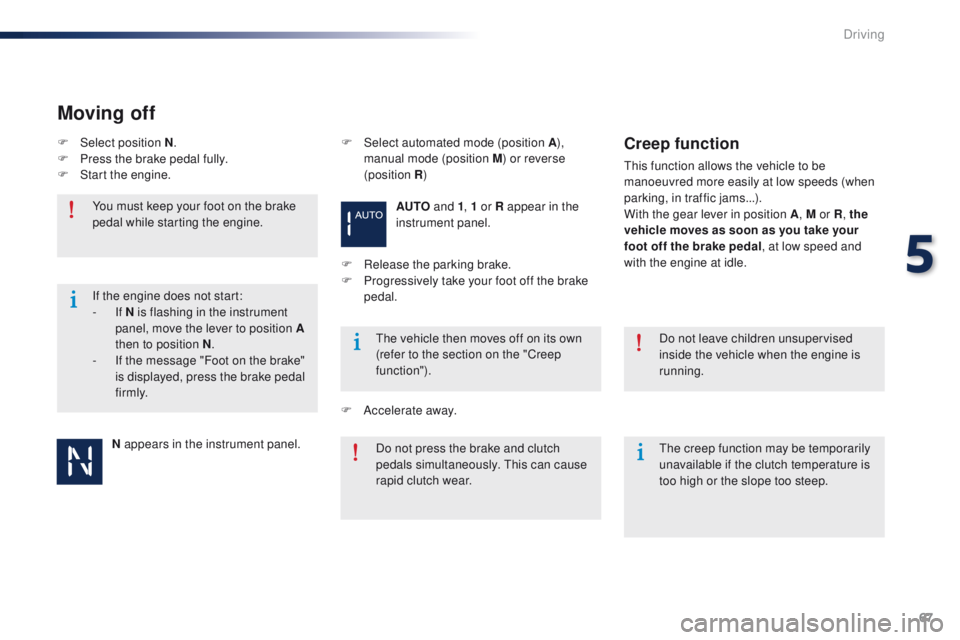

Moving off
F Select position N .
F P ress the brake pedal fully.
F

S
tart the engine.
Do not press the brake and clutch
pedals simultaneously. This can cause
rapid clutch wear.The creep function may be temporarily
unavailable if the clutch temperature is
too high or the slope too steep. Do not leave children unsupervised
inside the vehicle when the engine is
running.
F

A
ccelerate away.Creep function
This function allows the vehicle to be
manoeuvred more easily at low speeds (when
parking, in traffic jams...).
With the gear lever in position A, M or R, the
vehicle moves as soon as you take your
foot off the brake pedal , at low speed and
with the engine at idle.
If the engine does not start:
-

If N is flashing in the instrument
panel, move the lever to position A
then to position N .
-

I

f the message "Foot on the brake"
is displayed, press the brake pedal
f i r m l y.
5
Driving

68
301_en_Chap05_conduite_ed01-2014
Automated mode
AUTO and the gear engaged appear
in the instrument panel.
Manual mode
The gears engaged appear in
succession in the instrument panel.
The gearbox then operates in auto-adaptive
mode, without any action on the part of the
driver. It continuously selects the most suitable
gear taking account of:
-
o

ptimisation of fuel consumption,
-

d

riving style,
-

r

oad conditions,
-

v

ehicle load.
For optimum acceleration, when overtaking
another vehicle for example, press the
accelerator pedal fully down, beyond the point
of resistance. The gear change requests are only carried out
if the engine speed permits.
It is not necessary to release the accelerator
pedal during gear changes.
When braking or slowing down, the gearbox
changes down automatically so that the vehicle
picks up in the right gear.
Under full acceleration, the change up will
not take place unless the driver operates the
gear lever (unless the engine is close to its
maximum speed).
Never select neutral (position N ) when
moving. You can change mode at any time by
moving the gear lever from A to M or
the other way round.
Never select neutral (position N) when
moving. You can change mode at any time by
moving the gear lever from A to M or
the other way round.
F

Sel

ect position A
. F

Sel

ect position M
.
Reverse
To engage reverse, the vehicle must be
immobilised with your foot on the brake.
F

Sel
ect position R .
At low speed, if reverse gear is requested,
the
N warning lamp flashes and the gearbox
goes into neutral automatically.
To engage reverse, put the gear lever into
position N , then to position R .
There is an audible signal on
engagement of reverse.
Driving
