battery replacement Peugeot 301 2015 Owner's Manual
[x] Cancel search | Manufacturer: PEUGEOT, Model Year: 2015, Model line: 301, Model: Peugeot 301 2015Pages: 285, PDF Size: 13.55 MB
Page 171 of 285
169
301_en_Chap10_verifications_ed01-2014

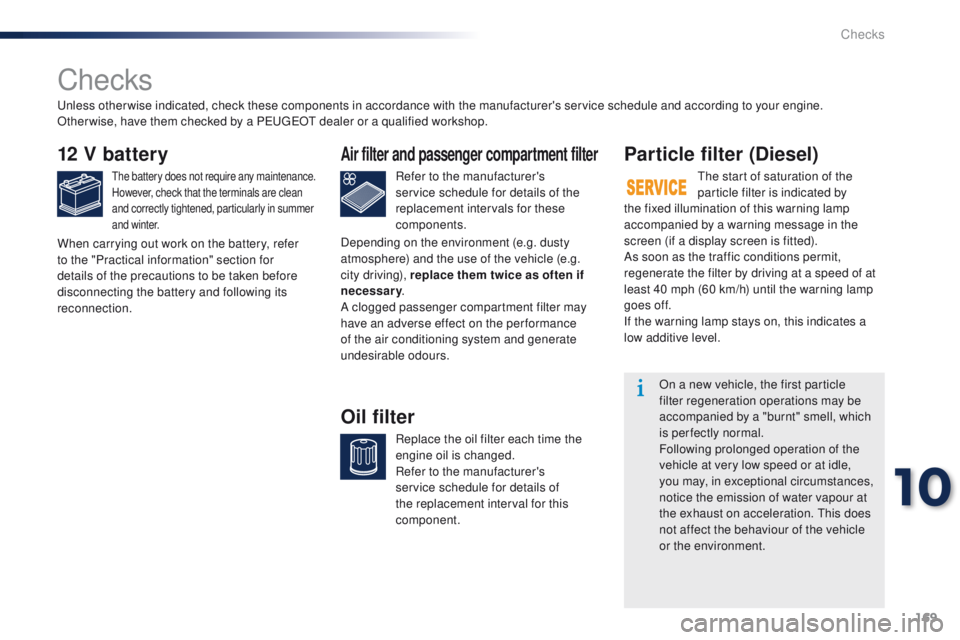

Checks
12 V battery
The battery does not require any maintenance.
However, check that the terminals are clean
and correctly tightened, particularly in summer
and winter.
Particle filter (Diesel)
The start of saturation of the
particle filter is indicated by
the fixed illumination of this warning lamp
accompanied by a warning message in the
screen (if a display screen is fitted).
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lamp
goes off.
If the warning lamp stays on, this indicates a
low additive level.
On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burnt" smell, which
is perfectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
Unless otherwise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Other wise, have them checked by a PEUGEOT dealer or a qualified workshop.
Air filter and passenger compartment filter
Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.
Oil filter
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
When carrying out work on the battery, refer
to the "Practical information" section for
details of the precautions to be taken before
disconnecting the battery and following its
reconnection.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle (e.g.
city driving), replace them twice as often if
necessary
.
A clogged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.
10
Checks
Page 233 of 285
231
301_en_Chap14_index-alpha_ed01-2014
Labels, identification .....................................17 6
Lamps, front .................................................. 13 6
Lamps, warning and indicator
...................11 -1 9
Level, brake fluid
........................................... 16
7
Levels and checks
................................ 163 -168
Lighting
................
............................................ 81
Lighting bulbs (replacement)
................. 1
3 6 -141
Lighting control stalk
....................................... 81
Lighting, guide-me home
................................85
Lighting, interior
.............................................. 89
Loading
..................................................... 8, 160
Load reduction mode
.................................... 149
Locating your vehicle
...................................... 31
L
ow fuel level .......................................... 18, 118
Lower windscreen defrosting
..........................54Maintenance (advice)
....................................
157
Manual air conditioning (without screen)
........ 48
M
ap reading lamps
.........................................
89
Markings, identification
.................................
176
Mat
................................................................
159
Menu, main
...................................................
180
Mirror, rear view ..............................................
44
Mirrors, door .................................................... 43
Misfuel prevention
...............................
..........
11 9
Mountings for ISOFIX seats
.........................
112
MP3 CD .........................................
185, 18 6, 214
Main beam
.............................................. 81, 137
Maintenance
..................................................... 8Oil filter
...............
...........................................169
Oil level .......................................................... 165
Opening the bonnet
...................................... 16
2
Opening the boot
..............................
........30, 37
Opening the doors
...............................
.....30, 36
Operation indicator lamps
.........................11 -1 9Paint colour code
..........................................
176
Parking brake
..........................................
6 4, 170
Parking sensors, rear ...................................... 79
Passenger compartment filter
......................
169
Player, CD MP3 .....................
185, 186, 213, 214
Port, USB
................................................
5
7, 187
Preheater, Diesel
............................................
13
Priming the fuel system ................................
121
Protecting children
..................................
98, 10 0, 103 -117
Puncture
........................................................
12 2
Number plate lamps
...................................... 1
41Radio
.....................................................18 1, 2 11
Rear foglamp ........................................... 8 3, 140
Rear screen (demisting)
..................................54
Recharging the battery
................................. 14
9
Reduction of electrical load
..........................149
Reinitialising the remote control
..................... 32
R
emote control
..........................................3
0-33
Removable screen (snow shield)
...............................
................15 6
Removing a wheel
........................................131
Removing the mat
.........................................159
Repair kit, puncture
.......................................12 2
Replacing bulbs
.....................................13 6 -141
Replacing fuses
..............................
.......142-146
Replacing the air filter
...................................169
O
M
P
NR
Keeping children safe ..............9 8, 10 0, 103 -117
Key in ignition warning ....................................63
Key with remote control
......................30 -33, 61
K
L
.

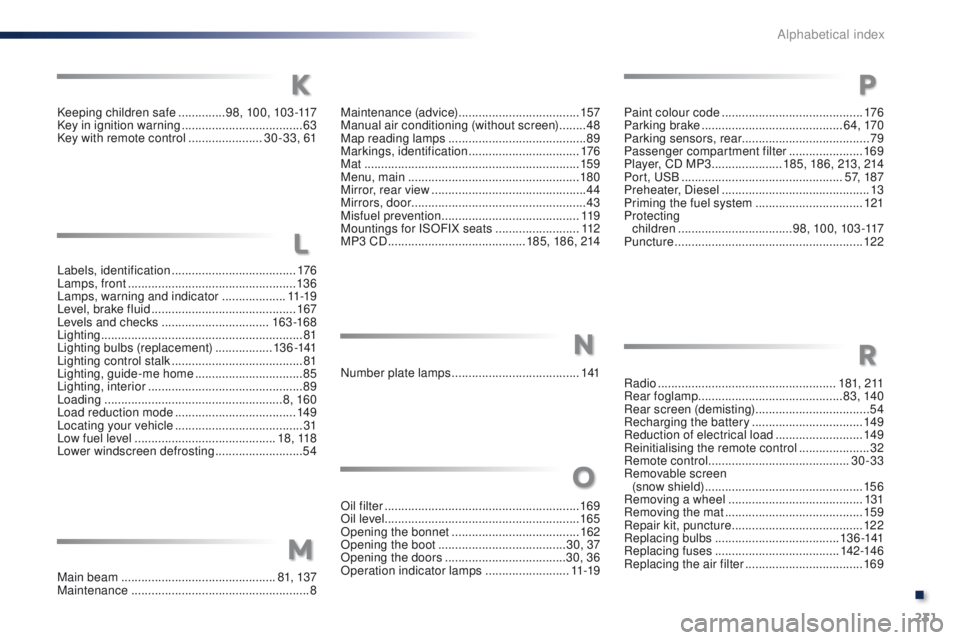

Alphabetical index
