YOUR 306 AT A GLANCE5
STARTING The 4 positions of the key in the ignition:
ÒSÓ for STOP The ignition is off.
ÒAÓ for Accessories The ignition
is off but the accessories can be used. ÒMÓ for Running The ignition is
on.
ÒDÕÕ for Starting Operates the
starter. Steering lock Before starting, unlock the steer-
ing if necessary, by gently turningthe steering wheel at the same
time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier.
Starting a petrol engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engineturns. Starting a diesel engine Do not press the accel-
erator.
Turn the key to position ÔÔM ÕÕ.
If the engine is warm enough, the
pre-heat light does not come on
and you can start immediately. If the pre-heat light comes on, wait for it to go out before ope-
rating the starter. HDI engine special feature If the engine stalls, it is necessary
to return the key to position ÔÔ SÕÕ
before restarting. Never race a coldengine. Never run the engine in a confined space.
Do not make any modificationsto the steering lock.

YOUR 306 AT A GLANCE
4
Confidential card This contains the identification combination which is required ifany work is carried out on the
system by a PEUGEOT dealer.This combination is concealed bya strip which must not be removedunless required. Keep your card in a safe place, never in your vehicle.
ELECTRONIC ENGINEIMMOBILISER This locks the engine control system a few moments after the
ignition has been switched off andtherefore prevents starting of thevehicle by anyone who has not
got the key.
Operation Each key has an electronic chip which has a special code. When the ignition is switched on the key code is recognised andstarting is possible. If the key does not have a code or
has a different code from that
stored in the system memory, thevehicle will not start. Additional key
You can store up to 5 keys in the
memory. If you require an additional key or
wish to change a faulty key, you
must visit a PEUGEOT dealerwith the confidential card and allthe keys in your possession.
When buying a second hand car: Ensure that you are given the confidential card.It is advisable to have the key codes memorised by a PEUGEOT dealer to ensure that the keys in your possession
are the only ones which can start the vehicle. Do not make any modifications to the PEUGEOT electronic engine immobiliser system.

12
34
A
ELECTRIC WINDOWS
1. Driver's electric window
Manual mode: press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode: press or pull the switch firmly. One touch completely opens
or closes the window. Automatic opening and closing only work when the engine is running.
2. PassengerÕs electric window.
3. Left rear electric window
4. Right rear electric window.
YOUR 306 AT A GLANCE
8
ADJUSTING THE HEIGHT OF THE STEERING WHEEL Push the handle to unlock the steering wheel. Adjust the steering wheel to the desired height and pull the handleto lock it into position.
ELECTRIC MIRRORS
Turn the knob
Ato the right or to the left to select the corre-
sponding mirror.
Move the knob in all four directions to adjust the mirror.
99101

YOUR 306 AT A GLANCE9
FUEL FILLER FLAP
To open*: firmly pull the handle on the floor to the outside of the drivers seat.
To close: from outside, push the flap back and check that it is secured
correctly. The fuel filler cap is opened and closed with the ignition key independently of opening the doors (during model year). Filling with fuel Switch off the engine.There is a holder for the fuel filler cap.
A label on the inside of the flap shows which fuels are permitted and which are not allowed. The capacity of the tank is approximately 13 gallons (60 litres).
Fuel low warning light The fuel low warning light indicates that the quantity of fuel remaining in the tank is approximately 1.3 gallons (6 litres). * According to specification.
Outside the vehicle Raise the catch 1and
support the bonnet as it rises.
OPENING THE BONNET Inside the vehicle:
Pull the
handle.
8182

1
B
A
YOUR 306 AT A GLANCE13
THE AUTOMATIC
AUTOADAPTIVE GEARBOX
P.Park.
R. Reverse.
N. Neutral.
D. Drive: in this position, all four gears change automatically.
3. Automatic changing of the first three gears only.
2. Automatic changing of the first two gears only.
1. Selection of first gear only. Selection of first gear is from position 2by pressing switch 1.
A. Sport programme.
B. Snow programme.
Position of selector leverThis is shown by an indicator on the instrument panel.
Starting
To start the engine, place the selector lever in position
Nor P.
Press the brake pedal when start-ing the engine or when selecting a
forwards or reverse gear.
105

MAINTENANCE OF YOUR 306
18
PEUGEOT SERVICING
Your vehicle benefits from extended service iintervals.
¥ For petrol engines: every 20,000 miles (30,000 km) or every two years
¥ For direct injection diesel engines: every 12,000 miles (20,000 km) or every two years.
¥ For indirect injection diesel engines: evey 10,000 miles (15,000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. That is why the PEUGEOT network is offering you an intermediate visit between each regular service.
The date of this visit is not shown by the service indicator. It is to be carried out at least every 10 000 Miles (15 000km) for petrol and twin-fuel engines; every 6 000 miles (10 000 km) for direct injection diesel engines and every5 000 miles (7 500 km) for indirect injection diesel engines.
A Peugeot dealer will carry out a rapid check and top up fluids as necessary (oil, coolant, windscreen wash fluid to the 2 litre limit). If the oil level is too low there is a risk of serious damage to the engine : check the engine oil level at least every 2,000 to 3,000 miles (3,000 to 5,000 km), depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.

MAINTENANCE OF YOUR 30619
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 36/40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services). NB:
the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year for petrol vehicles.
¥ Every 9,000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.
¥ Every 6,000 miles (10 000 km) or every year for Indirect Injection Diesel engine vehicles.

MAINTENANCE OF YOUR 30619
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 36/40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services). NB:
the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year for petrol vehicles.
¥ Every 9,000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.
¥ Every 6,000 miles (10 000 km) or every year for Indirect Injection Diesel engine vehicles.

MAINTENANCE OF YOUR 30623
PEUGEOT SERVICING LEVELS A AND C
: All driving conditions : Arduous conditions
Level
Operations Description of operations for 1st serviceFirst serviceACIntermediate visit
DRAIN AND REFILL- Engine oil- Bleed fuel filter (diesel)- Oil filter.- Fuel filter (Petrol).REPLACEMENT- Fuel filter element (Diesel).- Air filter element.- Spark plugs (Petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if cap is removableLEVEL- Front/rear windscreen wash (check + top up).- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers), check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Play in hubs, rods, ball joints, flexible mountings- Shock absorbers for leaks- Rear drum brake lining wear- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (Petrol).- Smoke opacity (Diesel).- Pollen filter check (according to specification). - Visual check of the whole vehicle by a PEUGEOT dealer.
SERVICE- Courtesy vehicle
ROAD TEST

F
NL
SF
GR
A
D
CH
I
N
P
E
B
DK
GB
L
S
IRL
ACTIV
A
D
IES EL 7000
10W 40
AC TIVA D
IES EL 9000
5W 40
AC TIVA 9000
5W 30*
U
LT R A
DIESE L
10W 40
U LT R A
5W 30*
U LT R O
N D IES EL
5W 40
QUAR
TZ D IESEL 7000
10W 40
Q U
AR TZ 9000
5W 40
Q UAR
TZ 9000
5W 30*
AC TIV
A 7000
10W 40
AC TIV A 9000
5W 40
AC TIVA 9000
5W 30*
Q U
AR
TZ 7000
15W 50
U
LT R A
10W 40
U LT R A
5W 30*
U LT R ON

5W 40
U LT R O
N

0W 30
QUA R
TZ 7000
10W 40
Q U
AR TZ 9000
0W 40
Q U
AR TZ 9000
5W 40
Q U
AR TZ 9000
5W 30*

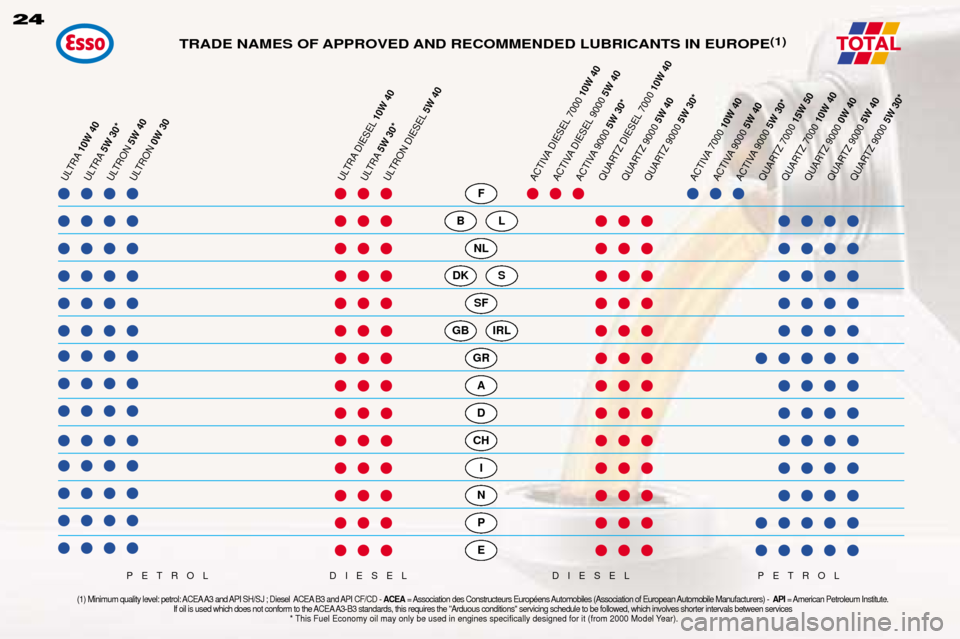

TOTALTRADE NAMES OF APPROVED AND RECOMMENDED LUBRICANTS IN EUROPE (1)
(1) Minimum quality level: petrol: ACEA A3 and API SH/SJ ; Diesel ACEA B3 and API CF/CD -
ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) - API= American Petroleum Institute.
If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous conditions" servicing schedule to be followed, which involves shorter intervals between services * This Fuel Economy oil may only be used in engines specifically designed for it (from 2000 Model Year).
DIESEL
DIESEL
PETROL PETROL
