Page 14 of 133
MAINTENANCE OF YOUR 306 CABRIOLET19
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked during each regular service at the PEUGEOT dealer. NB:
the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year.
Page 18 of 133
MAINTENANCE OF YOUR 306 CABRIOLET19
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked during each regular service at the PEUGEOT dealer. NB:
the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year.
Page 20 of 133
MAINTENANCE OF YOUR 306 CABRIOLET21
PEUGEOT SERVICING LEVELS A AND C
Level
Operations Description of operations for 1st serviceServicesACIntermediate visit
DRAIN AND REFILL- Engine drain and refill. - Oil filter.
REPLACEMENT- Fuel filter (Petrol).
- Air filter element.
- Spark plugs (Petrol).
- Engine oil (check + top up).
- Manual gearbox oil (check + top up).
- Battery (check + top up) if plug is removable.
LEVEL- Front/rear windscreen wash (check + top up).
- Coolant (check + top up).
- Brake fluid (check + top up).
- Power steering fluid (check + top up according to specification).
- Operation of lights and indicators.
- Condition of glass, headlamp and light lenses and mirrors.
- Horn.
- Windscreen washer jets.
- Condition of wiper blades.
- Condition and tension of ancillary drive belts.
- Handbrake.
- Condition of hydraulic circuits (hoses and covers), check for leaks.
CHECK- Condition of rubber boots and gaiters.
- Brake pad wear.
- Clearances, hubs, rods, ball joints, flxible mountings.
- Sealing of dampers.
- Wear of rear linings.
- Condition and pressure of tyres (including spare wheel).
- Emission control check according to current legislation (Petrol).
- Pollen filter check (according to specification).
- Visual check of the whole vehicle by a PEUGEOT dealer.
ROAD TEST
: All driving conditions : Specific conditions
Page 87 of 133
24
MAINTENANCE OF YOUR 306 CABRIOLET

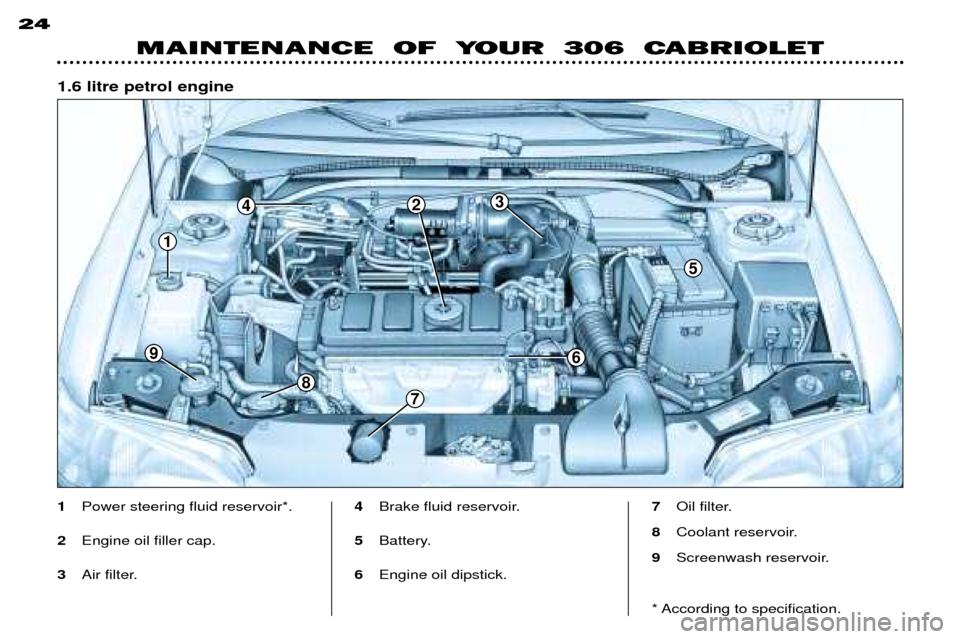

1Power steering fluid reservoir*.
2 Engine oil filler cap.
3 Air filter. 4
Brake fluid reservoir.
5 Battery.
6 Engine oil dipstick. 7
Oil filter.
8 Coolant reservoir.
9 Screenwash reservoir.
* According to specification.
1.6 litre petrol engine
1
9
8
7
6
5
432
Page 88 of 133

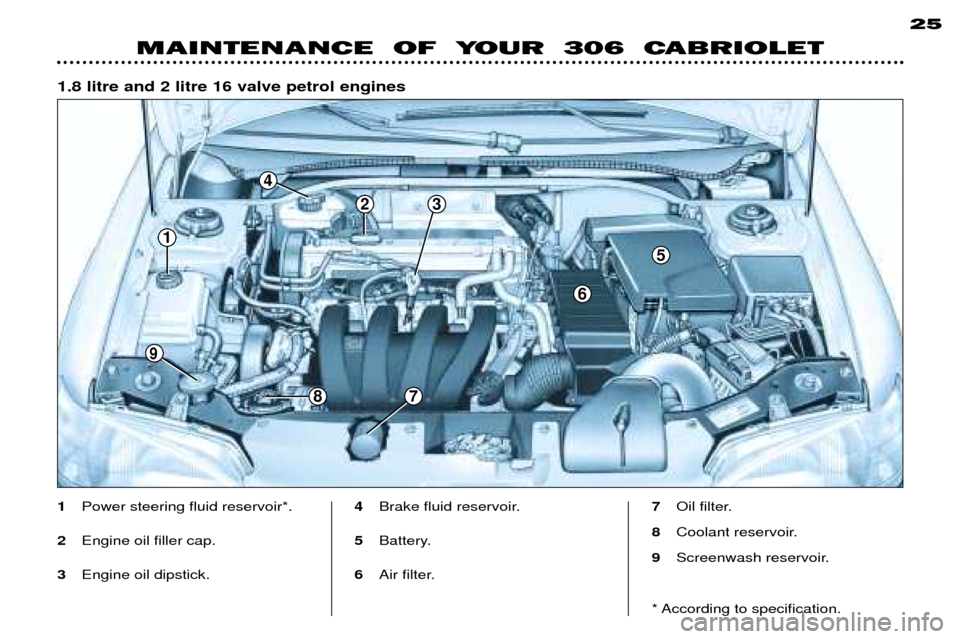

1.8 litre and 2 litre 16 valve petrol engines25
MAINTENANCE OF YOUR 306 CABRIOLET
1
Power steering fluid reservoir*.
2 Engine oil filler cap.
3 Engine oil dipstick. 4
Brake fluid reservoir.
5 Battery.
6 Air filter. 7
Oil filter.
8 Coolant reservoir.
9 Screenwash reservoir.
* According to specification.
1
9
7
6
5
4
8
23
Page 90 of 133
MAINTENANCE OF YOUR 306 CABRIOLET27
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4,4 litres or 6 litres withheadlight wash). Battery
At the start of winter, have your battery checked by a PEUGEOT
dealer. Air filter Regular replacement of the filter element is essential. If you drive invery dusty conditions, change it twiceas often. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town or for shortjourneys or which are driven in a
sporty manner. It may be necessary tocheck the thickness of the pads evenbetween services. Manual gearbox This does not need an oil change. Check the level according to the man-
ufacturerÕs service schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a
PEUGEOT dealer according to the
manufacturerÕs service schedule.
Only use products
approved by Automobiles
PEUGEOT.
To ensure best perfor-
mance from components as impor- tant as the power steering and thebraking system, PEUGEOT selectsand offers quite specific products.
Fuel supply cut-off* In a serious collision, a system pre- vents fuel from reaching the engine.
To re-establish the fuel supply, press the switch on the angle of the front
left-hand suspension assembly, underthe bonnet.
* According to specification.
Page 91 of 133
MAINTENANCE OF YOUR 306 CABRIOLET27
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4,4 litres or 6 litres withheadlight wash). Battery
At the start of winter, have your battery checked by a PEUGEOT
dealer. Air filter Regular replacement of the filter element is essential. If you drive invery dusty conditions, change it twiceas often. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town or for shortjourneys or which are driven in a
sporty manner. It may be necessary tocheck the thickness of the pads evenbetween services. Manual gearbox This does not need an oil change. Check the level according to the man-
ufacturerÕs service schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a
PEUGEOT dealer according to the
manufacturerÕs service schedule.
Only use products
approved by Automobiles
PEUGEOT.
To ensure best perfor-
mance from components as impor- tant as the power steering and thebraking system, PEUGEOT selectsand offers quite specific products.
Fuel supply cut-off* In a serious collision, a system pre- vents fuel from reaching the engine.
To re-establish the fuel supply, press the switch on the angle of the front
left-hand suspension assembly, underthe bonnet.
* According to specification.
Page 103 of 133
MAINTENANCE OF YOUR 306 CABRIOLET19
SPECIAL FEATURES
Some of your vehicleÕs vital components have specific servicing schedules. The airbags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked during each regular service at the PEUGEOT dealer. NB:
the coolant does not need to be renewed.
Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures,
Or in long stays under the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an ÒArduous conditionsÓ service schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20 000 km) or every year.
Page 105 of 133
MAINTENANCE OF YOUR 306 CABRIOLET21
PEUGEOT SERVICING LEVELS A AND C
Level
Operations Description of operations for 1st serviceServicesACIntermediate visit
DRAIN AND REFILL- Engine drain and refill. - Oil filter.
REPLACEMENT- Fuel filter (Petrol).
- Air filter element.
- Spark plugs (Petrol).
- Engine oil (check + top up).
- Manual gearbox oil (check + top up).
- Battery (check + top up) if plug is removable.
LEVEL- Front/rear windscreen wash (check + top up).
- Coolant (check + top up).
- Brake fluid (check + top up).
- Power steering fluid (check + top up according to specification).
- Operation of lights and indicators.
- Condition of glass, headlamp and light lenses and mirrors.
- Horn.
- Windscreen washer jets.
- Condition of wiper blades.
- Condition and tension of ancillary drive belts.
- Handbrake.
- Condition of hydraulic circuits (hoses and covers), check for leaks.
CHECK- Condition of rubber boots and gaiters.
- Brake pad wear.
- Clearances, hubs, rods, ball joints, flxible mountings.
- Sealing of dampers.
- Wear of rear linings.
- Condition and pressure of tyres (including spare wheel).
- Emission control check according to current legislation (Petrol).
- Pollen filter check (according to specification).
- Visual check of the whole vehicle by a PEUGEOT dealer.
ROAD TEST
: All driving conditions : Specific conditions
Page 108 of 133
24
MAINTENANCE OF YOUR 306 CABRIOLET
1Power steering fluid reservoir*.
2 Engine oil filler cap.
3 Air filter. 4
Brake fluid reservoir.
5 Battery.
6 Engine oil dipstick. 7
Oil filter.
8 Coolant reservoir.
9 Screenwash reservoir.
* According to specification.
1.6 litre petrol engine
1
9
8
7
6
5
432
