roof Peugeot 306 C 2001 Owner's Manual

- Remove the retaining strap 2from
the hood cover 10.
- From the boot, close the hood cover 10manually. To do this,
remove the cap and turn the con- trol a quarter turn anti-clockwiseusing the wheelbrace. Removethe wheelbrace, reposition the capand close the boot.
Take care not to trap the harness.
- Carefully position the hard top: place the front edge of the roof incontact with the seal of the uppersection of the windscreen. Position the rear section of the roof on the side brackets 12.
Switch on the ignition. Open all the windows.
Lower the hood completely.
Switch off the ignition.Open the hood cover Place the restraining straps
2on the
two side flaps 7and the hood cover
10 .
- Secure the two side brackets 12to
the vehicle using the 17mm span- ner 6.
- Disconnect connector 8from the
harness located behind the sideflap 14on the right hand side of
the rear shelf.
HARD-TOP: REFITTING
Tools
Your hard-top is supplied with a tool kit containing: 1
- A storage case.
2 - Two retaining straps.
3 - A screwdriver with two heads.
4 - A pair of gloves.
5 - A special spanner.
6 - A 17mm flat spanner.
WARNINGThe removal-refitting operations described below should have beendemonstrated by your PEUGEOTdealer on handover of your vehicle. If your hard-top was supplied as
an accessory, the first removaloperation must be carried out by
an approved dealer. The opera-tion must be carried out by threepeople.
YOUR 306 CABRIOLET IN DETAIL
52
6
3
5 1 4
2
10
14
2
82
7
5
12

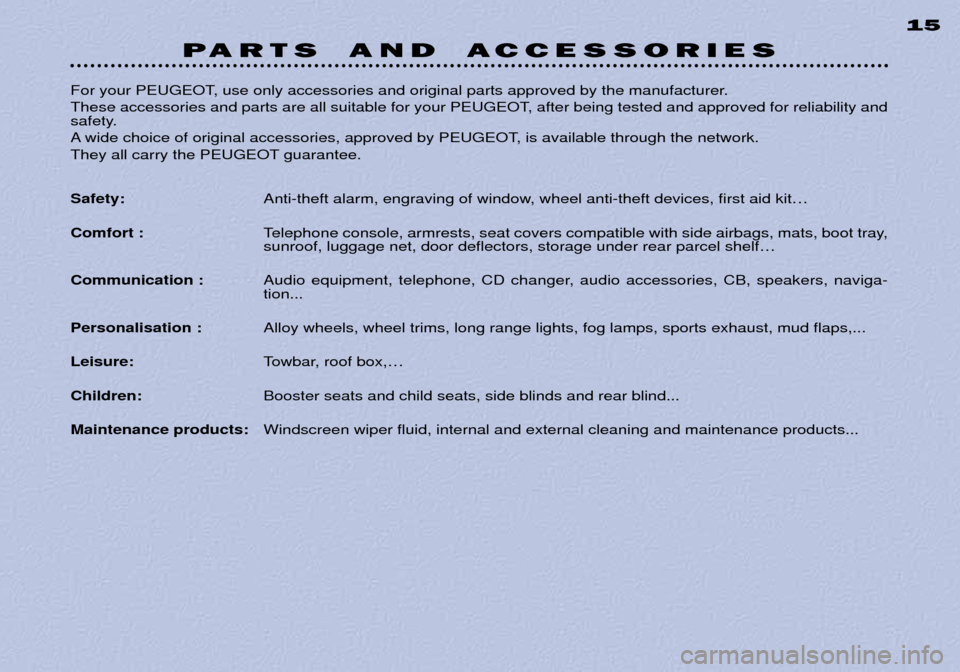

PARTS AND ACCESSORIES 15
For your PEUGEOT, use only accessories and original parts approved by the manufacturer.
These accessories and parts are all suitable for your PEUGEOT, after being tested and approved for reliability and
safety.
A wide choice of original accessories, approved by PEUGEOT, is available through the network.
They all carry the PEUGEOT guarantee. Safety: Anti-theft alarm, engraving of window, wheel anti-theft devices, first aid kitÉ
Comfort : Telephone console, armrests, seat covers compatible with side airbags, mats, boot tray, sunroof, luggage net, door deflectors, storage under rear parcel shelfÉ
Communication : Audio equipment, telephone, CD changer, audio accessories, CB, speakers, naviga-tion...
Personalisation : Alloy wheels, wheel trims, long range lights, fog lamps, sports exhaust, mud flaps,...
Leisure: Towbar, roof box,É
Children: Booster seats and child seats, side blinds and rear blind...
Maintenance products: Windscreen wiper fluid, internal and external cleaning and maintenance products...

PARTS AND A CCESSORIES 15
For your PEUGEOT, use only accessories and original parts approved by the manufacturer.
These accessories and parts are all suitable for your PEUGEOT, after being tested and approved for reliability and
safety.
A wide choice of original accessories, approved by PEUGEOT, is available through the network.
They all carry the PEUGEOT guarantee. Safety: Anti-theft alarm, engraving of window, wheel anti-theft devices, first aid kitÉ
Comfort : Telephone console, armrests, seat covers compatible with side airbags, mats, boot tray, sunroof, luggage net, door deflectors, storage under rear parcel shelfÉ
Communication : Audio equipment, telephone, CD changer, audio accessories, CB, speakers, naviga-tion...
Personalisation : Alloy wheels, wheel trims, long range lights, fog lamps, sports exhaust, mud flaps,...
Leisure: Towbar, roof box,É
Children: Booster seats and child seats, side blinds and rear blind...
Maintenance products: Windscreen wiper fluid, internal and external cleaning and maintenance products...
