Instrument panel display
After switching on the ignition, three functions are shown in succession:
service indicator (see corresponding section),
engine oil level indicator,
total distance recorder (total and trip distances).
Note : the total and trip distances are displayed for 30 seconds wh en the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking
the vehicle.
Engine oil level indicator
When the ignition is switched on, the engine oil level is indicated for approxi
mately 10 seconds, after the servicing information.
Maximum
Check the level using the dipstick to confirm whether the displ ay
is correct; a surplus of oil can cause damage to the engine.
Contact a PEUGEOT dealer without delay.
Minimum
Check the level with the dipstick and top it up. The figu re shown
is only correct if the vehicle has been on stable, level ground , with
the engine stopped, for 10 minutes.
Oil level gauge fault
Flashing of the segments, the square or of "min" and "max" indi
cates a fault in the oil level gauge.
There is a risk the engine will be damaged.
Contact a PEUGEOT dealer. Lighting rheostat
With the lights on,
press the button to
vary the intensity of
the lighting of the
instrument panel and
the multi function dis
play. When the light
ing reaches the minimum (or maxi
mum) setting, release the button
then press it again to increase (or
reduce) the brightness.
As soon as the lighting is of the
required brightness, release the but
ton.
Trip recorder zero
reset
With the ignition on,
press the button.
INSTRUMENTS AND CONTROLS
34
Page 32 of 185
09-09-2002
YOUR 307 IN DETAIL 35
MULTI–FUNCTION
SCREENS
Presentation
Monochrome screen B
This enables the following informa
tion to be displayed:
the time,
the date,
the outside temperature (the
°C
symbol flashes when there is a risk
of ice),
the radio displays,
the status of the openings (doors,
bonnet...),
the warning (e.g. “Battery charge
fault”) or information (e.g.
“Passenger air bag disarmed”)
messages displayed temporarily
can be cleared by pressing button
1 or 2,
the trip computer (see correspond
ing section).
Monochrome screen CT and
colour screen DT
These two systems are controlled by
the RT3 audio/telephone keypad.
They enable the following informa
tion to be displayed:
–the time,–the date,–the outside temperature (a mes
sage warns you when there is a
risk of ice),
–the audio source displays (radio,
CD, ...),
–the telematic system displays (tele
phone, services, ...),
–the status of the openings (doors,
bonnet, ...),
–the warning (e.g. “Fuel level low”)
and vehicle functions status (e.g.
“Passenger air bag disarmed”)
messages displayed temporarily,
–the trip computer display (see cor
responding section),
–the satellite navigation system dis plays (see corresponding section).
Note: to enable you to use all of your
system’s functions, you have two
CD ROMs: one, “Configuration”, con
tains the software and the various
display and spoken information lan
guages, the other, “Navigation”, con
tains the satellite navigation system
map data. Monochrome screen CT
General menu
Press the
“MENU” button to access
the general menu and select one of
the following applications:–navigation guidance (see section
“Satellite navigation system”),
–trip computer (see corresponding section),
–directory (see “RT3 audio/tele phone” section),
–telematics (see “RT3 audio/tele phone” section),
–configuration (see correspondingsection).
Page 33 of 185
YOUR 307 IN DETAIL
36
Parameter configuration
Monochrome screen B
Press button
1for two seconds to
gain access to the settings .
Then, each press of this button per
mits scrolling of the various parame
ters.
language of the information dis played,
speed unit (km or miles),
temperature unit (degrees Celcius or Fahrenheit),
time format (12 or 24 hours),
hour,
minute,
year,
month,
day.
Pressing button 2enables you to
change the parameter selected.
Continue pressing the button for
rapid scrolling.
After ten seconds without action, the
screen returns to the usual display,
the modified data are recorded. configuration (see corresponding
section).
map (see section “Satellite naviga
tion system”)
A few definitions
Superimposed display:
a window appears over the current
application for a short while, to
announce a change of status of
another application.
Permanent application:
main application currently in use, dis
played in the main screen window.
Contextual menu:
limited menu associated with the
main application currently in use, dis
played in the main screen window.
Colour screen DT
General menu
Press the
“MENU” button to access
the general menu and select one of
the following applications:
navigation guidance (see section
“Satellite navigation system”),
trip computer (see corresponding
section),
directory (see “RT3 audio/tele
phone” section),
telematics (see “RT3 audio/tele
phone” section),
09-09-2002
Page 34 of 185
YOUR 307 IN DETAIL
36
Parameter configuration
Monochrome screen B
Press button
1for two seconds to
gain access to the settings .
Then, each press of this button per
mits scrolling of the various parame
ters.
language of the information dis played,
speed unit (km or miles),
temperature unit (degrees Celcius or Fahrenheit),
time format (12 or 24 hours),
hour,
minute,
year,
month,
day.
Pressing button 2enables you to
change the parameter selected.
Continue pressing the button for
rapid scrolling.
After ten seconds without action, the
screen returns to the usual display,
the modified data are recorded. configuration (see corresponding
section).
map (see section “Satellite naviga
tion system”)
A few definitions
Superimposed display:
a window appears over the current
application for a short while, to
announce a change of status of
another application.
Permanent application:
main application currently in use, dis
played in the main screen window.
Contextual menu:
limited menu associated with the
main application currently in use, dis
played in the main screen window.
Colour screen DT
General menu
Press the
“MENU” button to access
the general menu and select one of
the following applications:
navigation guidance (see section
“Satellite navigation system”),
trip computer (see corresponding
section),
directory (see “RT3 audio/tele
phone” section),
telematics (see “RT3 audio/tele
phone” section),
09-09-2002
Page 35 of 185
09-09-2002
YOUR 307 IN DETAIL37
For safety reasons, config
uration of the multi–func
tion screens by the driver
must be carried out when
stationary.
CT monochrome screen
The
"Configuration" menu gives
access to the following parameters:
– "Adjust the brightness": video dis play brightness setting.
– "Sound": voice synthesiser setting (for the masculine/feminine voice
parameter: insert the configuration
CD ROM); activation/deactivation
of the spoken commands,
– "International parameters": choice of the display and spoken informa
tion language (German, English,
Spanish, French, Italian, Dutch,
Portuguese: insert the configura
tion CD ROM); date and time set
ting (12 or 24 hour mode, adjust
ment of the minutes on GPS); units
setting (l/100 °C or mpg °F).
DT colour screen

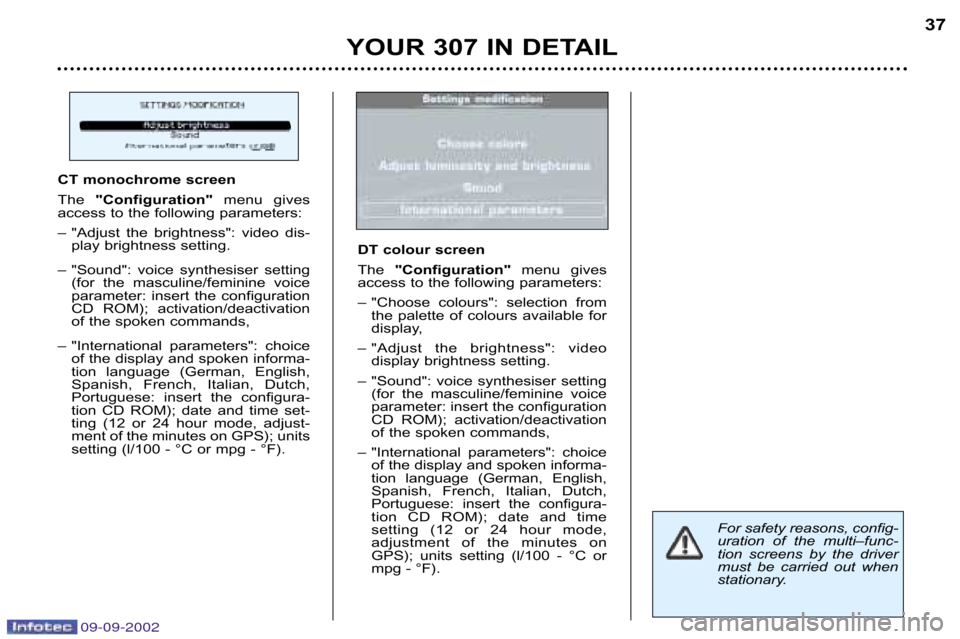

The "Configuration" menu gives
access to the following parameters:
– "Choose colours": selection from the palette of colours available for
display,
– "Adjust the brightness": video display brightness setting.
– "Sound": voice synthesiser setting (for the masculine/feminine voice
parameter: insert the configuration
CD ROM); activation/deactivation
of the spoken commands,
– "International parameters": choice of the display and spoken informa
tion language (German, English,
Spanish, French, Italian, Dutch,
Portuguese: insert the configura
tion CD ROM); date and time
setting (12 or 24 hour mode,
adjustment of the minutes on
GPS); units setting (l/100 °C or
mpg °F).
Page 36 of 185
09-09-2002
AUDIO RB3
YOUR 307 IN DETAIL
38
Function
Stalk movement
1 – Press (behind) Increase volume.
2 – Press (behind) Decrease volume.
1 + 2 –
Simultaneous press Sound cut off (mute); restoring of the sound by pressing any butto n.
3 – Press Automatic search of higher frequencies (radio)
Selection of the next track (CD).
4 – Press Automatic search of lower frequencies (radio)
Selection of the previous track (CD).
5 – Press the end Change of source (radio/cassette/CD changer).
6 – Rotation (clockwise) Selection of next station stored in the memo ry (radio)
Selection of next CD.
7 – Rotation Selection of previous station stored in the memory (rad io)
(anti clockwise) Selection of previous CD.
Page 37 of 185
09-09-2002
YOUR 307 IN DETAIL39
Button
Function
A RDS RDS function on / off.
Press for more than 2 seconds: regional following mode on/off.
BT ATraffic information priority on/off.
C Press fully: cassette rewind.
D Press fully: fast forward.
C+D Press half way: reversal of direction of play of the cassette.
Press fully: ejection of the cassette.
E Increase setting of functions associated with button G.
F Decrease setting of functions associated with button G.
G Adjustment of bass, treble, loudness
,sound distribution and automatic
volume correction.
H SRC Selection of source: radio, cassette or CD changer.
Press for more than 2 seconds: CD shuffle.
I Manual and automatic search of higher frequency.
Selection of next CD track and PTY (radio).
J Manual and automatic search of lower frequency.
Selection of previous CD track and PTY (radio).
K MAN Manual/automatic operation of buttons Iand Jin radio mode.
L BND Selection of FM1, FM2, FMast and AM wavebands.
AST Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
M Radio on/off. N –
Decrease volume.
O + Increase volume.
1 to 6 123456 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.
1 to 5 12345 Selection of a CD changer disc.
Page 38 of 185
09-09-2002
GENERAL FUNCTIONSOn/off
With the ignition key in the accessories or ignition position , press button Mto switch the set on or off.
The set can operate for 30 minutes without the vehicle ign ition being switched on.
Anti theft system
The audio system is coded in such a way that it can operate on ly on your vehicle. It would not function if fitted to another
vehicle.
The anti theft system is automatic and requires no action on your part.
ADJUSTING THE VOLUME
Press button Oto increase the volume, or button Nto decrease it.
Continuous pressure on buttons Oand Nallows a gradual adjustment of the volume.
AUDIO SETTINGS Press button G several times in succession to access the bass (BASS), treble(TREB), loudness (LOUD),
fader (FAD) , balance (BAL)and automatic volume correction.
Exit from audio mode is automatic after a few seconds without p ressing any button, or by pressing button G
after configuration of the automatic volume correction.
Note: bass and treble settings are specific to each source. It is possibl e to set them differently for radio, cas
sette (RB3) , CD (RD3) and CD changer.
YOUR 307 IN DETAIL
42
Page 39 of 185
09-09-2002
Adjusting the bassWhen "BASS" is displayed, press button Eor Fto vary the setting.
"BASS –9" for a minimum bass setting,
"BASS 0" for a normal setting,
"BASS +9" for a maximum bass setting.
Adjusting the treble
When " TREB" is displayed, press button Eor Fto vary the setting.
"TREB –9" for a minimum treble setting,
"TREB 0" for a normal setting,
"TREB +9" for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones.
Press button Eor Fto switch the function on or off.
Adjusting the front/rear sound distribution (Fader)
When " FA D" is displayed, press button Eor F.
Button Eincreases the volume in the front.
Button Fincreases the volume in the rear.
Adjusting the right/left sound distribution (Balance)
When "BAL" is displayed, press button Eor F.
Button Eincreases the volume on the right hand side.
Button Fincreases the volume on the left hand side.
Automatic volume correction
This function enables the volume to be automatically adjuste d depending on the level of noise produced by the speed of the
vehicle.
Press buttons Eor F to switch the function on or off.
YOUR 307 IN DETAIL 43
Page 40 of 185
09-09-2002
RADIO
Notes on radio reception
Your car radio is subject to phenomena which do not affect domestic radio sets. Both AM (MW/LW) and FM reception are
subject to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the
signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings, etc.), or of being in an area which is not covered by a transmitter.
Selecting radio mode
Audio RB3:press the"SRC" button several times in succession.
Audio RD3: press button P.
Selecting a waveband
Audio RB3:briefly press the "BND/AST"button to select the FM1, FM2, FMast and AM wavebands.
Audio RD3: briefly press button Pto select the FM1, FM2, FMast and AM wavebands.
Automatic station search Briefly press button Ior Jto search for the station immediately above or below. By continu ing to
press the button in the direction selected, you will obtain continuous scrolling of the frequency.
The scrolling stops at the first station found as soon as the button is released.
If the TAtraffic programme is selected, only stations broadcasting this type of programme are
selected.
Searching for a station occurs first in " LO" sensitivity (selection of the most powerful transmitters) during scan ning of the
waveband, then in " DX" sensitivity (selection of the weakest and most distant transmitte rs).
To make a direct search in " DX" sensitivity, press button I or Jtwice.
YOUR 307 IN DETAIL
44
