PEUGEOT 307 BREAK 2003 Owners Manual

29-09-2003
YOUR 307 IN DETAIL133
ANTI-LOCK BRAKING SYSTEM
(ABS) AND THE ELECTRONICBRAKE FORCE DISTRIBUTION(EBFD)
The ABS, in conjunction with the electronic brake force distribution,increases the stability andmanoevrability of your vehicle onbraking, in particular on poor or slip-pery road surfaces. Note: when changing wheels (tyres
and rims), make sure that these are approved. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
When this warning lightcomes on, accompanied bya buzzer and the message"ABS fault" , it indicates
that there is a malfunction of
the ABS, which can cause a loss ofcontrol of the vehicle when braking.
When this warning lightcomes on, connected to the
STOPand ABS warning
lights, accompanied by abuzzer and the message
'Braking fault' , it indicates that there
is a malfunction of the electronicbrake force distribution, which cancause a loss of control of the vehiclewhen braking.
Normal operation of the ABS may make itself felt by slight vibrationsof the brake pedal. In emergency braking, press very firmly without releasingthe pressure.
EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables the optimum braking pres-
sure to be reached more quickly,thus reducing the stopping distance. It is triggered by the speed at which
the brake pedal is activated. The
effect of this is a reduction in theresistance of the pedal and an
increase in braking efficiency.
Stop immediately. In both cases, consult a PEUGEOT
dealer.

29-09-2003
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP) These systems are linked and com-
plement the ABS.
The ASR system optimises drive to prevent the wheels skidding, by act-ing on the brakes of the drive wheelsand on the engine. It also allows thedirectional stability of the vehicle tobe improved on acceleration. If there is a variation between the tra- jectory followed by the vehicle and
that required by the driver, the ESPsystem automatically acts on theengine and the brake of one or morewheels, in order to put the vehicleback on course.Operating check
When a malfunction of thesystems occurs, the switchlight flashes and the warninglight comes on, accompa-nied by an audible signal
and the message "ESP/ASR not
functioning" on the multifunction
display.
Contact a PEUGEOT dealer to have the system checked.
YOUR 307 IN DETAIL
134
Disarming the ASR/ESP systems In exceptional conditions (starting a vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may
be advisable to disarm the ASR and
ESP systems, so that the wheels canmove freely and regain grip.
Press the "ESP OFF" switch,
located on the central section of the fascia.
The switch lights up and thewarning light comes on: the
ASR and ESP systems aredisarmed.
These are triggered again:  automatically if the ignition is
switched off,
 automatically above 30 mph (50 km/h),
 manually by pressing the switchagain.
Operation of the ASR and ESP systems
The warning light flashes if
the ASR or ESP is activated.
The ESP/ASR systems offer exceptional safety innormal driving, but thisshould not encourage thedriver to take extra risks
or drive at high speed. The correct functioning of these systems depends on observationof the manufacturer's recommen-dations regarding the wheels (tyresand rims), the braking components,the electronic components, and thePEUGEOT assembly and opera-tion procedures. After an impact, have the system
checked by a PEUGEOT dealer.

29-09-2003
CRUISE CONTROL Cruise control enables the vehicle to maintain a steady speed pro-
grammed by the driver, regardless ofthe road characteristics and withoutthe driver having to touch the accelera-tor or brake pedals. In order for it to be memorised, the vehicle speed must be greater than25 mph (40 km/h) (manual gearbox)or 40 mph (60 km/h) (automaticgearbox) and fourth gear at leastmust be engaged (second gear forthe automatic gearbox).Operation
Place switch 1in the ONposition.
A speed can be memorised.  Place switch 1in the OFFposi-
tion to cancel.
Memorising a speed As soon as you reach the chosen speed, press button 2or 3. This
memorises the speed, which will be
maintained automatically. Note: It is possible to accelerate and
drive momentarily at a speed greater than the memorised speed. Whenthe accelerator pedal is released, thevehicle will return to the memorisedspeed.
Cancelling the memorised speed If you wish to cancel the memorised speed:  press button 4or the brake or
clutch pedal. Recalling the memorised speed After cancellation, press button
4.
Your vehicle will return to the last memorised speed. Changing a memorised speed
To memorise a speed higher than the previous one:  press button 3;
 release it when you have reached the required speed.
To memorise a speed lower than theprevious one:  appuyez sur la touche 2;
 release it when you have reached the required speed.
Cancelling the cruise control  Place switch 1in the OFFposi-
tion or switch off the ignition.
YOUR 307 IN DETAIL 135
Do not use cruise control on slippery roads or inheavy traffic.

29-09-2003
Selecting the function Place switch 1in the CRUISE posi-
tion. The cruise control is not yet active and no speed has been
memorised. The display indicates:
Switching the function off  Place switch 1in position 0or
LIMIT to switch the system off.
Activation/memorising a speed As soon as you reach the chosen speed, press button 2or 3. This
memorises the speed, which will
be maintained automatically. Thedisplay indicates (e.g. at 80 mph(130 km/h)): Note: It is possible to accelerate and
drive momentarily at a speed greater
than the memorised speed. Thevalue memorised flashes. When theaccelerator pedal is released, thevehicle will return to the memorisedspeed.
CRUISE CONTROL/SPEED LIMITER* Cruise control function:
this enables
the vehicle to maintain a steady speed
programmed by the driver, regardlessof the road characteristics and withoutthe driver having to touch the accelera-tor or brake pedals. In order for it to be memorised, the vehicle speed must be greater than25 mph (40 km/h) with at least fourthgear engaged (second gear for theautomatic gearbox), with the engine
running .
* During the year, according to engine.
YOUR 307 IN DETAIL
136
Cancelling the memorised speed If you wish to cancel the memorised speed: Press button 4or the brake or clutch
pedal. The display indicates (e.g. at 80 mph (130 kmh)):
Note: the speed memorised is can-
celled automatically if the vehiclespeed is less than 25 mph (40 kmh),or if the manual gearbox is in a gearlower than fourth (second gear forthe automatic gearbox) or if the ESPis activated. Recalling the memorised speed After cancellation, press button 4.
Your vehicle will return to the last
memorised speed. The display indi-cates (e.g. at 80 mph (130 km/h)):

29-09-2003
YOUR 307 IN DETAIL137
Changing a memorised speed
To memorise a speed higher than the previous one, there are twooptions: Without using the accelerator:  press button 3;
A brief press increases by 1 mph (1 km/h). An extended press increases the
memorised speed progressively. Using the accelerator:  exceed the memorised speed until the required speed isreached,
 press button 2or 3.
To memorise a speed lower than theprevious one:  press button 2
A brief press decreases by 1 mph
(1 km/h). An extended press decreases
the memorised speed progressively. Cancelling the memorised speed  Place switch 1in position 0or
LIMIT or switch off the ignition. Operating check In the event of a cruise control mal- function, the memorised speed iserased, the dashes flash for a fewseconds:
Contact a PEUGEOT dealer to have the system checked. Note:
the appearance of this display is
normal if the memorising conditions are not met.
Do not use cruise control on slippery roads or inheavy traffic.

29-09-2003
YOUR 307 IN DETAIL
138
Selecting the function
Place switch 1in the LIMIT posi-
tion. The limiter is not yet active. By default the display indicates:
Switching the function off  Place switch 1in position 0or
CRUISE or switch off the ignition to
switch the system off. The last speed programmed remains in the
memory.
Memorising a speed
A speed can be memorised without
activation of the limiter.
A brief press on buttons 2and 3
decreases or increases by 1 mph
(1 km/h). An extended press decreas-es or increases the memorised speed
progressively.
Activation/deactivation of thelimiter
Pressing button 4activates the lim-
iter, pressing this button again deac-tivates it. When the limiter is active, the display indicates (e.g. at 80 mph (130 km/h)):
CRUISE CONTROL/SPEED LIMITER* Limiter function:
this prevents the
vehicle speed exceeding the speed programmed by the driver (minimumspeed of 20 mph (30 km/h)). The operations must be carried out with the engine running.
* During the year, according to engine.
Exceeding the programmed speed Pressing the accelerator to exceed the programmed speed will have no
effect unless the pedal is pressedfirmly (passing the point of resis-
tance) .
The limiter is deactivated temporarily and
displays (e.g. at 80 mph (130 km/h)):
To re-activate the limiter, release the accelerator to slow down to a speedbelow the programmed speed. Note: sometimes (on a steep
descent), the limiter may not prevent the vehicle from exceeding the pro-grammed speed, this speed flashes. Operating check In the event of a limiter malfunction, the memorised speed is erased, thedashes flash for a few seconds:
Contact a PEUGEOT dealer to have the system checked.

29-09-2003
YOUR 307 IN DETAIL139
REAR PARKING ASSISTANCE This system consists of four proximity
sensors, located in the rear bumper,
and a special speaker. This detects any obstacle (person, vehicle, tree, gate, etc.) behind thevehicle. Nevertheless, it cannotdetect obstacles located just below
the bumper. An object, such as a stake, a road- works cone or any other similarobject may be detected at the begin-ning of the manoeuvre, but may nolonger be detected when the vehiclecomes close to it. Note:
this function will be disarmed
automatically when the vehicle is towing a trailer or when a bicycle car-rier is fitted (vehicle fitted with towingattachment or bicycle carrier recom-mended by PEUGEOT).
In bad or wintry weather, ensure that the sensors are not covered with
mud, frost or snow. Activation The system is activated as soon as reverse gear is engaged; an audiblebleep shows that it is active. The proximity information is given by an audible signal, which becomesmore rapid as the vehicle approachesthe obstacle. When the distance between the rear of the vehicle and the obstacle isless than thirty centimetres, the audi-ble signal becomes continuous.Deactivation In neutral, the system is again inactive.
Detection zone
If there is an operating fault, the audible signal willbe a short bleep followedby a long bleep when
changing to reverse gear.

29-09-2003
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions.They work in conjunction with the
force-limiting seat belts. The elec-tronic detectors register and analyseany abrupt deceleration of the vehicle:if the triggering threshold is reached,the air bags inflate instantly and pro-tect the occupants of the vehicle. Immediately after the impact, the air bags deflate rapidly so that they donot hinder the visibility of the occu-pants nor their exit if necessary fromthe vehicle. The air bags are not deployed in the case of collisions which are not serious, for which the seat belt is suf-ficient to ensure maximum protec-
tion. The seriousness of a collisiondepends on the nature of the obstacleand the speed of the vehicle at themoment of the collision. Air bags only operate when the ignition is switched on. Note:the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the passengerair bag is disarmed. Front air bag fault
If this warning light comes on, accompanied by anaudible signal and the mes-sage "Air bag fault" on the
multifunction display, con-
tact a PEUGEOT dealer to have thesystem checked. Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat. Otherwise, thechild would risk being killed orseriously injured if the air bagwere to inflate.
With the ignition switched off ,
insert the key into the passenger air bag disarming switch 1, turn it
to the "OFF"position, then
remove the key keeping the slotin this position.
The air bag warning light on theinstrument panel is lit throughout thedisarming process.
* According to destination.
YOUR 307 IN DETAIL
140

29-09-2003
If the two "Air bag fault" and "Passenger air bag dis-armed" warning lights come
on permanently, do not
install a rearward facing child seat
and consult a PEUGEOT dealer.In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the"ON" position to re-activate the air
bag and thus ensure the safety ofyour passenger in the event of animpact. Disarming check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multifunc-
tion display.
With the ignition on (2ndnotch), illumination of thiswarning light accompaniedby an audible signal and the
message "Passenger air bag deacti-
vated" on the multi-function display,
indicates that the passenger air bag isdisarmed (switch in the "OFF" posi-
tion).SIDE AIR BAGS* AND CURTAIN AIR BAGS*
The side air bags are incorporated into the front seat backs on the doorside.
The curtain air bags are incorporatedinto the door pillars and the upper partof the passenger compartment. They are deployed independently of
each other, on whichever side the col-lision occurs. Operating check This is confirmed by an indicator light, accompanied by an audible signal anda message on the multifunction dis-
play.
If this indicator light comeson, accompanied by an audi-ble signal and the message"Air bag fault" on the multi-
function display, contact a
PEUGEOT dealer to have the systemchecked.
* According to destination.
YOUR 307 IN DETAIL 141

29-09-2003
YOUR 307 IN DETAIL
142

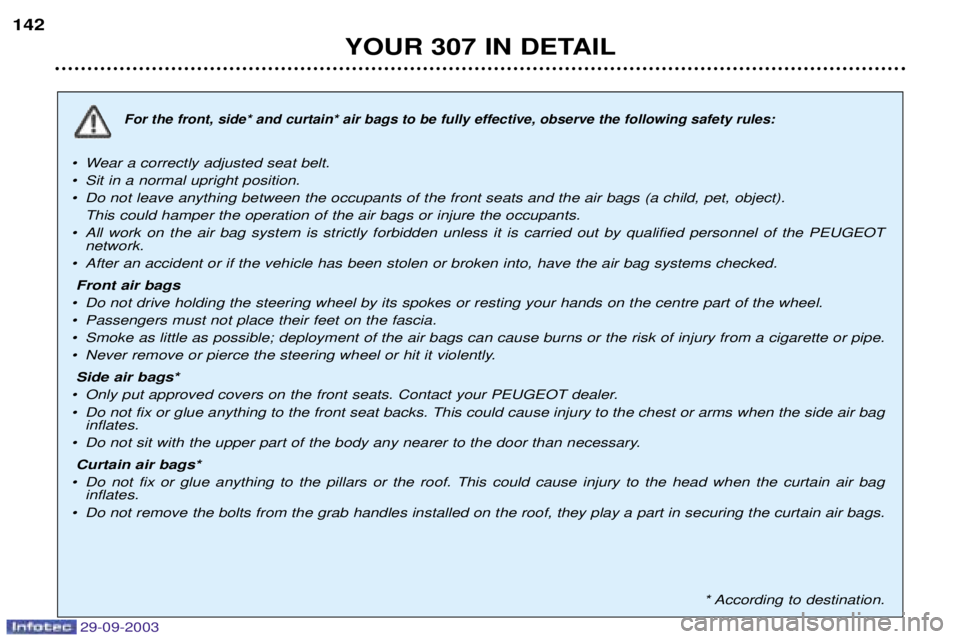

For the front, side* and curtain* air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object).
This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags*
¥ Do not fix or glue anything to the pillars or the roof. This could cause injury to the head when the curtain air bag inflates.
¥ Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.
* According to destination.
