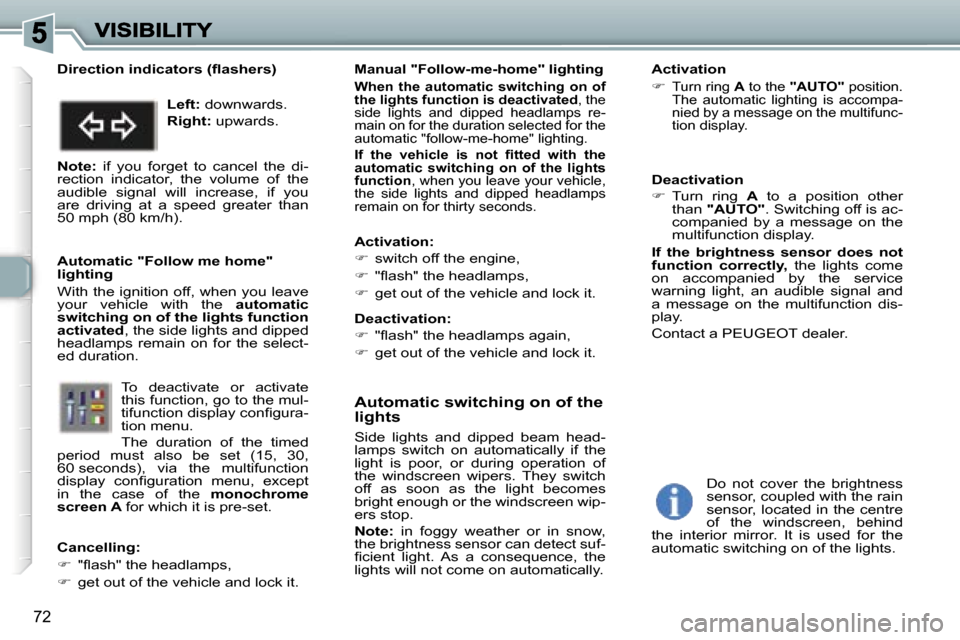

72
Automatic switching on of the lights
Side lights and dipped beam head-lamps switch on automatically if the light is poor, or during operation of the windscreen wipers. They switch off as soon as the light becomes bright enough or the windscreen wip-ers stop.
Note: in foggy weather or in snow, the brightness sensor can detect suf-ficient light. As a consequence, the lights will not come on automatically.
Deactivation
 Turn ring A to a position other than "AUTO". Switching off is ac-companied by a message on the multifunction display.
If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a message on the multifunction dis-play.
Contact a PEUGEOT dealer.
Manual "Follow-me-home" lighting
When the automatic switching on of the lights function is deactivated, the side lights and dipped headlamps re-main on for the duration selected for the automatic "follow-me-home" lighting.
If the vehicle is not fitted with the automatic switching on of the lights function, when you leave your vehicle, the side lights and dipped headlamps remain on for thirty seconds.
Direction indicators (flashers)
Left: downwards.
Right: upwards.
Note: if you forget to cancel the di-rection indicator, the volume of the audible signal will increase, if you are driving at a speed greater than 50 mph (80 km/h).
Automatic "Follow me home" lighting
With the ignition off, when you leave your vehicle with the automatic switching on of the lights function activated, the side lights and dipped headlamps remain on for the select-ed duration.
Activation:
 switch off the engine,
 "flash" the headlamps,
 get out of the vehicle and lock it.
Deactivation:
 "flash" the headlamps again,
 get out of the vehicle and lock it.
To deactivate or activate this function, go to the mul-tifunction display configura-tion menu.
The duration of the timed period must also be set (15, 30, 60 seconds), via the multifunction display configuration menu, except in the case of the monochrome screen A for which it is pre-set.
Cancelling:
 "flash" the headlamps,
 get out of the vehicle and lock it.
Activation
Turn ring A to the "AUTO" position. The automatic lighting is accompa-nied by a message on the multifunc-tion display.
Do not cover the brightness sensor, coupled with the rain sensor, located in the centre of the windscreen, behind the interior mirror. It is used for the automatic switching on of the lights.

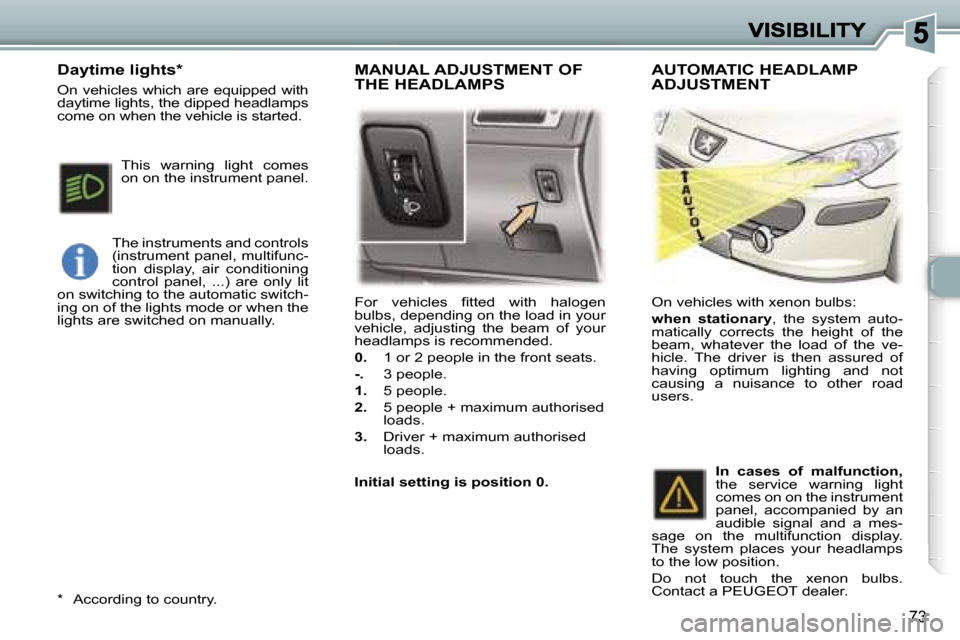

73
For vehicles fitted with halogen bulbs, depending on the load in your vehicle, adjusting the beam of your headlamps is recommended.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised loads.
3. Driver + maximum authorised loads.
Initial setting is position 0.
On vehicles with xenon bulbs:
when stationary,the system auto-matically corrects the height of the beam, whatever the load of the ve-hicle. The driver is then assured ofhaving optimum lighting and not causing a nuisance to other roadusers.
In cases of malfunction, the service warning light comes on on the instrument panel, accompanied by an audible signal and a mes-sage on the multifunction display. The system places your headlamps to the low position.
Do not touch the xenon bulbs.Contact a PEUGEOT dealer.
Daytime lights*
On vehicles which are equipped with daytime lights, the dipped headlamps come on when the vehicle is started.
* According to country.
The instruments and controls (instrument panel, multifunc-tion display, air conditioning control panel, ...) are only lit on switching to the automatic switch-ing on of the lights mode or when the lights are switched on manually.
This warning light comes on on the instrument panel.
MANUAL ADJUSTMENT OF
THE HEADLAMPSAUTOMATIC HEADLAMP ADJUSTMENT

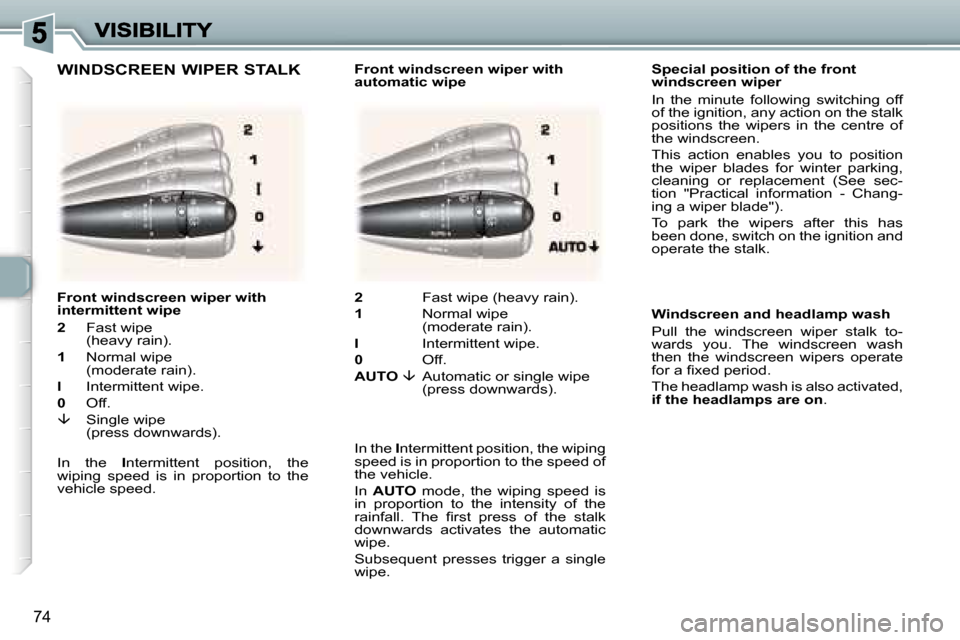

74
Special position of the front windscreen wiper
In the minute following switching off of the ignition, any action on the stalk positions the wipers in the centre of the windscreen.
This action enables you to position the wiper blades for winter parking, cleaning or replacement (See sec-tion "Practical information - Chang-ing a wiper blade").
To park the wipers after this has been done, switch on the ignition and operate the stalk.
Windscreen and headlamp wash
Pull the windscreen wiper stalk to-wards you. The windscreen wash then the windscreen wipers operate for a fixed period.
The headlamp wash is also activated, if the headlamps are on.
WINDSCREEN WIPER STALK
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
AUTO  Automatic or single wipe (press downwards).
In the Intermittent position, the wiping speed is in proportion to the speed of the vehicle.
In AUTO mode, the wiping speed is in proportion to the intensity of the rainfall. The first press of the stalk downwards activates the automatic wipe.
Subsequent presses trigger a single wipe.
Front windscreen wiper with intermittent wipe
2 Fast wipe(heavy rain).
1 Normal wipe(moderate rain).
l Intermittent wipe.
0 Off.
 Single wipe(press downwards).
In the Intermittent position, the wiping speed is in proportion to the vehicle speed.
Front windscreen wiper with automatic wipe

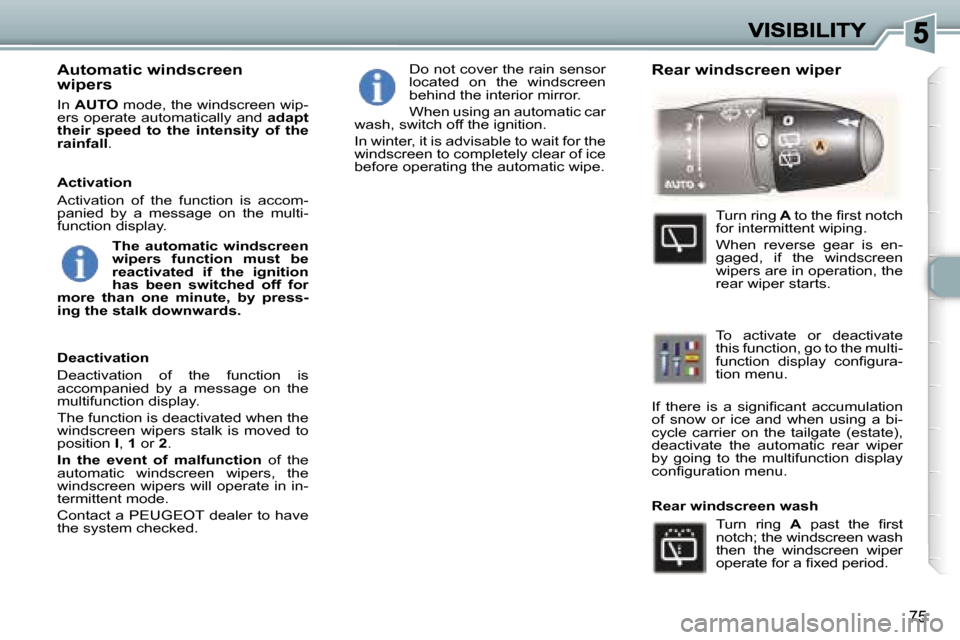

75
Automatic windscreenwipers
In AUTO mode, the windscreen wip-ers operate automatically and adapt their speed to the intensity of the rainfall.
Do not cover the rain sensor located on the windscreen behind the interior mirror.
When using an automatic car wash, switch off the ignition.
In winter, it is advisable to wait for the windscreen to completely clear of ice before operating the automatic wipe.Activation
Activation of the function is accom-panied by a message on the multi-function display.
Rear windscreen wiper
To activate or deactivate this function, go to the multi-function display configura-tion menu.
If there is a significant accumulation of snow or ice and when using a bi-cycle carrier on the tailgate (estate), deactivate the automatic rear wiper by going to the multifunction display configuration menu.
Rear windscreen wash
Deactivation
Deactivation of the function is accompanied by a message on the multifunction display.
The function is deactivated when the windscreen wipers stalk is moved to position I, 1 or 2.
In the event of malfunction of the automatic windscreen wipers, the windscreen wipers will operate in in-termittent mode.
Contact a PEUGEOT dealer to have the system checked.Turn ring A past the first AAnotch; the windscreen wash then the windscreen wiper operate for a fixed period.
Turn ring A to the first notch for intermittent wiping.
When reverse gear is en-gaged, if the windscreen wipers are in operation, the rear wiper starts.
The automatic windscreen wipers function must be reactivated if the ignition has been switched off for more than one minute, by press-ing the stalk downwards.

75
Automatic windscreenwipers
In AUTO mode, the windscreen wip-ers operate automatically and adapt their speed to the intensity of the rainfall.
Do not cover the rain sensor located on the windscreen behind the interior mirror.
When using an automatic car wash, switch off the ignition.
In winter, it is advisable to wait for the windscreen to completely clear of ice before operating the automatic wipe.Activation
Activation of the function is accom-panied by a message on the multi-function display.
Rear windscreen wiper
To activate or deactivate this function, go to the multi-function display configura-tion menu.
If there is a significant accumulation of snow or ice and when using a bi-cycle carrier on the tailgate (estate), deactivate the automatic rear wiper by going to the multifunction display configuration menu.
Rear windscreen wash
Deactivation
Deactivation of the function is accompanied by a message on the multifunction display.
The function is deactivated when the windscreen wipers stalk is moved to position I, 1 or 2.
In the event of malfunction of the automatic windscreen wipers, the windscreen wipers will operate in in-termittent mode.
Contact a PEUGEOT dealer to have the system checked.Turn ring A past the first AAnotch; the windscreen wash then the windscreen wiper operate for a fixed period.
Turn ring A to the first notch for intermittent wiping.
When reverse gear is en-gaged, if the windscreen wipers are in operation, the rear wiper starts.
The automatic windscreen wipers function must be reactivated if the ignition has been switched off for more than one minute, by press-ing the stalk downwards.

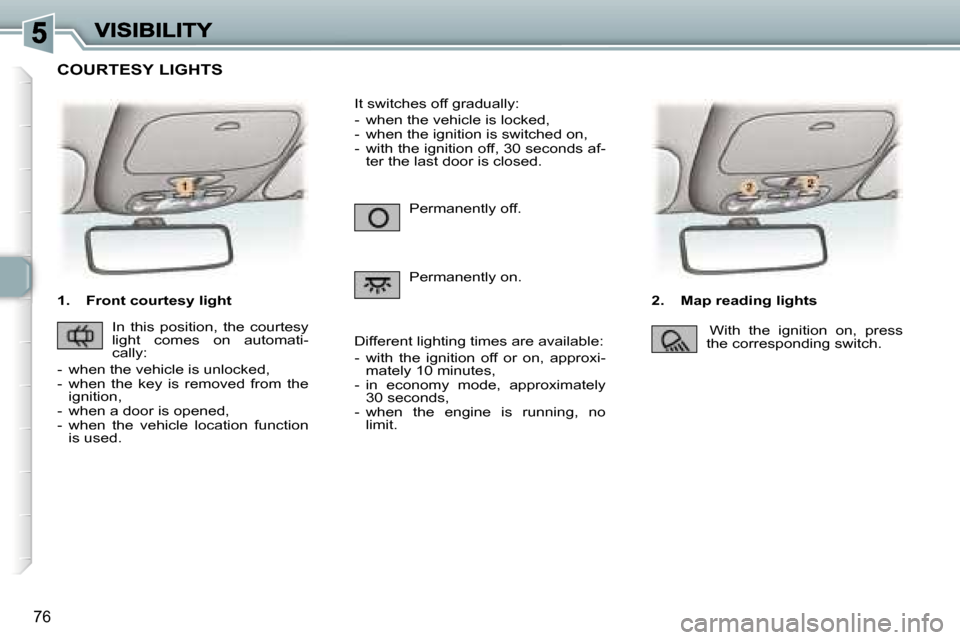

76
1. Front courtesy light2. Map reading lights
Permanently off.
Permanently on.
It switches off gradually:
- when the vehicle is locked,- when the ignition is switched on,- with the ignition off, 30 seconds af-ter the last door is closed.
In this position, the courtesy light comes on automati-cally:
- when the vehicle is unlocked,- when the key is removed from the ignition,- when a door is opened,- when the vehicle location function is used.
Different lighting times are available:
- with the ignition off or on, approxi-mately 10 minutes,- in economy mode, approximately 30 seconds,- when the engine is running, nolimit.
With the ignition on, press the corresponding switch.
COURTESY LIGHTS

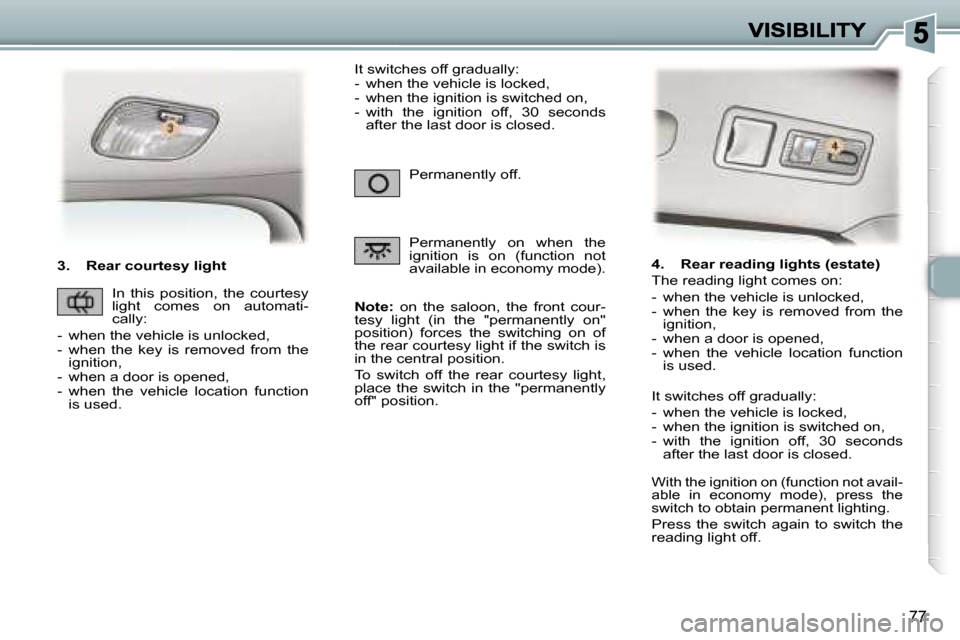

77
3. Rear courtesy light
Note: on the saloon, the front cour-tesy light (in the "permanently on" position) forces the switching on of the rear courtesy light if the switch is in the central position.
To switch off the rear courtesy light, place the switch in the "permanently off" position.
In this position, the courtesy light comes on automati-cally:
- when the vehicle is unlocked,- when the key is removed from the ignition,- when a door is opened,- when the vehicle location function is used.
Permanently off.
Permanently on when the ignition is on (function not available in economy mode).
It switches off gradually:- when the vehicle is locked,- when the ignition is switched on,- with the ignition off, 30 seconds after the last door is closed.
4. Rear reading lights (estate)
The reading light comes on:
- when the vehicle is unlocked,- when the key is removed from the ignition,- when a door is opened,- when the vehicle location function is used.
It switches off gradually:
- when the vehicle is locked,- when the ignition is switched on,- with the ignition off, 30 secondsafter the last door is closed.
With the ignition on (function not avail-able in economy mode), press the switch to obtain permanent lighting.
Press the switch again to switch the reading light off.

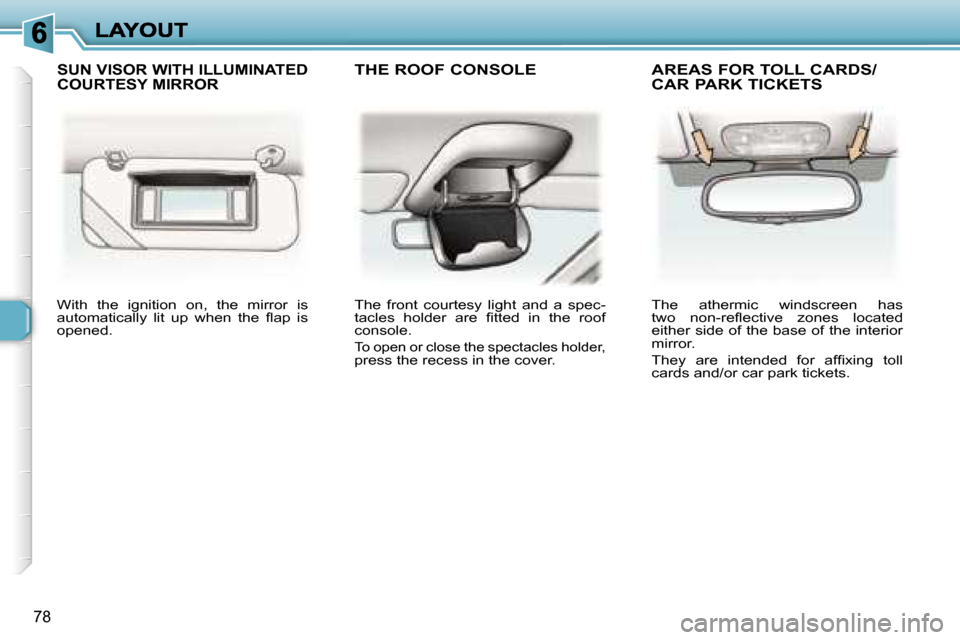

78
With the ignition on, the mirror is automatically lit up when the flap is opened.
The front courtesy light and a spec-tacles holder are fitted in the roof console.
To open or close the spectacles holder,press the recess in the cover.
The athermic windscreen has two non-reflective zones located either side of the base of the interior mirror.
They are intended for affixing toll cards and/or car park tickets.
SUN VISOR WITH ILLUMINATED
COURTESY MIRRORTHE ROOF CONSOLE AREAS FOR TOLL CARDS/ CAR PARK TICKETS

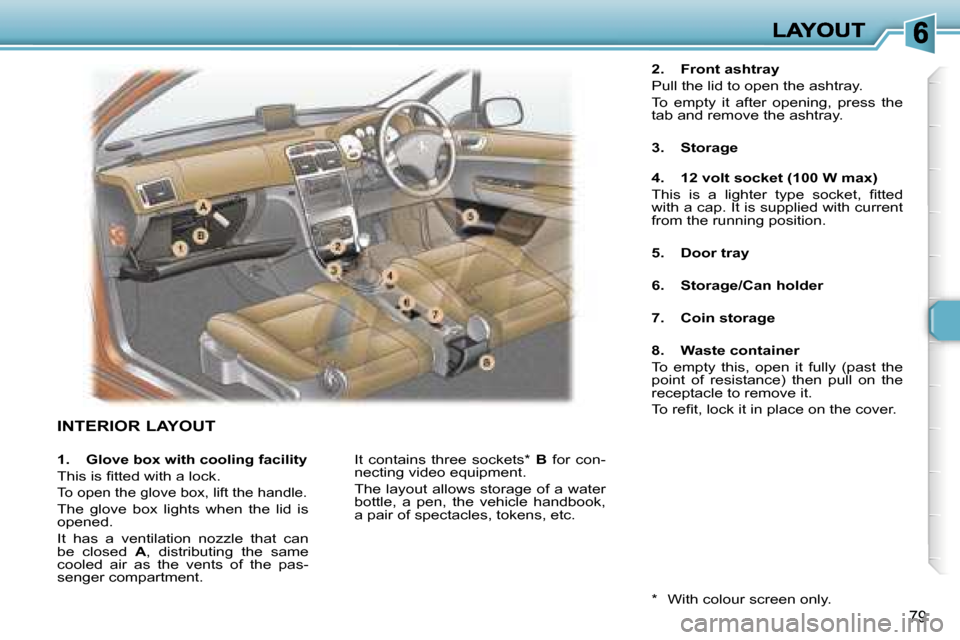

79
INTERIOR LAYOUT
2. Front ashtray
Pull the lid to open the ashtray.
To empty it after opening, press the tab and remove the ashtray.
3. Storage
4. 12 volt socket (100 W max)
This is a lighter type socket, fitted with a cap. It is supplied with current from the running position.
5. Door tray
6. Storage/Can holder
7. Coin storage
8. Waste container
To empty this, open it fully (past the point of resistance) then pull on the receptacle to remove it.
To refit, lock it in place on the cover.
It contains three sockets* B for con-necting video equipment.
The layout allows storage of a water bottle, a pen, the vehicle handbook, a pair of spectacles, tokens, etc.
* With colour screen only.
1. Glove box with cooling facility
This is fitted with a lock.
To open the glove box, lift the handle.
The glove box lights when the lid is opened.
It has a ventilation nozzle that can be closed A, distributing the same cooled air as the vents of the pas-senger compartment.

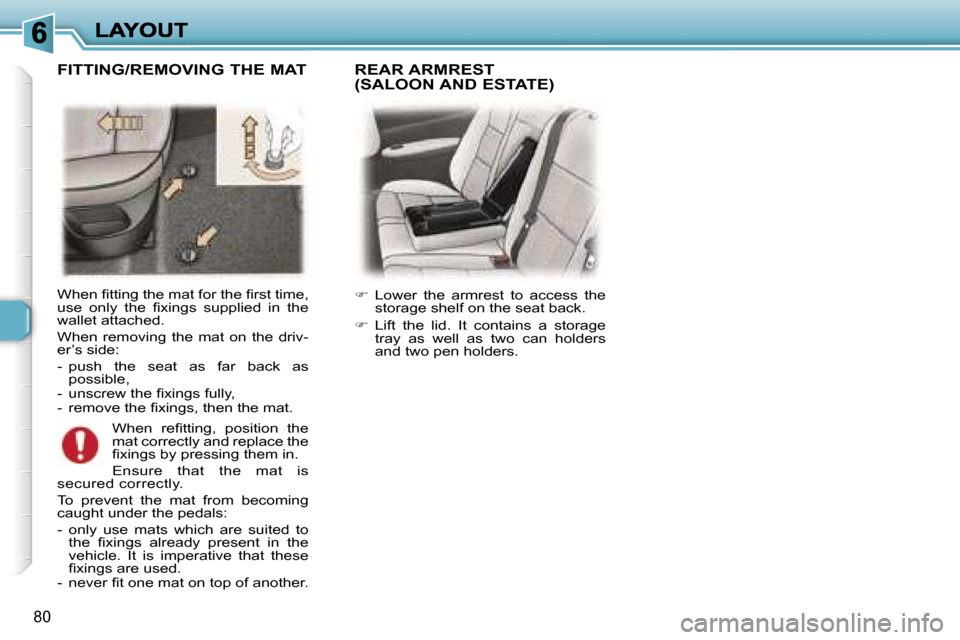

80
When fitting the mat for the first time, use only the fixings supplied in the wallet attached.
When removing the mat on the driv-er’s side:
- push the seat as far back as possible,- unscrew the fixings fully,- remove the fixings, then the mat.
FITTING/REMOVING THE MAT
When refitting, position the mat correctly and replace the fixings by pressing them in.
Ensure that the mat is secured correctly.
To prevent the mat from becoming caught under the pedals:
- only use mats which are suited to the fixings already present in the vehicle. It is imperative that these fixings are used.- never fit one mat on top of another.
 Lower the armrest to access the storage shelf on the seat back.
 Lift the lid. It contains a storage tray as well as two can holders and two pen holders.
REAR ARMREST
(SALOON AND ESTATE)
