YOUR 307 AT A GLANCE
1. Driver's airbag. Horn.
2. Lights and direction indicators stalk.
3. Audio remote control stalk.
4. Instrument dials.
5. Windscreen wash-wipe stalk.
Trip computer stalk.
6. Alarm button.
7. Central locking button.
8. Hazard warning lights switch.
9. Multifunction display.
10. Brightness sensor.
11. Dynamic Stability control (ESP/ASR) switch*.
12. Central adjustable hea- ting/ ventilation vent and air flow regulation. 13. Windscreen demisting
vents.
14. Speaker (tweeter) location.
15. Side window demisting vent.
16. Side adjustable heating/ ventilation vent and air flow regulation.
17. Passenger air bag.
18. Glove box.
19. RB3, RD3 audio equipment.
20. Heated seat switches.
21. CD changer.
22. Heating / air conditioning controls.
23. Front ashtray.
24. Rear footwell heating vent.
25. 12 V accessories socket. 26. Gear lever.
27. Cup / can holder.
28. Handbrake.
29. Rubbish container.
30. Coin storage.
Passenger air bag disarming switch.
31. Steering lock and ignition.
32. Steering wheel adjustment control.
33. Fuse box.
34. Electric mirror controls. Window controls. Rear window lockingcontrol.
35. Headlamp height adjustment.
36. Cruise control.
* During the year. 3

STEERING WHEEL
STALKS LIGHTING
Front and rear lights (ring A)Lights off. Side lights on.
Dipped/ main beam headlampson. Automatic switching on of lights*
Front fog lamps * and rear foglamp
Turn the ring towards the front to switch on and towards the rear to
switch off. The on/off status isshown by the indicator light onthe instrument panel. Vehicles fitted with a rear foglamp (ring B)
Rear fog lamp.
Vehicles fitted with front foglamps and a rear fog lamp(ring C) Front fog lamps (first rota-tion of the ring forwards).
Front fog lampsand rear fog lamp(second rotation ofthe ring
forwards)
* According to specification WINDSCREEN WIPERS Front
2 Rapid wipe (heavy rain)
1 Normal wipe (moderately heavy rain)
AUTO Automatic wipe*
0 Stop
Single wipe
Wash-wipe: pull the stalktowards you. Rear
Stop Intermittent W ash-
wipe wipe
Automatic wipe*In the AUTO position,
the system automatically adjusts the wiper timingto the intensity of therainfall.
7274
YOUR 307 AT A GLANCE5

Operating checkWith the ignition switched on (2nd notch on the key),the warning light comingon, accompanied by an
audible signal and the message"Passenger air bag disarmed"
on the multifunction display, indi-cates that the passenger air bag isdisarmed ( "OFF"position).
The warning light remains onthroughout the disarming process. Side air bags* and curtain air bags** Side air bags are incorporated into the front seat back frame, onthe door side. Curtain air bags are incorporated into the door pillars and the top ofthe passenger compartment. They are deployed independently
of each other, depending onwhich side the collision occurs.
* According to country.
** According to specifi- cation.
AIR BAGS The air bag system has been desi- gned to maximise the safety of theoccupants in the event of seriouscollisions. It works in conjunctionwith the force limiting seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the passenger air bag ➜
disarm the air bag if you ins- tall a rear facing child seat,
➜ activate the air bag for an
adult passenger.
9192
Disarming the passenger air bag* ➜with the ignition off, insert the key into slot 1and turn the
passenger air bag switch tothe "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the"ON" position, to activate the air
bag again.
8
YOUR 307 AT A GLANCE

STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT ➜Pull handle Ato unlock the
steering wheel.
➜ Adjust the height and depth of the steering wheel.
➜ Lock it by pushing handle Ain
fully.
ELECTRIC WINDOWS 1. Driver's electric window
2. Passenger's electric window.3. Rear right electric window*.4. Rear left electric window*.5. Disarming the rear window switches*. Safety auto-reverse*:
When the driver's window is closing and meets an obstacle, it stops and lowersagain.
ELECTRIC MIRRORS*
Manual mode: ➜ Press or pull the switch lightly. The window stops as soon asthe switch is released. Automatic mode*: ➜
Press or pull the switch firmly. One touch completely opens
or closes the window.
➜ Turn button 6to the right or left
to select the corresponding
mirror.
➜ Then move the button 7in all
four directions to adjust.
➜ Turn button 6back to the
centre position. When parking the vehicle, themirrors can be folded back
manually, electrically* bypulling button
6rear-
wards or automatically*on locking the vehicle.
* According to specification
78
7980
9YOUR 307 AT A GLANCE

PEUGEOT SERVICING25
PEUGEOT SERVICING: A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation 1st service
A C Intermediate
DRAIN/REFILL- Engine oil.- Bleed fuel filter (diesel).- Oil filter.- Fuel filter (petrol).REPLACE- Fuel filter element (diesel).- Air filter element.- Spark plugs (petrol).- Engine oil (check + top-up). - Manual gearbox oil (check + top-up).- Battery (check + top-up) if cap is removable.LEVEL- Screen wash (check + top-up).- Coolant (check + top-up).- Brake fluid (check + top-up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of the ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers).CHECK- Condition of rubber boots and gaiters.- Brake pads. - Play in hubs, link rods, ball joints, flexible mountings.- Shock absorbers.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check as per current legislation (petrol).- Smoke opacity (diesel).- Pollen filter (according to specification). - Visual check of the whole vehicle.
SERVICE- Courtesy vehicle.
ROAD TEST
: All driving conditions: Arduous conditions

ADJUSTING THE HEADLAMPS Depending on the load in your vehicle, adjusting the beam of theheadlamps is recommended as fol-lows. 0 1 or 2 people in the front seats.
- 3 people.
1 5 people.
2 5 people + maximum authorised load.
3 Driver + maximum authorisedload.
Initial setting is position 0. HAZARD WARNING LIGHTS Press the button, the direction indi- cators flash. They can operate with the ignition
off. Automatic lighting of hazard warning lights* When braking in an emergency (depending on the force of decelera-tion), the hazard warning lights come
on automatically. They switch offautomatically the first time you acce-lerate.
However, it is also possible to switch
them off by pressing the button.
* According to specificationSTEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
When the vehicle is stationary, unlock the steering wheel by pullinghandle
A.
Adjust the height and depth of thesteering wheel, then lock it bypushing handle Adown fully.
HORN Press one of the spokes or the centre of the steering wheel.
YOUR 307 IN DETAIL
80

Front air bag malfunctionIf this warning light comes on, accompanied by a buz-zer and the message "Air
bag fault" on the multifunc-
tion display, contact a
PEUGEOT dealer to have the sys-tem checked.
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions;they work in conjunction with theforce limiting seat belts. In the event of a serious collision, the electronic detectors record and ana-lyse any abrupt deceleration of thevehicle: if the triggering threshold isreached, the air bags inflate instantlyand protect the occupants of thevehicle. Immediately after the impact, the air
bags deflate rapidly, so that they donot hinder the visibility of the occu-pants nor their possible exit from thevehicle. The air bags will not be deployed in collisions which are not serious, for
which the seat belt is sufficient to
provide maximum protection. Theseriousness of the collision dependson the nature of the obstacle and thespeed of the vehicle at the momentof impact. Air bags operate only when the ignition is switched on. Note: the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the air bag isdisarmed.
Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat.
With the ignition switched off, insert the key into the passengerair bag disarming slot 1, turn it to
the "OFF" position, then remove
it keeping it in this position.
The air bag warning light on the instru-ment panel is lit throughout the disar-ming process.
* According to country
YOUR 307 IN DETAIL
91

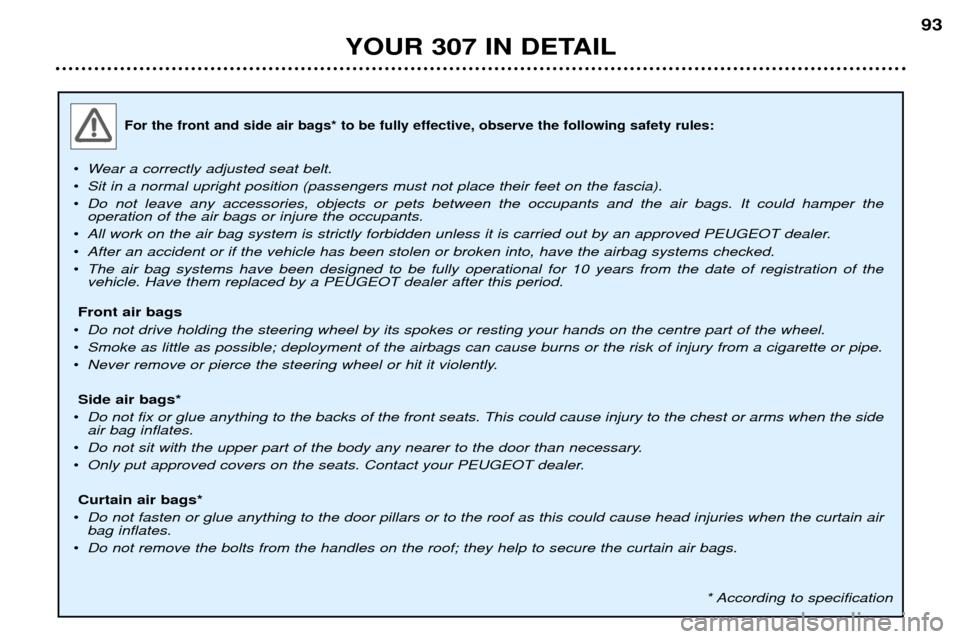

For the front and side air bags* to be fully effective, observe the following safety rules:
¥Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position (passengers must not place their feet on the fascia).
¥ Do not leave any accessories, objects or pets between the occupants and the air bags. It could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by an approved PEUGEOT dealer.
¥ After an accident or if the vehicle has been stolen or broken into, have the airbag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years from the date of registration of thevehicle. Have them replaced by a PEUGEOT dealer after this period.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Smoke as little as possible; deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Do not fix or glue anything to the backs of the front seats. This could cause injury to the chest or arms when the sideair bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
¥ Only put approved covers on the seats. Contact your PEUGEOT dealer.
Curtain air bags*
¥ Do not fasten or glue anything to the door pillars or to the roof as this could cause head injuries when the curtain airbag inflates.
¥ Do not remove the bolts from the handles on the roof; they help to secure the curtain air bags.
* According to specification
YOUR 307 IN DETAIL93

For the front and side air bags* to be fully effective, observe the following safety rules:
¥Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position (passengers must not place their feet on the fascia).
¥ Do not leave any accessories, objects or pets between the occupants and the air bags. It could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by an approved PEUGEOT dealer.
¥ After an accident or if the vehicle has been stolen or broken into, have the airbag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years from the date of registration of thevehicle. Have them replaced by a PEUGEOT dealer after this period.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Smoke as little as possible; deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Do not fix or glue anything to the backs of the front seats. This could cause injury to the chest or arms when the sideair bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
¥ Only put approved covers on the seats. Contact your PEUGEOT dealer.
Curtain air bags*
¥ Do not fasten or glue anything to the door pillars or to the roof as this could cause head injuries when the curtain airbag inflates.
¥ Do not remove the bolts from the handles on the roof; they help to secure the curtain air bags.
* According to specification
YOUR 307 IN DETAIL93

PRACTICAL INFORMATION107
Fuse no. Rating*
Functions*
9 30 A Electric windows - Press operation windows (incompatible with non-press operation windows) - Sunroof.
10 15 A Diagnostic socket - 12 volts rear socket.
11 15 A Audio equipment - Multifunction display B - Steering whel controls - Automatic gearbox.
12 10 A Front right side lights, rear right side lights, number plate and trailer lighting -
Central locking switches/ alarm/ESP/hazard warning lights - Air conditioning/ash
tray light - Heated seats switches - Lighter - Automatic gearbox switches -
Headlamp beam corrector.
14 30 A Door opening/closing controls - Deadlocking controls.
15 30 A Rear windows.
16 5 A Engine fuse box - Alarm - Particulate emission filter - Steering wheel controls - Airbags.
17 10 A Rear right brake light, additional brake light Front electric window/sunroof.
18 10 A Diagnostic socket - Steering wheel controls - Brake pedal (stop) and clutch switches - Coolant level switch - Second brake switch.
19 30 A PARC shunt.
22 10 A Front left side light, rear left side light - Number plate and trailer lighting.
23 15 A Alarm siren - Interior alarm control unit.
24 15 A Instrument panel - Audio equipment - Multifunction display - Air conditioning.
26 30 A Heated rear screen.
* According to specification
