Page 118 of 184
10
i
102
PRACTICAL INFORMATION
P u s h t h e r e p e a t e r f o r w a r d s a n d
release it.
R e m o v e t h e r e p e a t e r a n d c h a n g e i t .
These can be obtained from a
PEUGEOT dealer.
3. Side lights (W 5 W).
R e m o v e t h e p r o t e c t i v e c o v e r
c o r r e s p o n d i n g t o t h e f a u l t y b u l b .
Disconnect the connector.
Remove the bulb and change it.
4. Direction indicators (PY 21 W amber).
T u r n t h e b u l b h o l d e r a q u a r t e r o f
a turn and remove it.
Change the bulb.
Note : in certain climatic conditions
( l o w t e m p e r a t u r e , h u m i d i t y ) , conden-
sation inside the headlamp glass is
normal ; i t d i s a p p e a r s a f e w m i n u t e s
a f t e r t h e l i g h t s a r e s w i t c h e d o n
. Contact a PEUGEOT dealer to have
these bulbs changed.
5. Fog lamps (H11-55 W). Integrated direction indicator side
repeaters.
A m b e r c o l o u r e d b u l b s , s u c h a s
t h e d i r e c t i o n i n d i c a t o r s , m u s t b e
r e p l a c e d w i t h b u l b s o f i d e n t i c a l
s p e c i i c a t i o n a n d c o l o u r .

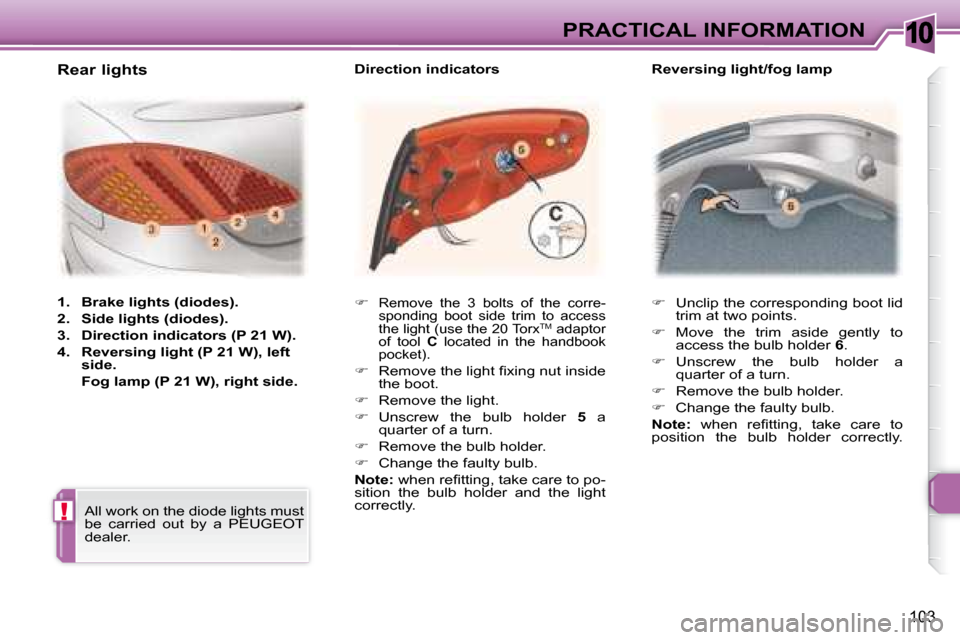

Page 119 of 184
10
!
103
PRACTICAL INFORMATION
U n c l i p t h e c o r r e s p o n d i n g b o o t l i d
t r i m a t t w o p o i n t s .
Move the trim aside gently to
access the bulb holder 6 .
U n s c r e w t h e b u l b h o l d e r a
q u a r t e r o f a t u r n .
Remove the bulb holder.
Change the faulty bulb.
Note: w h e n r e i t t i n g , t a k e c a r e t o
p o s i t i o n t h e b u l b h o l d e r c o r r e c t l y .
1. Brake lights (diodes).
2. Side lights (diodes).
3. Direction indicators (P 21 W).
4. Reversing light (P 21 W), left
side.
Fog lamp (P 21 W), right side.
Remove the 3 bolts of the corre-
s p o n d i n g b o o t s i d e t r i m t o a c c e s s
the light (use the 20 Torx
TM a d a p t o r
of tool C located in the handbook
p o c k e t ) .
R e m o v e t h e l i g h t i x i n g n u t i n s i d e
the boot.
Remove the light.
U n s c r e w t h e b u l b h o l d e r 5 a
q u a r t e r o f a t u r n .
Remove the bulb holder.
Change the faulty bulb.
Note: w h e n r e i t t i n g , t a k e c a r e t o p o -
sition the bulb holder and the light
correctly.
Rear lights Direction indicators Reversing light/fog lamp
A l l w o r k o n t h e d i o d e l i g h t s m u s t
be carried out by a PEUGEOT
dealer.
