PEUGEOT 307 CC DAG 2007 Owner's Guide

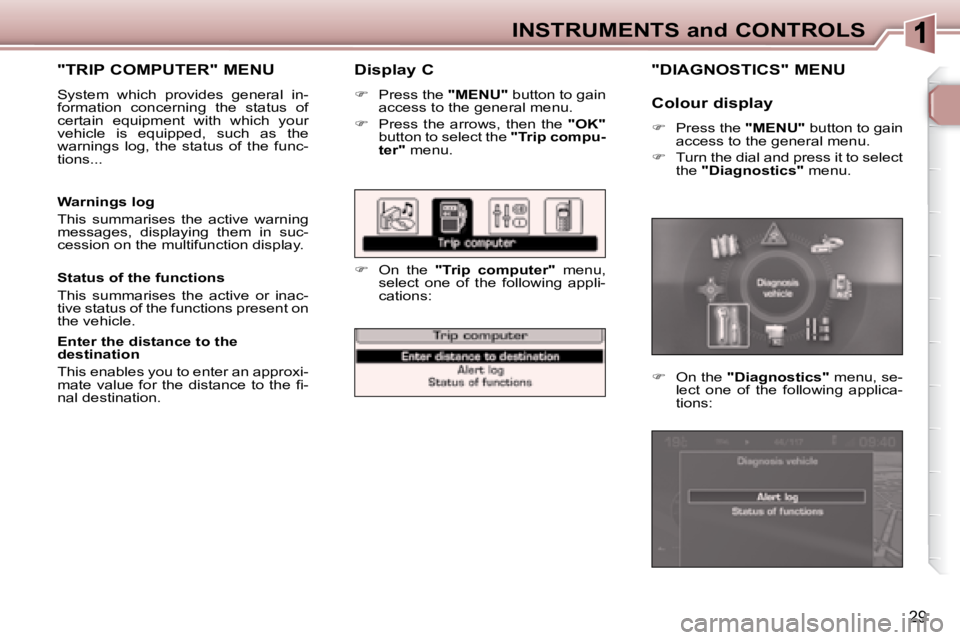

29
INSTRUMENTS and CONTROLS
Display C

 Press the "MENU" button to gain
access to the general menu.

 Press the arrows, then the "OK"
button to select the "Trip compu-
ter" menu.

 On the "Trip computer" menu,
select one of the following appli-
cations:
Warnings log
This summarises the active warning
messages, displaying them in suc-
cession on the multifunction display.
Status of the functions
This summarises the active or inac-
tive status of the functions present on
the vehicle.
Enter the distance to the
destination
This enables you to enter an approxi-
mate value for the distance to the i -
nal destination.
"TRIP COMPUTER" MENU
System which provides general in-
formation concerning the status of
certain equipment with which your
vehicle is equipped, such as the
warnings log, the status of the func-
tions...
"DIAGNOSTICS" MENU

 On the "Diagnostics" menu, se-
lect one of the following applica-
tions:
Colour display

 Press the "MENU" button to gain
access to the general menu.

 Turn the dial and press it to select
the "Diagnostics" menu.

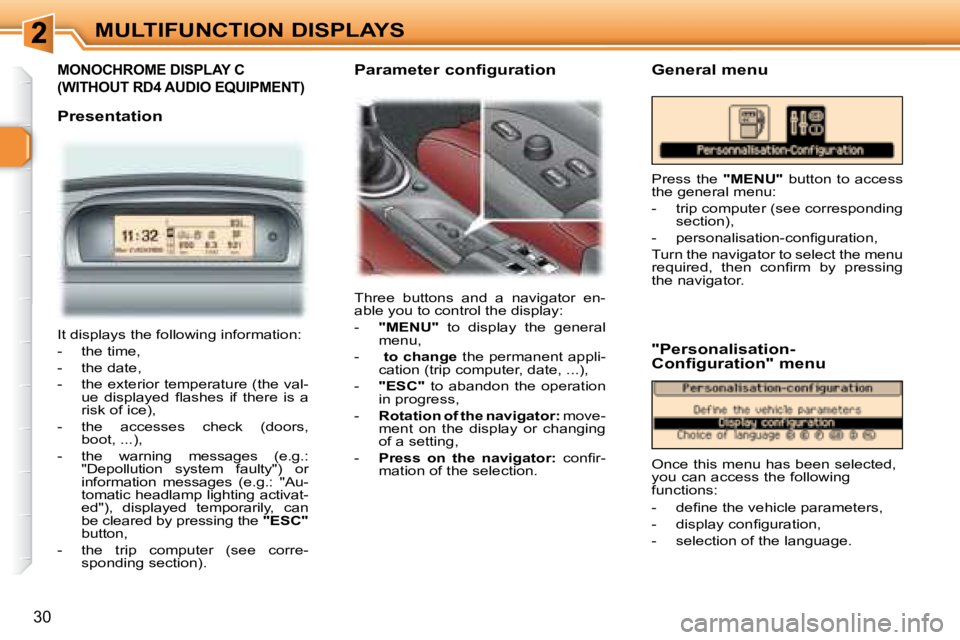

30
MULTIFUNCTION DISPLAYS
MONOCHROME DISPLAY C
(WITHOUT RD4 AUDIO EQUIPMENT)
Presentation
Three buttons and a navigator en-
able you to control the display:
- "MENU" to display the general
menu,
- to change the permanent appli-
cation (trip computer, date, ...),
- "ESC" to abandon the operation
in progress,
- Rotation of the navigator: move-
ment on the display or changing
of a setting,
- Press on the navigator: coni r-
mation of the selection.
It displays the following information:
- the time,
- the date,
- the exterior temperature (the val-
ue displayed l ashes if there is a
risk of ice),
- the accesses check (doors, boot, ...),
- the warning messages (e.g.: "Depollution system faulty") or
information messages (e.g.: "Au-
tomatic headlamp lighting activat-
ed"), displayed temporarily, can
be cleared by pressing the "ESC"
button,
- the trip computer (see corre- sponding section). Press the
"MENU" button to access
the general menu:
- trip computer (see corresponding section),
- personalisation-coni guration,
Turn the navigator to select the menu
required, then coni rm by pressing
the navigator.
Once this menu has been selected,
you can access the following
functions:
- dei ne the vehicle parameters,
- display coni guration,
- selection of the language.
Parameter configuration General menu
"Personalisation-
Configuration" menu

!

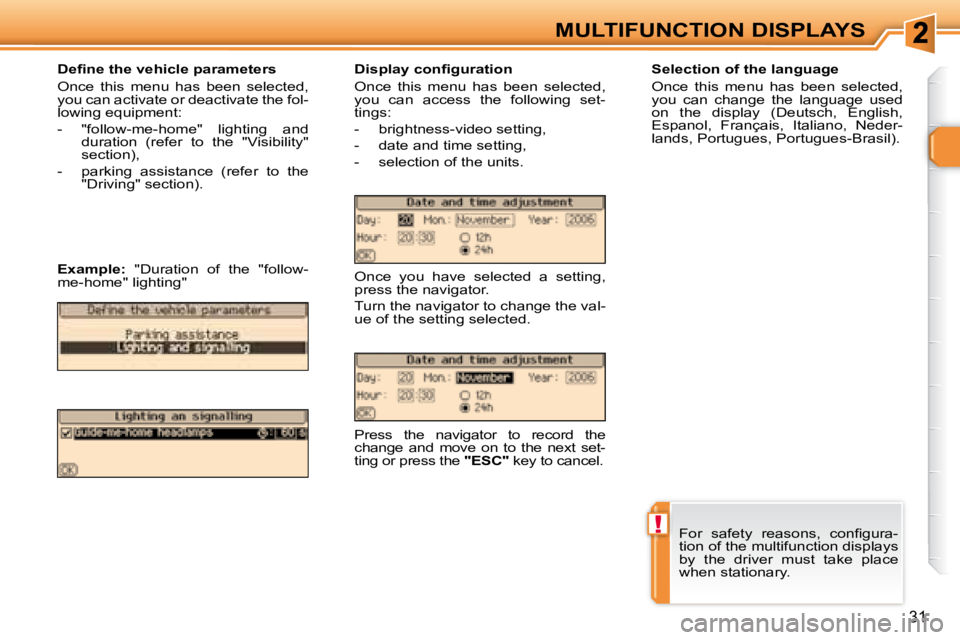

31
MULTIFUNCTION DISPLAYS
Dei ne the vehicle parameters
Once this menu has been selected,
you can activate or deactivate the fol-
lowing equipment:
- "follow-me-home" lighting and duration (refer to the "Visibility"
section),
- parking assistance (refer to the "Driving" section). Selection of the language
Once this menu has been selected,
you can change the language used
on the display (Deutsch, English,
Espanol, Français, Italiano, Neder-
lands, Portugues, Portugues-Brasil).
Display coni guration
Once this menu has been selected,
you can access the following set-
tings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Once you have selected a setting,
press the navigator.
Turn the navigator to change the val-
ue of the setting selected.
Press the navigator to record the
change and move on to the next set-
ting or press the
"ESC" key to cancel.
Example: "Duration of the "follow-
me-home" lighting"
For safety reasons, coni gura-
tion of the multifunction displays
by the driver must take place
when stationary.

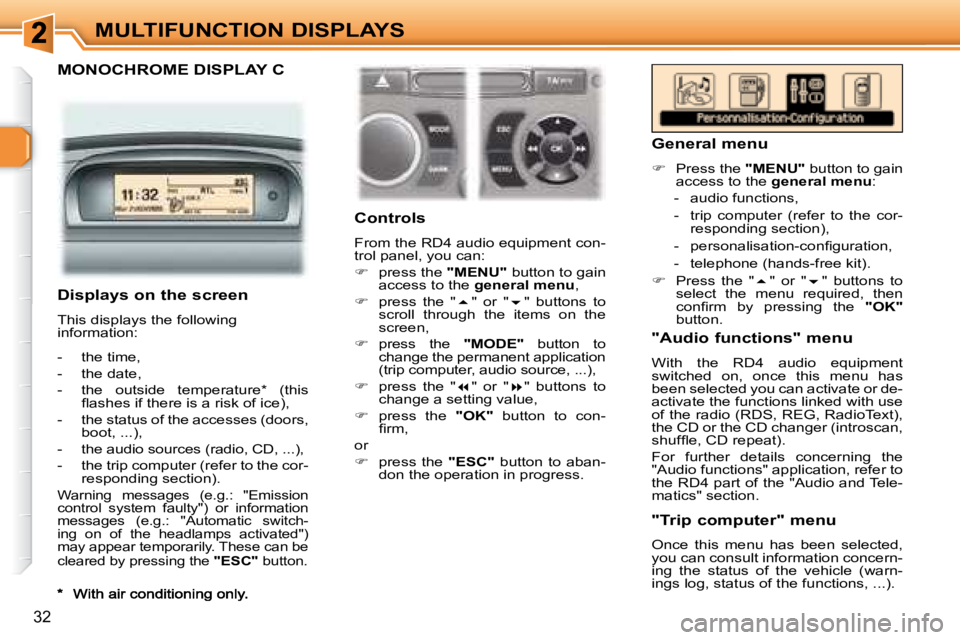

32
MULTIFUNCTION DISPLAYS
MONOCHROME DISPLAY C
Controls
From the RD4 audio equipment con-
trol panel, you can:

 press the "MENU" button to gain
access to the general menu ,

 press the "  " or "  " buttons to
scroll through the items on the
screen,

 press the "MODE" button to
change the permanent application
(trip computer, audio source, ...),

 press the "  " or "  " buttons to
change a setting value,

 press the "OK" button to con-
i rm,
or

 press the "ESC" button to aban-
don the operation in progress.
Displays on the screen
This displays the following
information:
- the time,
- the date,
- the outside temperature * (this l ashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the audio sources (radio, CD, ...),
- the trip computer (refer to the cor- responding section).

Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switch-
ing on of the headlamps activated")
may appear temporarily. These can be
cleared by pressing the "ESC" button.
General menu

 Press the "MENU" button to gain
access to the general menu :
- audio functions,
- trip computer (refer to the cor- responding section),
- personalisation-coni guration,
- telephone (hands-free kit).

 Press the "  " or "  " buttons to
select the menu required, then
coni rm by pressing the "OK"
button.
"Audio functions" menu
With the RD4 audio equipment
switched on, once this menu has
been selected you can activate or de-
activate the functions linked with use
of the radio (RDS, REG, RadioText),
the CD or the CD changer (introscan,
shufl e, CD repeat).
For further details concerning the
"Audio functions" application, refer to
the RD4 part of the "Audio and Tele-
matics" section.
"Trip computer" menu
Once this menu has been selected,
you can consult information concern-
ing the status of the vehicle (warn-
ings log, status of the functions, ...).

!

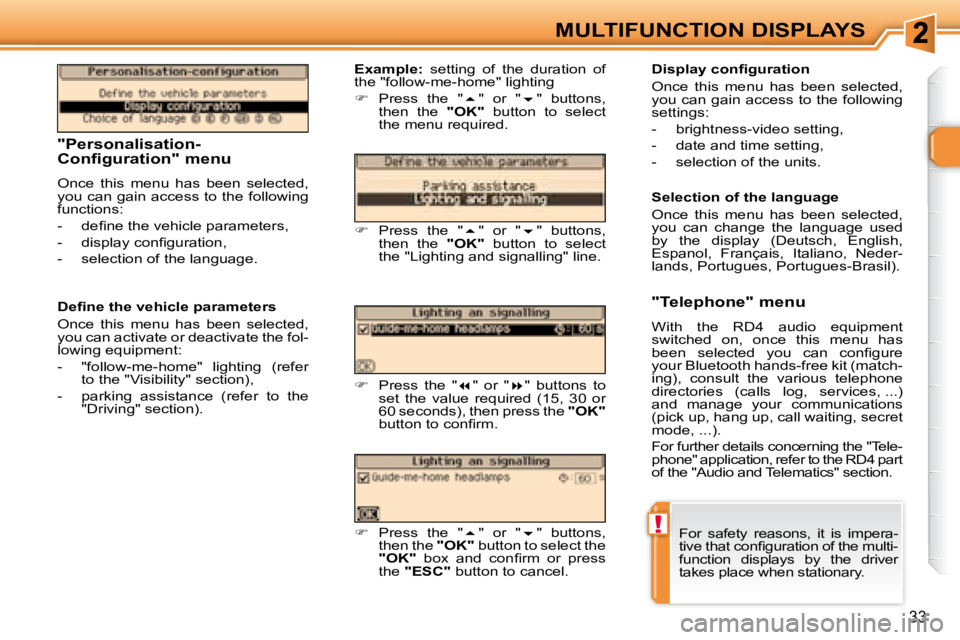

33
MULTIFUNCTION DISPLAYS
"Personalisation-
Configuration" menu
Once this menu has been selected,
you can gain access to the following
functions:
- dei ne the vehicle parameters,
- display coni guration,
- selection of the language. Display coni guration
Once this menu has been selected,
you can gain access to the following
settings:
- brightness-video setting,
- date and time setting,
- selection of the units.

Example: setting of the duration of
the "follow-me-home" lighting

 Press the "  " or "  " buttons,
then the "OK" button to select
the menu required.

 Press the "  " or "  " buttons,
then the "OK" button to select
the "Lighting and signalling" line.

 Press the "  " or "  " buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
button to coni rm.
Dei ne the vehicle parameters
Once this menu has been selected,
you can activate or deactivate the fol-
lowing equipment:
- "follow-me-home" lighting (refer
to the "Visibility" section),
- parking assistance (refer to the "Driving" section).

 Press the "  " or "  " buttons,
then the "OK" button to select the

"OK" box and coni rm or press
the "ESC" button to cancel. Selection of the language
Once this menu has been selected,
you can change the language used
by the display (Deutsch, English,
Espanol, Français, Italiano, Neder-
lands, Portugues, Portugues-Brasil).
"Telephone" menu
With the RD4 audio equipment
switched on, once this menu has
been selected you can coni gure
your Bluetooth hands-free kit (match-
ing), consult the various telephone
directories (calls log, services, ...)
and manage your communications
(pick up, hang up, call waiting, secret
mode, ...).
For further details concerning the "Tele-
phone" application, refer to the RD4 part
of the "Audio and Telematics" section.
For safety reasons, it is impera-
tive that coni guration of the multi-
function displays by the driver
takes place when stationary.

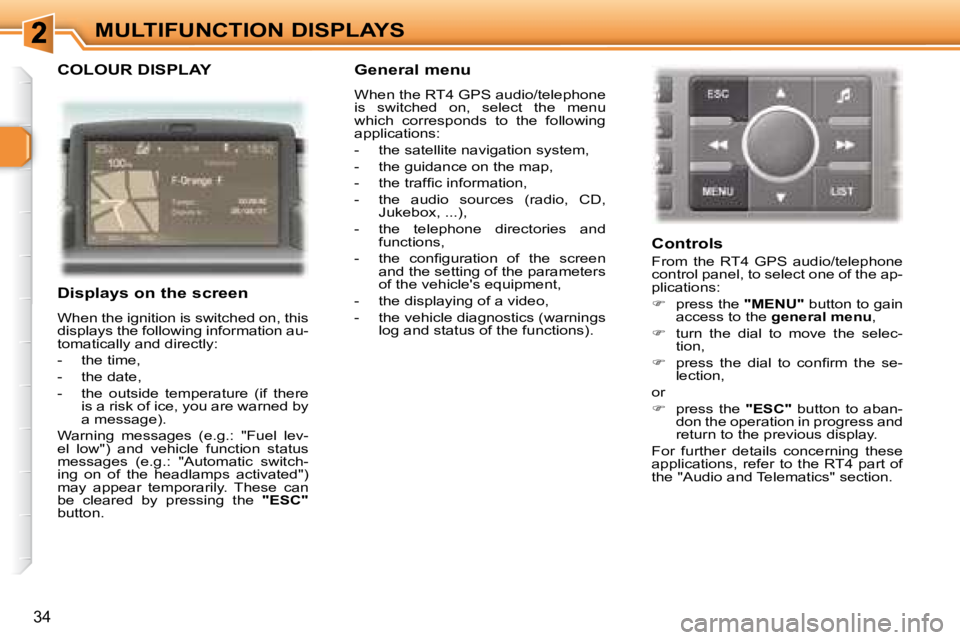

34
MULTIFUNCTION DISPLAYS
COLOUR DISPLAY
Displays on the screen
When the ignition is switched on, this
displays the following information au-
tomatically and directly:
- the time,
- the date,
- the outside temperature (if there is a risk of ice, you are warned by
a message).
Warning messages (e.g.: "Fuel lev-
el low") and vehicle function status
messages (e.g.: "Automatic switch-
ing on of the headlamps activated")
may appear temporarily. These can
be cleared by pressing the "ESC"
button.
General menu
When the RT4 GPS audio/telephone
is switched on, select the menu
which corresponds to the following
applications:
- the satellite navigation system,
- the guidance on the map,
- the trafi c information,
- the audio sources (radio, CD, Jukebox, ...),
- the telephone directories and functions,
- the coni guration of the screen and the setting of the parameters
of the vehicle's equipment,
- the displaying of a video,
- the vehicle diagnostics (warnings log and status of the functions).
Controls
From the RT4 GPS audio/telephone
control panel, to select one of the ap-
plications:

 press the "MENU" button to gain
access to the general menu ,

 turn the dial to move the selec-
tion,

 press the dial to coni rm the se-
lection,
or

 press the "ESC" button to aban-
don the operation in progress and
return to the previous display.
For further details concerning these
applications, refer to the RT4 part of
the "Audio and Telematics" section.

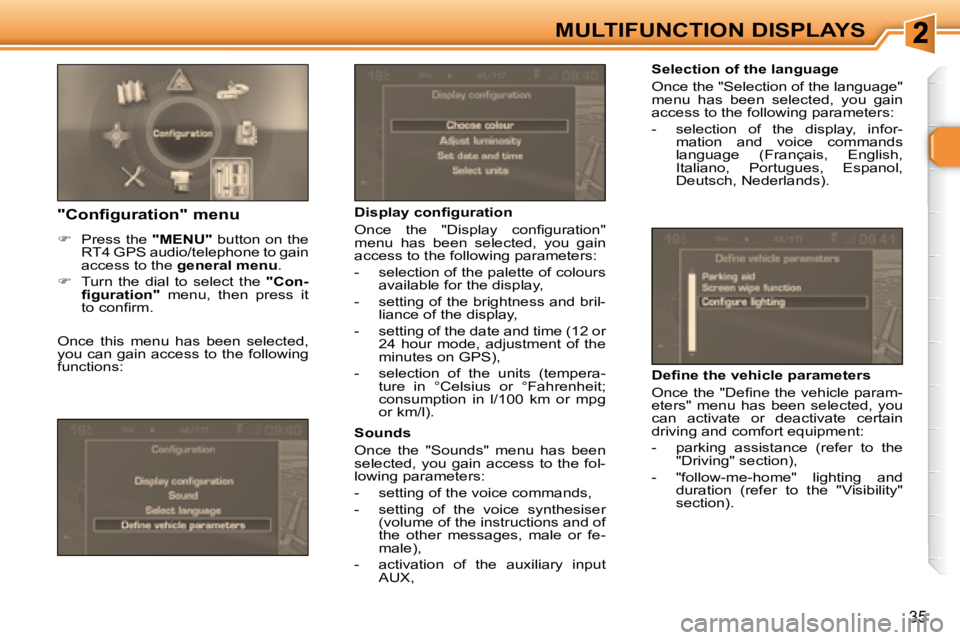

35
MULTIFUNCTION DISPLAYS
Selection of the language
Once the "Selection of the language"
menu has been selected, you gain
access to the following parameters:
- selection of the display, infor-mation and voice commands
language (Français, English,
Italiano, Portugues, Espanol,
Deutsch, Nederlands).
Display coni guration
Once the "Display coni guration"
menu has been selected, you gain
access to the following parameters:
- selection of the palette of colours available for the display,
- setting of the brightness and bril- liance of the display,
- setting of the date and time (12 or 24 hour mode, adjustment of the
minutes on GPS),
- selection of the units (tempera- ture in °Celsius or °Fahrenheit;
consumption in l/100 km or mpg
or km/l).
Sounds
Once the "Sounds" menu has been
selected, you gain access to the fol-
lowing parameters:
- setting of the voice commands,
- setting of the voice synthesiser (volume of the instructions and of
the other messages, male or fe-
male),
- activation of the auxiliary input AUX, Dei ne the vehicle parameters
Once the "Dei ne the vehicle param-
eters" menu has been selected, you
can activate or deactivate certain
driving and comfort equipment:
- parking assistance (refer to the
"Driving" section),
- "follow-me-home" lighting and duration (refer to the "Visibility"
section). "Configuration" menu

 Press the "MENU" button on the
RT4 GPS audio/telephone to gain
access to the general menu .

 Turn the dial to select the "Con-
i guration" menu, then press it
to coni rm.
Once this menu has been selected,
you can gain access to the following
functions:

i
!

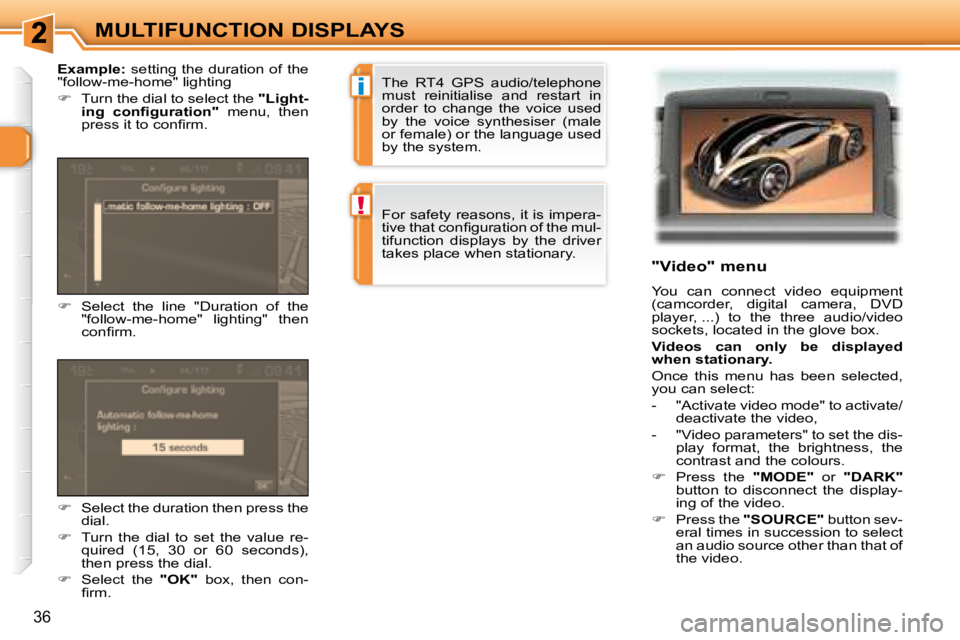

36
MULTIFUNCTION DISPLAYS
"Video" menu
You can connect video equipment
(camcorder, digital camera, DVD
player, ...) to the three audio/video
sockets, located in the glove box.

Videos can only be displayed
when stationary.
Once this menu has been selected,
you can select:
- "Activate video mode" to activate/ deactivate the video,
- "Video parameters" to set the dis- play format, the brightness, the
contrast and the colours.

 Press the "MODE" or "DARK"
button to disconnect the display-
ing of the video.

 Press the "SOURCE" button sev-
eral times in succession to select
an audio source other than that of
the video.

 Select the line "Duration of the
"follow-me-home" lighting" then
coni rm.

Example: setting the duration of the
"follow-me-home" lighting

 Turn the dial to select the "Light-
ing coni guration" menu, then
press it to coni rm.

 Select the duration then press the
dial.

 Turn the dial to set the value re-
quired (15, 30 or 60 seconds),
then press the dial.

 Select the "OK" box, then con-
i rm. The RT4 GPS audio/telephone
must reinitialise and restart in
order to change the voice used
by the voice synthesiser (male
or female) or the language used
by the system.
For safety reasons, it is impera-
tive that coni guration of the mul-
tifunction displays by the driver
takes place when stationary.

37

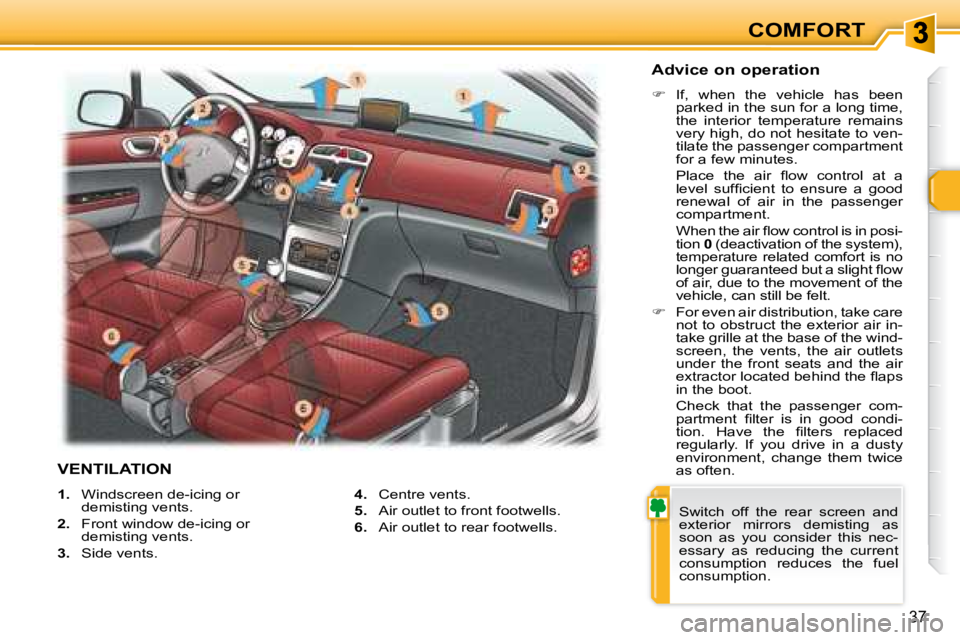

COMFORT

1. Windscreen de-icing or
demisting vents.

2. Front window de-icing or
demisting vents.

3. Side vents.
4. Centre vents.

5. Air outlet to front footwells.

6. Air outlet to rear footwells. Switch off the rear screen and
exterior mirrors demisting as
soon as you consider this nec-
essary as reducing the current
consumption reduces the fuel
consumption.
Advice on operation

 If, when the vehicle has been
parked in the sun for a long time,
the interior temperature remains
very high, do not hesitate to ven-
tilate the passenger compartment
for a few minutes.
Place the air l ow control at a level sufi cient to ensure a good
renewal of air in the passenger
compartment.
When the air l ow control is in posi- tion 0 (deactivation of the system),
temperature related comfort is no
longer guaranteed but a slight l ow
of air, due to the movement of the
vehicle, can still be felt.

 For even air distribution, take care
not to obstruct the exterior air in-
take grille at the base of the wind-
screen, the vents, the air outlets
under the front seats and the air
extractor located behind the l aps
in the boot.
Check that the passenger com- partment i lter is in good condi-
tion. Have the i lters replaced
regularly. If you drive in a dusty
environment, change them twice
as often.
VENTILATION

i
38

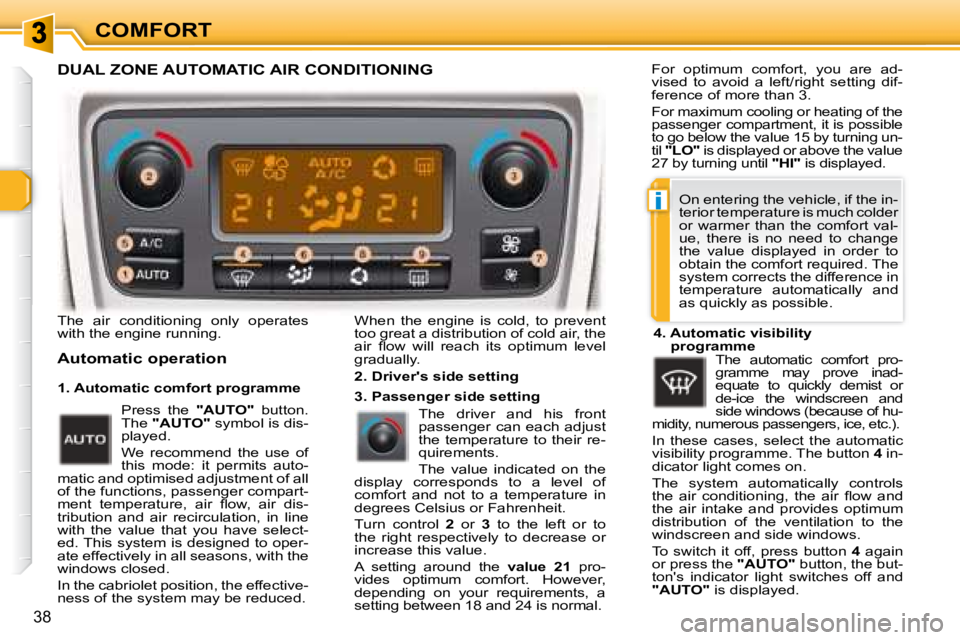

COMFORT
The air conditioning only operates
with the engine running.
Automatic operation
When the engine is cold, to prevent
too great a distribution of cold air, the
air l ow will reach its optimum level
gradually.
3. Passenger side setting The driver and his front
passenger can each adjust
the temperature to their re-
quirements.
The value indicated on the
display corresponds to a level of
comfort and not to a temperature in
degrees Celsius or Fahrenheit.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 pro-
vides optimum comfort. However,
depending on your requirements, a
setting between 18 and 24 is normal. For optimum comfort, you are ad-
vised to avoid a left/right setting dif-
ference of more than 3.
For maximum cooling or heating of the
passenger compartment, it is possible
to go below the value 15 by turning un-
til
"LO" is displayed or above the value
27 by turning until "HI" is displayed.
4. Automatic visibility programme
The automatic comfort pro-
gramme may prove inad-
equate to quickly demist or
de-ice the windscreen and
side windows (because of hu-
midity, numerous passengers, ice, etc.).
In these cases, select the automatic
visibility programme. The button 4 in-
dicator light comes on.
The system automatically controls
the air conditioning, the air l ow and
the air intake and provides optimum
distribution of the ventilation to the
windscreen and side windows.
To switch it off, press button 4 again
or press the "AUTO" button, the but-
ton's indicator light switches off and

"AUTO" is displayed.
1. Automatic comfort programme
Press the "AUTO" button.
The "AUTO" symbol is dis-
played.
We recommend the use of
this mode: it permits auto-
matic and optimised adjustment of all
of the functions, passenger compart-
ment temperature, air l ow, air dis-
tribution and air recirculation, in line
with the value that you have select-
ed. This system is designed to oper-
ate effectively in all seasons, with the
windows closed.
In the cabriolet position, the effective-
ness of the system may be reduced. 2. Driver's side setting
DUAL ZONE AUTOMATIC AIR CONDITIONING
On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort val-
ue, there is no need to change
the value displayed in order to
obtain the comfort required. The
system corrects the difference in
temperature automatically and
as quickly as possible.
