Peugeot 307 Dag 2007 Manual PDF

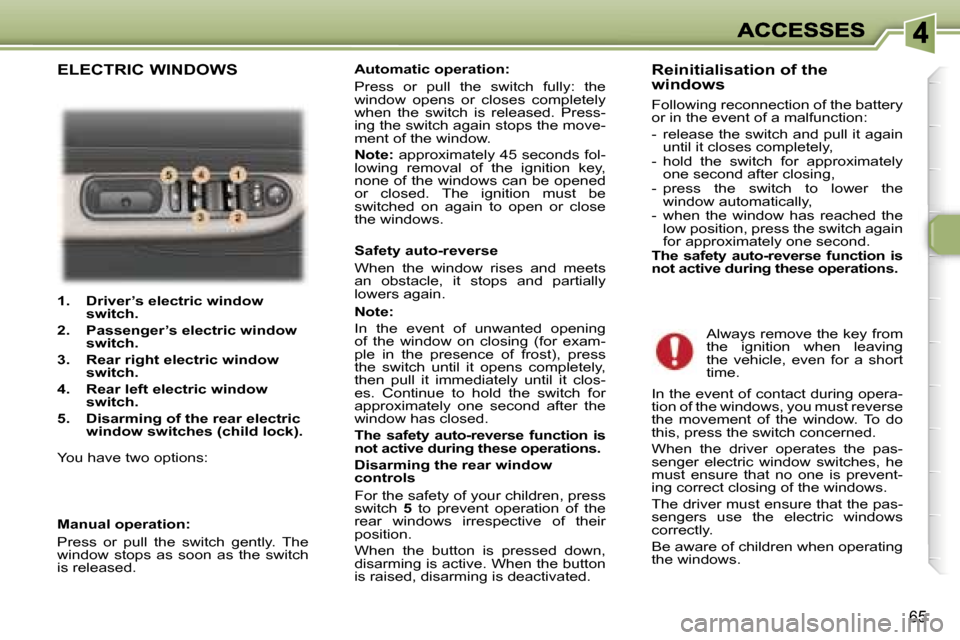

65
1. Driver’s electric window switch.
2. Passenger’selectric window switch.
3.Rear right electric window switch.
4. Rear leftelectric window switch.
5. Disarming of the rear electric window switches (child lock).
You have two options:
Automatic operation:
Press or pull the switch fully: the window opens or closes completely when the switch is released. Press-ing the switch again stops the move-ment of the window.
Note: approximately 45 seconds fol-lowing removal of the ignition key, none of the windows can be opened or closed. The ignition must be switched on again to open or close the windows.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of contact during opera-tion of the windows, you must reverse the movement of the window. To do this, press the switch concerned.
When the driver operates the pas-senger electric window switches, he must ensure that no one is prevent-ing correct closing of the windows.
The driver must ensure that the pas-sengers use the electric windows correctly.
Be aware of children when operating the windows.
Reinitialisation of the windows
Following reconnection of the battery or in the event of a malfunction:
- release the switch and pull it again until it closes completely,- hold the switch for approximately one second after closing,- press the switch to lower the window automatically,- when the window has reached the low position, press the switch again for approximately one second.The safety auto-reverse function is not active during these operations.
Manual operation:
Press or pull the switch gently. The window stops as soon as the switch is released.
ELECTRIC WINDOWS
Safety auto-reverse
When the window rises and meets an obstacle, it stops and partially lowers again.
Disarming the rear window controls
For the safety of your children, press switch 5 to prevent operation of the rear windows irrespective of their position.
When the button is pressed down, disarming is active. When the button is raised, disarming is deactivated.
Note:
In the event of unwanted opening of the window on closing (for exam-ple in the presence of frost), press the switch until it opens completely, then pull it immediately until it clos-es. Continue to hold the switch for approximately one second after the window has closed.
The safety auto-reverse function is not active during these operations.

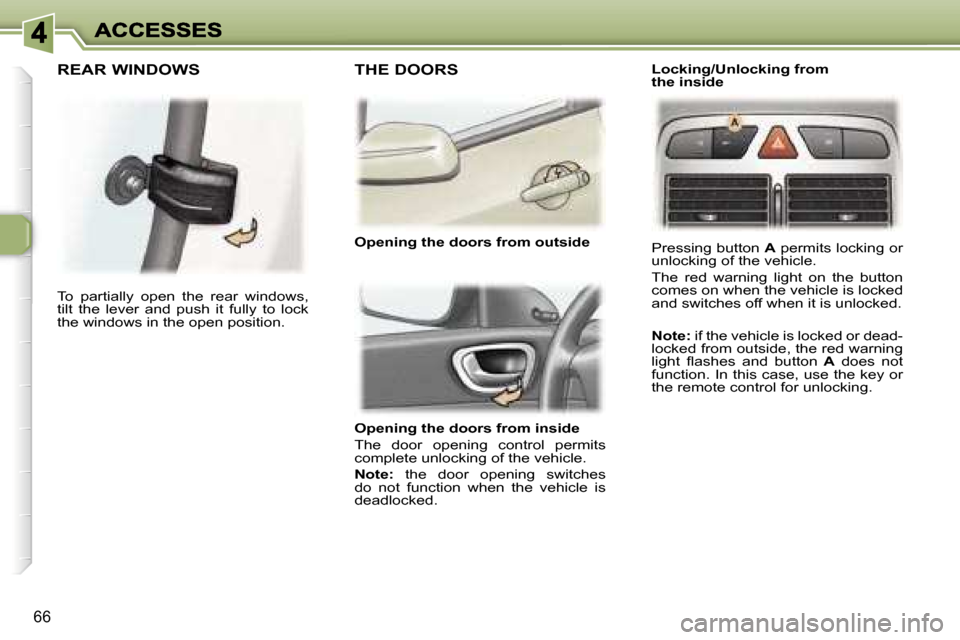

66
Opening the doors from inside
The door opening control permits complete unlocking of the vehicle.
Note: the door opening switches do not function when the vehicle is deadlocked.
Pressing button A permits locking or unlocking of the vehicle.
The red warning light on the button comes on when the vehicle is locked and switches off when it is unlocked.
Note: if the vehicle is locked or dead-locked from outside, the red warning light flashes and button A does not function. In this case, use the key or the remote control for unlocking.
THE DOORS
Opening the doors from outside
To partiallyopen the rear windows, tilt the lever and push it fully to lock the windows in the open position.
REAR WINDOWSLocking/Unlocking from the inside

66
Opening the doors from inside
The door opening control permits complete unlocking of the vehicle.
Note: the door opening switches do not function when the vehicle is deadlocked.
Pressing button A permits locking or unlocking of the vehicle.
The red warning light on the button comes on when the vehicle is locked and switches off when it is unlocked.
Note: if the vehicle is locked or dead-locked from outside, the red warning light flashes and button A does not function. In this case, use the key or the remote control for unlocking.
THE DOORS
Opening the doors from outside
To partiallyopen the rear windows, tilt the lever and push it fully to lock the windows in the open position.
REAR WINDOWSLocking/Unlocking from the inside

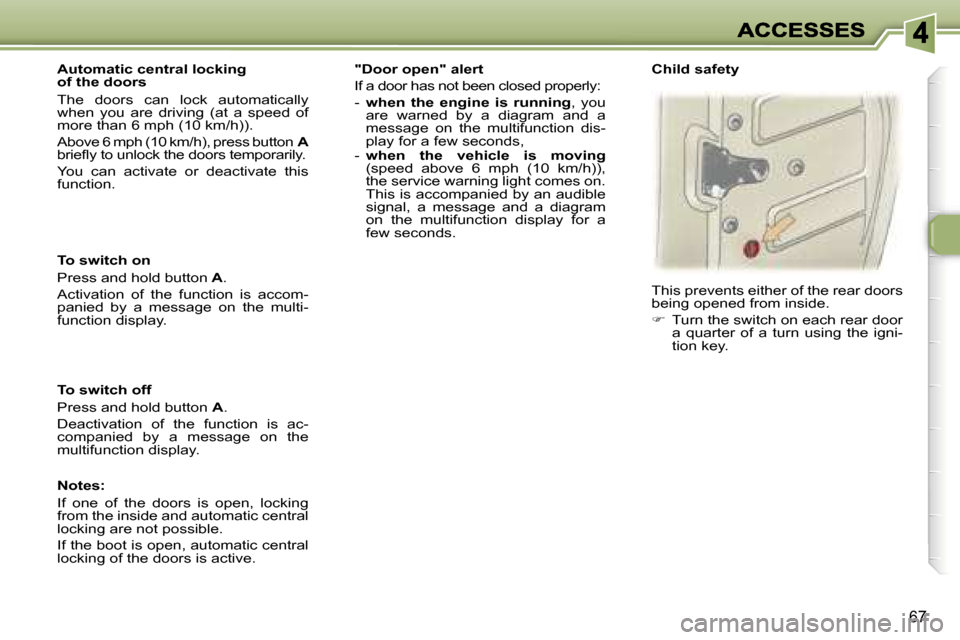

67
To switch on
Press and hold button A.
Activation of the function is accom-panied by a message on the multi-function display.
Automatic central locking of the doors
The doors can lock automatically when you are driving (at a speed of more than 6 mph (10 km/h)).
Above 6 mph (10 km/h), press button Abriefly to unlock the doors temporarily.
You can activate or deactivate this function.
To switch off
Press and hold button A.
Deactivation of the function is ac-companied by a message on the multifunction display.
"Door open" alert
If a door has not been closed properly:
- when the engine is running, you are warned by a diagram and a message on the multifunction dis-play for a few seconds,- when the vehicle is moving(speed above 6 mph (10 km/h)), the service warning light comes on. This is accompanied by an audible signal, a message and a diagram on the multifunction display for a few seconds.
This prevents either of the rear doors being opened from inside.
 Turn the switch on each rear door a quarter of a turn using the igni-tion key.
Child safety
Notes:
If one of the doors is open, locking from the inside and automatic central locking are not possible.
If the boot is open, automatic central locking of the doors is active.

67
To switch on
Press and hold button A.
Activation of the function is accom-panied by a message on the multi-function display.
Automatic central locking of the doors
The doors can lock automatically when you are driving (at a speed of more than 6 mph (10 km/h)).
Above 6 mph (10 km/h), press button Abriefly to unlock the doors temporarily.
You can activate or deactivate this function.
To switch off
Press and hold button A.
Deactivation of the function is ac-companied by a message on the multifunction display.
"Door open" alert
If a door has not been closed properly:
- when the engine is running, you are warned by a diagram and a message on the multifunction dis-play for a few seconds,- when the vehicle is moving(speed above 6 mph (10 km/h)), the service warning light comes on. This is accompanied by an audible signal, a message and a diagram on the multifunction display for a few seconds.
This prevents either of the rear doors being opened from inside.
 Turn the switch on each rear door a quarter of a turn using the igni-tion key.
Child safety
Notes:
If one of the doors is open, locking from the inside and automatic central locking are not possible.
If the boot is open, automatic central locking of the doors is active.

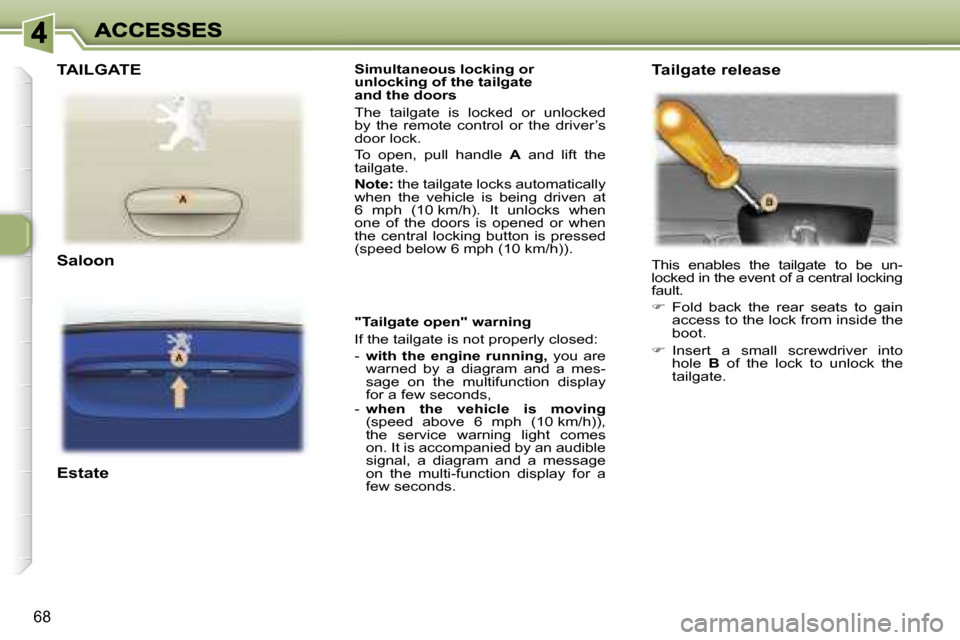

68
Simultaneouslocking or unlocking of the tailgate and the doors
The tailgate is locked or unlocked by the remote control or the driver’s door lock.
To open, pull handle A and lift the tailgate.
Note: the tailgate locks automatically when the vehicle is being driven at 6 mph (10 km/h). It unlocks when one of the doors is opened or when the central locking button is pressed (speed below 6 mph (10 km/h)).
TAILGATE
Saloon This enables the tailgate to be un-locked in the event of a central locking fault.
 Fold back the rear seats to gain access to the lockfrom inside the boot.
 Insert a small screwdriver into hole B of the lock to unlock the tailgate.
Estate
"Tailgate open" warning
If the tailgate is not properly closed:
- with the engine running, you are warned by a diagram and a mes-sage on the multifunction display for a few seconds,- when the vehicle is moving(speed above 6 mph (10 km/h)), the service warning light comes on. It is accompanied by an audible signal, a diagram and a message on the multi-function display for a few seconds.
Tailgate release

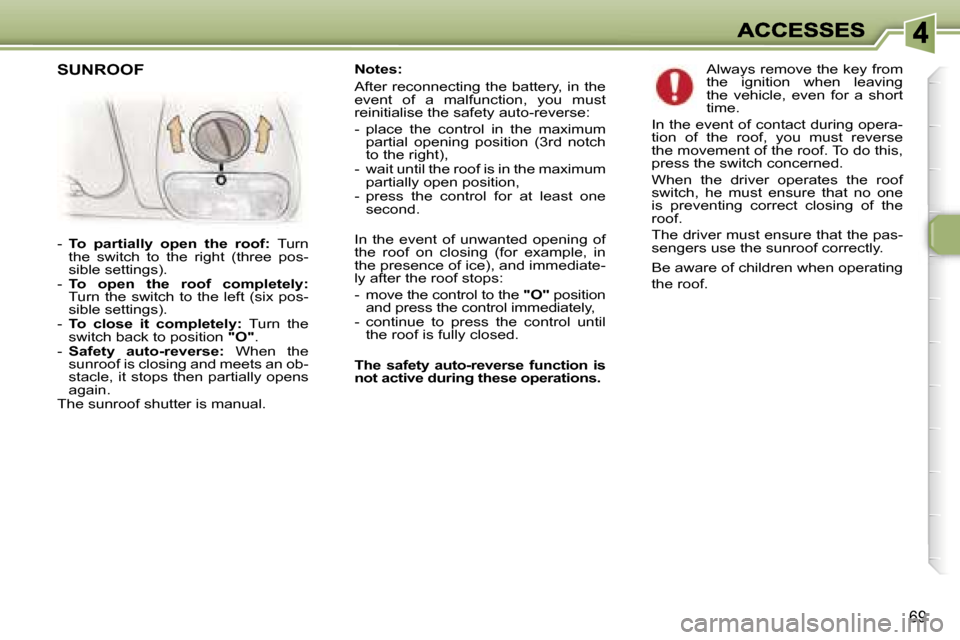

69
Notes:
After reconnecting the battery, in the event of a malfunction, you must reinitialise the safety auto-reverse:
- place the control in the maximum partial opening position (3rd notch to the right),- wait until the roof is in the maximum partially open position,- press the control for at least one second.
In the event of unwanted opening of the roof on closing (for example, in the presence of ice), and immediate-ly after the roof stops:
- move the control to the "O" position and press the control immediately,- continue to press the control until the roof is fully closed.
The safety auto-reverse function is not active during these operations.
- To partially open the roof: Turn the switch to the right (three pos-sible settings). - To open the roof completely: Turn the switch to the left (six pos-sible settings).- To close it completely: Turn the switch back to position "O".- Safety auto-reverse: When the sunroof is closing and meets an ob-stacle, it stops then partially opens again.The sunroof shutter is manual.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of contact during opera-tion of the roof, you must reverse the movement of the roof. To do this, press the switch concerned.
When the driver operates the roof switch, he must ensure that no one is preventing correct closing of the roof.
The driver must ensure that the pas-sengers use the sunroof correctly.
Be aware of children when operating the roof.
SUNROOF

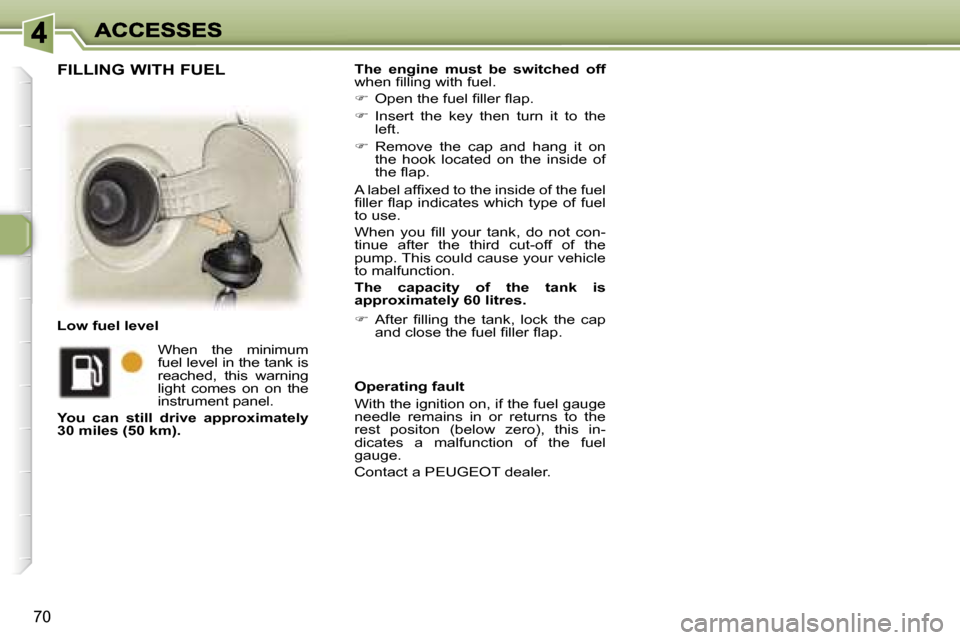

70
The engine must be switched offwhen filling with fuel.
 Open the fuel filler flap.
 Insert the key then turn it to the left.
 Remove the cap and hang it on the hook located on the inside of the flap.
A label affixed to the inside of the fuel filler flap indicates which type of fuel to use.
When you fill your tank, do not con-tinue after the third cut-off of the pump. This could cause your vehicle to malfunction.
The capacity of the tank is approximately 60 litres.
 After filling the tank, lock the cap and close the fuel filler flap.Low fuel level
When the minimum fuel level in the tank is reached, this warning light comes on on the instrument panel.
You can still drive approximately 30 miles (50 km).
Operating fault
With the ignition on, if the fuel gauge needle remains in or returns to the rest positon (below zero), this in-dicates a malfunction of the fuel gauge.
Contact a PEUGEOT dealer.
FILLING WITH FUEL

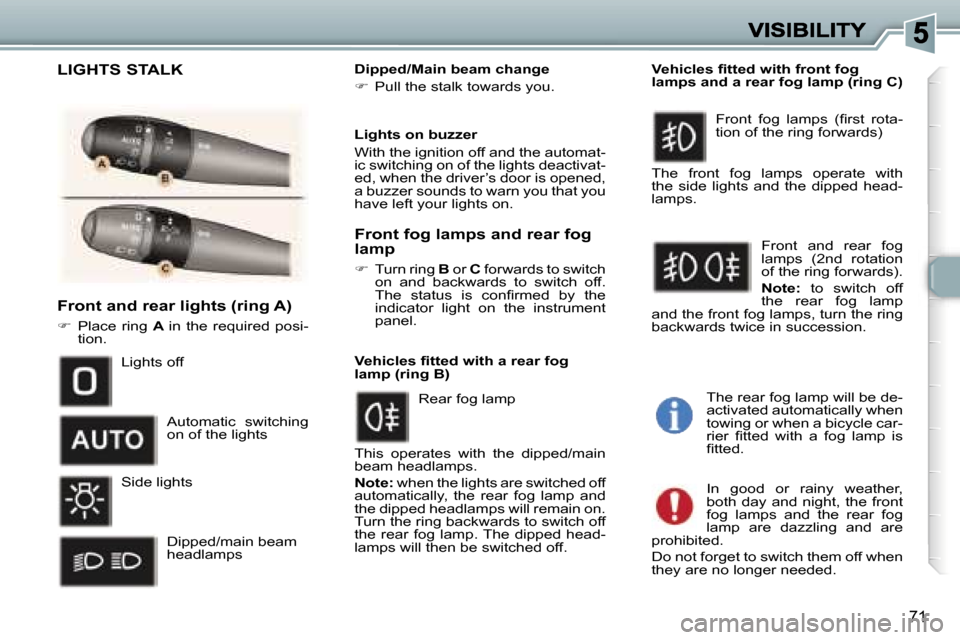

71
Front and rear lights(ring A)
 Place ring A in the required posi-tion.
Dipped/Main beam change
 Pull the stalk towards you.
Vehicles fitted with front fog lamps and a rear fog lamp (ring C)
Lights off
Side lights
Dipped/main beam headlamps
Rear fog lamp
Front fog lamps (first rota-tion of the ring forwards)
Front and rear fog lamps (2nd rotation of the ring forwards).
Note: to switch off the rear fog lamp and the front fog lamps, turn the ring backwards twice in succession.
Vehicles fitted with a rear fog lamp (ring B)
This operates with the dipped/main beam headlamps.
Note: when the lights are switched off automatically, the rear fog lamp and the dipped headlamps will remain on. Turn the ring backwards to switch off the rear fog lamp. The dipped head-lamps will then be switched off.
The front fog lamps operate with the side lights and the dipped head-lamps.
Front fog lamps and rear fog lamp
 Turn ring B or C forwards to switch on and backwards to switch off. The status is confirmed by the indicator light on the instrument panel.
Lights on buzzer
With the ignition off and the automat-ic switching on of the lights deactivat-ed, when the driver’s door is opened, a buzzer sounds to warn you that you have left your lights on.
The rear fog lamp will be de-activated automatically when towing or when a bicycle car-rier fitted with a fog lamp is fitted.
LIGHTS STALK
In good or rainy weather, both day and night, the front fog lamps and the rear fog lamp are dazzling and are prohibited.
Do not forget to switch them off when they are no longer needed.
Automatic switching on of the lights

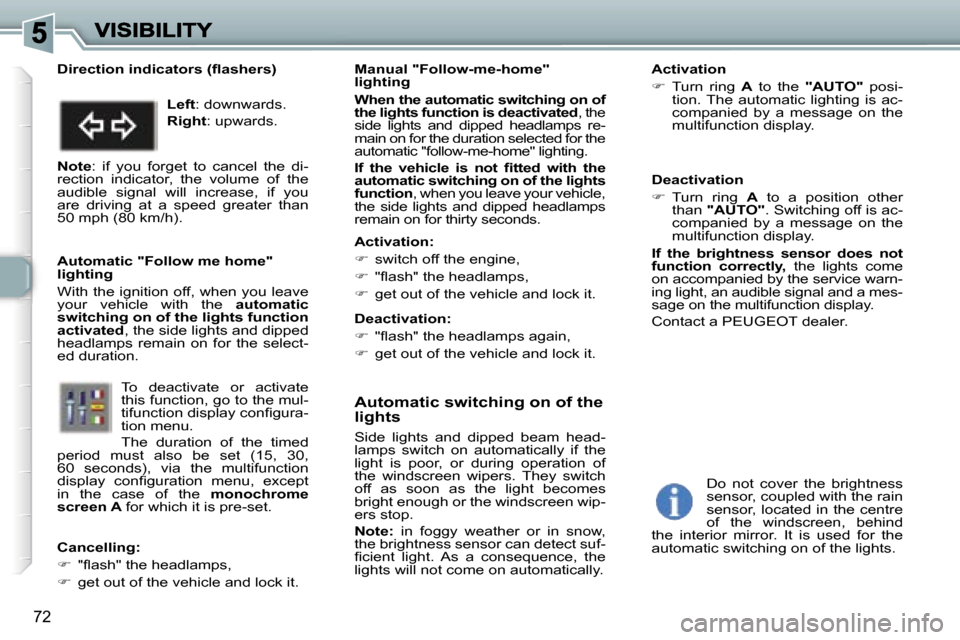

72
Automatic switching on of the lights
Side lights and dipped beam head-lamps switch on automatically if the light is poor, or during operation of the windscreen wipers. They switch off as soon as the light becomes bright enough or the windscreen wip-ers stop.
Note: in foggy weather or in snow, the brightness sensor can detect suf-ficient light. As a consequence, the lights will not come on automatically.
Deactivation
 Turn ring A to a position other than "AUTO". Switching off is ac-companied by a message on the multifunction display.
If the brightness sensor does not function correctly, the lights come on accompanied by the service warn-ing light, an audible signal and a mes-sage on the multifunction display.
Contact a PEUGEOT dealer.
Manual "Follow-me-home" lighting
When the automatic switching on of the lights function is deactivated, the side lights and dipped headlamps re-main on for the duration selected for the automatic "follow-me-home" lighting.
If the vehicle is not fitted with the automatic switching on of the lights function, when you leave your vehicle, the side lights and dipped headlamps remain on for thirty seconds.
Direction indicators (flashers)
Left: downwards.
Right: upwards.
Note: if you forget to cancel the di-rection indicator, the volume of the audible signal will increase, if you are driving at a speed greater than 50 mph (80 km/h).
Automatic "Follow me home" lighting
With the ignition off, when you leave your vehicle with the automatic switching on of the lights function activated, the side lights and dipped headlamps remain on for the select-ed duration.
Activation:
 switch off the engine,
 "flash" the headlamps,
 get out of the vehicle and lock it.
Deactivation:
 "flash" the headlamps again,
 get out of the vehicle and lock it.
To deactivate or activate this function, go to the mul-tifunction display configura-tion menu.
The duration of the timed period must also be set (15, 30, 60 seconds), via the multifunction display configuration menu, except in the case of the monochrome screen A for which it is pre-set.
Cancelling:
 "flash" the headlamps,
 get out of the vehicle and lock it.
Activation
 Turn ring A to the "AUTO" posi-tion. The automatic lighting is ac-companied by a message on the multifunction display.
Do not cover the brightness sensor, coupled with the rain sensor, located in the centre of the windscreen, behind the interior mirror. It is used for the automatic switching on of the lights.
