Zero re-set
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the re-set procedure is asfollows: Switch off the ignition,
Press and hold the trip recorder re-set button,
Switch on the ignition.
The display begins a countdown. When the display shows 0, release the button; the service symbol disap-pears. Important: after this operation, if you
wish to disconnect the battery, lock the vehicle and wait for at least fiveminutes, otherwise the zero re-setwill not be registered. MAINTENANCE OF PARTS SUBJECT TO WEAR and a check of consumables Certain essential components on your vehicle are subject to checks or replace- ment at specific intervals:
- The
brake fluid is to be replaced at a maximum of every 36,000/40,000 miles
(60 000 km) or every two years.
- The pollen filter must be checked at each service by a PEUGEOT dealer
(services and intermediate visits) or more often, depending on the environ-
ment (dust, pollution, etc.)
- For replacement of the timing belt,consult your PEUGEOT dealer.
- For the 2 litre HDI turbo diesel engine (110 bhp) , maintenance of the
particulate emission filter and topping up of the additive reservoir must be
carried out at a maximum of every 48,000 miles (80 000 km) by a PEUGEOT
dealer.
- Air bags and pretensioning parts on seat belts must be replaced every
10 years.
- The check on tyre inflation pressure must be carried out cold at least once
a month.
PEUGEOT SERVICING 21

MILES (KM)40,000 (60 000) 80,000 (120 000)120,000 (180 000)
THE SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating 2 types of service, A and C, intermediate visits and a few additional operations specific to
your vehicle; these correspond to key stages in the life of your 307 SW. At your first and each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
MAINTENANCE CYCLE FOR YOUR 307 SW PETROL ENGINE
Service every 2 years or 20,000 miles (30 000 km) maximum
1st service at 6,000 miles
(10 000 km) or 6 months*.
This is necessary in order to benefit from the warranty.
Replacement of automatic gearbox oil every 40,000 miles (60 000 km). Replacement of brake fluid every 2 years or 40,000 miles (60 000 km).
These fixed operations are carried out with synthetically based oil.
Synthetic oil or Fuel economy oil may also be used.
Arduous conditions of use (see corresponding section).
- Replacement of air filter every 24,000 miles (40 000 km).
- Replacement of timing beltevery 48,000 miles (80 000 km).
* Whichever comes first.
Intermediate visit

72,000 (120 000)108,000 (180 000)
MILES (KM)36,000 (60 000)
PEUGEOT SERVICING 23
MAINTENANCE CYCLE FOR YOUR 307 SW DIESEL
Service every 2 years or 12,000 miles (20 000 km) maximum
1st service at 6,000
miles (10 000 km) or 6 months*.
This is necessary in
order to benefit from the warranty.
+ maintenance of particulate
emission filter
2.0 l HDI 110 bhp
(96,000 miles (160 000km)) + maintenance of
particulate
emission filter
2.0 l HDI 110 bhp
(48,000 miles (80 000km))
These fixed operations are carried out with synthetically based oil.
Synthetic oil or Fuel Economy oil may also be used.
Arduous conditions of use (see corresponding section).
- Replacement of air filterevery 27,000 miles (45 000 km).
- Replacement of timing beltevery 72,000 miles (120 000 km).
* Whichever comes first.
Intermediate visit

ARDUOUS CONDITIONS OF USE
¥ Continuous door-to-door use.
¥ Town use (e.g. taxi).¥ Repeated short journeys, with the engine cold at low temperatures.
¥ A prolonged stay under the following conditions : Ð countries with temperatures often above +30 ¡C,Ð countries with temperatures often below -15 ¡C,Ð countries with a dusty atmosphere,Ð countries whose lubricants or fuels do not conform to our recommendations.
Recommendations: Ð replace the air filter every 24,000 miles (40 000 km) for petrol engines and every 27,000 miles (45 000 km) for diesel
engines,
Ð to replace the timing belt, contact a PEUGEOT dealer.
PEUGEOT SERVICING
24

PEUGEOT SERVICING25
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation 1st service
A C Intermediate
DRAIN/REFILL- Engine oil.- Bleed fuel filter (diesel).- Oil filter.- Fuel filter* (petrol).REPLACE- Fuel filter element (diesel).- Air filter element.- Spark plugs (petrol).- Engine oil (check + top-up). - Manual gearbox oil (check + top-up).- Battery (check + top-up) if cap is removable.LEVEL- Screen wash (check + top-up).- Coolant (check + top-up).- Brake fluid (check + top-up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of the ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers).CHECK- Condition of rubber boots and gaiters.- Brake pads. - Play in hubs, link rods, ball joints, flexible mountings.- Shock absorbers.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check as per current legislation (petrol).- Smoke opacity (diesel).- Pollen filter (according to specification). - Visual check of the whole vehicle.
ROAD TEST
: All driving conditions: Arduous conditions * According to destination

1 -Rev counter.
2 - Seat belt not fastened warning light.
3 - Engine diagnostics warning light.
4 - Handbrake and low brake fluidlevel warning light.
5 - Left-hand direction indicator.
6 - Coolant temperature indicator. 7 -
Battery charge warning light.
8 - Central (STOP) warning light.
9 - Engine oil pressure warning light.
10 - Low fuel level warning light.
11 - Right-hand direction indicator.
12 - Fuel gauge.
13 - ABS warning light. 14 -
Air bag warning light.
15 - Passenger air bag disarming indicator light.
16 - Speedometer.
17 - Service indicator, oil level and
total distance recorder.
18 - Trip recorder zero reset.
19 - Rear fog lamp indicator light.
20 - ESP/ASR warning light.
21 - Front fog lamps indicator light.
22 - Diesel engine preheating light.
23 -
Main beam headlamps indicator light.
24 - Low coolant level warning light.
25 - Dipped beam headlampsindicator light.
26 - Water in diesel filter warninglight.
27 - Lighting rheostat.
LE CONTRïLE DE MARCHE
28
PETROL / DIESEL INSTRUMENT PANEL DIALS: MANUAL GEARBOX

Battery charge warning light This comes on each time
the ignition is switched on. If it comes on with the engine run- ning, it is accompanied by an audiblesignal and a message "Low battery
charge" on the multi-function display.
It can indicate:
- faulty operation of the charging cir- cuit,
- loose battery or starter terminals,
- a cut or slack alternator belt,
- an alternator fault.
Contact a PEUGEOT dealer.
ABS warning light This light comes on for 3 seconds each time the igni-tion is switched on.
If it remains on or comes on above 8mph (12 kmh), this indicates a mal-
function of the ABS.
However, the vehicle retains conven- tional servo-assisted braking. Illumination of this light is accompa- nied by an audible signal and a mes-sage "ABS system problem" on
the multi-function display.
Contact a PEUGEOT dealer. Electronic stability programme (ESP/ASR) warning light This comes on for 3 seconds each time the ignition is switched on. The light, which remains on or comes on when the engine is running and the vehicle is moving, is accompanied by an audible signal and a mes-
sage ''ESP/ASR system not operational'' on the multi-function display; contact
a PEUGEOT dealer. It flashes when the system is switched on and is lit continuously while the sys-
tem is switching off*.
Diesel pre-heat light This comes on each time the ignition is switched on.
Wait until it goes out before trying the starter.
Water in diesel filter warning light (according to country) Illumination of this warning light is accompanied by an audible signal and the message "Passenger air bag disarmed" on the multi-function
display.
There is a risk of damage to the injection system.
Contact a PEUGEOT dealer as soon as possible.
* According to destination.
Engine diagnostics warning light This comes on each time the ignition is switched on. The warning light showing clogging of the particulate emission filter is linked to the engine diagnostics warning light.
If it comes on with the engine running, accompanied by an audible signal and the message: - ''Emission control system problem'' on the multi-function display, it indicates
a malfunction in the emission control system.
- ''Diesel additive low level'' or "Risk of clogging of articulate emission
filter" indicates a malfunction in the particulate emission filter.
If it flashes when the engine is running, accompanied by an audible signal and the message ' 'Catalytic converter faulty'' on the multi-function display, it indi-
cates a malfunction in the injection or ignition system. There is a risk of damageto the catalytic converter (petrol engines only).
Contact a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS 31

YOUR 307 SW IN DETAIL51
VENTILATION 1. Windscreen de-icing or demisting vents.
2. Front window de-icing or demisting vents.
3. Side vents.
4. Centre vents.
5. Air outlet to front footwells.
6. Air outlet to rear footwells.
Advice on operation Place the air flow control at a level sufficient to ensure correct renewal of air in the passenger compartment. The ''OFF''
position cuts off all the air circulation in the passenger compartment. Note : only use the ' 'OFF''position occasionally (risk of condensation).
For perfectly even air distribution, take care not to obstruct the exterior air intake grilles, the vents and the air ducts und er
the front seats, as well as the air extractor located in the boot. Check that the pollen filter is in good condition.

PRACTICAL INFORMATION
102

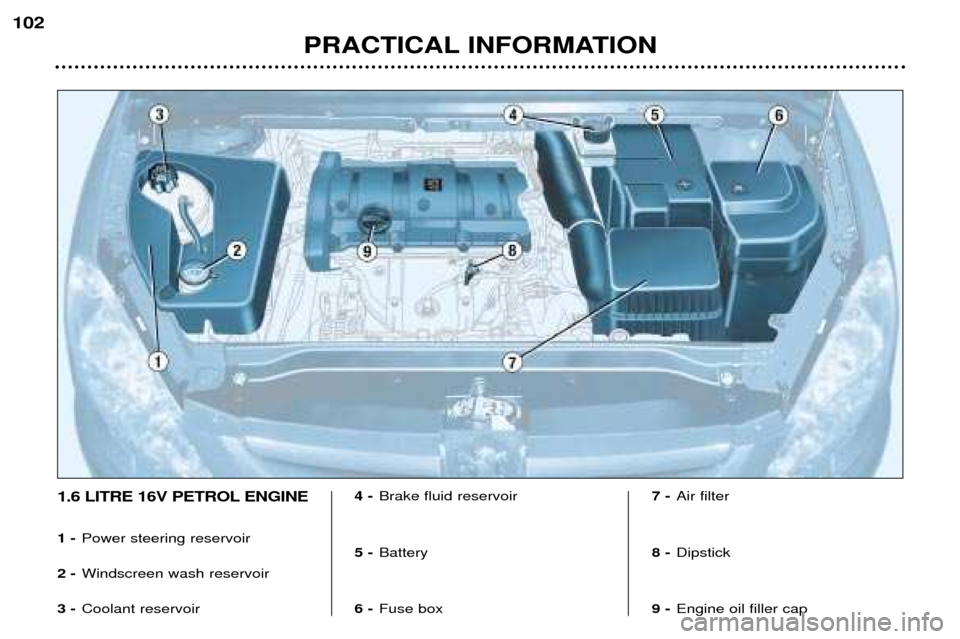

1.6 LITRE 16V PETROL ENGINE 1 -
Power steering reservoir
2 - Windscreen wash reservoir
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Fuse box 7 -
Air filter
8 - Dipstick
9 - Engine oil filler cap

PRACTICAL INFORMATION103
2 LITRE 16V PETROL ENGINE 1 -
Power steering reservoir
2 - Windscreen wash reservoir 3 -
Coolant reservoir
4 - Brake fluid reservoir
5 - Battery
6 - Fuse box 7 -
Air filter
8 - Dipstick
9 - Engine oil filler cap
