Peugeot 307 SW Dag 2002.5 User Guide

12YOUR 307 SW AT A GLANCE
AUTOMATIC GEARBOX "PORSCHE TIPTRONIC SYSTEM" The four speed automatic gearbox offers a
choice between the comfort of automatic inte-
gral regulation enhanced by a sportand snow
programme , or the pleasure of manual gear
changing .
Gear selection gate ➜ Move the lever in the gate to select one of the
functions. Once the function is selected, the indicator light for that function is displayed on the instru-ment panel screen.
S : sport programme.


: snow programme.
P ark: to immobilise the vehicle or to start the engine , with the hand-
brake on or off.
R everse: to reverse(select this function with the vehicle stationary and the
engine at idle).
N eutral: to start the engine or to park, with the handbrake on.
Note: if position Nis engaged by mistake while the car is moving, allow the engine
to return to idling speed before engaging function Dto accelerate.
D rive:for automatic gear changing.
M anual: for manualgear changing.
To change the four gearsmanually:
➜ Push the lever to the +symbol to change up to the next gear and pull
it towards the Ðsymbol to change down a gear.
Note: the S(sport) and

(snow) programmes do not operate in manual
mode. Moving Off With the engine running, to move
off from position
P:
➜ It is essential to press the
brake pedal to exit position P,
➜ Select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
will move off immediately.
You can also move off from posi-tion N:
➜ Release the handbrake, withyour foot on the brake.
➜ Select function R, D or Mthen
gradually release the pressureon the brake pedal; the vehicle
will move off immediately.
When the engine is idling
with the brakes notapplied, if function R, Dor M is selected, thevehicle moves without the acce-lerator being pressed.
For this reason, do not leave
children unsupervised inside the vehicle, with theengine running .
127
22-07-2002

22-07-2002
13
N¡ Symbol Function
YOUR 307 SW AT A GLANCE

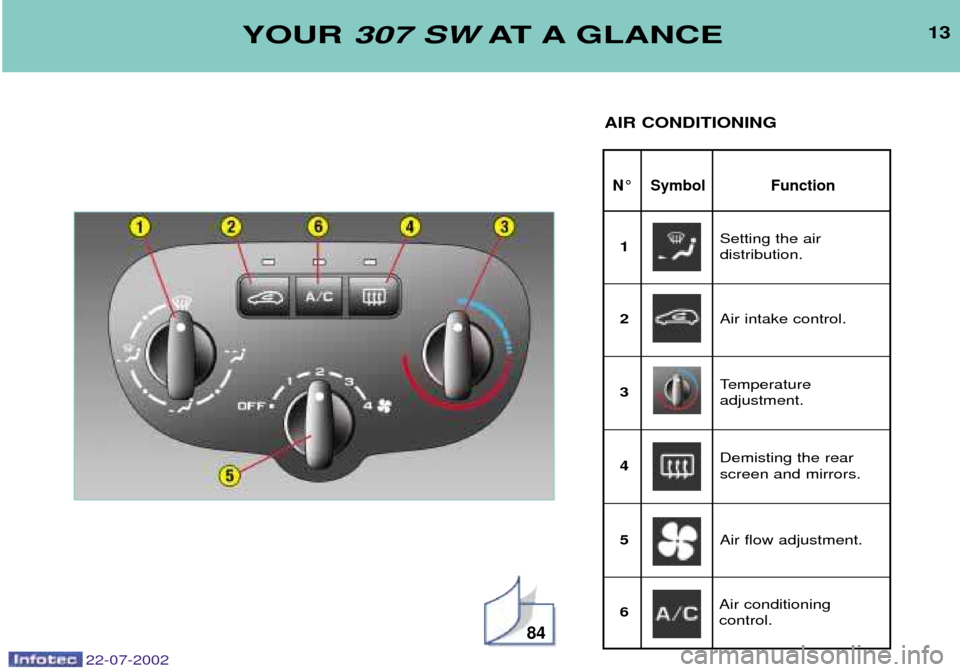

AIR CONDITIONING
84
Setting the air distribution.
1
Air intake control.
2
Temperature adjustment.
3
Demisting the rearscreen and mirrors.
4
Air flow adjustment.
5
Air conditioning control.
6

22-07-2002
14
N¡ Symbol Function
YOUR 307 SW AT A GLANCE

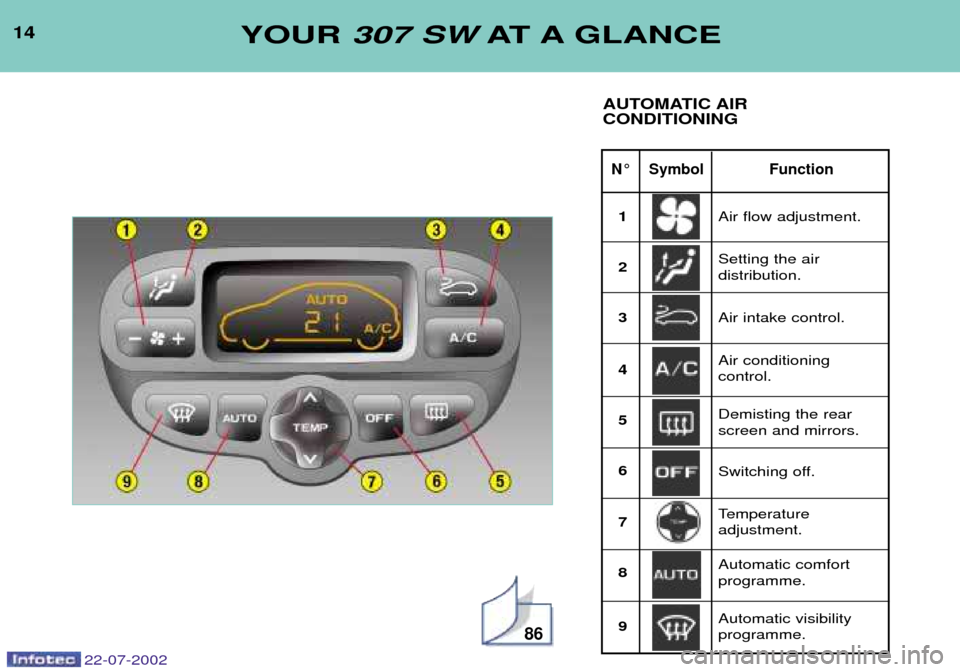

AUTOMATIC AIR CONDITIONING
86
Air flow adjustment. Setting the air distribution.
1 23 4 56 7 8 9 Air intake control. Air conditioning control.
Switching off.
Demisting the rear screen and mirrors.
Temperature adjustment. Automatic comfort programme. Automatic visibility programme.

22-07-2002
PEUGEOT SERVICING The maintenance cycle of your 307 SW is based onlevel A(including the replacement of the engine oil, the oil filter and a
set of checks) and level Cservices ( level Aservice + workshop operations carried out every 60 000 km) in accordance with
the tables on the following pages. So that the driving conditions and your style of driving may be taken into account, your 307 SW is fitted with a service indi-
cator which modulates the intervals for level A service:
¥ every 30 000 km maximum or 2 years for petrol engines,
¥ every 20 000 km maximum or 2 years for direct injection diesel engines.
The frequency of level Aservices specific to your vehicle will be determined by three parameters :
¥ the number of engine revolutions,
¥ the engine oil temperature,
¥ periods when the vehicle is not in use. Depending on these three elements, the service indicatorwill suggest a service interval which is more or less the same as
the initial programme. Depending on the conditions of use, one or more level Aservices may be carried out between two
level C services.
Depending on the total distance recorded, your dealer may offer to carry out the level Cservice to avoid the visits being too
close together.
PEUGEOT SERVICING
18

22-07-2002
The extension of the service intervals means that the engine oil must be checked regularly: topping up of the oil between two oil changes is normal. It is for this reason that the PEUGEOT network is offering you an intermediate visit between regular services.
The date of this visit is not shown by the service indicator. It is to be carried out between two services.
A PEUGEOT professional will carry out a quick check, and will top up the fluid levels if necessary (oil, coolant, screen wash up to 2 litres).
If the oil level is too low, there is a risk of significant damage to the engine: check the engine oil level at least every 5 000 km. The extended service intervals have been made possible by developments to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL THAT YOU USE ONLY ENGINE LUBRICANTS THAT ARE APPROVED AND RECOMMENDED
BY THE MANUFACTURER (see pages on 'Lubricants').
PEUGEOT SERVICING 19

22-07-2002
SERVICE INDICATOR Located on the instrument panel with the total distance recorder (total andtrip distances), this programmes ser-vice intervals depending on the useof the vehicle. Operation
A few moments after the ignition has been switched on, the spannersymbolising a service lights up; thedisplay for the total distance recordertells you (in round figures) the dis-tance remaining before your nextservice. Example: 4 800 km remain before
the next service is due. When the ignition is switched on and for a fewseconds, the display shows: A few seconds after the ignition isswitched on, the total distance recor-der resumes normal operation andthe display shows the total and tripdistances. The distance remaining before the next service is less than 1 000 km.
A few seconds after the ignition is switched on, the distance recorderresumes normal operation and the
spanner remains lit. This indicatesthat a service should be carried out
shortly.The service is overdue. Each time the ignition is switched on and for a few seconds, the symboland the excess distance flash. Note:
with the engine running the
symbol flashes until the service has been carried out.
PEUGEOT SERVICING
20

22-07-2002
Zero re-set
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the re-set procedure is asfollows: Switch off the ignition,
Press and hold the trip recorder re-set button,
Switch on the ignition.
The display begins a countdown. When the display shows 0, release the button; the service symbol disap-pears. Important: after this operation, if you
wish to disconnect the battery, lock the vehicle and wait for at least fiveminutes, otherwise the zero re-setwill not be registered. MAINTENANCE OF PARTS SUBJECT TO WEAR and a check of consumables Certain essential components on your vehicle are subject to checks at specific frequencies:
- The
brake fluid is to be replaced at a maximum of every 60 000 kmor every
two years.
- The pollen filter must be checked at each serviceby a PEUGEOT dealer
(services and intermediate visits) or more often, depending on the environ-
ment (dust, pollution, etc.)
- Replacement of the timing belt: consult a PEUGOT dealer.
- For the 2 litre HDI turbo diesel engine (110 bhp) , maintenance of the parti-
culate emission filter and topping up of the additive reservoirmust be car-
ried out at a maximum of every 80 000 km , by a PEUGEOT dealer.
- Air bags and pretensioning parts on seat belts must be checked every
10 years .
- The check on tyre inflation pressure must be carried out cold at least once
a month .
PEUGEOT SERVICING 21

22-07-2002
KM 60 000 120 000 180 000
THE SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating 2 types of service, A and C, intermediate visits and a few additional operations specific to
your vehicle; these correspond to key stages in the life of your 307 SW. At your first and each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
MAINTENANCE CYCLE FOR YOUR 307 SW PETROL ENGINE
Service every 2 years or 30 000 km maximum
1st service at 10 000 km or 6 months*.
This is necessary in order to benefit from the warranty.
Replacement of automatic gearbox oil every 60 000 km. These fixed operations are carried out with synthetically based oil.
Synthetic oil or Fuel economy oil may also be used.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit.

22-07-2002
120 000180 000
KM
60 000
PEUGEOT SERVICING 23
MAINTENANCE CYCLE FOR YOUR 307 SW DIESEL
Service every 2 years or 20 000 km maximum
1st service at 10 000 km or 6 months*.
This is necessary in
order to benefit from the warranty.
+ maintenance of particulate
emission filter
2.0 l HDI 110 bhp (160 000 km) + maintenance of
particulate
emission filter
2,0 l HDI 110 bhp (80 000 km)
These fixed operations are carried out:
- with synthetically based oil , synthetic oil or Fuel Economy oil ,
- with 5W40 oil for HDI Turbo Diesel engines fitted with a particulate emission filter .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit.

22-07-2002
ARDUOUS CONDITIONS OF USE
¥ Continuous door-to-door use.
¥ Town use (e.g. taxi).¥ Repeated short journeys, with the engine cold at low temperatures.
¥ A prolonged stay under the following conditions : Ð countries with temperatures often above +30 ¡C,Ð countries with temperatures often below -15 ¡C,Ð countries with a dusty atmosphere,Ð countries whose lubricants or fuels do not conform to our recommendations.
Recommendations: Ð replace the air filterevery 40 000 km for petrol engines and every 45 000 km for diesel engines,
Ð for replacement of the timing belt: contact a PEUGEOT dealer.
PEUGEOT SERVICING
24
