THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the front doors, the fuelfiller cap, the glove box and thepassenger air bag disarmingswitch. Central locking
From the driver's door, the keys allow you to lock, deadlock orunlock the doors and the tailgateand to fold back the exterior mir-rors. If one of the doors or the boot is open, it is impossible to operatethe central locking; an audiblesignal indicates locking by remo-te control. The remote control performs the same functions at a distance. The remote control key Locking ➜
Press button Ato lock the
vehicle. This is confirmed by fixed lighting of the direction indi-cators for approximately twoseconds.
Note: a long press on button A,
in addition to deadlocking, auto-matically closes the windows.
Vehicles fitted with deadlocking
Deadlocking renders theinternal and external doorlocking controls inoperative.
➜ Press button Ato deadlock
the vehicle.
This is confirmed by fixed lighting of the direction indicators forapproximately two seconds. Note: a long press on button A
permits automatic closing of the windows, in addition to deadloc-king.
A second press on button Ain
the five seconds following dead- locking, changes deadlocking tonormal locking. This is confirmed by fixed lighting of the direction indicators forapproximately two seconds.
Unlocking Press button Bto unlock the
vehicle. This is confirmed by rapid fla- shing of the direction indicators. Note: If the vehicle is locked
and unlocking is activated inad- vertently without the doors being opened within 30 seconds, the vehicle
will re-lock automatically.
STARTING
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the acces-sories can be used. 2nd notch, Running position: the ignition is on. Starting position:
operates the starter.
102

REAR PARKING
ASSISTANCE This system, installed in the rear
bumper, detects any obstacle
(person, vehicle, tree, barrier,kerb ...) situated behind thevehicle. Activation With the engine running, the sys- tem is activated when reverse
gear is engaged. A bleep indi-cates that it is active. The proximity information is pro- vided by an audible signal,consisting of bleeps which beco-me faster as the vehicleapproaches the obstacle. When the distance between the rear of the vehicle and the obs-tacle is less than approximatelytwenty-five centimetres, theaudible signal becomescontinuous. ➜Change to neutral to disarm the system.
11
OPENING THE BONNET Inside the vehicle: Push the
handle on the left side, under the fascia. Outside the vehicle: Lift
the catch, raise the bon- net and secure the strutto keep the bonnet open.
FILLING WITH FUEL This operation must be carried out with the
engine switched off .
The fuel to be used is indicatedon the inside of the flap. The capacity of the tank is approximately 60 litres. On filling, do not continue after
the third cut-off of the pump toavoid any malfunction. Low fuel level From the time this light comes on, the range remaining isapproximately 50 km.YOUR 307 SW AT A GLANCE
108108132
22-07-2002

22-07-2002
KM 60 000 120 000 180 000
THE SERVICE LEVELS Each vehicle has its own servicing cycle, based upon the engine type.
This cycle consists of alternating 2 types of service, A and C, intermediate visits and a few additional operations specific to
your vehicle; these correspond to key stages in the life of your 307 SW. At your first and each subsequent service, your dealer will advise you of the type and content of the next service due.
PEUGEOT SERVICING
22
MAINTENANCE CYCLE FOR YOUR 307 SW PETROL ENGINE
Service every 2 years or 30 000 km maximum
1st service at 10 000 km or 6 months*.
This is necessary in order to benefit from the warranty.
Replacement of automatic gearbox oil every 60 000 km. These fixed operations are carried out with synthetically based oil.
Synthetic oil or Fuel economy oil may also be used.
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit.

22-07-2002
120 000180 000
KM
60 000
PEUGEOT SERVICING 23
MAINTENANCE CYCLE FOR YOUR 307 SW DIESEL
Service every 2 years or 20 000 km maximum
1st service at 10 000 km or 6 months*.
This is necessary in
order to benefit from the warranty.
+ maintenance of particulate
emission filter
2.0 l HDI 110 bhp (160 000 km) + maintenance of
particulate
emission filter
2,0 l HDI 110 bhp (80 000 km)
These fixed operations are carried out:
- with synthetically based oil , synthetic oil or Fuel Economy oil ,
- with 5W40 oil for HDI Turbo Diesel engines fitted with a particulate emission filter .
Arduous conditions of use (see corresponding section).
* Whichever comes first.
Intermediate top-up visit.

22-07-2002
ARDUOUS CONDITIONS OF USE
¥ Continuous door-to-door use.
¥ Town use (e.g. taxi).¥ Repeated short journeys, with the engine cold at low temperatures.
¥ A prolonged stay under the following conditions : Ð countries with temperatures often above +30 ¡C,Ð countries with temperatures often below -15 ¡C,Ð countries with a dusty atmosphere,Ð countries whose lubricants or fuels do not conform to our recommendations.
Recommendations: Ð replace the air filterevery 40 000 km for petrol engines and every 45 000 km for diesel engines,
Ð for replacement of the timing belt: contact a PEUGEOT dealer.
PEUGEOT SERVICING
24

22-07-2002
PEUGEOT SERVICING25
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations Description of operation 1st service
A C Intermediate
DRAIN/REFILL- Engine oil.- Bleed fuel filter (diesel).- Oil filter.- Fuel filter* (petrol).REPLACE- Fuel filter element (diesel).- Air filter element.- Spark plugs (petrol).- Engine oil (check + top-up). - Manual gearbox oil (check + top-up).- Battery (check + top-up) if cap is removable.LEVEL- Screen wash (check + top-up).- Coolant (check + top-up).- Brake fluid (check + top-up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of the ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers).CHECK- Condition of rubber boots and gaiters.- Brake pads. - Play in hubs, link rods, ball joints, flexible mountings.- Shock absorbers.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check as per current legislation (petrol).- Smoke opacity (diesel).- Pollen filter (according to specification). - Visual check of the whole vehicle.
SERVICE*- Courtesy vehicle.
ROAD TEST
: All driving conditions: Arduous conditions * According to destination

22-07-2002
(1) Minimum grade: Petrol engines ACEA A3 and API SH/SJ; Diesel engines ACEA B3 and API CF/CD. ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers).
API = American Petroleum Institute. If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous Conditions" servicing schedule to be followed, which involves shorter intervals between services.
*This Fuel Economy oil can only be used in engines designed for its use.
Use 5W40 oil only for HDI Turbo DIesel engines fitted with a particulate emission filter.

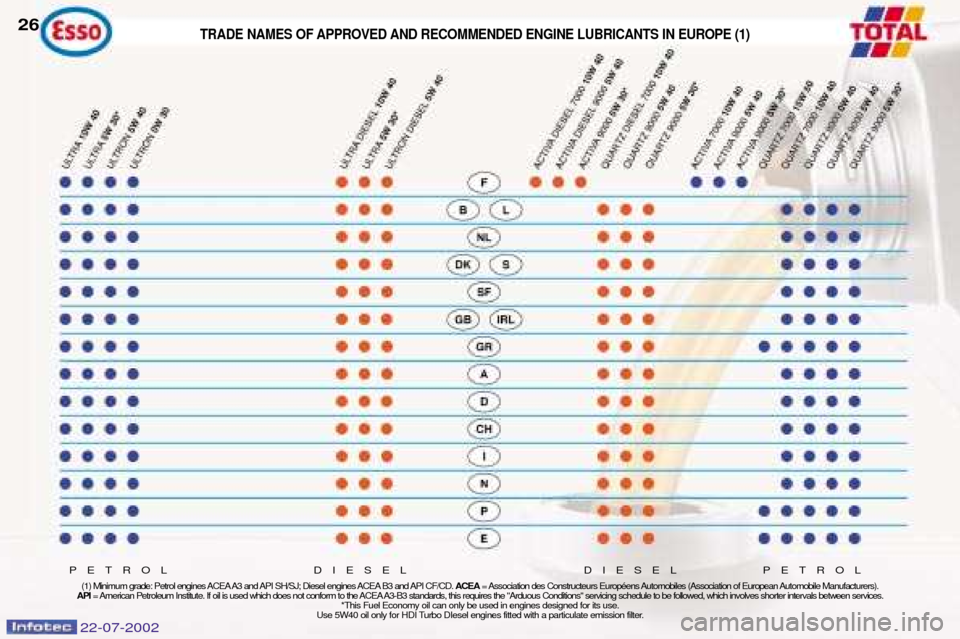

26TRADE NAMES OF APPROVED AND RECOMMENDED ENGINE LUBRICANTS IN EUROPE (1)
PETROL DIESEL DIESEL PETROL

22-07-2002

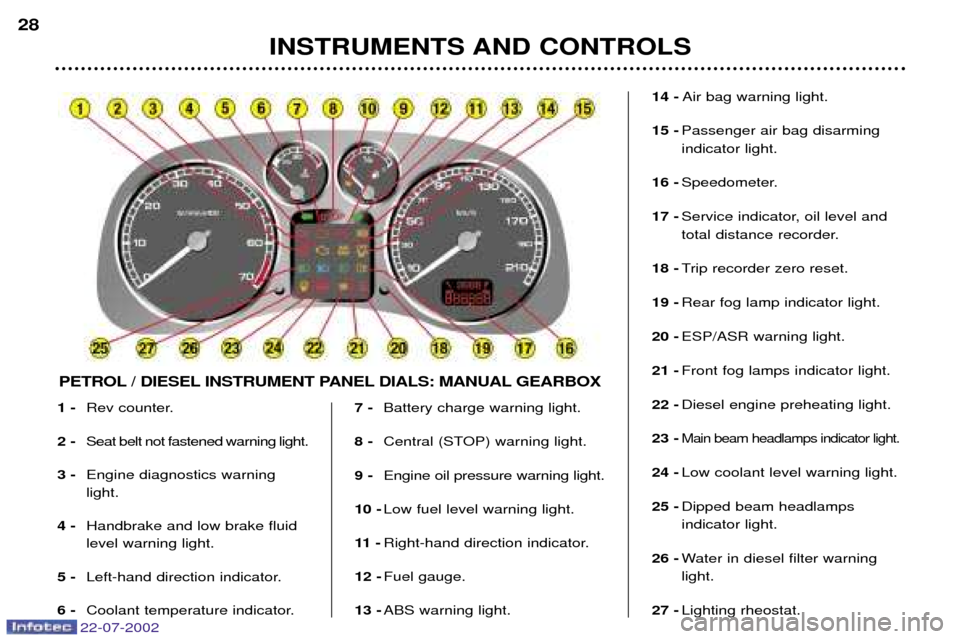

1 -Rev counter.
2 - Seat belt not fastened warning light.
3 - Engine diagnostics warning light.
4 - Handbrake and low brake fluidlevel warning light.
5 - Left-hand direction indicator.
6 - Coolant temperature indicator. 7 -
Battery charge warning light.
8 - Central (STOP) warning light.
9 - Engine oil pressure warning light.
10 - Low fuel level warning light.
11 - Right-hand direction indicator.
12 - Fuel gauge.
13 - ABS warning light. 14 -
Air bag warning light.
15 - Passenger air bag disarming indicator light.
16 - Speedometer.
17 - Service indicator, oil level and
total distance recorder.
18 - Trip recorder zero reset.
19 - Rear fog lamp indicator light.
20 - ESP/ASR warning light.
21 - Front fog lamps indicator light.
22 - Diesel engine preheating light.
23 -
Main beam headlamps indicator light.
24 - Low coolant level warning light.
25 - Dipped beam headlampsindicator light.
26 - Water in diesel filter warninglight.
27 - Lighting rheostat.
INSTRUMENTS AND CONTROLS
28
PETROL / DIESEL INSTRUMENT PANEL DIALS: MANUAL GEARBOX

22-07-2002
INSTRUMENTS AND CONTROLS29

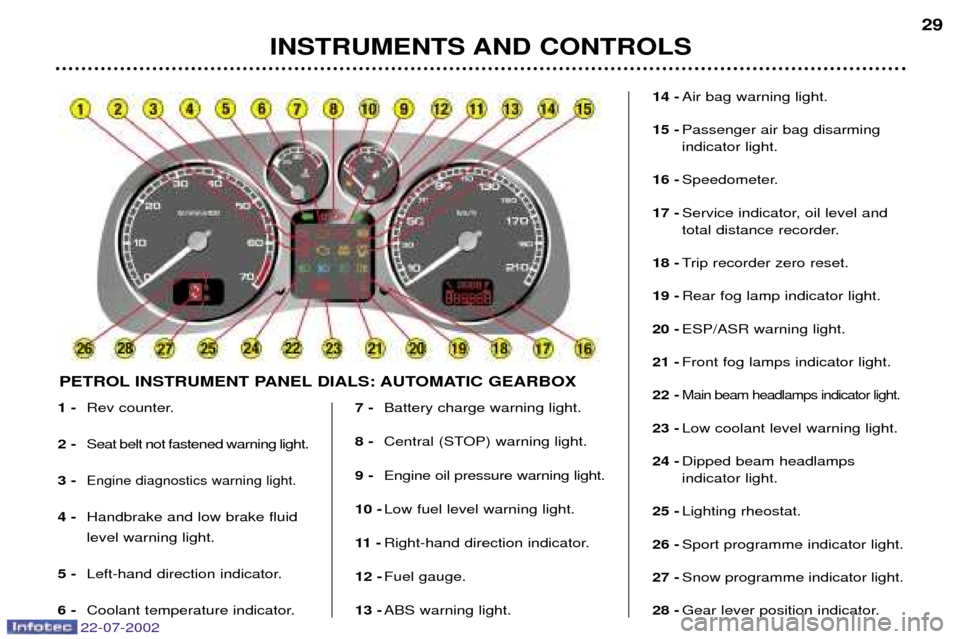

1 -
Rev counter.
2 - Seat belt not fastened warning light.
3 -
Engine diagnostics warning light.
4 - Handbrake and low brake fluid level warning light.
5 - Left-hand direction indicator.
6 - Coolant temperature indicator. 7 -
Battery charge warning light.
8 - Central (STOP) warning light.
9 - Engine oil pressure warning light.
10 - Low fuel level warning light.
11 - Right-hand direction indicator.
12 - Fuel gauge.
13 - ABS warning light. 14 -
Air bag warning light.
15 - Passenger air bag disarming indicator light.
16 - Speedometer.
17 - Service indicator, oil level and
total distance recorder.
18 - Trip recorder zero reset.
19 - Rear fog lamp indicator light.
20 - ESP/ASR warning light.
21 - Front fog lamps indicator light.
22 -
Main beam headlamps indicator light.
23 - Low coolant level warning light.
24 - Dipped beam headlampsindicator light.
25 - Lighting rheostat.
26 - Sport programme indicator light.
27 - Snow programme indicator light.
28 - Gear lever position indicator.
PETROL INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX

Passenger air bag disarming indicator light Illumination of this warning light is accompanied by an audible signal and the message"Passenger air bag disarmed" on the multifunction
display.
If the passager air bag is disarmed, the indicator light comes on when the igni-tion is switched on and remains on.
In all cases, if the warning light flashes; contact a PEUGEOT dealer.
Seat belt not fastened warning light With the engine running, this indicator light comes on when the driver's seat belt is not fastened.Low fuel level warning light. The warning light comes on for three seconds when the ignition is switched on. When this light comes on with the engine running, it is accompa-
nied by an audible signal and the message "Fuel level low"on the multifunction
display.When the warning light comes on, you have enough fuel to drive at least 50 km.
The tank capacity is approximately 60 litres.This light flashes to indicate a malfunction of the fuel gauge.
Contact a PEUGEOT dealer. Air bag warning light This light comes on for a few seconds when the ignition is switched on.
Illumination of this warning light, with the engine running, is accompa-
nied by an audible signal and a message "Air bag fault"on the multi-
function display indicating :
- a fault in the front air bags,or
- a fault in the side air bags or curtain air bags.
Contact a PEUGEOT dealer. Coolant temperature indicator When the needle is in zone
A, the
temperature is correct. When the needle is in zone B, the
temperature is too high. The central
STOP warning light flashes, accom-
panied by an audible signal and themessage "Coolant temp. high" on
the multifunction display.
You must stop immediately.
Warning: wait for the engine to cool
before topping up the level. The cooling system is pressurised. In order to avoid any risk of scalding, unscrew the cap two turns to allowthe pressure to drop. When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
