set clock Peugeot 307 SW Dag 2002.5 Owner's Manual

22-07-2002
AUDIO RB3
YOUR 307 SW IN DETAIL
38

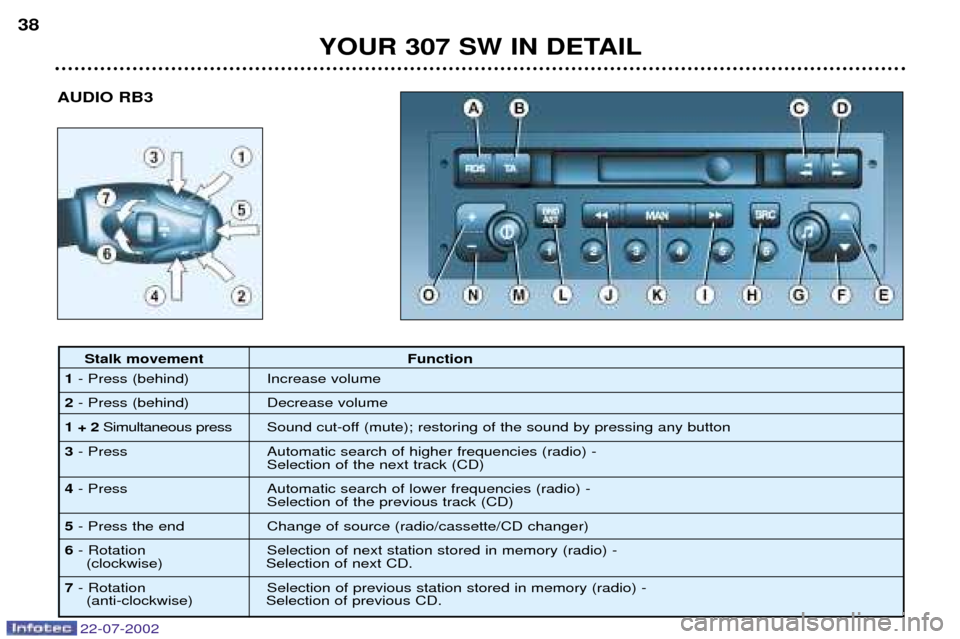

Stalk movement Function
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1+ 2 Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio) -
Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio) -
Selection of the previous track (CD)
5 - Press the end Change of source (radio/cassette/CD changer)
6 - Rotation Selection of next station stored in memory (radio) -
(clockwise) Selection of next CD.
7 - Rotation Selection of previous station stored in memory (radio) -
(anti-clockwise) Selection of previous CD.

22-07-2002
YOUR 307 SW IN DETAIL
40
AUDIO RD3
Stalk movement Function
1 - Press (behind) Increase volume
2 - Press (behind) Decrease volume
1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button
3 - Press Automatic search of higher frequencies (radio) -
Selection of the next track (CD)
4 - Press Automatic search of lower frequencies (radio) -
Selection of the previous track (CD)
5 - Press the end Change of source (radio/cassette/CD changer)
6 - Rotation Selection of next station stored in memory (radio) -
(clockwise) Selection of following CD
7 - Rotation Selection of previous station stored in memory (radio) -
(anti-clockwise) Selection of previous CD

22-07-2002
YOUR 307 SW IN DETAIL
54
GENERAL FUNCTIONS On/off With the ignition switch in the accessories position or with the ignition on, press button Cto switch the audio
function of the RT3 audio/telephone on or off. Note: in the absence of an ignition key, press button Cto switch the telematics system on or off.
The RT3 telephone can operate for 30 minutes without switching the vehicle ignition on.
Notes:
- the SIM card must be removed only after the audio/telephone has been switched off,
- following automatic switching off of the audio/telephone after 30 minutes it is possible to make a telephone call by pres- sing button D,
- after the ignition has been switched off, the audio/telephone can be switched on again by pressing buttons D, E , V or by
inserting a CD in the player.
Anti-theft system
The RT3 audio/telephone is coded in such a way that it can operate only on your vehicle. If fitting it to another vehicle, cons ult
your PEUGEOT dealer for configuration of the system. The system is automatic and requires no action on your part. ADJUSTING THE VOLUME
Turn button Cclockwise to increase the volume of the audio/telephone or anti-clockwise to decrease it.
Note: the volume setting is specific to each source. It is possible to have different settings for radio, CD or CD changer.
AUDIO SETTINGS Press button Uto access Bass, Treble , Loudness , Fader (front/rear balance), Balance(left/right balance)
and Automatic volume adjustment settings.
Exit from audio mode is automatic after a few seconds without any action, or by pressing button J.
Note: bass and treble settings are specific to each source. It is possible to have different settings for radio,
CD or CD changer.

22-07-2002
YOUR 307 SW IN DETAIL
55
Bass setting When "Bass" is displayed, turn button Cto vary the setting.
- "-9" for minimum bass setting,
- "0" for normal setting,
- "+9" for maximum bass setting.
Treble setting When "Treble" is displayed, turn button Cto vary the setting.
- "-9" for minimum treble setting,
- "0" for normal setting,
- "+9" for maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low. Rotate button Cto switch the function on or off.
Setting the front/rear sound distribution (Fader) When "Fader" is displayed:
- Turn button Cclockwise to increase the volume in the front.
- Turn button Canti-clockwise to increase the volume in the rear.
Setting the right/left sound distribution (Balance)When "Balance" is displayed:
- Turn button Cclockwise to increase the volume on the right.
- Turn button Canti-clockwise to increase the volume on the left.
Automatic volume adjustment "CAV"This function allows the volume to be adjusted automatically depending on the level of noise produced by the speed of the vehicle. Press button Cto switch the function on or off.
