3YOUR 307 SW AT A GLANCE
1 - Driver's air bag.
Horn.
2 - Lights and direction indicators stalk.
3 - Audio remote control stalk.
4 - Instrument dials.
5 - Windscreen wash-wipe stalk.
Trip computer stalk.
6 - Alarm button.
7 - Central locking button.
8 - Hazard warning lights swit- ch.
9 - Multifunction display.
10 - Brightness sensor.
11 - Dynamic Stability control (ESP/ASR) switch*.
12 - Central adjustable ventilation and air flow regulation vents.
13 - Windscreen demisting vents. 14 - Speaker (tweeter) loca-
tion.
15 - Side window demisting vent.
16 - Side adjustable ventila- tion and air flow regula- tion vent.
17 - Passenger air bag.
18 - Glove box.
19 - RB3 or RD3 audio equip- ment.
20 - Heated seat switches.
21 - CD changer.
22 - Ventilation / air conditio- ning controls.
23 - Front ashtray.
24 - Rear footwell heating vent.
25 - 12 V accessories socket.
26 - Gear lever.
27 - Can holder.
28 - Handbrake. 29 - Rubbish container.
30 - Passenger air bag
disarming switch*.
31 - Panoramic roof concealing flap control.
32 - Steering lock and ignition.
33 - Bonnet opening control.
34 - Steering wheel adjust- ment control.
35 - Fuse box.
36 - Electric mirror controls. Window controls. Rear window locking control.
37 - Headlamp height adjustment.
38 - Cruise control
* According to destination
Page 8 of 137
9YOUR 307 SW AT A GLANCE

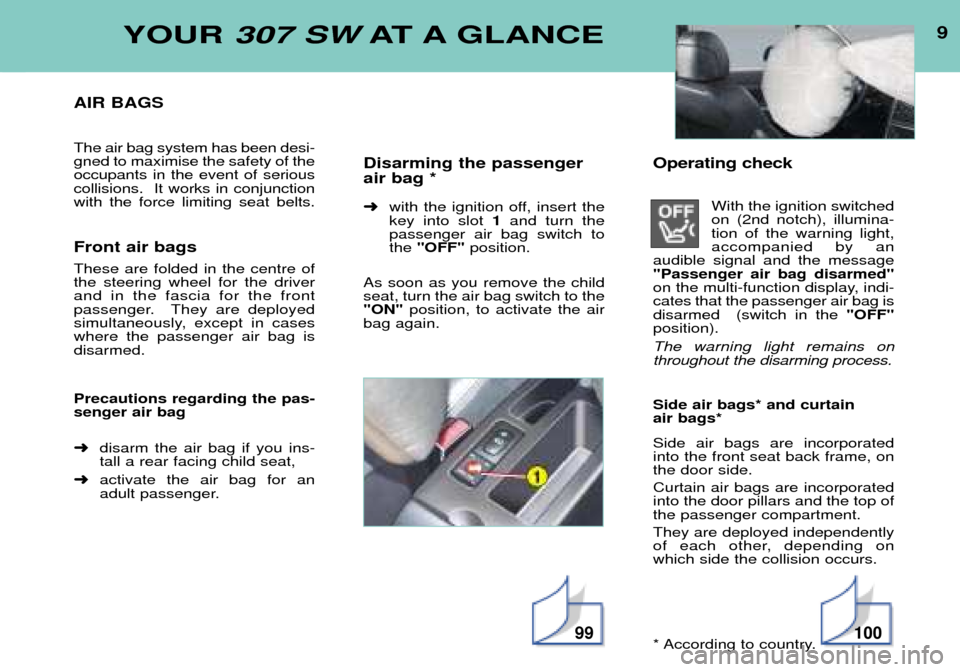

AIR BAGS The air bag system has been desi- gned to maximise the safety of theoccupants in the event of seriouscollisions. It works in conjunctionwith the force limiting seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the pas- senger air bag ➜disarm the air bag if you ins-
tall a rear facing child seat,
➜ activate the air bag for an
adult passenger. Disarming the passenger air bag * ➜
with the ignition off, insert the key into slot 1and turn the
passenger air bag switch tothe "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the"ON" position, to activate the air
bag again. Operating check
With the ignition switchedon (2nd notch), illumina-tion of the warning light,accompanied by an
audible signal and the message"Passenger air bag disarmed"
on the multi-function display, indi-cates that the passenger air bag isdisarmed (switch in the "OFF"
position). The warning light remains on throughout the disarming process. Side air bags* and curtain air bags* Side air bags are incorporated into the front seat back frame, onthe door side. Curtain air bags are incorporated into the door pillars and the top ofthe passenger compartment. They are deployed independently
of each other, depending onwhich side the collision occurs.
* According to country.
99100
Page 11 of 137
12YOUR 307 SW AT A GLANCE

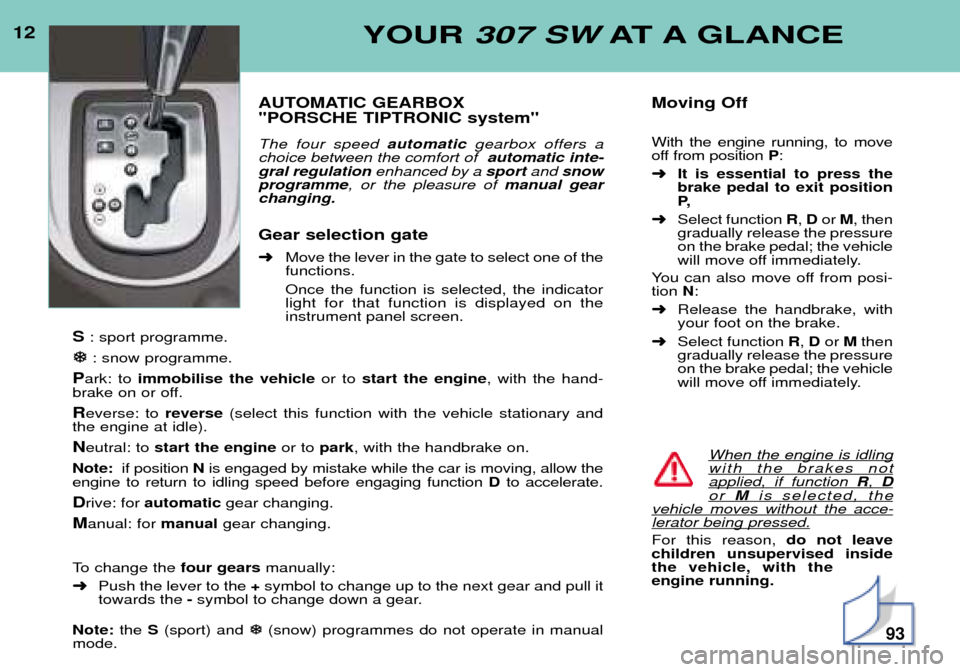

AUTOMATIC GEARBOX "PORSCHE TIPTRONIC system" The four speed automaticgearbox offers a
choice between the comfort of automatic inte-
gral regulation enhanced by a sportand snow
programme , or the pleasure of manual gear
changing.

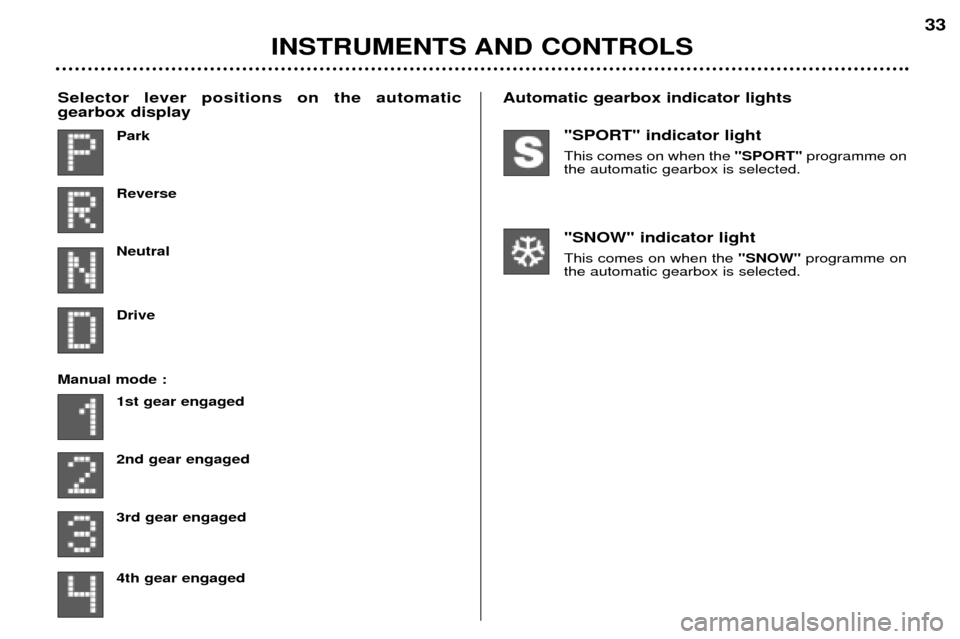

Gear selection gate ➜ Move the lever in the gate to select one of the functions. Once the function is selected, the indicator light for that function is displayed on theinstrument panel screen.
S : sport programme.
: snow programme.
P ark: to immobilise the vehicle or to start the engine , with the hand-
brake on or off. R everse: to reverse(select this function with the vehicle stationary and
the engine at idle).N eutral: to start the engine or to park, with the handbrake on.
Note: if position Nis engaged by mistake while the car is moving, allow the
engine to return to idling speed before engaging function Dto accelerate.
D rive: for automatic gear changing.
M anual: for manual gear changing.
To change the four gearsmanually:
➜ Push the lever to the +symbol to change up to the next gear and pull it
towards the -symbol to change down a gear.
Note: the S(sport) and
(snow) programmes do not operate in manual
mode. Moving Off With the engine running, to move
off from position
P:
➜ It is essential to press thebrake pedal to exit positionP,
➜ Select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
will move off immediately.
You can also move off from posi-tion N:
➜ Release the handbrake, withyour foot on the brake.
➜ Select function R, D or Mthen
gradually release the pressureon the brake pedal; the vehicle
will move off immediately.
When the engine is idling
with the brakes notapplied, if function R, Dor M is selected, thevehicle moves without the acce-lerator being pressed.
For this reason, do not leave
children unsupervised inside the vehicle, with theengine running.
93
Page 16 of 137
SERVICE INDICATOR Located on the instrument panel with the total distance recorder (total andtrip distances), this programmes ser-vice intervals depending on the useof the vehicle. Operation
A few moments after the ignition has been switched on, the spanner sho-wing the service symbols lights up;the display for the total distancerecorder tells you (in round figures)the distance remaining before yournext service. Example:4 800 km remain before
the next service is due. When the ignition is switched on and for a fewseconds, the display shows: A few seconds after the ignition isswitched on, the total distance recor-der resumes normal operation andthe display shows the total and tripdistances. The distance remaining before the next service is less than 1 000 km.
A few seconds after the ignition is switched on, the distance recorderresumes normal operation and the
spanner remains lit. This indicatesthat a service should be carried out
shortly.The service is overdue Each time the ignition is switched on and for a few seconds, the symboland the excess distance flash. Note:
with the engine running the
symbol flashes until the service has been carried out.
