fuse box Peugeot 307 SW Dag 2002 Owner's Manual

3YOUR 307 SW AT A GLANCE
1 - Driver's air bag.
Horn.
2 - Lights and direction indicators stalk.
3 - Audio remote control stalk.
4 - Instrument dials.
5 - Windscreen wash-wipe stalk.
Trip computer stalk.
6 - Alarm button.
7 - Central locking button.
8 - Hazard warning lights swit- ch.
9 - Multifunction display.
10 - Brightness sensor.
11 - Dynamic Stability control (ESP/ASR) switch*.
12 - Central adjustable ventilation and air flow regulation vents.
13 - Windscreen demisting vents. 14 - Speaker (tweeter) loca-
tion.
15 - Side window demisting vent.
16 - Side adjustable ventila- tion and air flow regula- tion vent.
17 - Passenger air bag.
18 - Glove box.
19 - RB3 or RD3 audio equip- ment.
20 - Heated seat switches.
21 - CD changer.
22 - Ventilation / air conditio- ning controls.
23 - Front ashtray.
24 - Rear footwell heating vent.
25 - 12 V accessories socket.
26 - Gear lever.
27 - Can holder.
28 - Handbrake. 29 - Rubbish container.
30 - Passenger air bag
disarming switch*.
31 - Panoramic roof concealing flap control.
32 - Steering lock and ignition.
33 - Bonnet opening control.
34 - Steering wheel adjust- ment control.
35 - Fuse box.
36 - Electric mirror controls. Window controls. Rear window locking control.
37 - Headlamp height adjustment.
38 - Cruise control
* According to destination

PRACTICAL INFORMATION
102
1.6 LITRE 16V PETROL ENGINE 1 -
Power steering reservoir.
2 - Wash/wipe and headlamp wash
reservoir. 3 -
Coolant reservoir.
4 - Brake fluid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air filter.
8 - Dipstick.
9 - Engine oil filler cap.

PRACTICAL INFORMATION103
2 LITRE 16V PETROL ENGINE 1 -
Power steering reservoir.
2 - Windscreen/headlamp wash
reservoir. 3 -
Coolant reservoir.
4 - Brake fluid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air filter.
8 - Dipstick.
9 - Engine oil filler cap.

PRACTICAL INFORMATION
104
2 LITRE HDI TURBO DIESEL
ENGINE (90 bhp/110 bhp) 1 -
Power steering reservoir.
2 - Windscreen/headlamp wash
reservoir. 3 -
Coolant reservoir.
4 - Brake fluid reservoir.
5 - Battery.
6 - Fuse box. 7 -
Air filter.
8 - Dipstick.
9 - Engine oil filler cap.
10 -Priming pump.

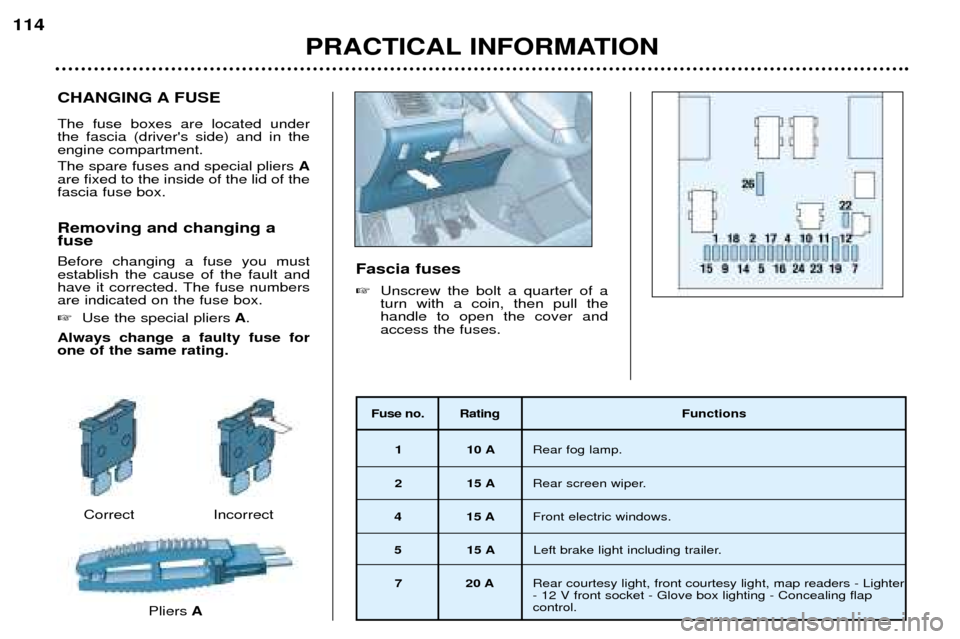

CHANGING A FUSE The fuse boxes are located under the fascia (driver's side) and in theengine compartment. The spare fuses and special pliers A
are fixed to the inside of the lid of the fascia fuse box. Removing and changing a fuse Before changing a fuse you must establish the cause of the fault and
have it corrected. The fuse numbersare indicated on the fuse box. Use the special pliers A.
Always change a faulty fuse for one of the same rating. Fascia fuses
Unscrew the bolt a quarter of a turn with a coin, then pull thehandle to open the cover andaccess the fuses.
PRACTICAL INFORMATION
114
Fuse no. RatingFunctions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Front electric windows.
5 15 A Left brake light including trailer.
7 20 A Rear courtesy light, front courtesy light, map readers - Lighter - 12 V front socket - Glove box lighting - Concealing flapcontrol.
Correct
PliersAIncorrect

Engine compartment fuses Fuse box
To access the fuse box in the engine compartment (next to the battery): unclip the cover.
Carefully close the cover and refit the style cover when you havefinished.
PRACTICAL INFORMATION
116

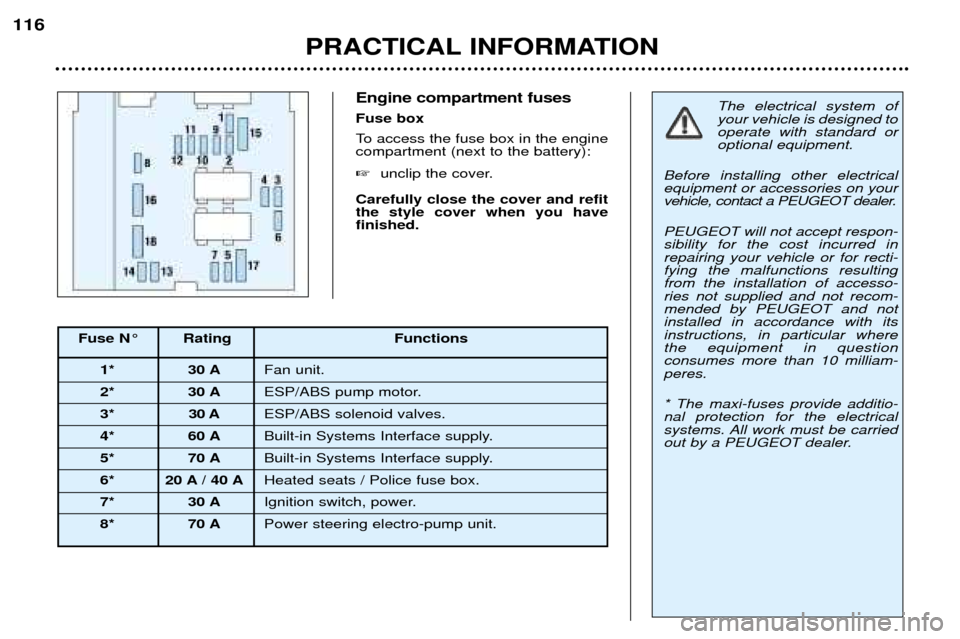

The electrical system of your vehicle is designed tooperate with standard oroptional equipment.
Before installing other electricalequipment or accessories on your
vehicle, contact a PEUGEOT dealer. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for recti-fying the malfunctions resultingfrom the installation of accesso-ries not supplied and not recom-mended by PEUGEOT and notinstalled in accordance with itsinstructions, in particular wherethe equipment in questionconsumes more than 10 milliam-peres. * The maxi-fuses provide additio- nal protection for the electrical
systems. All work must be carried
out by a PEUGEOT dealer.
Fuse N¡ Rating Functions
1* 30 A Fan unit.
2* 30 A ESP/ABS pump motor.
3* 30 A ESP/ABS solenoid valves.
4* 60 A Built-in Systems Interface supply.
5* 70 A Built-in Systems Interface supply.
6* 20 A / 40 A Heated seats / Police fuse box.
7* 30 A Ignition switch, power.
8* 70 A Power steering electro-pump unit.

PRACTICAL INFORMATION117
Fuse N¡ Rating
Functions
1 10 A Automatic gearbox reversing lights switch - Automatic gearbox starting inhibitor relay
control - Manual gearbox reversing lights switch - Vehicle speed sensor - Water in diesel
sensor.
2 15 A Canister solenoid valve - Fuel pump.
3 10 A Power steering control unit - ABS or ESP control unit.
4 10 A Injection control unit - Fan unit relay control - Additional heating relay control -
Automatic gearbox control unit - Automatic gearbox sequential control -
Automatic gearbox shiftlock relay.
5 15 A Particulate emission filter control unit.
6 15 A Front fog lamps.
7 20 A Headlamp wash pump.
8 20 A Fan unit relay control - Engine control unit supply - Injection pump (Diesel).
9 15 A Left dipped beam
10 15 A Right dipped beam
11 10 A Right main beam.
12 10 A Left main beam.
13 15 A Horn
14 10 A Front and rear headlamps wash pump
15 30 A Oxygen sensors - Exhaust gas recirculation solenoid valve - Ignition coil - Diesel high
pressure regulator - Injectors supply (petrol) - Pre-heating control unit - Air flow sensor
(Diesel) - Engine control unit (Diesel) - Injection pump (Diesel) - Diesel heater.
16 40 A Petrol engine air pump with automatic gearbox.
17 30 A Low/high speed front wiper.
18 40 A Air conditioning blower.

CHANGING A FUSE The fuse boxes are located under the fascia (driver's side) and in theengine compartment. The spare fuses and special pliers A
are fixed to the inside of the lid of the fascia fuse box. Removing and changing a fuse Before changing a fuse you must establish the cause of the fault and
have it corrected. The fuse numbersare indicated on the fuse box. Use the special pliers A.
Always change a faulty fuse for one of the same rating. Fascia fuses
Unscrew the bolt a quarter of a turn with a coin, then pull thehandle to open the cover andaccess the fuses.
PRACTICAL INFORMATION
114
Fuse no. RatingFunctions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Front electric windows.
5 15 A Left brake light including trailer.
7 20 A Rear courtesy light, front courtesy light, map readers - Lighter - 12 V front socket - Glove box lighting - Concealing flapcontrol.
Correct
PliersAIncorrect

PRACTICAL INFORMATION115
Fuse no. Rating
Functions
9 30 A Electric windows - Press operation windows (incompatible with non-press operation windows) - Panoramic roof concealing flap.
10 15 A Diagnostic socket - 12 V rear socket.
11 15 A Audio equipment - Multi-function displays - Steering wheel controls - Automatic gearbox.
12 10 A Front right and rear right side lights - Number plate and trailer lighting - Central locking
switches/ alarm/ESP/hazard warning lights lighting - Air conditioning/ashtray light - Heated
seats switches/automatic gearbox lighting- Lighter - Headlamp beam corrector.
14 30 A Door opening/closing controls - Deadlocking controls.
15 30 A Rear windows.
16 5 A Engine fuse box - Alarm - Particulate emission filter - Steering wheel controls - Airbags.
17 10 A Rear right brake light, additional brake light.
18 10 A Diagnostic socket - Steering wheel controls - Brake pedal (stop) and clutch switches - Coolant level switch - Second brake switch.
19 30 A PARC shunt.
22 10 A Front left and rear left side lights - Number plate and trailer lighting.
23 15 A Alarm siren - Interior alarm control unit.
24 15 A Instrument panel - Audio equipment - Multifunction displays - Air conditioning - Rear parking aid.
26 30 A Heated rear screen.
