3YOUR 307 SW AT A GLANCE
1 - Driver's air bag.
Horn.
2 - Lights and direction indicators stalk.
3 - Audio remote control stalk.
4 - Instrument dials.
5 - Windscreen wash-wipe stalk.
Trip computer stalk.
6 - Alarm button.
7 - Central locking button.
8 - Hazard warning lights swit- ch.
9 - Multifunction display.
10 - Brightness sensor.
11 - Dynamic Stability control (ESP/ASR) switch*.
12 - Central adjustable ventilation and air flow regulation vents.
13 - Windscreen demisting vents. 14 - Speaker (tweeter) loca-
tion.
15 - Side window demisting vent.
16 - Side adjustable ventila- tion and air flow regula- tion vent.
17 - Passenger air bag.
18 - Glove box.
19 - RB3 or RD3 audio equip- ment.
20 - Heated seat switches.
21 - CD changer.
22 - Ventilation / air conditio- ning controls.
23 - Front ashtray.
24 - Rear footwell heating vent.
25 - 12 V accessories socket.
26 - Gear lever.
27 - Can holder.
28 - Handbrake. 29 - Rubbish container.
30 - Passenger air bag
disarming switch*.
31 - Panoramic roof concealing flap control.
32 - Steering lock and ignition.
33 - Bonnet opening control.
34 - Steering wheel adjust- ment control.
35 - Fuse box.
36 - Electric mirror controls. Window controls. Rear window locking control.
37 - Headlamp height adjustment.
38 - Cruise control
* According to destination

SEAT BELTS Front and 2nd row rear side seat belts The front seats are fitted with pre- tensioners and force limiters whilethe rear seats have force limiters
only.
To adjust the height in the front To lower the attachment point, squeeze control 1and slide it
downwards.
To raise the attachment point,slide control 1upwards.
To lock Pull the strap, then insert the bucke into the stalk. Pre-tensioning and force-limiting seat belts Safety in the event of a frontal impact has been improved by the introduc-tion of pre-tensioning and force-limi-ting seat belts. Depending on theseriousness of the impact, the pre-tensioning system instantly tightensthe seat belts firmly against the bodyof the occupant. The pre-tensioning seat belts are armed when the ignition is on. The force-limiting device reduces the pressure of the seat belt against theoccupant's body in the event of anaccident.
YOUR 307 SW IN DETAIL
65
2nd row rear centre seat belt The 2nd row rear centre seat has a three-point inertia reel seat beltincorporated in the centre of theroof. Pass buckle
A, then buckle B, into
the strap guide working from the inside to the outside of the seat. Insert buckle Ainto its stalk (right),
then buckle Binto its stalk (left).
To remove the seat belt, proceed in
the reverse order, then move buckleB to the magnet of the roof fixing
point.

TAILGATE Simultaneous locking or unlocking of the tailgate andthe doors The tailgate is locked or unlocked by the remote control or the driver's door lock.

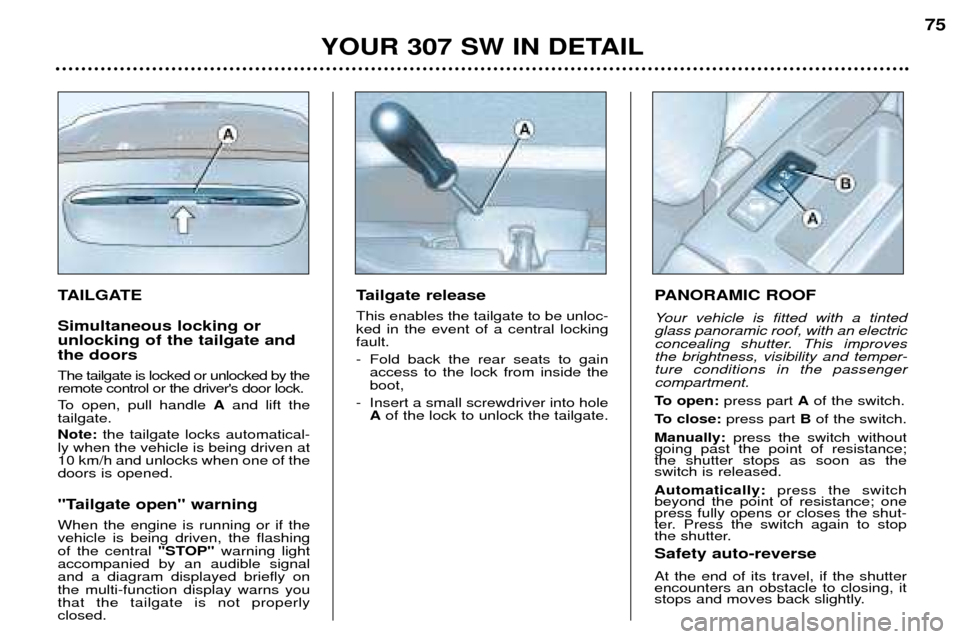

To open, pull handle Aand lift the
tailgate.Note: the tailgate locks automatical-
ly when the vehicle is being driven at 10 km/h and unlocks when one of thedoors is opened.
"Tailgate open" warning When the engine is running or if the vehicle is being driven, the flashingof the central "STOP"warning light
accompanied by an audible signaland a diagram displayed briefly onthe multi-function display warns youthat the tailgate is not properly closed. Tailgate release This enables the tailgate to be unloc- ked in the event of a central lockingfault.
- Fold back the rear seats to gain
access to the lock from inside the boot,
- Insert a small screwdriver into hole A of the lock to unlock the tailgate. PANORAMIC ROOF
Your vehicle is fitted with a tinted glass panoramic roof, with an electric
concealing shutter. This improvesthe brightness, visibility and temper-ture conditions in the passengercompartment.
To open:
press part Aof the switch.
To close: press part Bof the switch.
Manually: press the switch without
going past the point of resistance; the shutter stops as soon as the switch is released. Automatically: press the switch
beyond the point of resistance; one press fully opens or closes the shut-
ter. Press the switch again to stop
the shutter.
Safety auto-reverse At the end of its travel, if the shutter encounters an obstacle to closing, it
stops and moves back slightly.
YOUR 307 SW IN DETAIL 75

For the front, side* and curtain* air bags to be fully effective, observe the following safety rules:
¥Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (pet, child, object...). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered.Have them replaced by a PEUGEOT dealer after this period.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air baginflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags*
¥ Do not fix or glue anything to the pillars or the roof. This could cause injury to the head when the curtain air baginflates. Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.
* According to destination.
YOUR 307 SW IN DETAIL101

For the front, side* and curtain* air bags to be fully effective, observe the following safety rules:
¥Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (pet, child, object...). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered.Have them replaced by a PEUGEOT dealer after this period.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air baginflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags*
¥ Do not fix or glue anything to the pillars or the roof. This could cause injury to the head when the curtain air baginflates. Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.
* According to destination.
YOUR 307 SW IN DETAIL101

PRACTICAL INFORMATION115
Fuse no. Rating
Functions
9 30 A Electric windows - Press operation windows (incompatible with non-press operation windows) - Panoramic roof concealing flap.
10 15 A Diagnostic socket - 12 V rear socket.
11 15 A Audio equipment - Multi-function displays - Steering wheel controls - Automatic gearbox.
12 10 A Front right and rear right side lights - Number plate and trailer lighting - Central locking
switches/ alarm/ESP/hazard warning lights lighting - Air conditioning/ashtray light - Heated
seats switches/automatic gearbox lighting- Lighter - Headlamp beam corrector.
14 30 A Door opening/closing controls - Deadlocking controls.
15 30 A Rear windows.
16 5 A Engine fuse box - Alarm - Particulate emission filter - Steering wheel controls - Airbags.
17 10 A Rear right brake light, additional brake light.
18 10 A Diagnostic socket - Steering wheel controls - Brake pedal (stop) and clutch switches - Coolant level switch - Second brake switch.
19 30 A PARC shunt.
22 10 A Front left and rear left side lights - Number plate and trailer lighting.
23 15 A Alarm siren - Interior alarm control unit.
24 15 A Instrument panel - Audio equipment - Multifunction displays - Air conditioning - Rear parking aid.
26 30 A Heated rear screen.

CHANGING A WINDSCREEN WIPER BLADE Placing the wiper blades in the maintenance position Within one minute of switching off the ignition, operate the wipersstalk to position the wiper bladesin the centre of the windscreen(maintenance position).
Changing a wiper blade Lift the wiper arm, then unclip the blade and remove it.
Fit the new blade and push backthe arm.
Note : the shortest blade is fitted on
the vehicle's right-hand windscreenwiper arm.
To return the windscreen wipers to their normal position, switch onthe ignition and operate the wiperstalk. ECONOMY MODE FUNCTION After the engine has stopped, certain functions (windscreen wipers, elec-tric windows, panoramic roofconcealing flap, courtesy lights,audio equipment etc.) can only beused for thirty minutes, to prevent
discharging the battery.
Once the thirty minutes are over, the message
"Economy mode active"
appears on the multi-function displayand the active functions are put on
standby.
To resume use of these functions, start the engine and let it run for afew seconds. LOAD REDUCTION When driving, certain functions (air conditioning, heated rear screen,heating system for passenger com-partment of diesel vehicles, etc.) may
be switched off temporarily, depen-ding on the level of battery charge. Reactivation of these functions is automatic, once the battery charge is
sufficient. Note:
at the risk of discharging the
battery, the functions that have been
switched off may be reactivated
manually.
PRACTICAL INFORMATION
11 8
A flat battery will prevent the engine from starting.

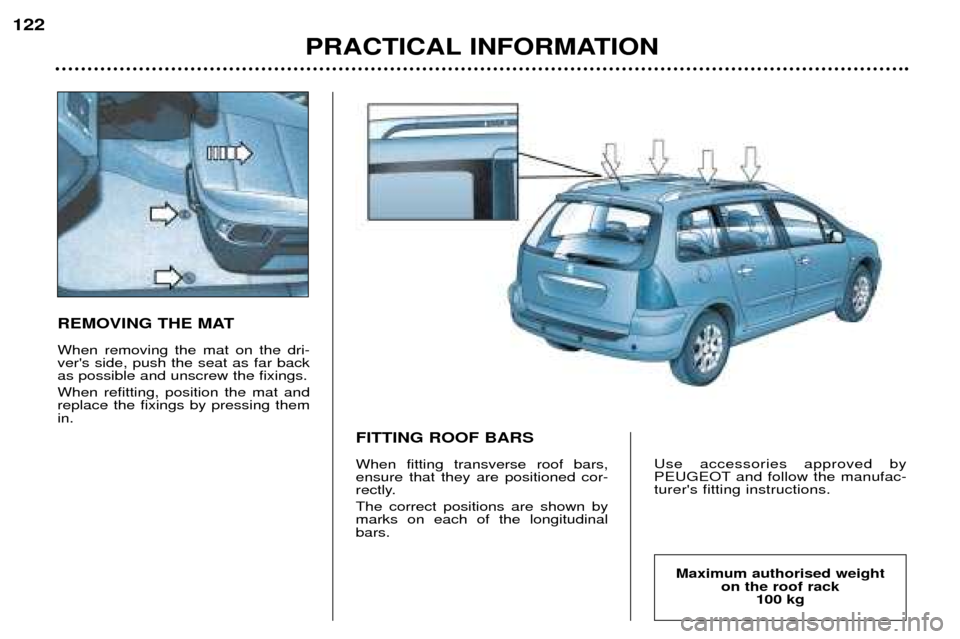

REMOVING THE MAT When removing the mat on the dri- ver's side, push the seat as far backas possible and unscrew the fixings. When refitting, position the mat and replace the fixings by pressing themin.FITTING ROOF BARS When fitting transverse roof bars, ensure that they are positioned cor-
rectly. The correct positions are shown by marks on each of the longitudinalbars.Use accessories approved by
PEUGEOT and follow the manufac-turer's fitting instructions.
PRACTICAL INFORMATION
122
Maximum authorised weight
on the roof rack 100 kg

PRACTICAL INFORMATION123
ACCESSORIES FOR YOUR 307 SW
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and
safety, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry
the PEUGEOT guarantee.
Ð Safety : Anti-theft alarms, window engraving, wheel locks, first aid kit, warning triangle...
Ð Comfort : Telephone console, front centre arm rest, covers compatible with side air bags, mats, boot
tray, cool box, door deflectors, CD storage, side sun blinds and rear blind, additional seats...
Ð Communication : Audio system, telephone, hands-free kit, speakers, amplifiers, CD changer, navigation sys-tems,
Ð Customising : Alloy wheels, trims, sport exhaust, aluminium or PVC door sills, mud flaps...
Ð Leisure : Tow bar, transverse roof bars, roof box, snow chains, ski carrier, bicycle carrier, rear videoscreen...
Ð Children : Booster seats and child seats...
Ð
Maintenance products: Screenwash, interior and exterior cleaning and maintenance products...
Ð Commercial use : Kit for transformation into a van...
Before installing any electrical accessory on your vehicle, contact a PEUGEOT dealer.
