BOOT LAYOUT
1 - Grab handles and coat hooks
2 - High load retaining net fastenings The high load retaining net can be fitted in the 2nd or
3rd row. Open the covers of the corresponding upper fastenings.Fit the ends of the metal bar in these fastenings.Secure the two opaque material strap hooks in the sto-
wing rings on the floor. The rings are located directly below the corresponding upper fastenings. Pull the two straps taut.Secure the two hooks on the elastic parts of the opaque material in these rings. Note: the net must be positioned so that the label can
be seen from the boot. This ensures that the central
seat belt is routed correctly.
3 - 12V Socket for accessories This is a 12 volt socket (lighter type), installed on thetonneau left support.
It is supplied with the ignition off.
4 - Rear armrests with grab handle
5 - Storage nets One of them contains the luggage retaining net. 6 - Tonneau
To install it:
Ð position one end of the tonneau roller in the 2nd row,
Ð compress the opposite end of the roller and position it,
Ð release it to allow it to engage,
Ð unroll the tonneau as far as the boot pillars,
Ð insert the tonneau guides in the rails in the pillars. To remove it:
Ð remove the tonneau guides from the pillar rails,
Ð return the tonneau into its roller,
Ð compress it and remove it from its support at the 2nd row,
To store it, pull it back and place it with the two storage nets, already lowered. Note: the roller has two hooks for securing the luggage
retaining net depending on where it is installed.
7 - Luggage retaining net Secure the net's seven hooks in the stowing rings and
the fastenings on the floor.
8 - Luggage retaining net fastenings ("hammock" version) in the tailgate Fold the net in two. Secure the two centre hooks in the stowing rings on the
floor. Secure the net's remaining four hooks on the boot pillars.
See configuration of the nets (next page)

REAR PARKING ASSISTANCE This system consists of four proximi- ty sensors, located in the rear bum-
per, and a special speaker fitted inthe fascia. This detects any obstacle (person, vehicle, tree, gate, pavement etc.)behind the vehicle. Note:this function will be disarmed
automatically when the vehicle is towing a trailer or when a bicycle car-rier is fitted (vehicle fitted with towingattachment or bicycle carrier recom-mended by PEUGEOT). In wintry
weather, ensure that the sensors are
not covered with frost or snow.
Activation The system is activated as soon as reverse gear is engaged; an audiblebleep shows that it is active. The proximity information is given by an audible signal, which becomesmore rapid as the vehicleapproaches the obstacle. When distance between the rear of the vehicle and the obstacle is lessthan approximately twenty-five centi-metres, the audible signal becomescontinuous.Deactivation
Change to neutral, the system is again inactive.
YOUR 307 SW IN DETAIL
98
Detection zone
If there is an operating fault, the audible signalwill be a short bleep follo-wed by a long bleep when
changing to reverse gear.

CHANGING A WHEEL
Tools The following tools are located:
Ð in the right-hand trim of the boot,1 - Wheelbrace.
2 - Removable towing eye.
3 - Socket for anti-theft bolts.
Ð in the holder in the centre of the spare wheel, 4 - Jack with handle.
5 - Bolt "covers" tools.
6 - Centralising tool.
7 - Removable chock. Parking the vehicle
As far as possible, park the vehicle on level, stable and non-slippery ground.
Apply the handbrake, engagefirst or reverse gear (position P
for the automatic gearbox) and
switch off the ignition. Access to the spare wheel
Open the boot.
Open the flap using the lug to release the winch and gainaccess to its control nut.
Unscrew the nut fully, using thewheelbrace 1, to unroll the winch
cable.
PRACTICAL INFORMATION 107

TOWING YOUR VEHICLE
Without lifting (4 wheels on the road)

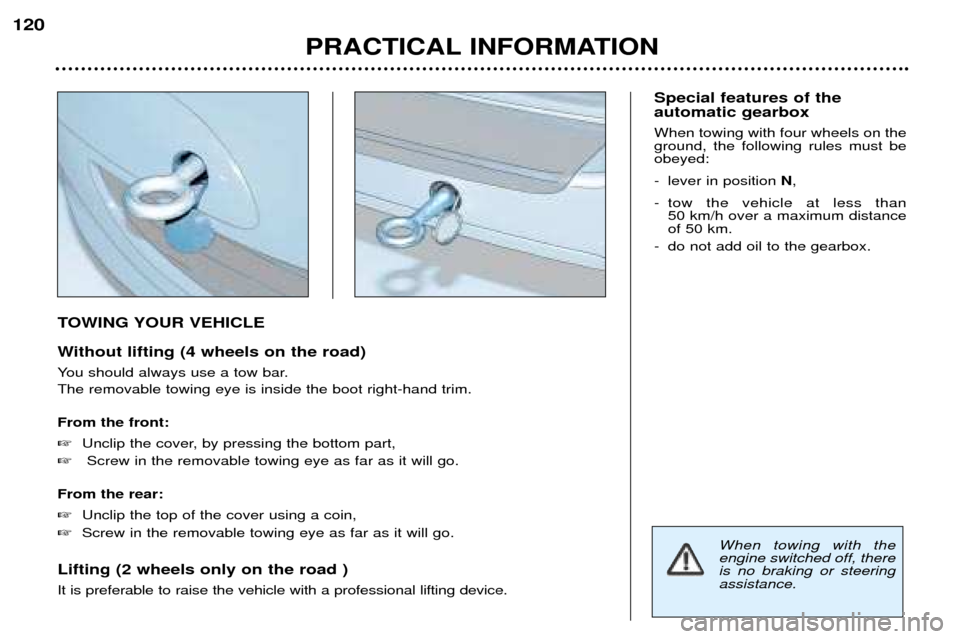

You should always use a tow bar. The removable towing eye is inside the boot right-hand trim. From the front: Unclip the cover, by pressing the bottom part,
Screw in the removable towing eye as far as it will go.
From the rear: Unclip the top of the cover using a coin,
Screw in the removable towing eye as far as it will go.
Lifting (2 wheels only on the road ) It is preferable to raise the vehicle with a professional lifting device. Special features of the automatic gearbox When towing with four wheels on the ground, the following rules must beobeyed:
- lever in position
N,
- tow the vehicle at less than 50 km/h over a maximum distance of 50 km.
- do not add oil to the gearbox.
PRACTICAL INFORMATION
120
When towing with the engine switched off, thereis no braking or steeringassistance.

TOWING A TRAILER,
CARAVAN, BOAT ETC.
Only use original PEUGEOT tow bars that have been tested andapproved from the design stage of
your vehicle. The tow bar must be fit-
ted by a PEUGEOT dealer.
Your vehicle is basically designed for transporting people and luggage butit may also be used for towing a trai-
ler. Driving with a trailer subjects the towing vehicle to more significantstress and its driver must be particu-larly careful. Air density decreases with altitude, thus reducing engine performance.Above 1000 metres, the maximumtowing load must be reduced by 10%and so on for every 1000 metres ofaltitude.Driving advice Distribution of loads Distribute the load in the trailer so that the heaviest items are as closeas possible to the axle and the noseweight approaches the maximumpermitted without exceeding it. Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependenton the engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing load on a long slope depends on the gradient andthe outside temperature. In all cases, pay attention to the coolant temperature. If the warning light comes on, stop
the vehicle and switch off the engineas soon as possible. Tyres Check the tyre pressures of the
towing vehicle and of the trailer,observing the recommended pres-sures. Braking
Towing increases the braking distance. Lights Adjust your headlamps so that they do not dazzle other road users.Check the electrical signalling on the
trailer. Side wind
Take into acount the increased sen- sitivity to side wind.
PRACTICAL INFORMATION
121

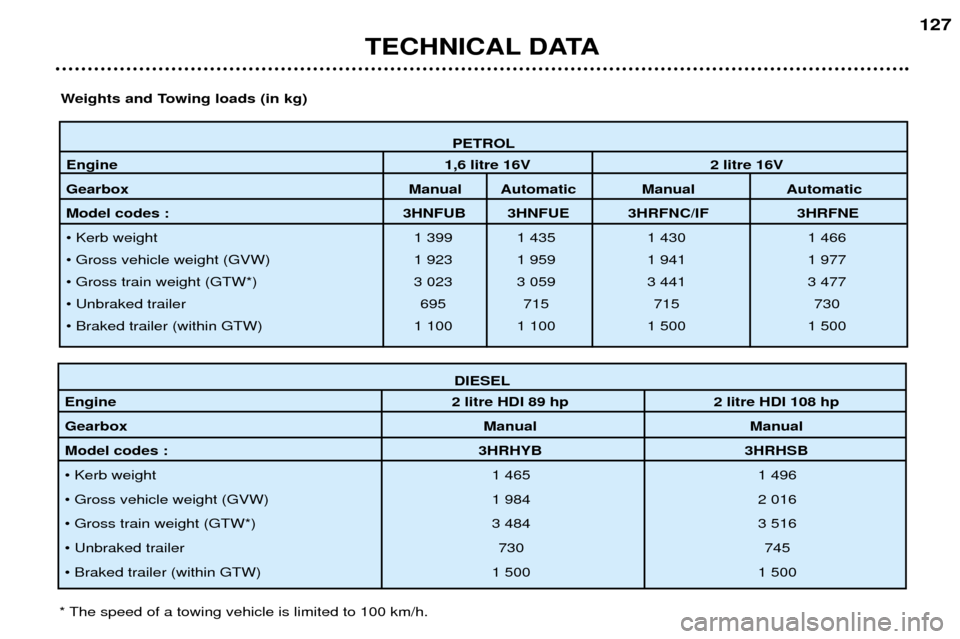

PETROL
Engine 1,6 litre 16V 2 litre 16V
Gearbox Manual Automatic Manual Automatic
Model codes : 3HNFUB 3HNFUE 3HRFNC/IF 3HRFNE ¥ Kerb weight 1 399 1 435 1 430 1 466
¥ Gross vehicle weight (GVW) 1 923 1 959 1 941 1 977
¥ Gross train weight (GTW*) 3 023 3 059 3 441 3 477
¥ Unbraked trailer 695 715 715 730
¥ Braked trailer (within GTW) 1 100 1 100 1 500 1 500
TECHNICAL DATA 127
Weights and Towing loads (in kg)
* The speed of a towing vehicle is limited to 100 km/h. DIESEL
Engine 2 litre HDI 89 hp 2 litre HDI 108 hp
Gearbox Manual Manual
Model codes : 3HRHYB 3HRHSB
¥ Kerb weight 1 465 1 496
¥ Gross vehicle weight (GVW) 1 984 2 016
¥ Gross train weight (GTW*) 3 484 3 516¥ Unbraked trailer 730 745
¥ Braked trailer (within GTW) 1 500 1 500
