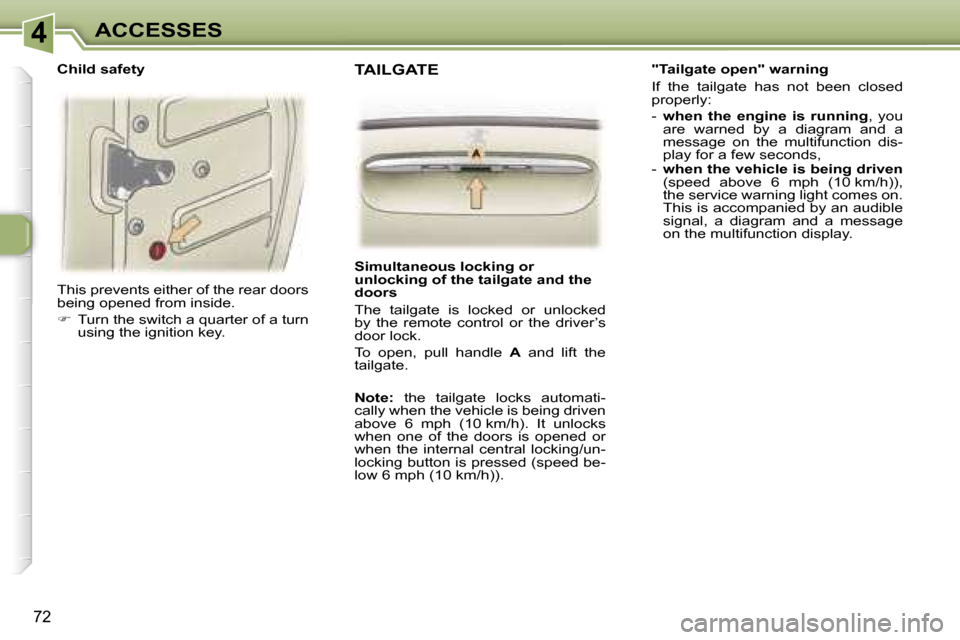

4ACCESSES
72
This prevents either of the rear doors
being opened from inside.
 Turn the switch a quarter of a turn
using the ignition key. "Tailgate open" warning
If the tailgate has not been closed
properly:
-
when the engine is running , you
are warned by a diagram and a
message on the multifunction dis-
play for a few seconds,
- when the vehicle is being driven
(speed above 6 mph (10 km/h)),
the service warning light comes on.
This is accompanied by an audible
signal, a diagram and a message
on the multifunction display.
Simultaneous locking or
unlocking of the tailgate and the
doors
The tailgate is locked or unlocked
by the remote control or the driver’s
door lock.
To open, pull handle A and lift the
tailgate.
Note: the tailgate locks automati-
cally when the vehicle is being driven
above 6 mph (10 km/h). It unlocks
when one of the doors is opened or
when the internal central locking/un-
locking button is pressed (speed be-
low 6 mph (10 km/h)).
TAILGATEChild safety

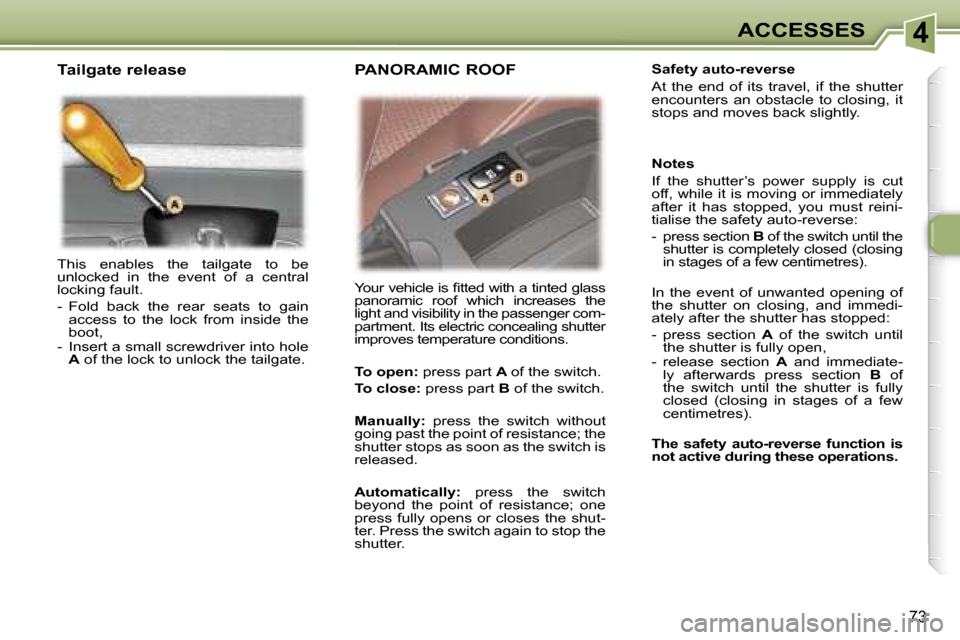

4ACCESSES
73
This enables the tailgate to be
unlocked in the event of a central
locking fault.
- Fold back the rear seats to gain access to the lock from inside the
boot,
- Insert a small screwdriver into hole A of the lock to unlock the tailgate. Safety auto-reverse
At the end of its travel, if the shutter
encounters an obstacle to closing, it
stops and moves back slightly.
Your vehicle is fitted with a tinted glass
panoramic roof which increases the
light and visibility in the passenger com-
partment. Its electric concealing shutter
improves temperature conditions.
To open: press part A of the switch.
To close: press part B of the switch.
Manually: press the switch without
going past the point of resistance; the
shutter stops as soon as the switch is
released.
Automatically: press the switch
beyond the point of resistance; one
press fully opens or closes the shut-
ter. Press the switch again to stop the
shutter. Notes
If the shutter’s power supply is cut
off, while it is moving or immediately
after it has stopped, you must reini-
tialise the safety auto-reverse:
- press section
B of the switch until the
shutter is completely closed (closing
in stages of a few centimetres).
In the event of unwanted opening of
the shutter on closing, and immedi-
ately after the shutter has stopped:
- press section A of the switch until
the shutter is fully open,
- release section A and immediate-
ly afterwards press section B of
the switch until the shutter is fully
closed (closing in stages of a few
centimetres).
The safety auto-reverse function is
not active during these operations.
PANORAMIC ROOFTailgate release

4ACCESSES
73
This enables the tailgate to be
unlocked in the event of a central
locking fault.
- Fold back the rear seats to gain access to the lock from inside the
boot,
- Insert a small screwdriver into hole A of the lock to unlock the tailgate. Safety auto-reverse
At the end of its travel, if the shutter
encounters an obstacle to closing, it
stops and moves back slightly.
Your vehicle is fitted with a tinted glass
panoramic roof which increases the
light and visibility in the passenger com-
partment. Its electric concealing shutter
improves temperature conditions.
To open: press part A of the switch.
To close: press part B of the switch.
Manually: press the switch without
going past the point of resistance; the
shutter stops as soon as the switch is
released.
Automatically: press the switch
beyond the point of resistance; one
press fully opens or closes the shut-
ter. Press the switch again to stop the
shutter. Notes
If the shutter’s power supply is cut
off, while it is moving or immediately
after it has stopped, you must reini-
tialise the safety auto-reverse:
- press section
B of the switch until the
shutter is completely closed (closing
in stages of a few centimetres).
In the event of unwanted opening of
the shutter on closing, and immedi-
ately after the shutter has stopped:
- press section A of the switch until
the shutter is fully open,
- release section A and immediate-
ly afterwards press section B of
the switch until the shutter is fully
closed (closing in stages of a few
centimetres).
The safety auto-reverse function is
not active during these operations.
PANORAMIC ROOFTailgate release

4ACCESSES
74
The engine must be switched off
when filling with fuel.
 Open the fuel filler flap.
 Insert the key then turn it to the left.
 Remove the cap and hang it on
the hook located on the inside of
the flap.
A label affixed to the inside of the fuel
filler flap indicates which type of fuel
to use.
When you fill your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
The capacity of the tank is
approximately 60 litres.
 After filling the tank, lock the cap
and close the fuel filler flap.
Low fuel level
When the minimum
fuel level in the tank
is reached, this
warning light comes
on on the instrument
panel.
You can still drive approximately
30 miles (50 km). Operating fault
With the ignition on, if the fuel gauge
needle remains in or returns to the
rest positon (below zero), this in-
dicates a malfunction of the fuel
gauge.
Contact a PEUGEOT dealer.FILLING WITH FUEL

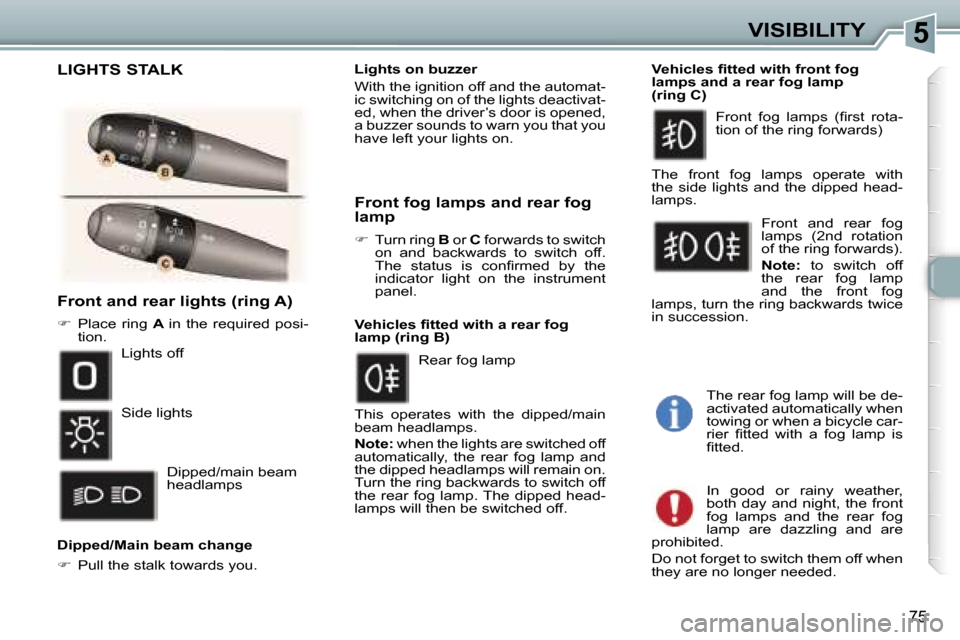

5VISIBILITY
75
Front and rear lights (ring A)
 Place ring A in the required posi-
tion.
Dipped/Main beam change
 Pull the stalk towards you. Vehicles fitted with front fog
lamps and a rear fog lamp
(ring C)
Lights off
Side lights Dipped/main beam
headlamps Rear fog lamp Front fog lamps (first rota-
tion of the ring forwards)
Front and rear fog
lamps (2nd rotation
of the ring forwards).
Note: to switch off
the rear fog lamp
and the front fog
lamps, turn the ring backwards twice
in succession.
Vehicles fitted with a rear fog
lamp (ring B)
This operates with the dipped/main
beam headlamps.
Note: when the lights are switched off
automatically, the rear fog lamp and
the dipped headlamps will remain on.
Turn the ring backwards to switch off
the rear fog lamp. The dipped head-
lamps will then be switched off. The front fog lamps operate with
the side lights and the dipped head-
lamps.
Front fog lamps and rear fog
lamp

Turn ring B or C forwards to switch
on and backwards to switch off.
The status is confirmed by the
indicator light on the instrument
panel.
Lights on buzzer
With the ignition off and the automat-
ic switching on of the lights deactivat-
ed, when the driver’s door is opened,
a buzzer sounds to warn you that you
have left your lights on.
In good or rainy weather,
both day and night, the front
fog lamps and the rear fog
lamp are dazzling and are
prohibited.
Do not forget to switch them off when
they are no longer needed.
LIGHTS STALK
The rear fog lamp will be de-
activated automatically when
towing or when a bicycle car-
rier fitted with a fog lamp is
fitted.

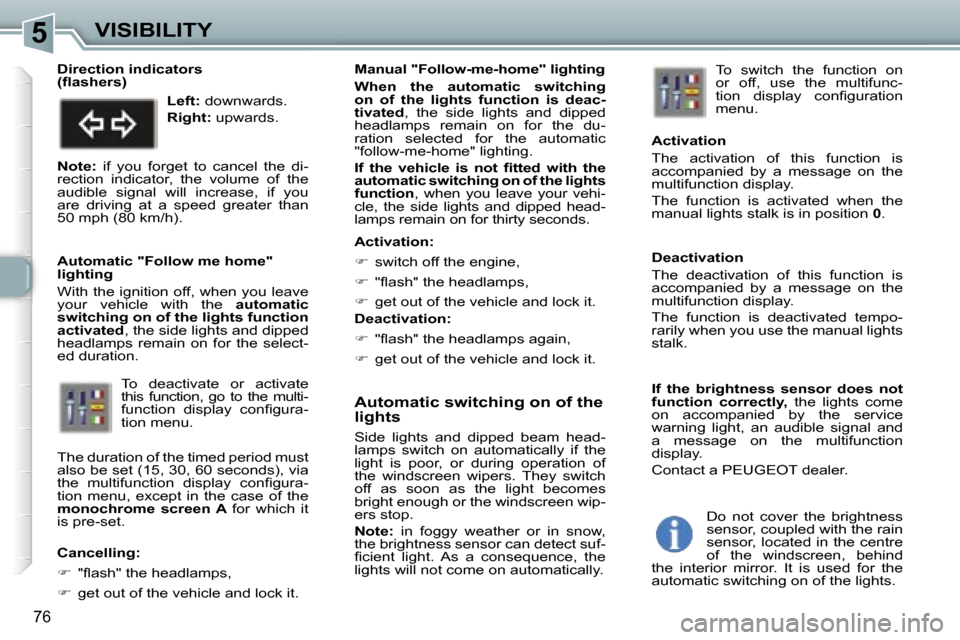

5VISIBILITY
76
Automatic switching on of the
lights
Side lights and dipped beam head-
lamps switch on automatically if the
light is poor, or during operation of
the windscreen wipers. They switch
off as soon as the light becomes
bright enough or the windscreen wip-
ers stop.
Note: in foggy weather or in snow,
the brightness sensor can detect suf-
ficient light. As a consequence, the
lights will not come on automatically. Deactivation
The deactivation of this function is
accompanied by a message on the
multifunction display.
The function is deactivated tempo-
rarily when you use the manual lights
stalk.
Manual "Follow-me-home" lighting
When the automatic switching
on of the lights function is deac-
tivated
, the side lights and dipped
headlamps remain on for the du-
ration selected for the automatic
"follow-me-home" lighting.
If the vehicle is not fitted with the
automatic switching on of the lights
function , when you leave your vehi-
cle, the side lights and dipped head-
lamps remain on for thirty seconds.
Direction indicators
(flashers)
Left: downwards.
Right: upwards.
Note: if you forget to cancel the di-
rection indicator, the volume of the
audible signal will increase, if you
are driving at a speed greater than
50 mph (80 km/h).
Automatic "Follow me home"
lighting
With the ignition off, when you leave
your vehicle with the automatic
switching on of the lights function
activated , the side lights and dipped
headlamps remain on for the select-
ed duration. Activation:

switch off the engine,
 "flash" the headlamps,
 get out of the vehicle and lock it.
Deactivation:
 "flash" the headlamps again,
 get out of the vehicle and lock it.
To deactivate or activate
this function, go to the multi-
function display configura-
tion menu.
The duration of the timed period must
also be set (15, 30, 60 seconds), via
the multifunction display configura-
tion menu, except in the case of the
monochrome screen A for which it
is pre-set.
Cancelling:
 "flash" the headlamps,
 get out of the vehicle and lock it. To switch the function on
or off, use the multifunc-
tion display configuration
menu.
Activation
The activation of this function is
accompanied by a message on the
multifunction display.
The function is activated when the
manual lights stalk is in position 0.
If the brightness sensor does not
function correctly, the lights come
on accompanied by the service
warning light, an audible signal and
a message on the multifunction
display.
Contact a PEUGEOT dealer.
Do not cover the brightness
sensor, coupled with the rain
sensor, located in the centre
of the windscreen, behind
the interior mirror. It is used for the
automatic switching on of the lights.

5VISIBILITY
76
Automatic switching on of the
lights
Side lights and dipped beam head-
lamps switch on automatically if the
light is poor, or during operation of
the windscreen wipers. They switch
off as soon as the light becomes
bright enough or the windscreen wip-
ers stop.
Note: in foggy weather or in snow,
the brightness sensor can detect suf-
ficient light. As a consequence, the
lights will not come on automatically. Deactivation
The deactivation of this function is
accompanied by a message on the
multifunction display.
The function is deactivated tempo-
rarily when you use the manual lights
stalk.
Manual "Follow-me-home" lighting
When the automatic switching
on of the lights function is deac-
tivated
, the side lights and dipped
headlamps remain on for the du-
ration selected for the automatic
"follow-me-home" lighting.
If the vehicle is not fitted with the
automatic switching on of the lights
function , when you leave your vehi-
cle, the side lights and dipped head-
lamps remain on for thirty seconds.
Direction indicators
(flashers)
Left: downwards.
Right: upwards.
Note: if you forget to cancel the di-
rection indicator, the volume of the
audible signal will increase, if you
are driving at a speed greater than
50 mph (80 km/h).
Automatic "Follow me home"
lighting
With the ignition off, when you leave
your vehicle with the automatic
switching on of the lights function
activated , the side lights and dipped
headlamps remain on for the select-
ed duration. Activation:

switch off the engine,
 "flash" the headlamps,
 get out of the vehicle and lock it.
Deactivation:
 "flash" the headlamps again,
 get out of the vehicle and lock it.
To deactivate or activate
this function, go to the multi-
function display configura-
tion menu.
The duration of the timed period must
also be set (15, 30, 60 seconds), via
the multifunction display configura-
tion menu, except in the case of the
monochrome screen A for which it
is pre-set.
Cancelling:
 "flash" the headlamps,
 get out of the vehicle and lock it. To switch the function on
or off, use the multifunc-
tion display configuration
menu.
Activation
The activation of this function is
accompanied by a message on the
multifunction display.
The function is activated when the
manual lights stalk is in position 0.
If the brightness sensor does not
function correctly, the lights come
on accompanied by the service
warning light, an audible signal and
a message on the multifunction
display.
Contact a PEUGEOT dealer.
Do not cover the brightness
sensor, coupled with the rain
sensor, located in the centre
of the windscreen, behind
the interior mirror. It is used for the
automatic switching on of the lights.

5VISIBILITY
77

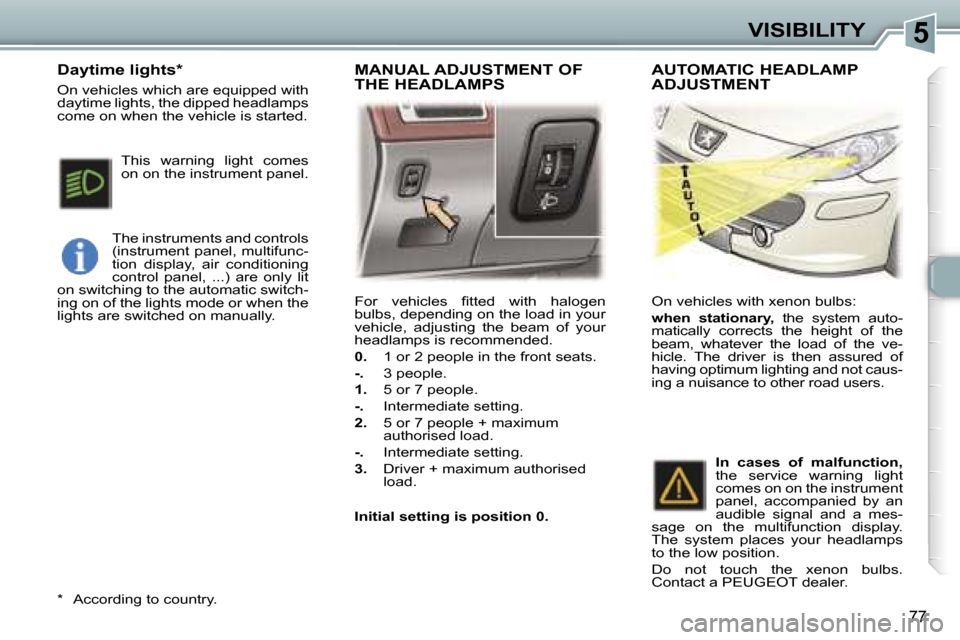

For vehicles fitted with halogen
bulbs, depending on the load in your
vehicle, adjusting the beam of your
headlamps is recommended.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 or 7 people.
-. Intermediate setting.
2. 5 or 7 people + maximum
authorised load.
-. Intermediate setting.
3. Driver + maximum authorised
load.
Initial setting is position 0. On vehicles with xenon bulbs:
when stationary,
the system auto-
matically corrects the height of the
beam, whatever the load of the ve-
hicle. The driver is then assured of
having optimum lighting and not caus-
ing a nuisance to other road users.
In cases of malfunction,
the service warning light
comes on on the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction display.
The system places your headlamps
to the low position.
Do not touch the xenon bulbs.
Contact a PEUGEOT dealer.
Daytime lights*
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
* According to country. The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually. This warning light comes
on on the instrument panel.
MANUAL ADJUSTMENT OF
THE HEADLAMPS
AUTOMATIC HEADLAMP
ADJUSTMENT

5VISIBILITY
78

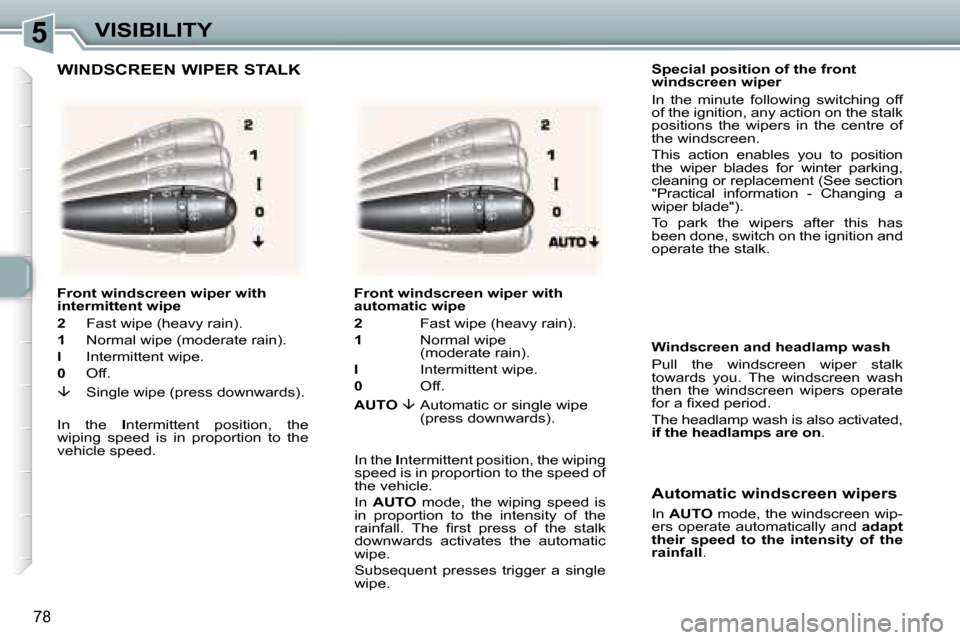

Special position of the front
windscreen wiper
In the minute following switching off
of the ignition, any action on the stalk
positions the wipers in the centre of
the windscreen.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement (See section
"Practical information - Changing a
wiper blade").
To park the wipers after this has
been done, switch on the ignition and
operate the stalk.
Windscreen and headlamp wash
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
for a fixed period.
The headlamp wash is also activated,
if the headlamps are on.
Automatic windscreen wipers
In AUTO mode, the windscreen wip-
ers operate automatically and adapt
their speed to the intensity of the
rainfall .
Front windscreen wiper with
automatic wipe
2
Fast wipe (heavy rain).
1 Normal wipe
(moderate rain).
I Intermittent wipe.
0 Off.
AUTO  Automatic or single wipe
(press downwards).
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In AUTO mode, the wiping speed is
in proportion to the intensity of the
rainfall. The first press of the stalk
downwards activates the automatic
wipe.
Subsequent presses trigger a single
wipe.
WINDSCREEN WIPER STALK
Front windscreen wiper with
intermittent wipe
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
 Single wipe (press downwards).
In the Intermittent position, the
wiping speed is in proportion to the
vehicle speed.

5VISIBILITY
79

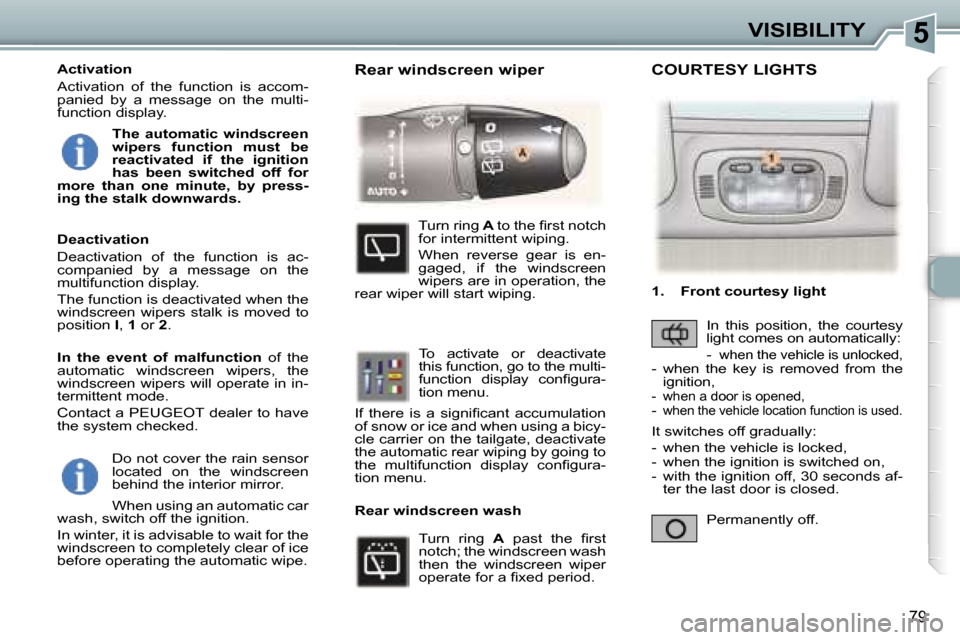

Do not cover the rain sensor
located on the windscreen
behind the interior mirror.
When using an automatic car
wash, switch off the ignition.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic wipe.
Activation
Activation of the function is accom-
panied by a message on the multi-
function display.
Turn ring A to the first notch
for intermittent wiping.
When reverse gear is en-
gaged, if the windscreen
wipers are in operation, the
rear wiper will start wiping.
To activate or deactivate
this function, go to the multi-
function display configura-
tion menu.
If there is a significant accumulation
of snow or ice and when using a bicy-
cle carrier on the tailgate, deactivate
the automatic rear wiping by going to
the multifunction display configura-
tion menu.
Turn ring A past the first
notch; the windscreen wash
then the windscreen wiper
operate for a fixed period.
Deactivation
Deactivation of the function is ac-
companied by a message on the
multifunction display.
The function is deactivated when the
windscreen wipers stalk is moved to
position
I, 1 or 2.
In the event of malfunction of the
automatic windscreen wipers, the
windscreen wipers will operate in in-
termittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Rear windscreen wash1. Front courtesy light
In this position, the courtesy
light comes on automatically:
-
when the vehicle is unlocked,- when the key is removed from the ignition,
- when a door is opened,- when the vehicle location function is used.
Permanently off.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- with the ignition off, 30 seconds af-
ter the last door is closed.
COURTESY LIGHTSRear windscreen wiper
The automatic windscreen
wipers function must be
reactivated if the ignition
has been switched off for
more than one minute, by press-
ing the stalk downwards.
