Peugeot 307 SW Dag 2007.5 Owner's Manual

11
134
TECHNICAL DATA
ENGINES AND GEARBOXES
MODELS:
Model codes: 3H...9HXC9HVC9HZC9HYBRHRHRHRJ
DIESEL ENGINES1.6 litre Turbo HDI 16V 90 bhp1.6 litre Turbo HDI 16V 110 bhp2 litre Turbo HDI 16V136 bhp
Cubic capacity (cm3) 1 560 1 560 1 997
Bore x stroke (mm) 75 x 88.3 75 x 88.3 85 x 88
EU standard max power (kW/bhp) 66/90 80/110 100/136
Max power engine speed (rpm) 4 000 4 000 4 000
EU standard max torque (Nm) 215 240 320
Max torque engine speed (rpm) 1 750 1 750 2 000
Fuel Diesel Gazole Gazole
Catalytic converter Yes Yes Yes
Particulate emission i lter No Yes No YesYes
GEARBOX Manual
(5 speed)
Manual
(5 speed)
Manua
(6 speed)
Auto
(6 speed)
OIL CAPACITIES (in litres)((
Engine (with cartridge replacement) 3.75 3.75 5.25
Gearbox-Final drive 1.9 1.9 2.4

11
135
TECHNICAL DATA
CONSUMPTION
In accordance with EC Directive 80/1268 (as amended)[In MPG (litres/100 km)][In MPG (litres/100 km)][In MPG (litres/100 km)]
Engine GearboxModel Codes 3H...Urban CircuitInter-urban CircuitMixed Circuit)Emission of CO2 by weight g/km
1.6 litre 16V ManualNFUC 9.9 6.3 7.7 178
1.6 litre 16VAutomaticNFUF 11.4 6.3 8.3 194
1.6 l. 16V BioFlexManualNFUC/FF 9.9 (1) 13.9 (2) 6.3 (1) 8.5 (2) 7.7 (1) 10.4 (2) 178 (1) 169 (2)
2 litre 16VManualRFJC 11.0 6.1 7.9 188
2 litre 16VAutomaticRFJF 12.2 6.3 8.4 199
1.6 l. Turbo HDI 16V 90 bhpManual9HXC 6.3 4.5 5.1 134
9HVC 6.3 4.5 5.1 134
1.6 l. Turbo HDI 16V 110 bhpManual9HZC 6.3 4.5 5.1 134
9HYB 6.2 4.4 5.0 131
2 l. Turbo HDI 16VManualRHRH 7.3 4.7 5.6 148
AutomaticRHRJ 9.5 5.4 6.9 183
The consumption values presented here correspond to the values co mmunicated at the time of printing. The consumption
values were established in accordance with EC Directive 80/1268 (as amended). They may vary in relation to the style of driv-
ing, driving conditions, weather conditions, the vehicle loa d, the maintenance of the vehicle and the use of the accesso ries.
(1) Unleaded. - (2) E85.

11
136
TECHNICAL DATA
WEIGHTS AND TOWING LOADS (in kg)
Petrol engines
1.6 litre 16V

1.6 l. 16V BioFlex
2 litre 16V

Gearbox Manual Automatic Manual Automatic

Model codes: 3H…
NFUC

NFUC/FF
NFUF RFJC RFJF

11
137
TECHNICAL DATA
WEIGHTS AND TOWING LOADS (in kg)
The GTW and towing load values indicated are valid up t o a maximum altitude of 1 000 metres; the towing load menti oned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction of the perf ormance of the vehicle in order to protect the engine; if the
exterior temperature is above 37 °C, limit the towed weight.
* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by a n equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Diesel engines
1.6 litre Turbo HDI
16V 90 bhp
1.6 litre Turbo HDI
16V 110 bhp
2 litre 16V Turbo HDI

Gearbox
Manual Manual Manual Auto.

Model codes: 3H... 9HXC 9HVC 9HZC 9HYB RHRH RHRJ

11
138
TECHNICAL DATA
DIMENSIONS (IN MM)

11TECHNICAL DATA

A. Manufacturer's plate.

B. Serial number on the body-
work.

C. Serial number on the fascia.
D. Tyres and paint colour refer-
ence.
The label D on the driver's door pillar,
near the hinges, indicates:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures,
- the paint colour reference. The tyre pressure must be
checked when the tyre is
cold, at least once a month.
Insufi cient pressure increas-
es fuel consumption.

141
S
O S SOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 # MENU LIST
TA
PTY
DARK

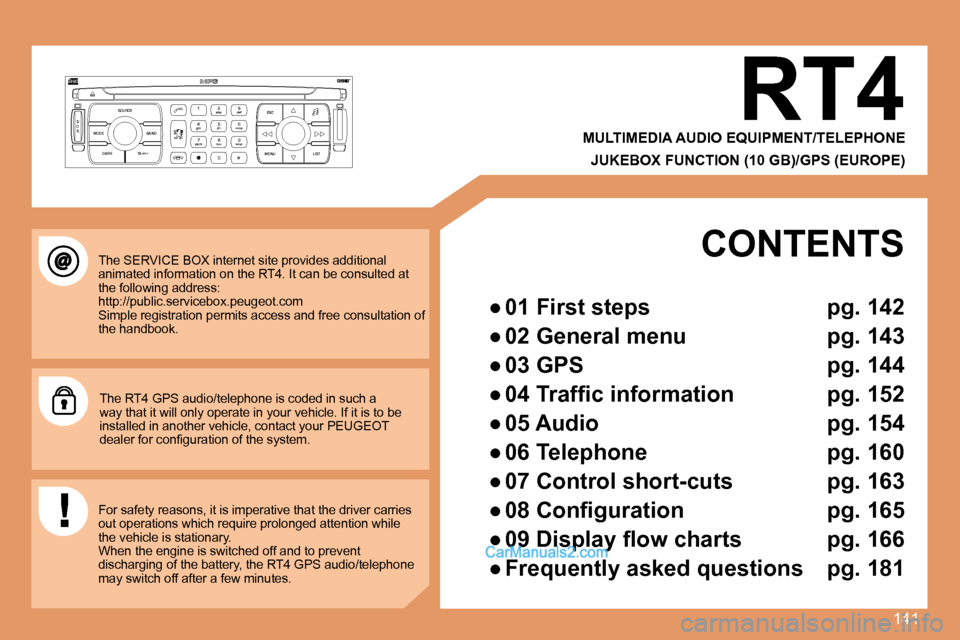

The SERVICE BOX internet site provides additional
animated information on the RT4. It can be consulte d at
the following address:
http://public.servicebox.peugeot.com
Simple registration permits access and free consult ation of
the handbook.
The RT4 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If i t is to be
installed in another vehicle, contact your PEUGEOT
dealer for coniguration of the system.
For safety reasons, it is imperative that the drive r carries
out operations which require prolonged attention wh ile
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the RT4 GPS audio/telep hone
may switch off after a few minutes. RT4
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
CONTENTS

142
S
O S
SOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 # MENU LIST
TA
PTY
DARK
2
1
5
3 4
89 10
15
11 17 18
12 16
14
7
6
13
01

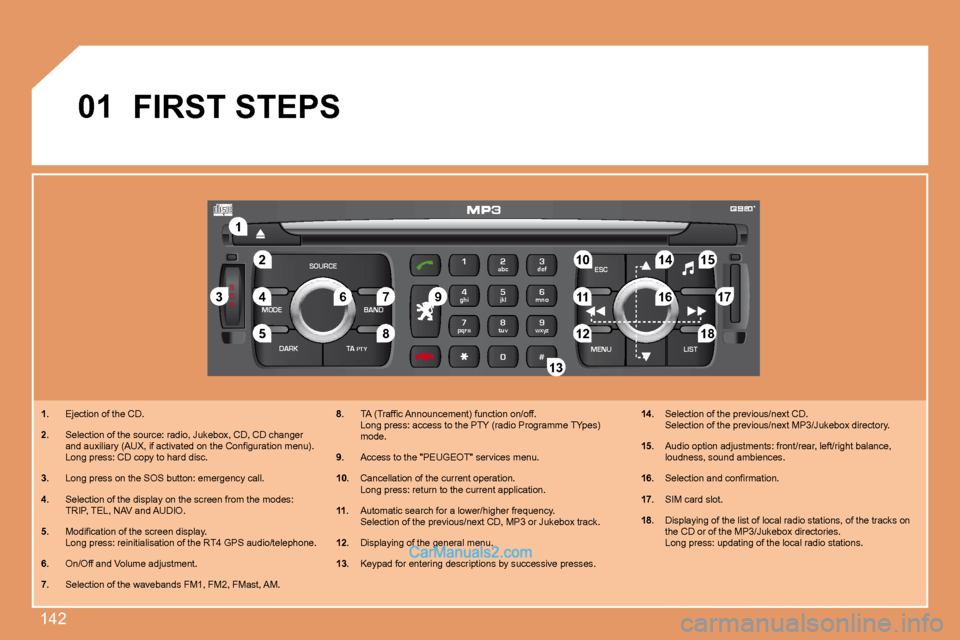

1. Ejection of the CD.
2. Selection of the source: radio, Jukebox, CD, CD ch anger
and auxiliary (AUX, if activated on the Coniguratio n menu).
Long press: CD copy to hard disc.
3. Long press on the SOS button: emergency call.
4. Selection of the display on the screen from the mo des:
TRIP, TEL, NAV and AUDIO.
5. Modiication of the screen display.
Long press: reinitialisation of the RT4 GPS audio/ telephone.
6. On/Off and Volume adjustment.
7. Selection of the wavebands FM1, FM2, FMast, AM. 8.
TA (Trafic Announcement) function on/off.
Long press: access to the PTY (radio Programme TYp es)
mode.
9. Access to the "PEUGEOT" services menu.
10. Cancellation of the current operation.
Long press: return to the current application.
11. Automatic search for a lower/higher frequency.
Selection of the previous/next CD, MP3 or Jukebox track.
12. Displaying of the general menu.
13. Keypad for entering descriptions by successive pre sses.14.
Selection of the previous/next CD.
Selection of the previous/next MP3/Jukebox director y.
15. Audio option adjustments: front/rear, left/right b alance,
loudness, sound ambiences.
16. Selection and conirmation.
17. SIM card slot.
18. Displaying of the list of local radio stations, of the tracks on
the CD or of the MP3/Jukebox directories.
Long press: updating of the local radio stations.
FIRST STEPS

143
02

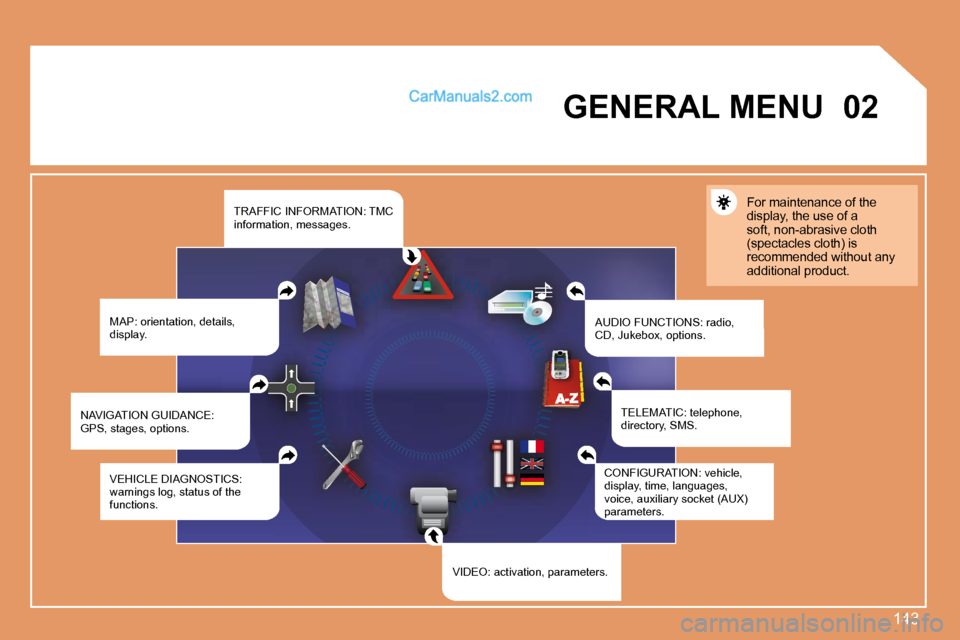

GENERAL MENU
MAP: orientation, details,
display. AUDIO FUNCTIONS: radio,
CD, Jukebox, options.For maintenance of the
display, the use of a
soft, non-abrasive cloth
(spectacles cloth) is
recommended without any
additional product.
TELEMATIC: telephone,
directory, SMS.
CONFIGURATION: vehicle,
display, time, languages,
voice, auxiliary socket (AUX)
parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS:
warnings log, status of the
functions.
NAVIGATION GUIDANCE:
GPS, stages, options. TRAFFIC INFORMATION: TMC
information, messages.

144
MENUESCLIST
MENU
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
1
2
3 5
7
4 6
8
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST

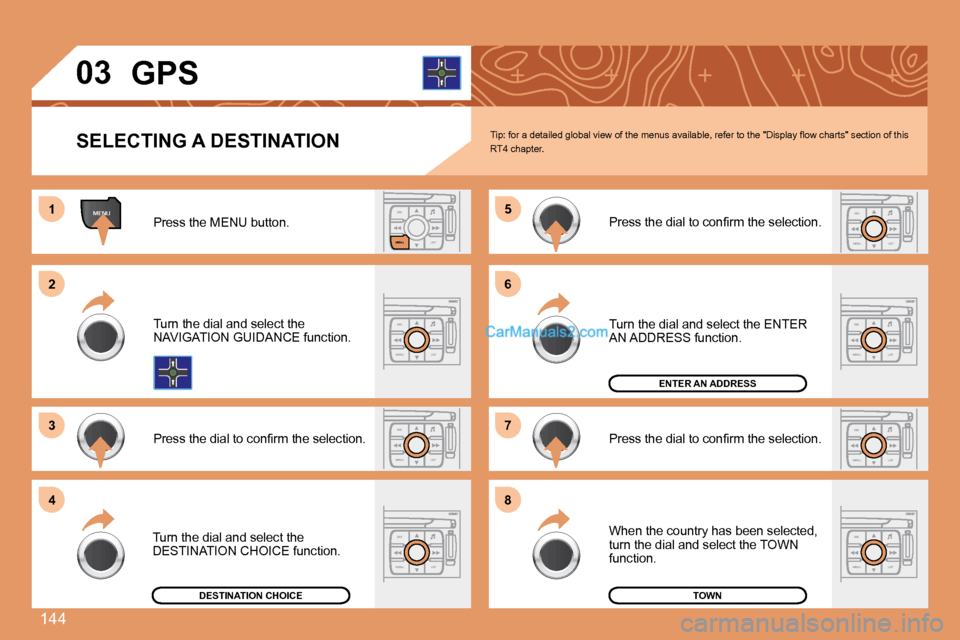

03 GPS
SELECTING A DESTINATION
Press the MENU button.
Turn the dial and select the
NAVIGATION GUIDANCE function.
Press the dial to conirm the selection.
Turn the dial and select the
DESTINATION CHOICE function. Press the dial to conirm the selection.
Press the dial to conirm the selection.
Turn the dial and select the ENTER
AN ADDRESS function.
When the country has been selected,
turn the dial and select the TOWN
function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE Tip: for a detailed global view of the menus availa
ble, refer to the "Display low charts" section of this
RT4 chapter.
