PEUGEOT 308 2009 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 308, Model: PEUGEOT 308 2009Pages: 290, PDF Size: 20.67 MB
Page 181 of 290
PRACTICAL INFORMATION

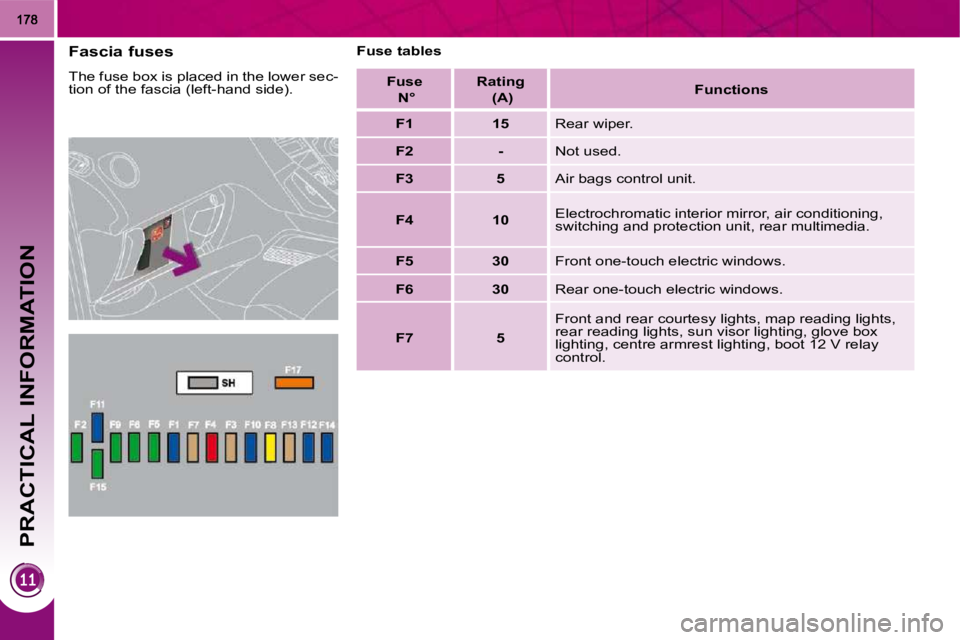

Fascia fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r s e c -
tion of the fascia (left-hand side). Fuse tables
Fuse N° Rating
(A) Functions
F1 15 R e a r w i p e r .
F2 - Not used.
F3 5 Air bags control unit.
F4 10 E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r , a i r c o n d i t i o n i n g ,
s w i t c h i n g a n d p r o t e c t i o n u n i t , r e a r m u l t i m e d i a .
F5 30 Front one-touch electric windows.
F6 30 R e a r o n e - t o u c h e l e c t r i c w i n d o w s .
F7 5 F r o n t a n d r e a r c o u r t e s y l i g h t s , m a p r e a d i n g l i g h t s ,
r e a r r e a d i n g l i g h t s , s u n v i s o r l i g h t i n g , g l o v e b o x
l i g h t i n g , c e n t r e a r m r e s t l i g h t i n g , b o o t 1 2 V r e l a y
control.
Page 182 of 290
PRACTICAL INFORMATION
179

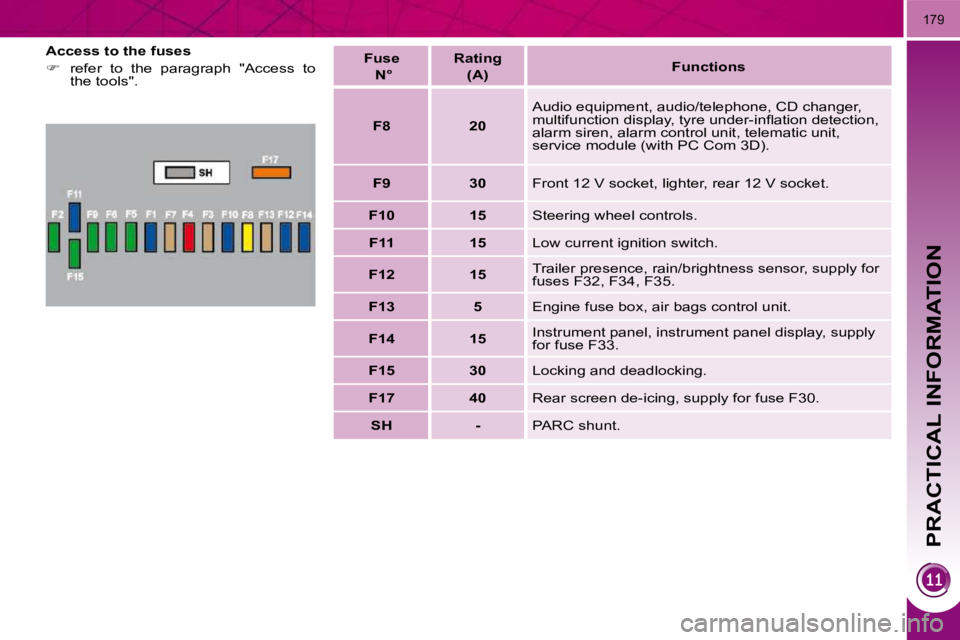

Access to the fuses
refer to the paragraph "Access to
the tools". Fuse
N° Rating
(A) Functions
F8 20 A u d i o e q u i p m e n t , a u d i o / t e l e p h o n e , C D c h a n g e r ,
m u l t i f u n c t i o n d i s p l a y , t y r e u n d e r - i n fl a t i o n d e t e c t i o n ,
a l a r m s i r e n , a l a r m c o n t r o l u n i t , t e l e m a t i c u n i t ,
service module (with PC Com 3D).
F9 30 F r o n t 1 2 V s o c k e t , l i g h t e r , r e a r 1 2 V s o c k e t .
F10 15 Steering wheel controls.
F11 15 Low current ignition switch.
F12 15 T r a i l e r p r e s e n c e , r a i n / b r i g h t n e s s s e n s o r , s u p p l y f o r
f u s e s F 3 2 , F 3 4 , F 3 5 .
F13 5 E n g i n e f u s e b o x , a i r b a g s c o n t r o l u n i t .
F14 15 I n s t r u m e n t p a n e l , i n s t r u m e n t p a n e l d i s p l a y , s u p p l y
for fuse F33.
F15 30 Locking and deadlocking.
F17 40 R e a r s c r e e n d e - i c i n g , s u p p l y f o r f u s e F 3 0 .
SH - P A R C s h u n t .
Page 183 of 290
PRACTICAL INFORMATION
180

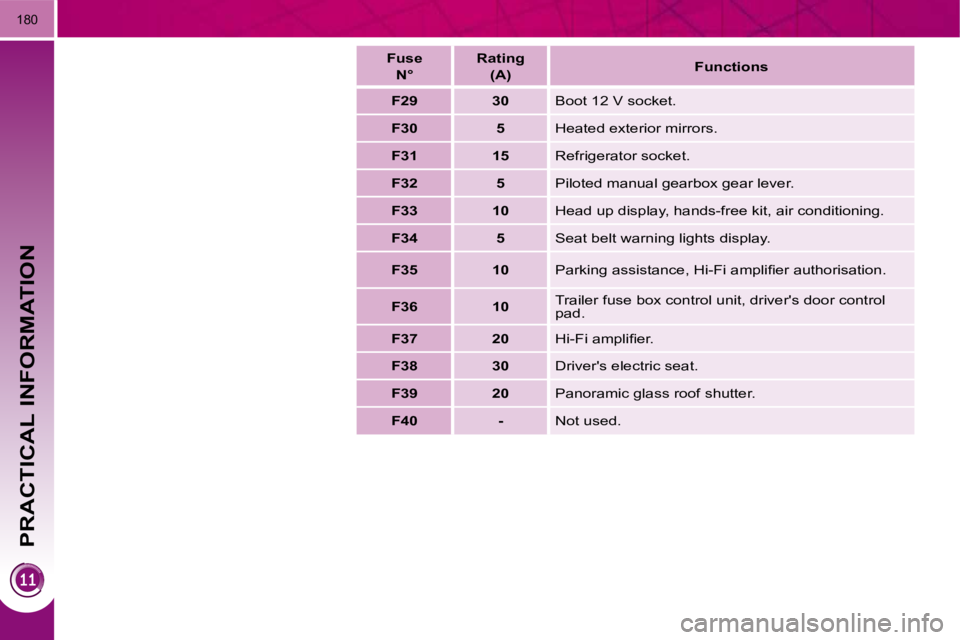

Fuse N° Rating
(A) Functions
F29 30 Boot 12 V socket.
F30 5 H e a t e d e x t e r i o r m i r r o r s .
F31 15 R e f r i g e r a t o r s o c k e t .
F32 5 P i l o t e d m a n u a l g e a r b o x g e a r l e v e r .
F33 10 H e a d u p d i s p l a y , h a n d s - f r e e k i t , a i r c o n d i t i o n i n g .
F34 5 Seat belt warning lights display.
F35 10 P a r k i n g a s s i s t a n c e , H i - F i a m p l i fi e r a u t h o r i s a t i o n .
F36 10 T r a i l e r f u s e b o x c o n t r o l u n i t , d r i v e r ' s d o o r c o n t r o l
pad.
F37 20 H i - F i a m p l i fi e r .
F38 30 D r i v e r ' s e l e c t r i c s e a t .
F39 20 Panoramic glass roof shutter.
F40 - Not used.
Page 184 of 290
PRACTICAL INFORMATION
181

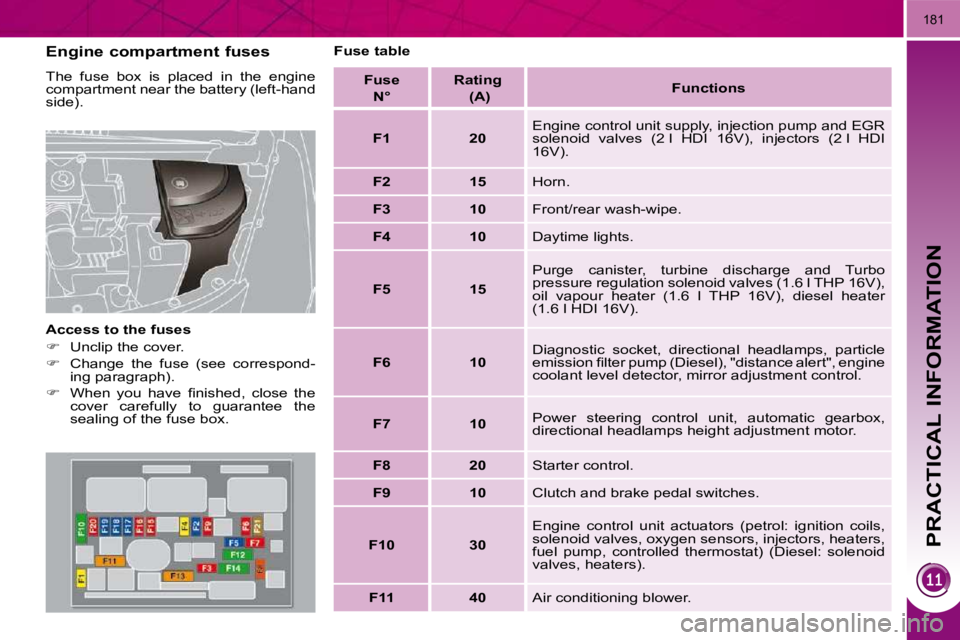

Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
side).
Access to the fuses
Unclip the cover.
Change the fuse (see correspond-
ing paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to guarantee the
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating
(A) Functions
F1 20 E n g i n e c o n t r o l u n i t s u p p l y , i n j e c t i o n p u m p a n d E G R
s o l e n o i d v a l v e s ( 2 l H D I 1 6 V ) , i n j e c t o r s ( 2 l H D I
16V).
F2 15 Horn.
F3 10 F r o n t / r e a r w a s h - w i p e .
F4 10 Daytime lights.
F5 15 P u r g e c a n i s t e r , t u r b i n e d i s c h a r g e a n d T u r b o
p r e s s u r e r e g u l a t i o n s o l e n o i d v a l v e s ( 1 . 6 l T H P 1 6 V ) ,
o i l v a p o u r h e a t e r ( 1 . 6 l T H P 1 6 V ) , d i e s e l h e a t e r
( 1 . 6 l H D I 1 6 V ) .
F6 10 D i a g n o s t i c s o c k e t , d i r e c t i o n a l h e a d l a m p s , p a r t i c l e
e m i s s i o n fi l t e r p u m p ( D i e s e l ) , " d i s t a n c e a l e r t " , e n g i n e
c o o l a n t l e v e l d e t e c t o r , m i r r o r a d j u s t m e n t c o n t r o l .
F7 10 P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
directional headlamps height adjustment motor.
F8 20 Starter control.
F9 10 Clutch and brake pedal switches.
F10 30 E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
s o l e n o i d v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
f u e l p u m p , c o n t r o l l e d t h e r m o s t a t ) ( D i e s e l : s o l e n o i d
v a l v e s , h e a t e r s ) .
F11 40 Air conditioning blower.
Page 185 of 290
PRACTICAL INFORMATION
182

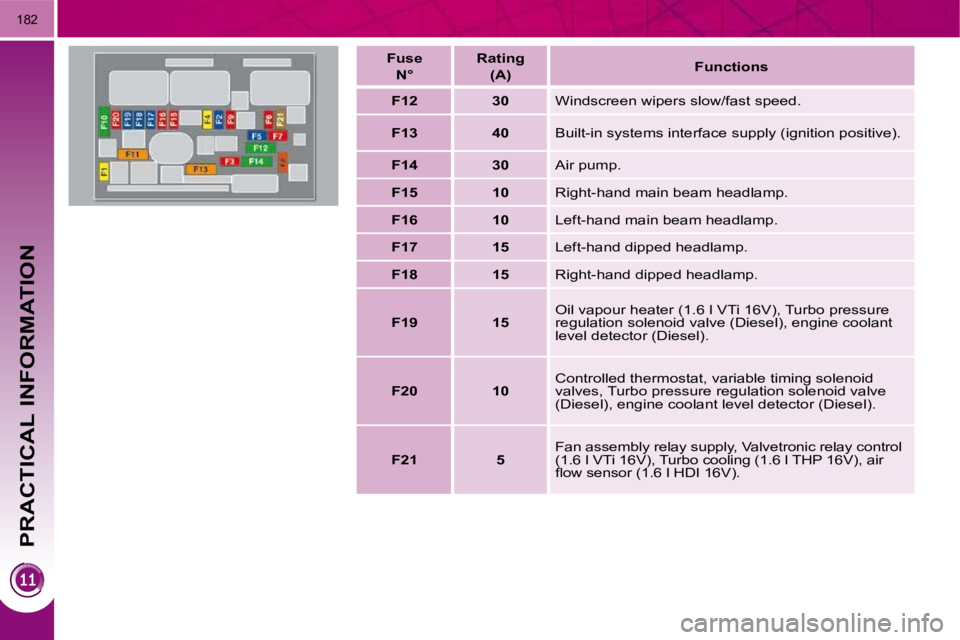

Fuse N° Rating
(A) Functions
F12 30 W i n d s c r e e n w i p e r s s l o w / f a s t s p e e d .
F13 40 Built-in systems interface supply (ignition positive).
F14 30 Air pump.
F15 10 R i g h t - h a n d m a i n b e a m h e a d l a m p .
F16 10 Left-hand main beam headlamp.
F17 15 Left-hand dipped headlamp.
F18 15 R i g h t - h a n d d i p p e d h e a d l a m p .
F19 15 O i l v a p o u r h e a t e r ( 1 . 6 l V T i 1 6 V ) , T u r b o p r e s s u r e
r e g u l a t i o n s o l e n o i d v a l v e ( D i e s e l ) , e n g i n e c o o l a n t
level detector (Diesel).
F20 10 C o n t r o l l e d t h e r m o s t a t , v a r i a b l e t i m i n g s o l e n o i d
v a l v e s , T u r b o p r e s s u r e r e g u l a t i o n s o l e n o i d v a l v e
( D i e s e l ) , e n g i n e c o o l a n t l e v e l d e t e c t o r ( D i e s e l ) .
F21 5 F a n a s s e m b l y r e l a y s u p p l y , V a l v e t r o n i c r e l a y c o n t r
o l
( 1 . 6 l V T i 1 6 V ) , T u r b o c o o l i n g ( 1 . 6 l T H P 1 6 V ) , a i r
fl o w s e n s o r ( 1 . 6 l H D I 1 6 V ) .
Page 186 of 290
PRACTICAL INFORMATION
183

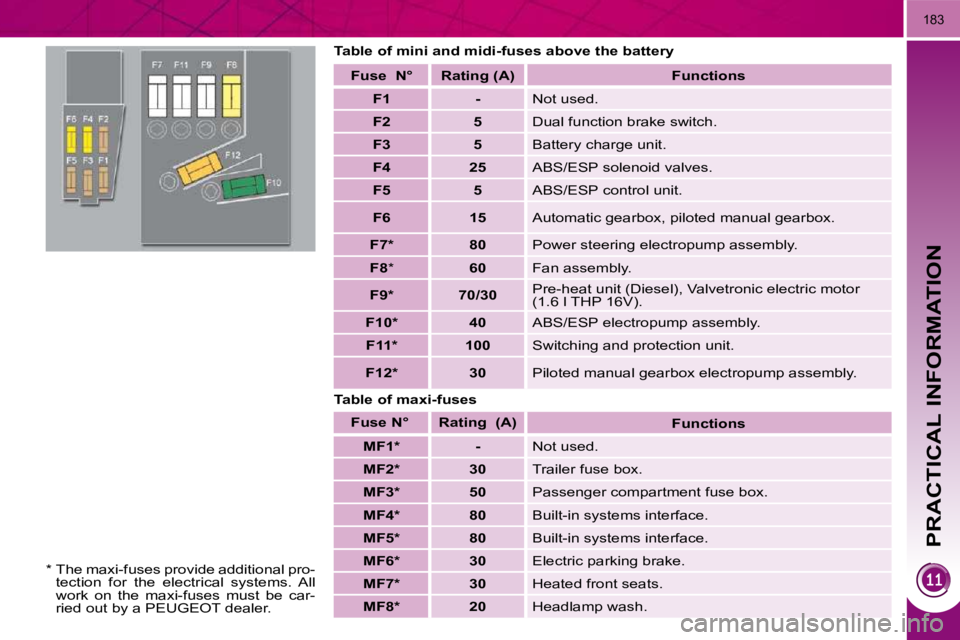

Table of mini and midi-fuses above the battery
Table of maxi-fuses Fuse N° Rating (A) Functions
F1 - Not used.
F2 5 Dual function brake switch.
F3 5 Battery charge unit.
F4 25 A B S / E S P s o l e n o i d v a l v e s .
F5 5 A B S / E S P c o n t r o l u n i t .
F6 15 A u t o m a t i c g e a r b o x , p i l o t e d m a n u a l g e a r b o x .
F7 * 80 Power steering electropump assembly.
F8 * 60 Fan assembly.
F9 * 70/30 P r e - h e a t u n i t ( D i e s e l ) , V a l v e t r o n i c e l e c t r i c m o t o r
(1.6 l THP 16V).
F10 * 40 A B S / E S P e l e c t r o p u m p a s s e m b l y .
F11 * 100 Switching and protection unit.
F12 * 30 P i l o t e d m a n u a l g e a r b o x e l e c t r o p u m p a s s e m b l y .
Fuse N° Rating (A) Functions
MF1 * - Not used.
MF2 * 30 T r a i l e r f u s e b o x .
MF3 * 50 P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF4 * 80 Built-in systems interface.
MF5 * 80 Built-in systems interface.
MF6 * 30 E l e c t r i c p a r k i n g b r a k e .
MF7 * 30 Heated front seats.
MF8 * 20 Headlamp wash.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o -
tection for the electrical systems. All
w o r k o n t h e m a x i - f u s e s m u s t b e c a r -
r i e d o u t b y a P E U G E O T d e a l e r .
Page 187 of 290
PRACTICAL INFORMATION
184
BATTERY

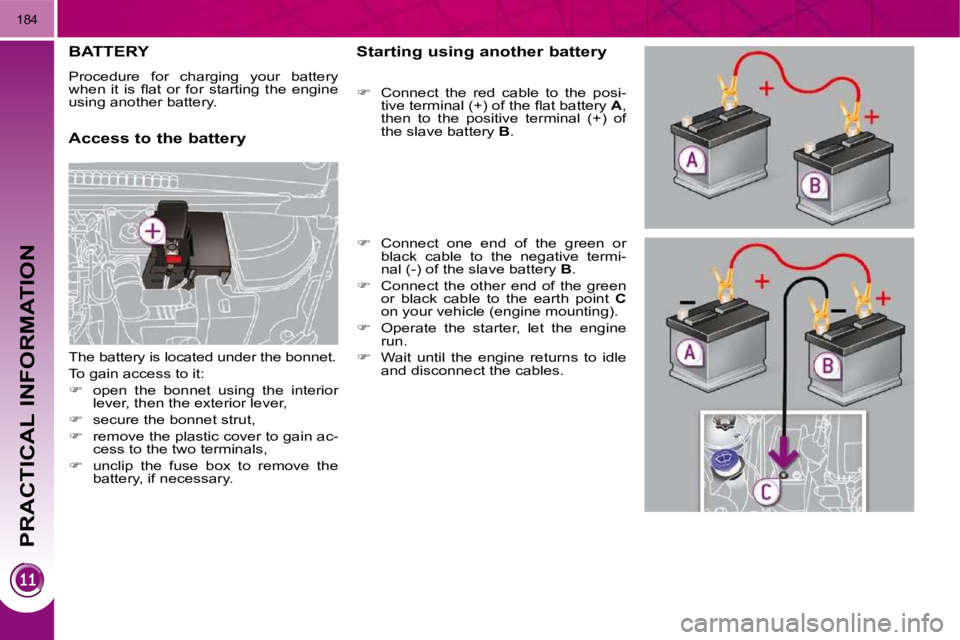

Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative termi-
nal (-) of the slave battery B .
Connect the other end of the green
or black cable to the earth point C
on your vehicle (engine mounting).
O p e r a t e t h e s t a r t e r , l e t t h e e n g i n e
run.
Wait until the engine returns to idle
and disconnect the cables.
The battery is located under the bonnet.
T o g a i n a c c e s s t o i t :
open the bonnet using the interior
l e v e r , t h e n t h e e x t e r i o r l e v e r ,
s e c u r e t h e b o n n e t s t r u t ,
remove the plastic cover to gain ac-
c e s s t o t h e t w o t e r m i n a l s ,
u n c l i p t h e f u s e b o x t o r e m o v e t h e
b a t t e r y , i f n e c e s s a r y .
Page 188 of 290
PRACTICAL INFORMATION
185

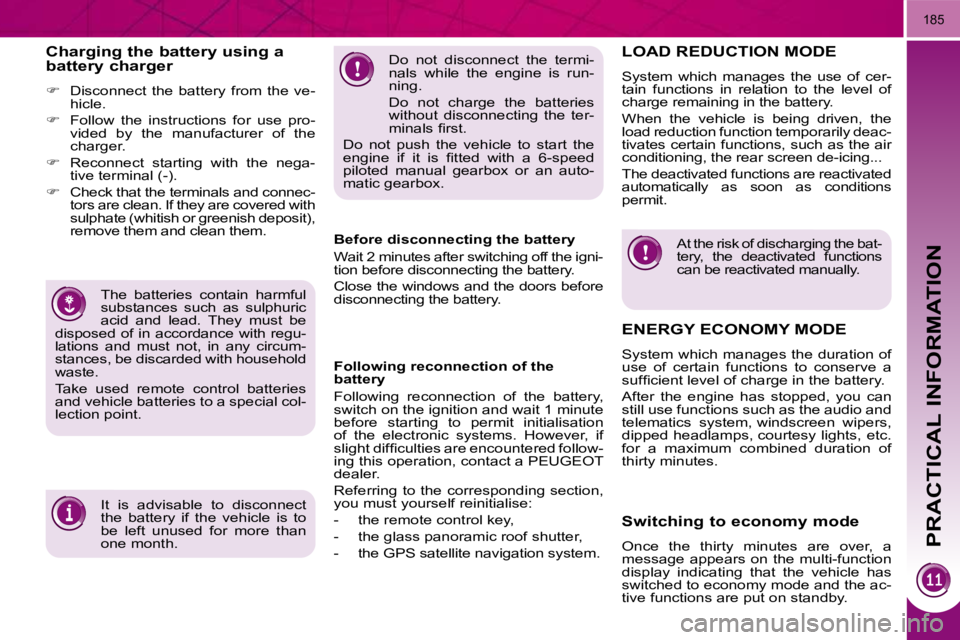

Do not disconnect the termi-
nals while the engine is run-
ning.
Do not charge the batteries
without disconnecting the ter-
m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x o r a n a u t o -
m a t i c g e a r b o x .
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with regu-
l a t i o n s a n d m u s t n o t , i n a n y c i r c u m -
s t a n c e s , b e d i s c a r d e d w i t h h o u s e h o l d
waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
tive terminal (-).
Check that the terminals and connec-
t o r s a r e c l e a n . I f t h e y a r e c o v e r e d w i t h
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them. At the risk of discharging the bat-
t e r y , t h e d e a c t i v a t e d f u n c t i o n s
can be reactivated manually. LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
load reduction function temporarily deac-
t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e a i r
c o n d i t i o n i n g , t h e r e a r s c r e e n d e - i c i n g . . .
The deactivated functions are reactivated
automatically as soon as conditions
permit.
I t i s a d v i s a b l e t o d i s c o n n e c t
the battery if the vehicle is to
be left unused for more than
one month. Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
switch on the ignition and wait 1 minute
before starting to permit initialisation
o f t h e e l e c t r o n i c s y s t e m s . H o w e v e r , i f
s l i g h t d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w -
i n g t h i s o p e r a t i o n , c o n t a c t a P E U G E O T
dealer.
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c t i o n ,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e g l a s s p a n o r a m i c r o o f s h u t t e r ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio and
t e l e m a t i c s s y s t e m , w i n d s c r e e n w i p e r s ,
d i p p e d h e a d l a m p s , c o u r t e s y l i g h t s , e t c .
f o r a m a x i m u m c o m b i n e d d u r a t i o n o f
thirty minutes.
Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
Page 189 of 290
PRACTICAL INFORMATION
185
Do not disconnect the termi-
nals while the engine is run-
ning.
Do not charge the batteries
without disconnecting the ter-
m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x o r a n a u t o -
m a t i c g e a r b o x .
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with regu-
l a t i o n s a n d m u s t n o t , i n a n y c i r c u m -
s t a n c e s , b e d i s c a r d e d w i t h h o u s e h o l d
waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
tive terminal (-).
Check that the terminals and connec-
t o r s a r e c l e a n . I f t h e y a r e c o v e r e d w i t h
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them. At the risk of discharging the bat-
t e r y , t h e d e a c t i v a t e d f u n c t i o n s
can be reactivated manually. LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
load reduction function temporarily deac-
t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e a i r
c o n d i t i o n i n g , t h e r e a r s c r e e n d e - i c i n g . . .
The deactivated functions are reactivated
automatically as soon as conditions
permit.
I t i s a d v i s a b l e t o d i s c o n n e c t
the battery if the vehicle is to
be left unused for more than
one month. Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
switch on the ignition and wait 1 minute
before starting to permit initialisation
o f t h e e l e c t r o n i c s y s t e m s . H o w e v e r , i f
s l i g h t d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w -
i n g t h i s o p e r a t i o n , c o n t a c t a P E U G E O T
dealer.
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c t i o n ,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e g l a s s p a n o r a m i c r o o f s h u t t e r ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio and
t e l e m a t i c s s y s t e m , w i n d s c r e e n w i p e r s ,
d i p p e d h e a d l a m p s , c o u r t e s y l i g h t s , e t c .
f o r a m a x i m u m c o m b i n e d d u r a t i o n o f
thirty minutes.
Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
Page 190 of 290
PRACTICAL INFORMATION
185
Do not disconnect the termi-
nals while the engine is run-
ning.
Do not charge the batteries
without disconnecting the ter-
m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
p i l o t e d m a n u a l g e a r b o x o r a n a u t o -
m a t i c g e a r b o x .
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with regu-
l a t i o n s a n d m u s t n o t , i n a n y c i r c u m -
s t a n c e s , b e d i s c a r d e d w i t h h o u s e h o l d
waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
R e c o n n e c t s t a r t i n g w i t h t h e n e g a -
tive terminal (-).
Check that the terminals and connec-
t o r s a r e c l e a n . I f t h e y a r e c o v e r e d w i t h
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them. At the risk of discharging the bat-
t e r y , t h e d e a c t i v a t e d f u n c t i o n s
can be reactivated manually. LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
W h e n t h e v e h i c l e i s b e i n g d r i v e n , t h e
load reduction function temporarily deac-
t i v a t e s c e r t a i n f u n c t i o n s , s u c h a s t h e a i r
c o n d i t i o n i n g , t h e r e a r s c r e e n d e - i c i n g . . .
The deactivated functions are reactivated
automatically as soon as conditions
permit.
I t i s a d v i s a b l e t o d i s c o n n e c t
the battery if the vehicle is to
be left unused for more than
one month. Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
switch on the ignition and wait 1 minute
before starting to permit initialisation
o f t h e e l e c t r o n i c s y s t e m s . H o w e v e r , i f
s l i g h t d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w -
i n g t h i s o p e r a t i o n , c o n t a c t a P E U G E O T
dealer.
R e f e r r i n g t o t h e c o r r e s p o n d i n g s e c t i o n ,
y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- t h e r e m o t e c o n t r o l k e y ,
- t h e g l a s s p a n o r a m i c r o o f s h u t t e r ,
- t h e G P S s a t e l l i t e n a v i g a t i o n s y s t e m .
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
A f t e r t h e e n g i n e h a s s t o p p e d , y o u c a n
still use functions such as the audio and
t e l e m a t i c s s y s t e m , w i n d s c r e e n w i p e r s ,
d i p p e d h e a d l a m p s , c o u r t e s y l i g h t s , e t c .
f o r a m a x i m u m c o m b i n e d d u r a t i o n o f
thirty minutes.
Switching to economy mode
O n c e t h e t h i r t y m i n u t e s a r e o v e r , a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
