TECHNICAL DATA

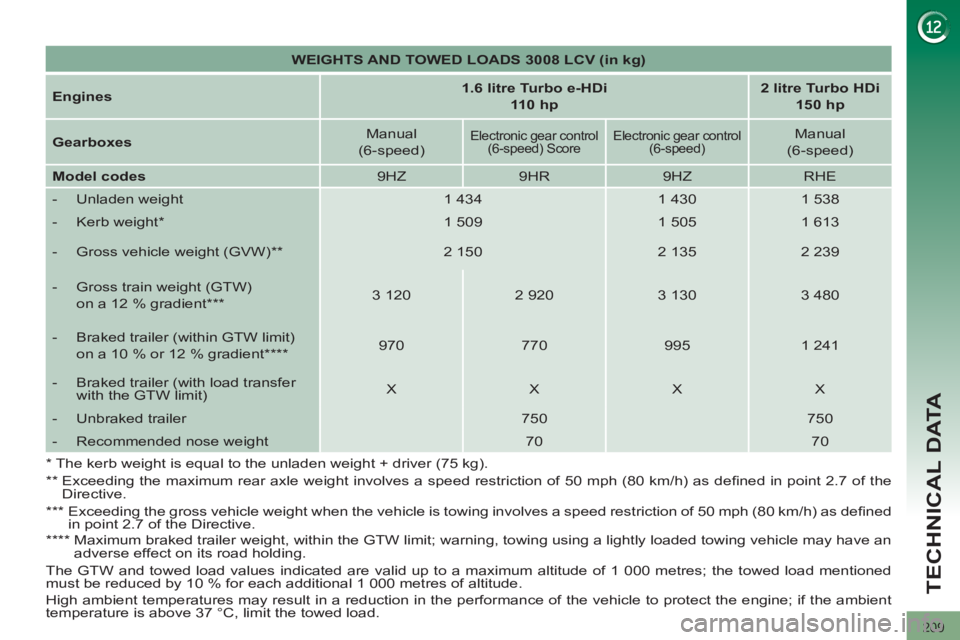

WEIGHTS AND TOWED LOADS 3008 LCV (in kg)



Engines


1.6 litre Turbo e-HDi
110 hp



2 litre Turbo HDi
150 hp



Gearbox

es

Manual
(6-speed)


Electronic gear control
(6-speed) Score
Electronic gear control
(6-speed)

Manual
(6-speed)

Model codes

9HZ
9HR
9HZ
RHE


- Unladen weight
1 434
1 430
1 538


- Kerb weight *

1 509
1 505
1 613


- Gross vehicle weight (GVW) **

2 150
2 135
2 239


- Gross train weight (GTW)
on a 12 % gradient ***

3 120
2 920
3 130
3 480


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient ****

970
770
995
1 241


- Braked trailer (with load transfer
with the GTW limit)
X
X
X
X


- Unbraked trailer
750
750


- Recommended nose weight
70
70

* The kerb weight is equal to the unladen weight + driver (75 kg).

**
Exceeding the maximum rear axle weight involves a speed restriction of 50 mph (80 km/h) as defi ned in point 2.7 of the
Directive.

***
Exceeding the gross vehicle weight when the vehicle is towing involves a speed restriction of 50 mph (80 km/h) as defi ned
in point 2.7 of the Directive.

****
Maximum braked trailer weight, within the GTW limit; warning, towing using a lightly loaded towing vehicle may have an
adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

210
TECHNICAL DATA





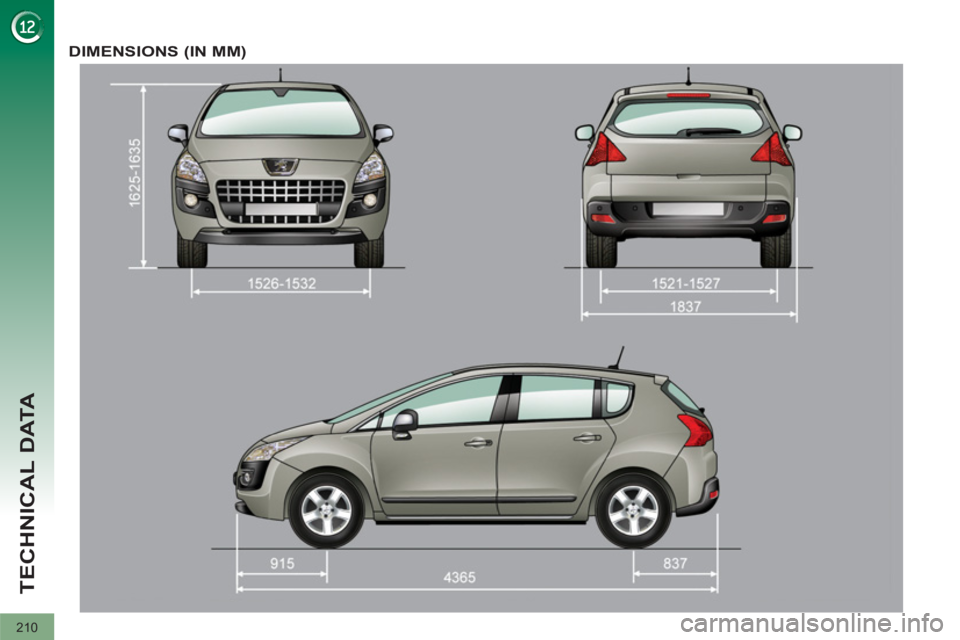

DIMENSIONS (IN MM)

211
TECHNICAL DATA

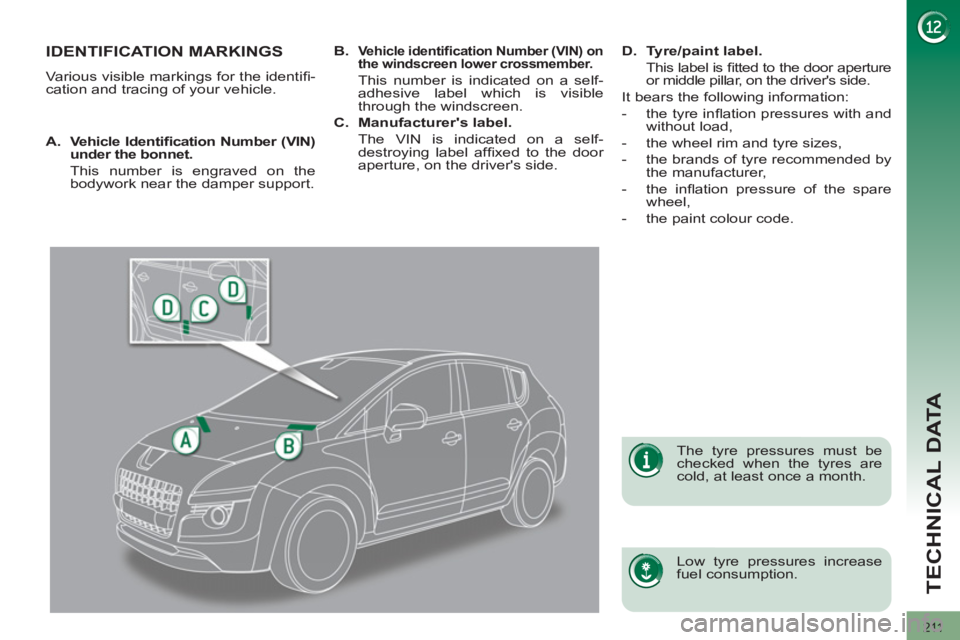

IDENTIFICATION MARKINGS

Various visible markings for the identifi -
cation and tracing of your vehicle.

Low tyre pressures increase
fuel consumption.

The tyre pressures must be
checked when the tyres are
cold, at least once a month.


A.
Vehicle Identifi cation Number (VIN)
under the bonnet.
This number is engraved on the
bodywork near the damper support.
B.

Vehicle identifi cation Number (VIN) on
the windscreen lower crossmember.

This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's label.

The VIN is indicated on a self-
destroying label affi xed to the door
aperture, on the driver's side.
D.
Tyre/paint label.

This label is fi tted to the door aperture
or middle pillar, on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.

212
TECHNICAL DATA

213

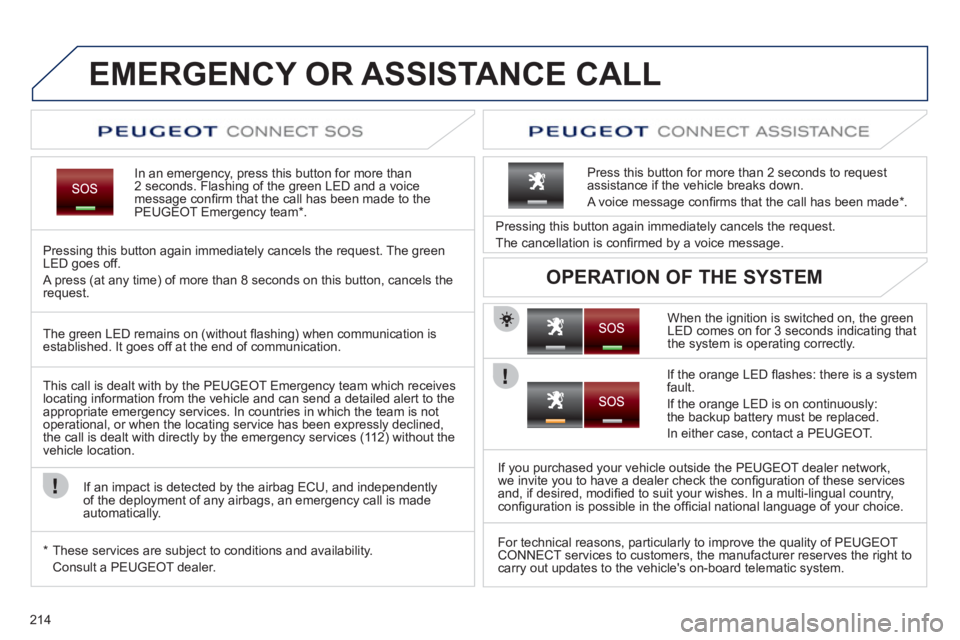

EMERGENCY OR ASSISTANCE CALL

214














EMERGENCY OR ASSISTANCE CALL


In an emergency, press this button for more than
2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
PEUGEOT Emergency team * .

Pressing this button again immediately cancels the request. The green
LED goes off.
A press (at any time) of more than 8 seconds on this button, cancels the
request.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.

Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .


OPERATION OF THE SYSTEM


The green LED remains on (without fl ashing) when communication is
established. It goes off at the end of communication.

This call is dealt with by the PEUGEOT Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (112) without the
vehicle location.

If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.



*
These services are subject to conditions and availability.
Consult a PEUGEOT dealer.
If the orange LED fl ashes: there is a system
fault.
If the orange LED is on continuously:
the backup battery must be replaced.
In either case, contact a PEUGEOT.

If you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularly to improve the quality of PEUGEOT
CONNECT services to customers, the manufacturer reserves the right to
carry out updates to the vehicle's on-board telematic system.

215
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

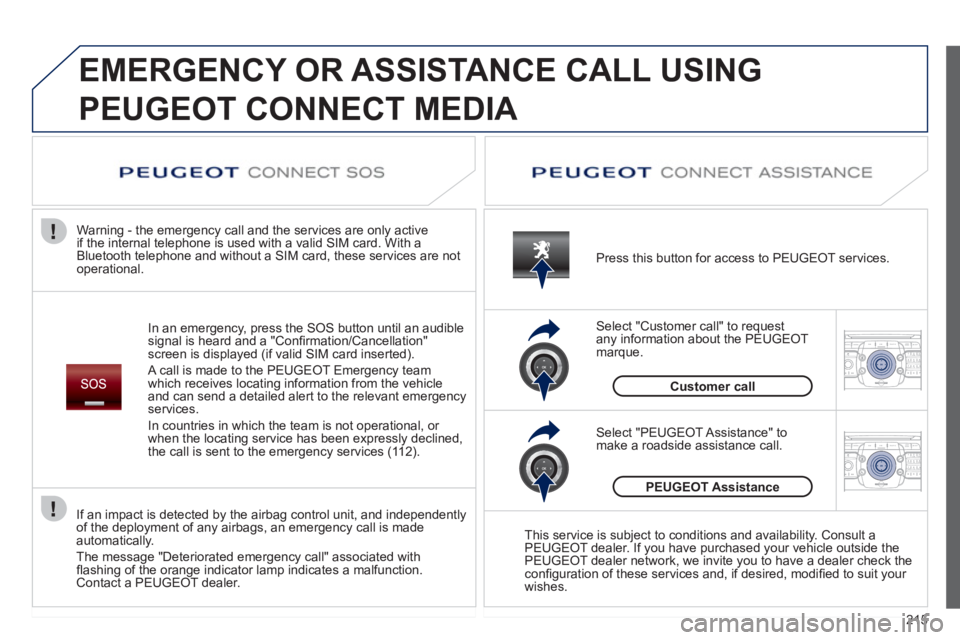

EMERGENCY OR ASSISTANCE CALL USING
PEUGEOT CONNECT MEDIA

In an emergency, press the SOS button until an audible
signal is heard and a "Confi rmation/Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEUGEOT Emergency team
which receives locating information from the vehicle
and can send a detailed alert to the relevant emergency
services.
In countries in which the team is not operational, or
when the locating service has been expressly declined,
the call is sent to the emergency services (112).












Warning - the emergency call and the services are only active
if the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational.










Press this button for access to PEUGEOT services.

Customer call
Select "Customer call" to request
any information about the PEUGEOT
marque.
Select "PEUGEOT Assistance" to
make a roadside assistance call.

PEUGEOT Assistance




This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check the
confi guration of these services and, if desired, modifi ed to suit your
wishes.

If an impact is detected by the airbag control unit, and independently
of the deployment of any airbags, an emergency call is made
automatically.
The message "Deteriorated emergency call" associated with
fl ashing of the orange indicator lamp indicates a malfunction.
Contact a PEUGEOT dealer.

216

217
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1
RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

The Peugeot Connect Media is protected in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer
for confi guration of the system.

Certain functions described in this handbook will
become available during the course of the year.

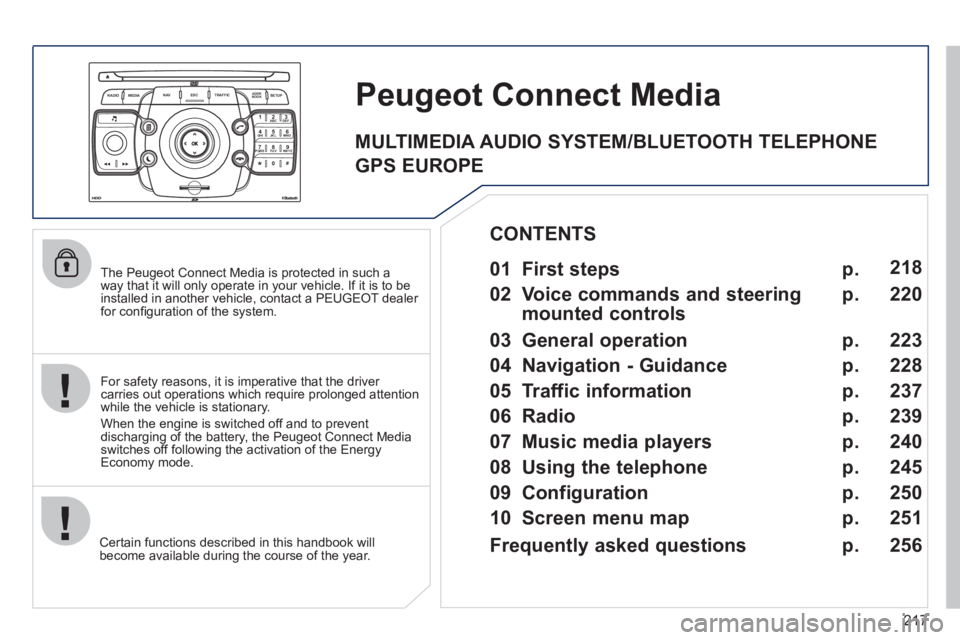

Peugeot Connect Media


For safety reasons, it is imperative that the driver
carries out operations which require prolonged attention
while the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the Peugeot Connect Media
switches off following the activation of the Energy
Economy mode.


01 First steps

02 Voice commands and steering
mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Using the telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 218
220
223
228
237
239
240
245
250
251

CONTENTS

Frequently asked questions p.
256


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
GPS EUROPE

218
01 FIRST STEPS

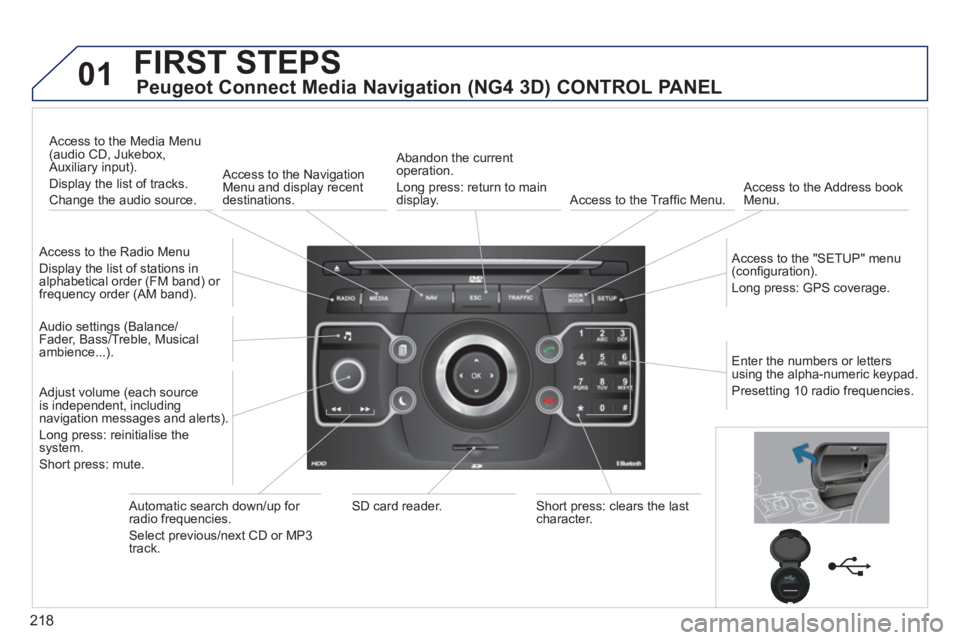

Peugeot Connect Media Navigation (NG4 3D) CONTROL PANEL


Access to the Radio Menu
Display the list of stations in
alphabetical order (FM band) or
frequency order (AM band).

Access to the Media Menu
(audio CD, Jukebox,
Auxiliary input).
Display the list of tracks.
Change the audio source.
Access to the Navigation
Menu and display recent
destinations.
Abandon the current
operation.
Long press: return to main
display.
Access to the Traffi c Menu.
Access to the Address book
Menu.

Access to the "SETUP" menu
(confi guration).
Long press: GPS coverage.

Audio settings (Balance/
Fader, Bass/Treble, Musical
ambience...).

Adjust volume (each source
is independent, including
navigation messages and alerts).
Long press: reinitialise the
system.
Short press: mute.

Automatic search down/up for
radio frequencies.
Select previous/next CD or MP3
track.
SD card reader.
Short press: clears the last
character.
Enter the numbers or letters
using the alpha-numeric keypad.
Presetting 10 radio frequencies.
