PEUGEOT 308 2012 Owners Manual

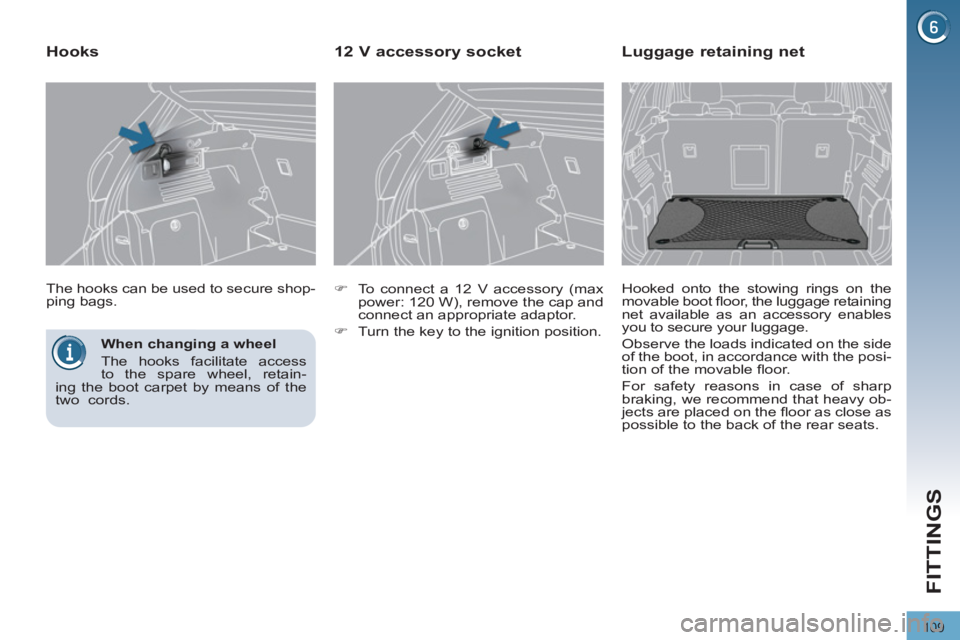

109
FITTINGS

When changing a wheel
The hooks facilitate access
to the spare wheel, retain-
ing the boot carpet by means of the
two cords.
The hooks can be used to secure shop-
ping bags.






Hooks



)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.

)
Turn the key to the ignition position.








12 V accessory socket





Luggage retaining net

Hooked onto the stowing rings on the
movable boot fl oor, the luggage retaining
net available as an accessory enables
you to secure your luggage.
Observe the loads indicated on the side
of the boot, in accordance with the posi-
tion of the movable fl oor.
For safety reasons in case of sharp
braking, we recommend that heavy ob-
jects are placed on the fl oor as close as
possible to the back of the rear seats.

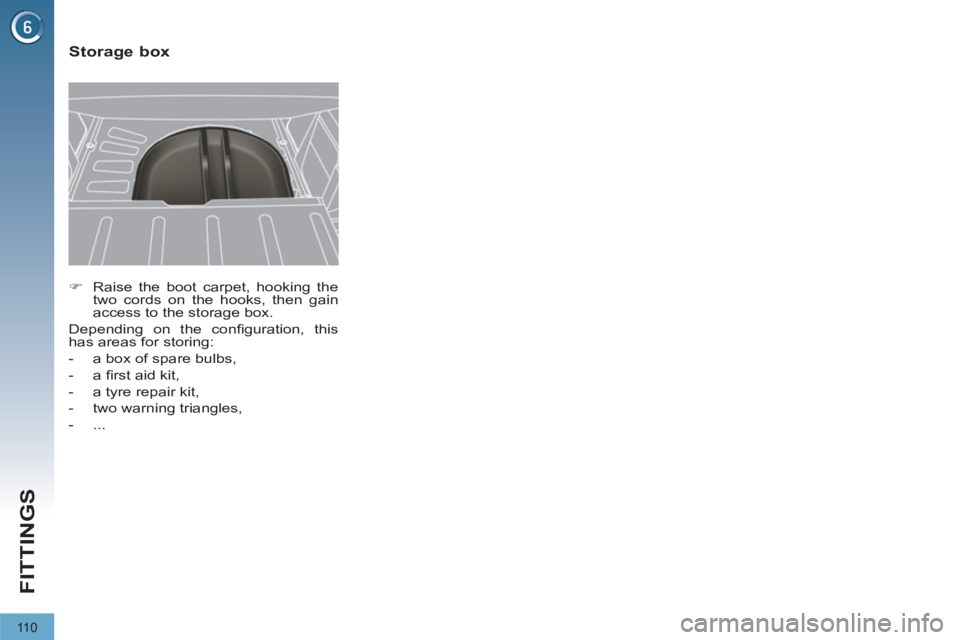

11 0
FITTINGS


)
Raise the boot carpet, hooking the
two cords on the hooks, then gain
access to the storage box.
Depending on the confi guration, this
has areas for storing:


- a box of spare bulbs,

- a fi rst aid kit,

- a tyre repair kit,

- two warning triangles,

- ...








Storage box

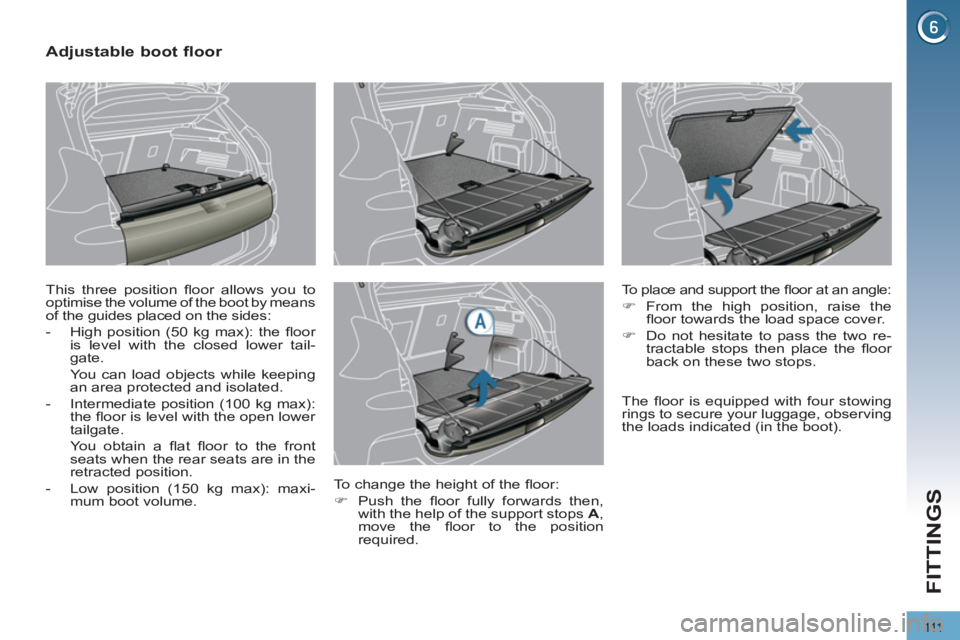

111
FITTINGS









Adjustable boot floor

This three position fl oor allows you to
optimise the volume of the boot by means
of the guides placed on the sides:


- High position (50 kg max): the fl oor
is level with the closed lower tail-
gate.
You can load objects while keeping
an area protected and isolated.

- Intermediate position (100 kg max):
the fl oor is level with the open lower
tailgate.
You obtain a fl at fl oor to the front
seats when the rear seats are in the
retracted position.

- Low position (150 kg max): maxi-
mum boot volume.

To place and support the fl oor at an angle:



)
From the high position, raise the
fl oor towards the load space cover.

)
Do not hesitate to pass the two re-
tractable stops then place the fl oor
back on these two stops.


To change the height of the fl oor:


)
Push the fl oor fully forwards then,
with the help of the support stops A
,
move the fl oor to the position
required.
The fl oor is equipped with four stowing
rings to secure your luggage, observing
the loads indicated (in the boot).

11 2
FITTINGS

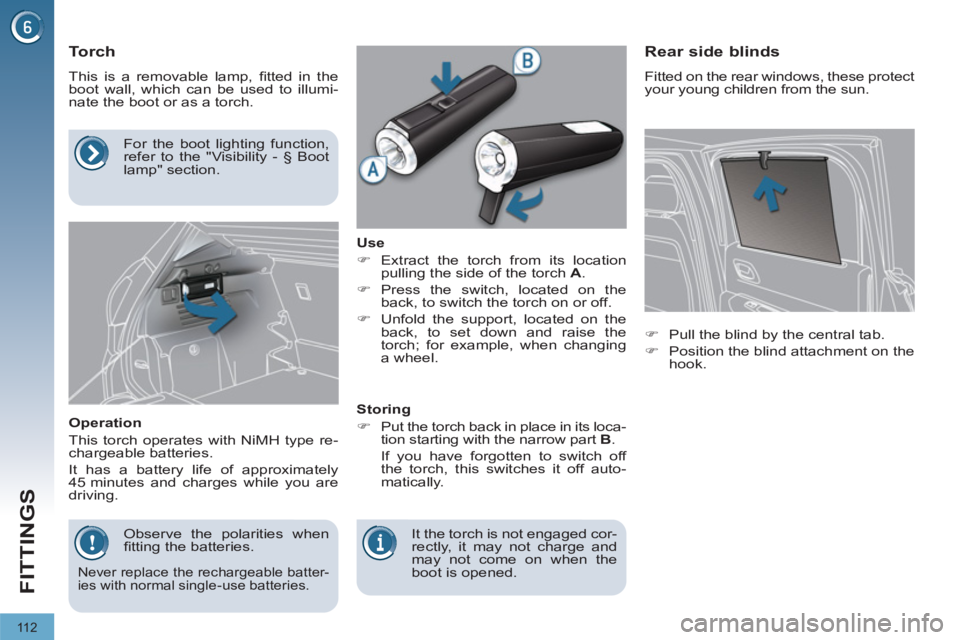

Torch

This is a removable lamp, fi tted in the
boot wall, which can be used to illumi-
nate the boot or as a torch.

Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Use


)
Extract the torch from its location
pulling the side of the torch A
.

)
Press the switch, located on the
back, to switch the torch on or off.

)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.


Storing


)
Put the torch back in place in its loca-
tion starting with the narrow part B
.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.


Rear side blinds

Fitted on the rear windows, these protect
your young children from the sun.


)
Pull the blind by the central tab.

)
Position the blind attachment on the
hook.

Observe the polarities when
fi tting the batteries.

Never replace the rechargeable batter-
ies with normal single-use batteries.

It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.

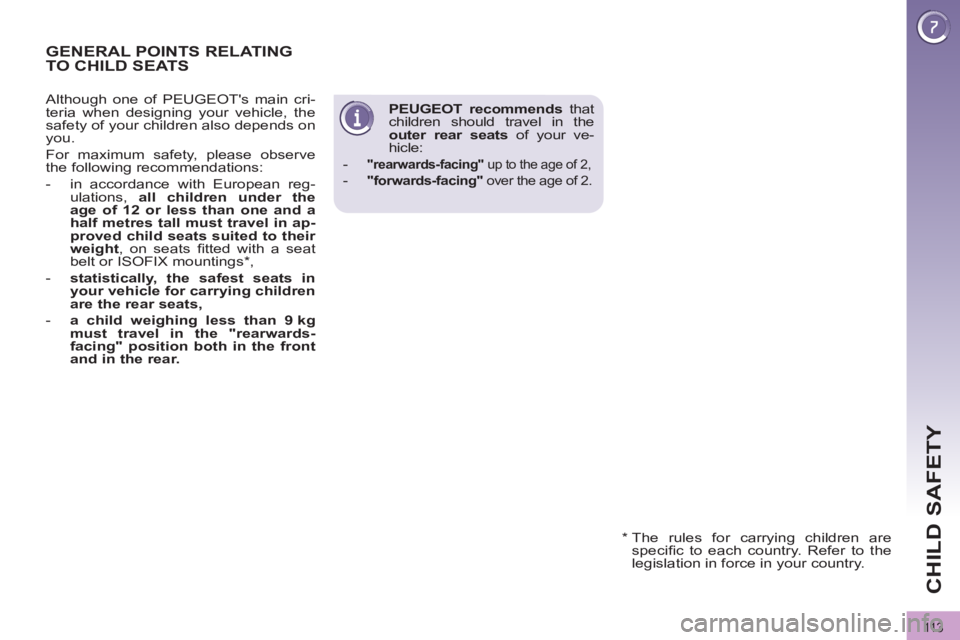

11 3
CHILD SAFETY

PEUGEOT recommends
that
children should travel in the
outer
rear seats
of your ve-
hicle:


-
"rearwards-facing"
up to the age of 2,


- "forwards-facing"
over the age of 2.












GENERAL POINTS RELATING
TO CHILD SEATS

*
The rules for carrying children are
specifi c to each country. Refer to the
legislation in force in your country. Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:


- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.

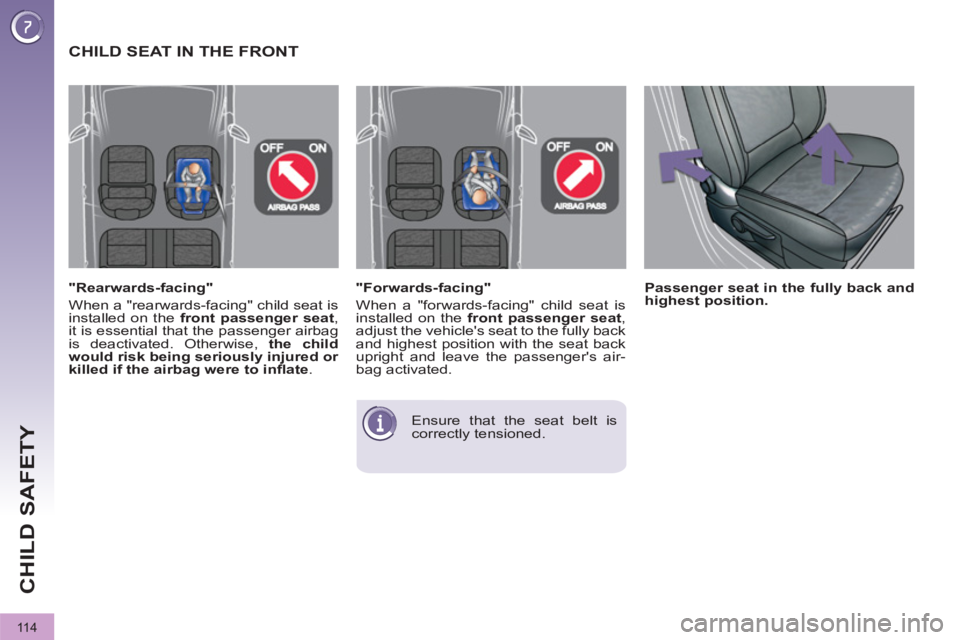

11 4
CHILD SAFETY

"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the fully back
and highest position with the seat back
upright and leave the passenger's air-
bag activated.

Ensure that the seat belt is
correctly tensioned.

Passenger seat in the fully back and
highest position.



"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.

CHILD SEAT IN THE FRONT

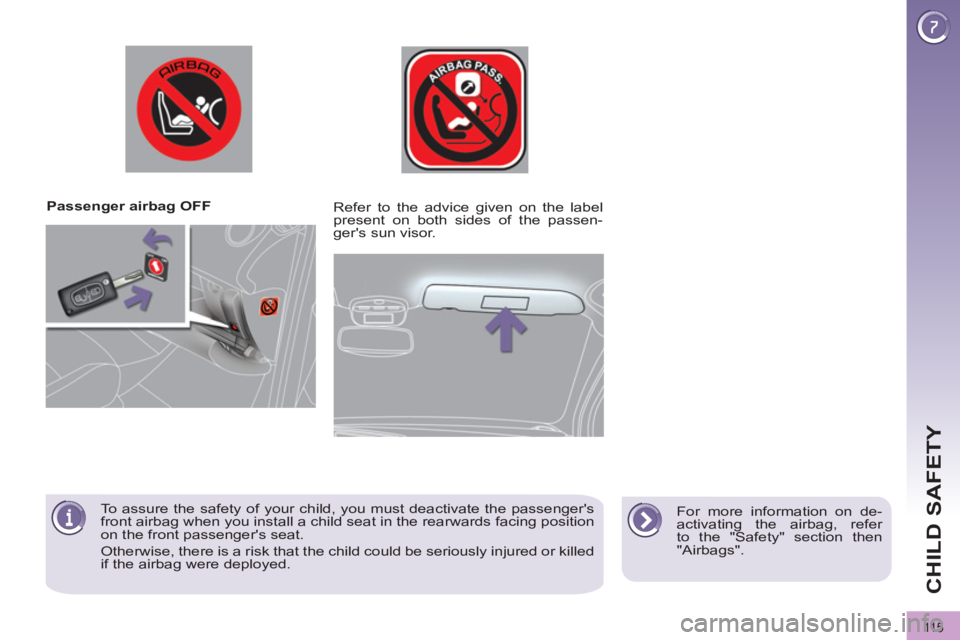

11 5
CHILD SAFETY


Passenger airbag OFF

For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".
Refer to the advice given on the label
present on both sides of the passen-
ger's sun visor.

To assure the safety of your child, you must deactivate the passenger's
front airbag when you install a child seat in the rearwards facing position
on the front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed
if the airbag were deployed.

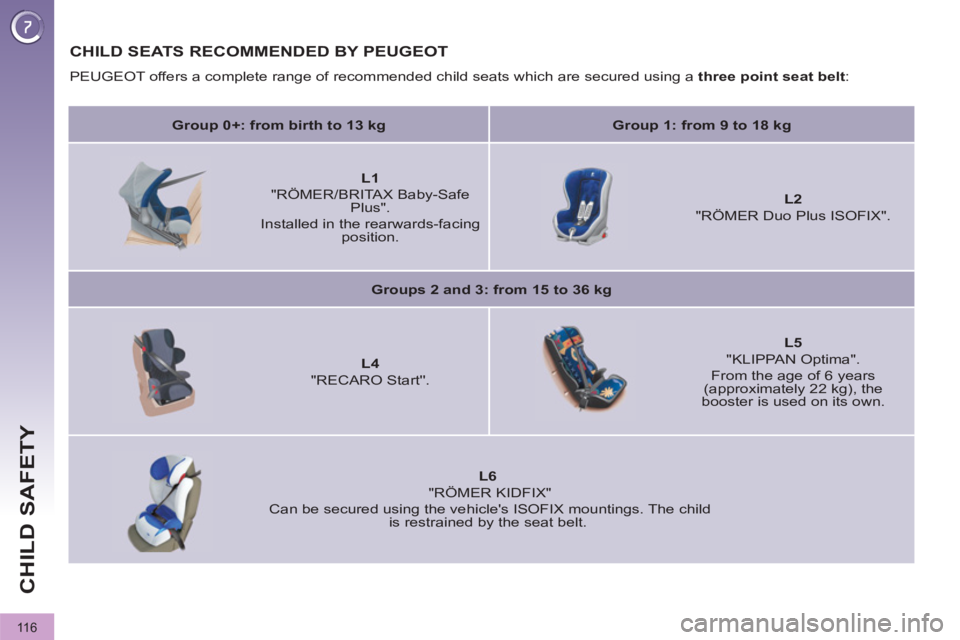

11 6
CHILD SAFETY





CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt
:


Group 0+: from birth to 13 kg



Group 1: from 9 to 18 kg






L1

"RÖMER/BRITAX Baby-Safe
Plus".
Installed in the rearwards-facing
position.



L2

"RÖMER Duo Plus ISOFIX".


Groups 2 and 3: from 15 to 36 kg






L4

"RECARO Start''.



L5

"KLIPPAN Optima".
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.




L6

"RÖMER KIDFIX"
Can be secured using the vehicle's ISOFIX mountings. The child
is restrained by the seat belt.

11 7
CHILD SAFETY

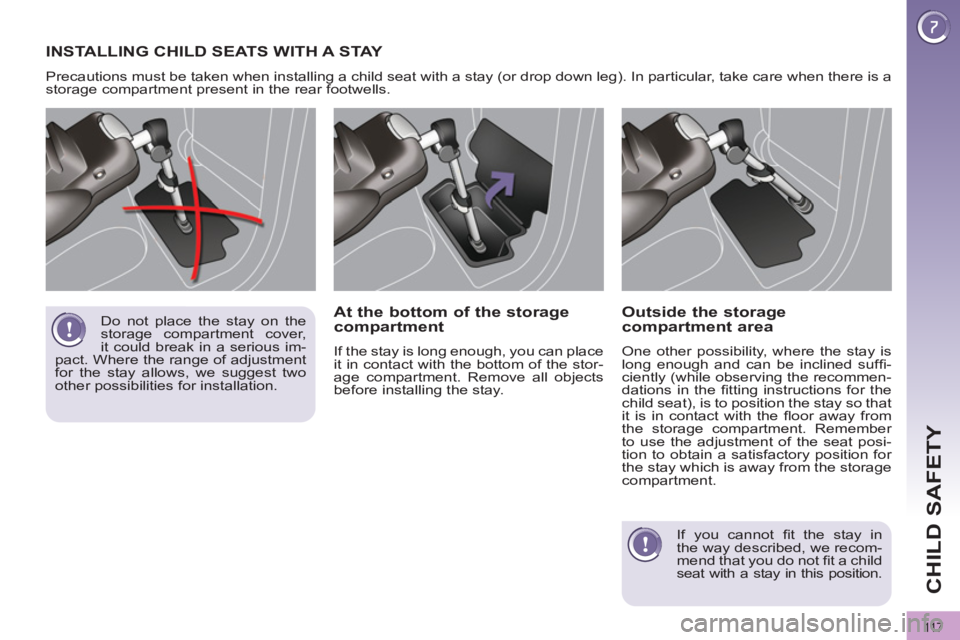

INSTALLING CHILD SEATS WITH A STAY

Precautions must be taken when installing a child seat with a stay (or drop down leg). In particular, take care when there is a
storage compartment present in the rear footwells.
Do not place the stay on the
storage compartment cover,
it could break in a serious im-
pact. Where the range of adjustment
for the stay allows, we suggest two
other possibilities for installation.

At the bottom of the storage
compartment
If the stay is long enough, you can place
it in contact with the bottom of the stor-
age compartment. Remove all objects
before installing the stay.


Outside the storage
compartment area
One other possibility, where the stay is
long enough and can be inclined suffi -
ciently (while observing the recommen-
dations in the fi tting instructions for the
child seat), is to position the stay so that
it is in contact with the fl oor away from
the storage compartment. Remember
to use the adjustment of the seat posi-
tion to obtain a satisfactory position for
the stay which is away from the storage
compartment.

If you cannot fi t the stay in
the way described, we recom-
mend that you do not fi t a child
seat with a stay in this position.

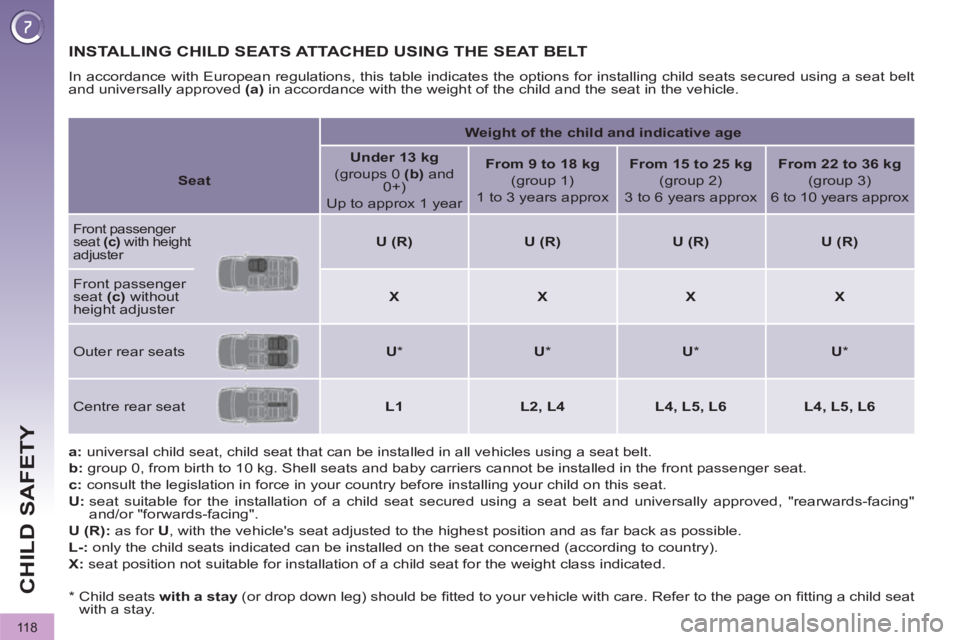

11 8
CHILD SAFETY














INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT

In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved (a)
in accordance with the weight of the child and the seat in the vehicle.

a:
universal child seat, child seat that can be installed in all vehicles using a seat belt.

b:
group 0, from birth to 10 kg. Shell seats and baby carriers cannot be installed in the front passenger seat.

c:
consult the legislation in force in your country before installing your child on this seat.

U:
seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rearwards-facing"
and/or "forwards-facing".

U (R):
as for U
, with the vehicle's seat adjusted to the highest position and as far back as possible.

L-:
only the child seats indicated can be installed on the seat concerned (according to country).

X:
seat position not suitable for installation of a child seat for the weight class indicated.

Weight of the child and indicative age




Seat



Under 13 kg

(groups 0 (b)
and
0+)
Up to approx 1 year

From 9 to 18 kg

(group 1)
1 to 3 years approx

From 15 to 25 kg

(group 2)
3 to 6 years approx

From 22 to 36 kg

(group 3)
6 to 10 years approx

Front passenger
seat (c)
with height
adjuster


U (R)



U (R)



U (R)



U (R)


Front passenger
seat (c)
without
height adjuster

X



X



X



X


Outer rear seats



U

*


U

*


U

*


U

*

Centre rear seat



L1



L2, L4



L4, L5, L6



L4, L5, L6



*
Child seats with a
stay
(or drop down leg) should be fi tted to your vehicle with care. Refer to the page on fi tting a child seat
with a stay.
