PEUGEOT 308 2012 Owners Manual

309
08 SCREEN MENU MAP


DISPLAY ADJUST


MONTH

DATE

HOUR

MINUTES
YEAR

12 H/24 H MODE



LANGUAGE


ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL
FRANCAIS

DEUTSCH

ENGLISH


ESPANOL

1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2

310
08 SCREEN MENU MAP


Press the OK dial for access to short-cut menus according to the display on the
screen:











MONOCHROME C


activate/deactivate RDS


activate/deactivate REG mode


activate/deactivate radiotext




RADIO


activate/deactivate Intro



CD/MP3 CD


activate/deactivate track repeat
(the entire current CD for CD, the entire
current folder for MP3 CD)


activate/deactivate random play
(the entire current CD for CD, the entire
current folder for MP3 CD)


activate/deactivate track repeat (of the
current folder/artist/genre/playlist)



USB


activate/deactivate random play
(of the
current folder/artist/genre/playlist)


1
1
1
1
1
1
1
1

311
08
MONOCHROME C SCREEN MENU MAP


AUDIO FUNCTIONS


alternative frequencies (RDS)

activate/deactivate
FM BAND PREFERENCES

regional mode (REG)

activate/deactivate

radio-text information (RDTXT)


activate/deactivate
1
2
3
4
3
4
3
4


PLAY MODES

album repeat (RPT)

activate/deactivate

track random play (RDM)

activate/deactivate
2
3
4
3
4


TRIP COMPUTER


Distance: x miles


ENTER DISTANCE TO DESTINATION

Diagnostic
s

ALERT LOG

Functions activated or deactivated





STATUS OF THE FUNCTIONS *
1
2
3
3
2
3
2


video brightness adjustment

DISPLAY CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *



PERSONALISATION-
CONFIGURATION
normal video
inverse video
brightness (- +) adjustment

date and time adjustment


day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode

choice of units

l/100 km - mpg - km/l
°Celsius/°Fahrenheit


CHOICE OF LANGUAGE

1
2
4
3
2
4
4
3
4
4
2
3
4
4


Pressing the MENU button displays:

*
The parameters vary according to vehicle.
4

312
08 SCREEN MENU MAP


BLUETOOTH TELEPHONE


Connect/Disconnect a device

Consult the paired device
Bluetooth confi guration

Telephone function


Audio Streaming function

Delete a paired device
Perform a Bluetooth search

Calls list

Call
Directory

Terminate the current call

Manage the telephone call


Activate private mode



1
2
3
3
3
4
4
4
2
3
4
2
3
3

313

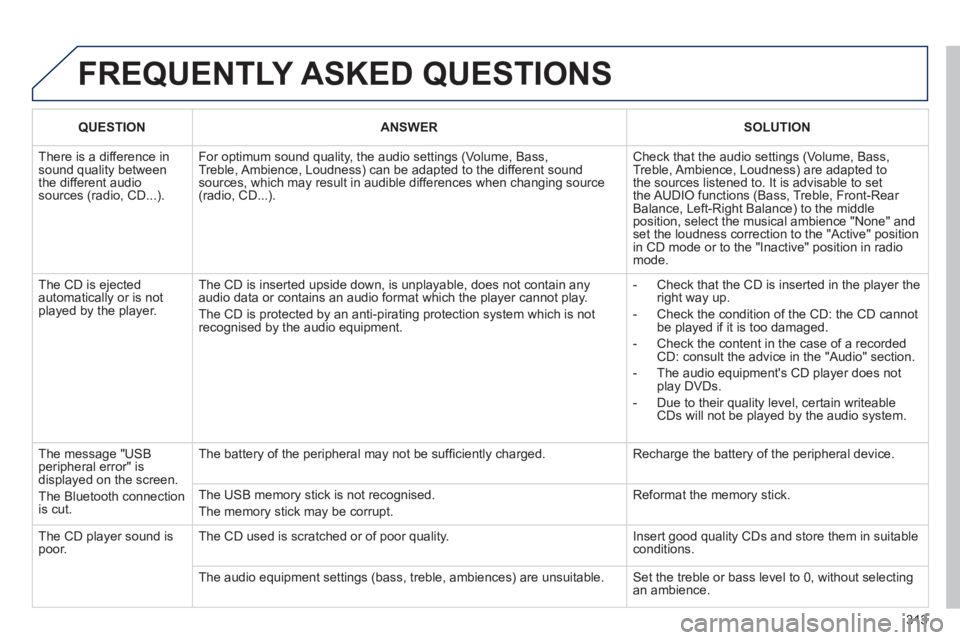

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


There is a difference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass,
Treble, Ambience, Loudness) can be adapted to the different sound
sources, which may result in audible differences when changing source
(radio, CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None" and
set the loudness correction to the "Active" position
in CD mode or to the "Inactive" position in radio
mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

314

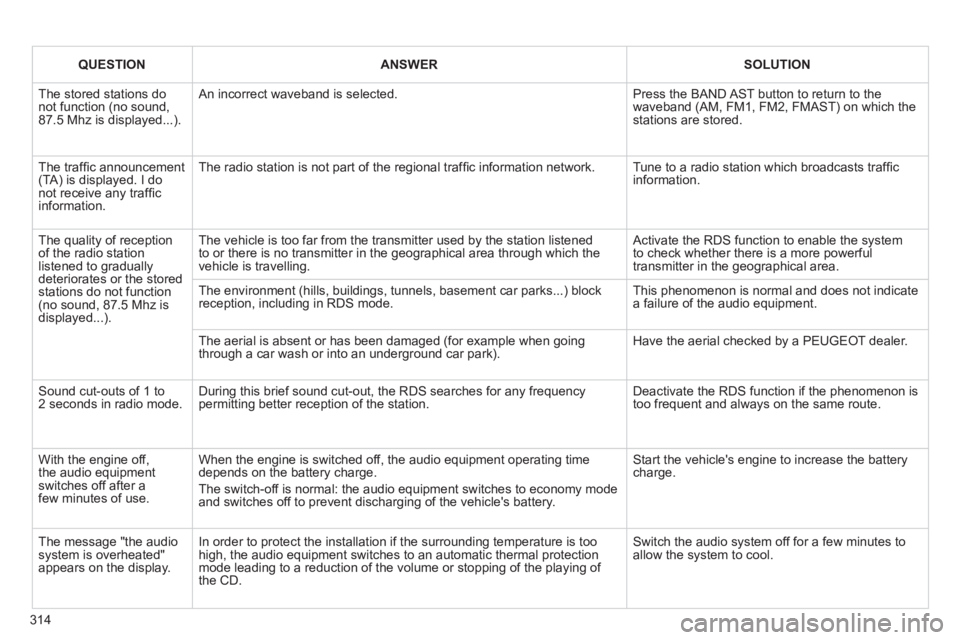

QUESTION



ANSWER



SOLUTION


The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The traffi c announcement
(TA) is displayed. I do
not receive any traffi c
information. The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c
information.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a
few minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing of
the CD. Switch the audio system off for a few minutes to
allow the system to cool.

315
ALPHABETICAL INDEX
A
B
D
Accessories ................................204
Accessory socket,
12 volt ..................... 100, 102, 109
Adjusting headlamps ..............92, 93
Adjusting head
restraints ....................................67
Adjusting seat belt
height ...............................130, 131
Adjusting the steering
wheel .........................................73
Airbags .........................................36
Airbags, curtain...................135, 136
Airbags, front ......................133, 136
Airbags, lateral....................135, 136
Air conditioning .............................25
Air conditioning,
digital ...................................59, 62
Air conditioning,
manual .................................59, 60
Air fi lter .......................................172
Air fl ow ..........................................25
Air vents........................................58
Alarm ............................................79
Anti-pinch..............................81, 106
Anti-theft .......................................76
Armrest .......................................100
Armrest, front ..............................102
Armrest, rear ...............................105
Assistance call ............................214
Audible warning ..........................124
Audio/video sockets....................244
Audio streaming
(Bluetooth) ...............................305
Automatic illumination
of headlamps .......................89, 92
Automatic operation
of hazard warning lamps .........124
Automatic rain sensitive
windscreen wipers ...............94, 96
Auxiliary socket...................280, 302
Auxiliary sockets .................244, 300Battery ................................172, 197
Battery, charging .........................197
Battery, remote control ...........77, 78
Blind for panoramic sunroof........106
Bluetooth (hands-free) ....... 245-247,
281, 282, 303
Bluetooth
(telephone) ...... 245-247, 281, 282
Bonnet ........................................167
Bonnet stay.................................167
Boot fl oor, adjustable .................. 111
Boot lamp ............................. 99, 112
Boot lid..........................................86
Brake discs .................................173
Brake lamps................................188
Brake pads .................................173
Brakes ........................................173
Date (setting) ..... 250, 284, 306, 307
Daytime running
lamps ........................ 91, 185, 187
Deactivating the passenger
airbag .......................................133
Deadlocking ..................................75
Defrosting ...............................60, 61
Demisting......................................60
Dials and gauges ..........................27
Diesel additive level ....................172
Dimensions .................................210
Dipped beam ............... 89, 185, 186
Dipstick .................................40, 171
Directional lighting ........................93
Direction indicators .... 124, 185, 188
Distance alert..............................147
Doors ............................................83
Doors emergency control .............85
Door trays ...................................100
Dynamic emergency braking ......140
C
Capacity, fuel tank ........................87
CD MP3 ..............................279, 299
Central locking ........................75, 84
Changing a bulb ........ 185, 188, 189
Changing a fuse .........................190
Changing a wheel ...............180, 182
Changing a wiper blade ........96, 200
Changing the date ..... 250, 284, 307
Changing the remote
control battery ............................77
Changing the time ..... 250, 284, 307
Checking levels ..................171, 172
Checking the engine oil level ........40
Checking tyre pressures
(using the kit) ...........................174
Checks............... 169, 170, 172, 173
Child lock ....................................123Children ...................... 118, 121, 122
Child seats ................................. 113
Child seats, conventional.... 116, 118
Closing the boot................75, 85, 86
Closing the doors....................75, 83
Cold climate screen ....................203
Colour screen, retractable ...49, 51, 53
Connectors,
audio ....... 101, 102, 280, 300, 302
Control for panoramic
sunroof blind ............................106
Coolant level .........................37, 171
Coolant temperature indicator ......37
Courtesy lamps.............................97
Courtesy mirror ...........................101
Cruise control .............................151
Cup holder ..................................100

316
ALPHABETICAL INDEX
E
G
Eco-driving ...................................25
Economical driving ......................25
Economy mode...........................199
Electric window controls ...............81
Electronic engine
immobiliser ..........................76, 78
Electronic stability control
(ESC) .......................................126
Emergency call ...................214, 215
Emergency warning
lamps .......................................124
Energy economy mode...............199
Engine,
Diesel ......... 88, 168, 170, 207-209
Engine, petrol ...... 88, 169, 205, 206
Engine compartment ..........169, 170
Engine compartment
fusebox ....................................190
Engine oil level indicator .......40, 171
Engines...............................205, 207
Environment ...........................25, 78
ESC/ASR ....................................126
ESP/ASR ....................................127Headlamp wash reservoir ...........171
Head restraints, front ....................67
Head restraints, rear .....................69
Heated seats ................................67
Heating ...................................25, 60
Height and reach adjustment,
steering wheel ...........................73
Hill start assist ............................142
Hooks .........................................109
Horn ............................................124
G.P.S. .................................228, 267
Gearbox, automatic ............158, 173
Gearbox, electronic
gear control ............. 154, 161, 173
Gearbox, manual ....... 153, 161, 173
Gear lever .....................................25
Gear lever, automatic gearbox ...158
Gear lever, electronic
gear control gearbox ................154
Gear lever, manual gearbox .......153
Gear shift indicator .....................153
Glove box ...................................101
Grab handle on console .............100
Grab handles ..............................100
Grip control .................................128
Guidance ............................228, 267
Guide-me-home............................92
F
Filling with fuel ........................87, 88
Fitting a wheel ............................183
Fitting roof bars...........................203
Fittings, boot ...............................107
Flashing indicators......................124
Floor, three-position .................... 111
Foglamps, rear .............................90
Folding the rear seats ...................69
Front foglamps............. 90, 185, 187
Front seats........................65, 66, 68
Fuel...................................25, 87, 88Fuel consumption .........................25
Fuel fi ller cap ................................87
Fuel fi ller fl ap ..........................87, 88
Fuel gauge....................................87
Fuel tank .................................87, 88
Fusebox, dashboard ...................190
Fuses ..........................................190
H
Halogen headlamps....................185
Hands-free kit ............ 281, 282, 303
Hazard warning lamps ................124
Head-up display......... 145, 149, 151
Headlamp adjustment.............92, 93
Headlamps, directional .........93, 185
Headlamp wash ............................95
I
Identifi cation plates ..................... 211
Indicator lamps, status..................31
Indicators, direction ....................124
Infl ating accessories
(using the kit) ...........................174
Infl ating tyres ................................25
Inputs for audio
system ............ 244, 280, 300, 302
Instrument panel lighting ..............41
Instrument panels ...................27, 28
Instrument panel screen .......27, 153
Interior fi ttings .............................100
Interior mood lighting ....................98
ISOFIX child seats .............. 120-122
ISOFIX mountings ......................120
J
Jack ....................................180, 182
JACK socket .......................300, 302
Jukebox (copy) ...........................242
Jukebox
(playing) ...................................243

317
ALPHABETICAL INDEX
NP
K
LM
Navigation...........................228, 267
Number plate lamps ...................189Paint colour code ........................ 211
Panoramic glass sunroof ............106
Parking brake .............................173
Parking brake,
electric .............................137, 140
Parking sensors,
rear ..........................................164
Particle emission fi lter.........172, 173
Passenger compartment
fi lter ..........................................172
PEUGEOT call button .................215
Peugeot Connect
ASSISTANCE ..........................214
Peugeot Connect Media
Navigation (NG4 3D) ....28, 51, 53,
55, 217, 220,
223, 251
Peugeot Connect
Navigation (RNEG) .............49, 53,
264, 285
Peugeot Connect
SOS .................................214, 215
Peugeot Connect
Sound (RD5) ..... 46, 293, 308, 310
PEUGEOT services ....................215
PIN code .....................................248
Player, CD MP3 ..................279, 299
POIs (updating) ..........................235
Port, USB................... 102, 300, 302
Priming the fuel system ..............168
Protecting
children ..... 113, 118, 120-122, 133
Puncture .....................................174 Keeping children
safe .................. 113, 121, 122, 133
Key with remote control .... 74-76, 78Main beam .................... 89, 185-187
Maintenance .................................25
Map reading lamps .......................97
Markings, identifi cation ............... 211
Mat..............................................103
Menu, main .................................296
Mini fuel level ................................87
Mirror, rear view ............................72
Mirrors, door .................................71
Misfuel prevention ........................88
Motorway function
(direction indicators) ................124
Mountings for ISOFIX seats .......120
MP3 CD ..............................279, 299
Multimedia, rear ..........................104
Music media players ...........240, 278 Labels,
identifi cation ............................. 211
Lamps,
warning and indicator ....29, 32, 33
Level,
brake fl uid ................................171
Level,
headlamp wash .................95, 171
Level,
power steering fl uid .................171
Levels and
checks ............................. 169-172
Lighting .........................................99
Lighting,
guide-me home ....................91, 92
Lighting, interior ......................97, 98
Lighting bulbs
(replacement) ......... 185, 188, 189
Lighting control stalk .....................89
Lighting dimmer ............................41
Loading .................................25, 203
Load reduction mode ..................199
Load space cover .......................108
Locating your vehicle ....................75
Locking from
the inside ...................................84
Long objects,
transporting ........................68, 105
Luggage retaining net .................109
Luggage retaining strap ..............107
O
Oil fi lter .......................................172
Oil level .................................40, 171
Opening the bonnet ....................167
Opening the boot ....................74, 85
Opening the doors ..................74, 83
Opening the panoramic sunroof
blind .........................................106
Opening the retractable screen ....53
Opening the tailgate ...............85, 86
Operation indicator
lamps ...................... 29, 31, 32, 34

318
ALPHABETICAL INDEX
SRStorage .............. 100, 102, 105, 107
Storage box ................................101
Storage wells ..............................107
Stowing rings ..............................107
Sun visor.....................................101
Synchronising the remote control ...77
System, ASR ..............................128
System, navigation .............228, 267
Systems, ASR and ESP .............127 Safety for children......... 81, 118, 123
Screen,
colour 16/9 ...... 223, 251, 264, 285
Screen, monochrome ... 296, 308, 310
Screen,
monochrome C ..........................55
Screen, multifunction (with audio
equipment) ........ 44, 46, 49, 51, 53
Screen, multifunction
(without audio equipment) .........42
Screen-wash reservoir................171
Screen menu
map ................. 251, 285, 308, 310
Screenwash, front.........................95
Screenwash fl uid level ..........95, 171
Seat adjustment......................65, 66
Seat belts............................ 130-132
Seats, electric ...............................66
Seats, rear ....................................69
Serial number, vehicle ................ 211
Service indicator ...........................38
Servicing .......................................25
Setting
the clock ......... 250, 284, 306, 307
Short-cut menus ........ 224, 265, 266
Sidelamps ..................... 89, 185-188
Side repeater ..............................187
SIM card .............................101, 248
Ski fl ap ........................................105
Spare wheel........................180, 182
Spectacles storage .....................100
Speed limiter...............................149
Speedometer ................................27
Spotlamps, side ............................98
Stability control (ESP).................127
Starting the vehicle ...... 76, 154, 158
Steering mounted controls,
audio ................................222, 295
Stopping the vehicle .... 76, 154, 158
Stop Start.................. 57, 61, 63, 87,
161, 167, 172, 197 Radio ......................... 239, 277, 297
RCA sockets ...............................244
Reading lamps, rear .....................97
Rear foglamp ......................188, 189
Rear screen
(demisting) .................................61
Recharging the battery ...............197
Reduction of electrical
load ..........................................199
Reinitialising the electric
windows .....................................81
Reinitialising the remote
control ........................................77
Remote control .................74, 75, 78
Removable screen
(snow shield) ...........................203
Removing a wheel ......................183
Removing the mat ......................103
Repair kit, puncture ....................174
Replacing bulbs ......... 185, 188, 189
Replacing fuses ..........................190
Replacing the air fi lter .................172
Replacing the oil fi lter .................172
Replacing the particle
emission fi lter ...........................173
Replacing the passenger
compartment fi lter ....................172
Replacing wiper
blades ................................96, 200
Resetting the service
indicator .....................................39
Resetting the trip
recorder .....................................41
Rev counter ..................................27
Reversing lamp...........................188
Risk areas
(update) ...........................235, 274
Roof bars ....................................203
Routine checks ...................172, 173
Running out of fuel
(Diesel) ....................................168
T
Table of weights ......... 206, 208, 209
Tables of engines................205, 207
Tables of fuses............................190
Tank, fuel ......................................88
Technical data..................... 205-209
Telephone ... 215, 245-247, 281, 282
Telephone, hands-free ........ 245-247
Temperature, coolant ....................37
Temperature control
for heated seats .........................67
Temporary tyre repair kit .............174
Third brake lamp.........................189
TMC (Traffi c info) ................237, 275
Tools ...................................180, 182
Torch ..................................... 99, 112
Total distance recorder .................41
Towbar ........................................202
Towed loads............... 206, 208, 209
Towing another vehicle ...............200
Traction control (ASR) ........127, 128
Traffi c information
(TA) ................. 238, 276, 277, 298
Traffi c information
(TMC) ............. 237, 238, 275, 276
Trip computer ...................54, 55, 57
Trip distance recorder ...................41
Tyre pressures ............................ 211
Tyres .............................................25
Tyre under-infl ation detection .....125
