Peugeot 308 2014.5 Owner's Manual - RHD (UK, Australia)

299

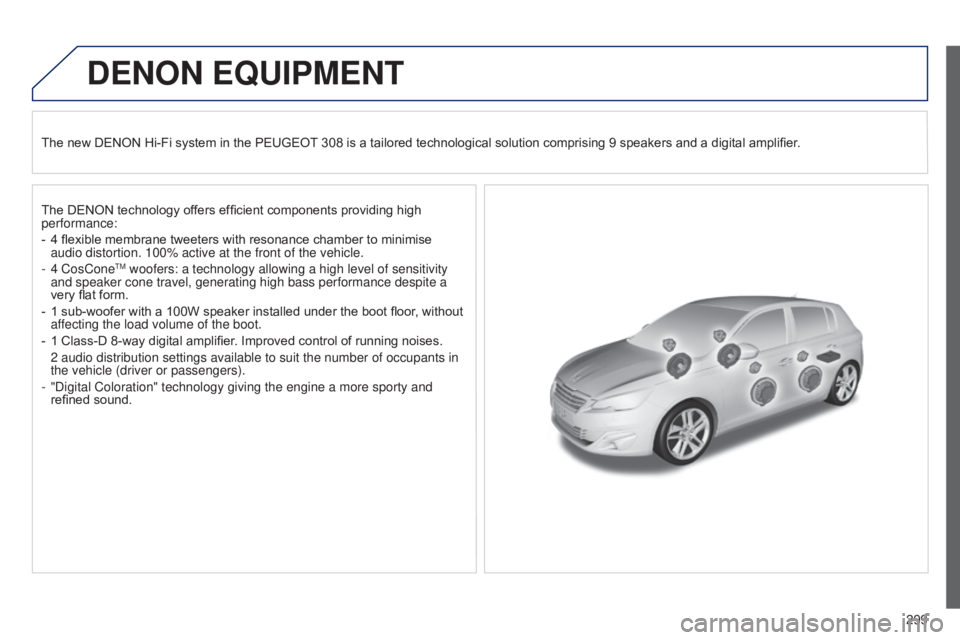

DENON EqUIPMENT
The new DENON Hi-Fi system in the PEUGEOT 308 is a tailored technological solution comprising 9 speakers and a digital amplifier.
The DENON technology offers efficient components providing high
performance:
-
4 flexibl
e membrane tweeters with resonance chamber to minimise
audio distortion. 100% active at the front of the vehicle.
-

4 CosConetM woofers: a technology allowing a high level of sensitivity
and speaker cone travel, generating high bass performance despite a
very flat form.
-

1 sub-woofer with a 100W speaker
installed under the boot floor, without
affecting the load volume of the boot.
-

1 Class-D 8-way digital amplifier
. Improved control of running noises.
2 audio distributio

n settings available to suit the number of occupants in
the vehicle (driver or passengers).
-

"Digital Coloratio
n" technology giving the engine a more sporty and
refined sound.

300

301
t

he system is protected in such a way that it will only
operate in your vehicle.

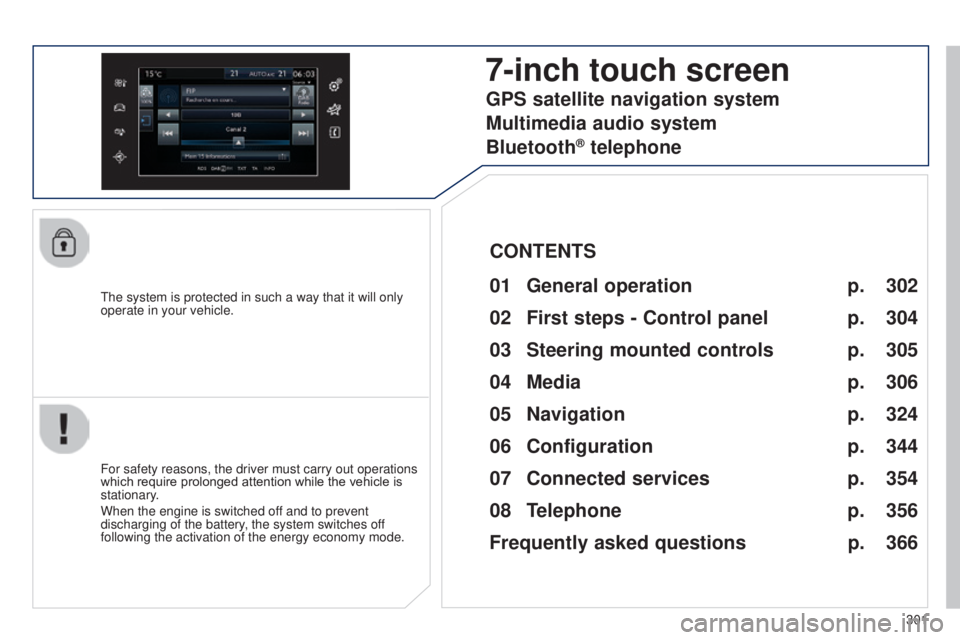

7-inch touch screen
01 General operation
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02

First steps - Control
panel
04
Media
05
Navigation
06
Configuration
07

Connected service
s
08
Telephone p.
p.
p.
p.
p.
p.
p.
Frequently asked questions p.
GPS satellite navigation system
Multimedia audio system
Bluetooth
® telephone
302
304
324 306
344
354
356
366
03

Steering mounted
controls p. 305

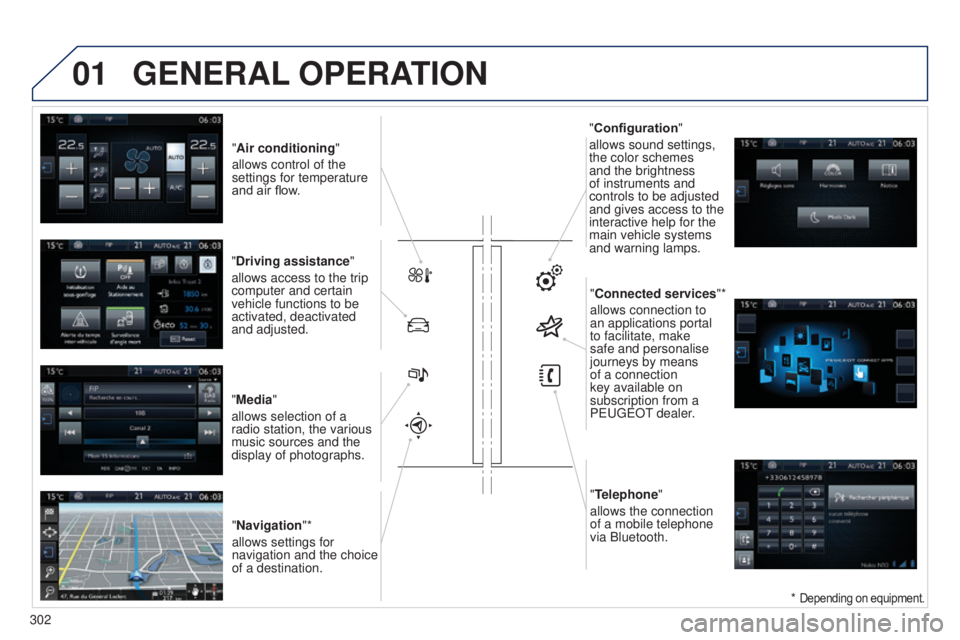

01GENERAL OPERATION
* Depending on equipment.
"Air conditioning "
allows control of the
settings for temperature
and air flow.
"Driving assistance"
allows access to the trip
computer and certain
vehicle functions to be
activated, deactivated
and adjusted.
"Media"
allows selection of a
radio station, the various
music sources and the
display of photographs. "Navigation"*
allows settings for
navigation and the choice
of a destination. "Configuration
"
allows sound settings,
the color schemes
and the brightness
of instruments and
controls to be adjusted
and gives access to the
interactive help for the
main vehicle systems
and warning lamps.
"Connected services "*
allows connection to
an applications portal
to facilitate, make
safe and personalise
journeys by means
of a connection
key available on
subscription from a
P
euge O t
dealer
.
"Telephone"
allows the connection
of a mobile telephone
via Bluetooth.
302

01

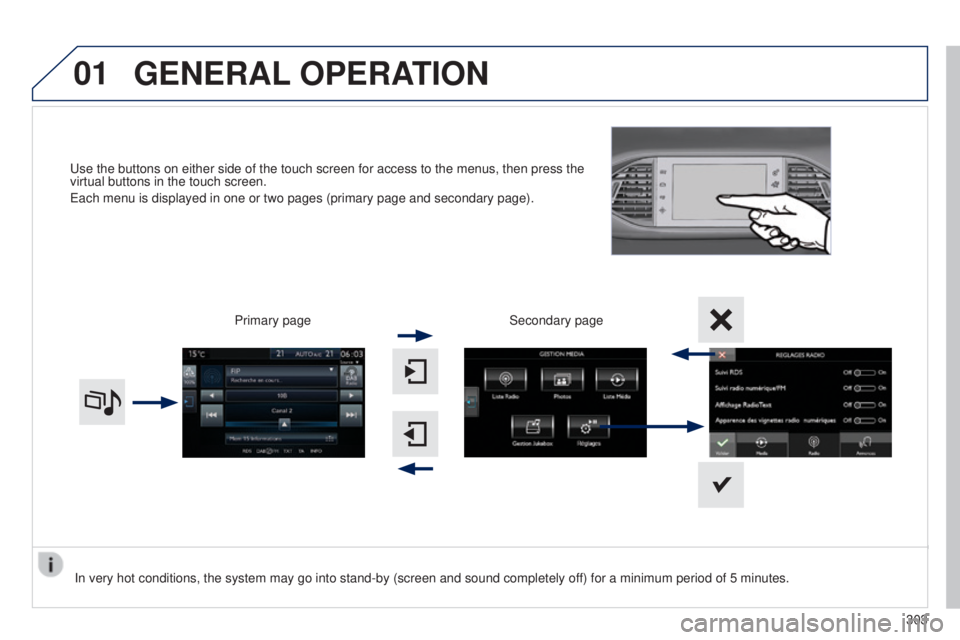

use the buttons on either side of the touch screen for access to the menu\
s, then press the
virtual buttons in the touch screen.
e

ach menu is displayed in one or two pages (primary page and secondary p\
age).
GENERAL OPERATION
In very hot conditions, the system may go into stand-by (screen and sou\
nd completely off) for a minimum period of 5 minutes. Secondary page
Primary page
303

02
304

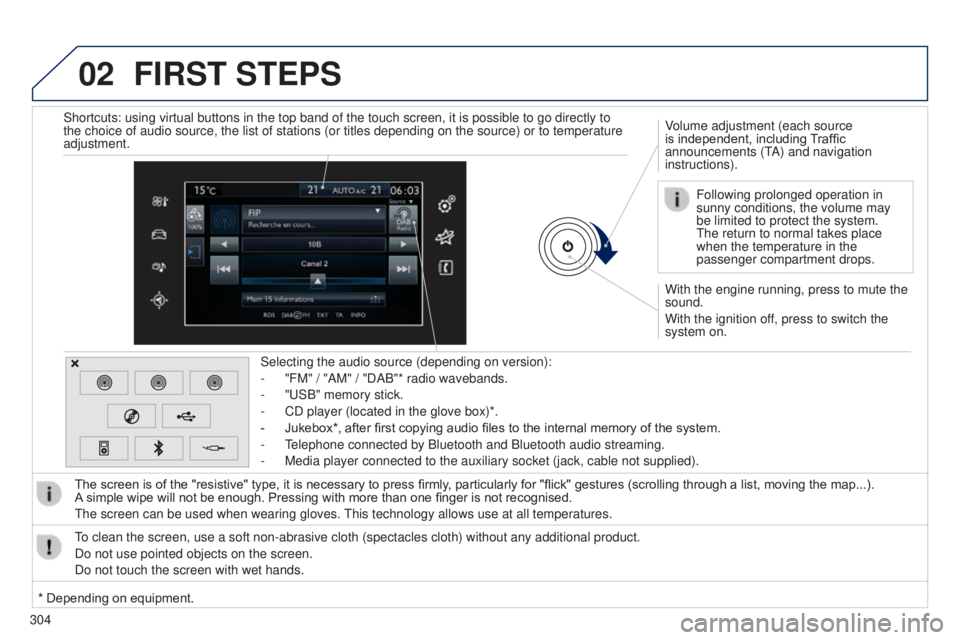

FIRST STEPS
With the engine running, press to mute the
sound.
With the ignition off, press to switch the
system on. Volume adjustment (each source
is independent, including Traffic
announcements (t
A) and navigation
instructions).
Selecting the audio source (depending on version):
-


"FM" / "AM" / "DAB"* radio wavebands.
-


"

u
SB" memory stick.
-

CD player (located in the glove box)*.
-


Jukebox*, after first copying audio files to the internal memory of the system.
-

t
elephone connected by Bluetooth and Bluetooth audio streaming.
-


Media player connected to the auxiliary socket (jack, cable not supplie\
d).
The screen is of the "resistive" type, it is necessary to press firmly , particularly for "flick" gestures (scrolling through a list, moving the map...).
A

simple wipe will not be enough. Pressing with more than one finger is not recognised.
t

he screen can be used when wearing gloves.
t

his technology allows use at all temperatures.
to clean the screen, use a soft non-abrasive cloth (spectacles cloth) w\
ithout any additional product.
Do not use pointed objects on the screen.
Do not touch the screen with wet hands. Following prolonged operation in
sunny conditions, the volume may
be limited to protect the system.


t

he return to normal takes place
when the temperature in the
passenger compartment drops.
Shortcuts: using virtual buttons in the top band of the touch screen, it\
is possible to go directly to
the choice of audio source, the list of stations (or titles depending o\
n the source) or to temperature
adjustment.
* Depending on equipment.

03
305

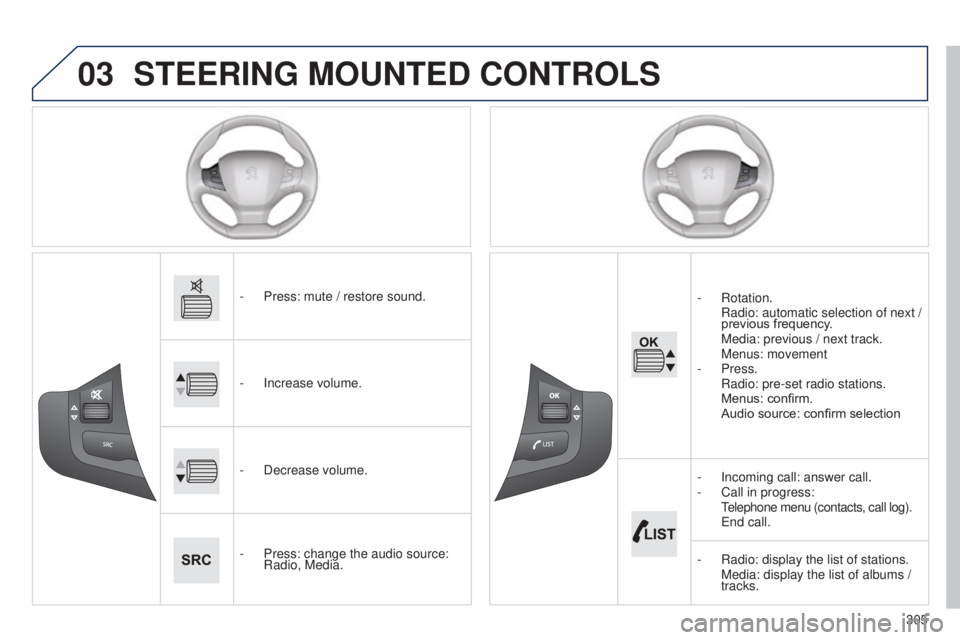

STEERING MOUNTED CONTROLS
- Press: mute / restore sound.
-
Increase volume.
-


Decrease volume.
-


Press: change the audio source:
Radio, Media. -

Rotation.
Radio:

automatic selection of next /
previous frequency.
Media: previous / next track. Menus: movement
-

Press.
Radio: pre-set radio stations. Menus: confirm. Audio source: confirm selection
-


Incoming call: answer call.
-


Call in progress:

t
elephone menu (contacts, call log).

e nd call.
-

Radio: display the list of stations. Media: display the list of albums /
tracks.

04
306
MEDIA
Level 1Level 2
List of FM stations
"Media"
Primary page
Preset

307

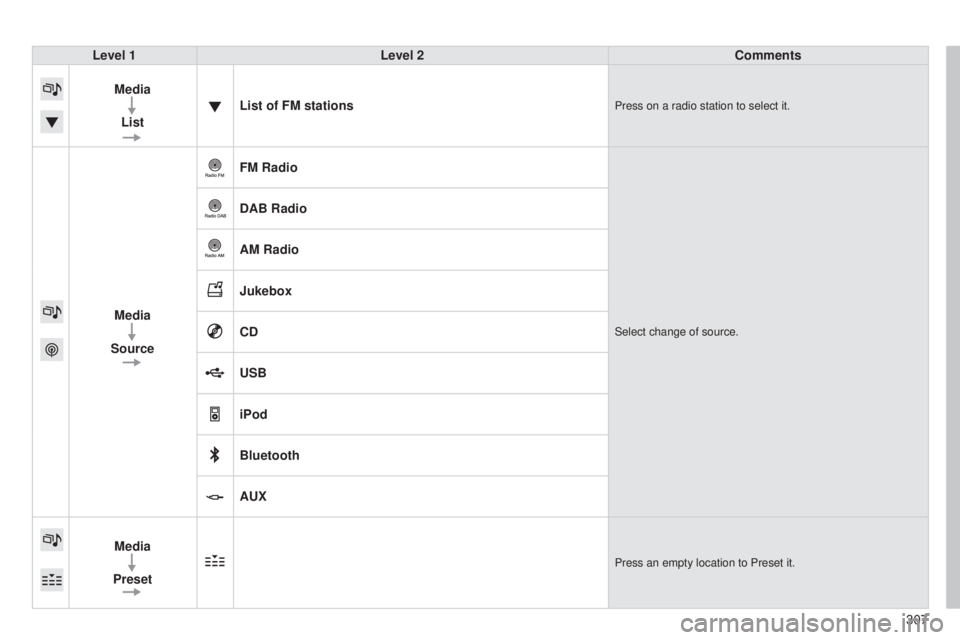

Level 1
Level 2 Comments
Media List List of FM stations
Press on a radio station to select it.
Media
Source FM RadioSelect change of source.
DAB Radio
AM Radio
Jukebox
CD
USB
iPod
Bluetooth
AUX
Media
Preset
Press an empty location to Preset it.

308

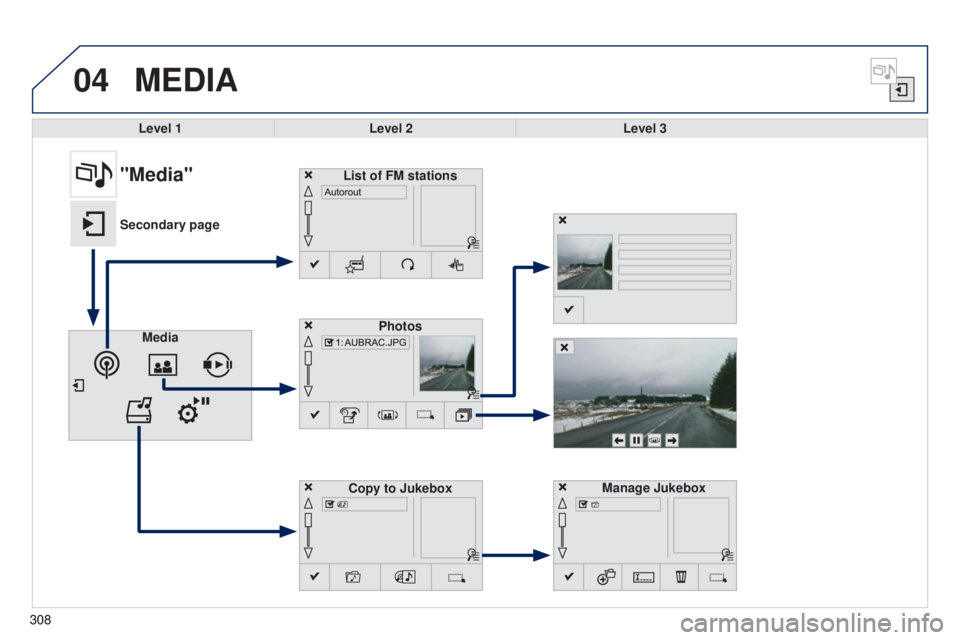

04MEDIA
Level 1Level 2 Level 3
Media Photos
Manage Jukebox
"Media"
Secondary pageList of FM stations
Copy to Jukebox
308
