Peugeot 308 2016 User Guide

9
308_en_Chap00b_vue-ensemble_ed02-2015
Maintenance - technical data
Dimensions 2 92-294
Identification markings 29 5
Running out of fuel,
Diesel (primimg pump)
27

7
Checking levels
22

9-232
-
o

il
-
br

ake fluid
-
c

oolant
-
sc

reenwash, headlamp wash fluid
-
ad

ditive (Diesel with particle filter)
Checking components
233

-234
-
b

attery
-
ai

r / passenger compartment filter
-
oi

l filter
-
pa

rticle filter (Diesel)
-
br

ake pads / discs
Changing bulbs
25

6-265
-
f

ront
- r
ear 12V battery
27
2-274
Load reduction, economy
mo
de
21
9
engin

e
compartment fuses
26
6, 270 -271
Opening the bonnet
22

6
und

er the bonnet, petrol
22

7
und

er the bonnet, Diesel
22

8
Petrol engines
27

8 -280
Diesel engines
28

4-287
AdBlue
2

35-242 Petrol weights
28

1-283
Diesel weights
28
8 -291
.
Over view

10
308_en_Chap00c_eco-conduite_ed02-2015
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
eco-driving
eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. these
practices contribute towards a reduction in fuel consumption and
CO
2 emissions and also helps reduce the background traffic noise.
If y
our vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
the g
ear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an electronic or automatic gearbox, this
indicator appears only in manual mode.
eco-driving

11
308_en_Chap00c_eco-conduite_ed02-2015

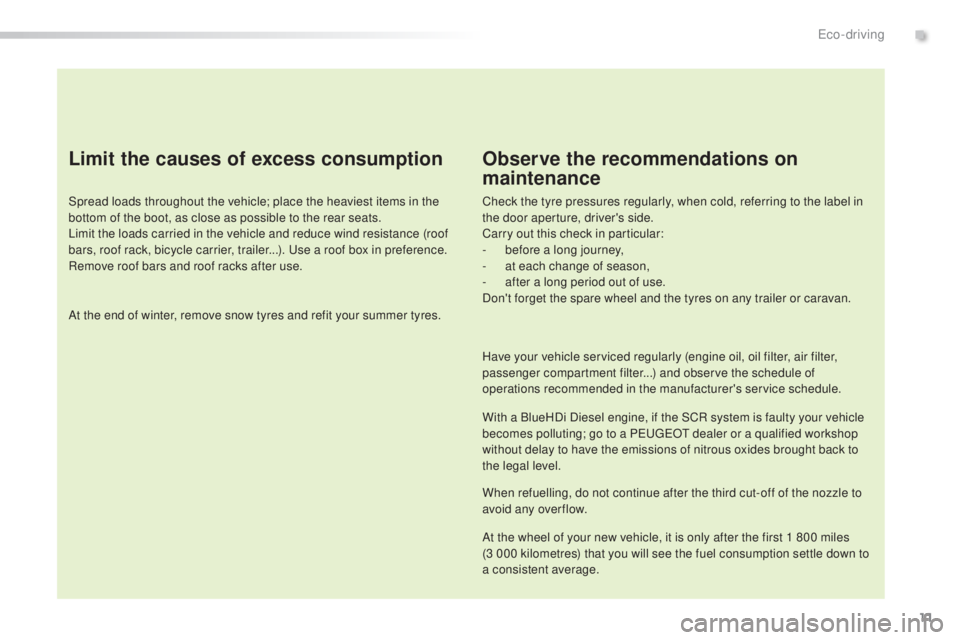

Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...).
use a r
oof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
be

fore a long journey,
-
at e

ach change of season,
-
af

ter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a P
eu

ge
Ot d
ealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
0

00 kilometres) that you will see the fuel consumption settle down to
a consistent average.
.
eco-driving

12

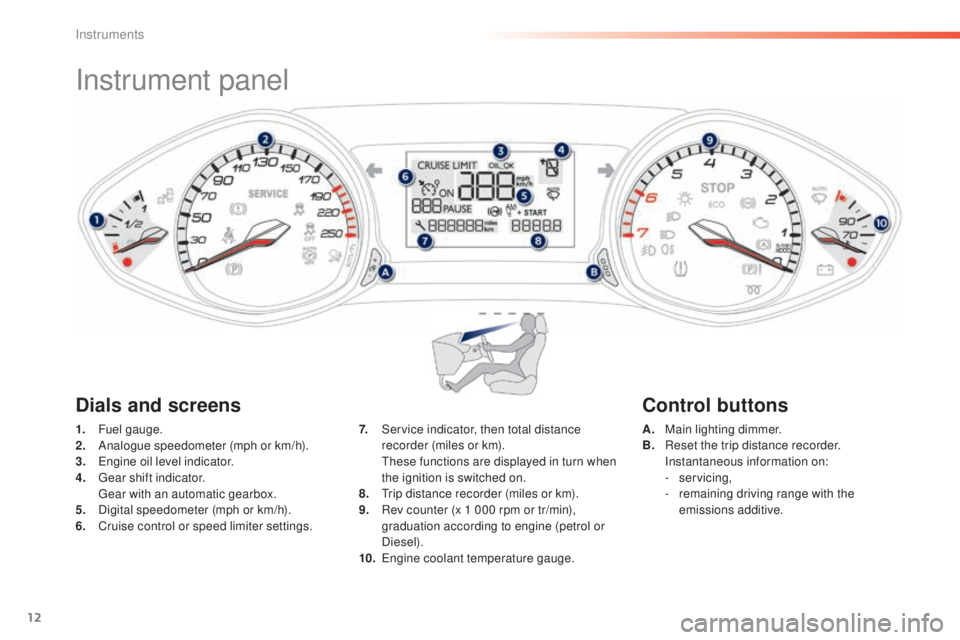

Instrument panel
1. Fuel gauge.
2. An alogue speedometer (mph or km/h).
3.
eng

ine oil level indicator.
4.
gear

shift indicator.
gear

with an automatic gearbox.
5.
Di

gital speedometer (mph or km/h).
6.
Cr

uise control or speed limiter settings. A. Ma
in lighting dimmer.
B. Re set the trip distance recorder.
In

stantaneous information on:
-
ser

vicing,
-
rem

aining driving range with the
emissions additive.
7. Se
rvice indicator, then total distance
recorder (miles or km).
the

se functions are displayed in turn when
the ignition is switched on.
8.
tri

p distance recorder (miles or km).
9.
Re

v counter (x 1 000 rpm or tr/min),
graduation according to engine (petrol or
Diesel).
10.
engi

ne coolant temperature gauge.
Dials and screens Control buttons
Instruments

13
308_en_Chap01_instruments-de-bord_ed02-2015

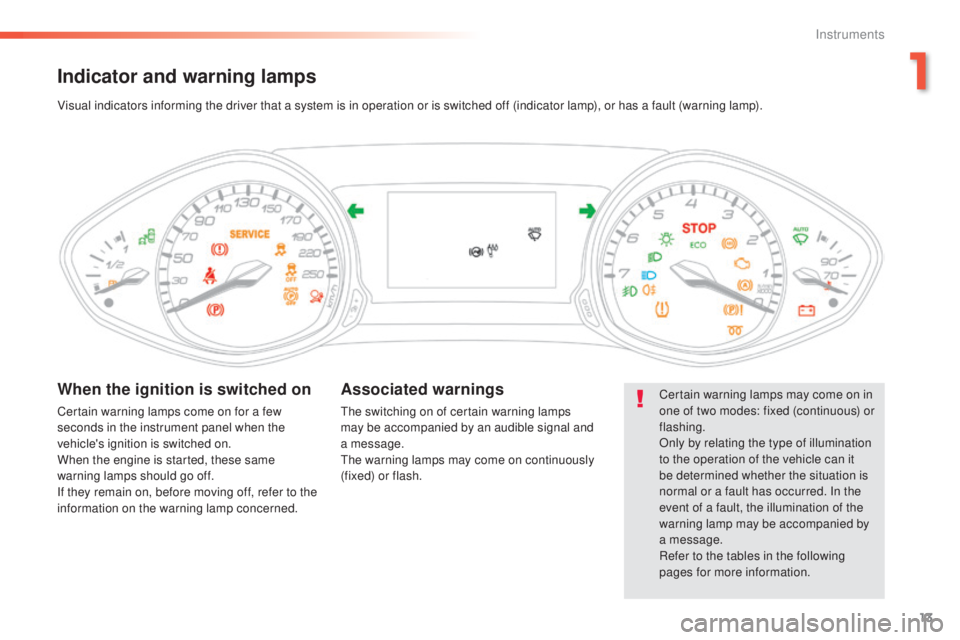

Indicator and warning lamps
Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred. In the
event of a fault, the illumination of the
warning lamp may be accompanied by
a message.
Refer to the tables in the following
pages for more information.
Visual indicators informing the driver that a system is in operation or is switched off (indicator lamp), or has a fault (warning lamp).When the ignition is switched on
Certain warning lamps come on for a few
seconds in the instrument panel when the
vehicle's ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
the switching on of certain warning lamps
m ay be accompanied by an audible signal and
a
m

essage.
the w

arning lamps may come on continuously
(fixed) or flash.
1
Instruments

14

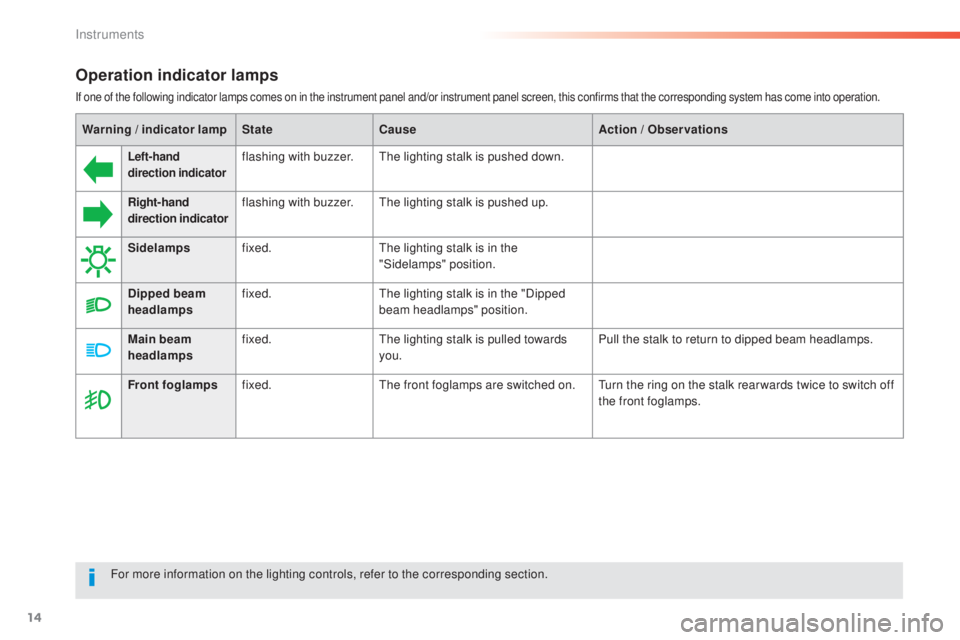

Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.
Warning / indicator lampStateCause Action / Observations
Left-hand
direction indicatorflashing with buzzer.the l ighting stalk is pushed down.
Right-hand
direction indicatorflashing with buzzer.the lighting stalk is pushed up.
Sidelamps fixed.
the l

ighting stalk is in the
"Sidelamps" position.
Dipped beam
headlamps fixed.
the l

ighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps fixed.
the l

ighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Front foglamps fixed.
the f

ront foglamps are switched on.
tur
n the ring on the stalk rear wards twice to switch off
the front foglamps.
For more information on the lighting controls, refer to the corresponding section.
Instruments

15
308_en_Chap01_instruments-de-bord_ed02-2015
Warning / indicator lampStateCause Action / Observations
Rear foglamps fixed.
the

rear foglamps are on.
tur
n the ring on the stalk rear ward to switch off the
rear foglamps.
Diesel engine
pre-heating fixed.
the i

gnition switch is
at the 2
nd position (ignition on) or the
" START/STOP " button has been
pressed. Wait until the warning lamp goes off before starting.
Once it goes off, starting is immediate, on condition that:
- th
e clutch pedal is pressed fully down with a
manual gearbox,
-
pr

essure is maintained on the brake pedal with an
automatic gearbox.
the period of illumination of the warning lamp is determined by
t he ambient conditions (up to about thirty seconds in extreme
conditions).
If the engine does not start, switch the ignition off and then on,
wait until the warning lamp goes off again, then start the engine.
Parking brake fixed.the p arking brake is applied or not
fully released.to sw itch off the warning lamp: with your foot on the
brake pedal, release the parking brake.
If your vehicle has an electric parking brake: with your
foot on the brake pedal, push the brake control lever.
Observe the safety recommendations.
For more information on the parking brake, refer to the
corresponding section.
1
Instruments

16

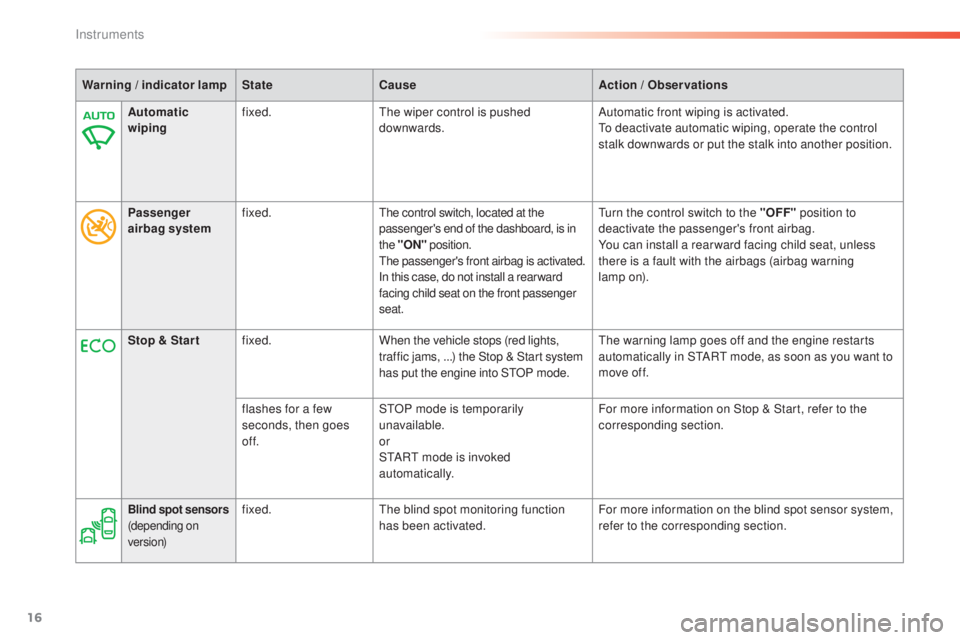

Warning / indicator lampStateCause Action / Observations
Automatic
wiping fixed.
the w

iper control is pushed
downwards. Automatic front wiping is activated.
to de

activate automatic wiping, operate the control
stalk downwards or put the stalk into another position.
Passenger
airbag system fixed.
the control switch, located at the
p assenger's end of the dashboard, is in
the "ON " position.
the p

assenger's front airbag is activated.
In this case, do not install a rear ward
facing child seat on the front passenger
seat.turn the control switch to the " O FF" position to
deactivate the passenger's front airbag.
You can install a rear ward facing child seat, unless
there is a fault with the airbags (airbag warning
lamp
o

n).
Stop & Star t fixed. When the vehicle stops (red lights,
traffic jams,
.

..) the Stop & Start system
has put the engine into S
tOP m

ode.
the w
arning lamp goes off and the engine restarts
automatically in S
tARt m

ode, as soon as you want to
move off.
flashes for a few
seconds, then goes
of f. S
tOP m

ode is temporarily
unavailable.
or
S
tARt m

ode is invoked
automatically. For more information on Stop & Start, refer to the
corresponding section.
Blind spot sensors
(depending on
ve r s i o n)fixed.the b
lind spot monitoring function
has been activated. For more information on the blind spot sensor system,
refer to the corresponding section.
Instruments

17
308_en_Chap01_instruments-de-bord_ed02-2015

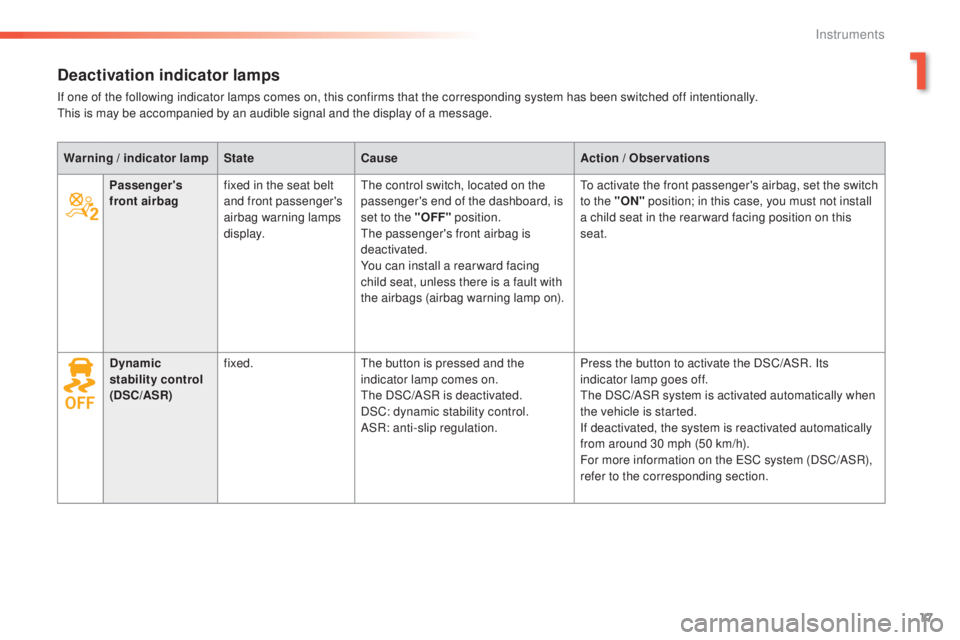

Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.this is may be accompanied by an audible signal and the display of a message.
Warning
/

indicator lamp State Cause Action
/

Observations
Passenger's
front airbag fixed in the seat belt
and front passenger's
airbag warning lamps
display.
the c

ontrol switch, located on the
passenger's end of the dashboard, is
set to the "OFF" position.
the p

assenger's front airbag is
deactivated.
You can install a rear ward facing
child seat, unless there is a fault with
the airbags (airbag warning lamp on).
to ac

tivate the front passenger's airbag, set the switch
to the "ON" position; in this case, you must not install
a child seat in the rear ward facing position on this
seat.
Dynamic
stability control
(DSC/ASR) fixed.
the b

utton is pressed and the
indicator lamp comes on.
the DS

C/ASR is deactivated.
DSC: dynamic stability control.
ASR: anti-slip regulation. Press the button to activate the DSC/ASR. Its
indicator lamp goes off.
the D

SC/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
For more information on the
eS

C system (DSC/ASR),
refer to the corresponding section.
1
Instruments

18

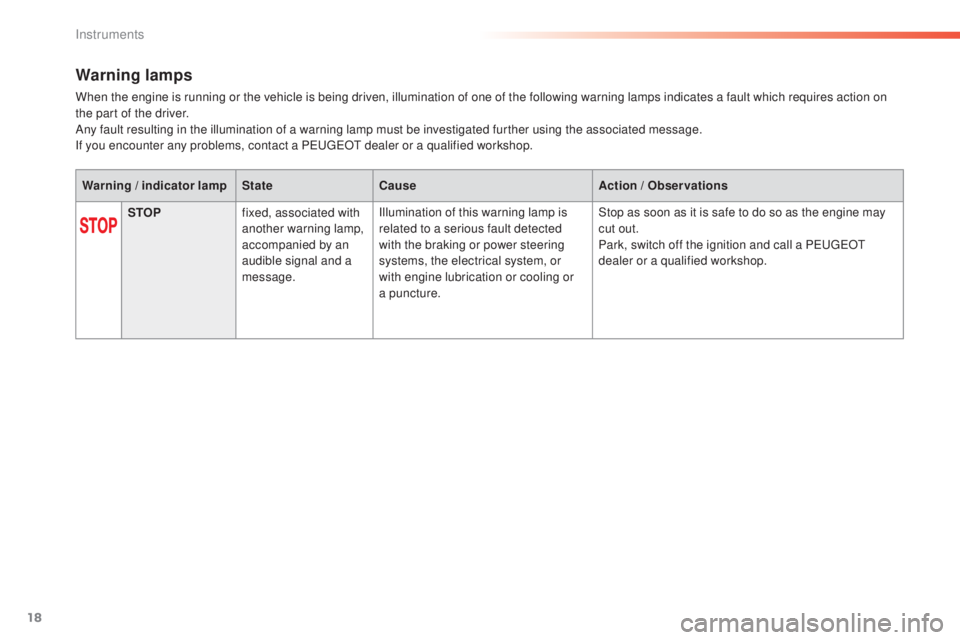

Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further using the associated message.
If you encounter any problems, contact a P
eu
ge
Ot d
ealer or a qualified workshop.
Warning
/

indicator lamp State Cause Action
/

Observations
STOP fixed, associated with
another warning lamp,
accompanied by an
audible signal and a
message. Illumination of this warning lamp is
related to a serious fault detected
with the braking or power steering
systems, the electrical system, or
with engine lubrication or cooling or
a puncture. Stop as soon as it is safe to do so as the engine may
cut out.
Park, switch off the ignition and call a P
eu

ge
Ot
d

ealer or a qualified workshop.
Instruments
